15
Maintenance (P 223)
Under the Hood (P 231)
● Check engine oil, engine coolant, and windshield washer
fluid. Add when necessary.
● Check brake fluid and clutch fluid.
● Check the battery condition monthly.
aPull the hood release handle under the corner of the
dashboard.
bLocate the hood latch lever, pull the lever up, and lift up
the hood.
cWhen finished, close the hood and make sure it is firmly
locked in place.
Lights (P249)
● Inspect all lights regularly.
Wiper Blades (P259)
● Replace blades if they leave streaks
across the windshield.
Tires (P261)
● Inspect tires and wheels regularly.
● Check tire pressures regularly.
● Install snow tires for winter
driving.
14 ACURA TSX 4D-31TL16500.book 15 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index
Quick Reference Guide - 2014 TSX

64
Instrument Panel
Indicators
IndicatorNameOn/BlinkingExplanationMessage
Parking Brake and
Brake System
Indicator
●Comes on for a few seconds when
you turn the ignition switch to ON
(w
, then goes off.●Comes on when the parking brake
is applied, and goes off when it is
released.
●Come on when the brake fluid
level is low.
●Comes on if there is a problem
with the brake system.
●The beeper sounds and the
indicator comes on if you drive
with the parking brake not fully
released.
●Comes on while driving - Make sure
the parking brake is released. Check the
brake fluid level.
2 What to do when the indicator
comes on while driving P. 296
●Comes on along with the ABS
indicator - Have the vehicle checked by
a dealer.
2 If the Brake System Indicator
Comes On P. 296
Low Oil Pressure
Indicator
●Comes on when you turn the
ignition switch to ON
(w
, and goes
off when the engine starts.
●Comes on when the engine oil
pressure is low.
●Comes on while driving - Immediately
stop in a safe place.
2 If the Low Oil Pressure Indicator
Comes On P. 294
Shift Position
Indicator *
●Indicates the current shift lever
position.
2 Shifting P. 197—
U.S.
Canada
U.S.Canada
* Not available on all models
14 ACURA TSX 4D-31TL16500.book 64 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index
TOC

223
Maintenance
This chapter discusses basic maintenance.
Before Performing MaintenanceInspection and Maintenance ............ 224
Safety When Performing Maintenance... 225
Parts and Fluids Used in Maintenance
Service ........................................... 226
Maintenance Minder
TM.....................227
Maintenance Under the Hood Maintenance Items Under the Hood .. 231
Opening the Hood ........................... 233
Recommended Engine Oil ................ 236
Oil Check ......................................... 237
Adding Engine Oil ............................ 239Engine Coolant ................................
242
Transmission Fluid ............................ 244
Brake/Clutch Fluid ............................ 246
Refilling Window Washer Fluid......... 248
Replacing Light Bulbs ....
................... 249Checking and Maintaining Wiper
Blades .......................................... 259
Checking and Maintaining Tires
Checking Tires ................................. 261
Tire and Loading Information Label .. 262
Tire Labeling .................................... 262
DOT Tire Quality Grading (U.S. Vehicles) .. 264
Wear Indicators ...............................266
Tire Service Life ................................ 266
Tire and Wheel Replacement ........... 267
Tire Rotation .................................... 268
Winter Tires ..................................... 269
Battery .............
.................................. 270
Remote Transmitter Care ................. 272
Replacing the Battery ....................... 272
Climate Control System Maintenance.. 273
Cleaning
Interior Care .................................... 274
Exterior Care.................................... 276
14 ACURA TSX 4D-31TL16500.book 223 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index 2014 TSX

224


Maintenance
Before Performing Maintenance
Inspection and Maintenance
For your safety, perform all listed inspections and maintenance to keep your vehicle
in good condition. If you become aware of any abnormality (noise, smell, insufficient
brake fluid, oil residue on the ground, etc.), have your vehicle inspected by a dealer.
(Note, however, that service at a dealer is not mandatory to keep your warranties in
effect.) Refer to the separate maintena nce booklet for detailed maintenance and
inspection information.
■Daily inspections
Perform inspections before long distance trips, when washing the vehicle, or when
refueling.
■Periodic inspections
• Check the automatic transmi ssion fluid level monthly.
2Automatic Transmission Fluid P. 244
• Check the brake fluid level monthly.
2 Brake/Clutch Fluid P. 246
• Check the tire pressure monthly. Examin e the tread for wear and foreign objects.
2Checking and Maintaining Tires P. 261
•Check the operation of the exterior lights monthly.
2 Replacing Light Bulbs P. 249
• Check the condition of the wiper bl ades at least every six months.
2Checking and Maintaining Wiper Blades P. 259
■Types of Inspection and Maintenance
1Inspection and Maintenance
Maintenance, replacement, or repair of
emissions control devices and systems may be
done by any automotive repair establishment or
individuals using parts that are “certified” to
EPA standards.
According to state and fede ral regulations, failure to
perform maintenance on the maintenance main
items marked with # will not void your emissions
warranties. However, all maintenance services should
be performed in accordan ce with the intervals
indicated by the mult i-information display.
2 Maintenance Service Items P. 229
If you want to perform complex maintenance tasks
that require more skills and tools, purchase the
service manual. 2 Authorized Manuals P. 319
If you want to perform ma intenance yourself, make
sure that you have the necessary tools and skills first.
After performing ma intenance, update the records in
the separate maintenance booklet.
U.S. models
14 ACURA TSX 4D-31TL16500.book 224 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index
TOC

229
uu Maintenance MinderTM u
Continued

■Maintenance Service Items1Maintenance Service Items
•Independent of the Maintenance Minder
information, replace the brake fluid every 3 years.
•Inspect idle speed every 160,000 miles (256,000
km).
•Adjust the valves during services A, B, 1, 2, or 3 if
they are noisy.
Maintenance Minder Message
System Message
Indicator
Sub Items
Main Items
*1: If message, SERVICE DUE NOW does not appear more than 12 months after the display is reset,
change the engine oil every year.
*2: If you drive primarily in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).
CODEMaintenance Main Items
A
●Replace engine oil*1
B●Replace engine oil*1 and oil filter●Inspect front and rear brakes●Check parking brake adjustment●Inspect tie rod ends, steering gear box, and boots●Inspect suspension components●Inspect driveshaft boots●Inspect brake hoses and lines (Including ABS)●Inspect all fluid levels and condition of fluids●Inspect exhaust system#
●Inspect fuel lines and connections#*4: Driving in mountainous areas at very low vehicle speeds or trailer towing results in higher transmission
temperatures. This requires transmission fluid changes more frequently than recommended by the
Maintenance Minder. If you regularly drive your vehicle under these conditions, have the transmission
fluid changed at 60,000 miles (100,000 km), then every 30,000 miles (48,000 km). (For A/T only.)
*5: If you drive regularly in very high temperatures (over 110°F, 43 °C), in very low temperatures (under -20°F, -29°C), or tow a trailer, replace every 60,000 miles (U.S.)/100,000 km (Canada). (6-cylinder
models only)
# : See information on maintenance and emissions warranty.
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
●Inspect drive belt
3
●Replace transmission fluid*4
4●Replace spark plugs●Replace timing belt and inspect water pump*5
●Inspect valve clearance
5
●Replace engine coolant
14 ACURA TSX 4D-31TL16500.book 229 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index
MaintenanceTOC

237
uu Maintenance Under the Hood u Oil Check
Continued

Oil Check
We recommend that you check the engi ne oil level every time you refuel.
Park the vehicle on level ground.
Wait approximately three minutes after turning the engine off before you check
the oil.
1.Remove the dipstick (orange handle).
1. Remove the dipstick (orange loop).
2. Wipe the dipstick with a clean cloth or
paper towel.
3. Insert the dipstick back all the way into
its hole.1 Oil Check
If the oil level is near or below the lower mark, slowly
add oil being careful not to overfill.
6-cylinder models
4-cylinder models4-cylinder models
6-cylinder models
All models
14 ACURA TSX 4D-31TL16500.book 237 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index
MaintenanceTOC

238
uu Maintenance Under the Hood u Oil Check



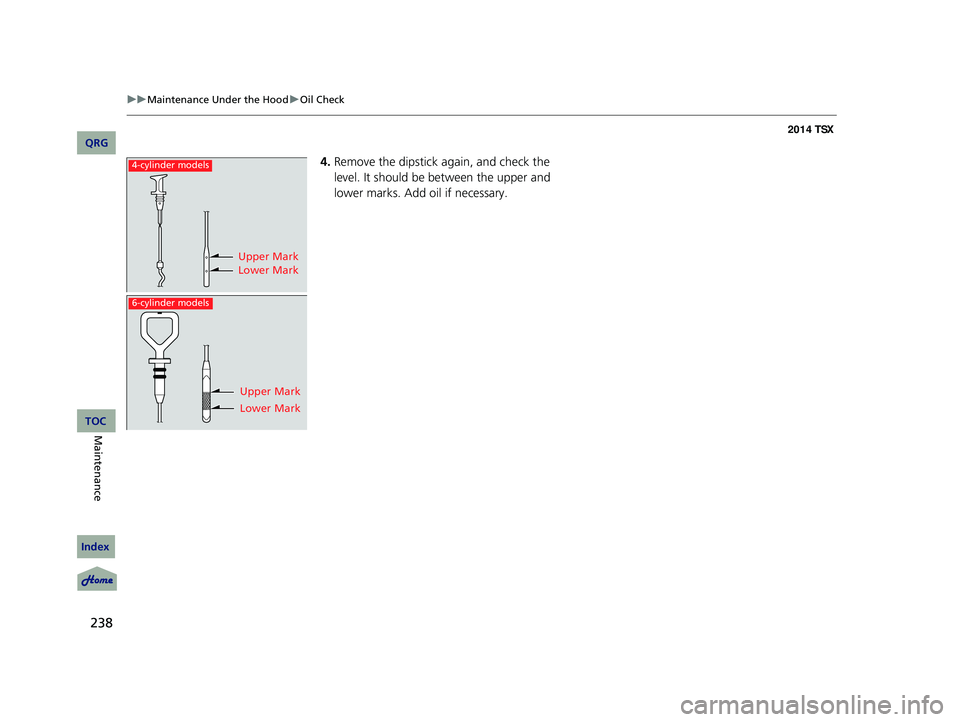

4. Remove the dipstick again, and check the
level. It should be between the upper and
lower marks. Add oil if necessary.
Upper Mark
Lower Mark
4-cylinder models
Upper Mark
Lower Mark
6-cylinder models
14 ACURA TSX 4D-31TL16500.book 238 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index
MaintenanceTOC

239
uu Maintenance Under the Hood u Adding Engine Oil

Adding Engine Oil
1. Unscrew and remove the engine oil fill cap.
2. Add oil slowly.
3. Reinstall the engine oil fill cap, and tighten
it securely.
4. Wait for three minutes and recheck the
engine oil dipstick.1Adding Engine Oil
If any oil spills, wipe it up immediately. Spilled oil may
damage the engine compartment components.
NOTICE
Do not fill the engine oil above the upper mark.
Overfilling the engine oil can result in leaks and
engine damage.
Engine Oil Fill Cap
4-cylinder models
Engine Oil Fill Cap
6-cylinder models
14 ACURA TSX 4D-31TL16500.book 239 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index
MaintenanceTOC

241
uu Maintenance Under the Hood u Changing the Engine Oil and Oil Filter

6. Check that the filter gasket is not stuck to
the engine contact surface.
u If it is stuck, you must detach it.
7. Wipe away dirt and dust adhering to the
contact surface of the engine block, and
install a new oil filter.
u Apply a light coat of new engine oil to
the oil filter rubber seal.
8. Put a new washer on the drain bolt, then
reinstall the drain bolt.
u Tightening torque: 29 lbf∙ft (39 N∙m,
4.0 kgf∙m)
9. Pour the recommended engine oil into
the engine.
u Engine oil change capacity (including
filter):
4.2 US qt (4.0 L)
4.5 US qt (4.3 L)
10. Reinstall the engine oil fill cap securely and
start the engine.
11. Run the engine for a few minutes, and
then check that there is no leak from the
drain bolt or oil filter.
12. Stop the engine, wait for three
minutes, and then check the oil level on
the dipstick.
u If necessary, add more engine oil.
1Changing the Engine Oil and Oil Filter
You will need a special wrench to replace the oil
filter. You can buy this wrench from a dealer.
When installing the new oil filter follow the
instructions supplied with the oil filter.
Reinstall the engine oil f ill cap. Start the engine.
The low oil pressure indi cator should go off within
five seconds. If it does not , turn off the engine, and
check your work.
6-cylinder models
6-cylinder models
4-cylinder models
Washer Drain Bolt
Oil Filter
Oil Filter4-cylinder models
6-cylinder models
14 ACURA TSX 4D-31TL16500.book 241 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index
MaintenanceTOC

245
uu Maintenance Under the Hood u Transmission Fluid

Check the fluid level when the engine is at normal operating temperature.
1.Park the vehicle on level ground.
2. Remove the bolts with a wrench, then
carefully remove the under cover.
3. Remove the transmission filler bolt and
washer. Carefully feel inside the bolt hole
with your fingers.
u Check if the fluid leve l is up to the edge
of the bolt hole.
4. If the fluid level is not up to the edge of the
bolt hole, add Acura Manual Transmission
Fluid (MTF) until it runs out of the hole.
5. Put a new washer on the filler bolt, then
reinstall the filler bolt.
u Tightening torque:
33 lbf∙ft (44 N∙m, 4.5 kgf∙m)
6. Reinstall the under co ver with the bolts.
■Manual Transmission Fluid
Specified fluid: Acura Manual Transmission Fluid (MTF)
1Manual Transmission Fluid
If Acura MTF is not available, you may use the API
certificated SAE 0W-20 or 5W-20 viscosity motor oil
as a temporary measure.
Replace with MTF as soon as possible. Motor oil does
not contain the proper addi tives for the transmission
and continued use can cause decreased shifting
performance and lead to transmission damage.
Under Cover
Bolt
14 ACURA TSX 4D-31TL16500.book 245 ページ ２０１３年６月１７日　月曜日　午前９時４０分
QRG
Index
MaintenanceTOC
