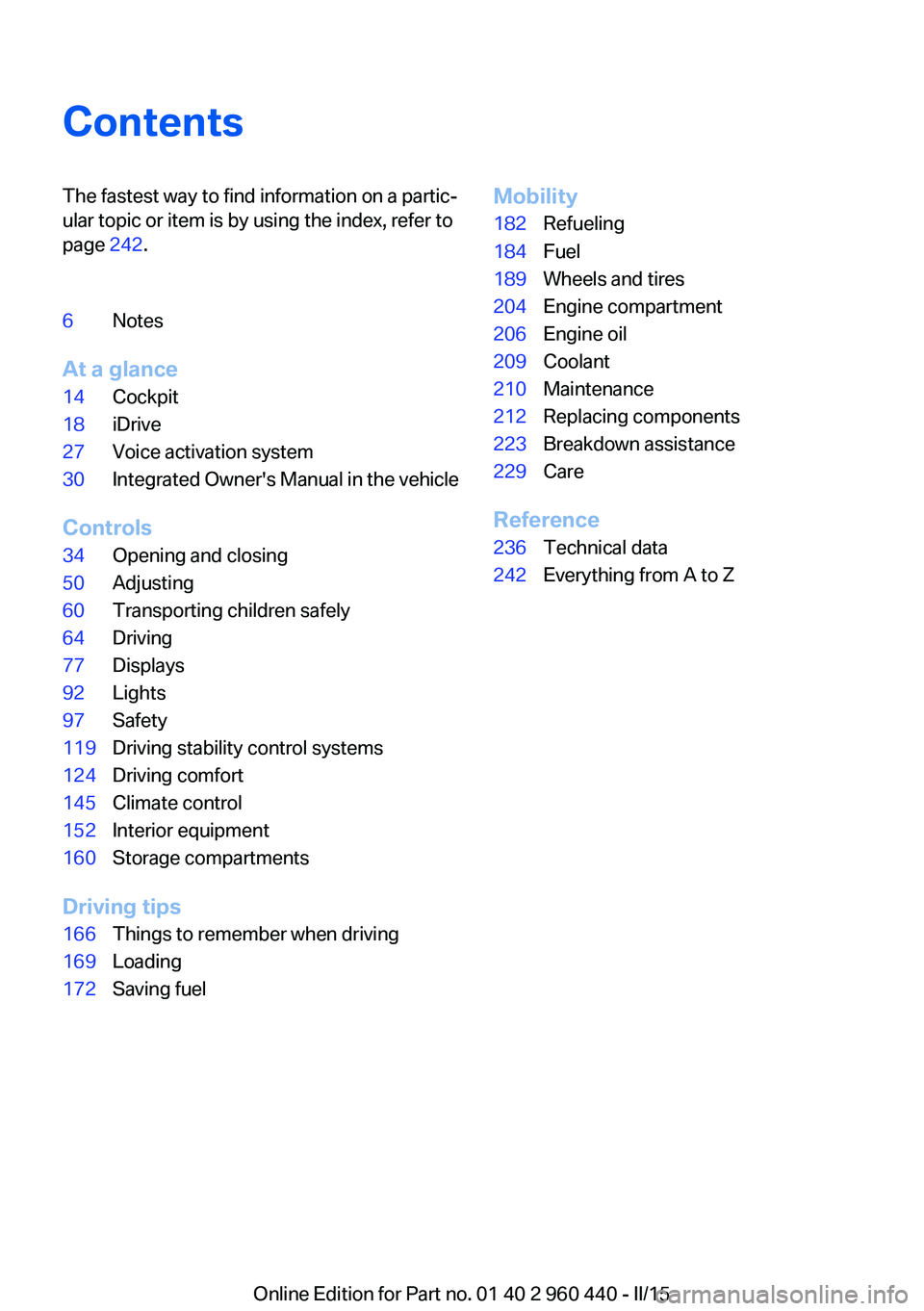

Page 9 of 257
ContentsThe fastest way to find information on a partic‐
ular topic or item is by using the index, refer to
page 242.6Notes
At a glance
14Cockpit18iDrive27Voice activation system30Integrated Owner's Manual in the vehicle
Controls
34Opening and closing50Adjusting60Transporting children safely64Driving77Displays92Lights97Safety119Driving stability control systems124Driving comfort145Climate control152Interior equipment160Storage compartments
Driving tips
166Things to remember when driving169Loading172Saving fuelMobility182Refueling184Fuel189Wheels and tires204Engine compartment206Engine oil209Coolant210Maintenance212Replacing components223Breakdown assistance229Care
Reference
236Technical data242Everything from A to Z
Online Edition for Part no. 01 40 2 960 440 - II/15

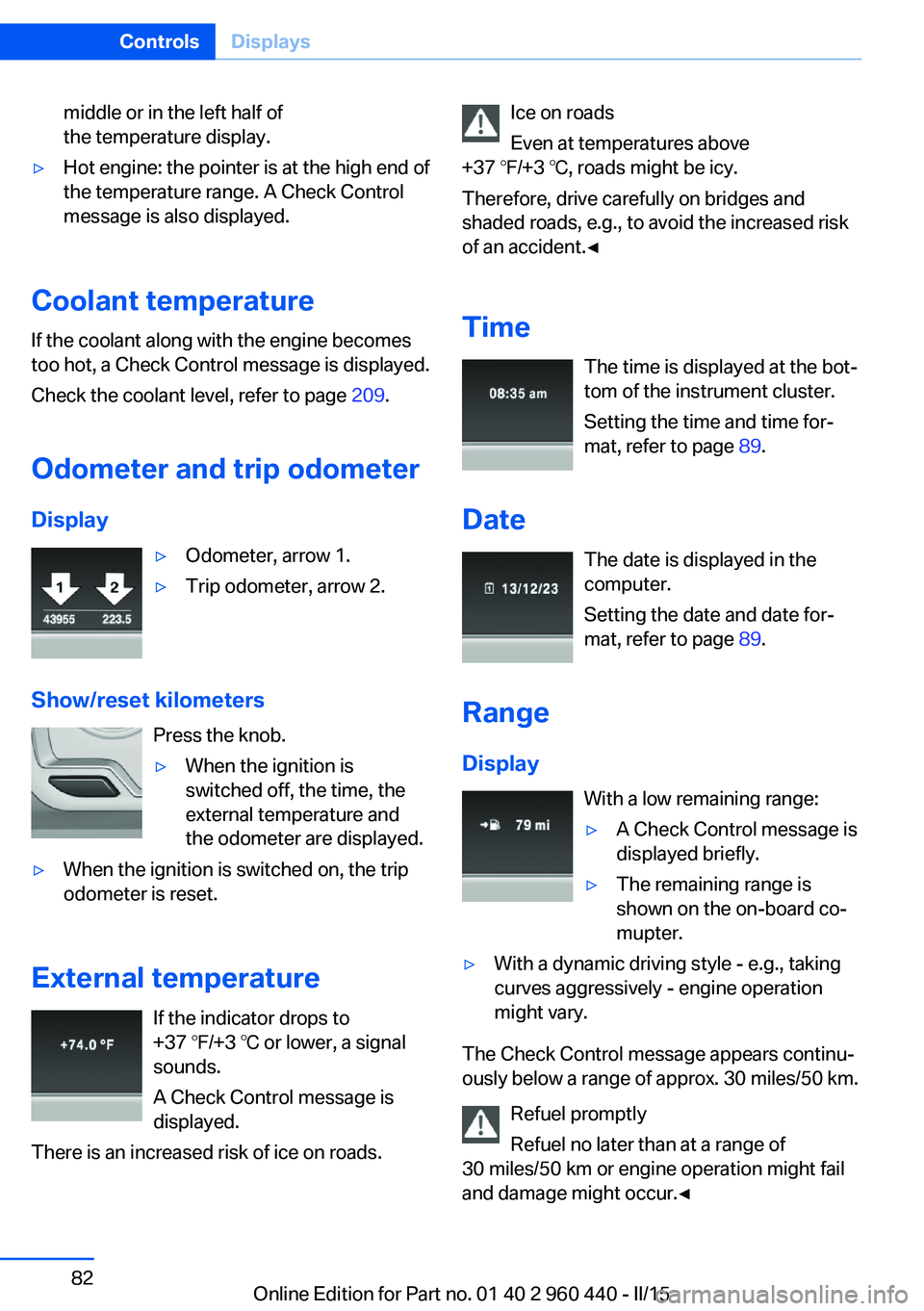

Page 86 of 257
middle or in the left half of
the temperature display.▷Hot engine: the pointer is at the high end of
the temperature range. A Check Control
message is also displayed.
Coolant temperature
If the coolant along with the engine becomes
too hot, a Check Control message is displayed.
Check the coolant level, refer to page 209.
Odometer and trip odometer Display
▷Odometer, arrow 1.▷Trip odometer, arrow 2.
Show/reset kilometers Press the knob.
▷When the ignition is
switched off, the time, the
external temperature and
the odometer are displayed.▷When the ignition is switched on, the trip
odometer is reset.
External temperature
If the indicator drops to
+37 ℉/+3 ℃ or lower, a signal
sounds.
A Check Control message is displayed.
There is an increased risk of ice on roads.
Ice on roads
Even at temperatures above
+37 ℉/+3 ℃, roads might be icy.
Therefore, drive carefully on bridges and
shaded roads, e.g., to avoid the increased risk
of an accident.◀
Time The time is displayed at the bot‐
tom of the instrument cluster.
Setting the time and time for‐
mat, refer to page 89.
Date The date is displayed in the
computer.
Setting the date and date for‐
mat, refer to page 89.
Range
Display With a low remaining range:▷A Check Control message is
displayed briefly.▷The remaining range is
shown on the on-board co‐
mupter.▷With a dynamic driving style - e.g., taking
curves aggressively - engine operation
might vary.
The Check Control message appears continu‐
ously below a range of approx. 30 miles/50 km.
Refuel promptly
Refuel no later than at a range of
30 miles/50 km or engine operation might fail
and damage might occur.◀
Seite 82ControlsDisplays82
Online Edition for Part no. 01 40 2 960 440 - II/15

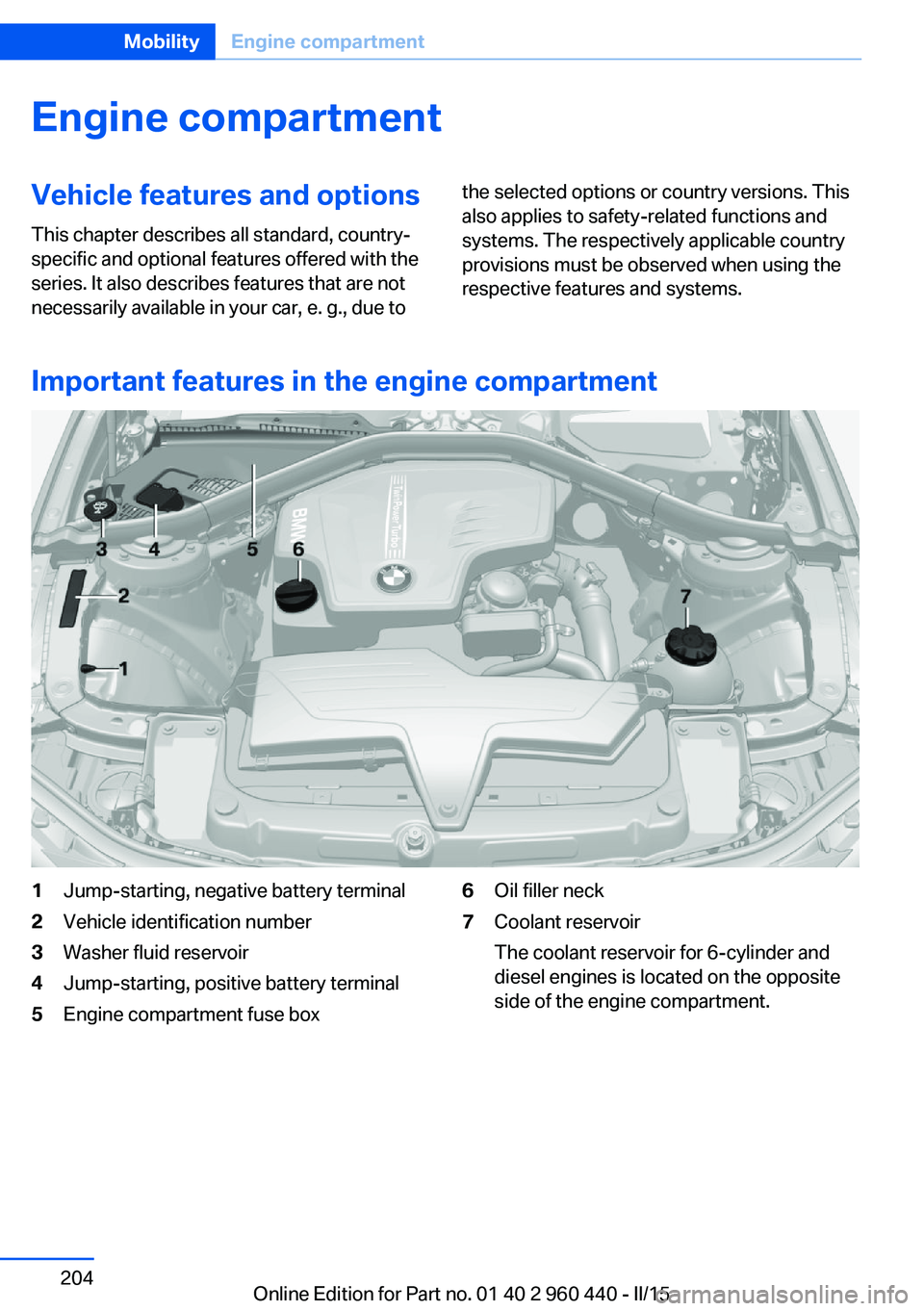

Page 208 of 257
Engine compartmentVehicle features and optionsThis chapter describes all standard, country-
specific and optional features offered with the
series. It also describes features that are not
necessarily available in your car, e. g., due tothe selected options or country versions. This
also applies to safety-related functions and
systems. The respectively applicable country
provisions must be observed when using the
respective features and systems.
Important features in the engine compartment
1Jump-starting, negative battery terminal2Vehicle identification number3Washer fluid reservoir4Jump-starting, positive battery terminal5Engine compartment fuse box6Oil filler neck7Coolant reservoir
The coolant reservoir for 6-cylinder and
diesel engines is located on the opposite
side of the engine compartment.Seite 204MobilityEngine compartment204
Online Edition for Part no. 01 40 2 960 440 - II/15

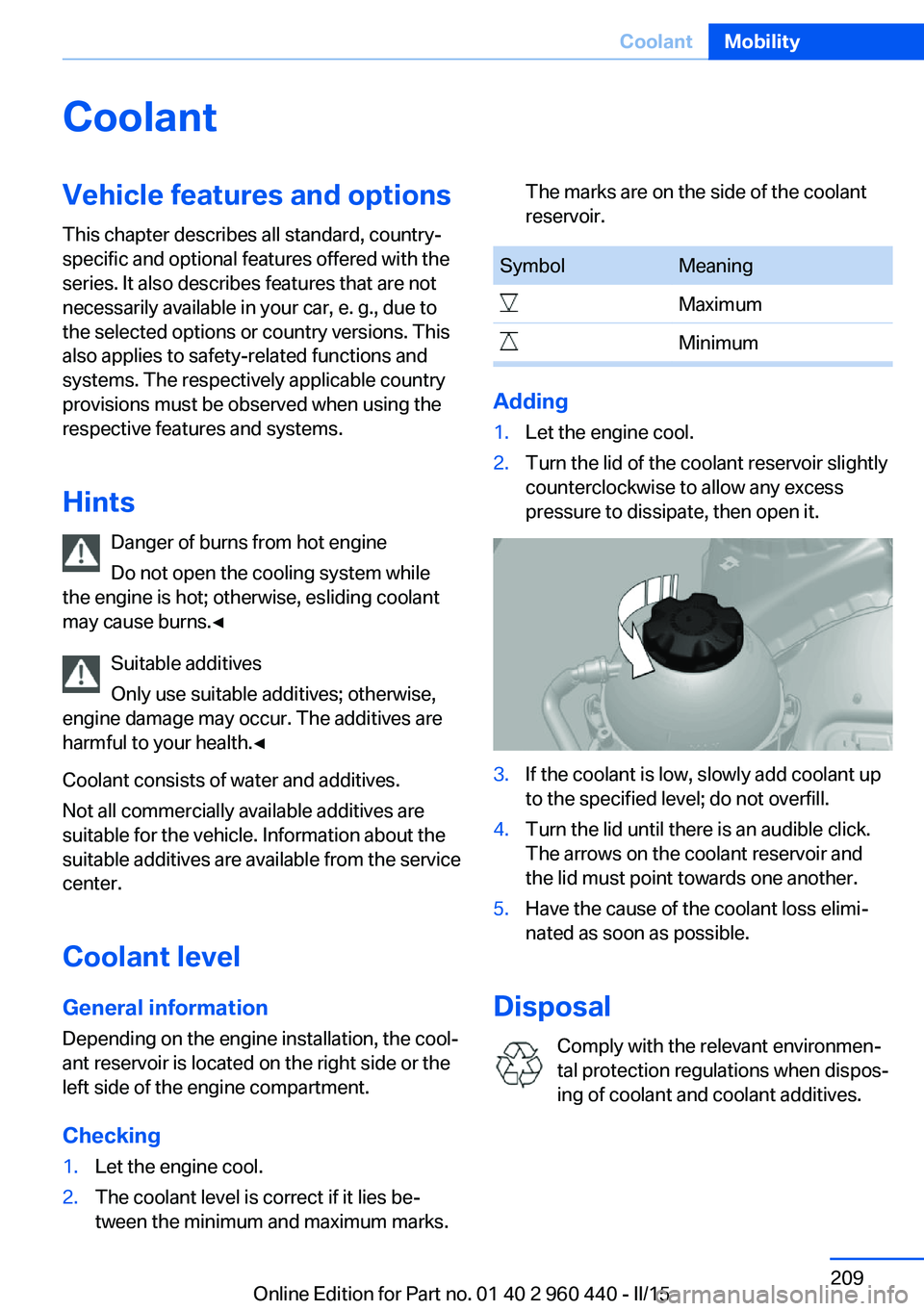

Page 213 of 257
CoolantVehicle features and optionsThis chapter describes all standard, country-
specific and optional features offered with the
series. It also describes features that are not
necessarily available in your car, e. g., due to
the selected options or country versions. This
also applies to safety-related functions and
systems. The respectively applicable country
provisions must be observed when using the
respective features and systems.
Hints Danger of burns from hot engine
Do not open the cooling system while
the engine is hot; otherwise, esliding coolant
may cause burns.◀
Suitable additives
Only use suitable additives; otherwise,
engine damage may occur. The additives are
harmful to your health.◀
Coolant consists of water and additives.
Not all commercially available additives are
suitable for the vehicle. Information about the
suitable additives are available from the service
center.
Coolant level
General information
Depending on the engine installation, the cool‐
ant reservoir is located on the right side or the
left side of the engine compartment.
Checking1.Let the engine cool.2.The coolant level is correct if it lies be‐
tween the minimum and maximum marks.The marks are on the side of the coolant
reservoir.SymbolMeaningMaximumMinimum
Adding
1.Let the engine cool.2.Turn the lid of the coolant reservoir slightly
counterclockwise to allow any excess
pressure to dissipate, then open it.3.If the coolant is low, slowly add coolant up
to the specified level; do not overfill.4.Turn the lid until there is an audible click.
The arrows on the coolant reservoir and
the lid must point towards one another.5.Have the cause of the coolant loss elimi‐
nated as soon as possible.
Disposal
Comply with the relevant environmen‐
tal protection regulations when dispos‐
ing of coolant and coolant additives.
Seite 209CoolantMobility209
Online Edition for Part no. 01 40 2 960 440 - II/15

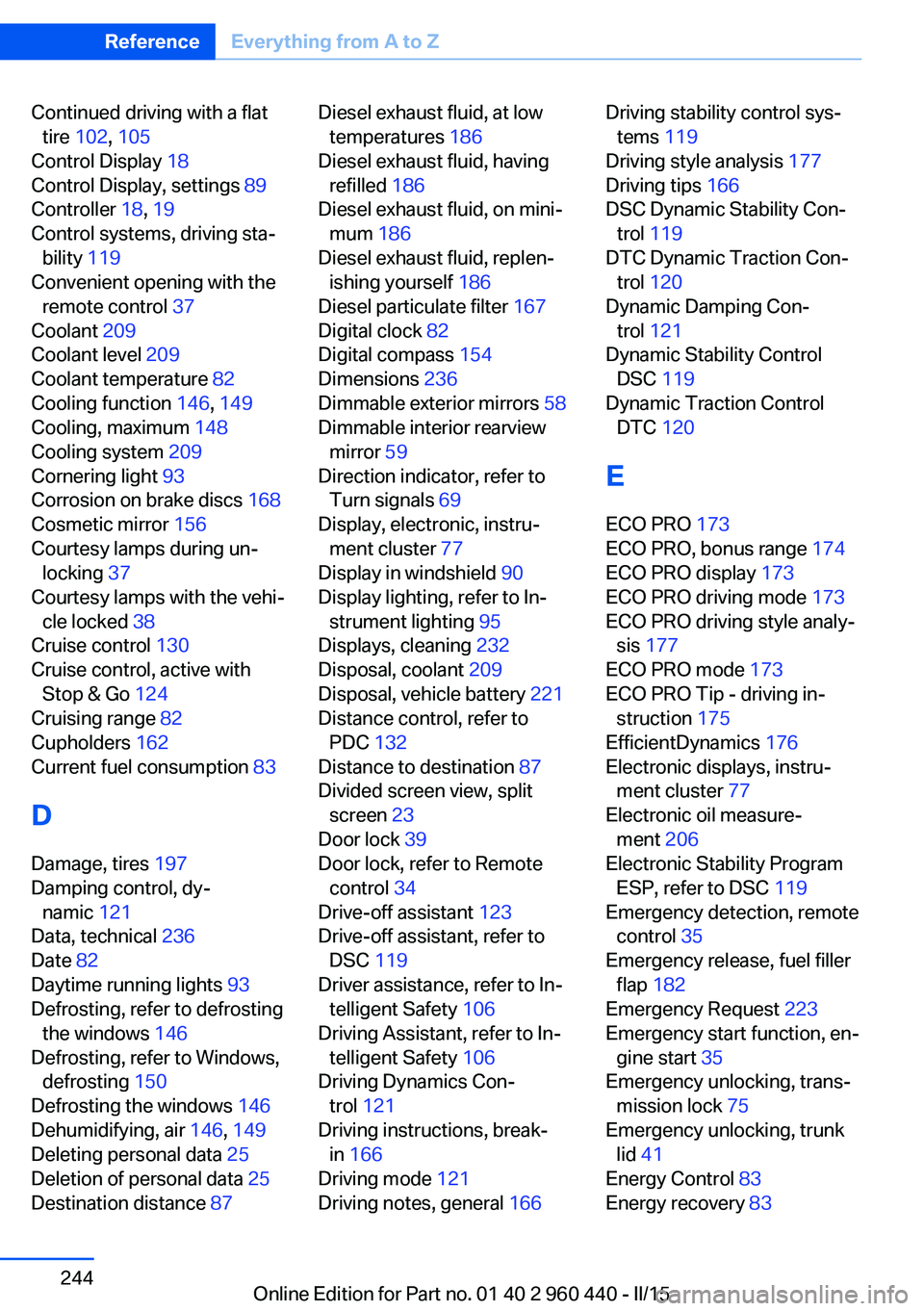

Page 248 of 257
Continued driving with a flattire 102 , 105
Control Display 18
Control Display, settings 89
Controller 18, 19
Control systems, driving sta‐ bility 119
Convenient opening with the remote control 37
Coolant 209
Coolant level 209
Coolant temperature 82
Cooling function 146, 149
Cooling, maximum 148
Cooling system 209
Cornering light 93
Corrosion on brake discs 168
Cosmetic mirror 156
Courtesy lamps during un‐ locking 37
Courtesy lamps with the vehi‐ cle locked 38
Cruise control 130
Cruise control, active with Stop & Go 124
Cruising range 82
Cupholders 162
Current fuel consumption 83
D
Damage, tires 197
Damping control, dy‐ namic 121
Data, technical 236
Date 82
Daytime running lights 93
Defrosting, refer to defrosting the windows 146
Defrosting, refer to Windows, defrosting 150
Defrosting the windows 146
Dehumidifying, air 146, 149
Deleting personal data 25
Deletion of personal data 25
Destination distance 87 Diesel exhaust fluid, at low
temperatures 186
Diesel exhaust fluid, having refilled 186
Diesel exhaust fluid, on mini‐ mum 186
Diesel exhaust fluid, replen‐ ishing yourself 186
Diesel particulate filter 167
Digital clock 82
Digital compass 154
Dimensions 236
Dimmable exterior mirrors 58
Dimmable interior rearview mirror 59
Direction indicator, refer to Turn signals 69
Display, electronic, instru‐ ment cluster 77
Display in windshield 90
Display lighting, refer to In‐ strument lighting 95
Displays, cleaning 232
Disposal, coolant 209
Disposal, vehicle battery 221
Distance control, refer to PDC 132
Distance to destination 87
Divided screen view, split screen 23
Door lock 39
Door lock, refer to Remote control 34
Drive-off assistant 123
Drive-off assistant, refer to DSC 119
Driver assistance, refer to In‐ telligent Safety 106
Driving Assistant, refer to In‐ telligent Safety 106
Driving Dynamics Con‐ trol 121
Driving instructions, break- in 166
Driving mode 121
Driving notes, general 166 Driving stability control sys‐
tems 119
Driving style analysis 177
Driving tips 166
DSC Dynamic Stability Con‐ trol 119
DTC Dynamic Traction Con‐ trol 120
Dynamic Damping Con‐ trol 121
Dynamic Stability Control DSC 119
Dynamic Traction Control DTC 120
E ECO PRO 173
ECO PRO, bonus range 174
ECO PRO display 173
ECO PRO driving mode 173
ECO PRO driving style analy‐ sis 177
ECO PRO mode 173
ECO PRO Tip - driving in‐ struction 175
EfficientDynamics 176
Electronic displays, instru‐ ment cluster 77
Electronic oil measure‐ ment 206
Electronic Stability Program ESP, refer to DSC 119
Emergency detection, remote control 35
Emergency release, fuel filler flap 182
Emergency Request 223
Emergency start function, en‐ gine start 35
Emergency unlocking, trans‐ mission lock 75
Emergency unlocking, trunk lid 41
Energy Control 83
Energy recovery 83 Seite 244ReferenceEverything from A to Z244
Online Edition for Part no. 01 40 2 960 440 - II/15

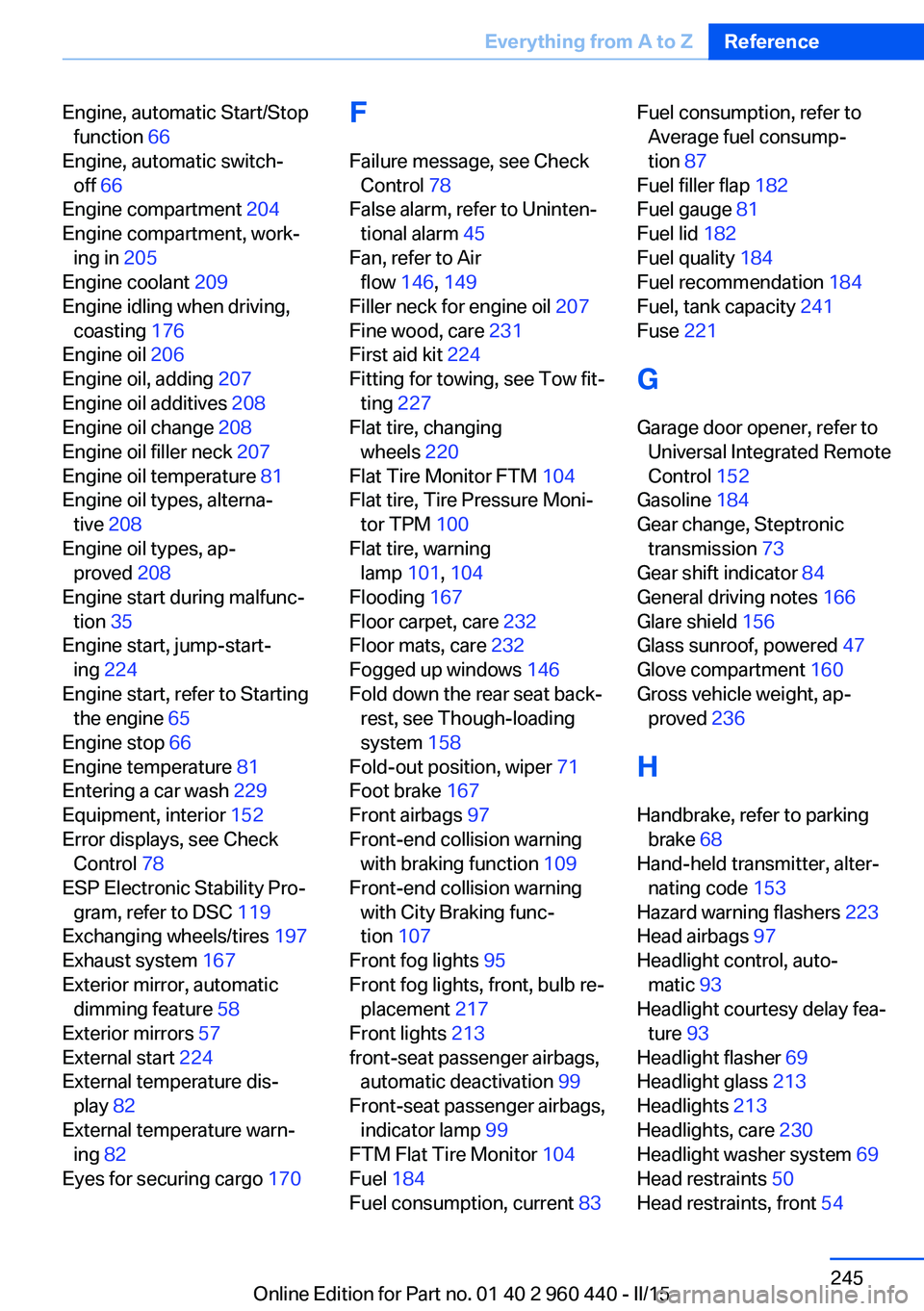

Page 249 of 257
Engine, automatic Start/Stopfunction 66
Engine, automatic switch- off 66
Engine compartment 204
Engine compartment, work‐ ing in 205
Engine coolant 209
Engine idling when driving, coasting 176
Engine oil 206
Engine oil, adding 207
Engine oil additives 208
Engine oil change 208
Engine oil filler neck 207
Engine oil temperature 81
Engine oil types, alterna‐ tive 208
Engine oil types, ap‐ proved 208
Engine start during malfunc‐ tion 35
Engine start, jump-start‐ ing 224
Engine start, refer to Starting the engine 65
Engine stop 66
Engine temperature 81
Entering a car wash 229
Equipment, interior 152
Error displays, see Check Control 78
ESP Electronic Stability Pro‐ gram, refer to DSC 119
Exchanging wheels/tires 197
Exhaust system 167
Exterior mirror, automatic dimming feature 58
Exterior mirrors 57
External start 224
External temperature dis‐ play 82
External temperature warn‐ ing 82
Eyes for securing cargo 170 F
Failure message, see Check Control 78
False alarm, refer to Uninten‐ tional alarm 45
Fan, refer to Air flow 146, 149
Filler neck for engine oil 207
Fine wood, care 231
First aid kit 224
Fitting for towing, see Tow fit‐ ting 227
Flat tire, changing wheels 220
Flat Tire Monitor FTM 104
Flat tire, Tire Pressure Moni‐ tor TPM 100
Flat tire, warning lamp 101, 104
Flooding 167
Floor carpet, care 232
Floor mats, care 232
Fogged up windows 146
Fold down the rear seat back‐ rest, see Though-loading
system 158
Fold-out position, wiper 71
Foot brake 167
Front airbags 97
Front-end collision warning with braking function 109
Front-end collision warning with City Braking func‐
tion 107
Front fog lights 95
Front fog lights, front, bulb re‐ placement 217
Front lights 213
front-seat passenger airbags, automatic deactivation 99
Front-seat passenger airbags, indicator lamp 99
FTM Flat Tire Monitor 104
Fuel 184
Fuel consumption, current 83 Fuel consumption, refer to
Average fuel consump‐
tion 87
Fuel filler flap 182
Fuel gauge 81
Fuel lid 182
Fuel quality 184
Fuel recommendation 184
Fuel, tank capacity 241
Fuse 221
G Garage door opener, refer to Universal Integrated Remote
Control 152
Gasoline 184
Gear change, Steptronic transmission 73
Gear shift indicator 84
General driving notes 166
Glare shield 156
Glass sunroof, powered 47
Glove compartment 160
Gross vehicle weight, ap‐ proved 236
H Handbrake, refer to parking brake 68
Hand-held transmitter, alter‐ nating code 153
Hazard warning flashers 223
Head airbags 97
Headlight control, auto‐ matic 93
Headlight courtesy delay fea‐ ture 93
Headlight flasher 69
Headlight glass 213
Headlights 213
Headlights, care 230
Headlight washer system 69
Head restraints 50
Head restraints, front 54 Seite 245Everything from A to ZReference245
Online Edition for Part no. 01 40 2 960 440 - II/15

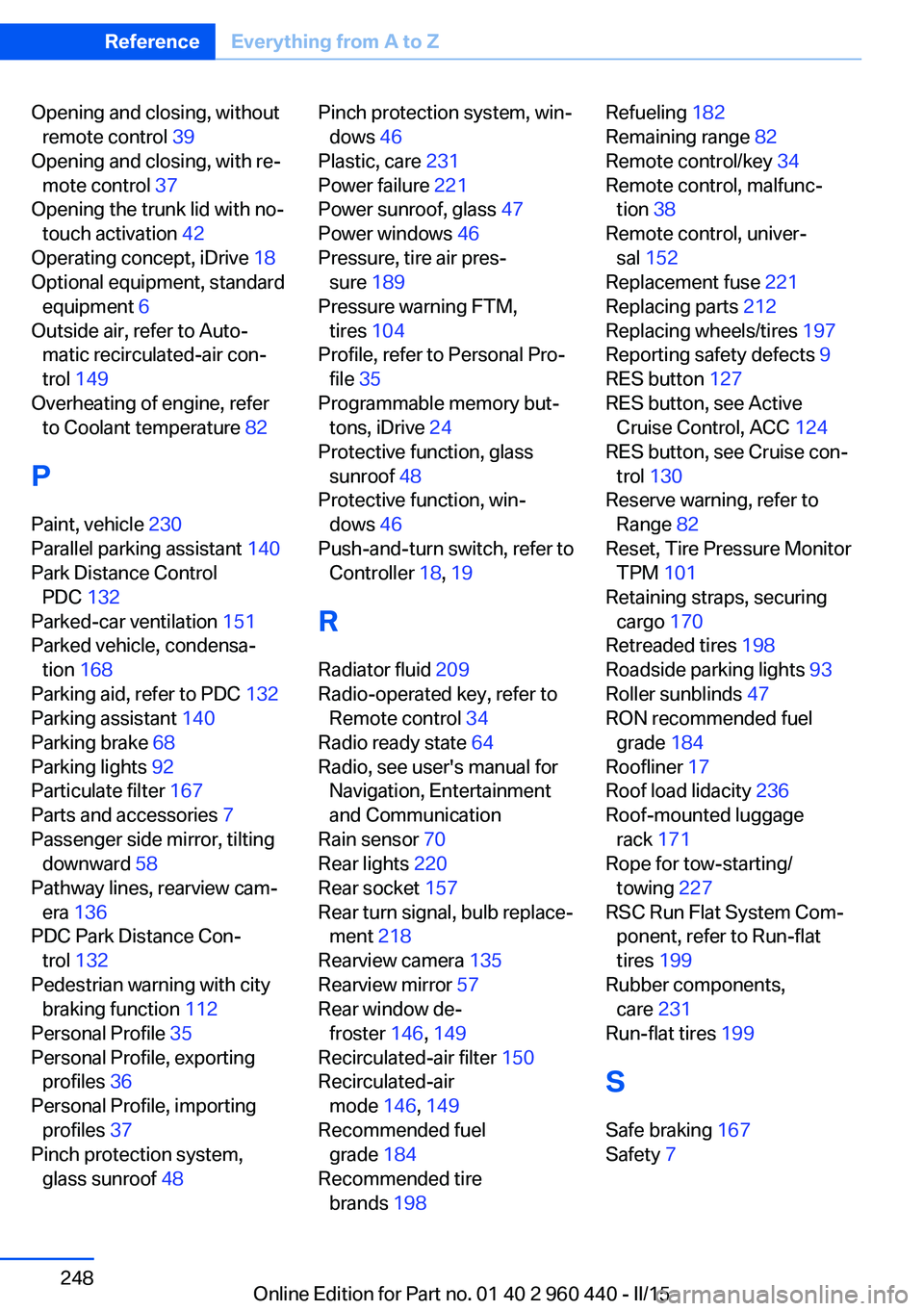

Page 252 of 257
Opening and closing, withoutremote control 39
Opening and closing, with re‐ mote control 37
Opening the trunk lid with no- touch activation 42
Operating concept, iDrive 18
Optional equipment, standard equipment 6
Outside air, refer to Auto‐ matic recirculated-air con‐
trol 149
Overheating of engine, refer to Coolant temperature 82
P Paint, vehicle 230
Parallel parking assistant 140
Park Distance Control PDC 132
Parked-car ventilation 151
Parked vehicle, condensa‐ tion 168
Parking aid, refer to PDC 132
Parking assistant 140
Parking brake 68
Parking lights 92
Particulate filter 167
Parts and accessories 7
Passenger side mirror, tilting downward 58
Pathway lines, rearview cam‐ era 136
PDC Park Distance Con‐ trol 132
Pedestrian warning with city braking function 112
Personal Profile 35
Personal Profile, exporting profiles 36
Personal Profile, importing profiles 37
Pinch protection system, glass sunroof 48 Pinch protection system, win‐
dows 46
Plastic, care 231
Power failure 221
Power sunroof, glass 47
Power windows 46
Pressure, tire air pres‐ sure 189
Pressure warning FTM, tires 104
Profile, refer to Personal Pro‐ file 35
Programmable memory but‐ tons, iDrive 24
Protective function, glass sunroof 48
Protective function, win‐ dows 46
Push-and-turn switch, refer to Controller 18, 19
R Radiator fluid 209
Radio-operated key, refer to Remote control 34
Radio ready state 64
Radio, see user's manual for Navigation, Entertainment
and Communication
Rain sensor 70
Rear lights 220
Rear socket 157
Rear turn signal, bulb replace‐ ment 218
Rearview camera 135
Rearview mirror 57
Rear window de‐ froster 146, 149
Recirculated-air filter 150
Recirculated-air mode 146, 149
Recommended fuel grade 184
Recommended tire brands 198 Refueling 182
Remaining range 82
Remote control/key 34
Remote control, malfunc‐ tion 38
Remote control, univer‐ sal 152
Replacement fuse 221
Replacing parts 212
Replacing wheels/tires 197
Reporting safety defects 9
RES button 127
RES button, see Active Cruise Control, ACC 124
RES button, see Cruise con‐ trol 130
Reserve warning, refer to Range 82
Reset, Tire Pressure Monitor TPM 101
Retaining straps, securing cargo 170
Retreaded tires 198
Roadside parking lights 93
Roller sunblinds 47
RON recommended fuel grade 184
Roofliner 17
Roof load lidacity 236
Roof-mounted luggage rack 171
Rope for tow-starting/ towing 227
RSC Run Flat System Com‐ ponent, refer to Run-flat
tires 199
Rubber components, care 231
Run-flat tires 199
S Safe braking 167
Safety 7 Seite 248ReferenceEverything from A to Z248
Online Edition for Part no. 01 40 2 960 440 - II/15
