Socket for OBD Onboard
Diagnostics interface
Components which are decisive for the
exhaust-gas composition can be checked via
the OBD socket with a device.
This socket is located to the left on the driver's
side, on the underside of the instrument panel
under a cover.
Exhaust-gas values
The warning lamp lights up. The
exhaust-gas values worsen. Have the
vehicle checked as soon as possible.
Display of the previously described
malfunction in Canadian models.
The lamp flashes under certain conditions. This
is a sign of excessive misfiring of the engine. In
this case you should reduce your speed and
proceed to the nearest BMW Sports Activity
Vehicle Center. Heavy engine misfiring causes
serious damage to the emission-relevant com-
ponents, especially the catalytic converter,
within a short time.
The warning lamp lights up if the fuel
filler cap is not properly tightened and
the OBD system can close when fuel
vapor escapes. If the fuel filler cap is then tight-
ened, the display must go out within a few days.
Event Data Recorders
Your vehicle may be equipped with one or sev-
eral measuring and diagnosis modules, or with
a device for recording or transmitting certain
vehicle data or information. If you have also
signed a contract of participation for
BMW Assist, certain vehicle data can be trans-
mitted or recorded to enable corresponding
services.
Care
Important information on the care and mainte-
nance of your BMW is contained in the Caring
for your vehicle brochure.

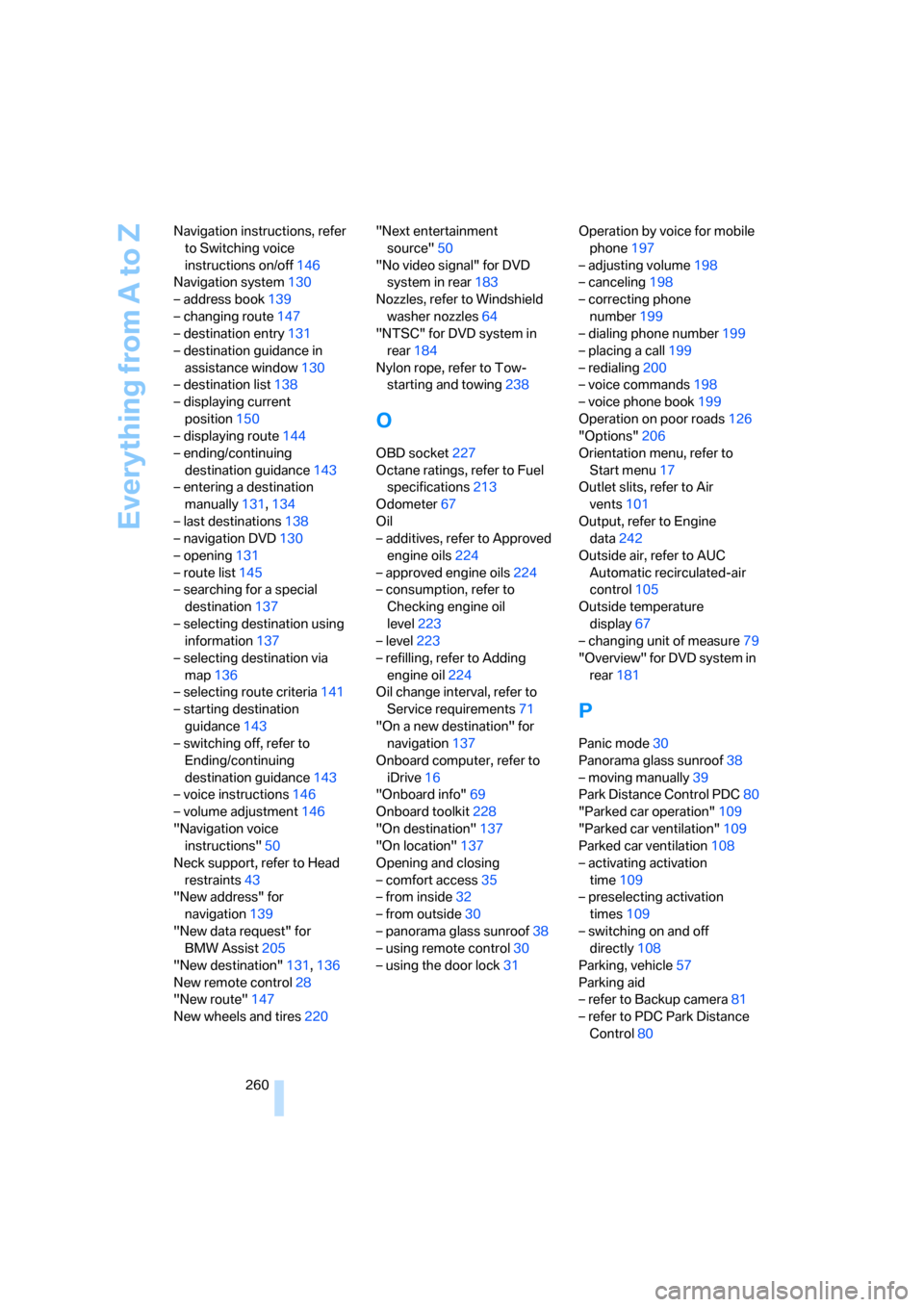

Everything from A to Z
260 Navigation instructions, refer
to Switching voice
instructions on/off146
Navigation system130
– address book139
– changing route147
– destination entry131
– destination guidance in
assistance window130
– destination list138
– displaying current
position150
– displaying route144
– ending/continuing
destination guidance143
– entering a destination
manually131,134
– last destinations138
– navigation DVD130
– opening131
– route list145
– searching for a special
destination137
– selecting destination using
information137
– selecting destination via
map136
– selecting route criteria141
– starting destination
guidance143
– switching off, refer to
Ending/continuing
destination guidance143
– voice instructions146
– volume adjustment146
"Navigation voice
instructions"50
Neck support, refer to Head
restraints43
"New address" for
navigation139
"New data request" for
BMW Assist205
"New destination"131,136
New remote control28
"New route"147
New wheels and tires220"Next entertainment
source"50
"No video signal" for DVD
system in rear183
Nozzles, refer to Windshield
washer nozzles64
"NTSC" for DVD system in
rear184
Nylon rope, refer to Tow-
starting and towing238
O
OBD socket227
Octane ratings, refer to Fuel
specifications213
Odometer67
Oil
– additives, refer to Approved
engine oils224
– approved engine oils224
– consumption, refer to
Checking engine oil
level223
– level223
– refilling, refer to Adding
engine oil224
Oil change interval, refer to
Service requirements71
"On a new destination" for
navigation137
Onboard computer, refer to
iDrive16
"Onboard info"69
Onboard toolkit228
"On destination"137
"On location"137
Opening and closing
– comfort access35
– from inside32
– from outside30
– panorama glass sunroof38
– using remote control30
– using the door lock31Operation by voice for mobile
phone197
– adjusting volume198
– canceling198
– correcting phone
number199
– dialing phone number199
– placing a call199
– redialing200
– voice commands198
– voice phone book199
Operation on poor roads126
"Options"206
Orientation menu, refer to
Start menu17
Outlet slits, refer to Air
vents101
Output, refer to Engine
data242
Outside air, refer to AUC
Automatic recirculated-air
control105
Outside temperature
display67
– changing unit of measure79
"Overview" for DVD system in
rear181
P
Panic mode30
Panorama glass sunroof38
– moving manually39
Park Distance Control PDC80
"Parked car operation"109
"Parked car ventilation"109
Parked car ventilation108
– activating activation
time109
– preselecting activation
times109
– switching on and off
directly108
Parking, vehicle57
Parking aid
– refer to Backup camera81
– refer to PDC Park Distance
Control80
