Page 12 of 272
Cockpit
10
Cockpit
Around the steering wheel: controls and displays
1Rear window safety switch38
2Opening and closing windows37
3Folding exterior mirrors in and out
*48
4Adjusting exterior mirrors48
Automatic curb monitor
*49
5
Instrument lighting99
Fog lamps
*99
6
Parking lamps97
Low beams97
Automatic headlamp control
*97
Adaptive Head Light
*98
7
Head-Up Display
*94

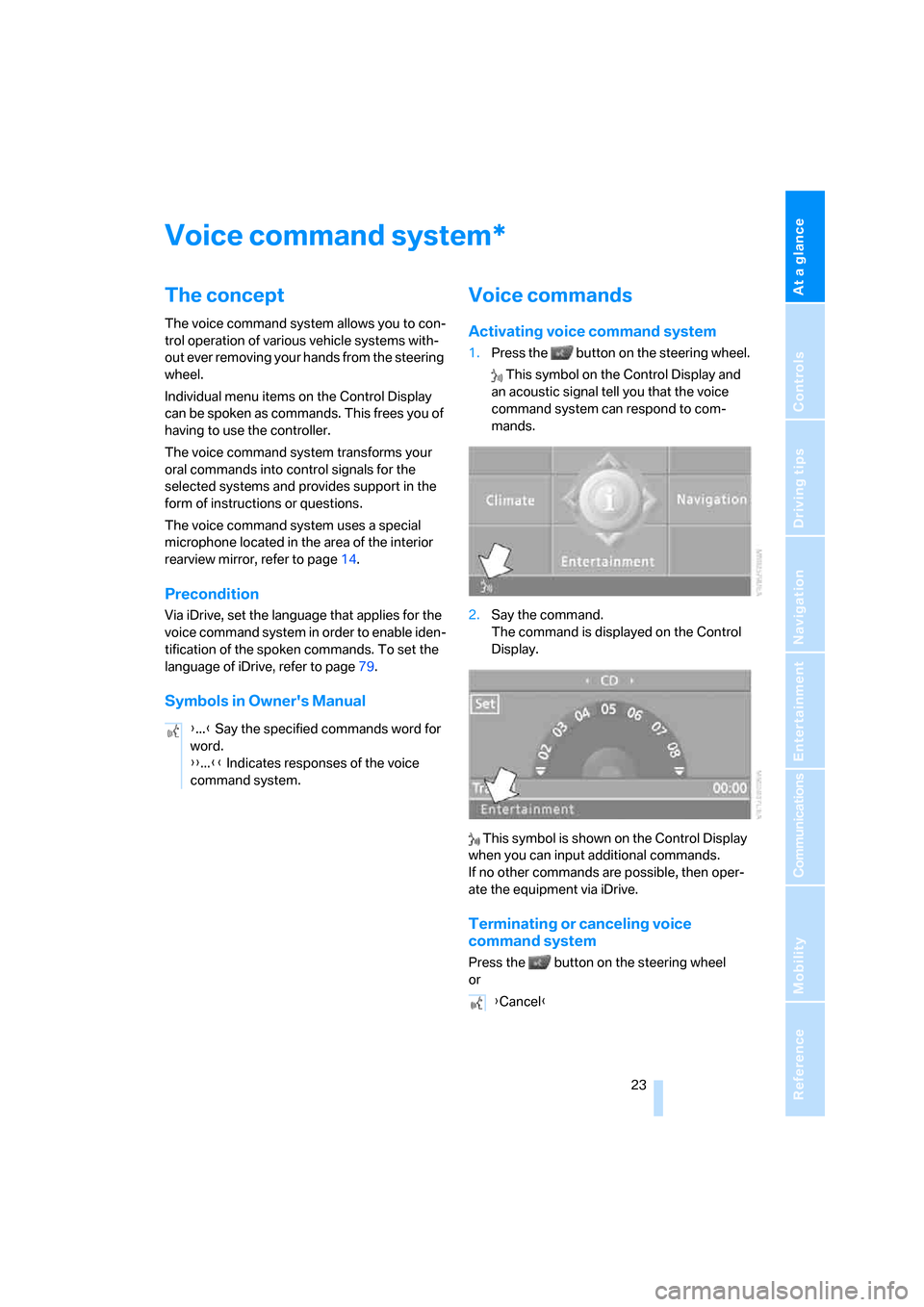

Page 25 of 272
At a glance
23Reference
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
Voice command system
The concept
The voice command system allows you to con-
trol operation of various vehicle systems with-
out ever removing your hands from the steering
wheel.
Individual menu items on the Control Display
can be spoken as commands. This frees you of
having to use the controller.
The voice command system transforms your
oral commands into control signals for the
selected systems and provides support in the
form of instructions or questions.
The voice command system uses a special
microphone located in the area of the interior
rearview mirror, refer to page14.
Precondition
Via iDrive, set the language that applies for the
voice command system in order to enable iden-
tification of the spoken commands. To set the
language of iDrive, refer to page79.
Symbols in Owner's Manual
Voice commands
Activating voice command system
1.Press the button on the steering wheel.
This symbol on the Control Display and
an acoustic signal tell you that the voice
command system can respond to com-
mands.
2.Say the command.
The command is displayed on the Control
Display.
This symbol is shown on the Control Display
when you can input additional commands.
If no other commands are possible, then oper-
ate the equipment via iDrive.
Terminating or canceling voice
command system
Press the button on the steering wheel
or
*
{...} Say the specified commands word for
word.
{{...}} Indicates responses of the voice
command system.
{Cancel}
Page 31 of 272
Controls
29Reference
At a glance
Driving tips
Communications
Navigation
Entertainment
Mobility
remote control is detected and the settings
stored for it are called up and carried out.
This means that you will always find your BMW
set to your own personal settings even if
another person with his/her own remote control
and settings has used the vehicle since the last
time you drove it. The individual settings are
stored for a maximum of three remote controls.
Personal Profile settings
Details on the settings are provided on the
specified pages.
>When unlocking with the remote control,
either unlock only the driver's door or the
entire vehicle, refer to page30
>Locking the vehicle after a short time or
after starting off, refer to page32
>Assigning the programmable buttons
* on
the steering wheel, refer to page50
>Settings for the display on the Control Dis-
play:
>Brightness of the Control Display, refer
to page78
>Measuring units for consumption, route/
distances, temperature, and pressure,
refer to page79
>Language on Control Display, refer to
page79
>12h/24h mode of the clock, refer to
page78
>Date format, refer to page78
>Showing optical warning for PDC Park Dis-
tance Control
*, refer to page81
>Selection, brightness and position of dis-
play in Head-Up Display
*, refer to page94
>For settings of automatic climate control,
refer to page102
>Positions of driver's seat, exterior mirrors,
and steering wheel
*, refer to page42
>With Adaptive Drive
*, last selected chassis
and suspension tuning setting, refer to
page86
>Audio sources, volume and tone settings,
refer to page155>Radio, displaying stored stations, refer to
page158
>Telephone, setting volume, refer to
pages192,198
>Pathway lighting, refer to page97, and
daytime running lamps, refer to page98
>Triple turn signal activation, refer to
page62
>With backup camera
*, selection of func-
tions, refer to page82 and type of display,
refer to page83
>With programmable memory/direct selec-
tion buttons, selection of stored functions,
refer to page21
Central locking system
The concept
The central locking system is ready for opera-
tion whenever the driver's door is closed.
The system simultaneously engages and
releases the locks on the following:
>Doors
>Liftgate
>Fuel filler door
Operating from outside
>via the remote control
>via the door lock
>with comfort access
* via the door handles
At the same time, the anti-theft system is also
operated. It prevents the doors from being
unlocked using the lock buttons or door han-
dles. The interior lamps and the courtesy
lamps
* are also switched on and off with the
remote control. The alarm system
is armed/dis-
armed at the same time.
You can find more detailed information on the
alarm system
on page34.
Operating from inside
Via the button for central locking, refer to
page32. The fuel filler door is not locked.

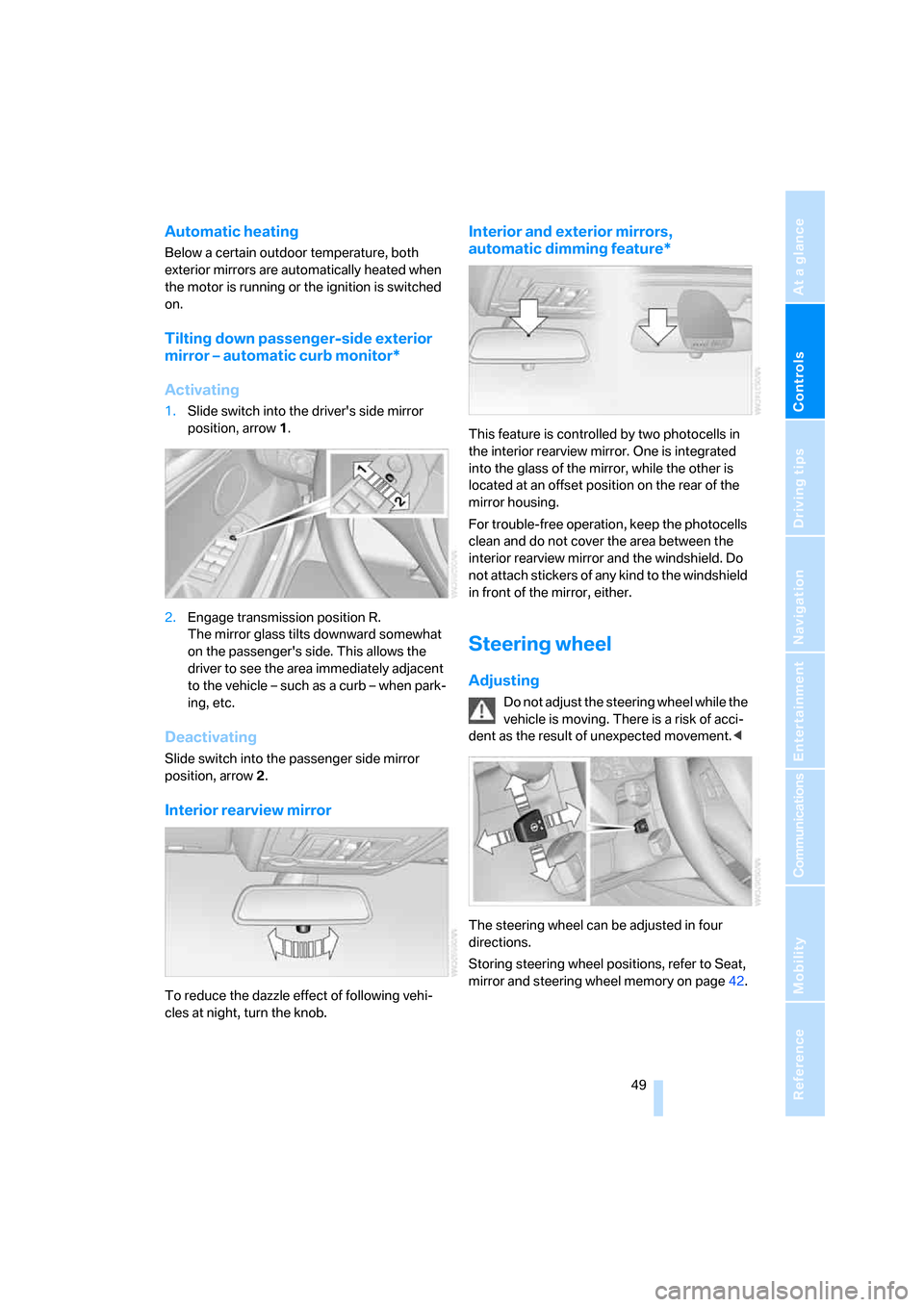

Page 51 of 272
Controls
49Reference
At a glance
Driving tips
Communications
Navigation
Entertainment
Mobility
Automatic heating
Below a certain outdoor temperature, both
exterior mirrors are automatically heated when
the motor is running or the ignition is switched
on.
Tilting down passenger-side exterior
mirror – automatic curb monitor*
Activating
1.Slide switch into the driver's side mirror
position, arrow 1.
2.Engage transmission position R.
The mirror glass tilts downward somewhat
on the passenger's side. This allows the
driver to see the area immediately adjacent
to the vehicle – such as a curb – when park-
ing, etc.
Deactivating
Slide switch into the passenger side mirror
position, arrow 2.
Interior rearview mirror
To reduce the dazzle effect of following vehi-
cles at night, turn the knob.
Interior and exterior mirrors,
automatic dimming feature*
This feature is controlled by two photocells in
the interior rearview mirror. One is integrated
into the glass of the mirror, while the other is
located at an offset position on the rear of the
mirror housing.
For trouble-free operation, keep the photocells
clean and do not cover the area between the
interior rearview mirror and the windshield. Do
not attach stickers of any kind to the windshield
in front of the mirror, either.
Steering wheel
Adjusting
Do not adjust the steering wheel while the
vehicle is moving. There is a risk of acci-
dent as the result of unexpected movement.<
The steering wheel can be adjusted in four
directions.
Storing steering wheel positions, refer to Seat,
mirror and steering wheel memory on page42.
Page 65 of 272
Controls
63Reference
At a glance
Driving tips
Communications
Navigation
Entertainment
Mobility
5.Change to upper field if necessary. Turn the
controller until "Lighting" is selected and
press the controller.
6.Select "Triple turn signal" and press the
controller.
Triple turn signaling is activated.
Washer/wiper system
1Switching on wipers
2Switching off wipers or brief wipe
3Activating/deactivating rain sensor
4Cleaning windshield and headlamps
*
5Adjusting rain sensor sensitivity level
Switching on wipers
Pull the lever upward, arrow1.
The lever automatically returns to its initial posi-
tion when released.
Normal wiper speed
Press once.
The system reverts to operation in the intermit-
tent mode when the vehicle is stationary.
Fast wiper speed
Press twice or press beyond the resistance
point.
The system reverts to normal speed when the
vehicle is stationary.
Rain sensor*
The wiper operation is controlled automatically
as a function of the rain intensity. The rain sen-
sor is located on the windshield, directly in front
of the interior rearview mirror.
Activating rain sensor
Press the button, arrow3. The LED in the but-
ton lights up.
Adjusting rain sensor sensitivity level
Turn the knurled wheel5.
Deactivating rain sensor
Press the button again, arrow3. The LED goes
out.
Deactivate the rain sensor when passing
through an automatic car wash. Failure to
do so could result in damage caused by undes-
ired wiper activation.<
Cleaning windshield and headlamps*
Pull the lever, arrow4.
The system sprays washer fluid against the
windshield and activates the wipers for a brief
period.
When the vehicle lighting is switched on, the
headlamps are simultaneously washed at
appropriate intervals.

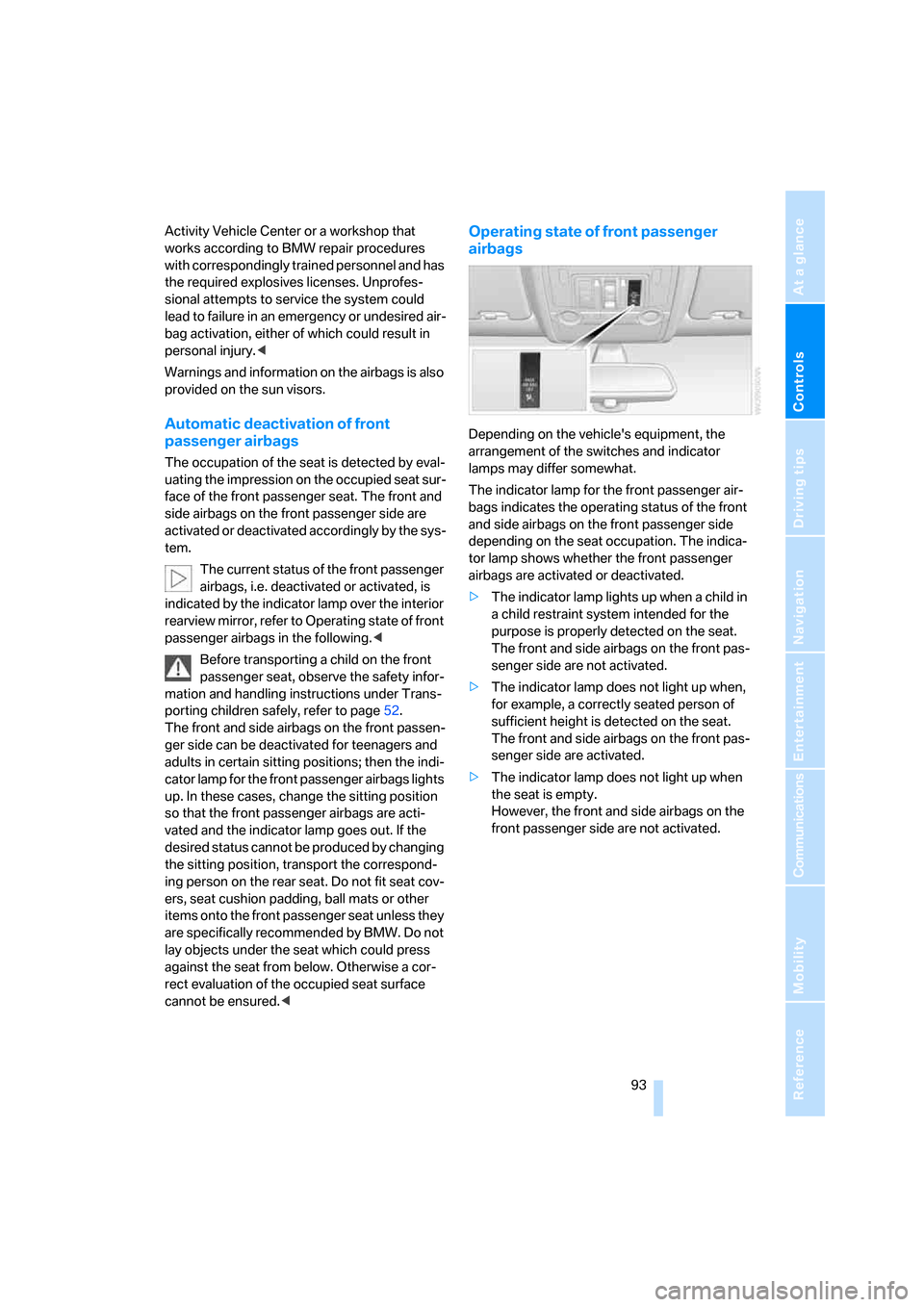

Page 95 of 272
Controls
93Reference
At a glance
Driving tips
Communications
Navigation
Entertainment
Mobility
Activity Vehicle Center or a workshop that
works according to BMW repair procedures
with correspondingly trained personnel and has
the required explosives licenses. Unprofes-
sional attempts to service the system could
lead to failure in an emergency or undesired air-
bag activation, either of which could result in
personal injury.<
Warnings and information on the airbags is also
provided on the sun visors.
Automatic deactivation of front
passenger airbags
The occupation of the seat is detected by eval-
uating the impression on the occupied seat sur-
face of the front passenger seat. The front and
side airbags on the front passenger side are
activated or deactivated accordingly by the sys-
tem.
The current status of the front passenger
airbags, i.e. deactivated or activated, is
indicated by the indicator lamp over the interior
rearview mirror, refer to Operating state of front
passenger airbags in the following.<
Before transporting a child on the front
passenger seat, observe the safety infor-
mation and handling instructions under Trans-
porting children safely, refer to page52.
The front and side airbags on the front passen-
ger side can be deactivated for teenagers and
adults in certain sitting positions; then the indi-
cator lamp for the front passenger airbags lights
up. In these cases, change the sitting position
so that the front passenger airbags are acti-
vated and the indicator lamp goes out. If the
desired status cannot be produced by changing
the sitting position, transport the correspond-
ing person on the rear seat. Do not fit seat cov-
ers, seat cushion padding, ball mats or other
items onto the front passenger seat unless they
are specifically recommended by BMW. Do not
lay objects under the seat which could press
against the seat from below. Otherwise a cor-
rect evaluation of the occupied seat surface
cannot be ensured.<
Operating state of front passenger
airbags
Depending on the vehicle's equipment, the
arrangement of the switches and indicator
lamps may differ somewhat.
The indicator lamp for the front passenger air-
bags indicates the operating status of the front
and side airbags on the front passenger side
depending on the seat occupation. The indica-
tor lamp shows whether the front passenger
airbags are activated or deactivated.
>The indicator lamp lights up when a child in
a child restraint system intended for the
purpose is properly detected on the seat.
The front and side airbags on the front pas-
senger side are not activated.
>The indicator lamp does not light up when,
for example, a correctly seated person of
sufficient height is detected on the seat.
The front and side airbags on the front pas-
senger side are activated.
>The indicator lamp does not light up when
the seat is empty.
However, the front and side airbags on the
front passenger side are not activated.
Page 259 of 272

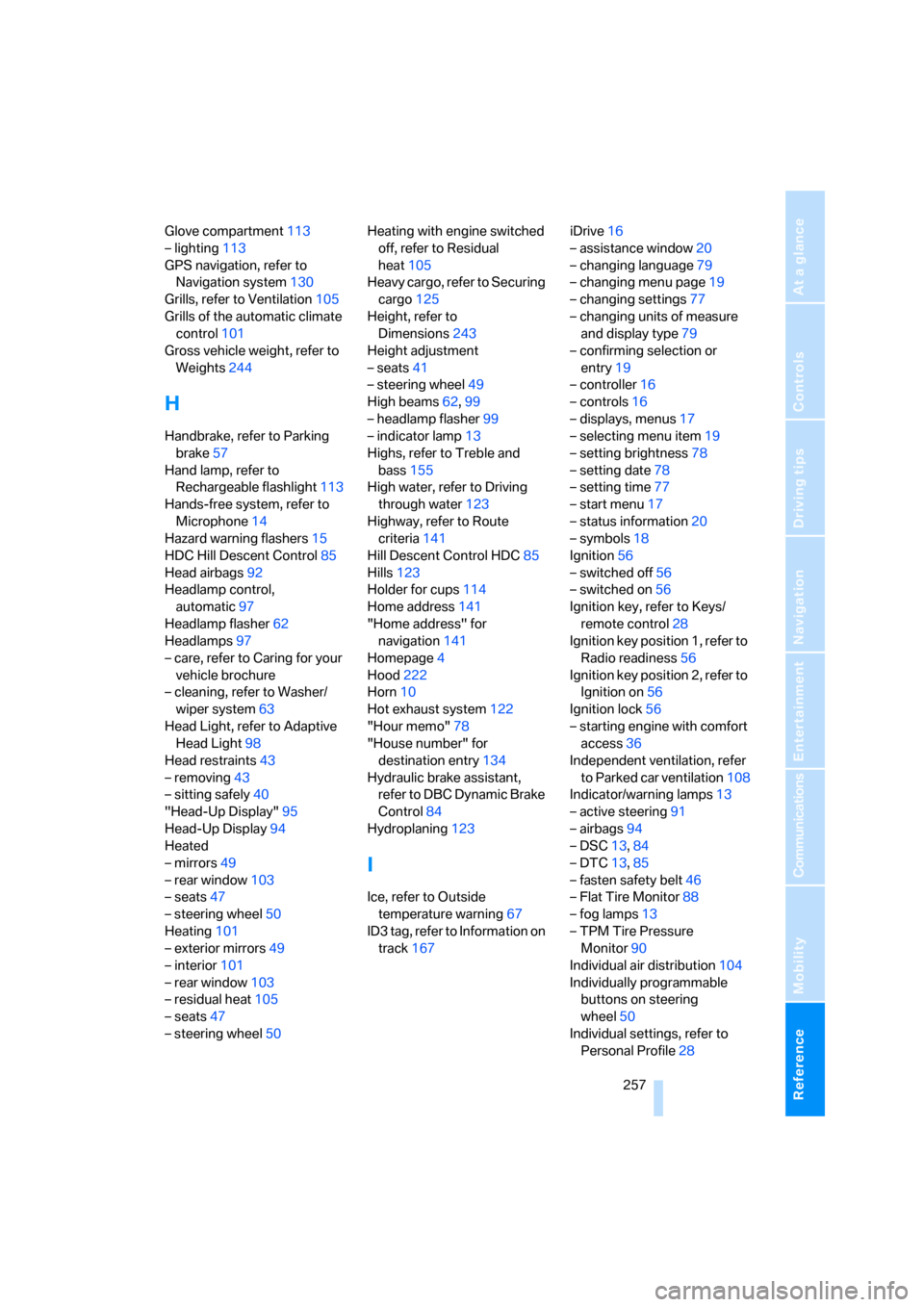

Reference 257
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
Glove compartment113
– lighting113
GPS navigation, refer to
Navigation system130
Grills, refer to Ventilation105
Grills of the automatic climate
control101
Gross vehicle weight, refer to
Weights244
H
Handbrake, refer to Parking
brake57
Hand lamp, refer to
Rechargeable flashlight113
Hands-free system, refer to
Microphone14
Hazard warning flashers15
HDC Hill Descent Control85
Head airbags92
Headlamp control,
automatic97
Headlamp flasher62
Headlamps97
– care, refer to Caring for your
vehicle brochure
– cleaning, refer to Washer/
wiper system63
Head Light, refer to Adaptive
Head Light98
Head restraints43
– removing43
– sitting safely40
"Head-Up Display"95
Head-Up Display94
Heated
– mirrors49
– rear window103
– seats47
– steering wheel50
Heating101
– exterior mirrors49
– interior101
– rear window103
– residual heat105
– seats47
– steering wheel50Heating with engine switched
off, refer to Residual
heat105
Heavy cargo, refer to Securing
cargo125
Height, refer to
Dimensions243
Height adjustment
– seats41
– steering wheel49
High beams62,99
– headlamp flasher99
– indicator lamp13
Highs, refer to Treble and
bass155
High water, refer to Driving
through water123
Highway, refer to Route
criteria141
Hill Descent Control HDC85
Hills123
Holder for cups114
Home address141
"Home address" for
navigation141
Homepage4
Hood222
Horn10
Hot exhaust system122
"Hour memo"78
"House number" for
destination entry134
Hydraulic brake assistant,
refer to DBC Dynamic Brake
Control84
Hydroplaning123
I
Ice, refer to Outside
temperature warning67
ID3 tag, refer to Information on
track167iDrive16
– assistance window20
– changing language79
– changing menu page19
– changing settings77
– changing units of measure
and display type79
– confirming selection or
entry19
– controller16
– controls16
– displays, menus17
– selecting menu item19
– setting brightness78
– setting date78
– setting time77
– start menu17
– status information20
– symbols18
Ignition56
– switched off56
– switched on56
Ignition key, refer to Keys/
remote control28
Ignition key position 1, refer to
Radio readiness56
Ignition key position 2, refer to
Ignition on56
Ignition lock56
– starting engine with comfort
access36
Independent ventilation, refer
to Parked car ventilation108
Indicator/warning lamps13
– active steering91
– airbags94
– DSC13,84
– DTC13,85
– fasten safety belt46
– Flat Tire Monitor88
– fog lamps13
– TPM Tire Pressure
Monitor90
Individual air distribution104
Individually programmable
buttons on steering
wheel50
Individual settings, refer to
Personal Profile28
Page 261 of 272

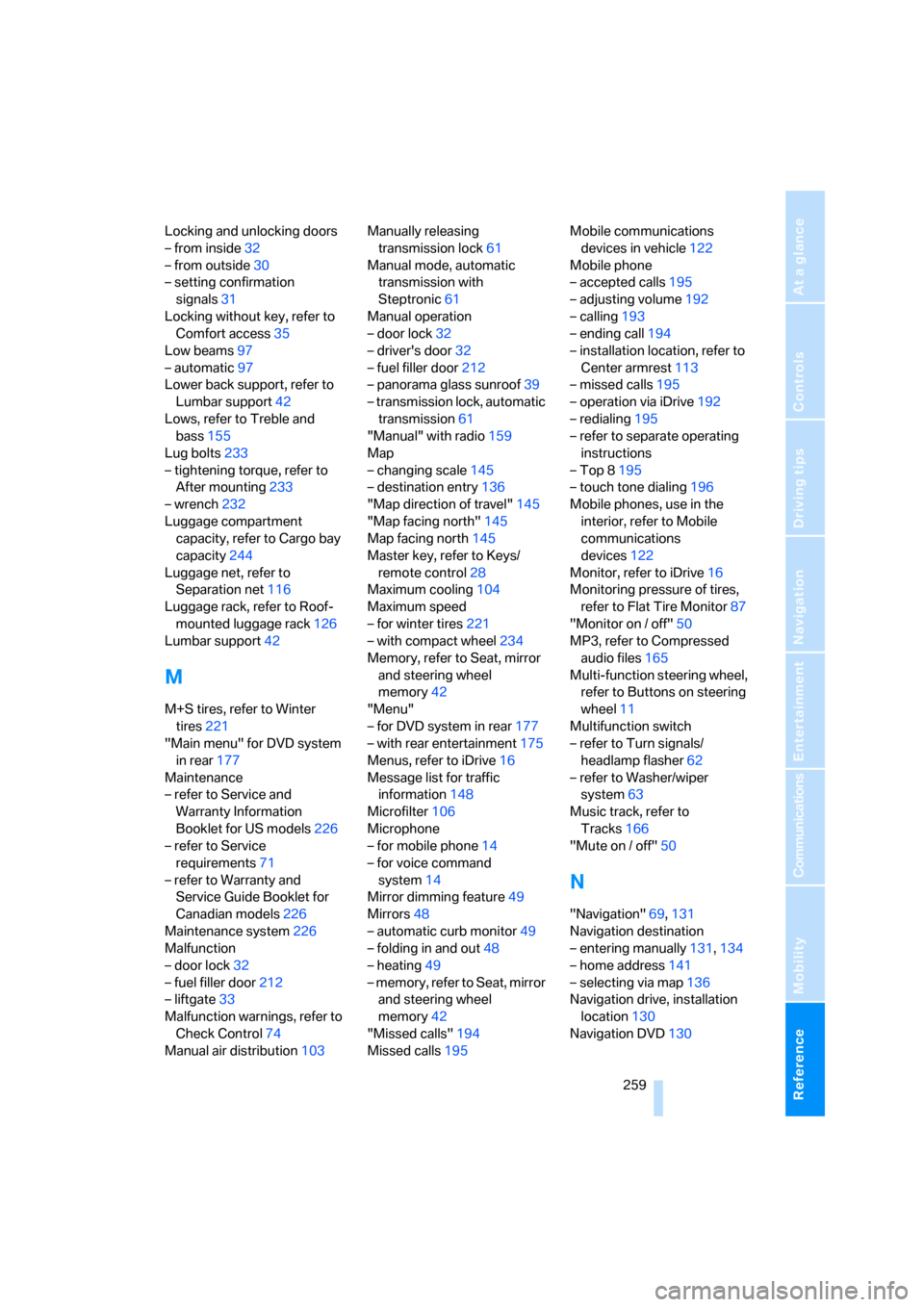

Reference 259
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
Locking and unlocking doors
– from inside32
– from outside30
– setting confirmation
signals31
Locking without key, refer to
Comfort access35
Low beams97
– automatic97
Lower back support, refer to
Lumbar support42
Lows, refer to Treble and
bass155
Lug bolts233
– tightening torque, refer to
After mounting233
– wrench232
Luggage compartment
capacity, refer to Cargo bay
capacity244
Luggage net, refer to
Separation net116
Luggage rack, refer to Roof-
mounted luggage rack126
Lumbar support42
M
M+S tires, refer to Winter
tires221
"Main menu" for DVD system
in rear177
Maintenance
– refer to Service and
Warranty Information
Booklet for US models226
– refer to Service
requirements71
– refer to Warranty and
Service Guide Booklet for
Canadian models226
Maintenance system226
Malfunction
– door lock32
– fuel filler door212
– liftgate33
Malfunction warnings, refer to
Check Control74
Manual air distribution103Manually releasing
transmission lock61
Manual mode, automatic
transmission with
Steptronic61
Manual operation
– door lock32
– driver's door32
– fuel filler door212
– panorama glass sunroof39
– transmission lock, automatic
transmission61
"Manual" with radio159
Map
– changing scale145
– destination entry136
"Map direction of travel"145
"Map facing north"145
Map facing north145
Master key, refer to Keys/
remote control28
Maximum cooling104
Maximum speed
– for winter tires221
– with compact wheel234
Memory, refer to Seat, mirror
and steering wheel
memory42
"Menu"
– for DVD system in rear177
– with rear entertainment175
Menus, refer to iDrive16
Message list for traffic
information148
Microfilter106
Microphone
– for mobile phone14
– for voice command
system14
Mirror dimming feature49
Mirrors48
– automatic curb monitor49
– folding in and out48
– heating
49
– memory, refer to Seat, mirror
and steering wheel
memory42
"Missed calls"194
Missed calls195Mobile communications
devices in vehicle122
Mobile phone
– accepted calls195
– adjusting volume192
– calling193
– ending call194
– installation location, refer to
Center armrest113
– missed calls195
– operation via iDrive192
– redialing195
– refer to separate operating
instructions
– Top 8195
– touch tone dialing196
Mobile phones, use in the
interior, refer to Mobile
communications
devices122
Monitor, refer to iDrive16
Monitoring pressure of tires,
refer to Flat Tire Monitor87
"Monitor on / off"50
MP3, refer to Compressed
audio files165
Multi-function steering wheel,
refer to Buttons on steering
wheel11
Multifunction switch
– refer to Turn signals/
headlamp flasher62
– refer to Washer/wiper
system63
Music track, refer to
Tracks166
"Mute on / off"50
N
"Navigation"69,131
Navigation destination
– entering manually131,134
– home address141
– selecting via map136
Navigation drive, installation
location130
Navigation DVD130
Page 263 of 272

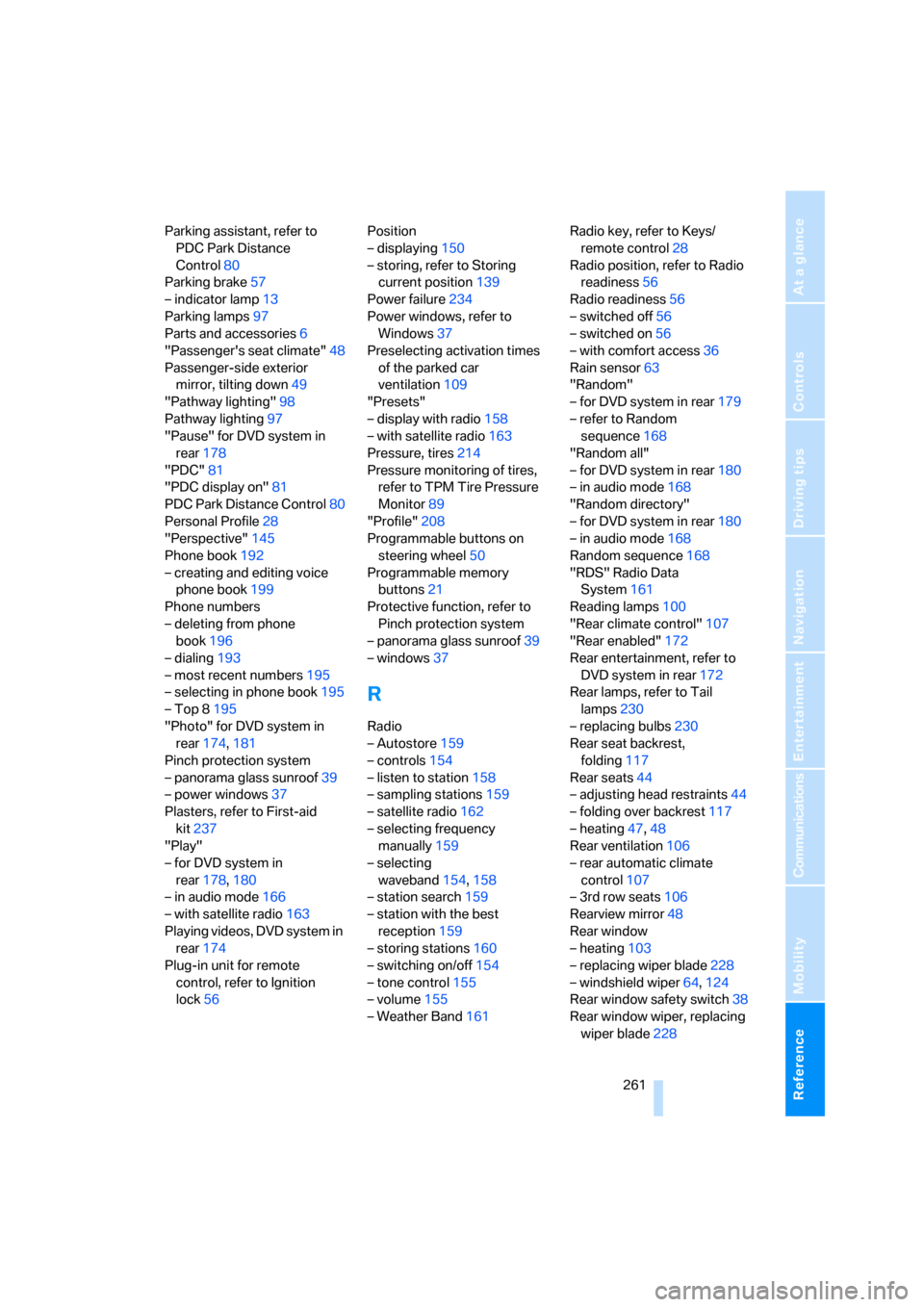

Reference 261
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
Parking assistant, refer to
PDC Park Distance
Control80
Parking brake57
– indicator lamp13
Parking lamps97
Parts and accessories6
"Passenger's seat climate"48
Passenger-side exterior
mirror, tilting down49
"Pathway lighting"98
Pathway lighting97
"Pause" for DVD system in
rear178
"PDC"81
"PDC display on"81
PDC Park Distance Control80
Personal Profile28
"Perspective"145
Phone book192
– creating and editing voice
phone book199
Phone numbers
– deleting from phone
book196
– dialing193
– most recent numbers195
– selecting in phone book195
– Top 8195
"Photo" for DVD system in
rear174,181
Pinch protection system
– panorama glass sunroof39
– power windows37
Plasters, refer to First-aid
kit237
"Play"
– for DVD system in
rear178,180
– in audio mode166
– with satellite radio163
Playing videos, DVD system in
rear174
Plug-in unit for remote
control, refer to Ignition
lock56Position
– displaying150
– storing, refer to Storing
current position139
Power failure234
Power windows, refer to
Windows37
Preselecting activation times
of the parked car
ventilation109
"Presets"
– display with radio158
– with satellite radio163
Pressure, tires214
Pressure monitoring of tires,
refer to TPM Tire Pressure
Monitor89
"Profile"208
Programmable buttons on
steering wheel50
Programmable memory
buttons21
Protective function, refer to
Pinch protection system
– panorama glass sunroof39
– windows37
R
Radio
– Autostore159
– controls154
– listen to station158
– sampling stations159
– satellite radio162
– selecting frequency
manually159
– selecting
waveband154,158
– station search159
– station with the best
reception159
– storing stations160
– switching on/off154
– tone control155
– volume155
– Weather Band161Radio key, refer to Keys/
remote control28
Radio position, refer to Radio
readiness56
Radio readiness56
– switched off56
– switched on56
– with comfort access36
Rain sensor63
"Random"
– for DVD system in rear179
– refer to Random
sequence168
"Random all"
– for DVD system in rear180
– in audio mode168
"Random directory"
– for DVD system in rear180
– in audio mode168
Random sequence168
"RDS" Radio Data
System161
Reading lamps100
"Rear climate control"107
"Rear enabled"172
Rear entertainment, refer to
DVD system in rear172
Rear lamps, refer to Tail
lamps230
– replacing bulbs230
Rear seat backrest,
folding117
Rear seats44
– adjusting head restraints44
– folding over backrest117
– heating47,48
Rear ventilation106
– rear automatic climate
control107
– 3rd row seats106
Rearview mirror48
Rear window
– heating103
– replacing wiper blade228
– windshield wiper64,124
Rear window safety switch38
Rear window wiper, replacing
wiper blade228
Page 265 of 272
Reference 263
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
"Scan"
– for DVD system in rear179
– sampling stations with
radio159
– sampling tracks with CD167
Scan
– CD changer167
– CD player167
– radio159
"Scan all"
– for DVD system in rear180
– in audio mode167
"Scan directory"
– for DVD system in rear180
– in audio mode167
Screen, refer to iDrive16
"Screen brightness" for DVD
system in rear176
Screw thread for tow
fitting238
SDARS, refer to Satellite
radio162
"Seat heater distribution"47
Seats41
– adjusting41
– comfort seat41
– heating47
– lumbar support42
– memory, refer to Seat, mirror
and steering wheel
memory42
– sitting safely40
– storing the setting42
– thigh support41
– ventilation, refer to Active
seat ventilation47
2nd row seats44
Securing load
– refer to Securing cargo125
– with ski bag, refer to
Securing cargo119
"Select as
destination"138,206
"Select current speed"76
Selecting audio source154
Selecting country for
navigation132Selecting frequency
manually159
Selecting menu items19
Selecting new scale for
navigation145
Selector lever, automatic
transmission with
Steptronic60
Selector lever lock, refer to
Reverse gear60
Self-leveling suspension87
Separation net116
"Service"72
,204,223
Service, refer to Roadside
Assistance237
Service and Warranty
Information Booklet for
US models226
Service interval indicator, refer
to Service requirements71
"Service notification"204
"Service Request"196,204
"Service
requirements"72,204,224
Service requirements71
– also refer to CBS Condition
Based Service226
"Service Status"208
"Set date"78
"Set" on trip computer70
"Set service date"73
"Set time"77
"Settings"206,207
Settings
– changing on Control
Display77
– clock, 12h/24h mode78
– configuring, refer to
Personal Profile28
"Settings" for unlocking30
Setting speed limit76
Setting time, refer to
Preselecting activation
times109
"SET" with rear
entertainment175Shifting, automatic
transmission with
Steptronic61
Short commands of voice
command system245
Shortest route in navigation,
refer to Selecting route141
"Short route" for
navigation141
Shoulder support41
"Show current position"137
"Show destination
position"137
Shuffled, refer to Random
– CD changer168
– CD player168
Side airbags92
Side marker lamps, replacing
bulbs229
Signal horn, refer to Horn10
Sitting safely40
– with airbags40
– with head restraint40
– with safety belts40
Ski bag118
Slide show, refer to Displaying
images181
Sliding/tilt sunroof, refer to
Panorama glass sunroof38
Slope assistant, refer to
Starting assistant123
Smokers' package, refer to
Ashtray114
Snow chains221
Socket for Onboard
Diagnostics interface227
Socket for remote control,
refer to Ignition lock56
Sockets, refer to Connecting
electrical devices115
Song search, refer to
Sampling tracks167
SOS, refer to Initiating an
emergency call236
Spare fuses234
Spare key28
– adapter28
