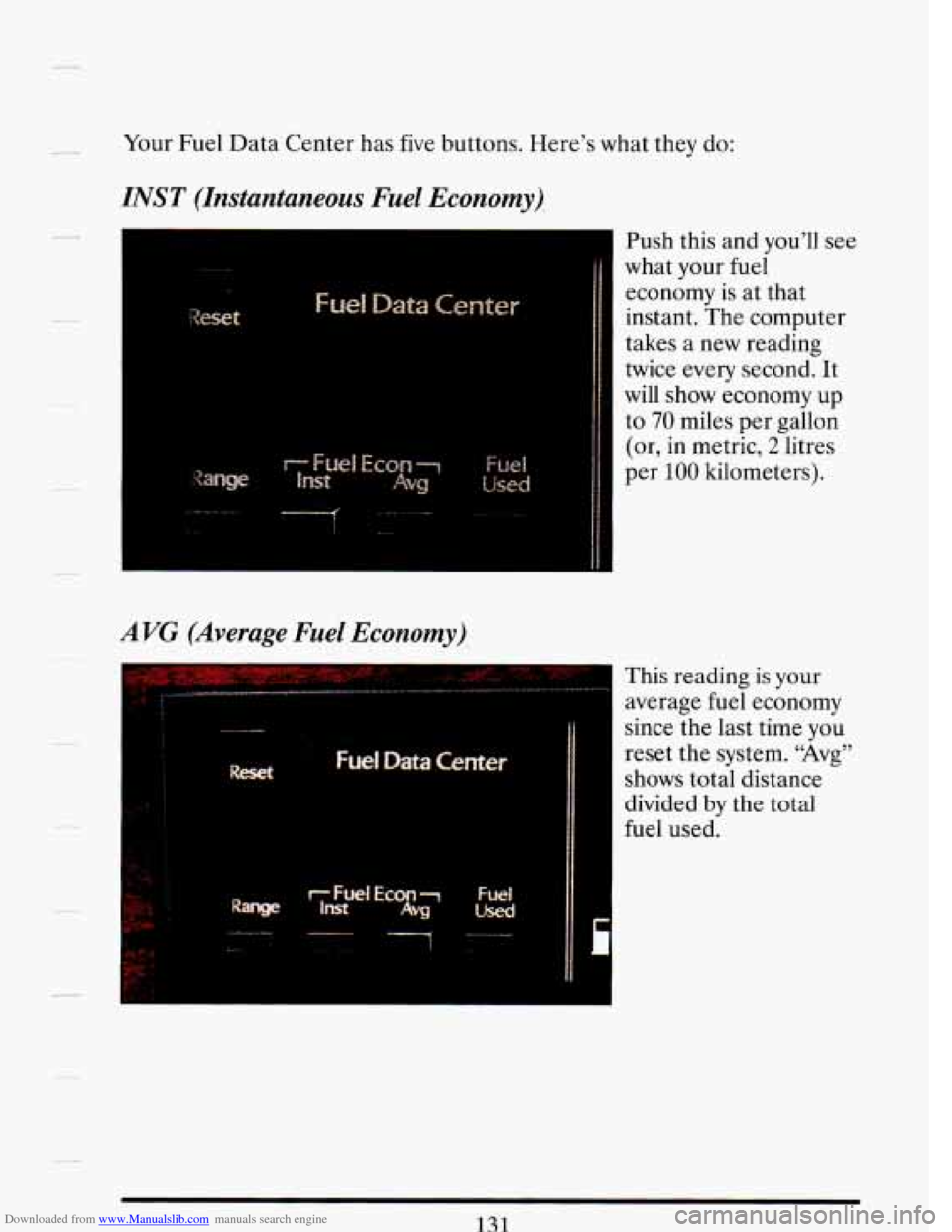

Downloaded from www.Manualslib.com manuals search engine Your Fuel Data Center has five buttons. Here’s what they do:
INST (Instantaneous Fuel Economy),
Push this and you’ll see
what
your fuel
economy is at that
instant. The computer
takes
a new reading
twice every second. It
will show economy up
to 70 miles per gallon
(or,
in metric, 2 litres
per
100 kilometers).
I
AVG (Average Fuel Economy),
- This reading is your
average fuel economy
since the last time you
reset the system.
“Avg”
shows total distance
divided by the total
fuel used.
Page 147 of 406
Downloaded from www.Manualslib.com manuals search engine Fwc- ta Center
cl
Press and hold the
Range and Fuel Used
buttons to display the
oil life percentage.
You’ll
see how much oil life you have left, as a percentage. So if you see
“94” for example, that means that the way you’re driving your vehicle,
94%
of your current oil life is still left.
The
“CHANGE OIL SOON” light will come on for a few seconds as a
bulb check when you start your engine. The light will also come on for
20
seconds following engine start-up when either the oil life percentage is
less the
10% or 7,500 miles (12500 km) have been driven. The system
probably will say to change the oil between
3000 miles (5000 km) and
7500 miles (12500 km), but it may even say to change it before 3000 miles
under severe conditions. It all depends on your driving patterns.
(If it
doesn’t,
or if it doesn’t even light up, then something is wrong. You will
need to have it serviced.)
There
are two things the system won’t do: It can’t sense heavy dust in the
places where you drive.
If you drive in a dusty area, you should change
your oil every
3000 miles (5000 km) or 3 months (whichever comes first),
unless the “CHANGE
OIL SOON” light comes on sooner.
It doesn’t check how much oil you have
so you will still have to check for
that.
To check it, see the Index under “Engine Oil.”
When You’ve Changed the Oil
When new oil is put in, you’ll need to reset your system. To do that, press
and hold the “Range” and “Reset” buttons between
5 and 60 seconds.
-
L. c
Page 148 of 406

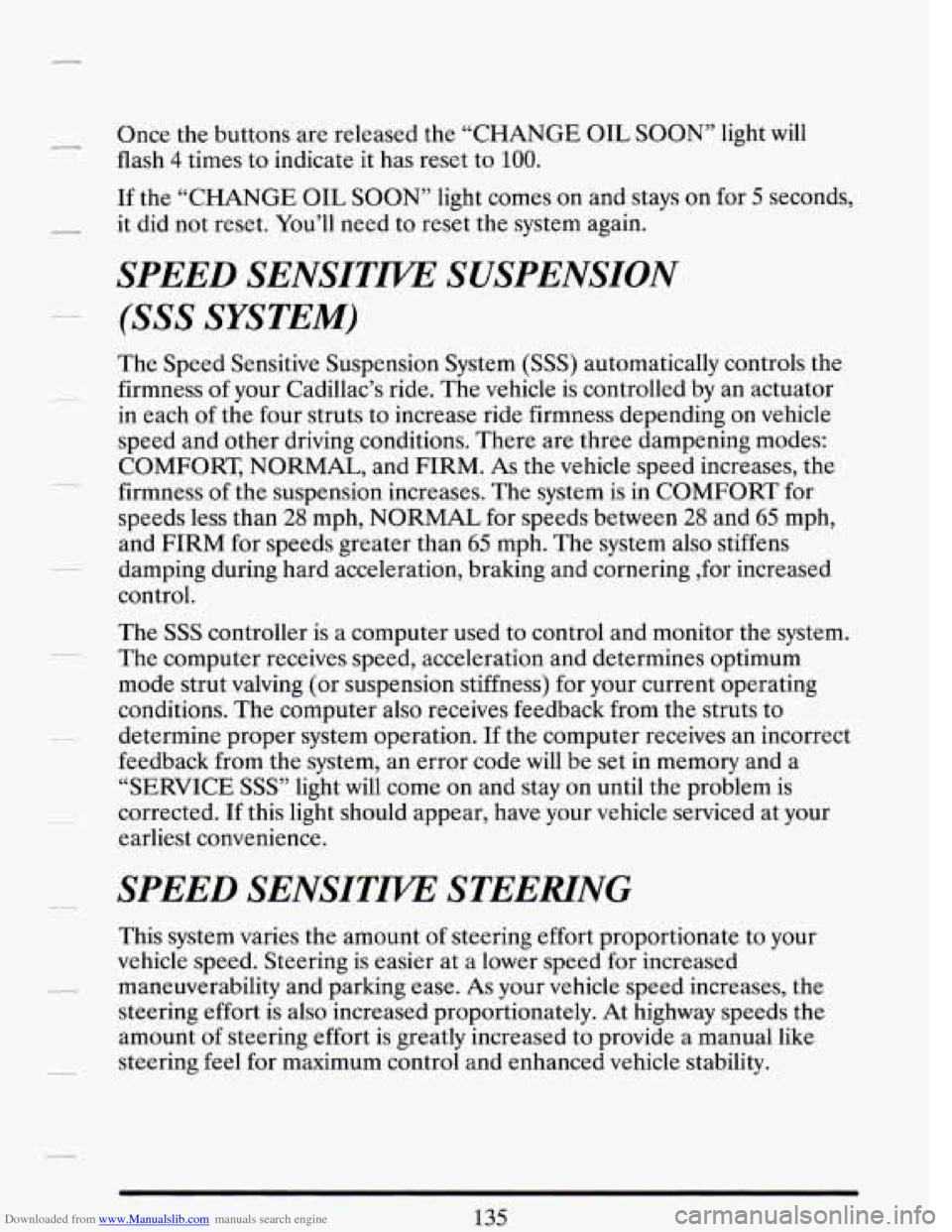

Downloaded from www.Manualslib.com manuals search engine Once the buttons are released the “CHANGE OIL SOON” light will
flash 4 times to indicate it has reset to
100.
If the “CHANGE OIL SOON” light comes on and stays on for 5 seconds,
it did not reset. You’ll need to reset the system again.
SPEED SENSITIVE SUSPENSION
(SSS SYSTEM)
The Speed Sensitive Suspension System (SSS) automatically controls the
firmness of your Cadillac’s ride. The vehicle is controlled by an actuator
in each of the four struts to increase ride firmness depending on vehicle
speed and other driving conditions. There are three dampening modes:
COMFORT, NORMAL, and
FIRM. As the vehicle speed increases, the
firmness of the suspension increases. The system is in COMFORT for
speeds less than
28 mph, NORMAL for speeds between 28 and 65 mph,
and FIRM for speeds greater than
65 mph. The system also stiffens
damping during hard acceleration, braking and cornering ,for increased
control.
The SSS controller is a computer used to control and monitor the system.
The computer receives speed, acceleration and determines optimum
mode strut valving (or suspension stiffness) for your current operating
conditions. The computer also receives feedback from the struts to
determine proper system operation.
If the computer receives an incorrect
feedback from the system, an error code
will be set in memory and a
“SERVICE
SSS” light will come on and stay on until the problem is
corrected.
If this light should appear, have your vehicle serviced at your
earliest convenience.
SPEED SENSITm STEERING
This system varies the amount of steering effort proportionate to your
vehicle speed. Steering is easier at a lower speed for increased
maneuverability and parking ease. As your vehicle speed increases, the
steering effort is also increased proportionately. At highway speeds the
amount
of steering effort is greatly increased to provide a manual like
steering
feel for maximum control and enhanced vehicle stability.
135
Page 160 of 406
Downloaded from www.Manualslib.com manuals search engine The control behind the lower knob moves the sound between your front
and rear speakers.
SCAN
When you push “SCAN”, the radio will find the next station and stay
there a
few seconds. Then it will go to the next station and pause, and
keep doing that. When
you want it to stop, just push SCAN again.
SEEK
When you push “SEEK”, it also chooses stations, but it doesn’t keep
moving as
SCAN does. When you push SEEK, the radio goes to the next
station and stays there.
Push Buttons
I
a Tune in the station.
0 Push the SET button. You
can set the push
buttons to get up to
eight favorite stations
(four on
AM and four
more on
FM). Just:
0 Within 5 seconds, push one of the four push buttons.
Repeat these steps for each station you select.
If you want to, you can pre-set up to three more favorite stations on AM
and up to three more on FM. To do that, use the buttons in pairs, like this:
Tune in the station.
Page 161 of 406
Downloaded from www.Manualslib.com manuals search engine 0 Push the SET button.
0 Push any two of the push buttons that are next to each other.
0 Repeat these steps for each station you select. Whenever you push
those buttons together, you’ll get the station you selected.
Your Cassette Tape Player
Your tape player is built to work best with tapes that are 30 to 45 minutes
long
on each side. Tapes longer than that use such thin tape that they may
not work well in this player.
Tu Play A Cassette Tape
Have the radio on.
A
Insert the tape squarely through the tape door.
The longer side with the tape visible goes in first.
If you hear nothing or
hear just
a garbled sound, it may not be in squarely. Push EJECT to
remove the tape and start over.
Once the tape is playing, use the upper and lower knobs for volume
and balance, just as you do for radio. The arrows show which side
of
the tape is playing.
7
To go forward to another part of the tape push FWD. To go Wackward,
push
REV. To stop the tape, push the other button lightly.
To go from one side of the tape to the other, push in the upper knob
on your radio. To remove or stop the tape, push EJECT
148
Page 168 of 406
Downloaded from www.Manualslib.com manuals search engine Tune
This button tunes while the button is held. Also, push A and then v at the
same time to tune up quickly. Push
v and then A at the same time to tune
down quickly.
Push Buttons
The five push buttons
let you return to
favorite stations. They
are also used when you
play a disc.
To set the push buttons for up to ten favorite stations
(5 AM and 5 FM),
just
0 Tune in the station
Push SET
0 Within 5 seconds, push one of the push buttons. Whenever you push
that button, the preset station will return.
Rcl (Recall)
Press to go between time and frequency on the display.
You’ll get stereo by just tuning to any
AM or FM station broadcasting in
stereo.
(“ST” will show on the display).
am-st (Am Stereo)
Push the “am-st” button if you don’t want AM Stereo, as when the station
is weak or noisy.
(“ST” will go off the display.)
Page 174 of 406
Downloaded from www.Manualslib.com manuals search engine - Pushbuttons
The five pushbuttons let you return to favorite stations. You can set the
pushbuttons for up to ten favorite stations
(5 AM and 5 FM). Just:
Tune in the station you want to listen to.
Press the SET pushbutton. (NOTE: The display will show SET for
Within the 5 seconds, push one of the five pushbuttons. SET will
-
about 5 seconds.)
disappear from the display with the station set.
-_
0 Whenever you press that button, the preset station will return.
Clock
To set the clock, just:
0 Press the SET button.
0 Within 5 seconds, press and hold SCAN until the correct hour appears
0 Press and hold SEEK A or until the correct minute appears on the
.~
-.
on the display.
display.
- To Adjust The Tone
Use the levers next to the display to set the bass, midrange, and treble
until you get the sound you want. The
60 and 250 levers adjust the bass;
We suggest you start with the center lever
(E) in the midpoint position.
Then move the others up or down until you get the amount
of bass and
treble you like.
-- 1K is midrange; and 3.5K and 10K control the treble.
c_
To Play a Cassette (Export Only)
Your tape player is built to work best with tapes that are 30 to 45 minutes
long on each side. Tapes longer than that are
so thin they may not work
well in this player.
With the radio on, press a tape into the slot marked
AUTO REVERSE
(tape side goes in first).
161
Page 286 of 406
Downloaded from www.Manualslib.com manuals search engine How To Reset the Oil Life Indicator: After the oil has been changed,
press and hold the
“RANGE” and “RESET” buttons between 5 and 60
seconds. Once the buttons are released the “CHANGE OIL SOON”
light will flash 4 times to indicate it has reset to 100. If the “CHANGE
OIL SOON” light comes on for 5 seconds it did not reset. You will need
to reset the system again. The percentage
of oil life remaining may be
checked at any time by pressing the
“RANGE” and “FUEL USED” on
the Fuel Data center.
Engine Block Heater: An engine block heater can be a big help if you
have to park outside
in very cold weather, O°F (-18OC) or colder. If your
vehicle has this option, see “Engine Block Heater” in the Index.
What to Do with Used Oil:
’
A CAUTION:
Used engine oil contains things that have caused skin cancer in
laboratory animals. Don’t let used oil stay
on your skin for very
long. Clean your skin and nails with soap and water, or a good
hand cleaner. Wash or properly throw away clothing or rags
containing used engine oil.
Used oil can be a real threat to the environment. If you change your own
oil, be sure to drain all free-flowing oil from the filter before disposal.
Don’t ever dispose
of oil by pouring it on the ground, into sewers, or into
streams or bodies
of water. Instead, recycle it by taking it to a place that
collects used oil.
If you have a problem properly disposing of your used
oil, ask your dealer, a service station or
a local recycling center for help.
