Page 99 of 500

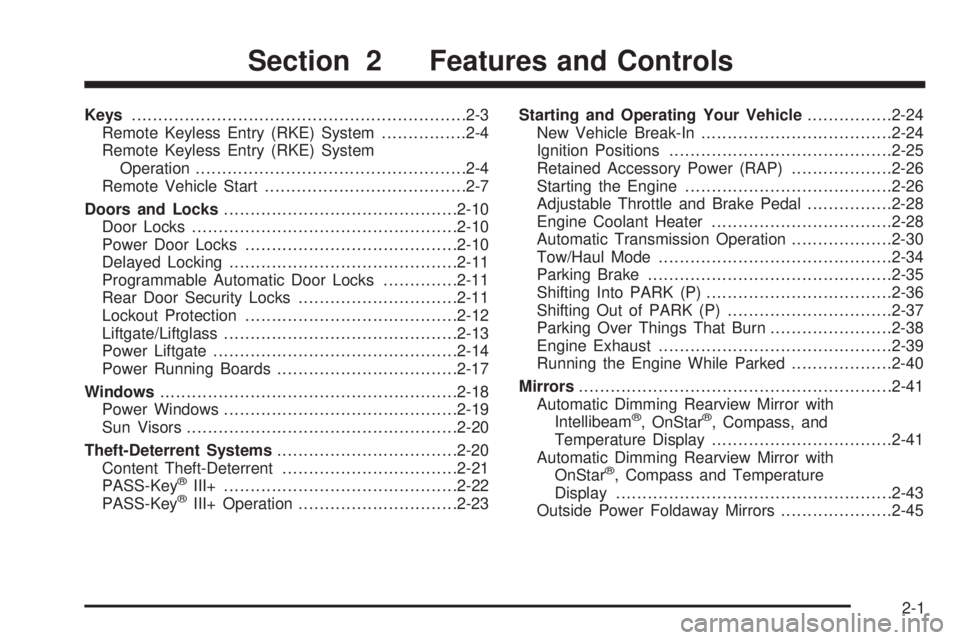

Keys .............................................................. .2-3
Remote Keyless Entry (RKE) System ............... .2-4
Remote Keyless Entry (RKE) System
Operation .................................................. .2-4

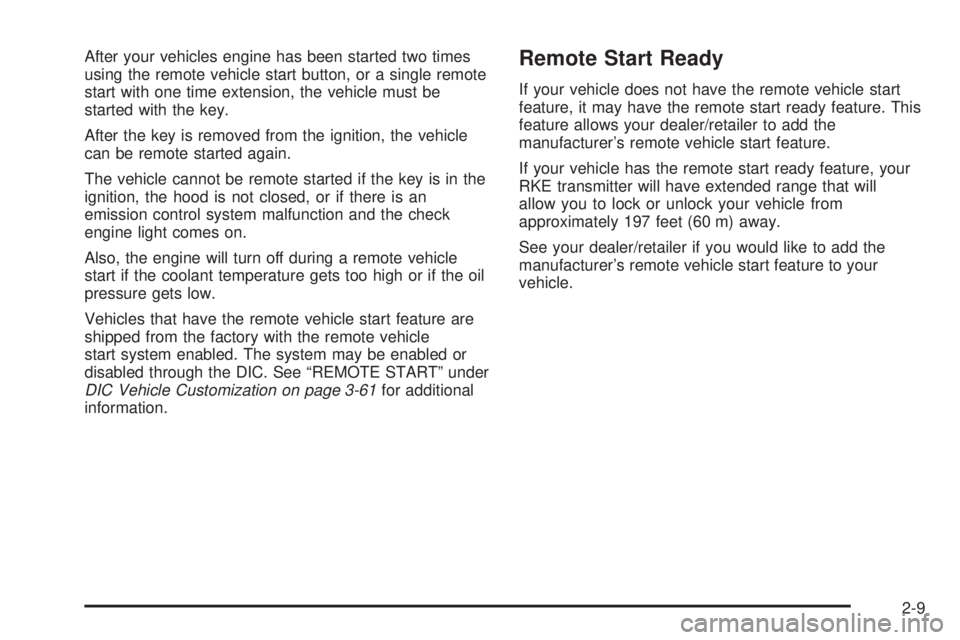

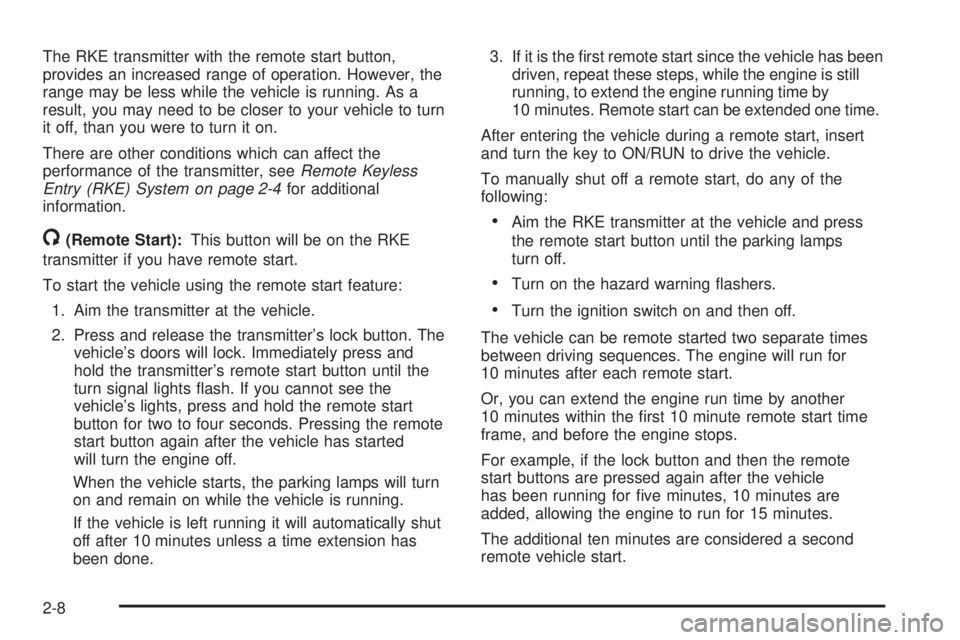

Remote Vehicle Start ..................................... .2-7
Doors and Locks ........................................... .2-10
Door Locks ................................................. .2-10
Power Door Locks ....................................... .2-10
Delayed Locking .......................................... .2-11
Programmable Automatic Door Locks ............. .2-11
Rear Door Security Locks ............................. .2-11
Lockout Protection ....................................... .2-12
Liftgate/Liftglass ........................................... .2-13
Power Liftgate ............................................. .2-14
Power Running Boards ................................. .2-17
Windows ....................................................... .2-18
Power Windows ........................................... .2-19
Sun Visors .................................................. .2-20
Theft-Deterrent Systems ................................. .2-20
Content Theft-Deterrent ................................ .2-21
PASS-Key ®
III+ ........................................... .2-22

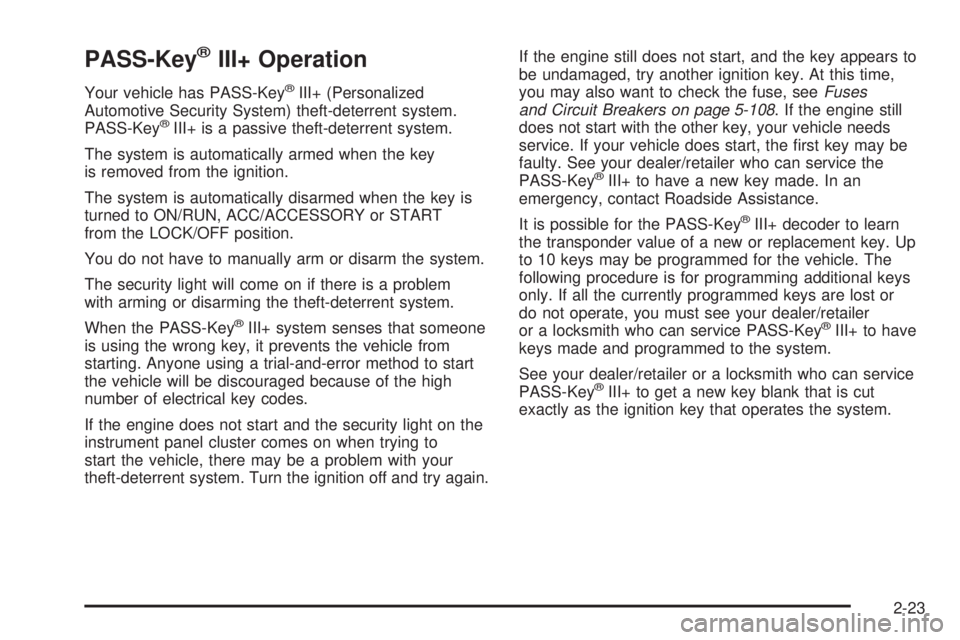

PASS-Key ®
III+ Operation ............................. .2-23 Starting and Operating Your Vehicle ............... .2-24

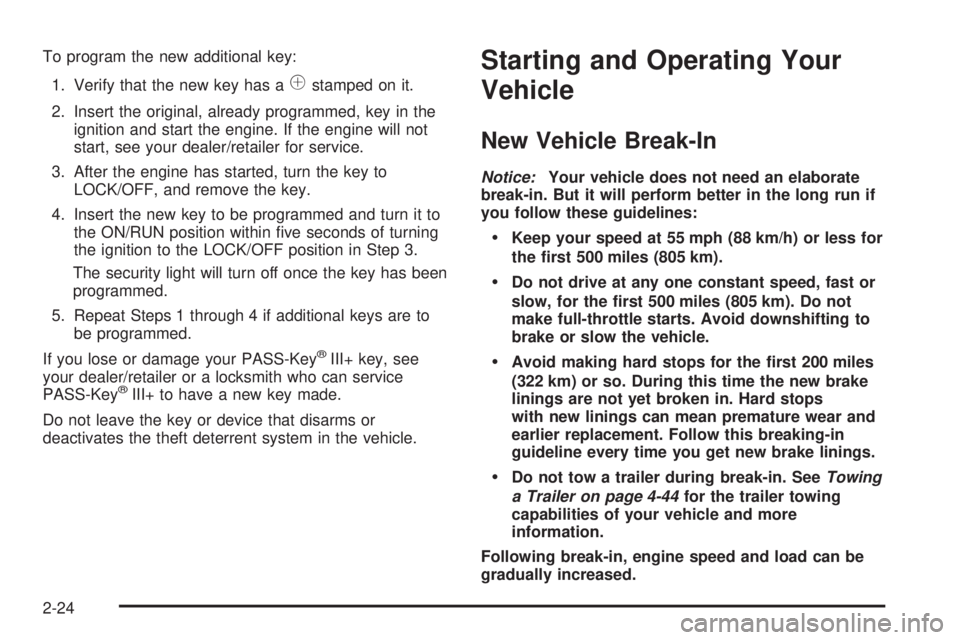

New Vehicle Break-In ................................... .2-24
Ignition Positions ......................................... .2-25

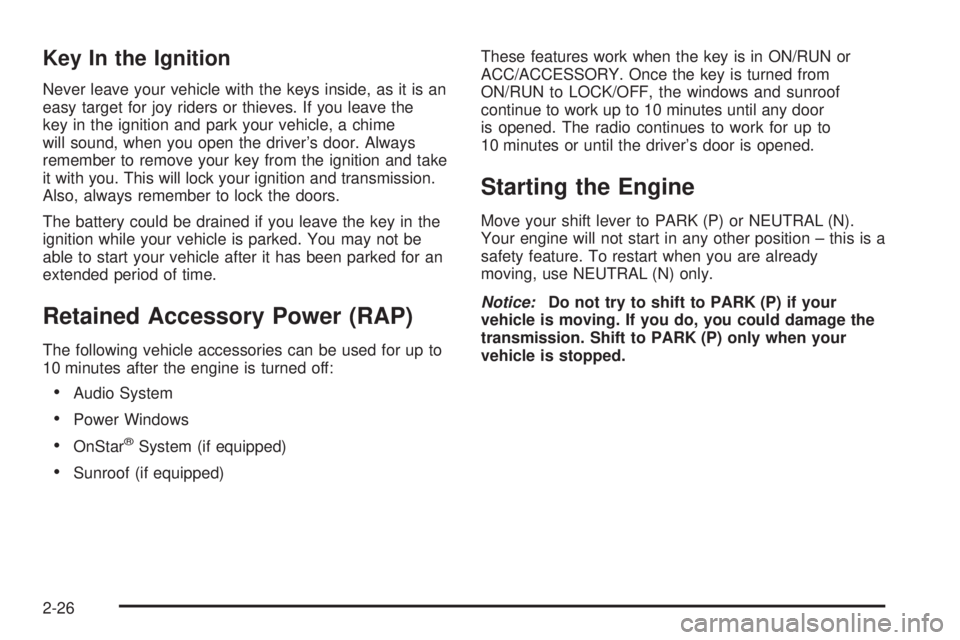

Retained Accessory Power (RAP) .................. .2-26
Starting the Engine ...................................... .2-26
Adjustable Throttle and Brake Pedal ............... .2-28
Engine Coolant Heater ................................. .2-28
Automatic Transmission Operation .................. .2-30
Tow/Haul Mode ........................................... .2-34
Parking Brake ............................................. .2-35
Shifting Into PARK (P) .................................. .2-36
Shifting Out of PARK (P) .............................. .2-37
Parking Over Things That Burn ...................... .2-38
Engine Exhaust ........................................... .2-39
Running the Engine While Parked .................. .2-40
Mirrors .......................................................... .2-41
Automatic Dimming Rearview Mirror with
Intellibeam ®
, OnStar ®
, Compass, and
Temperature Display ................................. .2-41
Automatic Dimming Rearview Mirror with
OnStar ®
, Compass and Temperature
Display ................................................... .2-43
Outside Power Foldaway Mirrors .................... .2-45Section 2 Features and Controls
2-1
Page 104 of 500

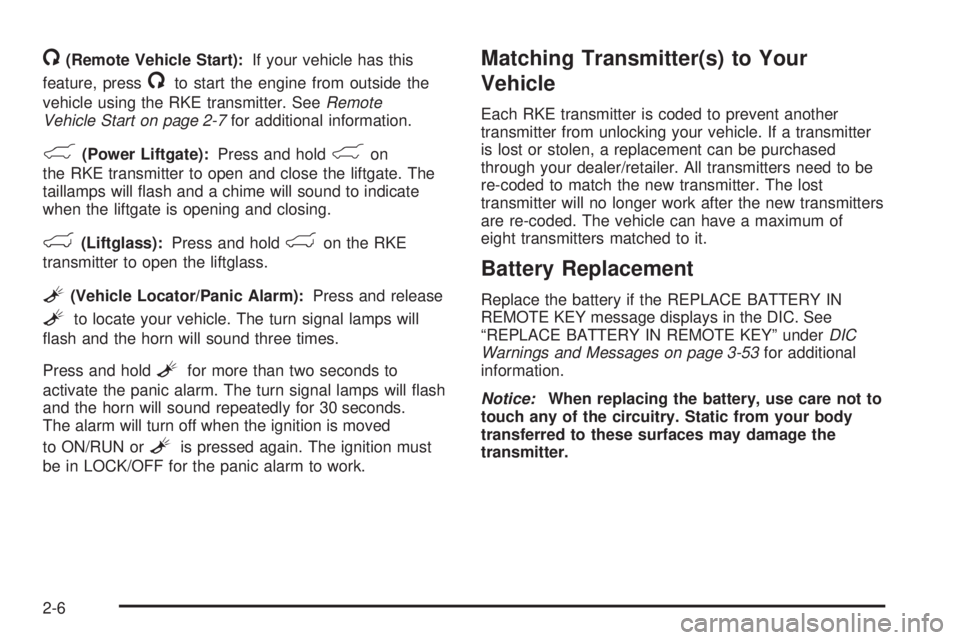

/ (Remote Vehicle Start): If your vehicle has this
feature, press
/ to start the engine from outside the
vehicle using the RKE transmitter. See Remote
Vehicle Start on page 2-7 for additional information.
& (Power Liftgate): Press and hold
& on
the RKE transmitter to open and close the liftgate. The
taillamps will ash and a chime will sound to indicate
when the liftgate is opening and closing.
m (Liftglass): Press and hold
m on the RKE
transmitter to open the liftglass.
L (Vehicle Locator/Panic Alarm): Press and release
L to locate your vehicle. The turn signal lamps will
ash and the horn will sound three times.
Press and hold
L for more than two seconds to
activate the panic alarm. The turn signal lamps will ash
and the horn will sound repeatedly for 30 seconds.
The alarm will turn off when the ignition is moved
to ON/RUN or
L is pressed again. The ignition must
be in LOCK/OFF for the panic alarm to work. Matching Transmitter(s) to Your
Vehicle Each RKE transmitter is coded to prevent another
transmitter from unlocking your vehicle. If a transmitter
is lost or stolen, a replacement can be purchased
through your dealer/retailer. All transmitters need to be
re-coded to match the new transmitter. The lost
transmitter will no longer work after the new transmitters
are re-coded. The vehicle can have a maximum of
eight transmitters matched to it.
Battery Replacement Replace the battery if the REPLACE BATTERY IN
REMOTE KEY message displays in the DIC. See
“REPLACE BATTERY IN REMOTE KEY” under DIC
Warnings and Messages on page 3-53 for additional
information.
Notice: When replacing the battery, use care not to
touch any of the circuitry. Static from your body
transferred to these surfaces may damage the
transmitter.
2-6
