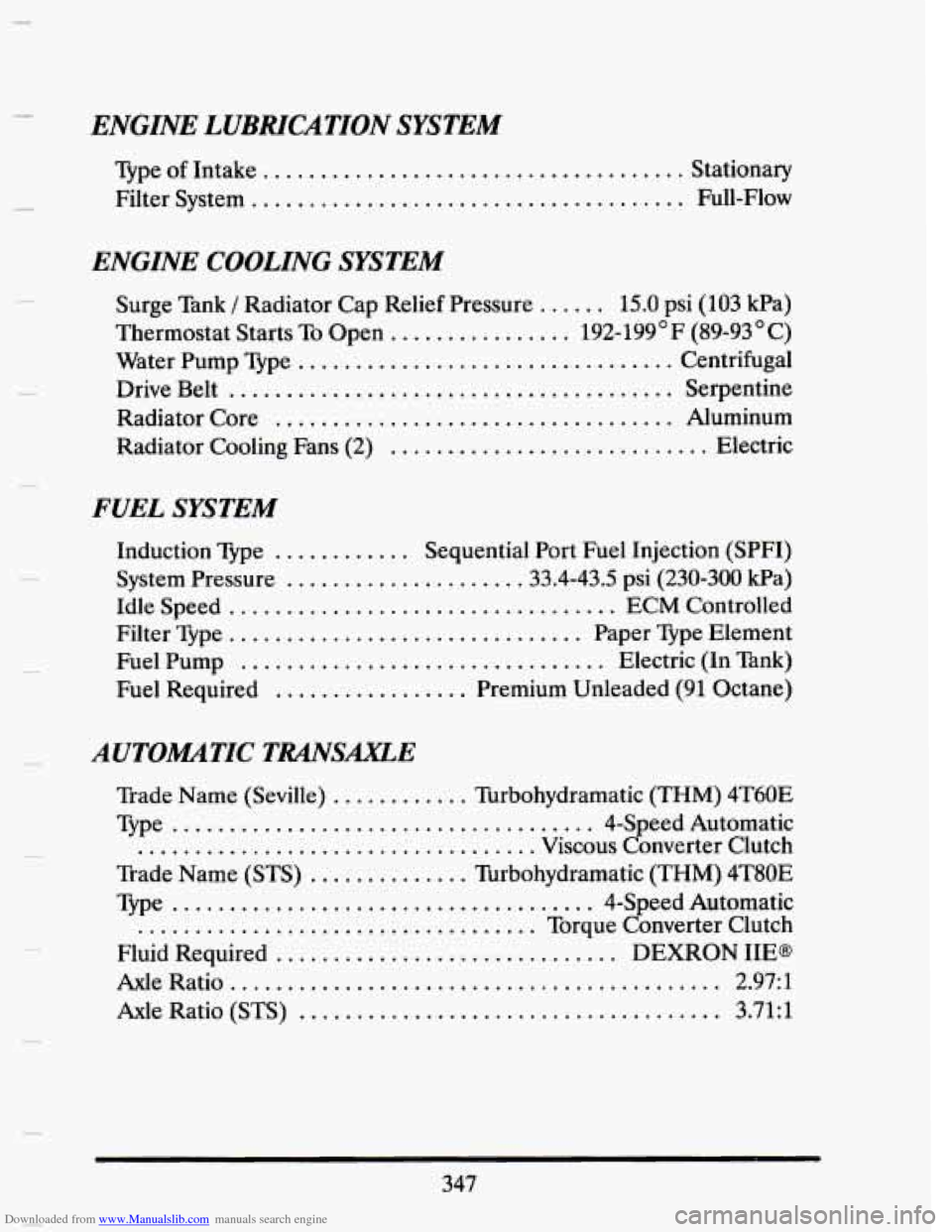

Downloaded from www.Manualslib.com manuals search engine ENGINE LUBRICATION SYSTEM
Type of Intake ..................................... Stationary
Filter System
...................................... Full-Flow
ENGINE COOLING SYSTEM
Surge Tank / Radiator Cap Relief Pressure ...... 15.0 psi (103 kPa)
Thermostat Starts To Open
................ 192-199°F (89-93OC)
Water Pump Type
................................. Centrifugal
Drive Belt
....................................... Serpentine
Radiator Core
................................... Aluminum
Radiator Cooling Fans
(2) ............................ Electric
FUEL SYSTEM
Induction Type ............ Sequential Port Fuel Injection (SPFI)
System Pressure
.................... -33.4-43.5 psi (230-300 kPa)
Idle Speed
.................................. ECM Controlled
Filter Type
............................... Paper Type Element
Fuel Pump
................................ Electric (In Tank)
Fuel Required
................. Premium Unleaded (91 Octane)
AUTOlMATIC TRANSAXLE
Trade Name (Seville) ............ Turbohydramatic (THM) 4T60E
Type
..................................... 4-Speed Automatic
................................... Viscous Converter Clutch
Trade Name
(STS) .............. Turbohydramatic (THM) 4T80E
Type
..................................... 4-Speed Automatic
................................... Torque Converter Clutch
Fluid Required .............................. DEXRON IIEB
Axle Ratio ........................................... 2.97:l
Axle Ratio (STS) ..................................... 3.71:l
347
Page 362 of 407

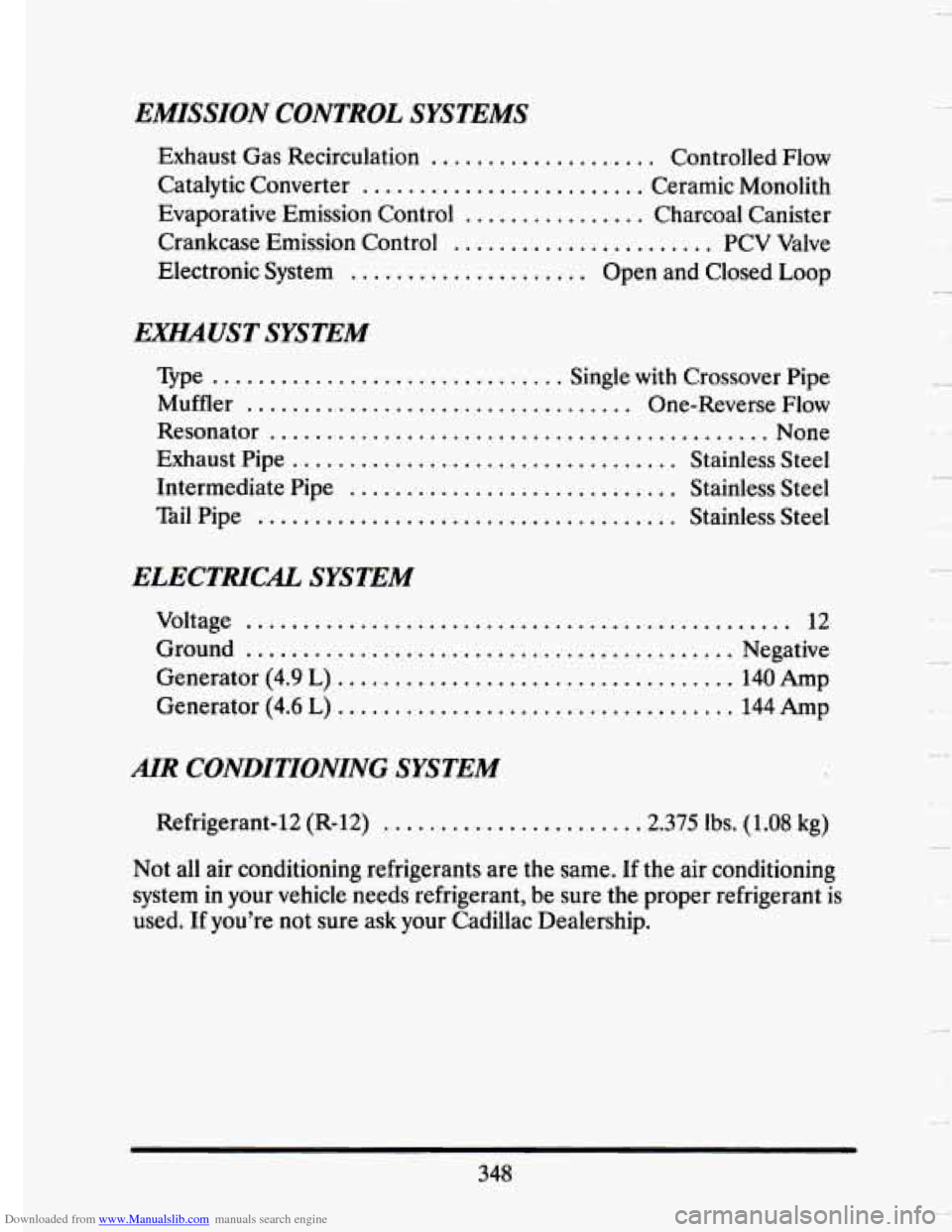

Downloaded from www.Manualslib.com manuals search engine EMISSION CONTROL SYSTEMS
Exhaust Gas Recirculation .................... Controlled Flow
Catalytic Converter
......................... Ceramic Monolith
Evaporative Emission Control
................ Charcoal Canister
Crankcase Emission Control
....................... PCV Valve
Electronic System
..................... Open and Closed Loop
EXUAUST SYSTEM
Type ............................... Single with Crossover Pipe
Muffler
.................................. One-Reverse Flow
Resonator
............................................ None
Exhaust Pipe .................................. Stainless Steel
Intermediate Pipe
............................. Stainless Steel
Tail Pipe
..................................... Stainless Steel
ELECTRICAL SYSTEM
Voltage ................................................ 12
Ground
........................................... Negative
Generator
(4.9 L) ................................... 140 Amp
Generator (4.6 L) ................................... 144 Amp
AIR CONDITIONING SYSTEM
3
Refrigerant-12 (R-12) ...................... .2.375 Ibs. (1.08 kg)
Not all air conditioning refrigerants are the same. If the air conditioning
system in your vehicle needs refrigerant, be sure the proper refrigerant is
used. If you’re not sure ask your Cadillac Dealership.
348
Page 363 of 407

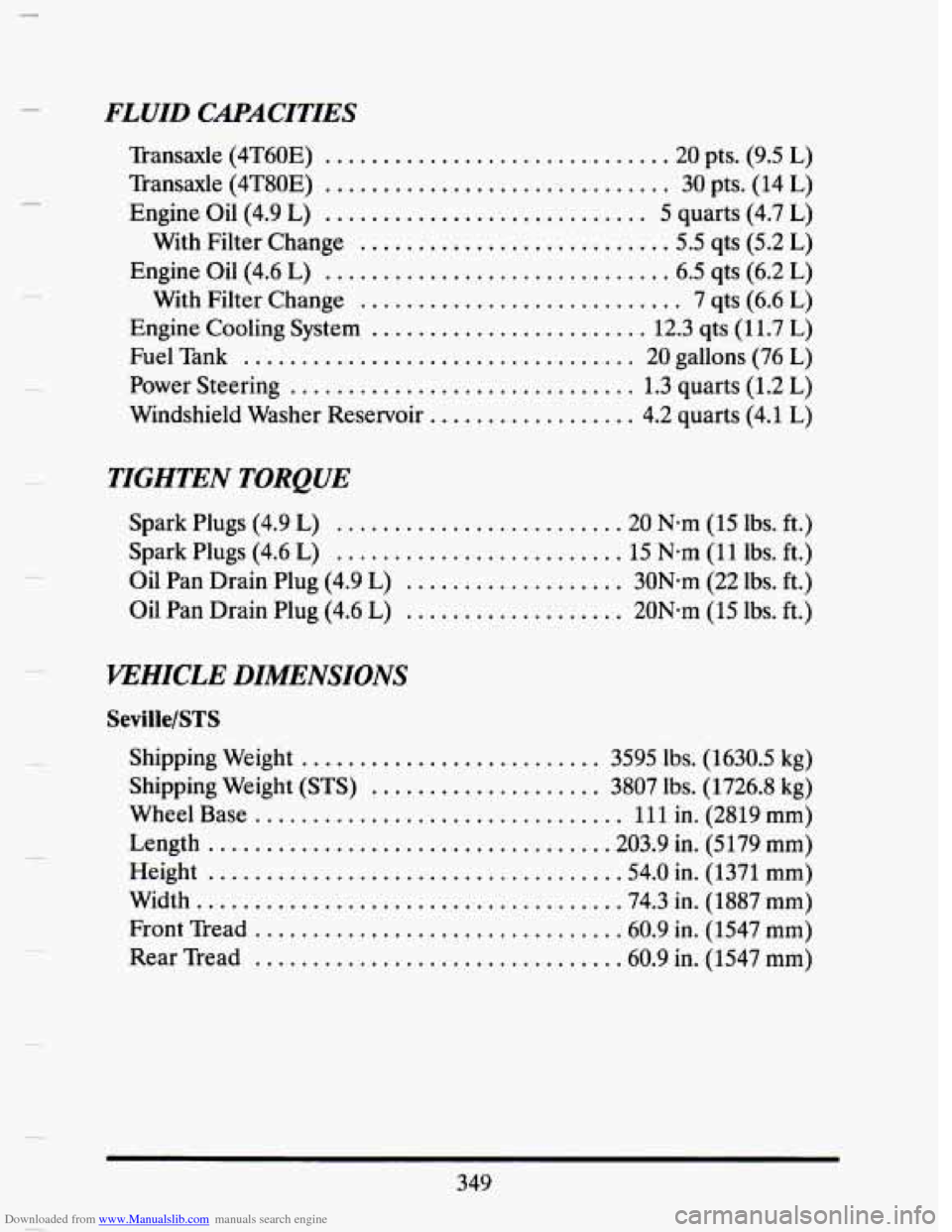

Downloaded from www.Manualslib.com manuals search engine FLUID CAPACITIES
Transaxle (4T6OE) .............................. 20 pts. (9.5 L)
Transaxle (4T80E)
.............................. 30 pts. (14 L)
Engine Oil (4.9 L)
............................ 5 quarts (4.7 L)
With Filter Change ........................... 5.5 qts (5.2 L)
Engine Oil (4.6 L)
.............................. 6.5 qts (6.2 L)
With Filter Change ............................ 7 qts (6.6 L)
Engine Cooling System
........................ 12.3 qts (1 1.7 L)
Fuel Tank .................................. 20 gallons (76 L)
Power Steering .............................. 1.3 quarts (1.2 L)
Windshield Washer Reservoir .................. 4.2 quarts (4.1 L)
TIGHTEN TORQUE
Spark Plugs (4.9 L) ........................ .20 Nqm (15 lbs. ft.)
Spark Plugs (4.6
L) ......................... 15 Nom (11 lbs. ft.)
Oil Pan Drain Plug (4.9 L)
................... 30N-m (22 Ibs. ft.)
Oil Pan Drain Plug (4.6 L) ................... 20N.m (15 lbs. ft.)
KEHICLE DIMENSIONS
Seville/STS
Shipping Weight .......................... 3595 lbs. (1630.5 kg)
Shipping Weight
(STS) .................... 3807 lbs. (1726.8 kg)
Wheel Base
................................ 111 in. (2819 mm)
Length .................................. .203.9 in. (5179 mm)
Height ................................... .54.0 in. (1371 mm)
Width.. .................................. .74.3 in. (1887 mm)
Front Tread ............................... .60.9 in. (1547 mm)
Rear Tread ............................... .60.9 in. (1547 mm)
349
Page 364 of 407

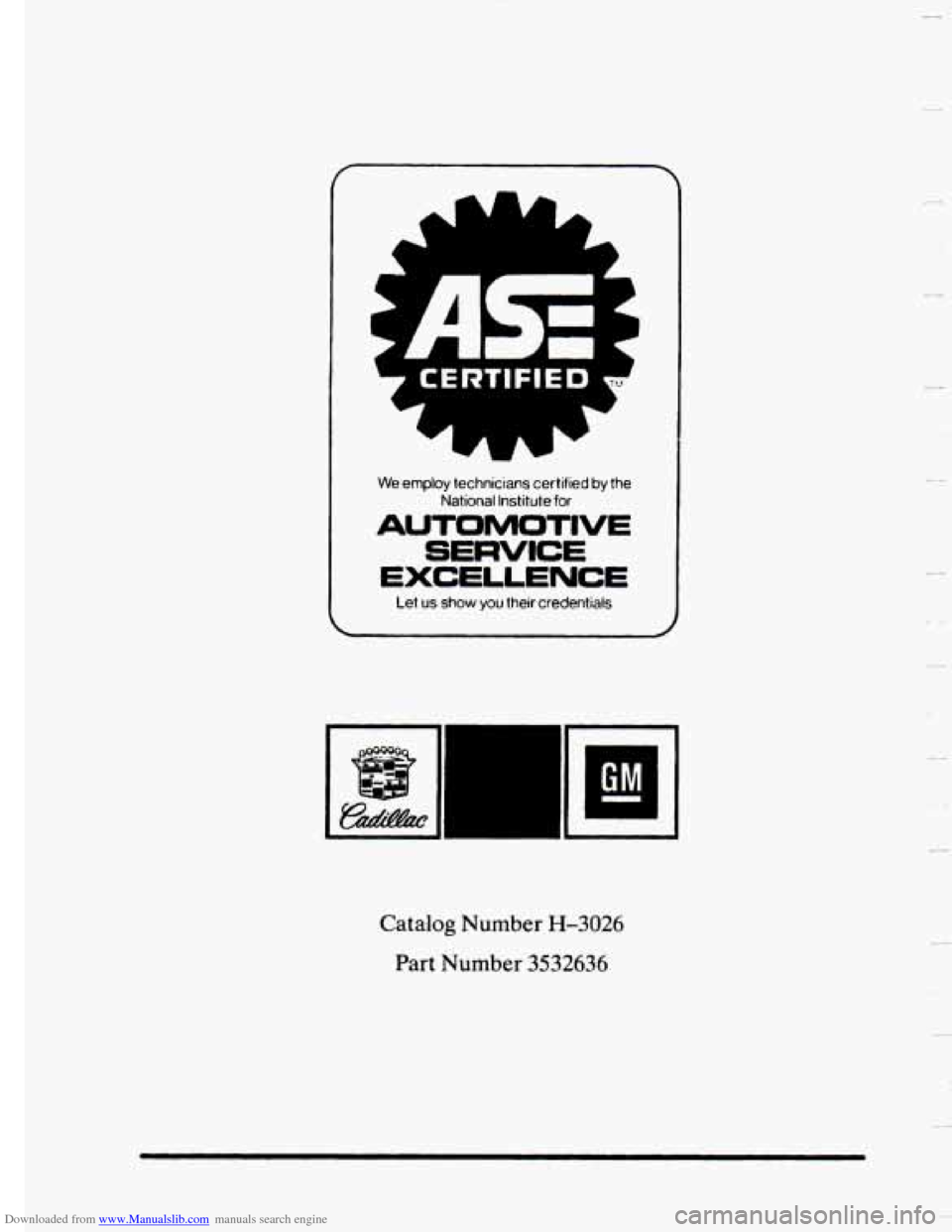

Downloaded from www.Manualslib.com manuals search engine I
5 CERTiFiED
We employ technicians certified by the
National Institute for
AUTOMOTIVE
SERVICE
EXCELLENCE
Let us show you their credentials
Catalog Number H-3026
Part Number 3532636
Page 365 of 407
Downloaded from www.Manualslib.com manuals search engine P
F
P
1
r
I
r
r
c
Page 366 of 407
Downloaded from www.Manualslib.com manuals search engine P
i
Page 367 of 407

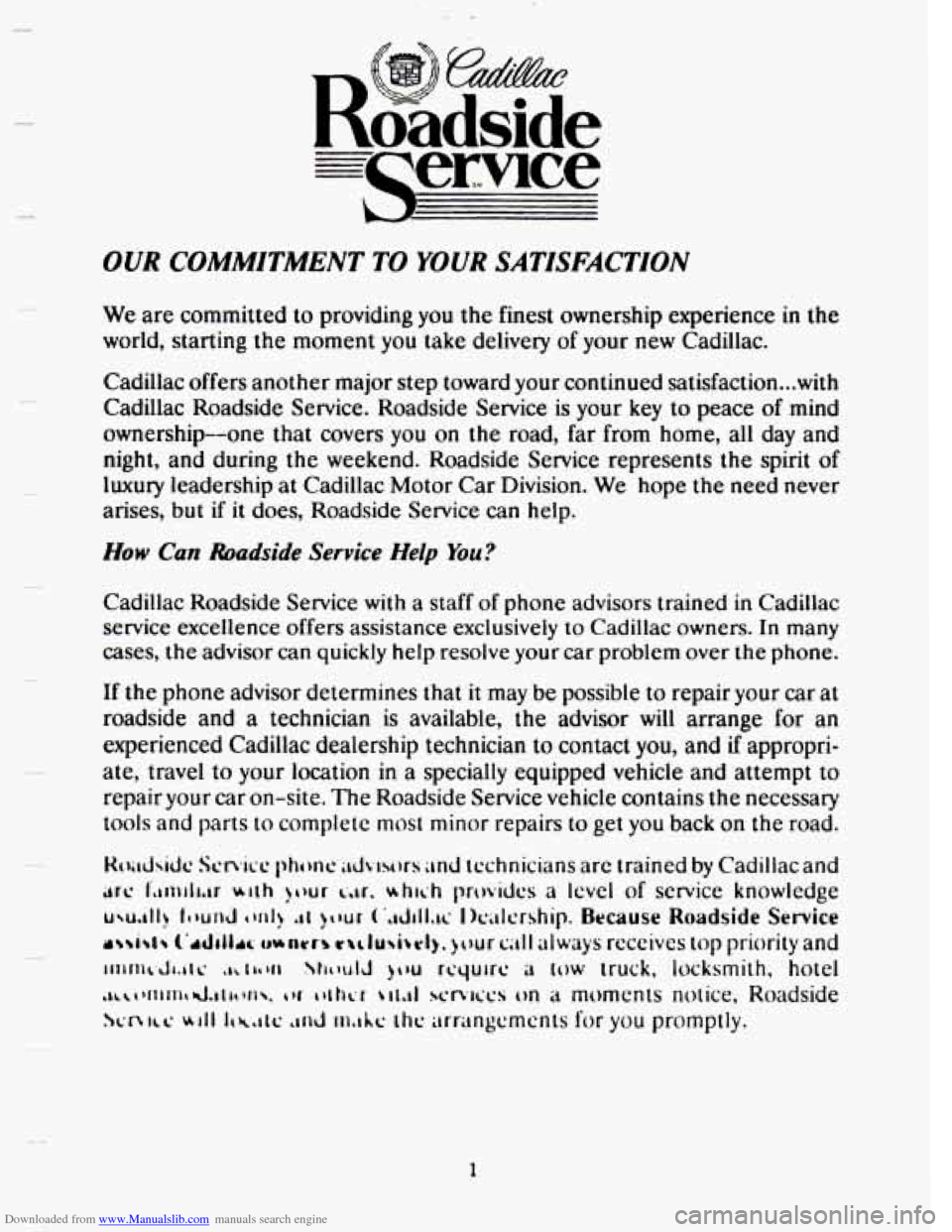

Downloaded from www.Manualslib.com manuals search engine OUR COMMITMENT TO YOUR SATISFACTION
c We are committed to providing you the finest ownership experience in the
world, starting the moment you take delivery
of your new Cadillac.
Cadillac offers another major step toward your continued satisfaction
... with
Cadillac Roadside Service. Roadside Service is your key to peace of mind
ownership--one that covers you on
the road, far from home, all day and
night, and during the weekend. Roadside Service represents the spirit of
luxury leadership at Cadillac Motor Car Division. We hope the need never
arises,
but if it does, Roadside Service can help.
How Can Roadside Service Help You?
Cadillac Roadside Service with a staff of phone advisors trained in Cadillac
service excellence offers assistance exclusively to Cadillac owners.
In many
cases, the advisor can quickly help resolve your car problem over the phone.
If the phone advisor determines that it may be possible to repair your car at
roadside and
a technician is available, the advisor will arrange for an
experienced Cadillac dealership technician to contact you, and if appropri-
ate, travel to your location
in a specially equipped vehicle and attempt to
repair your car on-site. The Roadside Service vehicle contains the necessary
tools
and parts to complete most minor repairs to get you back on the road.
HtbirJsidc Scnicc. phonc idvtsors and tcchnicians arc trained by Cadillacand
;Lrc 1mIII.u with )(bur c.u. u hlch providcs a level of service knowledge
uw,rll) fawn3 orll) .rl )&Bur ( 'ddlx I )c;rlcrship. Because Roadside Service
msirh t.dilldc owners uulusiwl~. pur c;rll always receives top priority and
ImInt.Jl.~Ic Lab tttw 5htIulJ )~BU rcqulrc a tow truck, locksmith, hotel
,~~~~~II~II~,~.I~~~~~~~. or rbttlc*r h11,tI W~IC'CS on a moments notice, Roadside
hc-n ILC udl Io~,tk ,rnJ rruhc thc irrrangcmcnts for you promptly.
1
Page 368 of 407

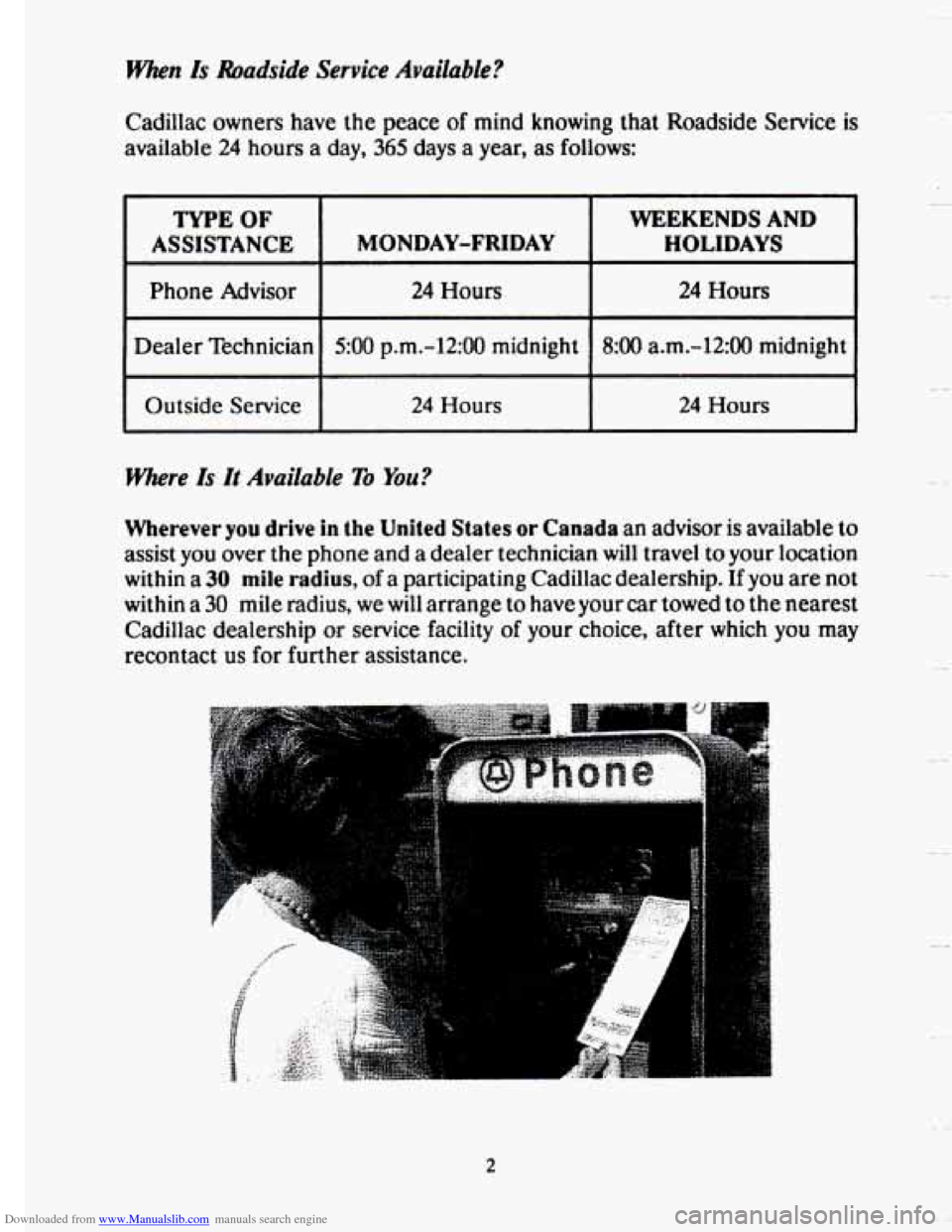

Downloaded from www.Manualslib.com manuals search engine When Is Roadside Service Available?
Cadillac owners have the peace of mind knowing that Roadside Service is
available 24 hours a day, 365 days a year, as follows:
TYPE OF WEEKENDS AND
ASSISTANCE
24 Hours 24 Hours
Phone Advisor
HOLIDAYS
MONDAY-FRIDAY
Dealer
Technician 8:OO a.m.-12:00 midnight 500 p.m.-12:OO midnight
Outside Service
24 Hours 24 Hours
Where Is It Available To You?
Wherever you drive in the United States or Canada an advisor is available to
assist you over the phone and a dealer technician will travel to your location
within a
30 mile radius, of a participating Cadillac dealership. If you are not
within a 30 mile radius, we will arrange to have your car towed to the nearest
Cadillac dealership or service facility
of your choice, after which you may
recontact
us for further assistance.
." .
c
2
Page 369 of 407
Downloaded from www.Manualslib.com manuals search engine How Do You Obtain Roadside Service?
-
Just dial the special toll-free number and an experienced advisor at the
Cadillac Roadside Operations Center
will assist you. The advisor will ask
your name,
home address, location and the telephone number you're calling
from (avoid using credit card phones, since return
calls cannot be placed to
you through them), along with the location of your Cadillac, the model year,
Vehicle Identification Number, and a description
of the problem.
Remember, Roadside Service is available
to drivers of any model year
Cadillac.
P
Who WiZZ Repair Your Cadillac At Roadside?
In many cases, the advisor at the Roadside Service Operations Center can
provide instructions to get you back on
the road. For more complex
problems, the advisor
will have an experienced Cadillac DeaIership Service
Technician, when available,
call you. The technician will evaluate the
possible cause of the problem and, if you choose, come to your assistance to
attempt a roadside repair.
3
L
Page 370 of 407
Downloaded from www.Manualslib.com manuals search engine J
i

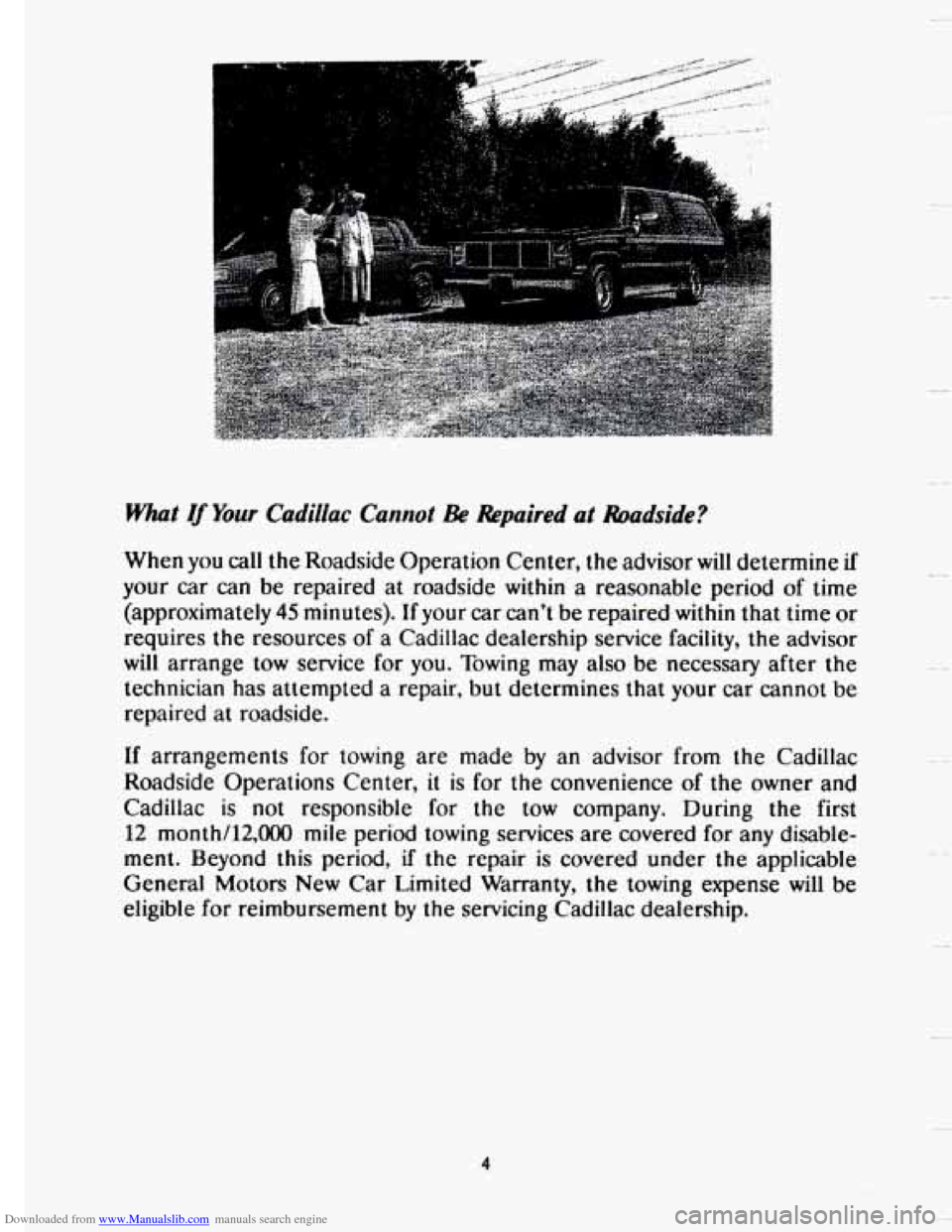

What If Your Cadillac Cannot Be Repaired at hadside?
When you call the Roadside Operation Center, the advisor will determine if
your car can be repaired at roadside within a reasonable period of time
(approximately 45 minutes). If your car can’t be rep,aired within that time or
requires the resources of a Cadillac dealership service facility, the advisor
will arrange tow service for you. Towing may also
be necessary after the
technician has attempted a repair, but determines that your car cannot be
repaired at roadside.
If arrangements for towing are made by an advisor from the Cadillac
Roadside Operations Center,
it is for the convenience of the owner and
Cadillac is not responsible for the tow company. During the first
12 month/12,000 mile period towing services are covered for any disable-
ment. Beyond this period, if the repair is covered under the applicable
General Motors New Car Limited Warranty, the towing expense
will be
eligible for reimbursement by the servicing Cadillac dealership.
4
