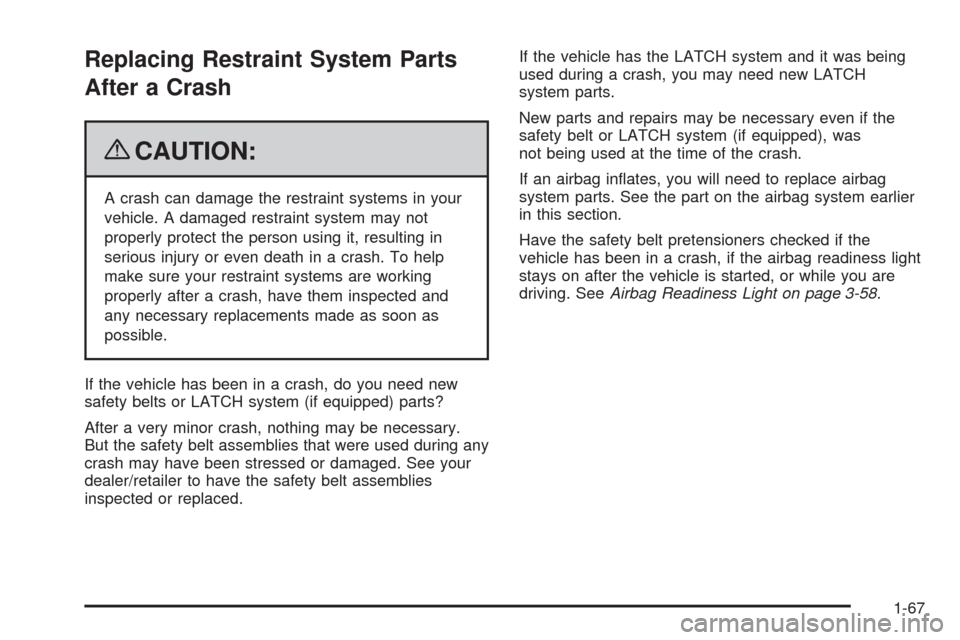

Replacing Restraint System Parts
After a Crash
{CAUTION:
A crash can damage the restraint systems in your
vehicle. A damaged restraint system may not
properly protect the person using it, resulting in
serious injury or even death in a crash. To help
make sure your restraint systems are working
properly after a crash, have them inspected and
any necessary replacements made as soon as
possible.
If the vehicle has been in a crash, do you need new
safety belts or LATCH system (if equipped) parts?
After a very minor crash, nothing may be necessary.
But the safety belt assemblies that were used during any
crash may have been stressed or damaged. See your
dealer/retailer to have the safety belt assemblies
inspected or replaced.If the vehicle has the LATCH system and it was being
used during a crash, you may need new LATCH
system parts.
New parts and repairs may be necessary even if the
safety belt or LATCH system (if equipped), was
not being used at the time of the crash.
If an airbag inates, you will need to replace airbag
system parts. See the part on the airbag system earlier
in this section.
Have the safety belt pretensioners checked if the
vehicle has been in a crash, if the airbag readiness light
stays on after the vehicle is started, or while you are
driving. SeeAirbag Readiness Light on page 3-58.
1-67

✍NOTES
1-68

Keys...............................................................2-3
Keyless Access System...................................2-4
Keyless Access System Operation....................2-5
Remote Vehicle Start....................................2-11
Doors and Locks............................................2-13
Door Locks..................................................2-13
Power Door Locks........................................2-13
Programmable Automatic Door Locks..............2-14
Rear Door Security Locks..............................2-14
Lockout Protection........................................2-15
Trunk..........................................................2-15
Windows........................................................2-18
Power Windows............................................2-19
Sun Visors...................................................2-21
Theft-Deterrent Systems..................................2-21
Theft-Deterrent System..................................2-21
Valet Lockout Switch.....................................2-23
Immobilizer..................................................2-24
Immobilizer Operation....................................2-24Starting and Operating Your Vehicle................2-25
New Vehicle Break-In....................................2-25
Ignition Positions..........................................2-26
Retained Accessory Power (RAP)...................2-27
Starting the Engine.......................................2-27
Engine Coolant Heater..................................2-29
Automatic Transmission Operation...................2-30
Parking Brake..............................................2-33
Shifting Into Park..........................................2-34
Shifting Out of Park......................................2-35
Parking Over Things That Burn.......................2-35
Engine Exhaust............................................2-36
Running the Vehicle While Parked..................2-37
Mirrors...........................................................2-38
Automatic Dimming Rearview Mirror...............
.2-38
Compass.....................................................2-38
Outside Power Mirrors...................................2-40
Outside Automatic Dimming Mirror..................2-40
Park Tilt Mirrors............................................2-41
Outside Convex Mirror...................................2-41
Outside Heated Mirrors..................................2-41
Section 2 Features and Controls
2-1

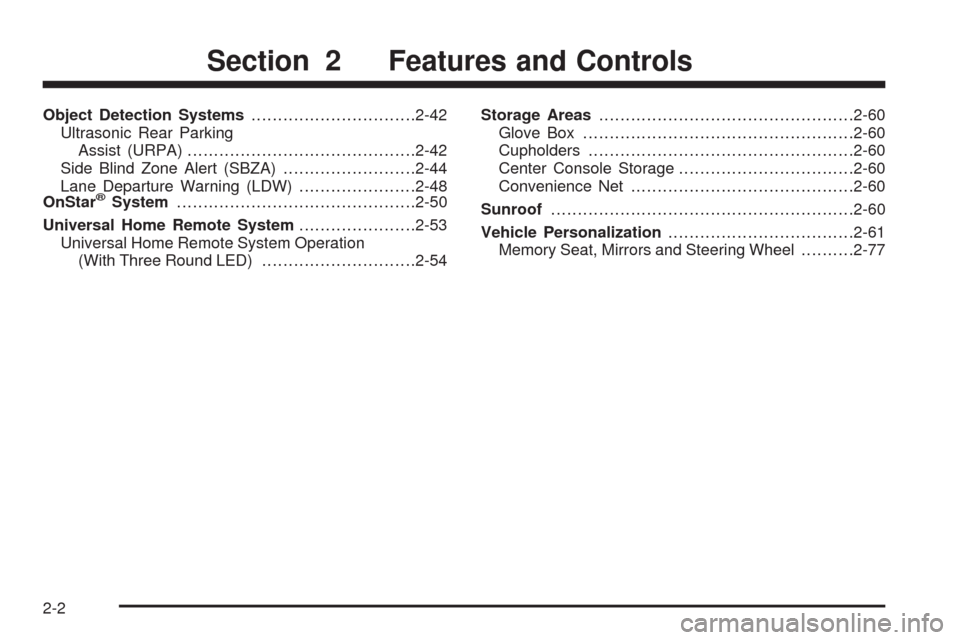

Object Detection Systems...............................2-42
Ultrasonic Rear Parking
Assist (URPA)...........................................2-42
Side Blind Zone Alert (SBZA).........................2-44
Lane Departure Warning (LDW)......................2-48
OnStar
®System.............................................2-50
Universal Home Remote System......................2-53
Universal Home Remote System Operation
(With Three Round LED).............................2-54Storage Areas................................................2-60
Glove Box...................................................2-60
Cupholders..................................................2-60
Center Console Storage.................................2-60
Convenience Net..........................................2-60
Sunroof.........................................................2-60
Vehicle Personalization...................................2-61
Memory Seat, Mirrors and Steering Wheel..........2-77
Section 2 Features and Controls
2-2

Keys
{CAUTION:
Leaving children in a vehicle with the keyless
access transmitter is dangerous for many reasons,
children or others could be badly injured or even
killed. They could operate the power windows or
other controls or even make the vehicle move.
The windows will function with the keyless access
transmitter in the vehicle and they could be
seriously injured or killed if caught in the path
of a closing window. Do not leave the keyless
access transmitter in a vehicle with children.
2-3

This key, located inside the
keyless access transmitter,
can be used for all locks.
Press the button (A) near
the bottom of the keyless
access transmitter to
remove the key. Never
pull the key without
pressing the button.Your vehicle has a Keyless Access System with
pushbutton start. SeeIgnition Positions on page 2-26
for information on starting the vehicle.
Notice:If you ever lose your transmitter(s) and/or
key, it could be difficult to get into your vehicle.
You may even have to damage your vehicle to get
in. Be sure you have a spare transmitter and/or key.
In an emergency, contact Cadillac Roadside Assistance.
SeeRoadside Service on page 7-7.
Keyless Access System
The Keyless Access System operates on a radio
frequency subject to Federal Communications
Commission (FCC) Rules and with Industry Canada.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received,
including interference that may cause undesired
operation.
This device complies with RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
1. This device may not cause interference.
2. This device must accept any interference received,
including interference that may cause undesired
operation of the device.
2-4

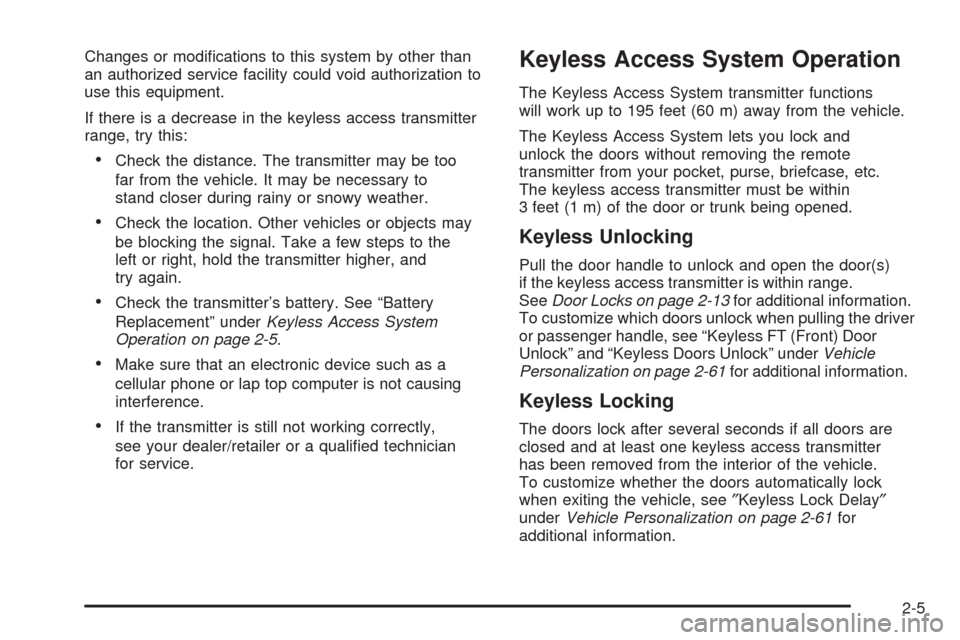

Changes or modications to this system by other than
an authorized service facility could void authorization to
use this equipment.
If there is a decrease in the keyless access transmitter
range, try this:
Check the distance. The transmitter may be too
far from the vehicle. It may be necessary to
stand closer during rainy or snowy weather.
Check the location. Other vehicles or objects may
be blocking the signal. Take a few steps to the
left or right, hold the transmitter higher, and
try again.
Check the transmitter’s battery. See “Battery
Replacement” underKeyless Access System
Operation on page 2-5.
Make sure that an electronic device such as a
cellular phone or lap top computer is not causing
interference.
If the transmitter is still not working correctly,
see your dealer/retailer or a qualied technician
for service.
Keyless Access System Operation
The Keyless Access System transmitter functions
will work up to 195 feet (60 m) away from the vehicle.
The Keyless Access System lets you lock and
unlock the doors without removing the remote
transmitter from your pocket, purse, briefcase, etc.
The keyless access transmitter must be within
3 feet (1 m) of the door or trunk being opened.
Keyless Unlocking
Pull the door handle to unlock and open the door(s)
if the keyless access transmitter is within range.
SeeDoor Locks on page 2-13for additional information.
To customize which doors unlock when pulling the driver
or passenger handle, see “Keyless FT (Front) Door
Unlock” and “Keyless Doors Unlock” underVehicle
Personalization on page 2-61for additional information.
Keyless Locking
The doors lock after several seconds if all doors are
closed and at least one keyless access transmitter
has been removed from the interior of the vehicle.
To customize whether the doors automatically lock
when exiting the vehicle, see″Keyless Lock Delay″
underVehicle Personalization on page 2-61for
additional information.
2-5

Keyless Trunk Opening
To open the trunk with the keyless access transmitter
within range, press the trunk release button located
above the license plate on the trunk. SeeTrunk
on page 2-15for additional information.
Other conditions can affect the performance of the
transmitter. SeeKeyless Access System on page 2-4.
Q(Lock):Press once to lock the doors. The light on
the front doors comes on and the turn signals ash.
If
Qis pressed twice, the horn will also sound.If the engine is off, the windows can be closed from
outside the vehicle. Press and hold
Qfor more than
two seconds to close any window. If any window
is unable to close completely, it reverses and the horn
sounds. See “Express Window Anti-Pinch Feature”
underPower Windows on page 2-19for more
information.
See “Lights Flash at Lock” and “Horn Chirps at Lock”
underVehicle Personalization on page 2-61to change
the feedback feature.
K(Unlock):Press once to unlock the driver door.
The turn signals ash twice. Press
Ktwice within
ve seconds to unlock all the doors. The interior lamps
may come on.
See “Lights Flash at Unlock” and “Ext. (Exterior) Lights at
Unlock” underVehicle Personalization on page 2-61to
change the feedback feature.
Vehicles with the memory feature can be programmed to
recall memory settings when
Kis pressed on the keyless
access transmitter. SeeMemory Seat, Mirrors and
Steering Wheel on page 2-77for more information.
/(Remote Start):Press to operate the remote start
feature. SeeRemote Vehicle Start on page 2-11.
2-6

G(Trunk):Press and hold to unlock the trunk. If
the engine is running, the shift lever must be in P (Park).
L(Vehicle Locator/Panic Alarm):Press and release
to locate the vehicle. The horn sounds three times and
the turn signal lamps ash three times. Press and hold
Lfor three seconds to sound the panic alarm. The horn
sounds and the turn signal lamps ash for 30 seconds.
Press and release
Lagain to cancel the panic alarm.
The vehicle comes with two transmitters. Each
transmitter will have a number on top of it,″1″or″2″.
These numbers correspond to the driver of the vehicle.
For example, the memory seat position for driver 1
will be recalled when using the transmitter labeled″1″,
if enabled through the vehicle personalization. See
Memory Seat, Mirrors and Steering Wheel on page 2-77
andVehicle Personalization on page 2-61.
Programming Transmitters to the
Vehicle
Only keyless access transmitters programmed to
this vehicle will work. If a transmitter is lost or stolen,
a replacement can be purchased and programmed
through your dealer/retailer. The vehicle can be
reprogrammed so that lost or stolen transmitters
no longer work. Each vehicle can have up to
four transmitters programmed to it.
Programming with a Recognized
Transmitter
A new transmitter can be programmed to the vehicle
when there is one recognized transmitter. For vehicles
sold in Canada, two recognized transmitters are
required to program a new transmitter.
1. The vehicle must be off.
2. Both the recognized and new transmitters must be
with you.
3. Insert the vehicle key into the key cylinder located
on the outside of the driver door.
4. Turn the key to the unlock position ve times within
ve seconds.
5. The Driver Information Center (DIC) displays
READY FOR FOB 2, 3 or 4.
2-7

6. Place the new transmitter into the transmitter
pocket, located inside the center console storage
area located between the driver and front passenger
seats, with the transmitter buttons facing the front
of the vehicle.
7. A beep sounds once programming in complete.
The DIC displays READY FOR 3 or 4, or
MAX # FOBS LEARNED.8. Remove the transmitter from the transmitter pocket
and press
Ktwice on each newly programmed
transmitter to complete the process.
9. To program additional transmitters, repeat Step 6.
Press Acc. on the ignition switch if programming is
complete.
Programming without a Recognized
Transmitter
This procedure requires three ten minutes cycles to
complete the programming process. United States
owners are permitted to program a new transmitter
to their vehicle when a recognized transmitter is not
available. The Canadian immobilizer standard requires
that Canadian owners see their dealer/retailer for
programming new transmitters when two recognized
transmitters are not available.
1. The vehicle must be off.
2-8
