Page 2 of 618

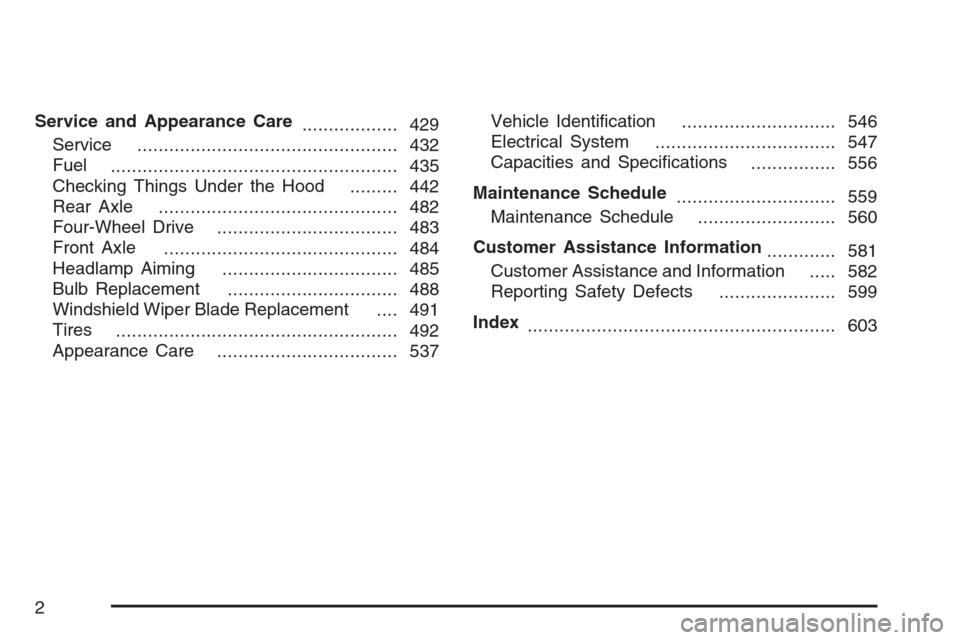

Service and Appearance Care
.................. 429
Service
................................................. 432
Fuel
...................................................... 435
Checking Things Under the Hood
......... 442
Rear Axle
............................................. 482
Four-Wheel Drive
.................................. 483
Front Axle
............................................ 484
Headlamp Aiming
................................. 485
Bulb Replacement
................................ 488
Windshield Wiper Blade Replacement
.... 491
Tires
..................................................... 492
Appearance Care
.................................. 537Vehicle Identi cation
............................. 546
Electrical System
.................................. 547
Capacities and Speci cations
................ 556
Maintenance Schedule
.............................. 559
Maintenance Schedule
.......................... 560
Customer Assistance Information
............. 581
Customer Assistance and Information
..... 582
Reporting Safety Defects
...................... 599
Index
.......................................................... 603
2
Page 119 of 618

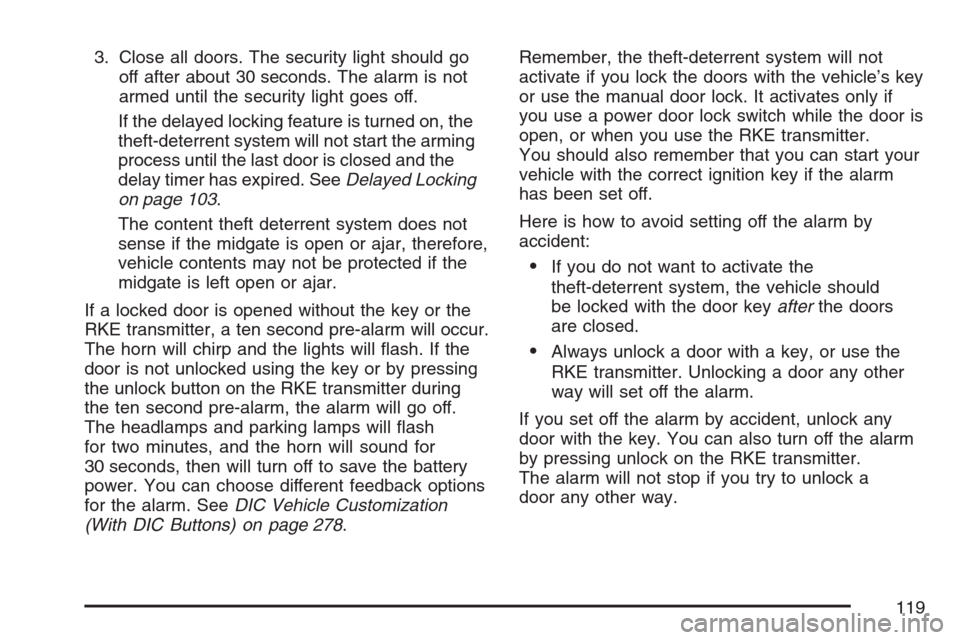

3. Close all doors. The security light should go
off after about 30 seconds. The alarm is not
armed until the security light goes off.
If the delayed locking feature is turned on, the
theft-deterrent system will not start the arming
process until the last door is closed and the
delay timer has expired. SeeDelayed Locking
on page 103.
The content theft deterrent system does not
sense if the midgate is open or ajar, therefore,
vehicle contents may not be protected if the
midgate is left open or ajar.
If a locked door is opened without the key or the
RKE transmitter, a ten second pre-alarm will occur.
The horn will chirp and the lights will ash. If the
door is not unlocked using the key or by pressing
the unlock button on the RKE transmitter during
the ten second pre-alarm, the alarm will go off.
The headlamps and parking lamps will ash
for two minutes, and the horn will sound for
30 seconds, then will turn off to save the battery
power. You can choose different feedback options
for the alarm. SeeDIC Vehicle Customization
(With DIC Buttons) on page 278.Remember, the theft-deterrent system will not
activate if you lock the doors with the vehicle’s key
or use the manual door lock. It activates only if
you use a power door lock switch while the door is
open, or when you use the RKE transmitter.
You should also remember that you can start your
vehicle with the correct ignition key if the alarm
has been set off.
Here is how to avoid setting off the alarm by
accident:
If you do not want to activate the
theft-deterrent system, the vehicle should
be locked with the door keyafterthe doors
are closed.
Always unlock a door with a key, or use the
RKE transmitter. Unlocking a door any other
way will set off the alarm.
If you set off the alarm by accident, unlock any
door with the key. You can also turn off the alarm
by pressing unlock on the RKE transmitter.
The alarm will not stop if you try to unlock a
door any other way.
119
Page 120 of 618

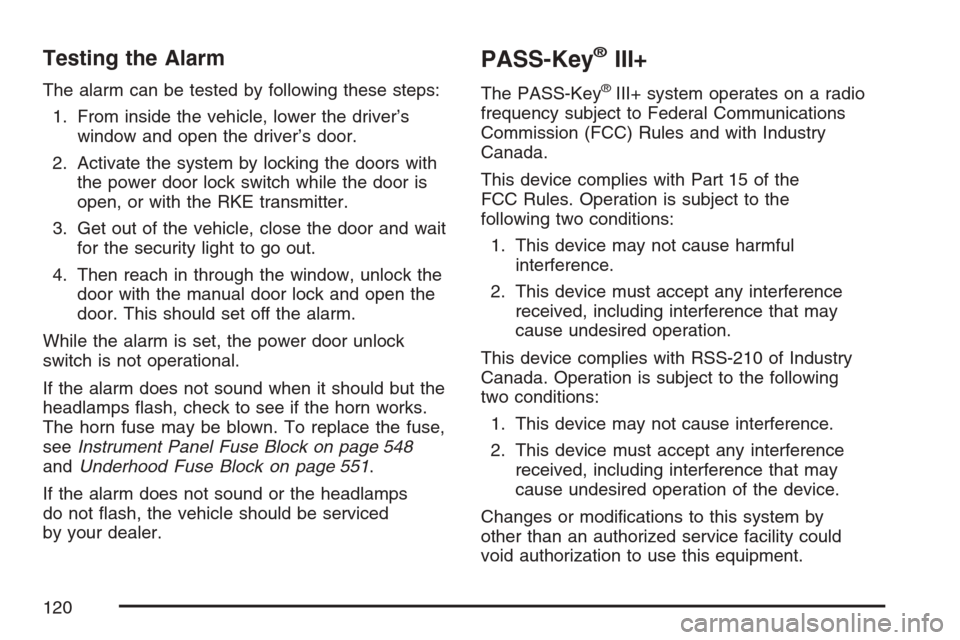

Testing the Alarm
The alarm can be tested by following these steps:
1. From inside the vehicle, lower the driver’s
window and open the driver’s door.
2. Activate the system by locking the doors with
the power door lock switch while the door is
open, or with the RKE transmitter.
3. Get out of the vehicle, close the door and wait
for the security light to go out.
4. Then reach in through the window, unlock the
door with the manual door lock and open the
door. This should set off the alarm.
While the alarm is set, the power door unlock
switch is not operational.
If the alarm does not sound when it should but the
headlamps ash, check to see if the horn works.
The horn fuse may be blown. To replace the fuse,
seeInstrument Panel Fuse Block on page 548
andUnderhood Fuse Block on page 551.
If the alarm does not sound or the headlamps
do not ash, the vehicle should be serviced
by your dealer.
PASS-Key®III+
The PASS-Key®III+ system operates on a radio
frequency subject to Federal Communications
Commission (FCC) Rules and with Industry
Canada.
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
1. This device may not cause harmful
interference.
2. This device must accept any interference
received, including interference that may
cause undesired operation.
This device complies with RSS-210 of Industry
Canada. Operation is subject to the following
two conditions:
1. This device may not cause interference.
2. This device must accept any interference
received, including interference that may
cause undesired operation of the device.
Changes or modi cations to this system by
other than an authorized service facility could
void authorization to use this equipment.
120
