Page 195 of 432
Black plate (1,1)Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
6042601) - 2014 - CRC - 1/21/14
Climate Controls 8-1
Climate Controls
Climate Control Systems
Climate Control Systems . . . . . . 8-1
Air Vents
Air Vents . . . . . . . . . . . . . . . . . . . . . . 8-3
Maintenance
Passenger Compartment AirFilter . . . . . . . . . . . . . . . . . . . . . . . . . 8-4
Climate Control Systems
The heating, cooling, defrosting, and ventilation for the vehicle can be
controlled with this system.
1. Fan Control
2. Heated Seats (If Equipped)
3. Temperature Control
4. Air Delivery Mode Controls
5. Air Conditioning (If Equipped)
6. Defrost
7. Rear Window Defogger 8. Recirculation
A(Fan Control):
Turn to increase
or decrease the fan speed. Turn the
knob to O to turn the fan off.
Temperature Control: Turn to
increase or decrease the
temperature inside the vehicle.
Maximum cooling occurs when the
temperature knob is turned to MAX
Page 198 of 432
Black plate (4,1)Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
6042601) - 2014 - CRC - 1/21/14
8-4 Climate Controls
Maintenance
Passenger Compartment
Air Filter
The passenger compartment air
filter removes most of the pollen and
dust from the air that enters the
vehicle. The filter will need to be
replaced periodically. See
Maintenance Schedule on
page 11-3.
Using the climate control system
without an air filter installed is not
recommended. Water or other
debris could enter the system and
result in leaks or noises. Always
install a new filter when removing
the old filter.
For more information on filter
replacement, see your dealer.
Page 261 of 432
Black plate (1,1)Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
6042601) - 2014 - CRC - 1/21/14
Vehicle Care 10-1
Vehicle Care
General Information
General Information . . . . . . . . . . 10-3
California Proposition65 Warning . . . . . . . . . . . . . . . . . 10-3
California Perchlorate Materials Requirements . . . . 10-3
Accessories and Modifications . . . . . . . . . . . . . . . 10-3
Vehicle Checks
Doing Your OwnService Work . . . . . . . . . . . . . . . 10-4
Hood . . . . . . . . . . . . . . . . . . . . . . . . 10-5
Engine Compartment Overview . . . . . . . . . . . . . . . . . . . 10-6
Engine Cover . . . . . . . . . . . . . . . 10-13
Engine Oil . . . . . . . . . . . . . . . . . . 10-15
Engine Oil Life System . . . . . 10-20
Automatic Transmission Fluid . . . . . . . . . . . . . . . . . . . . . . 10-21
Manual Transmission Fluid . . . . . . . . . . . . . . . . . . . . . . 10-21
Hydraulic Clutch . . . . . . . . . . . . 10-21
Engine Air Cleaner/Filter (Except ZL1 and Z/28) . . . . 10-22 Engine Air Cleaner/Filter
(ZL1 Only) . . . . . . . . . . . . . . . . 10-23
Engine Air Cleaner/Filter (Z/ 28 Only) . . . . . . . . . . . . . . . . . . 10-24
Cooling System (Except
ZL1 and Z/28 Engines) . . . . 10-26
Cooling System (ZL1 Engine Only) . . . . . . . . . . . . . . 10-27
Cooling System (Intercooler) . . . . . . . . . . . . . . . 10-29
Cooling System (Z/28 Engine Only) . . . . . . . . . . . . . . 10-29
Engine Coolant . . . . . . . . . . . . . 10-30
Engine Overheating . . . . . . . . 10-35
Power Steering Fluid (L99, LS3, ZL1 and Z/28) . . . . . . . 10-37
Power Steering Fluid (LFX) . . . . . . . . . . . . . . . . 10-37
Washer Fluid . . . . . . . . . . . . . . . 10-38
Brakes . . . . . . . . . . . . . . . . . . . . . 10-38
Brake Fluid . . . . . . . . . . . . . . . . . 10-40
Battery . . . . . . . . . . . . . . . . . . . . . 10-41
Rear Axle . . . . . . . . . . . . . . . . . . 10-42
Starter Switch Check . . . . . . . 10-42
Automatic Transmission Shift Lock Control Function
Check . . . . . . . . . . . . . . . . . . . . . 10-42
Ignition Transmission Lock Check . . . . . . . . . . . . . . . . . . . . . 10-43 Park Brake and P (Park)
Mechanism Check . . . . . . . . 10-43
Wiper Blade Replacement . . . . . . . . . . . . . . 10-43
Windshield Replacement . . . 10-44
Headlamp Aiming
Headlamp Aiming . . . . . . . . . . 10-44
Bulb Replacement
Bulb Replacement . . . . . . . . . . 10-45
Halogen Bulbs . . . . . . . . . . . . . . 10-45
High Intensity Discharge
(HID) Lighting . . . . . . . . . . . . . 10-45
Headlamps, Front Turn Signal and Parking Lamps
(Uplevel Vehicle) . . . . . . . . . . 10-45
Headlamps, Front Turn Signal and Parking Lamps
(Base Vehicle) . . . . . . . . . . . . 10-46
Taillamps, Turn Signal, and Stoplamps . . . . . . . . . . . . . . . . 10-47
License Plate Lamp . . . . . . . . 10-47
Replacement Bulbs . . . . . . . . . 10-48
Electrical System
Electrical System Overload . . . . . . . . . . . . . . . . . . 10-48
Fuses and Circuit Breakers . . . . . . . . . . . . . . . . . . 10-49
Page 267 of 432
Black plate (7,1)Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
6042601) - 2014 - CRC - 1/21/14
Vehicle Care 10-7
1. Underhood Electrical Center.See Engine Compartment Fuse
Block on page 10-49.
2. Engine Coolant Recovery Bottle and Cap. See Engine Coolant
on page 10-30.
3. Engine Cover on page 10-13.
4. Engine Cooling Fans (Out of View). See Cooling System
(Except ZL1 and Z/28 Engines)
on page 10-26 orCooling
System (ZL1 Engine Only) on
page 10-27 orCooling System
(Intercooler) on page 10-29 or
Cooling System (Z/28 Engine
Only) on page 10-29.
5. Radiator Fill Cap (Out of View). See Engine Coolant on
page 10-30. 6. Power Steering Reservoir and
Cap (Out of View). See Power
Steering Fluid (L99, LS3,
ZL1 and Z/28) on page 10-37 or
Power Steering Fluid (LFX) on
page 10-37.
7. Engine Oil Fill Cap. See Engine
Oil on page 10-15.
8. Engine Oil Dipstick (Out of View). See Engine Oil on
page 10-15.
9. Brake Fluid and Hydraulic Clutch Reservoir (If Equipped with
Manual Transmission). See
Brakes on page 10-38 or
Hydraulic Clutch on page 10-21. 10. Remote Positive (+) Terminal.
SeeBattery on page 10-41.
11. Engine Air Cleaner/Filter
(Except ZL1 and Z/28) on
page 10-22 orEngine Air
Cleaner/Filter (ZL1 Only) on
page 10-23 orEngine Air
Cleaner/Filter (Z/28 Only) on
page 10-24.
12. Windshield Washer Fluid Reservoir. See Washer Fluid
on page 10-38.
Page 269 of 432
Black plate (9,1)Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
6042601) - 2014 - CRC - 1/21/14
Vehicle Care 10-9
1. Underhood Electrical Center.See Engine Compartment Fuse
Block on page 10-49.
2. Engine Coolant Recovery Bottle and Cap. See Engine Coolant
on page 10-30.
3. Engine Oil Dipstick. See Engine
Oil on page 10-15.
4. Engine Oil Fill Cap (Out of View). See Engine Oil on
page 10-15.
5. Engine Cover on page 10-13.
6. Engine Cooling Fans (Out of View). See Cooling System
(Except ZL1 and Z/28 Engines)
on page 10-26 orCooling
System (ZL1 Engine Only) on
page 10-27 orCooling System
(Intercooler) on page 10-29 or
Cooling System (Z/28 Engine
Only) on page 10-29. 7. Radiator Fill Cap (Out of View).
See Engine Coolant on
page 10-30.
8. Power Steering Reservoir and Cap (Under Engine Cover) (if
equipped). See Power Steering
Fluid (L99, LS3, ZL1 and Z/28)
on page 10-37 orPower
Steering Fluid (LFX) on
page 10-37.
9. Brake Fluid and Hydraulic Clutch Reservoir (If Equipped with
Manual Transmission). See
Brakes on page 10-38 or
Hydraulic Clutch on page 10-21.
10. Remote Positive (+) Terminal. SeeBattery on page 10-41. 11.
Engine Air Cleaner/Filter
(Except ZL1 and Z/28) on
page 10-22 orEngine Air
Cleaner/Filter (ZL1 Only) on
page 10-23 orEngine Air
Cleaner/Filter (Z/28 Only) on
page 10-24.
12. Windshield Washer Fluid Reservoir. See Washer Fluid
on page 10-38.
Page 271 of 432
Black plate (11,1)Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
6042601) - 2014 - CRC - 1/21/14
Vehicle Care 10-11
1. Engine Coolant Recovery Bottleand Cap. See Engine Coolant
on page 10-30.
2. Underhood Electrical Center. See Engine Compartment Fuse
Block on page 10-49.
3. Engine Oil Dipstick. See Engine
Oil on page 10-15.
4. Engine Oil Fill Cap (Out of View). See Engine Oil on
page 10-15.
5. Engine Cover on page 10-13.
6. Radiator Fill Cap. See Engine
Coolant on page 10-30.
7. Intercooler Fill Cap (Out of View). See Cooling System
(Except ZL1 and Z/28 Engines)
on page 10-26 orCooling
System (ZL1 Engine Only) on
page 10-27 orCooling System
(Intercooler) on page 10-29 or
Cooling System (Z/28 Engine
Only) on page 10-29. 8. Engine Cooling Fans (Out of
View). See Cooling System
(Except ZL1 and Z/28 Engines)
on page 10-26 orCooling
System (ZL1 Engine Only) on
page 10-27 orCooling System
(Intercooler) on page 10-29 or
Cooling System (Z/28 Engine
Only) on page 10-29.
9. Engine Air Cleaner/Filter (Except
ZL1 and Z/28) on page 10-22 or
Engine Air Cleaner/Filter (ZL1
Only) on page 10-23 orEngine
Air Cleaner/Filter (Z/28 Only) on
page 10-24.
10. Remote Positive (+) Terminal. SeeBattery on page 10-41. 11. Brake Fluid and Hydraulic
Clutch Reservoir (If Equipped
with Manual Transmission).
SeeBrakes on page 10-38 or
Hydraulic Clutch on
page 10-21.
12. Windshield Washer Fluid Reservoir. See Washer Fluid
on page 10-38.
Page 273 of 432
Black plate (13,1)Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
6042601) - 2014 - CRC - 1/21/14
Vehicle Care 10-13
1. Engine Coolant Recovery Bottleand Cap. See Engine Coolant
on page 10-30.
2. Underhood Electrical Center. See Engine Compartment Fuse
Block on page 10-49.
3. Engine Oil Reservoir and Oil Fill Cap. See Engine Oil on
page 10-15.
4. Engine Oil Dipstick. See Engine
Oil on page 10-15.
5. Radiator Fill Cap. See Engine
Coolant on page 10-30.
6. Engine Cooling Fans (Out of View). See Cooling System
(Except ZL1 and Z/28 Engines)
on page 10-26 orCooling
System (ZL1 Engine Only) on
page 10-27 orCooling System
(Intercooler) on page 10-29 or
Cooling System (Z/28 Engine
Only) on page 10-29. 7.
Engine Cover on page 10-13.
8. Remote Positive (+) Terminal. See Battery on page 10-41.
9. Brake Fluid and Hydraulic Clutch Reservoir. See Brakes on
page 10-38 orHydraulic Clutch
on page 10-21.
10. Engine Air Cleaner/Filter
(Except ZL1 and Z/28) on
page 10-22 orEngine Air
Cleaner/Filter (ZL1 Only) on
page 10-23 orEngine Air
Cleaner/Filter (Z/28 Only) on
page 10-24.
11. Windshield Washer Fluid Reservoir. See Washer Fluid
on page 10-38.Engine Cover
3.6L V6 Engine Cover
1. Engine Cover
2. Engine Oil Fill Cap
To remove:
1. Remove the engine oil
fill cap (2).
2. Lift the engine cover (1) to disengage one front attachment
point.
Page 281 of 432
Black plate (21,1)Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
6042601) - 2014 - CRC - 1/21/14
Vehicle Care 10-21

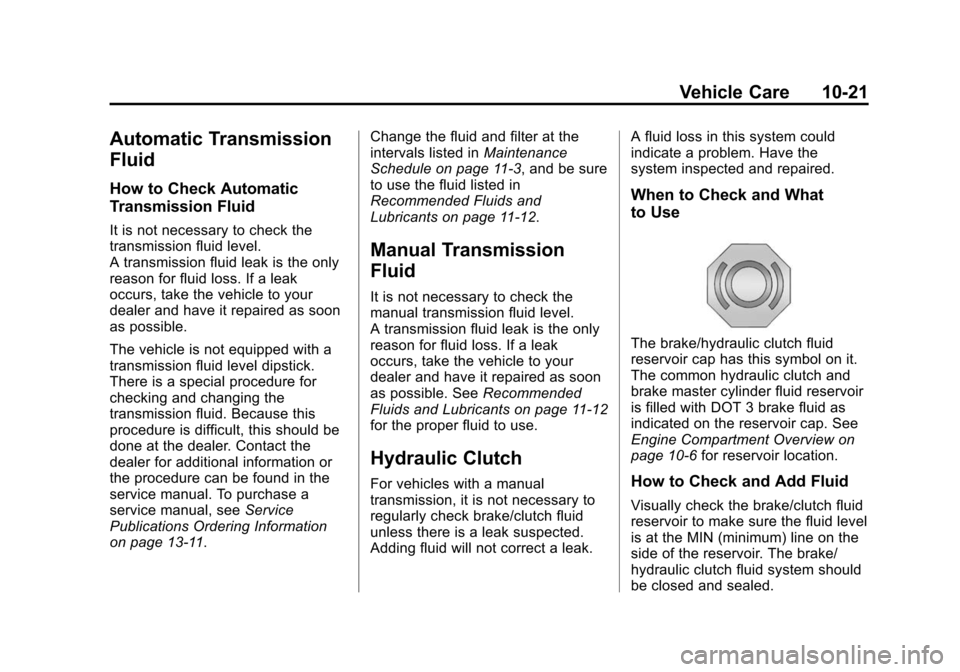

Automatic Transmission
Fluid
How to Check Automatic
Transmission Fluid
It is not necessary to check the
transmission fluid level.
A transmission fluid leak is the only
reason for fluid loss. If a leak
occurs, take the vehicle to your
dealer and have it repaired as soon
as possible.
The vehicle is not equipped with a
transmission fluid level dipstick.
There is a special procedure for
checking and changing the
transmission fluid. Because this
procedure is difficult, this should be
done at the dealer. Contact the
dealer for additional information or
the procedure can be found in the
service manual. To purchase a
service manual, seeService
Publications Ordering Information
on page 13-11. Change the fluid and filter at the
intervals listed in
Maintenance
Schedule on page 11-3, and be sure
to use the fluid listed in
Recommended Fluids and
Lubricants on page 11-12.
Manual Transmission
Fluid
It is not necessary to check the
manual transmission fluid level.
A transmission fluid leak is the only
reason for fluid loss. If a leak
occurs, take the vehicle to your
dealer and have it repaired as soon
as possible. See Recommended
Fluids and Lubricants on page 11-12
for the proper fluid to use.
Hydraulic Clutch
For vehicles with a manual
transmission, it is not necessary to
regularly check brake/clutch fluid
unless there is a leak suspected.
Adding fluid will not correct a leak. A fluid loss in this system could
indicate a problem. Have the
system inspected and repaired.
When to Check and What
to Use
The brake/hydraulic clutch fluid
reservoir cap has this symbol on it.
The common hydraulic clutch and
brake master cylinder fluid reservoir
is filled with DOT 3 brake fluid as
indicated on the reservoir cap. See
Engine Compartment Overview on
page 10-6
for reservoir location.
How to Check and Add Fluid
Visually check the brake/clutch fluid
reservoir to make sure the fluid level
is at the MIN (minimum) line on the
side of the reservoir. The brake/
hydraulic clutch fluid system should
be closed and sealed.
Page 282 of 432
Black plate (22,1)Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
6042601) - 2014 - CRC - 1/21/14
10-22 Vehicle Care
Do not remove the cap to check the
fluid level or to top‐off the fluid level.
Remove the cap only when
necessary to add the proper fluid
until the level reaches the MIN line.
Engine Air Cleaner/Filter
(Except ZL1 and Z/28)
SeeEngine Compartment Overview
on page 10-6 for the location of the
engine air cleaner/filter.
When to Inspect the Engine Air
Cleaner/Filter
Inspect the air cleaner/filter at the
scheduled maintenance intervals
and replace it at the appropriate
interval. See Maintenance Schedule
on page 11-3 for more information.
If driving in dusty/dirty conditions,
inspect the filter at each engine oil
change.
How to Inspect the Engine Air
Cleaner/Filter
To inspect the air cleaner/filter,
remove the filter from the vehicle
and lightly shake the filter to release
loose dust and dirt. If the filter
remains covered with dirt, a new
filter is required.
To inspect or replace the engine air
cleaner/filter:
1. Open the hood. See Hood on
page 10-5.
2. Locate the air filter housing on the front of the driver side of the
engine compartment. See
Engine Compartment Overview
on page 10-6.

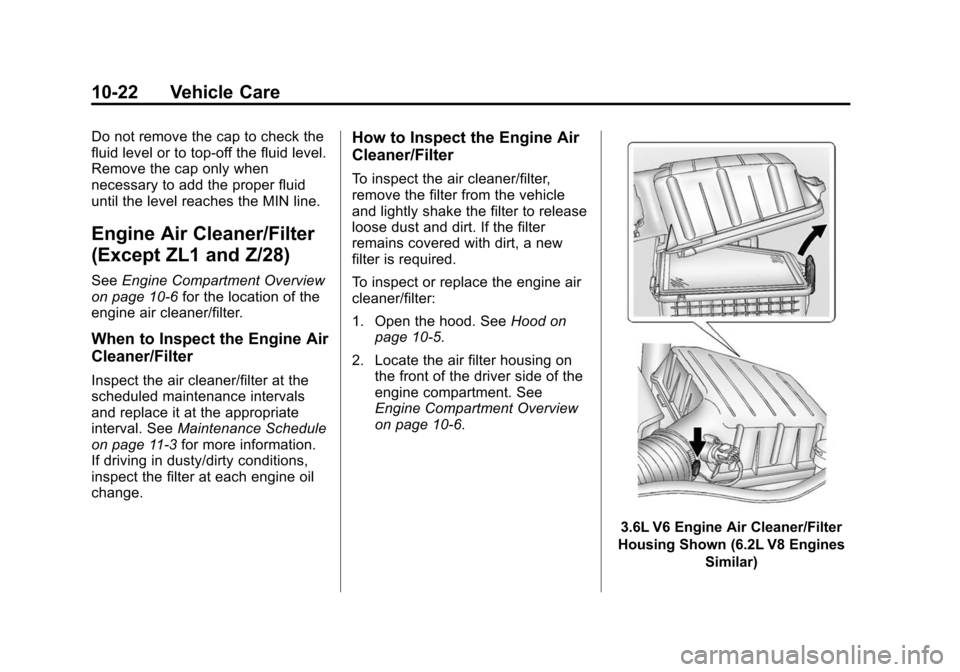

3.6L V6 Engine Air Cleaner/Filter
Housing Shown (6.2L V8 Engines Similar)
Page 283 of 432
Black plate (23,1)Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
6042601) - 2014 - CRC - 1/21/14
Vehicle Care 10-23
3. Loosen the clamp at the duct ofthe air cleaner/filter housing.
4. Unlatch the retaining clips on the air cleaner/filter housing.
5. Lift the cover at the retaining clip location high enough to clear the
retaining clips and pull the cover
outward to remove it from the air
cleaner/filter housing hinges.
6. Pull straight up on the cover; while holding the cover, remove
the air filter.
7. Inspect or replace the air filter. See Maintenance Replacement
Parts on page 11-14.
8. Reverse Steps 1–6 to reinstall the cover.
{Warning
Operating the engine with the air
cleaner/filter off can cause you or
others to be burned. The air
cleaner not only cleans the air; it
(Continued)
Warning (Continued)
helps to stop flames if the engine
backfires. Use caution when
working on the engine and do not
drive with the air cleaner/filter off.
{Caution
If the air cleaner/filter is off, dirt
can easily get into the engine,
which could damage it. Always
have the air cleaner/filter in place
when you are driving.
Engine Air Cleaner/Filter
(ZL1 Only)
SeeEngine Compartment Overview
on page 10-6 for the location of the
engine air cleaner/filter.
{Caution
If water is sprayed and enters the
engine air cleaner/filter intake and
housing, the engine could be
damaged. The repairs would not
be covered by the vehicle
warranty.
When to Inspect the Engine Air
Cleaner/Filter
Inspect the air cleaner/filter at the
scheduled maintenance intervals
and replace it at the appropriate
interval. See Maintenance Schedule
on page 11-3 for more information.
If driving in dusty/dirty conditions,
inspect the filter at each engine oil
change.
