Page 1 of 450
Seats and Restraint Systems
........................ 7
Front Seats
.............................................. 9
Rear Seats
............................................. 16
Safety Belts
............................................ 18
Child Restraints
...................................... 40

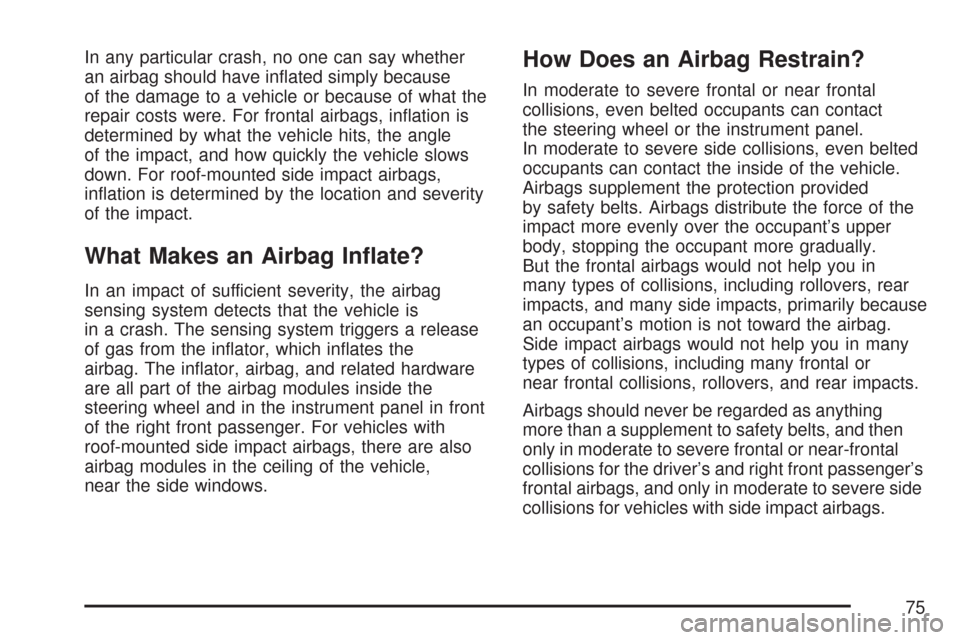

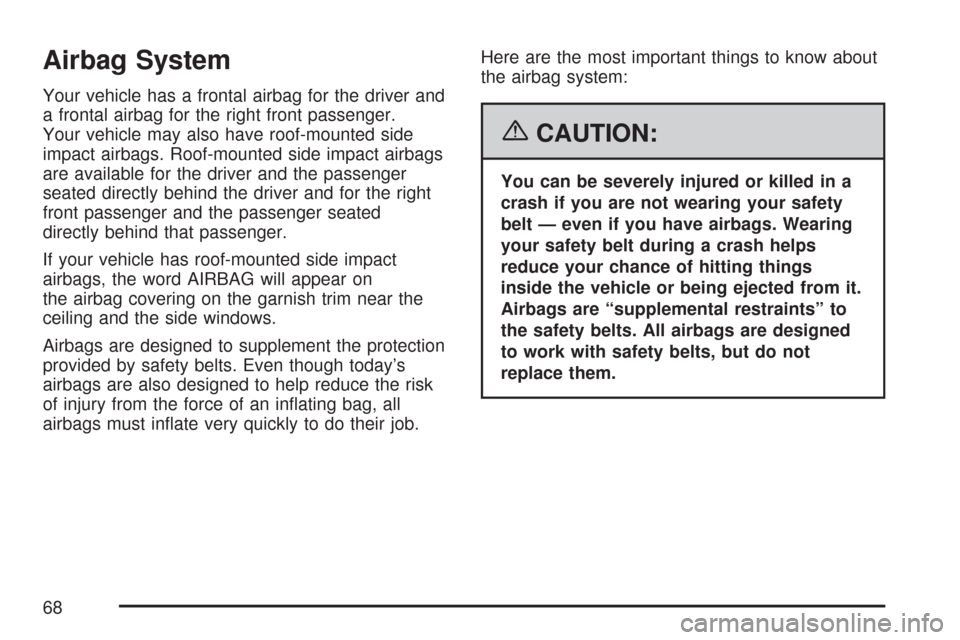

Airbag System
........................................ 68

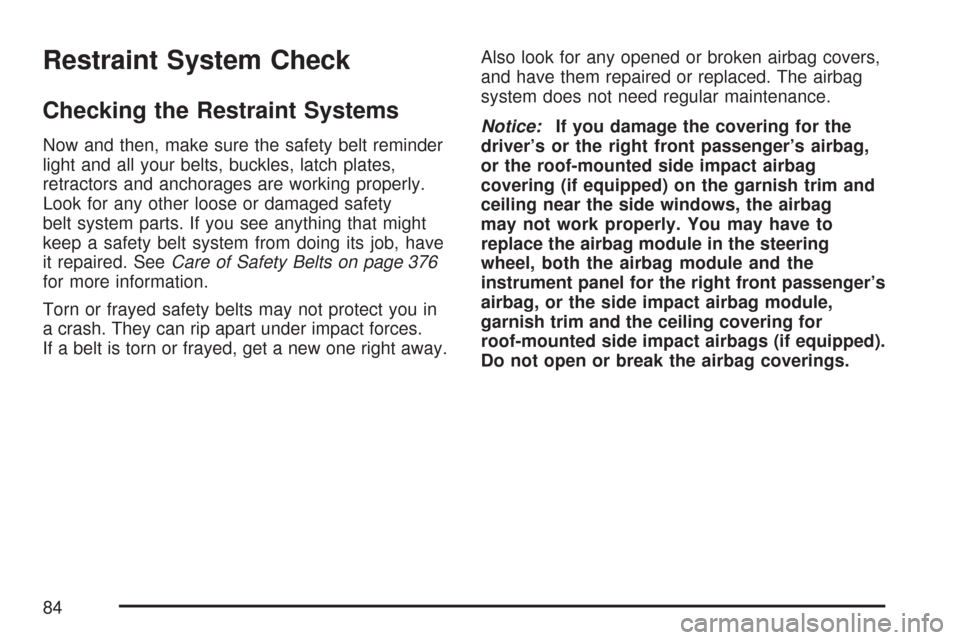

Restraint System Check
......................... 84

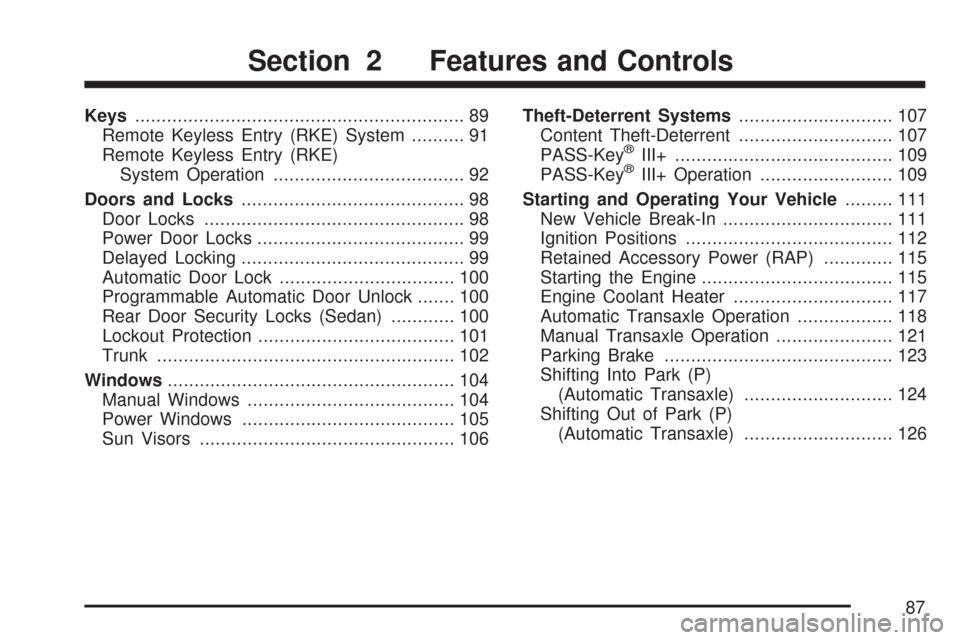

Features and Controls
................................. 87
Keys
....................................................... 89
Doors and Locks
.................................... 98
Windows
............................................... 104
Theft-Deterrent Systems
....................... 107
Starting and Operating Your Vehicle
..... 111
Mirrors
.................................................. 130
OnStar
®System
................................... 132
Storage Areas
...................................... 136
Sunroof
................................................ 137Instrument Panel
........................................ 139
Instrument Panel Overview
................... 142
Climate Controls
................................... 158
Warning Lights, Gages, and Indicators
... 164
Driver Information Center (DIC)
............ 181
Audio System(s)
................................... 192
Driving Your Vehicle
.................................. 225
Your Driving, the Road, and
Your Vehicle
..................................... 226
Towing
................................................. 264
Service and Appearance Care
................... 277
Service
................................................. 280
Fuel
...................................................... 282
Checking Things Under the Hood
......... 288
Headlamp Aiming
................................. 328
Bulb Replacement
................................ 331
Windshield Wiper Blade Replacement
... 337
2007 Chevrolet Cobalt Owner ManualM
1
Page 41 of 450
{CAUTION:
Never do this.
Here two children are wearing the same
belt. The belt cannot properly spread the
impact forces. In a crash, the two children
can be crushed together and seriously
injured. A belt must be used by only one
person at a time.
Q:What if a child is wearing a lap-shoulder
belt, but the child is so small that the
shoulder belt is very close to the child’s
face or neck?
A:If the child is sitting in a seat next to a
window, move the child toward the center of
the vehicle. Also seeRear Safety Belt
Comfort Guides on page 36. If the child is
sitting in the center rear seat passenger
position, move the child toward the safety belt
buckle. In either case, be sure that the
shoulder belt still is on the child’s shoulder, so
that in a crash the child’s upper body would
have the restraint that belts provide.
41
