Page 89 of 490
WARNING! (Continued)
•Always make sure that objects cannot fall into the
driver footwell while the vehicle is moving. Ob-
jects can become trapped under the brake pedal
and accelerator pedal causing a loss of vehicle
control.
•If required, mounting posts must be properly
installed, if not equipped from the factory.
Failure to properly follow floor mat installation or
mounting can cause interference with the brake
pedal and accelerator pedal operation causing loss
of control of the vehicle.
Periodic Safety Checks You Should Make Outside
The Vehicle
Tires
Examine tires for excessive tread wear and uneven wear
patterns. Check for stones, nails, glass, or other objectslodged in the tread or sidewall. Inspect the tread for cuts
and cracks. Inspect sidewalls for cuts, cracks and bulges.
Check the wheel nuts for tightness. Check the tires
(including spare) for proper cold inflation pressure.
Lights
Have someone observe the operation of exterior lights
while you work the controls. Check turn signal and high
beam indicator lights on the instrument panel.
Door Latches
Check for positive closing, latching, and locking.
Fluid Leaks
Check area under vehicle after overnight parking for fuel,
engine coolant, oil, or other fluid leaks. Also, if gasoline
fumes are detected or if fuel, power steering fluid, or
brake fluid leaks are suspected, the cause should be
located and corrected immediately.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 87

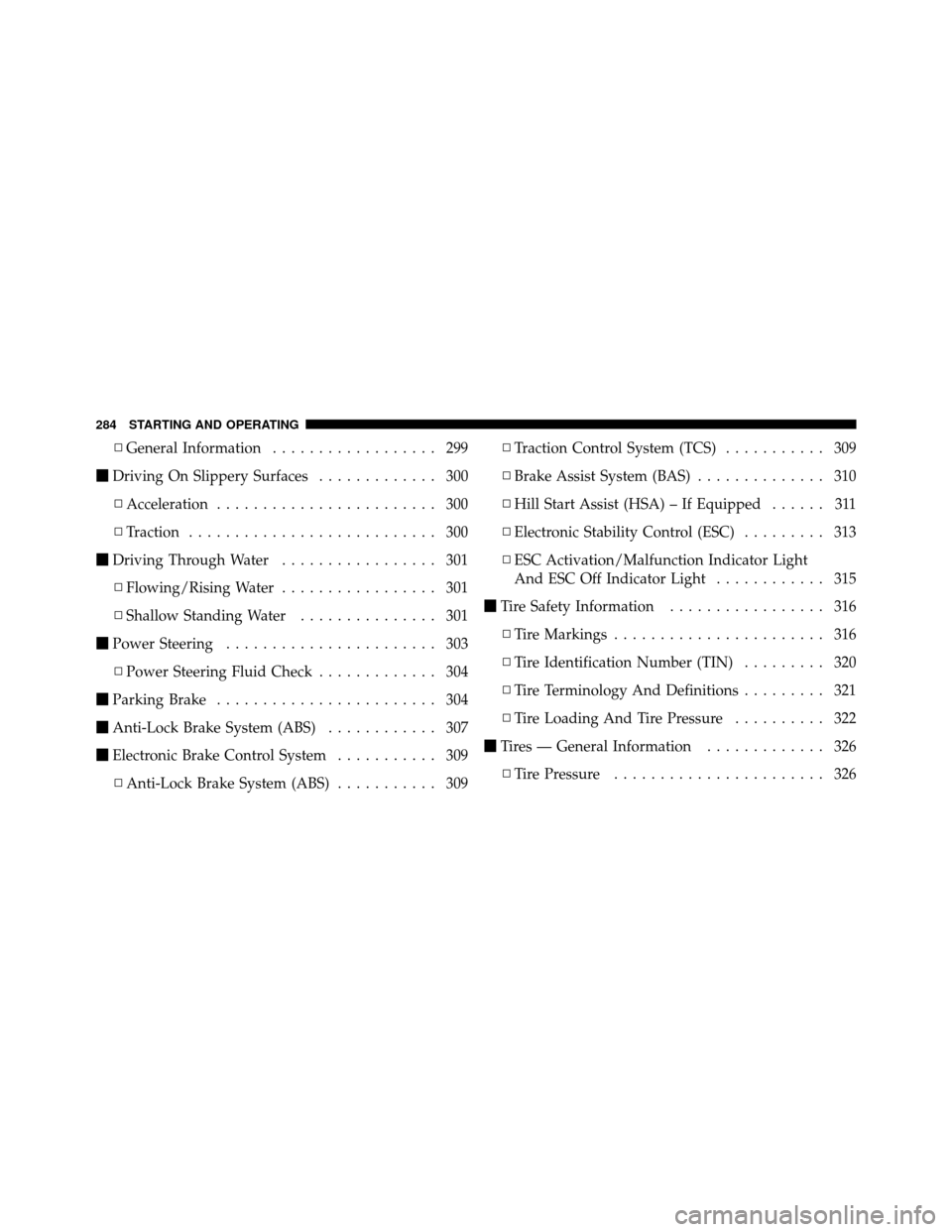

Page 286 of 490
▫General Information .................. 299
Driving On Slippery Surfaces ............. 300
▫ Acceleration ........................ 300
▫ Traction ........................... 300
Driving Through Water ................. 301
▫ Flowing/Rising Water ................. 301
▫ Shallow Standing Water ............... 301
Power Steering ....................... 303
▫ Power Steering Fluid Check ............. 304
Parking Brake ........................ 304
Anti-Lock Brake System (ABS) ............ 307
Electronic Brake Control System ........... 309
▫ Anti-Lock Brake System (ABS) ........... 309▫
Traction Control System (TCS) ........... 309
▫ Brake Assist System (BAS) .............. 310
▫ Hill Start Assist (HSA) – If Equipped ...... 311
▫ Electronic Stability Control (ESC) ......... 313
▫ ESC Activation/Malfunction Indicator Light
And ESC Off Indicator Light ............ 315
Tire Safety Information ................. 316
▫ Tire Markings ....................... 316
▫ Tire Identification Number (TIN) ......... 320
▫ Tire Terminology And Definitions ......... 321
▫ Tire Loading And Tire Pressure .......... 322
Tires — General Information ............. 326
▫ Tire Pressure ....................... 326
284 STARTING AND OPERATING
Page 305 of 490

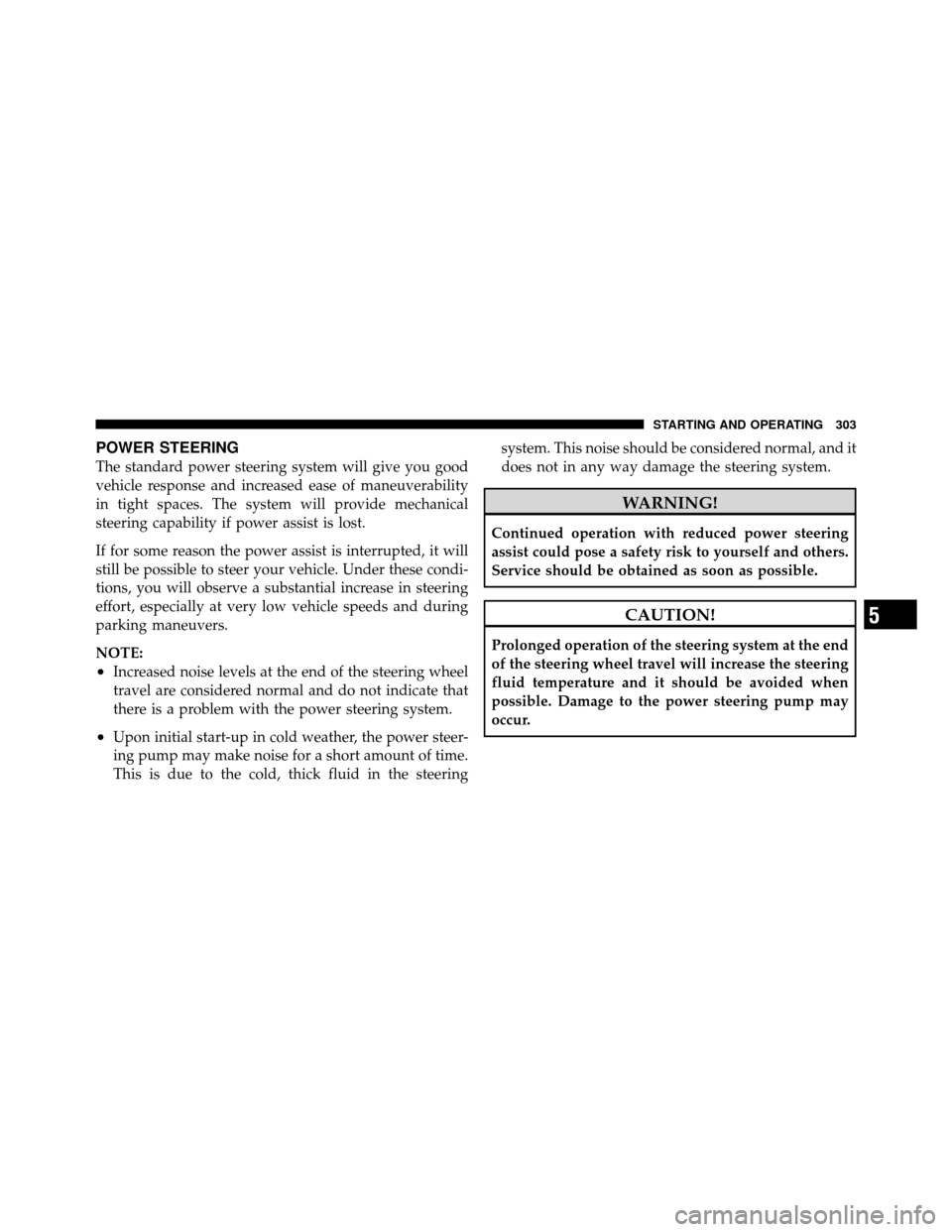

POWER STEERING
The standard power steering system will give you good
vehicle response and increased ease of maneuverability
in tight spaces. The system will provide mechanical
steering capability if power assist is lost.
If for some reason the power assist is interrupted, it will
still be possible to steer your vehicle. Under these condi-
tions, you will observe a substantial increase in steering
effort, especially at very low vehicle speeds and during
parking maneuvers.
NOTE:
•Increased noise levels at the end of the steering wheel
travel are considered normal and do not indicate that
there is a problem with the power steering system.
•Upon initial start-up in cold weather, the power steer-
ing pump may make noise for a short amount of time.
This is due to the cold, thick fluid in the steeringsystem. This noise should be considered normal, and it
does not in any way damage the steering system.
WARNING!
Continued operation with reduced power steering
assist could pose a safety risk to yourself and others.
Service should be obtained as soon as possible.
CAUTION!
Prolonged operation of the steering system at the end
of the steering wheel travel will increase the steering
fluid temperature and it should be avoided when
possible. Damage to the power steering pump may
occur.
5
STARTING AND OPERATING 303
Page 306 of 490

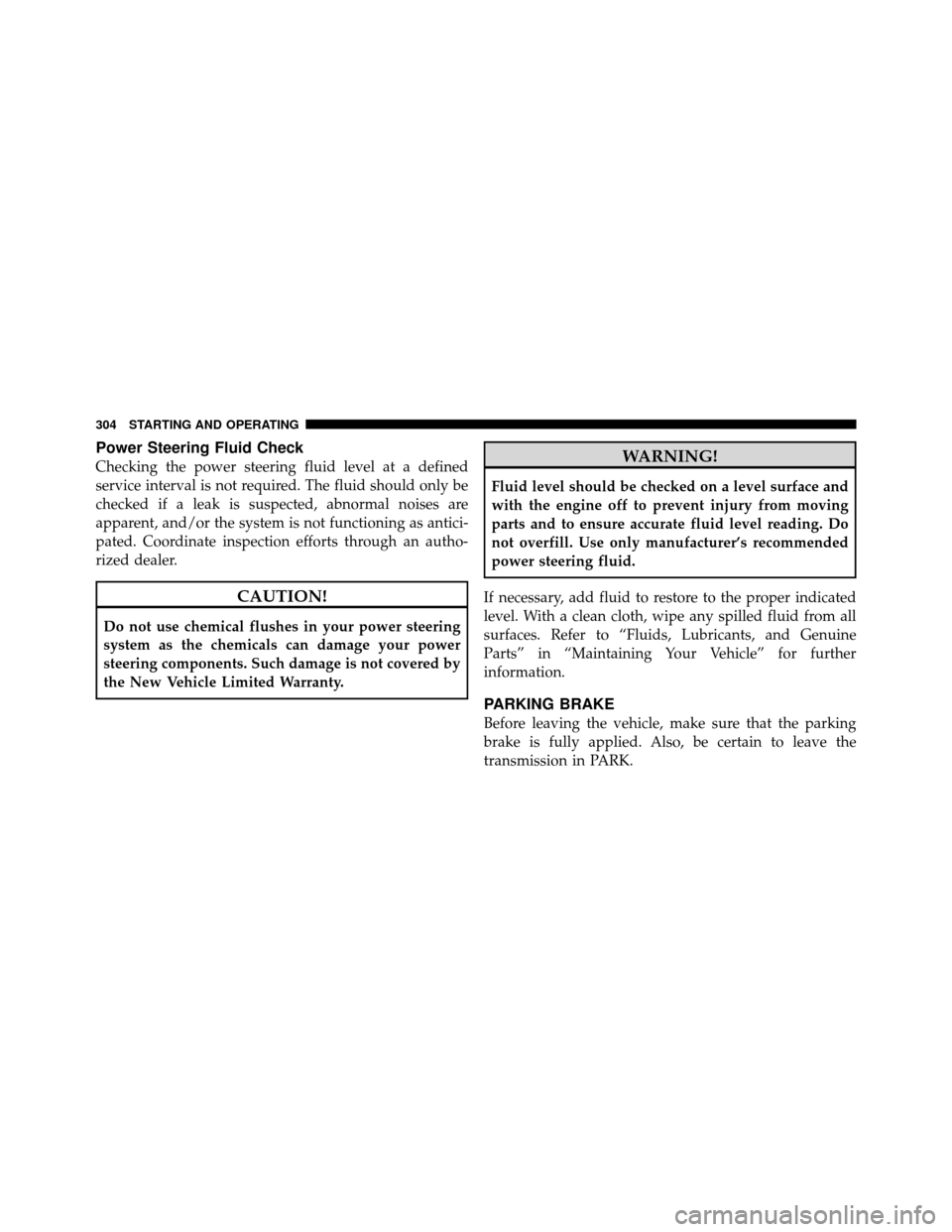

Power Steering Fluid Check
Checking the power steering fluid level at a defined
service interval is not required. The fluid should only be
checked if a leak is suspected, abnormal noises are
apparent, and/or the system is not functioning as antici-
pated. Coordinate inspection efforts through an autho-
rized dealer.
CAUTION!
Do not use chemical flushes in your power steering
system as the chemicals can damage your power
steering components. Such damage is not covered by
the New Vehicle Limited Warranty.
WARNING!
Fluid level should be checked on a level surface and
with the engine off to prevent injury from moving
parts and to ensure accurate fluid level reading. Do
not overfill. Use only manufacturer’s recommended
power steering fluid.
If necessary, add fluid to restore to the proper indicated
level. With a clean cloth, wipe any spilled fluid from all
surfaces. Refer to “Fluids, Lubricants, and Genuine
Parts” in “Maintaining Your Vehicle” for further
information.
PARKING BRAKE
Before leaving the vehicle, make sure that the parking
brake is fully applied. Also, be certain to leave the
transmission in PARK.
304 STARTING AND OPERATING
Page 395 of 490

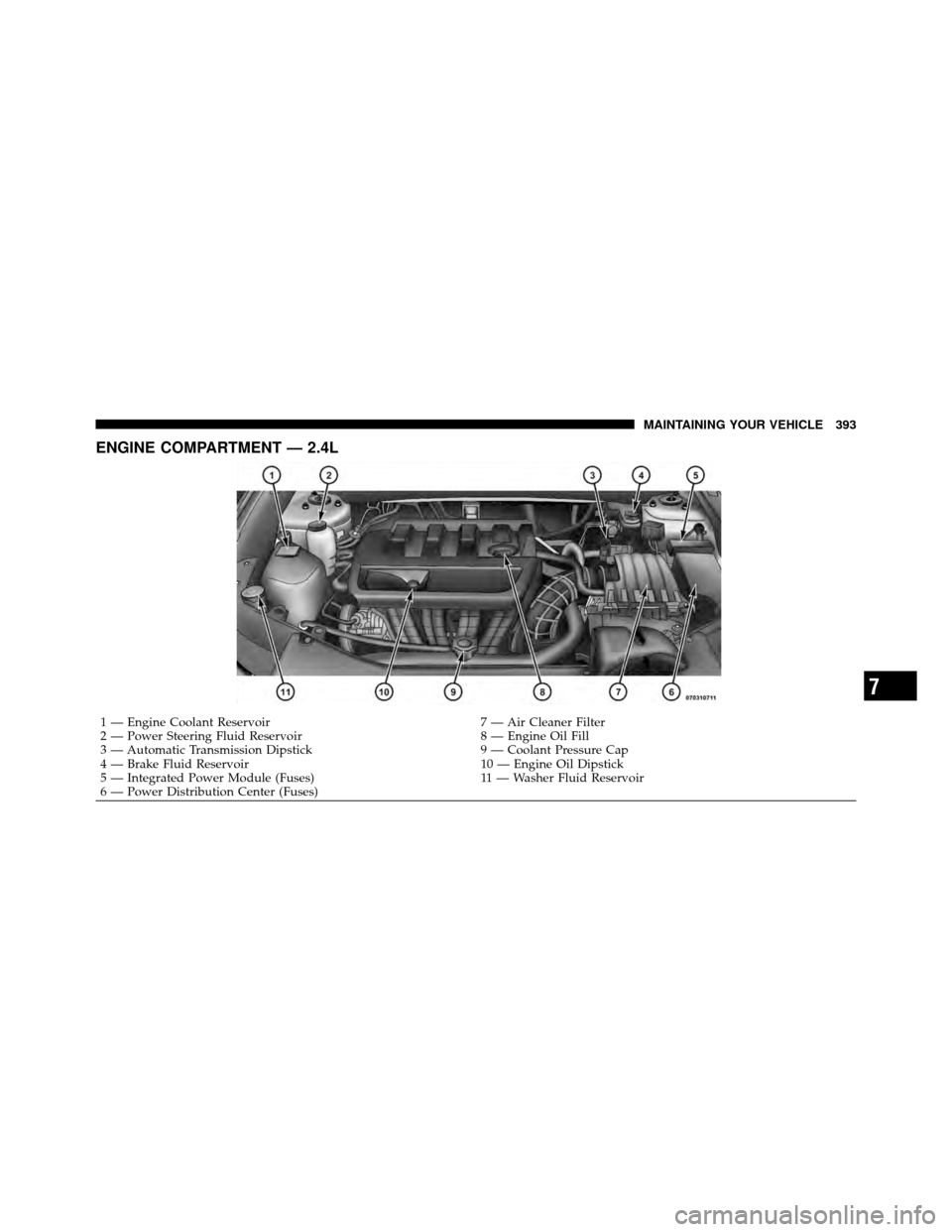

ENGINE COMPARTMENT — 2.4L
1 — Engine Coolant Reservoir7 — Air Cleaner Filter
2 — Power Steering Fluid Reservoir 8 — Engine Oil Fill
3 — Automatic Transmission Dipstick 9 — Coolant Pressure Cap
4 — Brake Fluid Reservoir 10 — Engine Oil Dipstick
5 — Integrated Power Module (Fuses) 11 — Washer Fluid Reservoir
6 — Power Distribution Center (Fuses)
7
MAINTAINING YOUR VEHICLE 393
Page 396 of 490

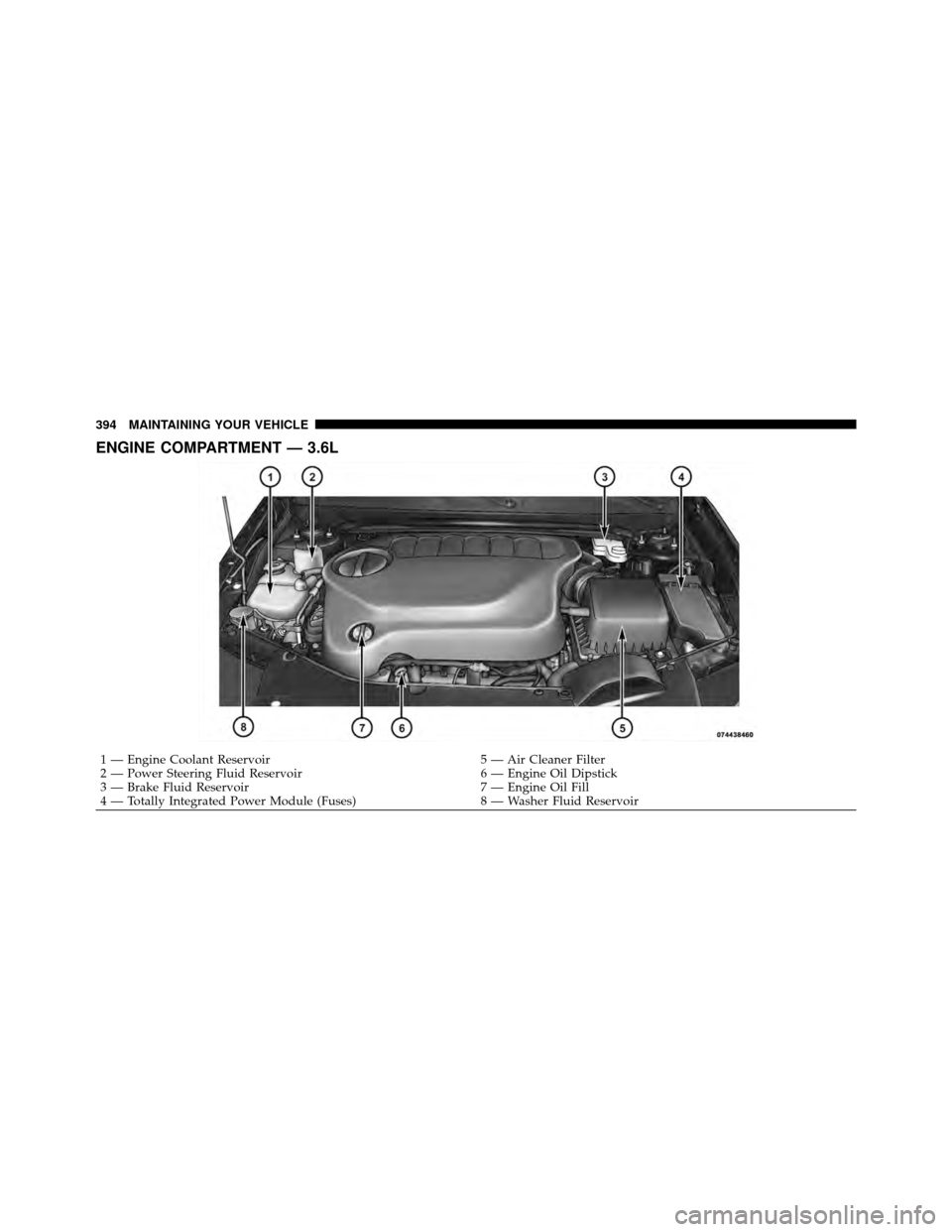

ENGINE COMPARTMENT — 3.6L
1 — Engine Coolant Reservoir5 — Air Cleaner Filter
2 — Power Steering Fluid Reservoir 6 — Engine Oil Dipstick
3 — Brake Fluid Reservoir 7 — Engine Oil Fill
4 — Totally Integrated Power Module (Fuses) 8 — Washer Fluid Reservoir
394 MAINTAINING YOUR VEHICLE
Page 401 of 490
CAUTION! (Continued)
•Your vehicle has been built with improved fluids
that protect the performance and durability of
your vehicle and also allow extended maintenance
intervals. Do not use chemical flushes in these
components as the chemicals can damage your
engine, transmission, power steering or air condi-
tioning. Such damage is not covered by the New
Vehicle Limited Warranty. If a flush is needed
because of component malfunction, use only the
specified fluid for the flushing procedure.
Engine Oil
Checking Oil Level
To assure proper engine lubrication, the engine oil must
be maintained at the correct level. Check the oil level at
regular intervals, such as every fuel stop. The best time to
check the engine oil level is about five minutes after afully warmed engine is shut off. Do not check oil level
before starting the engine after it has sat overnight.
Checking engine oil level when the engine is cold will
give you an incorrect reading.
Checking the oil while the vehicle is on level ground and
only when the engine is hot, will improve the accuracy of
the oil level readings. Maintain the oil level between the
range markings on the dipstick. Either the range mark-
ings consist of a crosshatch zone marked SAFE or a
crosshatch zone marked with MIN at the low end of the
range and MAX at the high end of the range. Adding one
quart of oil when the reading is at the low end of the
range marking will raise the oil level to the high end of
the range marking.
7
MAINTAINING YOUR VEHICLE 399
Page 442 of 490

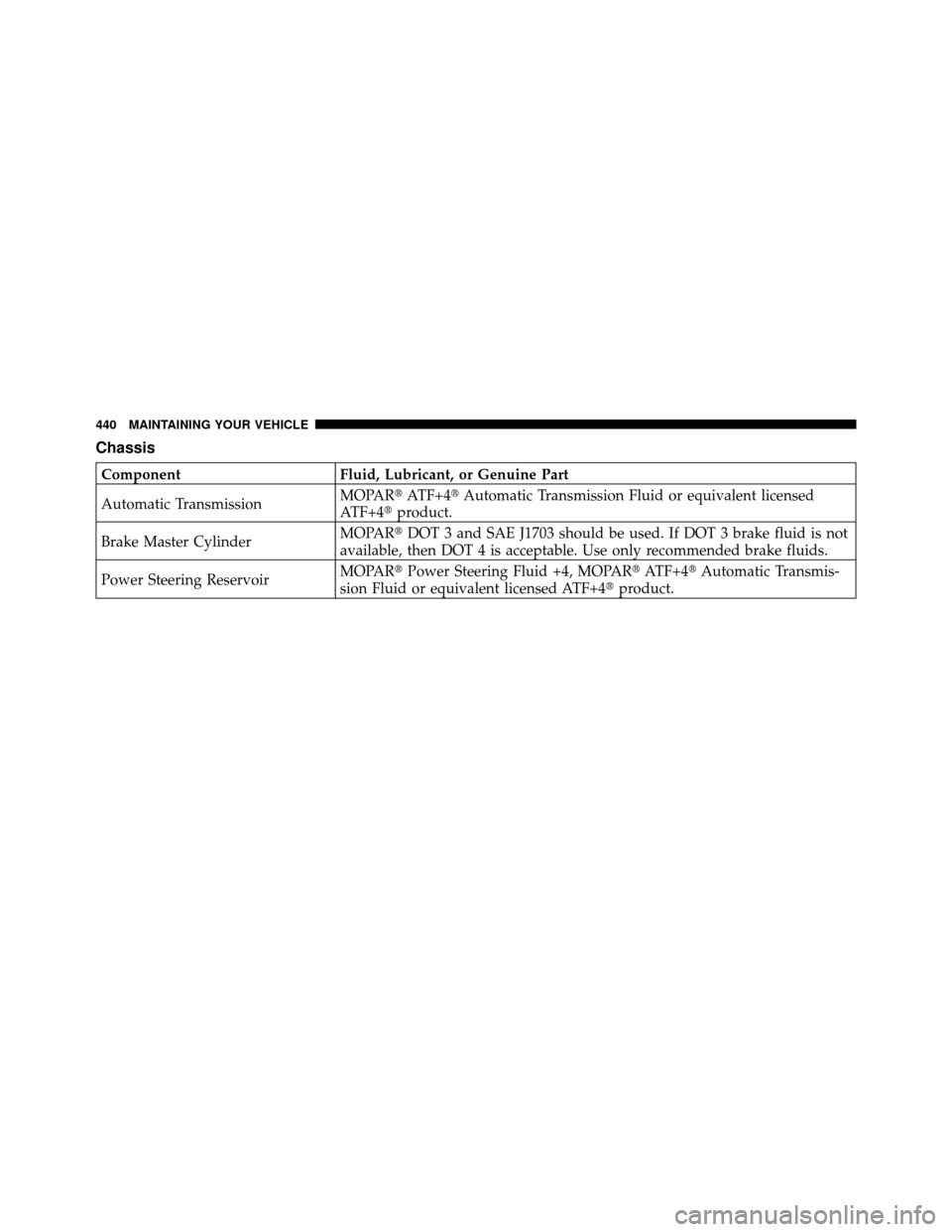

Chassis
ComponentFluid, Lubricant, or Genuine Part
Automatic Transmission MOPAR
ATF+4Automatic Transmission Fluid or equivalent licensed
ATF+4 product.
Brake Master Cylinder MOPAR
DOT 3 and SAE J1703 should be used. If DOT 3 brake fluid is not
available, then DOT 4 is acceptable. Use only recommended brake fluids.
Power Steering Reservoir MOPAR
Power Steering Fluid +4, MOPAR ATF+4Automatic Transmis-
sion Fluid or equivalent licensed ATF+4 product.
440 MAINTAINING YOUR VEHICLE
Page 472 of 490
Capacities, Fluid........................ 438
Caps, Filler Fuel .............................. 354
Oil (Engine) ..................... 393,401
Power Steering ...................... 304
Radiator (Coolant Pressure) ............. 414
Car Washes ............................ 423
Carbon Monoxide Warning ...............84,350
Cellular Phone ........................ 97,268
Chains, Tire ............................ 335
Changing A Flat Tire ..................... 374
Chart, Tire Sizing ........................ 318
Check Engine Light
(Malfunction Indicator Light) ............... 396
Checking Your Vehicle For Safety ............. 84
Checks, Safety ........................... 84
Child Restraint .................... 72,73,78,81
Child Restraint Tether Anchors .............76,78
Child Safety Locks ........................ 33 Cigar Lighter
........................... 174
Clean Air Gasoline ....................... 346
Cleaning Wheels ............................ 425
Windshield Wiper Blades ............... 408
Climate Control ......................... 268
Clock ........................ 215,217,236,245
Coin Holder ........................... 176
Compact Disc (CD) Maintenance ............. 267
Compact Spare Tire ...................... 330
Compass ........................... 201,209
Compass Calibration ..................... 210
Compass Variance ....................... 210
Computer, Trip/Travel .................. 20,207
Connector UCI .............................. 259
Universal Consumer Interface (UCI) ....... 259
Console ............................ 144,176
Console, Floor ....................... 144,176
470 INDEX

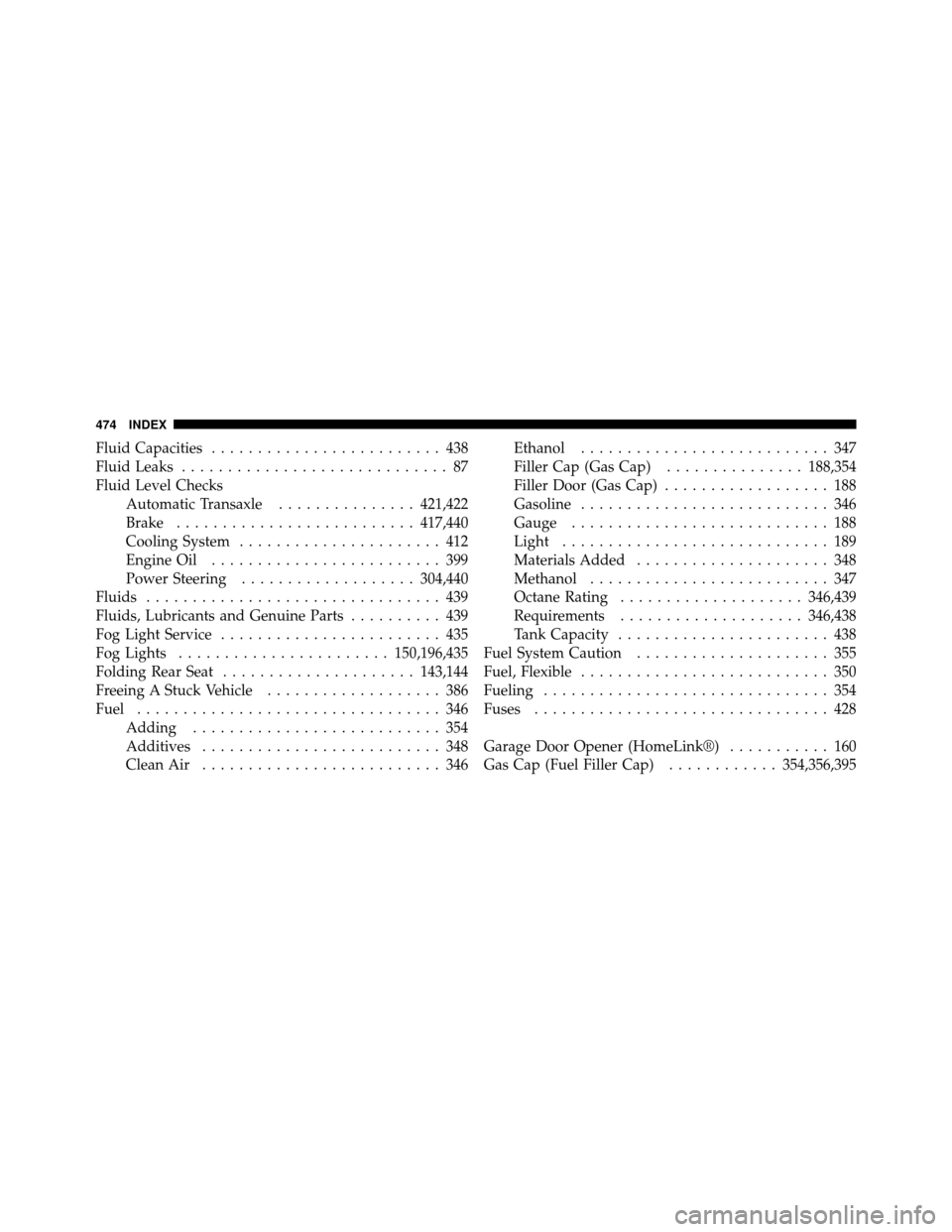

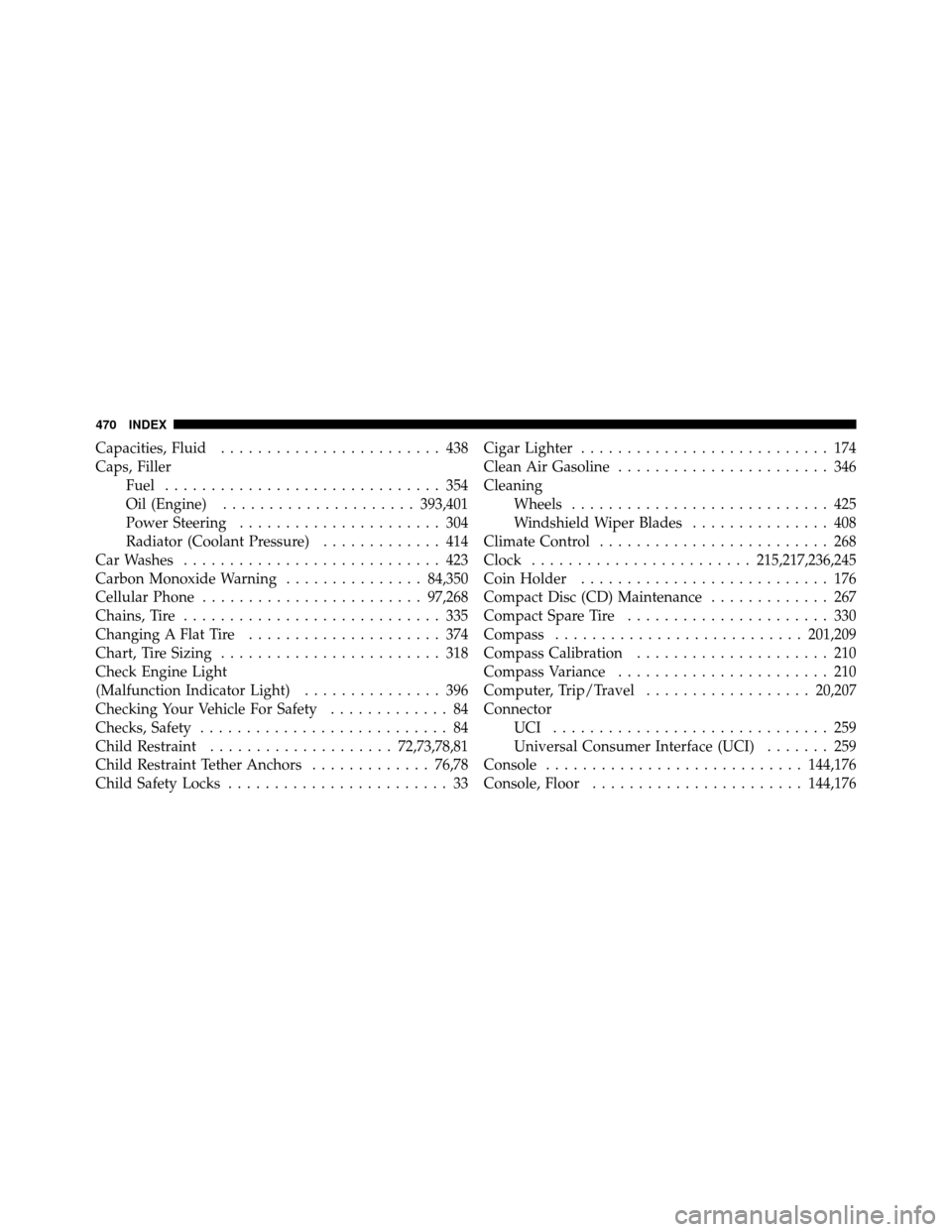

Page 476 of 490
Fluid Capacities......................... 438
Fluid Leaks ............................. 87
Fluid Level Checks Automatic Transaxle ...............421,422
Brake .......................... 417,440
Cooling System ...................... 412
Engine Oil ......................... 399
Power Steering ................... 304,440
Fluids ................................ 439
Fluids, Lubricants and Genuine Parts .......... 439
Fog Light Service ........................ 435
Fog Lights ....................... 150,196,435
Folding Rear Seat ..................... 143,144
Freeing A Stuck Vehicle ................... 386
Fuel ................................. 346
Adding ........................... 354
Additives .......................... 348
Clean Air .......................... 346 Ethanol
........................... 347
Filler Cap (Gas Cap) ...............188,354
Filler Door (Gas Cap) .................. 188
Gasoline ........................... 346
Gauge ............................ 188
Light ............................. 189
Materials Added ..................... 348
Methanol .......................... 347
Octane Rating .................... 346,439
Requirements .................... 346,438
Tank Capacity ....................... 438
Fuel System Caution ..................... 355
Fuel, Flexible ........................... 350
Fueling ............................... 354
Fuses ................................ 428
Garage Door Opener (HomeLink®) ........... 160
Gas Cap (Fuel Filler Cap) ............354,356,395
474 INDEX
