headlights CHRYSLER 200 2012 1.G Owners Manual

NOTE:If there is no key in the ignition switch, pressing
the LOCK button on the RKE transmitter while you are in
the vehicle will activate the Vehicle Security Alarm
system. Opening a door with the system activated will
cause the alarm to sound. Press the UNLOCK button to
deactivate the Vehicle Security Alarm system.
Illuminated Approach — If Equipped
This feature activates the headlights for up to 90 seconds
when the doors are unlocked with the RKE transmitter.
The time for this feature is programmable on vehicles
equipped with EVIC. For details, refer to “Electronic
Vehicle Information Center (EVIC)/Personal Settings
(Customer-Programmable Features)” in “Understanding
Your Instrument Panel” for further information.
To Lock The Doors
Press and release the LOCK button on the RKE transmit-
ter to lock all doors. The turn signal lights will flash and
the horn will chirp once to acknowledge the lock signal.
Sound Horn With Lock
This feature will cause the horn to chirp when the doors
are locked with the RKE transmitter. This feature can be
turned on or off. To change the current setting, proceed as
follows:
•For vehicles equipped with EVIC, refer to “Electronic
Vehicle Information Center (EVIC)/Personal Settings
(Customer-Programmable Features)” in “Understand-
ing Your Instrument Panel” for further information.
•For vehicles not equipped with the EVIC, perform the
following steps:
1. Press the LOCK button on a programmed RKE trans-
mitter for at least four seconds, but not longer than
10 seconds. Then, press the PANIC button while still
holding the LOCK button.
2. Release both buttons at the same time.
24 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

3. Test the feature while outside of the vehicle by press-
ing the LOCK button on the RKE transmitter with the
ignition in the LOCK position and the key removed.
4. Repeat these steps if you want to return this feature to
its previous setting.
NOTE:If there is no key in the ignition switch, pressing
the LOCK button on the RKE transmitter while you are in
the vehicle will activate the Vehicle Security Alarm.
Opening a door with the alarm activated will cause the
alarm to sound. Press the UNLOCK button to deactivate
the Vehicle Security Alarm.
To Unlatch The Trunk
Press the TRUNK button on the RKE transmitter two
times to unlatch the trunk.
Using The Panic Alarm
To turn the Panic Alarm feature on or off, press and hold
the PANIC button on the RKE transmitter for at least one second and release. When the Panic Alarm is on, the
headlights turn on, the park lights will flash, the horn
will pulse on and off, and the Illuminated Entry system
(if equipped) will turn on.
The Panic Alarm will stay on for three minutes unless
you turn it off by pressing the PANIC button a second
time or if the vehicle speed is 5 mph (8 km/h) or greater.
NOTE:
You may need to be close to the vehicle when
using the RKE transmitter to turn off the Panic Alarm due
to the Radio Frequency (RF) noises emitted by the
system.
Programming Additional Transmitters
Refer to Sentry Key “Customer Key Programming.”
If you do not have a programmed RKE transmitter,
contact your authorized dealer for details.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 25

Voice Command — If Equipped ........... 130
▫ Voice Command System Operation ........ 130
▫ Commands ........................ 131
▫ Voice Training ...................... 135
 Seats .............................. 135
▫ Power Seats — If Equipped ............. 136
▫ Heated Seats — If Equipped ............ 137
▫ Manual Front Seat Adjustment ........... 139
▫ Driver Seat Manual Height Adjuster — If
Equipped .......................... 140
▫ Reclining Seats ...................... 140
▫ Lumbar Support — If Equipped .......... 141
▫ Head Restraints ..................... 141 ▫
Fold-Flat Passenger Seatback ............ 145
▫ Folding Rear Seat .................... 146
▫ Folding Rear Seat Center Armrest ........ 147
 To Open And Close The Hood ............ 148
 Lights ............................. 149
▫ Multifunction Lever .................. 149
▫ Headlights And Parking Lights .......... 150
▫ Automatic Headlights — If Equipped ...... 151
▫ Headlight Time Delay ................. 151
▫ Turn Signals ........................ 152
▫ Lane Change Assist ................... 152
▫ High/Low Beam Switch ............... 152
▫ Flash-To-Pass ....................... 153
92 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

▫Fog Lights — If Equipped .............. 153
▫ Daytime Running Lights — If Equipped .... 153
▫ Lights On Reminder .................. 154
▫ Instrument Panel Dimmer .............. 154
▫ Map/Reading/Interior Lights ........... 155
 Windshield Wipers And Washers .......... 156
▫ Intermittent Wiper System .............. 157
▫ Windshield Washers .................. 158
▫ Mist Feature ........................ 159
▫ Headlights With Wipers Feature (Available
With Automatic Headlights Only) ......... 159
 Tilt/Telescoping Steering Column .......... 160
Electronic Speed Control — If Equipped ..... 161
▫ To Activate ......................... 162
▫ To Set A Desired Speed ................ 162
▫ To Deactivate ....................... 162
▫ To Resume Speed .................... 163
▫ To Vary The Speed Setting .............. 163
▫ To Accelerate For Passing .............. 163
 Garage Door Opener — If Equipped ........ 164
▫ Before You Begin Programming
HomeLink ........................ 165
▫ Programming A Rolling Code ........... 166
▫ Programming A Non-Rolling Code ........ 168
▫ Canadian/Gate Operator Programming .... 169
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 93

NOTE:Before closing the hood, make sure to stow the
prop rod in its proper location.
CAUTION!
To prevent possible damage, do not slam the hood to
close it. Use a firm downward push at the center of
the hood to ensure that both latches engage.
WARNING!
Be sure the hood is fully latched before driving your
vehicle. If the hood is not fully latched, it could open
when the vehicle is in motion and block your vision.
Failure to follow this warning could result in serious
injury or death.
LIGHTS
Multifunction Lever
The multifunction lever controls the operation of the
parking lights, headlights, headlight beam selection,
Hood Prop Rod Hole Location
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 149

passing light, fog lights, instrument panel light dimming
and turn signals. The multifunction lever is located on
the left side of the steering column.Headlights And Parking Lights
Turn the end of the multifunction lever to the first detent
for parking light operation. Turn to the second detent for
headlight operation.
Multifunction Lever
Headlight Switch
150 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Automatic Headlights — If Equipped
Turning the end of the multifunction lever to the third
detent (AUTO), will activate the automatic headlight
system.With the engine running and the multifunction lever in
the AUTO position, the headlights will turn on and turn
off based on the surrounding light levels.
Headlight Time Delay
There is also a feature that delays turning off the vehicle
lights for 30, 60 or 90 seconds after the ignition switch is
turned OFF. To activate the headlight delay, the multi-
function lever must be rotated to the off position after the
ignition switch is turned OFF. Only the headlights will
illuminate during this time. Refer to “Electronic Vehicle
Information Center (EVIC)/Customer-Programmable
Features” in “Understanding Your Instrument Panel” for
further information.
Headlight Switch
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 151

Turn Signals
Move the multifunction lever up or down and the arrows
on each side of the instrument cluster flash to show
proper operation of the front and rear turn signal lights.NOTE:
If either light remains on and does not flash, or
there is a very fast flash rate, check for a defective outside
light bulb. If an indicator fails to light when the lever is
moved, it would suggest that the indicator bulb is
defective.
Lane Change Assist
Tap the lever up or down once, without moving beyond
the detent, and the turn signal (right or left) will flash
three times then automatically turn off.
High/Low Beam Switch
Push the multifunction lever away from you to switch
the headlights to high beam. Pull the lever toward you, to
switch the headlights back to low beam.
Turn Signal Control
152 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Flash-To-Pass
You can signal another vehicle with your headlights by
lightly pulling the multifunction lever toward you. This
will turn on the high beam headlights until the lever is
released.
NOTE:If the multifunction lever is held in the flash-to-
pass position for more than 15 seconds, the high beams
will shut off. If this occurs, wait 30 seconds for the next
flash-to-pass operation.
Fog Lights — If Equipped
The front fog light switch is on the multifunction
lever. To activate the front fog lights, turn on the
parking lights or the low beam headlights and pull
out the end of the multifunction lever. NOTE:
The front fog lights will only operate with the
headlights on low beam. Selecting high beam headlights
will turn off the front fog lights.
Daytime Running Lights — If Equipped
The front turn signal lamps will turn on as Daytime
Running Lights whenever the ignition is ON, the engine
Front Fog Light Control
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 153

is running, the headlight switch is off, the parking brake
is released and the shift lever is in any position except
PARK.
NOTE:The Daytime Running Lights will flash when a
turn signal is in operation and return to DRL mode when
the turn signal is not operating.
Lights On Reminder
If the headlights or parking lights are on after the ignition
is turned OFF, a chime will sound to alert the driver
when the driver’s door is opened.

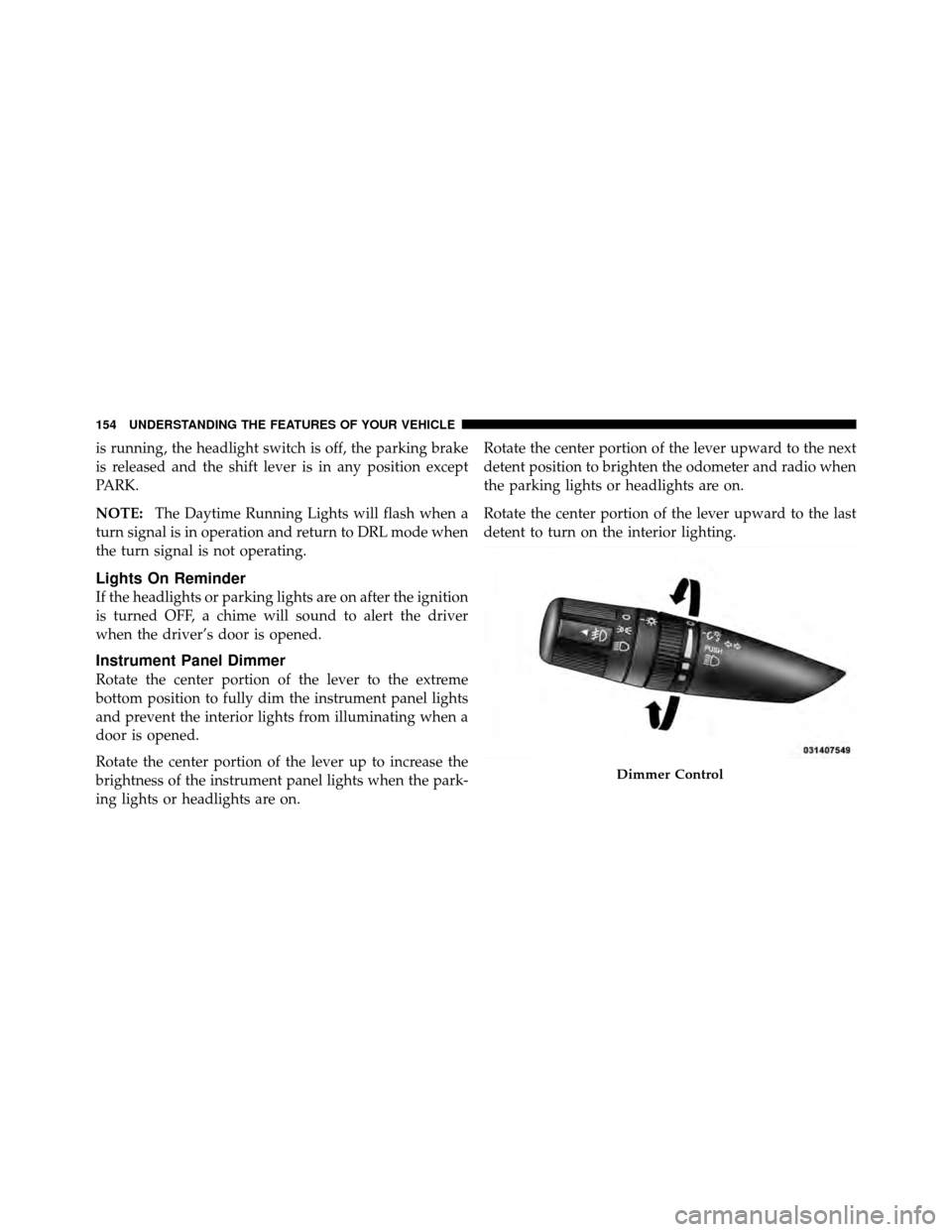

Instrument Panel Dimmer
Rotate the center portion of the lever to the extreme
bottom position to fully dim the instrument panel lights
and prevent the interior lights from illuminating when a
door is opened.
Rotate the center portion of the lever up to increase the
brightness of the instrument panel lights when the park-
ing lights or headlights are on. Rotate the center portion of the lever upward to the next
detent position to brighten the odometer and radio when
the parking lights or headlights are on.
Rotate the center portion of the lever upward to the last
detent to turn on the interior lighting.
Dimmer Control
154 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
