Page 201 of 508

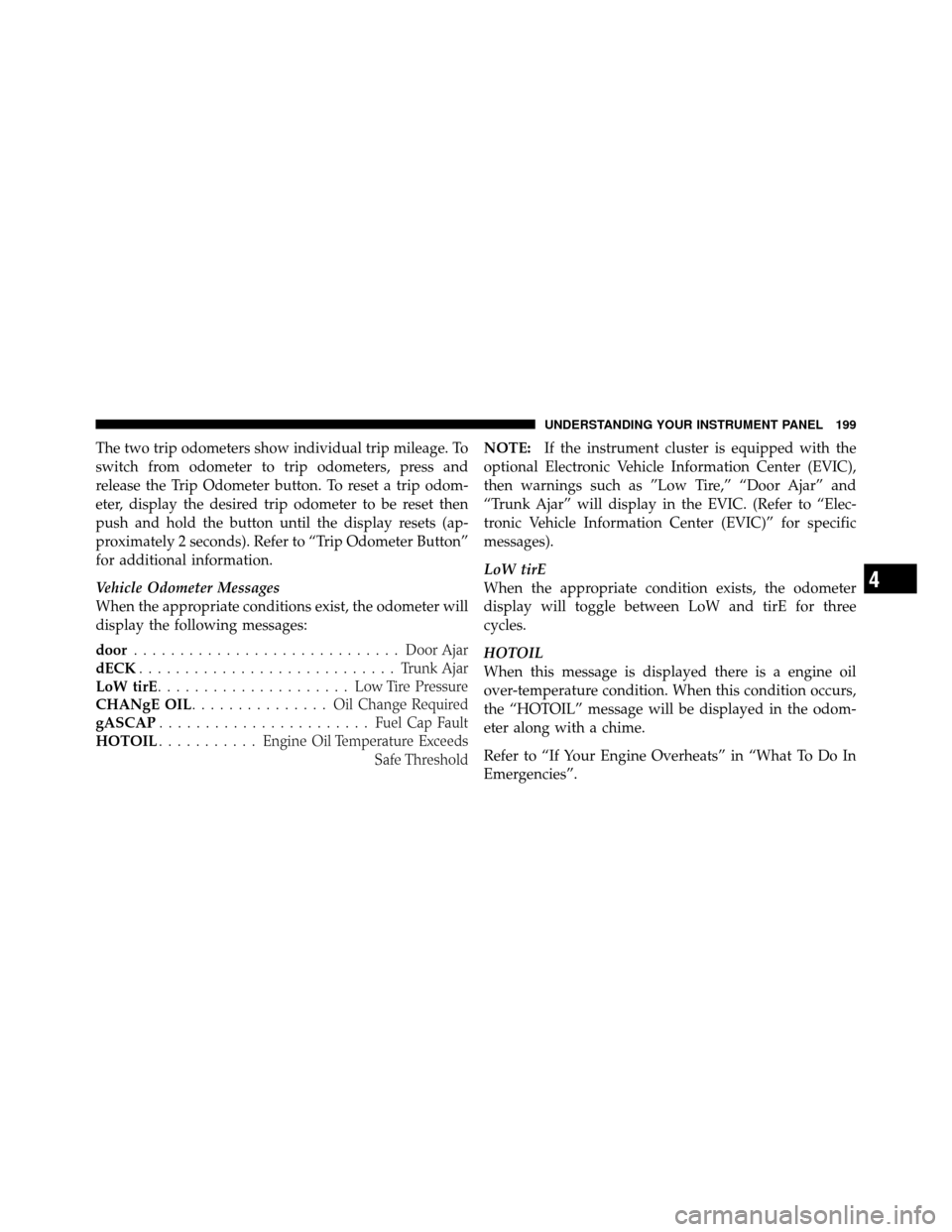

The two trip odometers show individual trip mileage. To
switch from odometer to trip odometers, press and
release the Trip Odometer button. To reset a trip odom-
eter, display the desired trip odometer to be reset then
push and hold the button until the display resets (ap-
proximately 2 seconds). Refer to “Trip Odometer Button”
for additional information.
Vehicle Odometer Messages
When the appropriate conditions exist, the odometer will
display the following messages:
door............................. Door Ajar
dECK ............................ T runk Ajar
LoW tirE ..................... LowTirePr essure
CHANgE OIL ............... Oil Change Required
gASCAP ....................... Fuel Cap Fault
HOTOIL ........... Engine Oil Temperature Exceeds
Safe ThresholdNOTE:
If the instrument cluster is equipped with the
optional Electronic Vehicle Information Center (EVIC),
then warnings such as ”Low Tire,” “Door Ajar” and
“Trunk Ajar” will display in the EVIC. (Refer to “Elec-
tronic Vehicle Information Center (EVIC)” for specific
messages).
LoW tirE
When the appropriate condition exists, the odometer
display will toggle between LoW and tirE for three
cycles.
HOTOIL
When this message is displayed there is a engine oil
over-temperature condition. When this condition occurs,
the “HOTOIL” message will be displayed in the odom-
eter along with a chime.
Refer to “If Your Engine Overheats” in “What To Do In
Emergencies”.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 199
Page 202 of 508

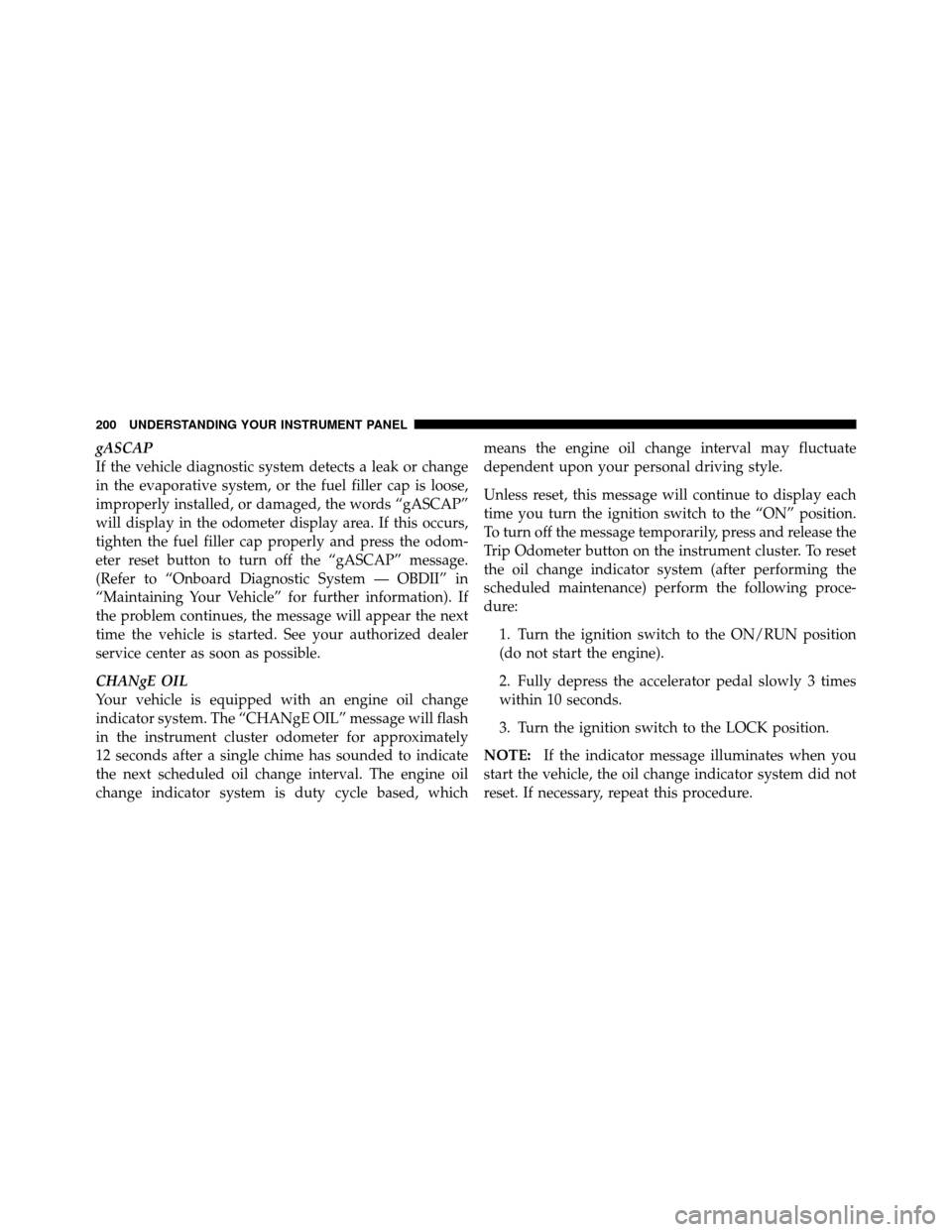

gASCAP
If the vehicle diagnostic system detects a leak or change
in the evaporative system, or the fuel filler cap is loose,
improperly installed, or damaged, the words “gASCAP”
will display in the odometer display area. If this occurs,
tighten the fuel filler cap properly and press the odom-
eter reset button to turn off the “gASCAP” message.
(Refer to “Onboard Diagnostic System — OBDII” in
“Maintaining Your Vehicle” for further information). If
the problem continues, the message will appear the next
time the vehicle is started. See your authorized dealer
service center as soon as possible.
CHANgE OIL
Your vehicle is equipped with an engine oil change
indicator system. The “CHANgE OIL” message will flash
in the instrument cluster odometer for approximately
12 seconds after a single chime has sounded to indicate
the next scheduled oil change interval. The engine oil
change indicator system is duty cycle based, whichmeans the engine oil change interval may fluctuate
dependent upon your personal driving style.
Unless reset, this message will continue to display each
time you turn the ignition switch to the “ON” position.
To turn off the message temporarily, press and release the
Trip Odometer button on the instrument cluster. To reset
the oil change indicator system (after performing the
scheduled maintenance) perform the following proce-
dure:
1. Turn the ignition switch to the ON/RUN position
(do not start the engine).
2. Fully depress the accelerator pedal slowly 3 times
within 10 seconds.
3. Turn the ignition switch to the LOCK position.
NOTE: If the indicator message illuminates when you
start the vehicle, the oil change indicator system did not
reset. If necessary, repeat this procedure.
200 UNDERSTANDING YOUR INSTRUMENT PANEL
Page 214 of 508
•Key In Ignition
•Remote start aborted — Door ajar
•Remote start aborted — Hood ajar
•Remote start aborted — Trunk ajar
•Remote start aborted — Fuel low
•Remote start disabled — System fault
•Oil Change Required (with a single chime)
•Low Tire (with a graphic of the car showing which
tire(s) is/are low - with a single chime). Refer toTi re
Pressure Monitoring System inStarting and Operat-
ing.
•Check TPM System (with a single chime) Refer to Ti re
Pressure Monitoring System inStarting and
Operating.
Oil Change Required — If Equipped
Your vehicle is equipped with an engine oil change
indicator system. The Oil Change Required message will
flash in the EVIC display for approximately five seconds
after a single chime has sounded to indicate the next
scheduled oil change interval. The engine oil change
indicator system is duty cycle based, which means the
engine oil change interval may fluctuate dependent upon
your personal driving style.
Unless reset, this message will continue to display each
time you turn the ignition switch to the ON/RUN
position. To turn off the message temporarily, press and
release the MENU button. To reset the oil change indica-
tor system (after performing the scheduled maintenance),
perform the following procedure:
1. Turn the ignition switch to the ON position (Do not
start the engine.)
212 UNDERSTANDING YOUR INSTRUMENT PANEL
Page 215 of 508

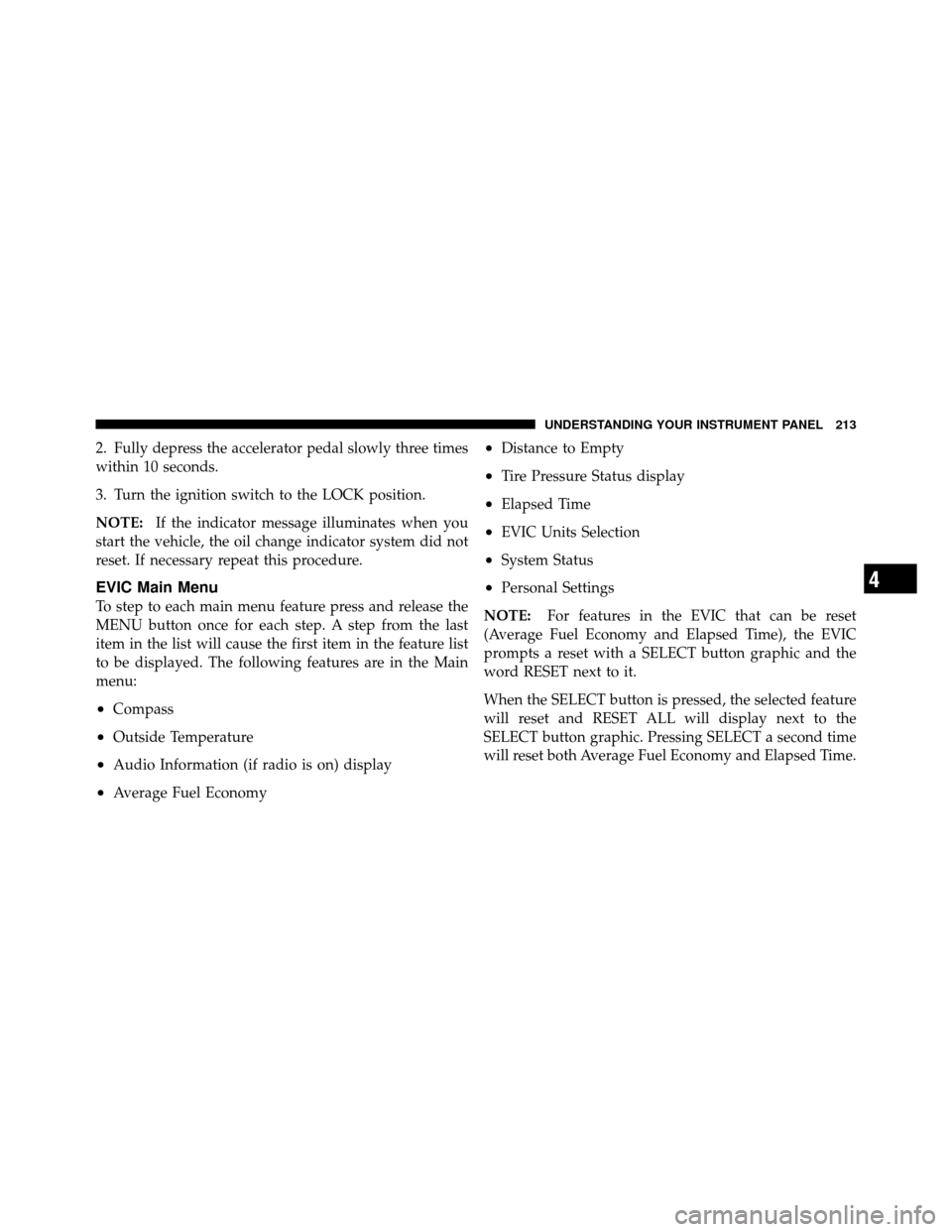

2. Fully depress the accelerator pedal slowly three times
within 10 seconds.
3. Turn the ignition switch to the LOCK position.
NOTE:If the indicator message illuminates when you
start the vehicle, the oil change indicator system did not
reset. If necessary repeat this procedure.
EVIC Main Menu
To step to each main menu feature press and release the
MENU button once for each step. A step from the last
item in the list will cause the first item in the feature list
to be displayed. The following features are in the Main
menu:
•Compass
•Outside Temperature
•Audio Information (if radio is on) display
•Average Fuel Economy
•Distance to Empty
•Tire Pressure Status display
•Elapsed Time
•EVIC Units Selection
•System Status
•Personal Settings
NOTE: For features in the EVIC that can be reset
(Average Fuel Economy and Elapsed Time), the EVIC
prompts a reset with a SELECT button graphic and the
word RESET next to it.
When the SELECT button is pressed, the selected feature
will reset and RESET ALL will display next to the
SELECT button graphic. Pressing SELECT a second time
will reset both Average Fuel Economy and Elapsed Time.4
UNDERSTANDING YOUR INSTRUMENT PANEL 213
Page 462 of 508

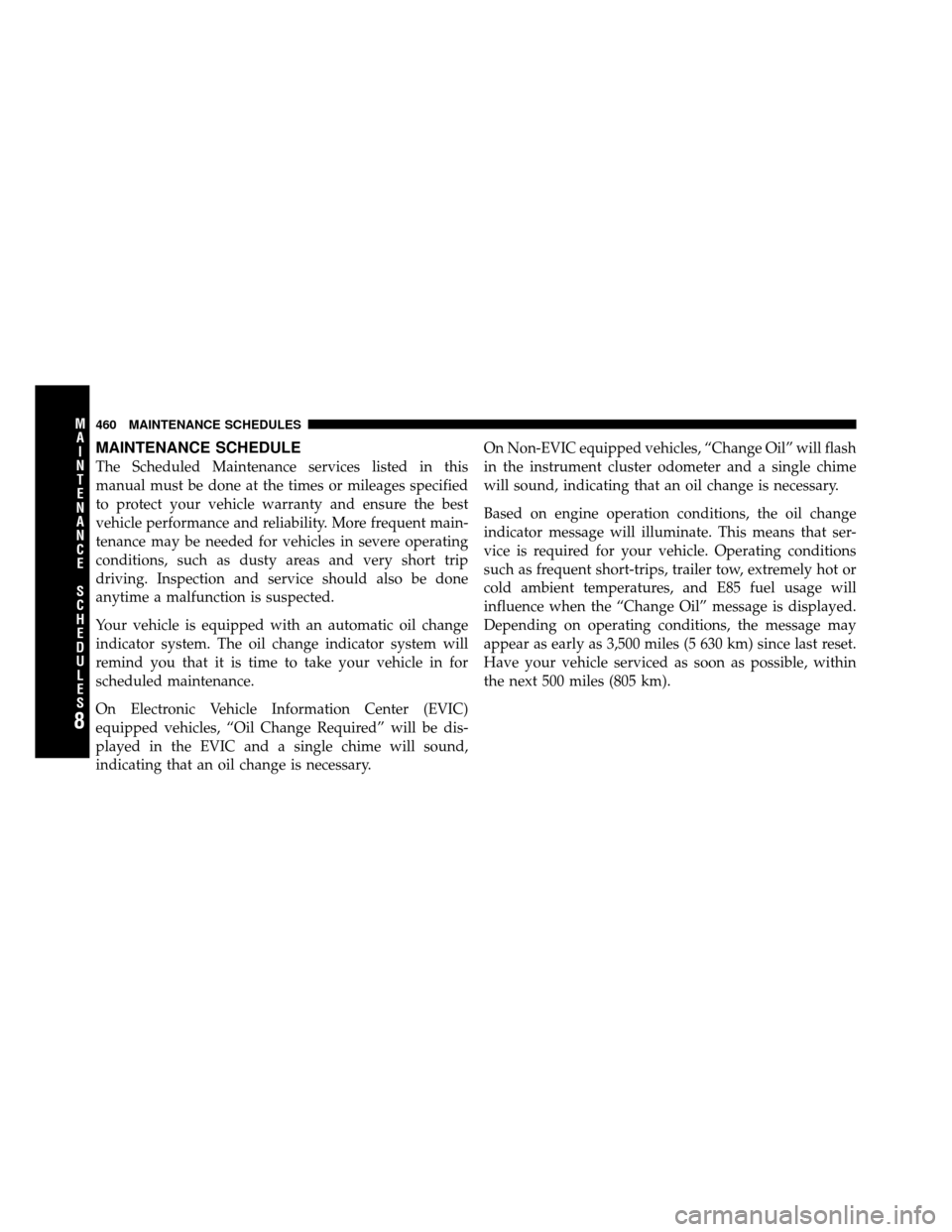

MAINTENANCE SCHEDULE
The Scheduled Maintenance services listed in this
manual must be done at the times or mileages specified
to protect your vehicle warranty and ensure the best
vehicle performance and reliability. More frequent main-
tenance may be needed for vehicles in severe operating
conditions, such as dusty areas and very short trip
driving. Inspection and service should also be done
anytime a malfunction is suspected.
Your vehicle is equipped with an automatic oil change
indicator system. The oil change indicator system will
remind you that it is time to take your vehicle in for
scheduled maintenance.
On Electronic Vehicle Information Center (EVIC)
equipped vehicles, “Oil Change Required” will be dis-
played in the EVIC and a single chime will sound,
indicating that an oil change is necessary.On Non-EVIC equipped vehicles, “Change Oil” will flash
in the instrument cluster odometer and a single chime
will sound, indicating that an oil change is necessary.
Based on engine operation conditions, the oil change
indicator message will illuminate. This means that ser-
vice is required for your vehicle. Operating conditions
such as frequent short-trips, trailer tow, extremely hot or
cold ambient temperatures, and E85 fuel usage will
influence when the “Change Oil” message is displayed.
Depending on operating conditions, the message may
appear as early as 3,500 miles (5 630 km) since last reset.
Have your vehicle serviced as soon as possible, within
the next 500 miles (805 km).
8
M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S460 MAINTENANCE SCHEDULES
Page 463 of 508

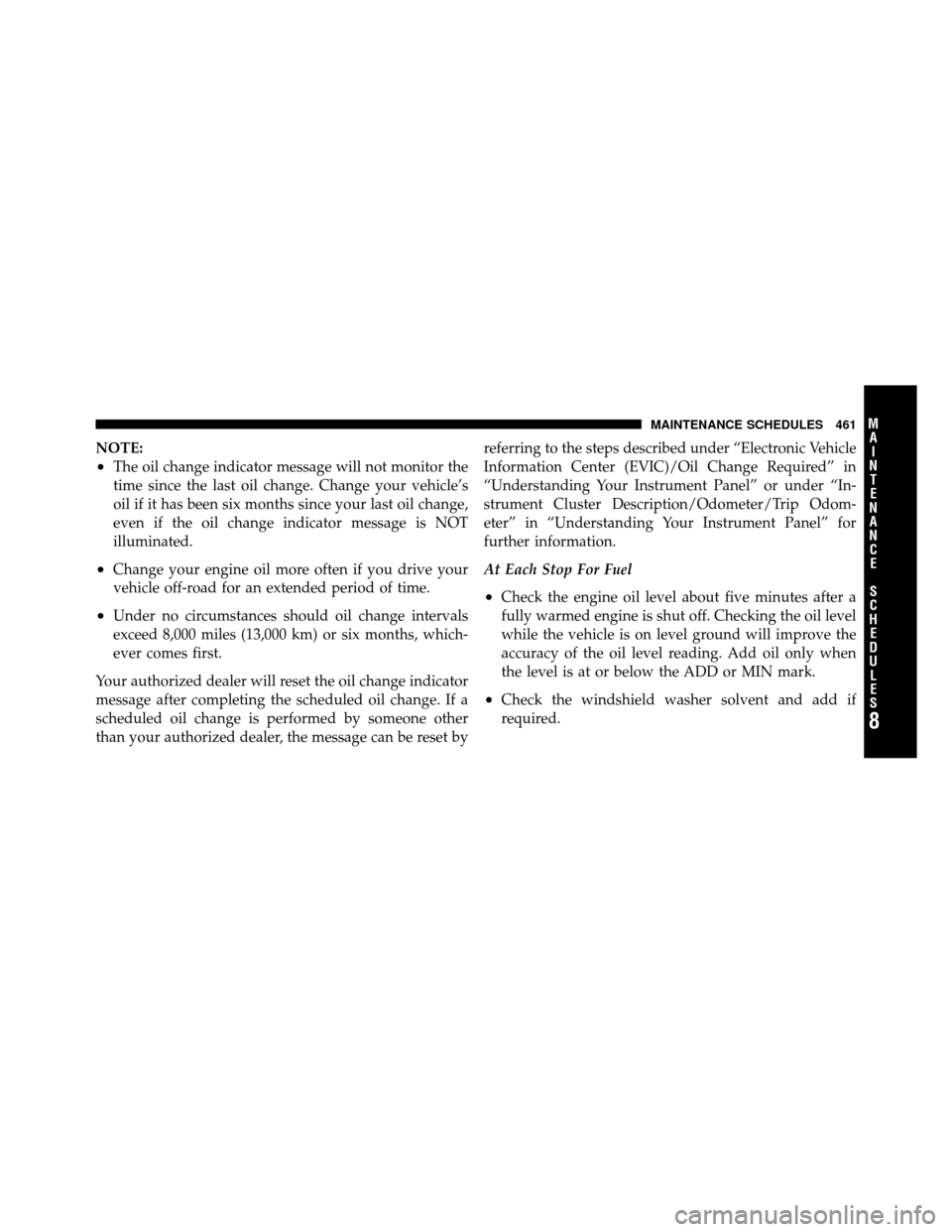

NOTE:
•The oil change indicator message will not monitor the
time since the last oil change. Change your vehicle’s
oil if it has been six months since your last oil change,
even if the oil change indicator message is NOT
illuminated.
•Change your engine oil more often if you drive your
vehicle off-road for an extended period of time.
•Under no circumstances should oil change intervals
exceed 8,000 miles (13,000 km) or six months, which-
ever comes first.
Your authorized dealer will reset the oil change indicator
message after completing the scheduled oil change. If a
scheduled oil change is performed by someone other
than your authorized dealer, the message can be reset by referring to the steps described under “Electronic Vehicle
Information Center (EVIC)/Oil Change Required” in
“Understanding Your Instrument Panel” or under “In-
strument Cluster Description/Odometer/Trip Odom-
eter” in “Understanding Your Instrument Panel” for
further information.
At Each Stop For Fuel
•Check the engine oil level about five minutes after a
fully warmed engine is shut off. Checking the oil level
while the vehicle is on level ground will improve the
accuracy of the oil level reading. Add oil only when
the level is at or below the ADD or MIN mark.
•Check the windshield washer solvent and add if
required.
8
M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
SMAINTENANCE SCHEDULES 461
Page 499 of 508
Occupant Restraints..................... 64,68
Occupant Restraints (Sedan) .........40,61,62,64,67
Octane Rating, Gasoline (Fuel) .............. 360
Odometer ............................. 198
Trip ........................... 198,201
Oil Change Indicator .................. 200,212
Oil Change Indicator, Reset ..............200,212
Oil Filter, Change ........................ 418
Oil Filter, Selection ....................... 418
Oil Pressure Light ....................... 196
Oil, Engine ......................... 415,456
Capacity ........................... 455
Change Interval ................ 200,212,416
Checking .......................... 415
Dipstick ........................... 415
Disposal ........................... 418
Filter .......................... 418,456
Filter Disposal ....................... 418
Identification Logo ................... 416 Materials Added to
................... 418
Recommendation .................. 416,455
Synthetic .......................... 418
Viscosity ........................ 417,455
Onboard Diagnostic System .............. 411,412
Opener, Garage Door (HomeLink®) ........... 164
Operator Manual (Owner’s Manual) ............ 4
Overheating, Engine ...................... 386
Owner’s Manual (Operator Manual) .........4,481
Paint Care ............................. 438
Panic Alarm ............................ 25
Parking Brake .......................... 322
Passing Light ........................... 153
Personal Settings ........................ 219
Pets .................................. 84
Phone, Cellular ......................... 100
Phone, Hands-Free (Uconnect™) ............. 100
Placard, Tire and Loading Information ......... 337
10
INDEX 497
Page 501 of 508
Remote Trunk Release..................... 38
Replacement Bulbs ....................... 449
Replacement Keys ........................ 16
Replacement Parts ....................... 413
Replacement Tires ....................... 349
Reporting Safety Defects ................... 480
Resetting Oil Change Indicator ...........200,212
Restraint, Head ......................... 141
Restraints, Child ......................... 72
Rotation, Tires .......................... 351
Safety Checks Inside Vehicle ................. 87
Safety Checks Outside Vehicle ............... 89
Safety Defects, Reporting .................. 480
Safety Information, Tire ................... 332
Safety Tips ............................. 85
Safety, Exhaust Gas ....................... 86
Satellite Radio Antenna .................238,262
Schedule, Maintenance .................... 460 Seat Belt Maintenance
.................... 444
Seat Belt Reminder ....................... 56
Seat Belts .............................. 87
Adjustable Shoulder Belt ................ 49
Adjustable Upper Shoulder Anchorage ...... 49
And Pregnant Women .................. 57
Child Restraint ................... 72,73,82
Extender ........................... 57
Front Seat ......................... 44,45
Inspection .......................... 87
Operating Instructions .................. 45
Pretensioners ........................ 52
Rear Seat ........................... 44
Reminder .......................... 195
Untwisting Procedure .................. 49
Seat Belts (Sedan) ........................ 40
Seats ................................. 135
Adjustment ......................... 139
Cleaning ........................... 147
10
INDEX 499
Page 505 of 508
Transmitter, Garage Door Opener (HomeLink®) . . 164
Transporting Pets........................ 84
Tread Wear Indicators .................... 348
Trip Computer .......................... 207
Trip Odometer .......................... 198
Trip Odometer Reset Button ................ 201
Trunk Lid (Deck Lid) ...................... 38
Trunk Release Remote Control ............... 38
Trunk Release, Emergency ................39,40
Turn Signals ...................... 152,202,453
UCI Connector ......................... 265
Uconnect™ (Hands-Free Phone) ............. 100
Understanding Your Instrument Panel ......... 192
Uniform Tire Quality Grades ................ 483
Universal Consumer Interface (UCI) Connector . . . 265
Universal Transmitter ..................... 164
Unleaded Gasoline ....................... 360 Untwisting Procedure, Seat Belt
.............. 49
Upholstery Care ........................ 442
Vanity Mirrors .......................... 100
Variance, Compass ....................... 215
Vehicle Certification Label ................. 371
Vehicle Identification Number (VIN) ............ 6
Vehicle Loading ................... 338,371,373
Vehicle Modifications/Alterations .............. 7
Vehicle Storage ....................... 285,449
Vehicle Theft Alarm (Security Alarm) .......... 18
Viscosity, Engine Oil ...................... 417
Voice Recognition System (VR) .............. 130
Warning Lights
(Instrument Cluster Description) ............. 194
Warnings and Cautions ..................... 6
Warranty Information ..................... 480
10
INDEX 503
