When cleaning the rear view mirror, spray cleaner on the
towel or rag that you are using. Do not spray cleaner
directly on the mirror.
Cleaning Plastic Instrument Cluster Lenses
The lenses in front of the instruments in this vehicle are
molded in clear plastic. When cleaning the lenses, care
must be taken to avoid scratching the plastic.
1. Clean with a wet soft rag. A mild soap solution may beused, but do not use high alcohol content or abrasive
cleaners. If soap is used, wipe clean with a clean damp
rag.
2. Dry with a soft cloth.
Seat Belt Maintenance
Do not bleach, dye, or clean the belts with chemical
solvents or abrasive cleaners. This will weaken the fabric.
Sun damage can also weaken the fabric. If the belts need cleaning, use MOPAR® Total Clean, a
mild soap solution, or lukewarm water. Do not remove
the belts from the vehicle to wash them. Dry with a soft
cloth.
Replace the belts if they appear frayed or worn or if the
buckles do not work properly.
Cleaning Center Console Cupholders
Removal
Grab the rubber portion of the cupholder and lift up-
ward.
Cleaning
Soak the rubber cupholder liner in a mixture of medium
hot tap water and one teaspoon of mild liquid dish soap.
Let soak for approximately one hour. After one hour pull
the liner from the water and dip it back into the water
about six times. This will loosen any remaining debris.
7
MAINTAINING YOUR VEHICLE 459
Page 462 of 517

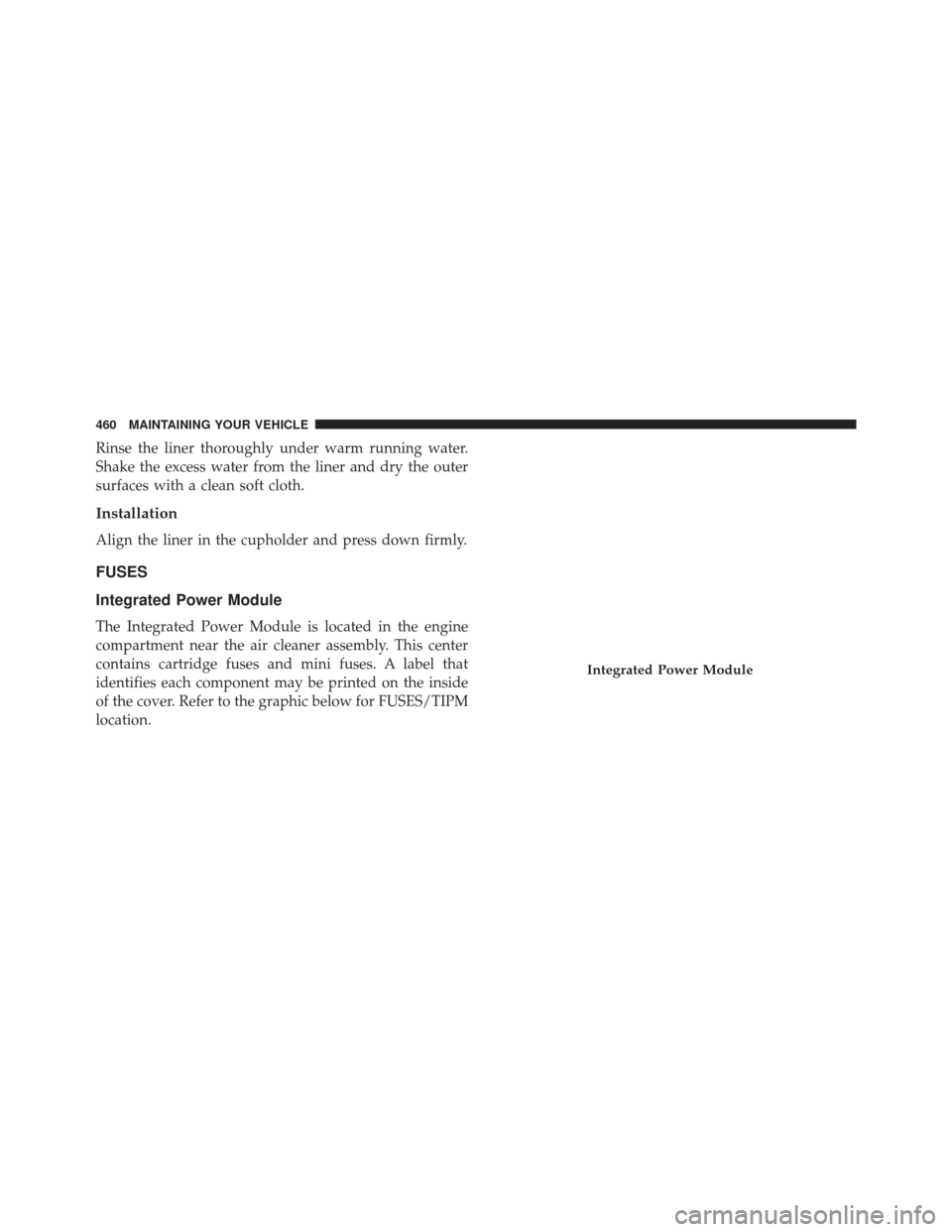

Rinse the liner thoroughly under warm running water.
Shake the excess water from the liner and dry the outer
surfaces with a clean soft cloth.
Installation
Align the liner in the cupholder and press down firmly.
FUSES
Integrated Power Module
The Integrated Power Module is located in the engine
compartment near the air cleaner assembly. This center
contains cartridge fuses and mini fuses. A label that
identifies each component may be printed on the inside
of the cover. Refer to the graphic below for FUSES/TIPM
location.
Integrated Power Module
460 MAINTAINING YOUR VEHICLE
Page 463 of 517

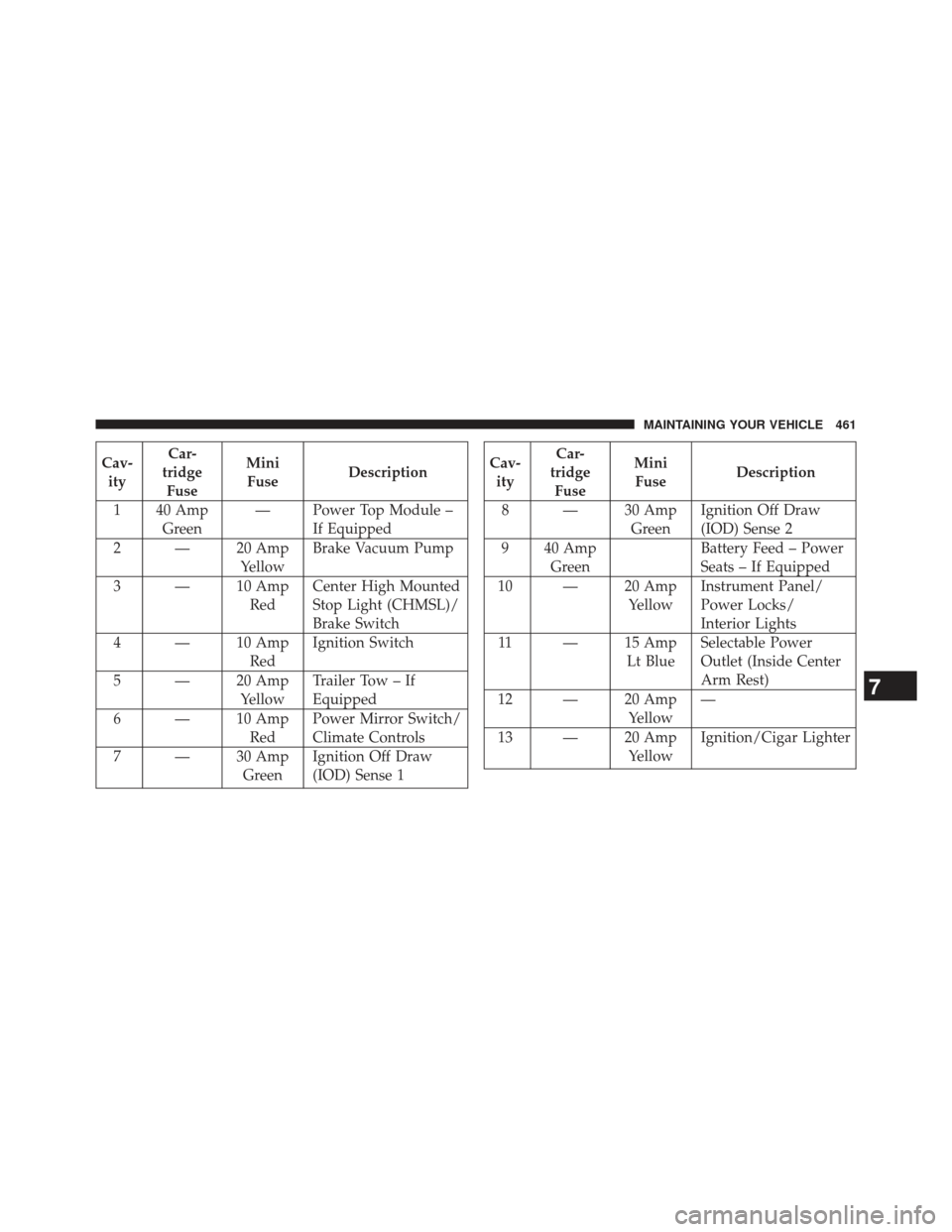

Cav-ity Car-
tridge Fuse Mini
Fuse Description
1 40 Amp Green — Power Top Module –
If Equipped
2 — 20 Amp YellowBrake Vacuum Pump
3 — 10 Amp RedCenter High Mounted
Stop Light (CHMSL)/
Brake Switch
4 — 10 Amp RedIgnition Switch
5 — 20 Amp YellowTrailer Tow – If
Equipped
6 — 10 Amp RedPower Mirror Switch/
Climate Controls
7 — 30 Amp GreenIgnition Off Draw
(IOD) Sense 1Cav-
ity Car-
tridge Fuse Mini
Fuse Description
8 — 30 Amp GreenIgnition Off Draw
(IOD) Sense 2
9 40 Amp Green Battery Feed – Power
Seats – If Equipped
10 — 20 Amp YellowInstrument Panel/
Power Locks/
Interior Lights
11 — 15 Amp Lt BlueSelectable Power
Outlet (Inside Center
Arm Rest)
12 — 20 Amp Yellow—
13 — 20 Amp YellowIgnition/Cigar Lighter
7
MAINTAINING YOUR VEHICLE 461
Page 464 of 517

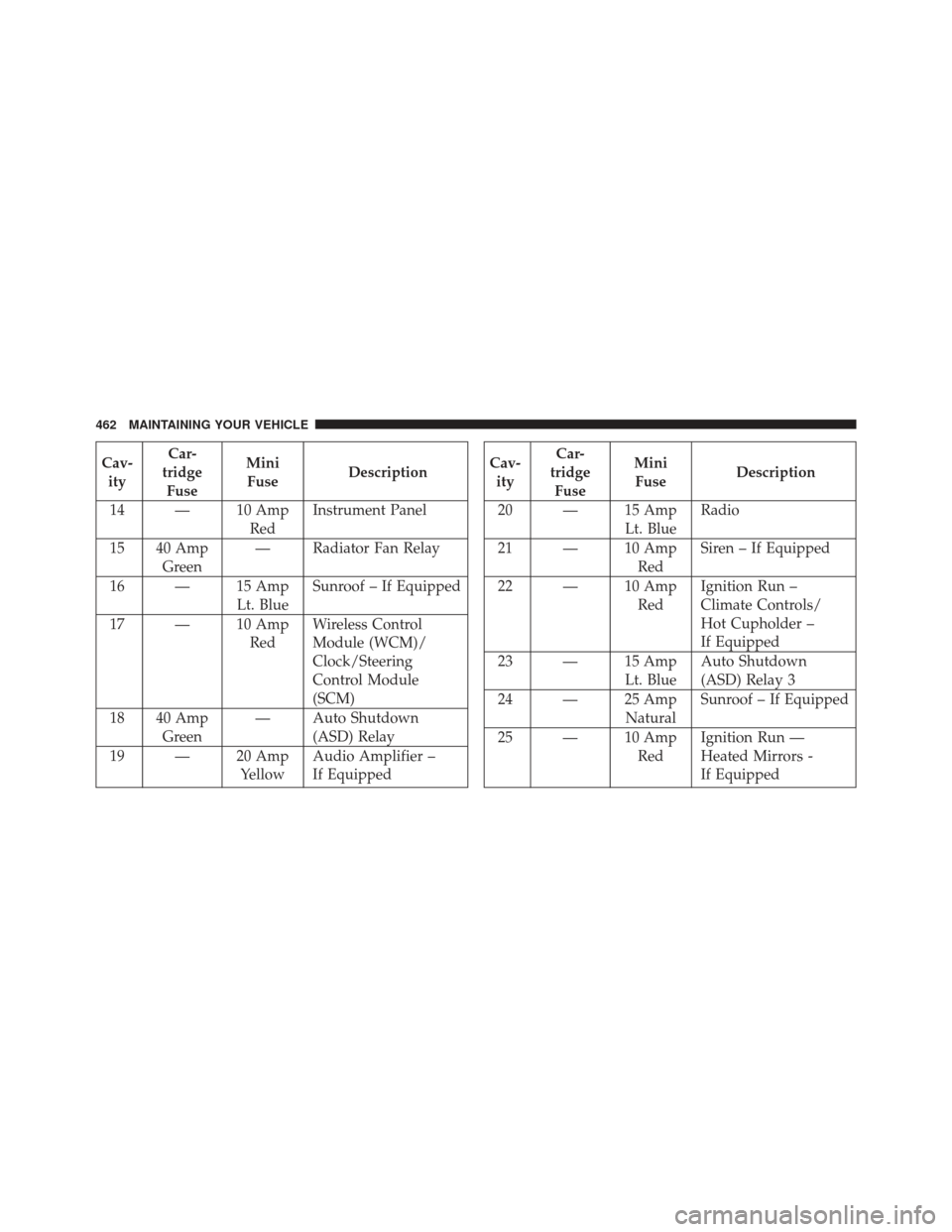

Cav-ity Car-
tridge Fuse Mini
Fuse Description
14 — 10 Amp RedInstrument Panel
15 40 Amp Green — Radiator Fan Relay
16 — 15 Amp Lt. BlueSunroof – If Equipped
17 — 10 Amp RedWireless Control
Module (WCM)/
Clock/Steering
Control Module
(SCM)
18 40 Amp Green — Auto Shutdown
(ASD) Relay
19 — 20 Amp YellowAudio Amplifier –
If EquippedCav-
ity Car-
tridge Fuse Mini
Fuse Description
20 — 15 Amp Lt. BlueRadio
21 — 10 Amp RedSiren – If Equipped
22 — 10 Amp RedIgnition Run –
Climate Controls/
Hot Cupholder –
If Equipped
23 — 15 Amp Lt. BlueAuto Shutdown
(ASD) Relay 3
24 — 25 Amp NaturalSunroof – If Equipped
25 — 10 Amp RedIgnition Run —
Heated Mirrors -
If Equipped
462 MAINTAINING YOUR VEHICLE
Page 465 of 517

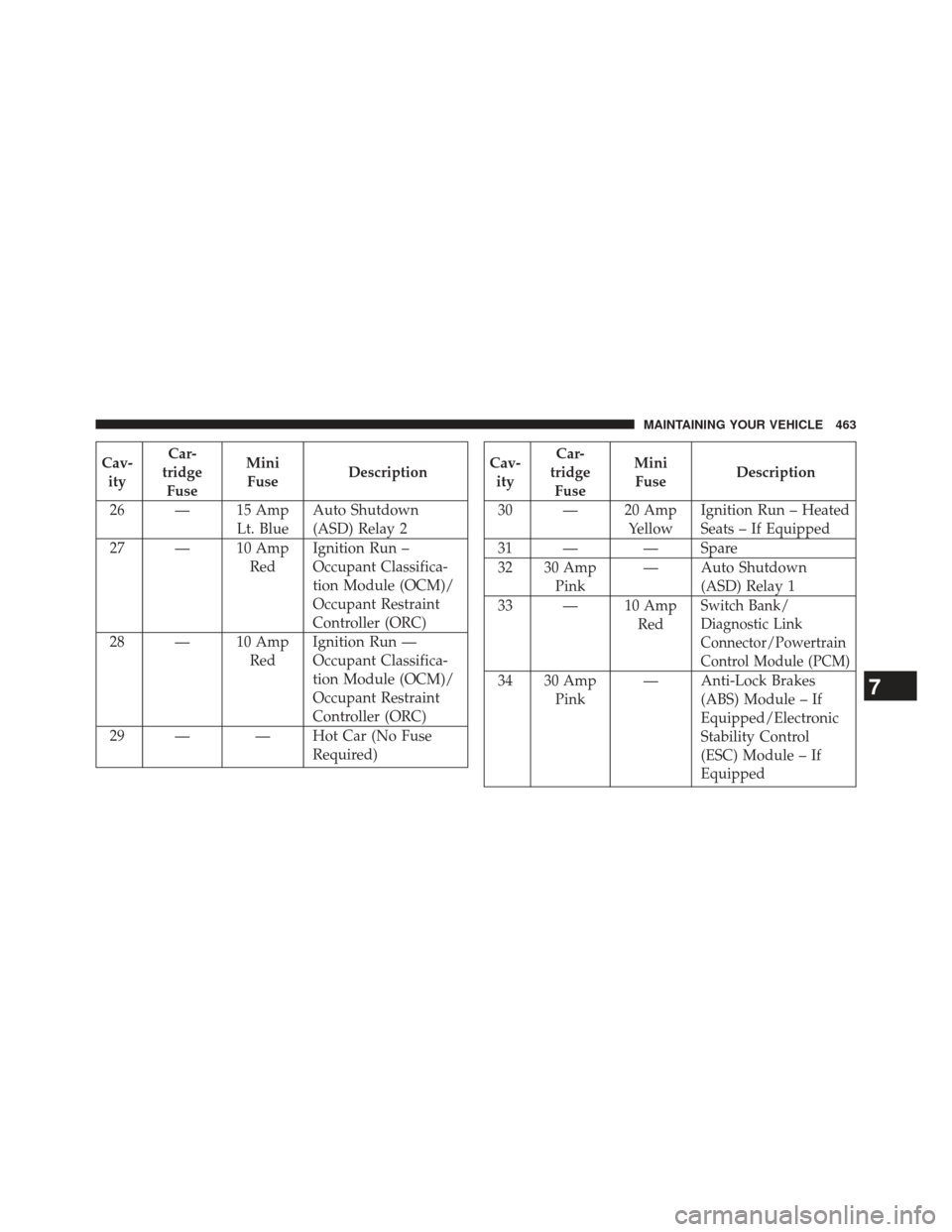

Cav-ity Car-
tridge Fuse Mini
Fuse Description
26 — 15 Amp Lt. BlueAuto Shutdown
(ASD) Relay 2
27 — 10 Amp RedIgnition Run –
Occupant Classifica-
tion Module (OCM)/
Occupant Restraint
Controller (ORC)
28 — 10 Amp RedIgnition Run —
Occupant Classifica-
tion Module (OCM)/
Occupant Restraint
Controller (ORC)
29 — — Hot Car (No Fuse Required)Cav-ity Car-
tridge Fuse Mini
Fuse Description
30 — 20 Amp YellowIgnition Run – Heated
Seats – If Equipped
31 — — Spare
32 30 Amp Pink — Auto Shutdown
(ASD) Relay 1
33 — 10 Amp Red
Switch Bank/
Diagnostic Link
Connector/Powertrain
Control Module (PCM)
34 30 AmpPink — Anti-Lock Brakes
(ABS) Module – If
Equipped/Electronic
Stability Control
(ESC) Module – If
Equipped7
MAINTAINING YOUR VEHICLE 463
Page 466 of 517

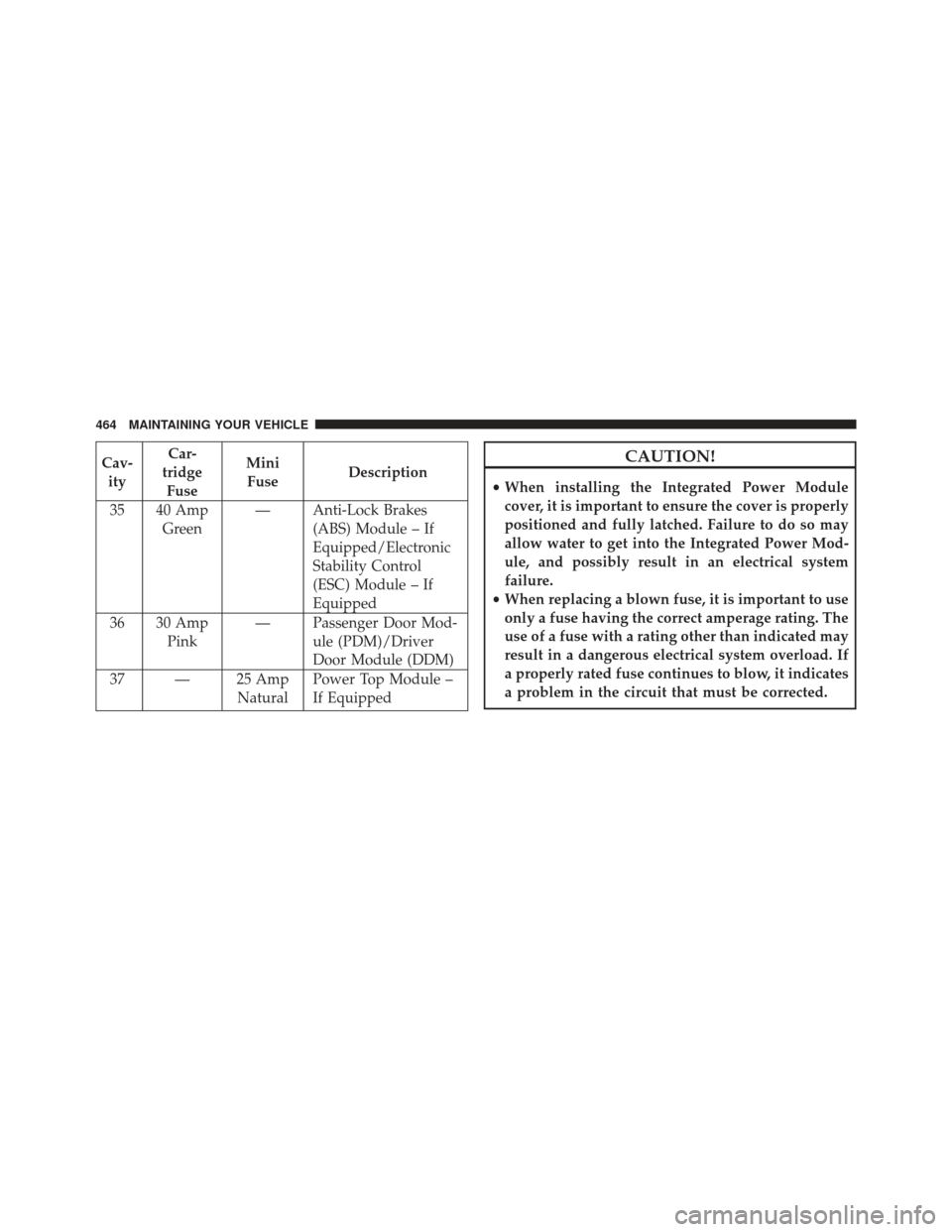

Cav-ity Car-
tridge Fuse Mini
Fuse Description
35 40 Amp Green — Anti-Lock Brakes
(ABS) Module – If
Equipped/Electronic
Stability Control
(ESC) Module – If
Equipped
36 30 Amp Pink — Passenger Door Mod-
ule (PDM)/Driver
Door Module (DDM)
37 — 25 Amp NaturalPower Top Module –
If EquippedCAUTION!
•
When installing the Integrated Power Module
cover, it is important to ensure the cover is properly
positioned and fully latched. Failure to do so may
allow water to get into the Integrated Power Mod-
ule, and possibly result in an electrical system
failure.
• When replacing a blown fuse, it is important to use
only a fuse having the correct amperage rating. The
use of a fuse with a rating other than indicated may
result in a dangerous electrical system overload. If
a properly rated fuse continues to blow, it indicates
a problem in the circuit that must be corrected.
464 MAINTAINING YOUR VEHICLE
Page 467 of 517
VEHICLE STORAGE
If you will not be using your vehicle for more than
21 days, you may want to take steps to preserve your
battery.
•Disengage the mini-fuse in the Power Distribution
Center labeled IOD (Ignition Off-Draw).
• Or disconnect the negative cable from the battery.
• Anytime you store your vehicle, or keep it out of
service (i.e., vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will
ensure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.
REPLACEMENT BULBS
Interior Bulbs
Bulb Number
Front Courtesy/Reading
Lamp 578/W5W
Center Courtesy/Reading
Lamp 578/W5W
Visor Vanity Lamp A6220
Glove Box Lamp A6220
Shift Indicator Lamp IKLE14140
Rear Compartment
(Trunk) Lamp 579
NOTE: For lighted switches, see your authorized
dealer for replacement.
7
MAINTAINING YOUR VEHICLE 465
Page 468 of 517
Exterior Bulbs
Bulb Number
Bi-Halogen Headlamp HIR2
Front Turn Signal Lamp 3157NAK
Front Park Lamp LED (Serviced at
Authorized Dealer)
Front Fog Lamp H11
Center High Mounted
Stop (CHMSL) Lamp LED (Serviced at
Authorized Dealer)
Rear Tail/Stop/Turn
Signal Lamp LED (Serviced at
Authorized Dealer)
Backup Lamp 921
License Lamp W5W
BULB REPLACEMENT
Headlamp
1. Raise and prop open the hood. Locate the connector
behind the headlamp.
NOTE: It may be necessary to remove the air cleaner
filter housing and position the totally integrated power
module aside prior to replacing the low beam headlamp
on the driver’s side of the vehicle.
2. Reach into engine compartment and from behind the lamp assembly and grasp the connector.
466 MAINTAINING YOUR VEHICLE
Page 469 of 517

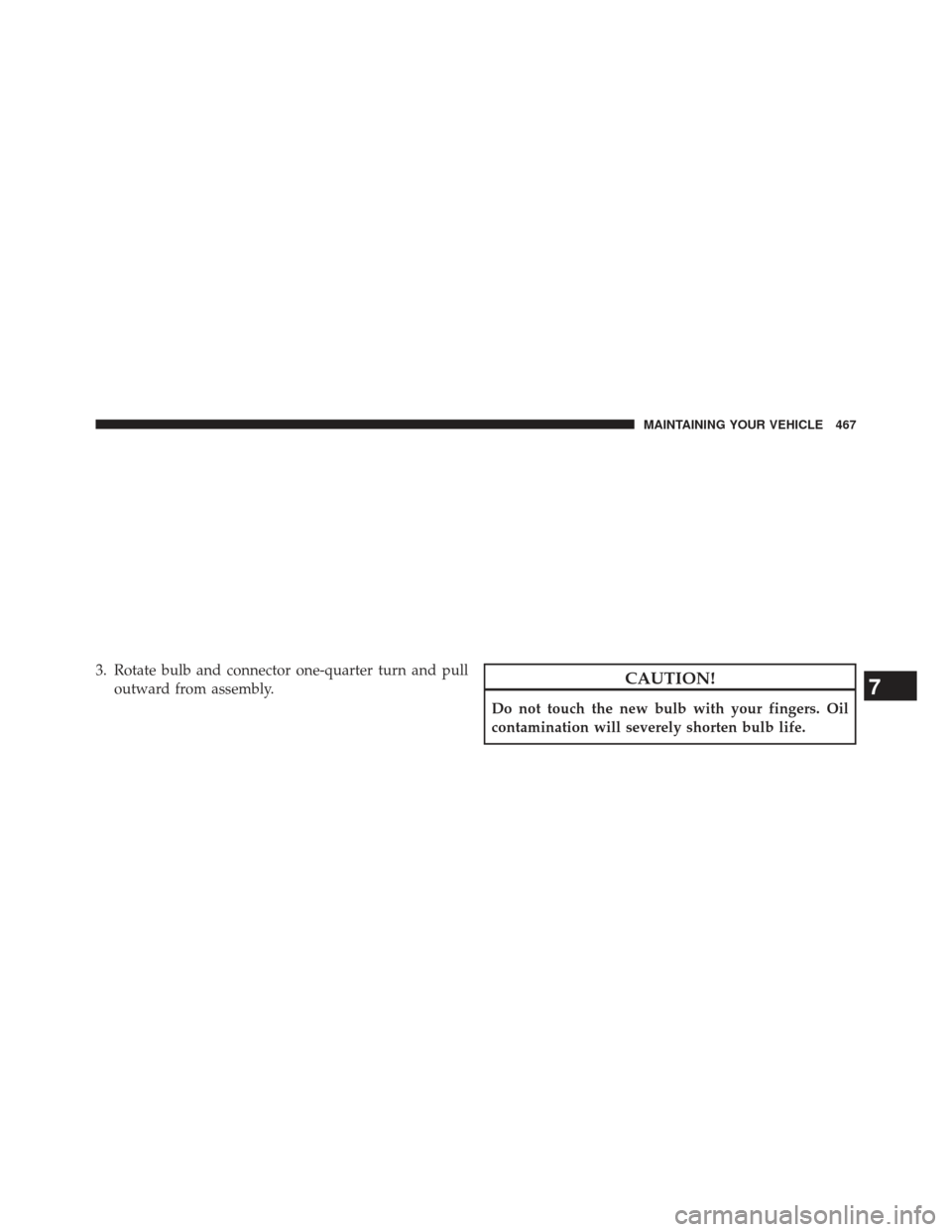

3. Rotate bulb and connector one-quarter turn and pulloutward from assembly.CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life.
7
MAINTAINING YOUR VEHICLE 467
Page 470 of 517
4. Pull the bulb out of the socket and replace the bulb.
5. If the bulb comes in contact with any oily surface,clean the bulb with rubbing alcohol.
6. Reinsert the bulb and socket assembly and rotate clockwise one-quarter turn to secure.Front Turn Signal
1. Raise and prop open the hood.
2. Rotate the bulb’s electrical connector one-quarter turncounterclockwise and remove it from the headlamp
housing.
3. Remove the bulb from the connector socket and install the replacement bulb.
4. Install the bulb and connector assembly into the headlamp housing and rotate the connector one-
quarter turn clockwise to lock it in place.
