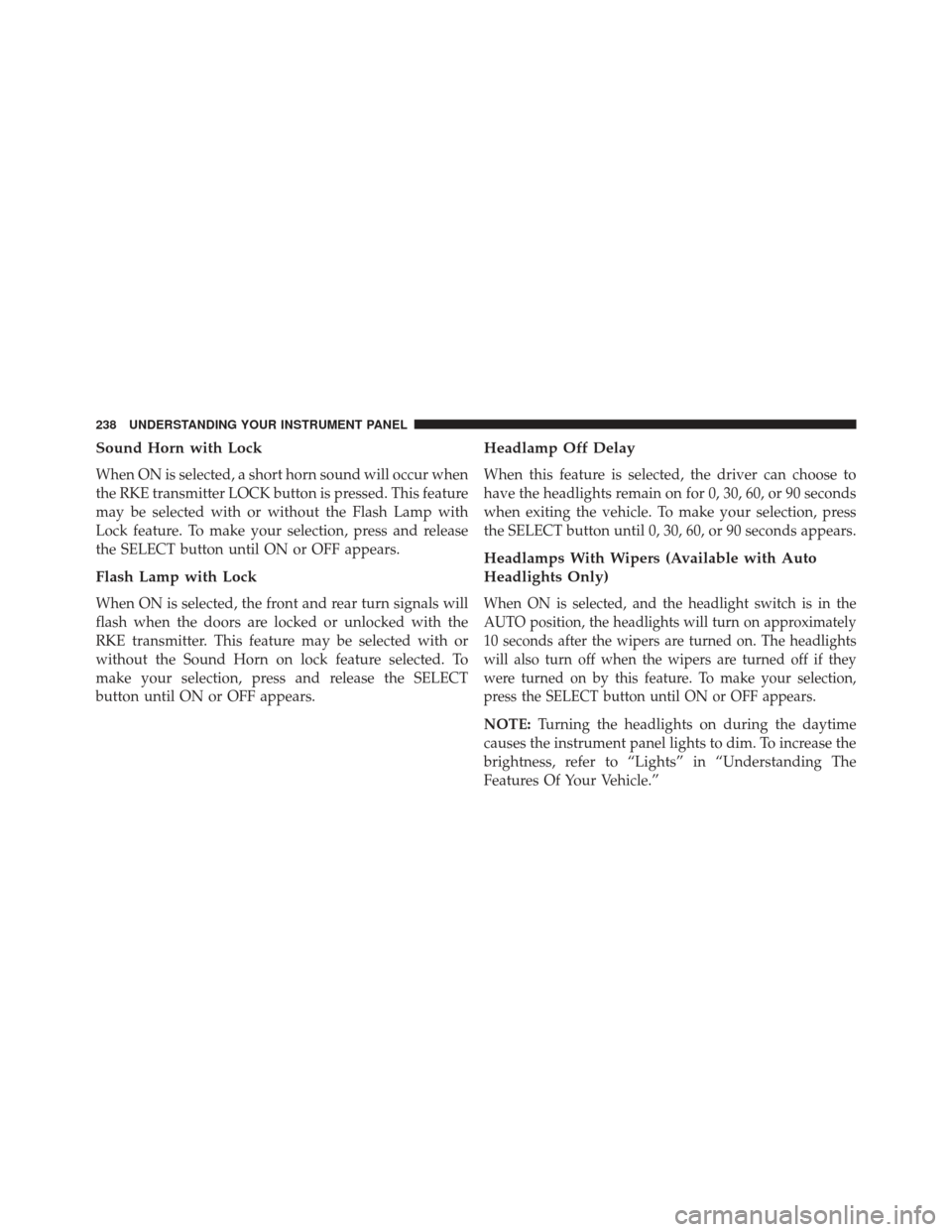

Sound Horn with Lock
When ON is selected, a short horn sound will occur when
the RKE transmitter LOCK button is pressed. This feature
may be selected with or without the Flash Lamp with
Lock feature. To make your selection, press and release
the SELECT button until ON or OFF appears.
Flash Lamp with Lock
When ON is selected, the front and rear turn signals will
flash when the doors are locked or unlocked with the
RKE transmitter. This feature may be selected with or
without the Sound Horn on lock feature selected. To
make your selection, press and release the SELECT
button until ON or OFF appears.
Headlamp Off Delay
When this feature is selected, the driver can choose to
have the headlights remain on for 0, 30, 60, or 90 seconds
when exiting the vehicle. To make your selection, press
the SELECT button until 0, 30, 60, or 90 seconds appears.
Headlamps With Wipers (Available with Auto
Headlights Only)
When ON is selected, and the headlight switch is in the
AUTO position, the headlights will turn on approximately
10 seconds after the wipers are turned on. The headlights
will also turn off when the wipers are turned off if they
were turned on by this feature. To make your selection,
press the SELECT button until ON or OFF appears.
NOTE:Turning the headlights on during the daytime
causes the instrument panel lights to dim. To increase the
brightness, refer to “Lights” in “Understanding The
Features Of Your Vehicle.”
238 UNDERSTANDING YOUR INSTRUMENT PANEL
Page 424 of 517

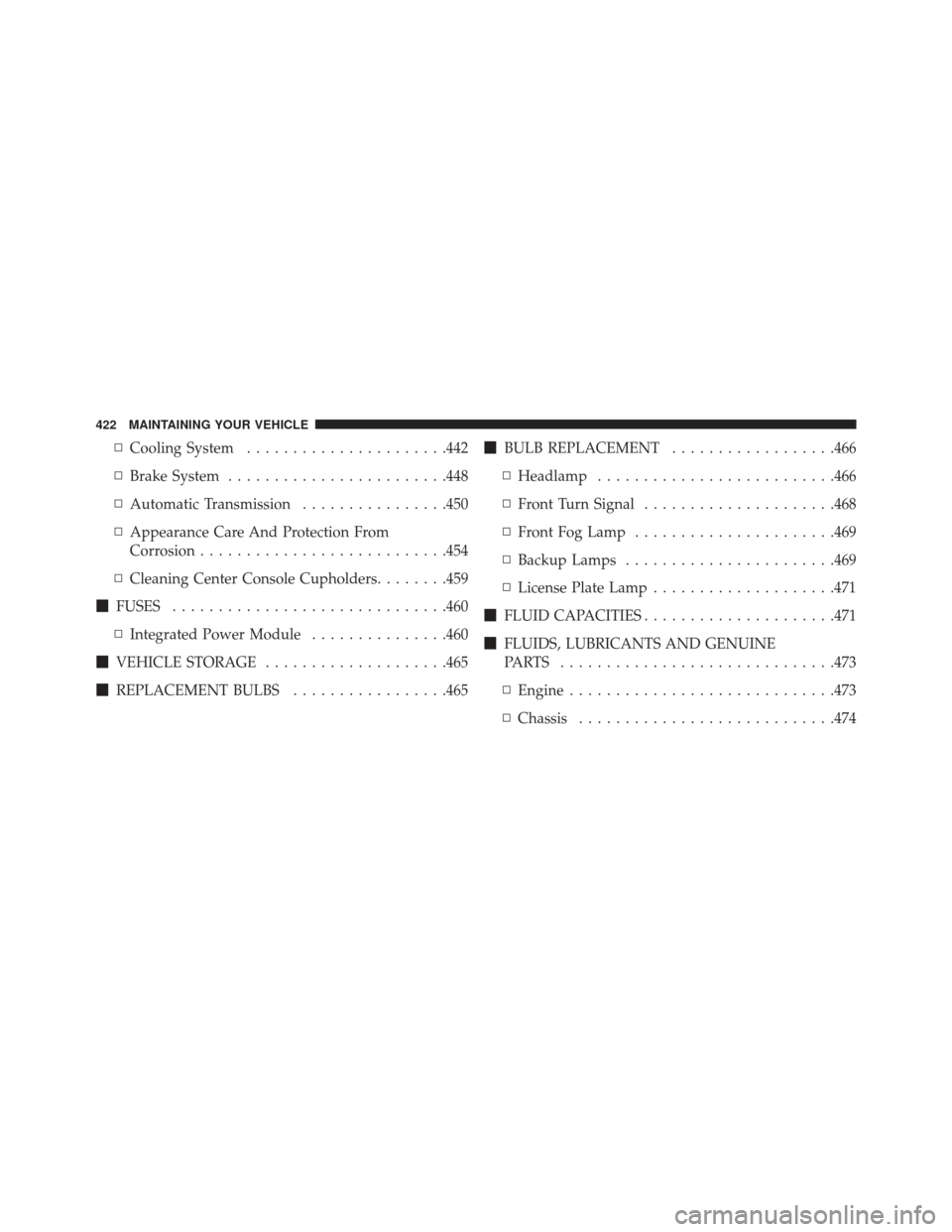

▫Cooling System ..................... .442
▫ Brake System ....................... .448
▫ Automatic Transmission ................450
▫ Appearance Care And Protection From
Corrosion .......................... .454
▫ Cleaning Center Console Cupholders ........459
FUSES ............................. .460
▫ Integrated Power Module ...............460
VEHICLE STORAGE ....................465
REPLACEMENT BULBS .................465
BULB REPLACEMENT ..................466
▫ Headlamp ......................... .466
▫ Front Turn Signal .....................468
▫ Front Fog Lamp ..................... .469
▫ Backup Lamps ...................... .469
▫ License Plate Lamp ....................471
FLUID CAPACITIES .....................471
FLUIDS, LUBRICANTS AND GENUINE
PARTS ............................. .473
▫ Engine ............................ .473
▫ Chassis ........................... .474
422 MAINTAINING YOUR VEHICLE
Page 468 of 517

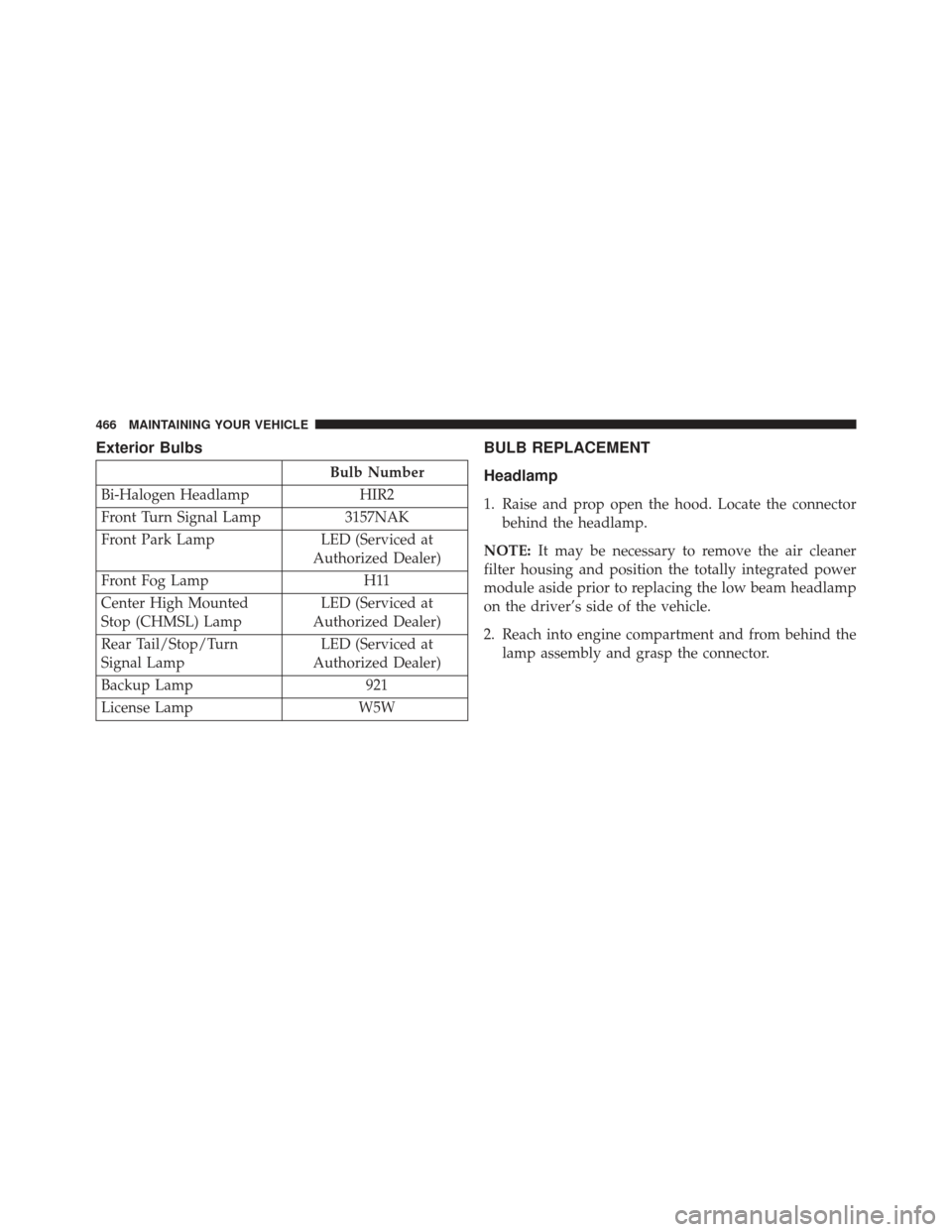

Exterior Bulbs
Bulb Number
Bi-Halogen Headlamp HIR2
Front Turn Signal Lamp 3157NAK
Front Park Lamp LED (Serviced at
Authorized Dealer)
Front Fog Lamp H11
Center High Mounted
Stop (CHMSL) Lamp LED (Serviced at
Authorized Dealer)
Rear Tail/Stop/Turn
Signal Lamp LED (Serviced at
Authorized Dealer)
Backup Lamp 921
License Lamp W5W
BULB REPLACEMENT
Headlamp
1. Raise and prop open the hood. Locate the connector
behind the headlamp.
NOTE: It may be necessary to remove the air cleaner
filter housing and position the totally integrated power
module aside prior to replacing the low beam headlamp
on the driver’s side of the vehicle.
2. Reach into engine compartment and from behind the lamp assembly and grasp the connector.
466 MAINTAINING YOUR VEHICLE
Page 470 of 517

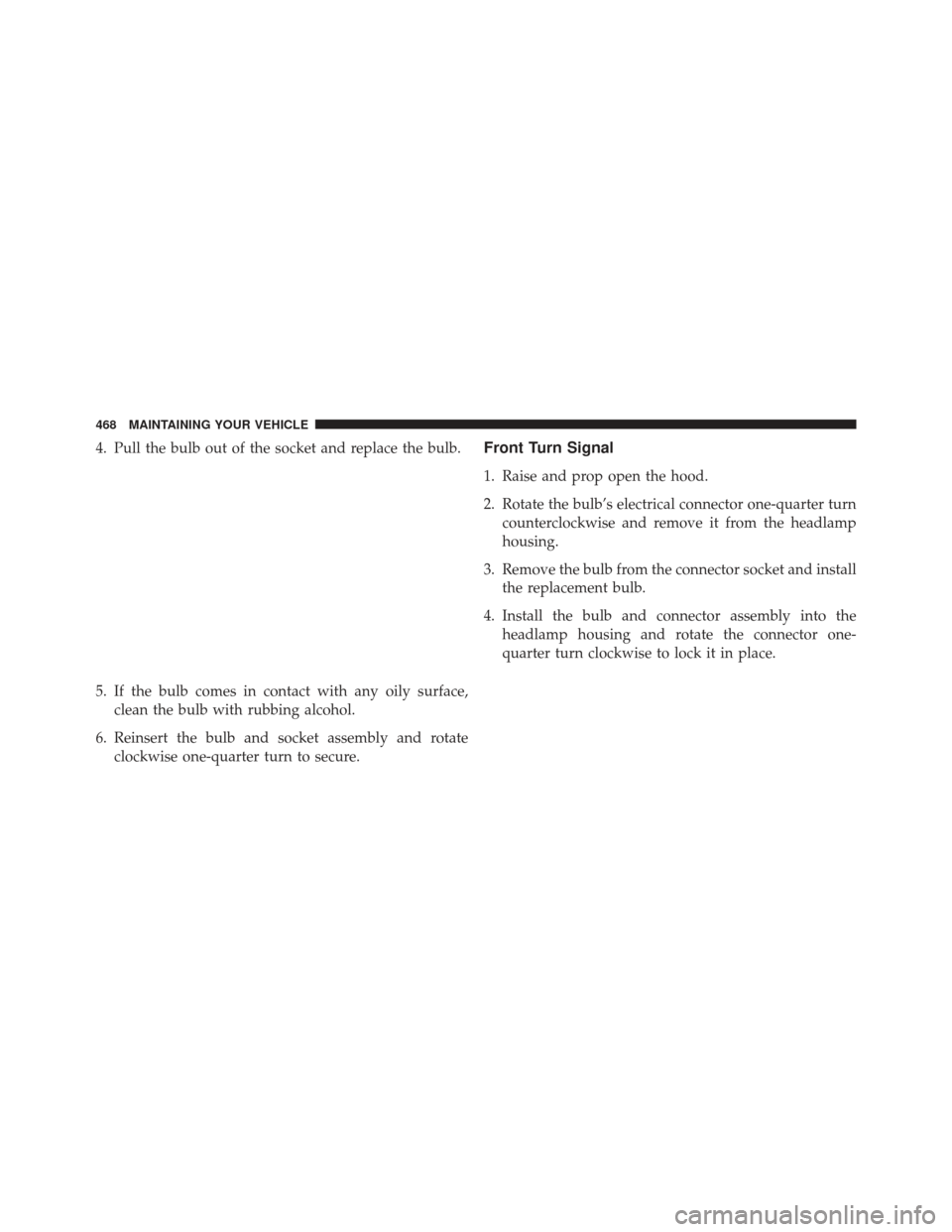

4. Pull the bulb out of the socket and replace the bulb.
5. If the bulb comes in contact with any oily surface,clean the bulb with rubbing alcohol.
6. Reinsert the bulb and socket assembly and rotate clockwise one-quarter turn to secure.Front Turn Signal
1. Raise and prop open the hood.
2. Rotate the bulb’s electrical connector one-quarter turncounterclockwise and remove it from the headlamp
housing.
3. Remove the bulb from the connector socket and install the replacement bulb.
4. Install the bulb and connector assembly into the headlamp housing and rotate the connector one-
quarter turn clockwise to lock it in place.
468 MAINTAINING YOUR VEHICLE
