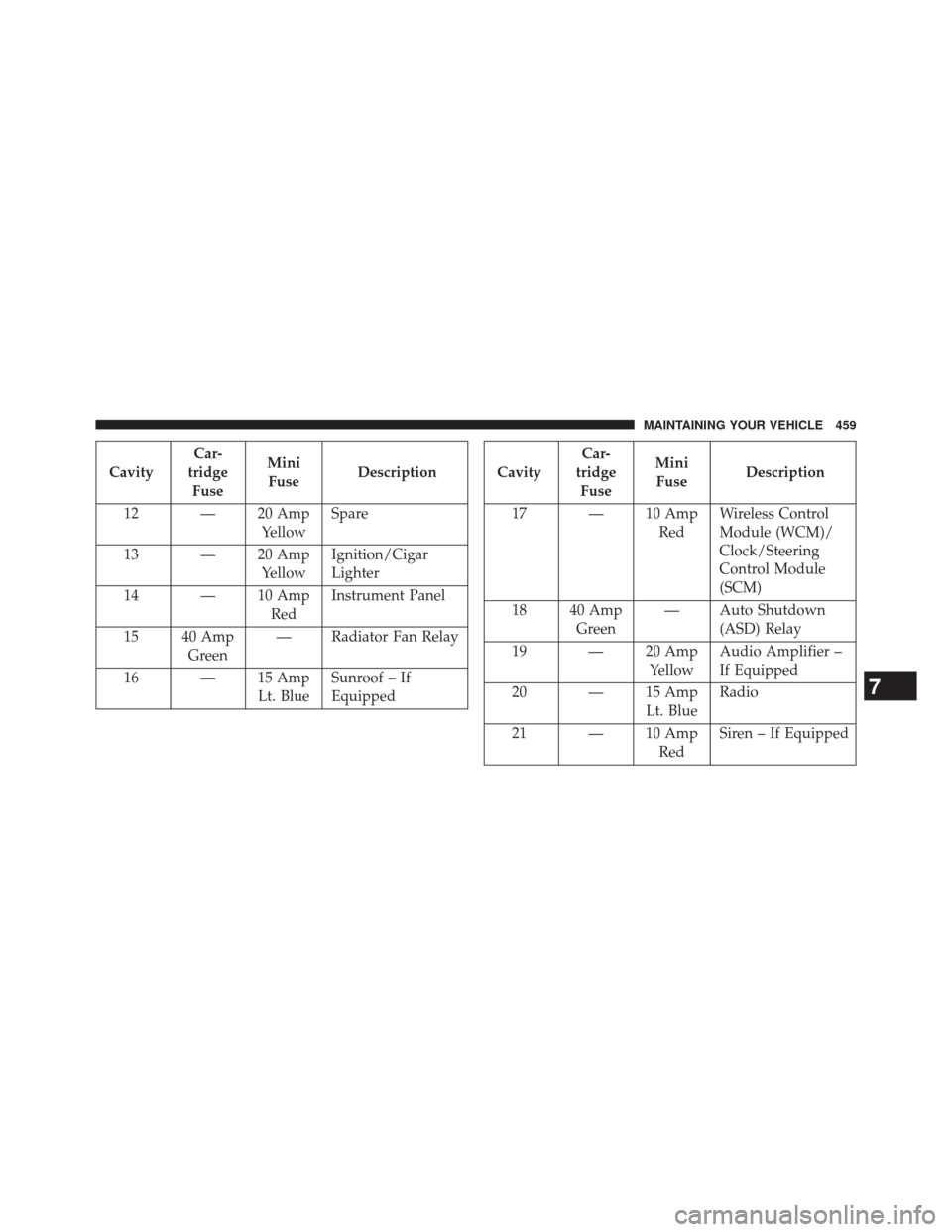

Page 461 of 516
CavityCar-
tridge Fuse Mini
Fuse Description
12 — 20 Amp YellowSpare
13 — 20 Amp YellowIgnition/Cigar
Lighter
14 — 10 Amp RedInstrument Panel
15 40 Amp Green — Radiator Fan Relay
16 — 15 Amp Lt. BlueSunroof – If
EquippedCavity Car-
tridge Fuse Mini
Fuse Description
17 — 10 Amp RedWireless Control
Module (WCM)/
Clock/Steering
Control Module
(SCM)
18 40 Amp Green — Auto Shutdown
(ASD) Relay
19 — 20 Amp YellowAudio Amplifier –
If Equipped
20 — 15 Amp Lt. BlueRadio
21 — 10 Amp RedSiren – If Equipped
7
MAINTAINING YOUR VEHICLE 459
Page 462 of 516

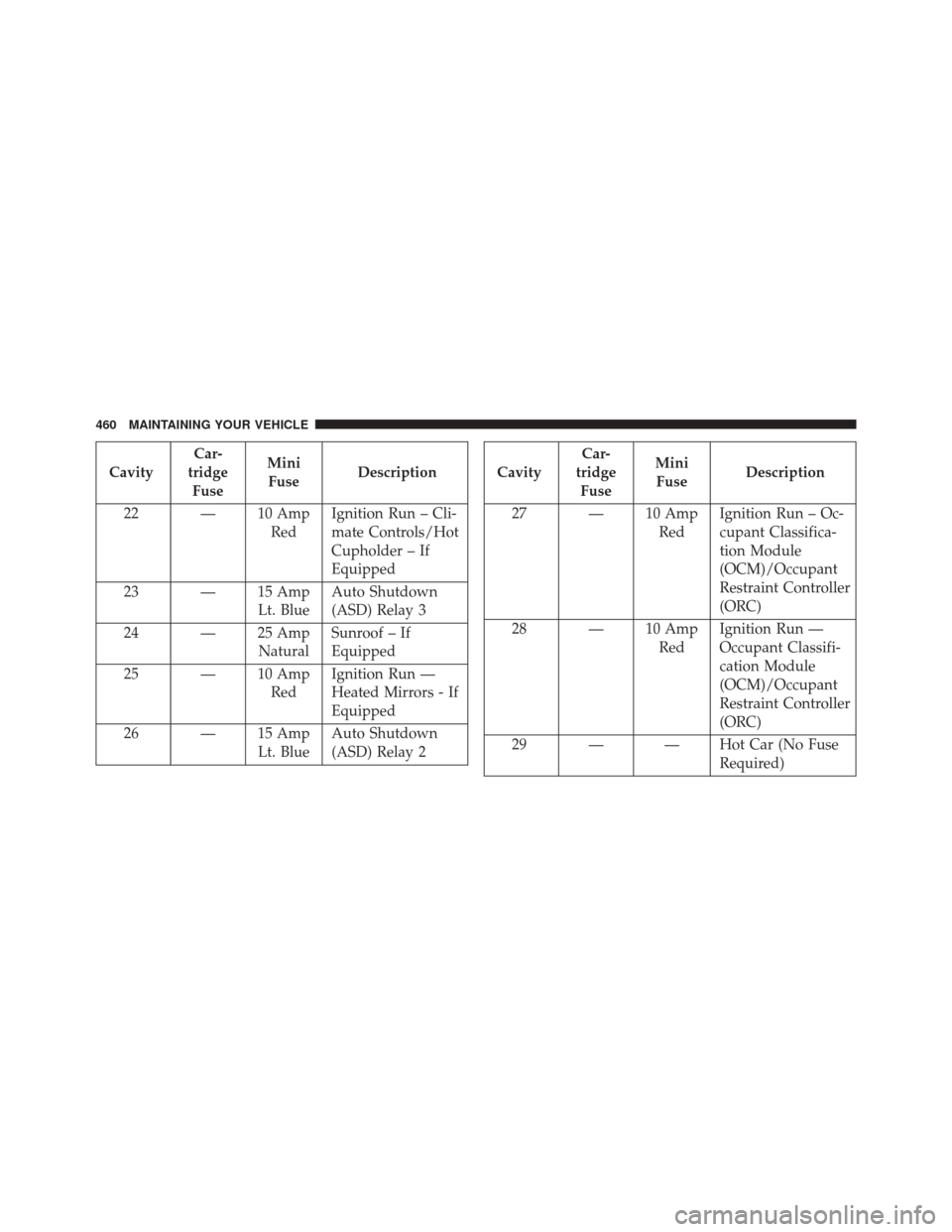

CavityCar-
tridge Fuse Mini
Fuse Description
22 — 10 Amp RedIgnition Run – Cli-
mate Controls/Hot
Cupholder – If
Equipped
23 — 15 Amp Lt. BlueAuto Shutdown
(ASD) Relay 3
24 — 25 Amp NaturalSunroof – If
Equipped
25 — 10 Amp RedIgnition Run —
Heated Mirrors - If
Equipped
26 — 15 Amp Lt. BlueAuto Shutdown
(ASD) Relay 2Cavity Car-
tridge Fuse Mini
Fuse Description
27 — 10 Amp RedIgnition Run – Oc-
cupant Classifica-
tion Module
(OCM)/Occupant
Restraint Controller
(ORC)
28 — 10 Amp RedIgnition Run —
Occupant Classifi-
cation Module
(OCM)/Occupant
Restraint Controller
(ORC)
29 — — Hot Car (No Fuse Required)
460 MAINTAINING YOUR VEHICLE

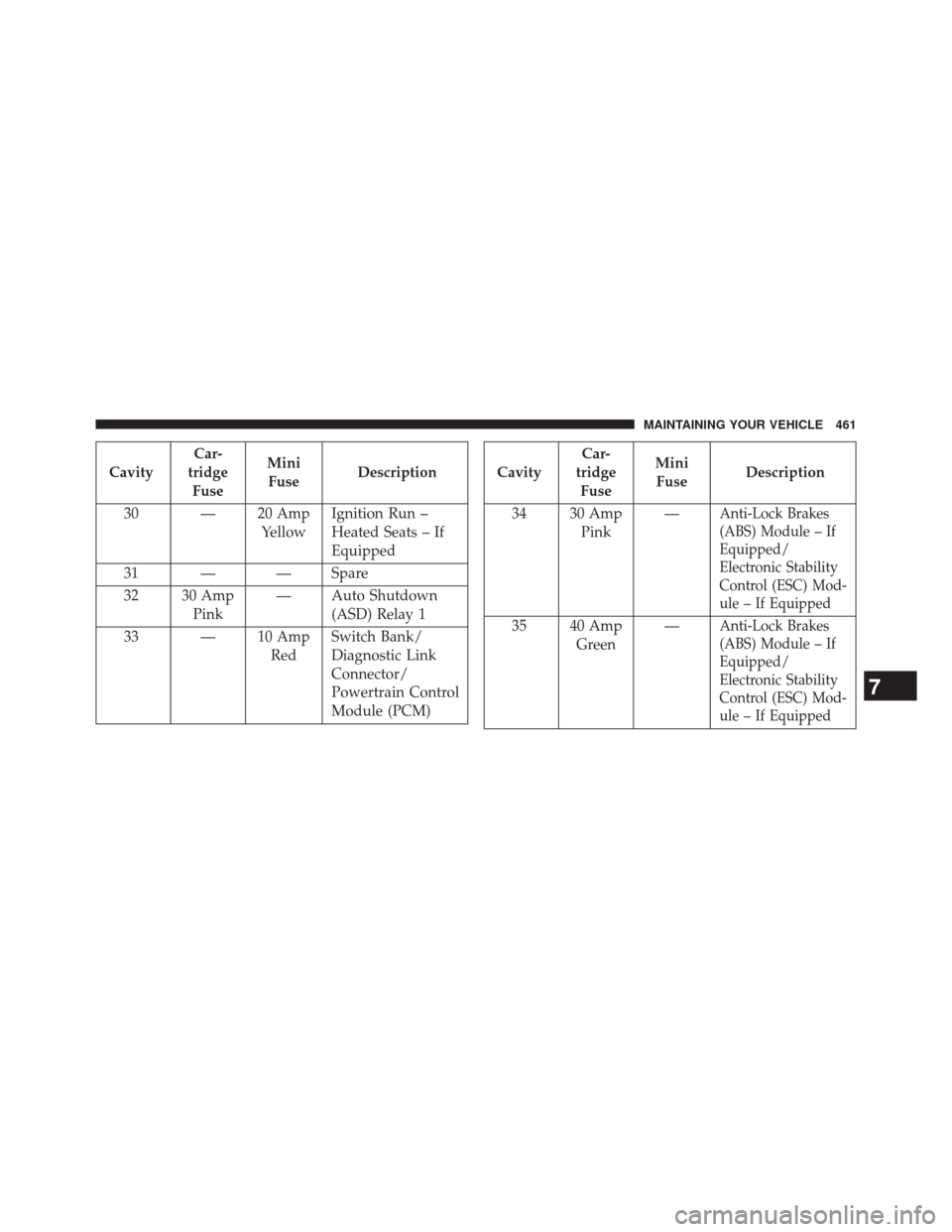

Page 463 of 516
CavityCar-
tridge Fuse Mini
Fuse Description
30 — 20 Amp YellowIgnition Run –
Heated Seats – If
Equipped
31 — — Spare
32 30 Amp Pink — Auto Shutdown
(ASD) Relay 1
33 — 10 Amp RedSwitch Bank/
Diagnostic Link
Connector/
Powertrain Control
Module (PCM)Cavity Car-
tridge Fuse Mini
Fuse Description
34 30 Amp Pink —
Anti-Lock Brakes
(ABS) Module – If
Equipped/
Electronic Stability
Control (ESC) Mod-
ule – If Equipped
35 40 Amp
Green —Anti-Lock Brakes
(ABS) Module – If
Equipped/
Electronic Stability
Control (ESC) Mod-
ule – If Equipped
7
MAINTAINING YOUR VEHICLE 461

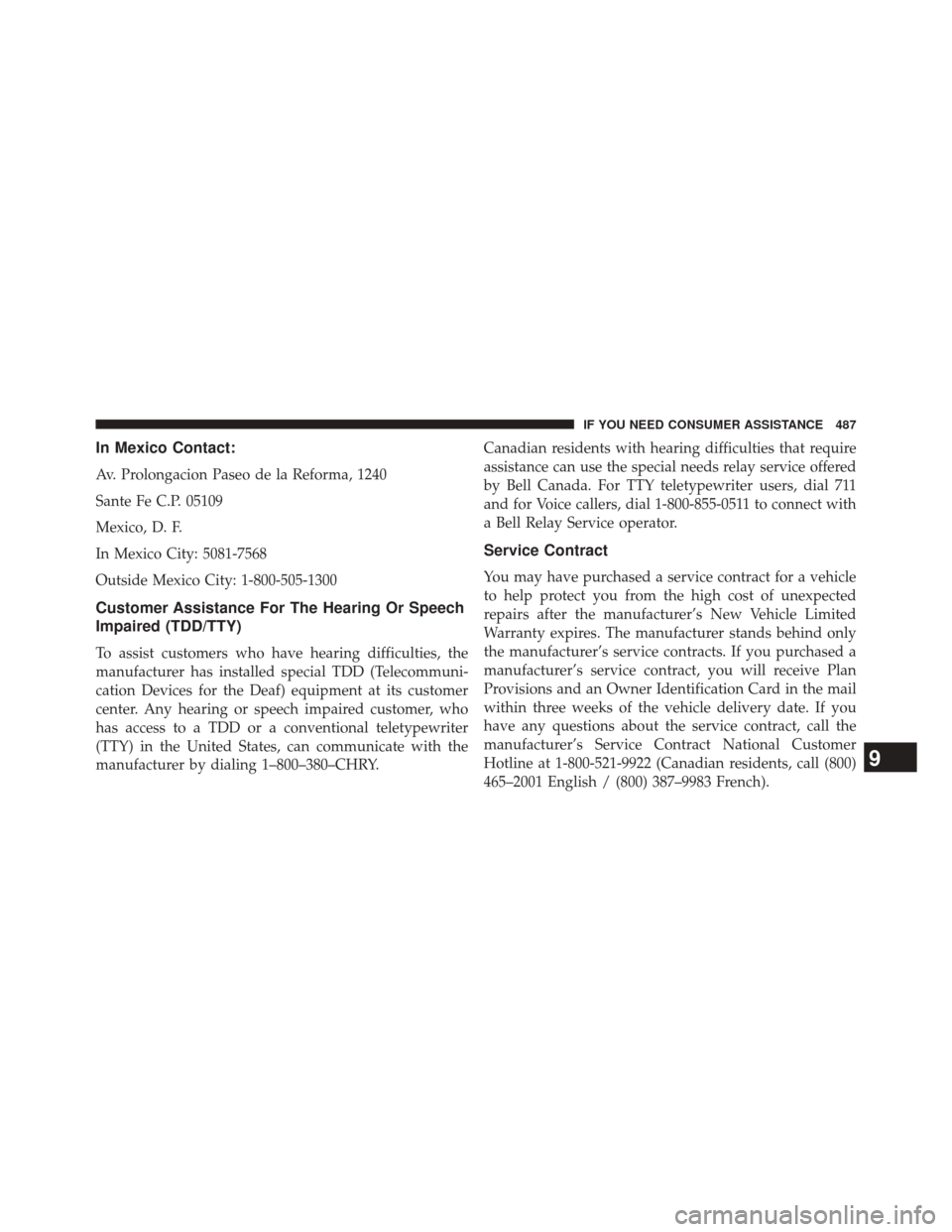

Page 489 of 516
In Mexico Contact:
Av. Prolongacion Paseo de la Reforma, 1240
Sante Fe C.P. 05109
Mexico, D. F.
In Mexico City: 5081-7568
Outside Mexico City: 1-800-505-1300
Customer Assistance For The Hearing Or Speech
Impaired (TDD/TTY)
To assist customers who have hearing difficulties, the
manufacturer has installed special TDD (Telecommuni-
cation Devices for the Deaf) equipment at its customer
center. Any hearing or speech impaired customer, who
has access to a TDD or a conventional teletypewriter
(TTY) in the United States, can communicate with the
manufacturer by dialing 1–800–380–CHRY.Canadian residents with hearing difficulties that require
assistance can use the special needs relay service offered
by Bell Canada. For TTY teletypewriter users, dial 711
and for Voice callers, dial 1-800-855-0511 to connect with
a Bell Relay Service operator.
Service Contract
You may have purchased a service contract for a vehicle
to help protect you from the high cost of unexpected
repairs after the manufacturer’s New Vehicle Limited
Warranty expires. The manufacturer stands behind only
the manufacturer’s service contracts. If you purchased a
manufacturer’s service contract, you will receive Plan
Provisions and an Owner Identification Card in the mail
within three weeks of the vehicle delivery date. If you
have any questions about the service contract, call the
manufacturer’s Service Contract National Customer
Hotline at 1-800-521-9922 (Canadian residents, call (800)
465–2001 English / (800) 387–9983 French).
9
IF YOU NEED CONSUMER ASSISTANCE 487
