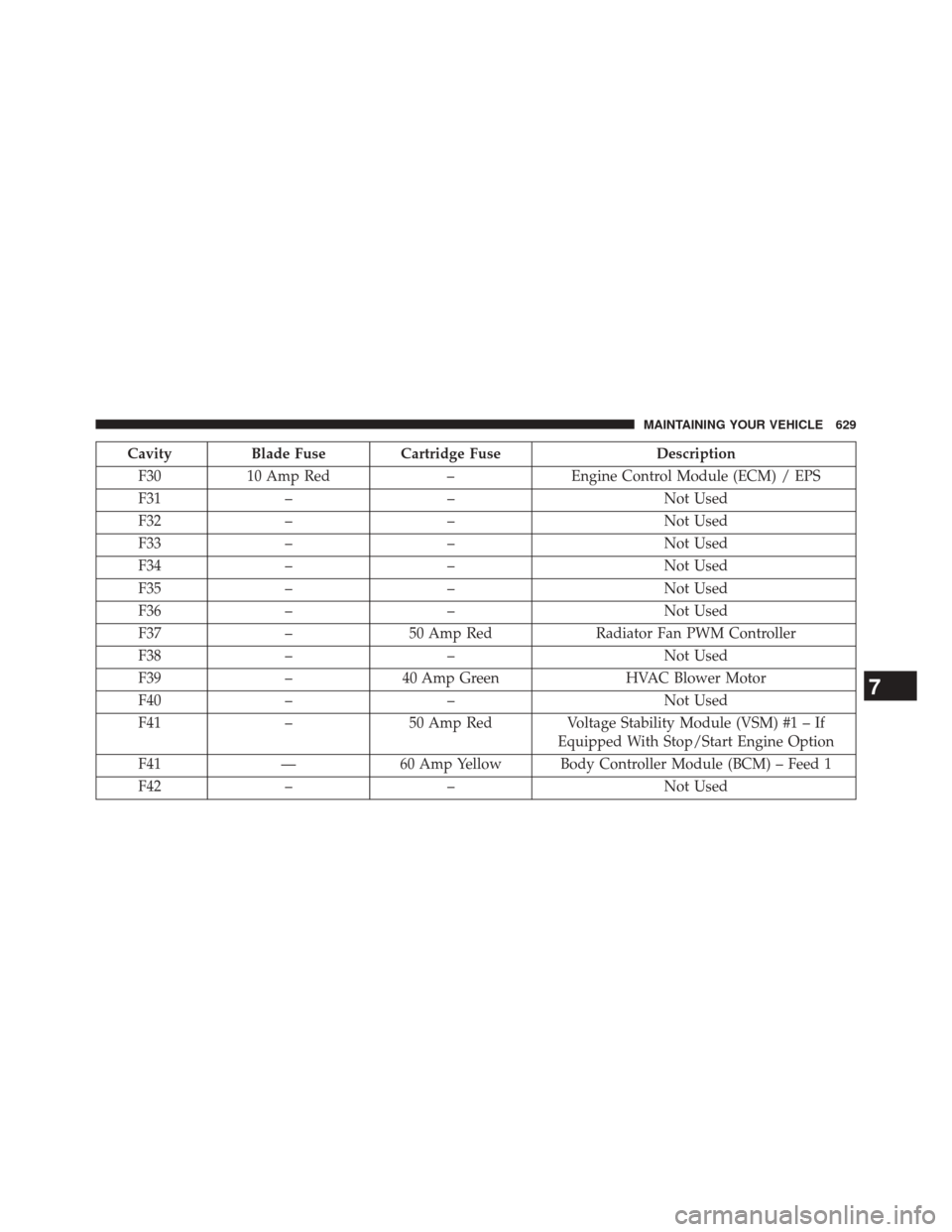

Page 631 of 698
CavityBlade Fuse Cartridge Fuse Description
F30 10 Amp Red –Engine Control Module (ECM) / EPS
F31 – – Not Used
F32 – – Not Used
F33 – – Not Used
F34 – – Not Used
F35 – – Not Used
F36 – – Not Used
F37 –50 Amp Red Radiator Fan PWM Controller
F38 – – Not Used
F39 –40 Amp Green HVAC Blower Motor
F40 – – Not Used
F41 –50 Amp Red Voltage Stability Module (VSM) #1 – If
Equipped With Stop/Start Engine Option
F41 —60 Amp Yellow Body Controller Module (BCM) – Feed 1
F42 – – Not Used
7
MAINTAINING YOUR VEHICLE 629

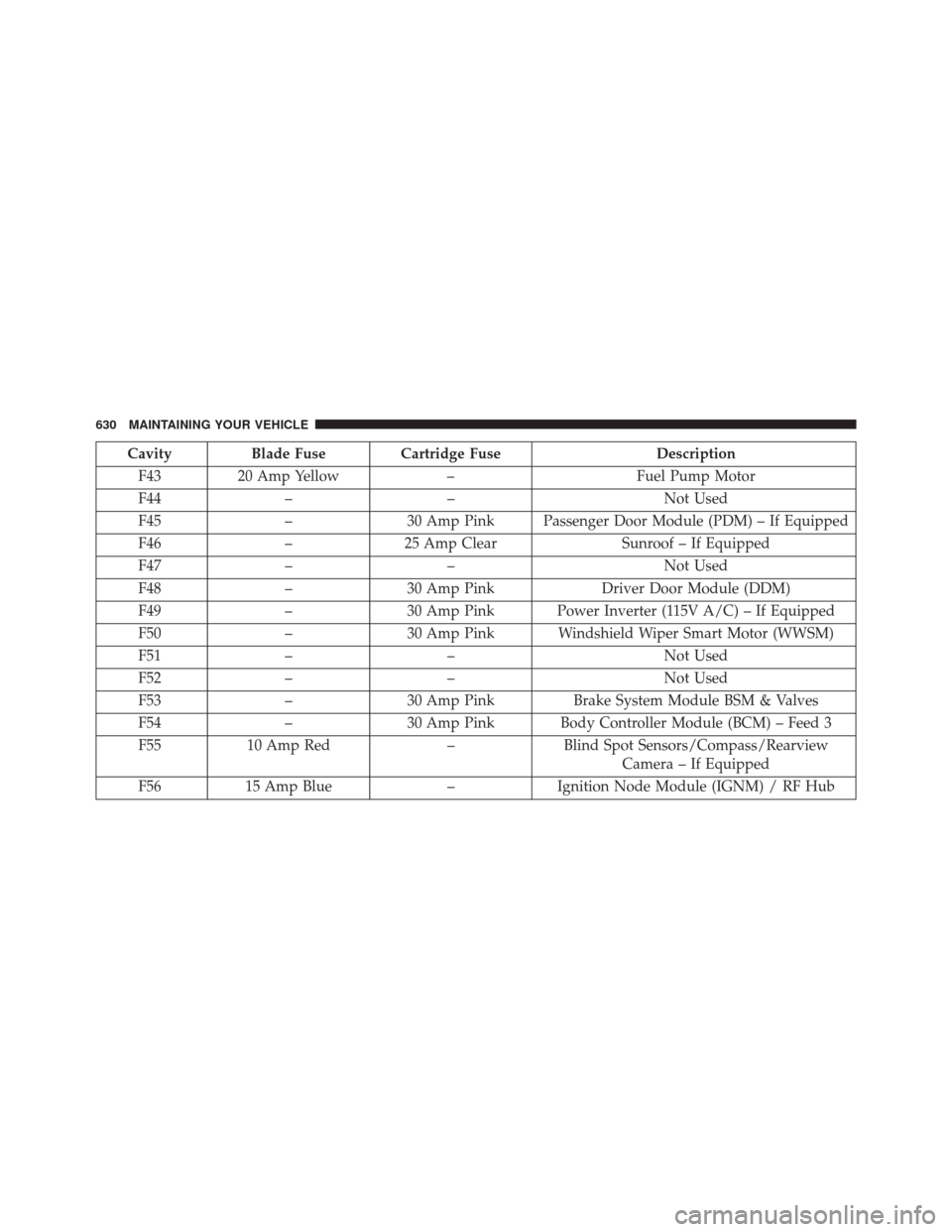

Page 632 of 698
CavityBlade Fuse Cartridge Fuse Description
F43 20 Amp Yellow –Fuel Pump Motor
F44 – – Not Used
F45 –30 Amp Pink Passenger Door Module (PDM) – If Equipped
F46 –25 Amp Clear Sunroof – If Equipped
F47 – – Not Used
F48 –30 Amp Pink Driver Door Module (DDM)
F49 –30 Amp Pink Power Inverter (115V A/C) – If Equipped
F50 –30 Amp Pink Windshield Wiper Smart Motor (WWSM)
F51 – – Not Used
F52 – – Not Used
F53 –30 Amp Pink Brake System Module BSM & Valves
F54 –30 Amp Pink Body Controller Module (BCM) – Feed 3
F55 10 Amp Red –Blind Spot Sensors/Compass/Rearview
Camera – If Equipped
F56 15 Amp Blue –Ignition Node Module (IGNM) / RF Hub
630 MAINTAINING YOUR VEHICLE

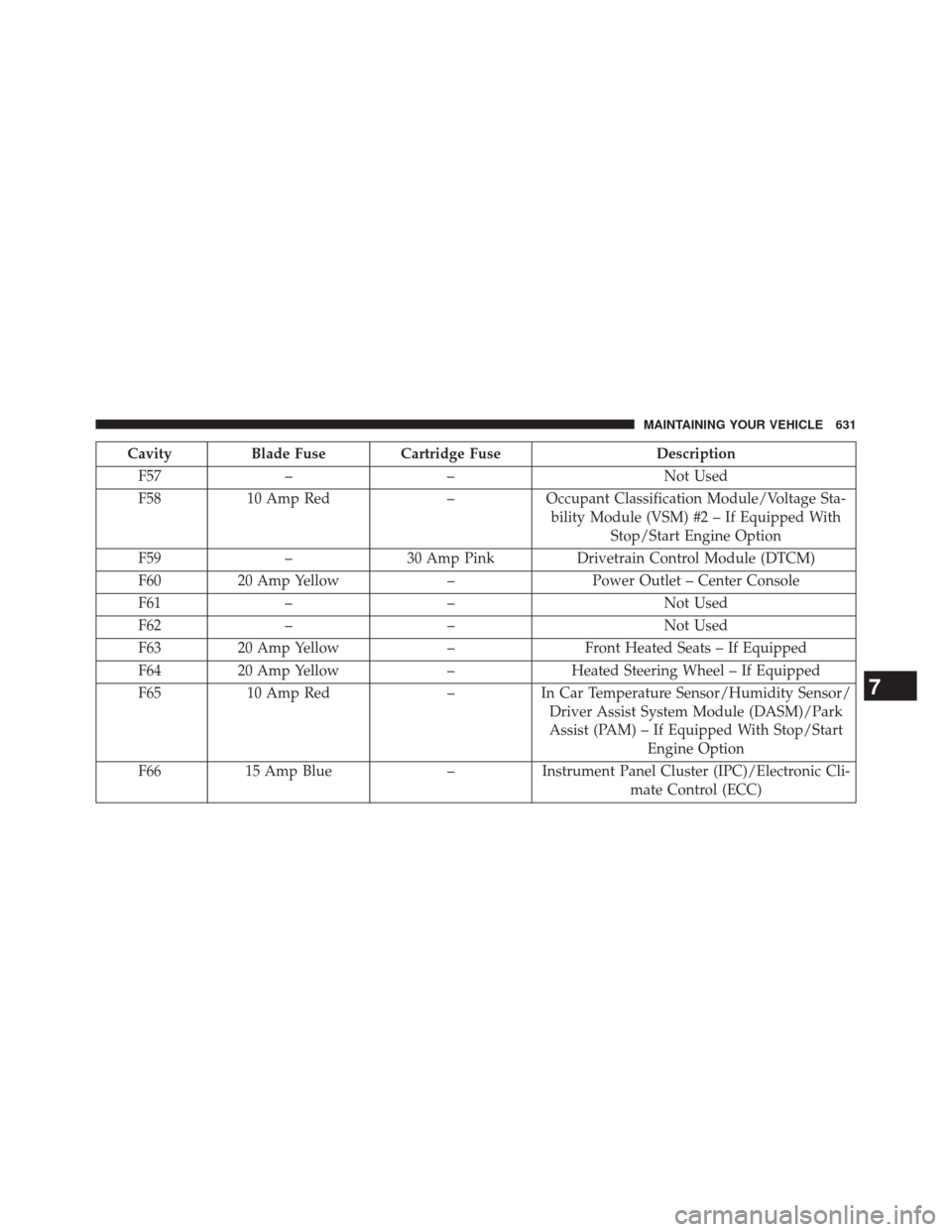

Page 633 of 698
CavityBlade Fuse Cartridge Fuse Description
F57 – – Not Used
F58 10 Amp Red –Occupant Classification Module/Voltage Sta-
bility Module (VSM) #2 – If Equipped With Stop/Start Engine Option
F59 –30 Amp Pink Drivetrain Control Module (DTCM)
F60 20 Amp Yellow –Power Outlet – Center Console
F61 – – Not Used
F62 – – Not Used
F63 20 Amp Yellow –Front Heated Seats – If Equipped
F64 20 Amp Yellow –Heated Steering Wheel – If Equipped
F65 10 Amp Red –In Car Temperature Sensor/Humidity Sensor/
Driver Assist System Module (DASM)/Park
Assist (PAM) – If Equipped With Stop/Start Engine Option
F66 15 Amp Blue –Instrument Panel Cluster (IPC)/Electronic Cli-
mate Control (ECC)
7
MAINTAINING YOUR VEHICLE 631
Page 634 of 698
CavityBlade Fuse Cartridge Fuse Description
F67 10 Amp Red –In Car Temperature Sensor/Humidity Sensor/
Drivers Assist System Module (DASM)/Park Assist (PAM) – If Equipped
F68 – – Not Used
F69 10 Amp Red –Gear Shift Module (GSM)/Active Grill Shutter
(AGS). – If Equipped / EPB SW
F70 5 Amp Tan –Intelligent Battery Sensor (IBS) – If Equipped
with Stop/Start Option
F71 20 Amp Yellow –HID Headlamp Right – If Equipped with
Stop/Start Option
F72 10 Amp Red –Heated Mirrors – If Equipped
F73 – – Not Used
F74 –30 Amp Pink Rear Defroster/Defogger
F75 20 Amp Yellow –Cigar Lighter
F76 10 Amp Red –Drivers Window SW– If Equipped
632 MAINTAINING YOUR VEHICLE
Page 635 of 698
CavityBlade Fuse Cartridge Fuse Description
F77 10 Amp Red –UCI Port/Brake Pedal Switch
F78 10 Amp Red –Diagnostic Port/Steering Column Control
Module (SCCM)
F79 10 Amp Red –Integrated Center Stack (ICS)/Switch Bank/
Instrument Panel Cluster (IPC)/EPB SW
F80 20 Amp Yellow – Radio
F81 – – Not Used
F82 – – Not Used
F83 –20 Amp Blue Engine Control Module (ECM)
F84 –30 Amp Pink Electric Park Brake (EPB) – Left
F85 – – Not Used
F86 20 Amp Yellow –Horns – If Equipped With Stop/Start Engine
Option
F87A 20 Amp Yellow –HID Headlamp Left – If Equipped Stop/Start
Only
7
MAINTAINING YOUR VEHICLE 633

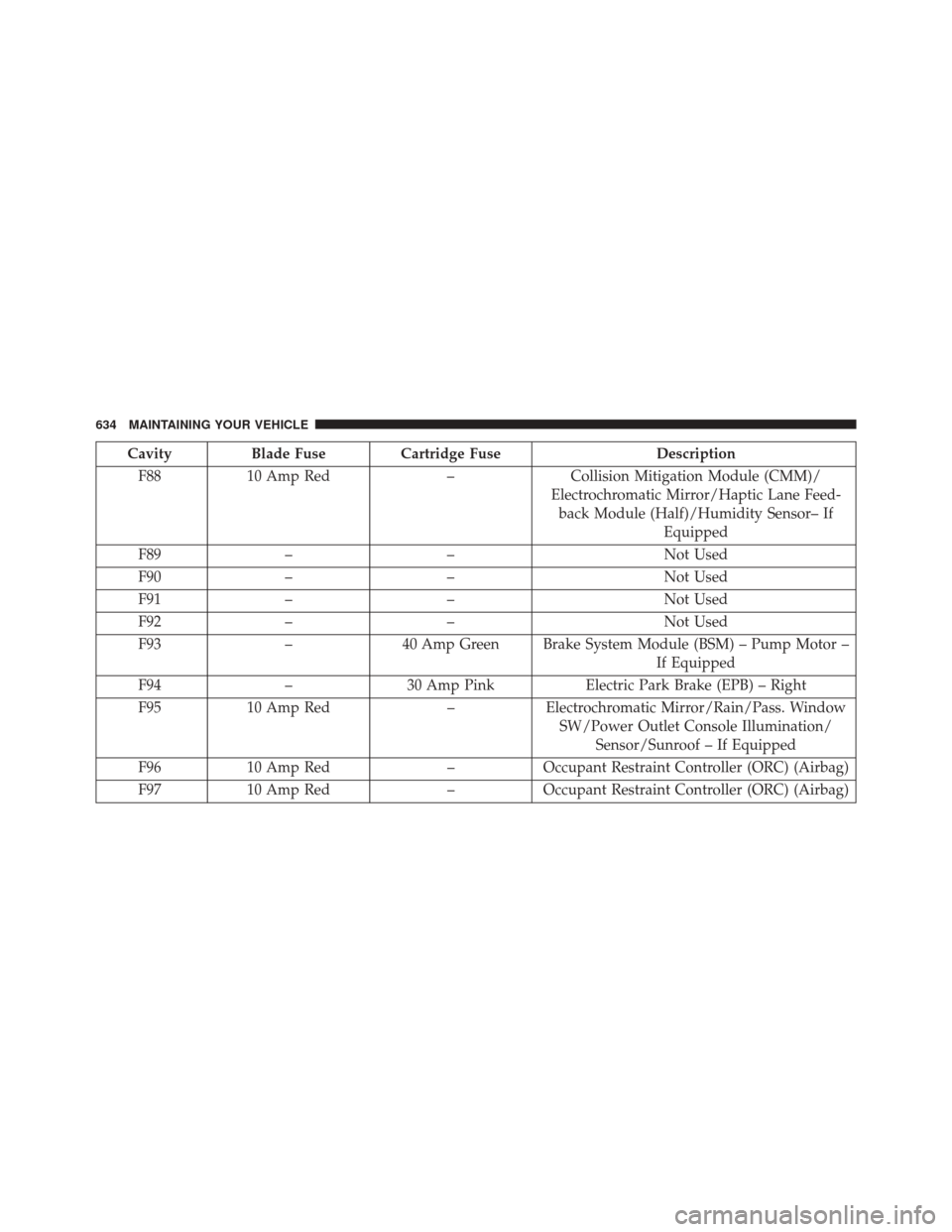

Page 636 of 698
CavityBlade Fuse Cartridge Fuse Description
F88 10 Amp Red –Collision Mitigation Module (CMM)/
Electrochromatic Mirror/Haptic Lane Feed- back Module (Half)/Humidity Sensor– If Equipped
F89 – – Not Used
F90 – – Not Used
F91 – – Not Used
F92 – – Not Used
F93 –40 Amp Green Brake System Module (BSM) – Pump Motor –
If Equipped
F94 –30 Amp Pink Electric Park Brake (EPB) – Right
F95 10 Amp Red –Electrochromatic Mirror/Rain/Pass. Window
SW/Power Outlet Console Illumination/ Sensor/Sunroof – If Equipped
F96 10 Amp Red –Occupant Restraint Controller (ORC) (Airbag)
F97 10 Amp Red –Occupant Restraint Controller (ORC) (Airbag)
634 MAINTAINING YOUR VEHICLE

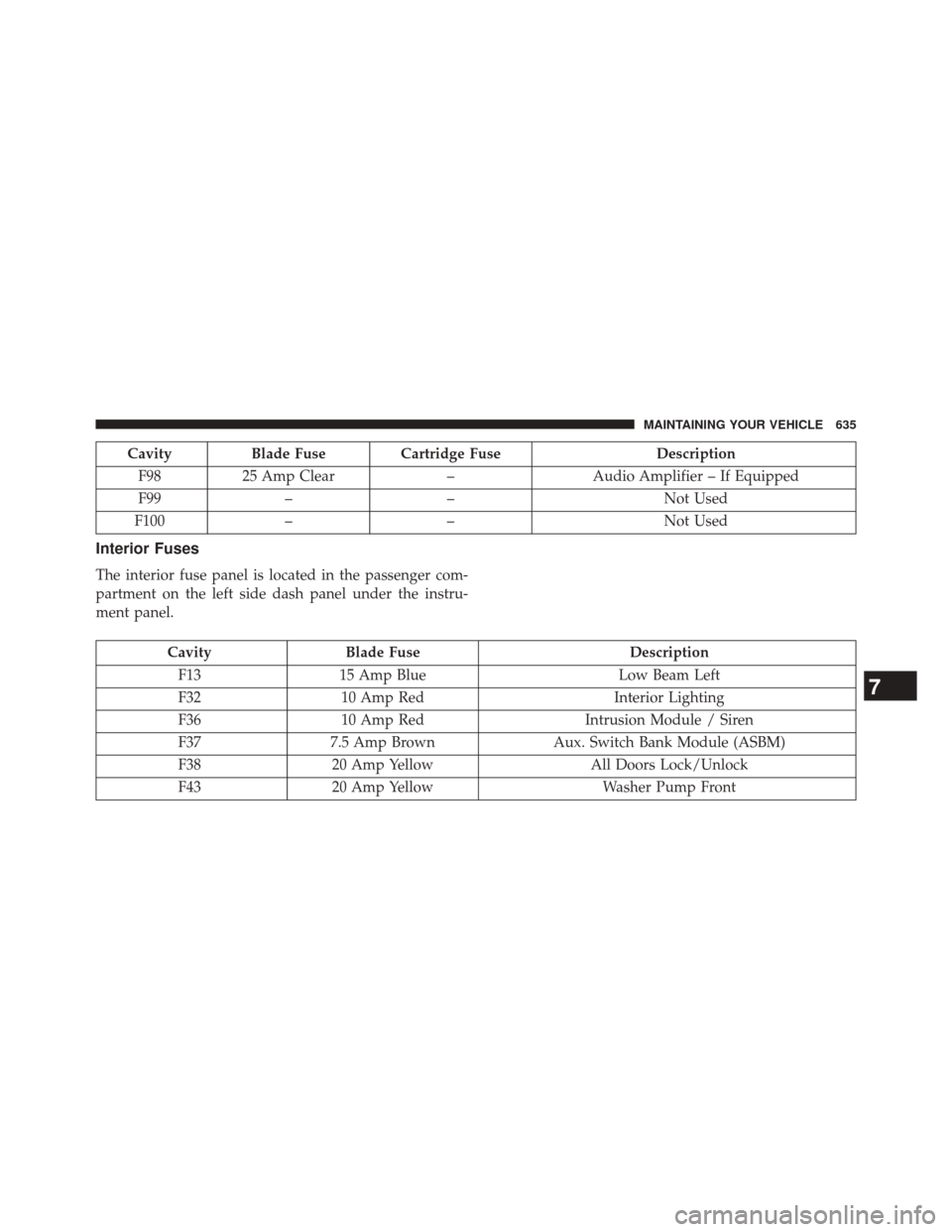

Page 637 of 698
CavityBlade Fuse Cartridge Fuse Description
F98 25 Amp Clear –Audio Amplifier – If Equipped
F99 – – Not Used
F100 – – Not Used
Interior Fuses
The interior fuse panel is located in the passenger com-
partment on the left side dash panel under the instru-
ment panel.
CavityBlade Fuse Description
F13 15 Amp Blue Low Beam Left
F32 10 Amp Red Interior Lighting
F36 10 Amp Red Intrusion Module / Siren
F37 7.5 Amp Brown Aux. Switch Bank Module (ASBM)
F38 20 Amp Yellow All Doors Lock/Unlock
F43 20 Amp Yellow Washer Pump Front
7
MAINTAINING YOUR VEHICLE 635

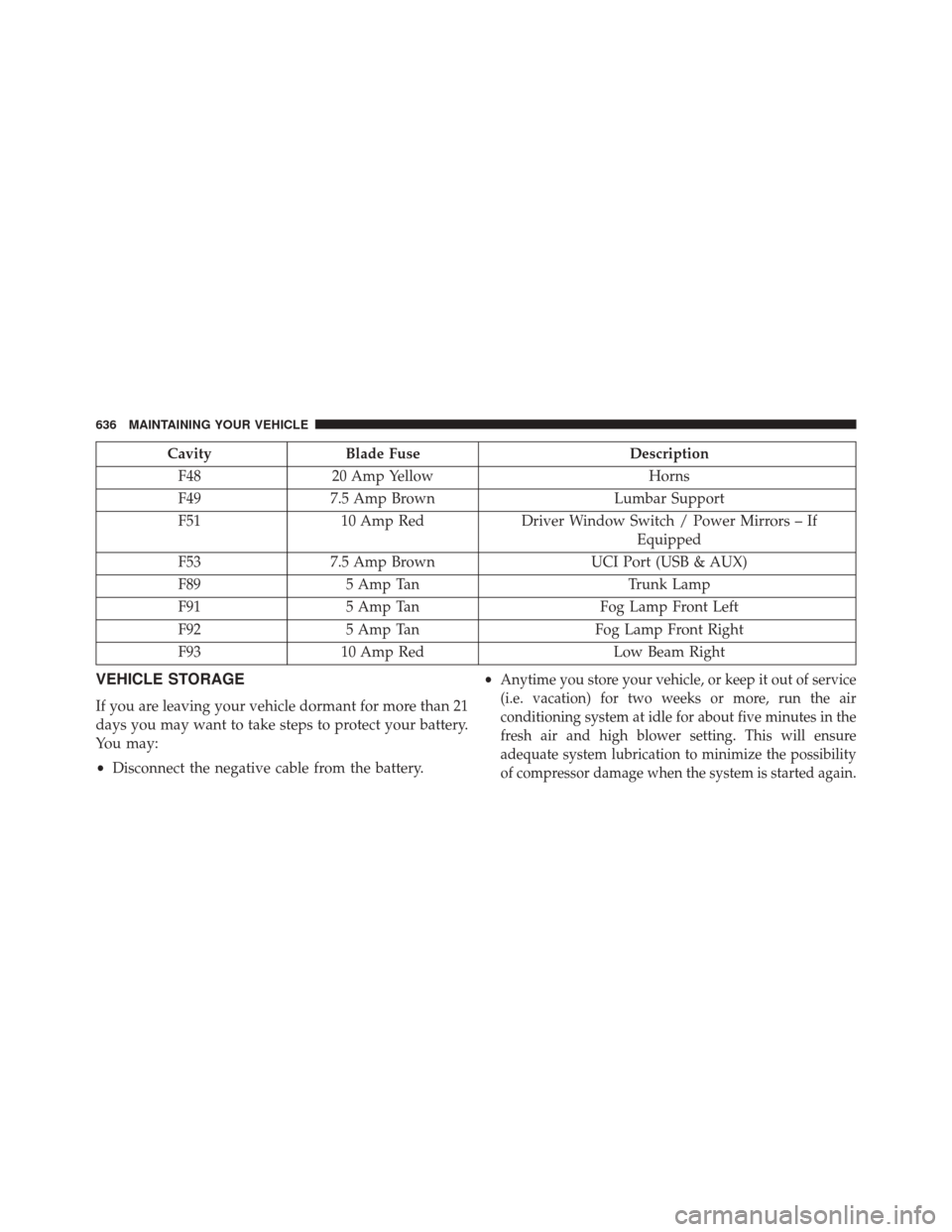

Page 638 of 698
CavityBlade Fuse Description
F48 20 Amp Yellow Horns
F49 7.5 Amp Brown Lumbar Support
F51 10 Amp Red Driver Window Switch / Power Mirrors – If
Equipped
F53 7.5 Amp Brown UCI Port (USB & AUX)
F89 5 Amp Tan Trunk Lamp
F91 5 Amp Tan Fog Lamp Front Left
F92 5 Amp Tan Fog Lamp Front Right
F93 10 Amp Red Low Beam Right
VEHICLE STORAGE
If you are leaving your vehicle dormant for more than 21
days you may want to take steps to protect your battery.
You may:
•Disconnect the negative cable from the battery. •
Anytime you store your vehicle, or keep it out of service
(i.e. vacation) for two weeks or more, run the air
conditioning system at idle for about five minutes in the
fresh air and high blower setting. This will ensure
adequate system lubrication to minimize the possibility
of compressor damage when the system is started again.
636 MAINTAINING YOUR VEHICLE

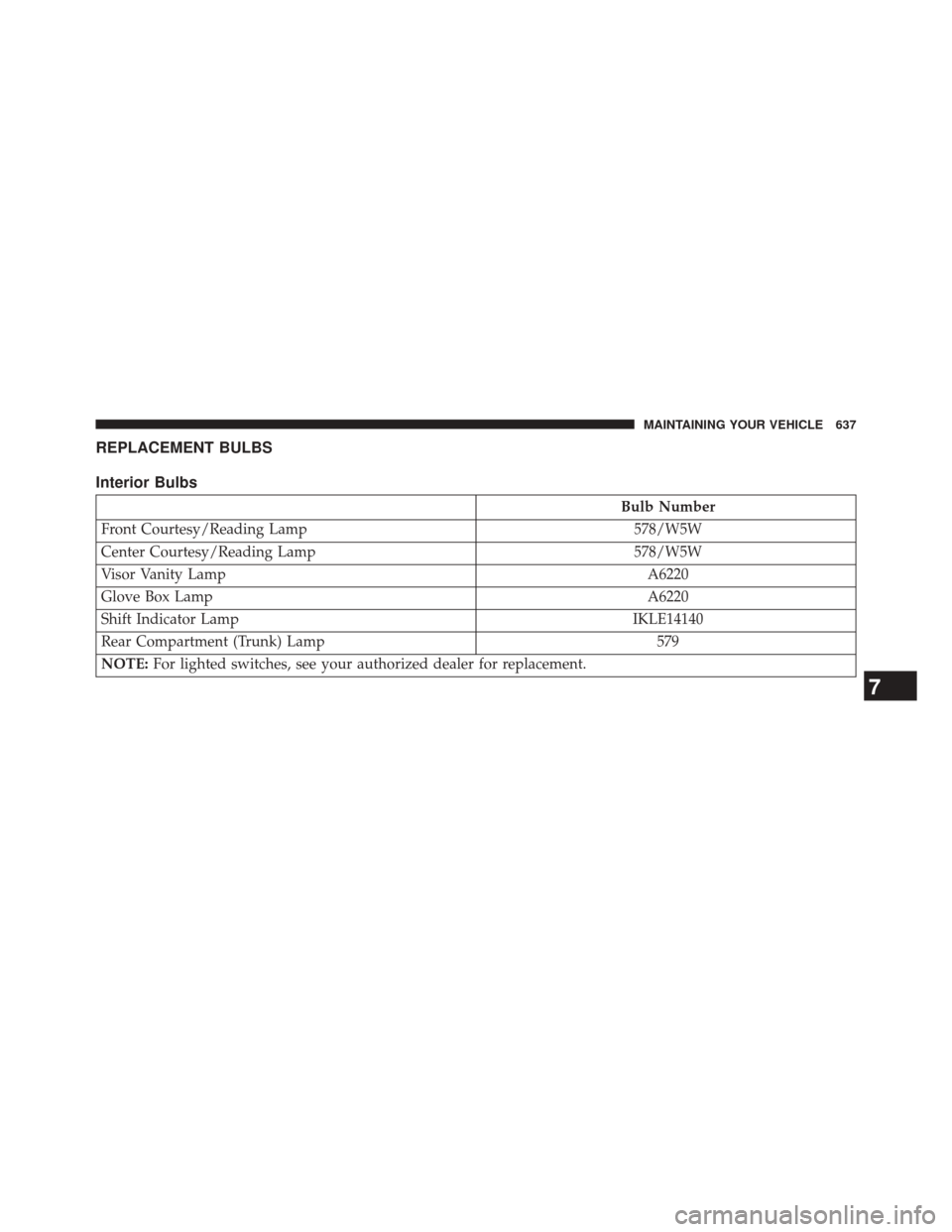

Page 639 of 698
REPLACEMENT BULBS
Interior Bulbs
Bulb Number
Front Courtesy/Reading Lamp 578/W5W
Center Courtesy/Reading Lamp 578/W5W
Visor Vanity Lamp A6220
Glove Box Lamp A6220
Shift Indicator Lamp IKLE14140
Rear Compartment (Trunk) Lamp 579
NOTE: For lighted switches, see your authorized dealer for replacement.
7
MAINTAINING YOUR VEHICLE 637
Page 640 of 698
Exterior Bulbs
Bulb Number
High Intensity Discharge Headlamp HID (Serviced at Authorized Dealer)
Bi-Halogen Headlamp HIR2
Daytime Running Lamp LED (Serviced at Authorized Dealer)
Front Turn Signal Lamp PWY24W SV
Side Marker Lamp W3W
Front Park Lamp LED (Serviced at Authorized Dealer)
Front Fog Lamp H11
LED Front Fog Lamp LED (Serviced at Authorized Dealer)
Center High Mounted Stop (CHMSL) Lamp LED (Serviced at Authorized Dealer)
Stop/Turn Signal Lamp W21W
Rear Tail/Side Marker Lamp LED (Serviced at Authorized Dealer)
Backup Lamp 921
License Lamp W5W
