Page 90 of 539
▫Easy Entry/Exit Seat ....................120
TO OPEN AND CLOSE THE HOOD ..........120
LIGHTS ............................. .122
▫ Headlight Switch ..................... .122
▫ Automatic Headlights — If Equipped ........123
▫ Headlights On With Wipers ...............123
▫ Headlight Time Delay ...................123
▫ Automatic High Beam Headlamp Control — If
Equipped ........................... .124
▫ Daytime Running Lights — If Equipped ......125
▫ Lights-On Reminder ....................125
▫ Fog Lights — If Equipped ................125
▫ Multifunction Lever ....................126
▫ Turn Signals ......................... .126
▫ Lane Change Assist .....................127
▫ High/Low Beam Switch .................127
▫ Flash-To-Pass ........................ .127▫
Front Map/Reading Lights ...............127
▫ Interior Lights ........................ .128
▫ Battery Saver Feature ....................130
WINDSHIELD WIPERS AND WASHERS .......130
▫ Windshield Wiper Operation ...............130
▫ Intermittent Wiper System ................131
▫ Windshield Washer Operation ..............132
▫ Mist ............................... .133
▫ Rain Sensing Wipers — If Equipped .........133
TIL
T/TELESCOPING STEERING COLUMN .....134
HEATED STEERING WHEEL — IF EQUIPPED . . .135
ELECTRONIC SPEED CONTROL — IF
EQUIPPED ........................... .136
▫ To Activate .......................... .137
▫ To Set A Desired Speed ...................137
▫ To Deactivate ........................ .137
▫ To Resume Speed ...................... .137
88 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Page 126 of 539

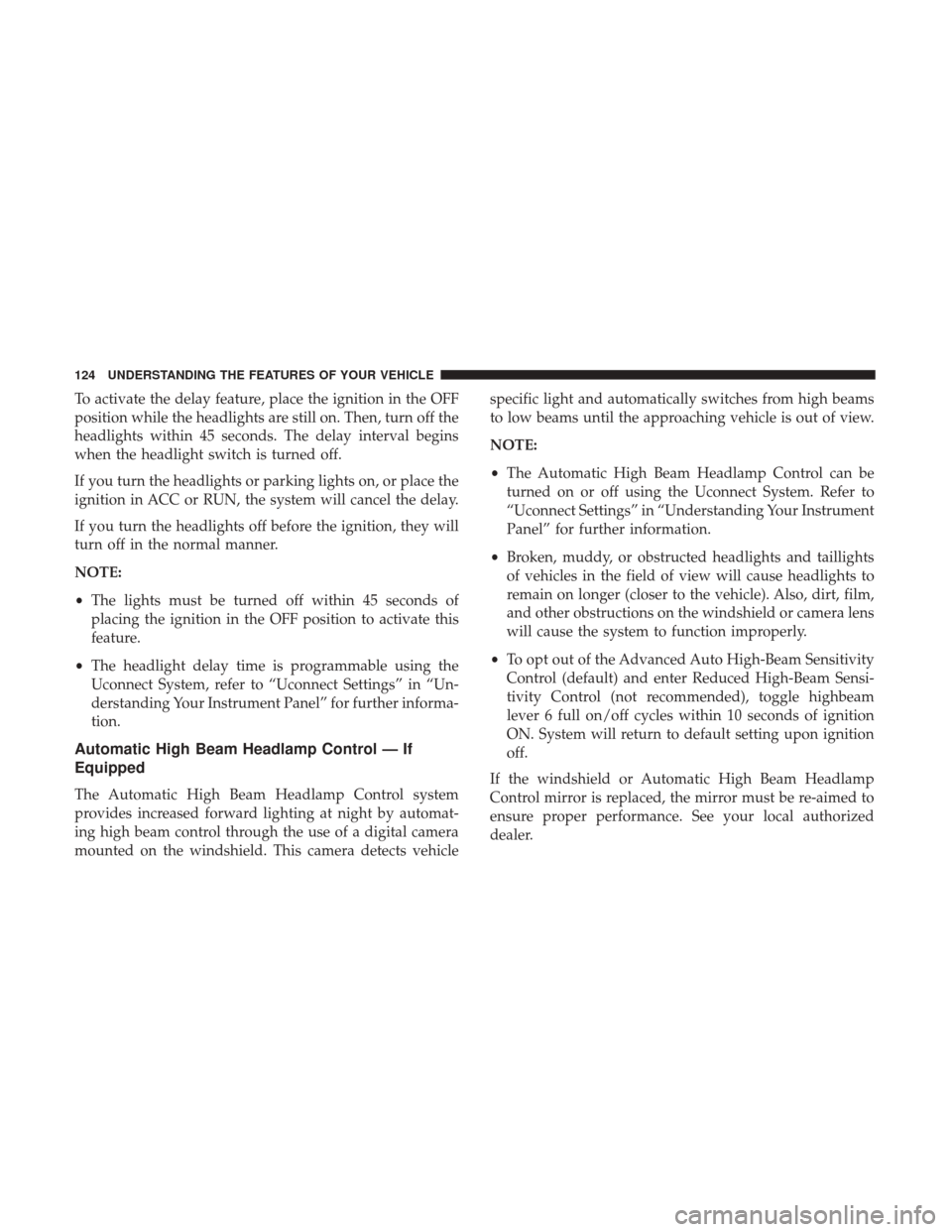

To activate the delay feature, place the ignition in the OFF
position while the headlights are still on. Then, turn off the
headlights within 45 seconds. The delay interval begins
when the headlight switch is turned off.
If you turn the headlights or parking lights on, or place the
ignition in ACC or RUN, the system will cancel the delay.
If you turn the headlights off before the ignition, they will
turn off in the normal manner.
NOTE:
•The lights must be turned off within 45 seconds of
placing the ignition in the OFF position to activate this
feature.
• The headlight delay time is programmable using the
Uconnect System, refer to “Uconnect Settings” in “Un-
derstanding Your Instrument Panel” for further informa-
tion.
Automatic High Beam Headlamp Control — If
Equipped
The Automatic High Beam Headlamp Control system
provides increased forward lighting at night by automat-
ing high beam control through the use of a digital camera
mounted on the windshield. This camera detects vehicle specific light and automatically switches from high beams
to low beams until the approaching vehicle is out of view.
NOTE:
•
The Automatic High Beam Headlamp Control can be
turned on or off using the Uconnect System. Refer to
“Uconnect Settings” in “Understanding Your Instrument
Panel” for further information.
• Broken, muddy, or obstructed headlights and taillights
of vehicles in the field of view will cause headlights to
remain on longer (closer to the vehicle). Also, dirt, film,
and other obstructions on the windshield or camera lens
will cause the system to function improperly.
• To opt out of the Advanced Auto High-Beam Sensitivity
Control (default) and enter Reduced High-Beam Sensi-
tivity Control (not recommended), toggle highbeam
lever 6 full on/off cycles within 10 seconds of ignition
ON. System will return to default setting upon ignition
off.
If the windshield or Automatic High Beam Headlamp
Control mirror is replaced, the mirror must be re-aimed to
ensure proper performance. See your local authorized
dealer.
124 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Page 348 of 539

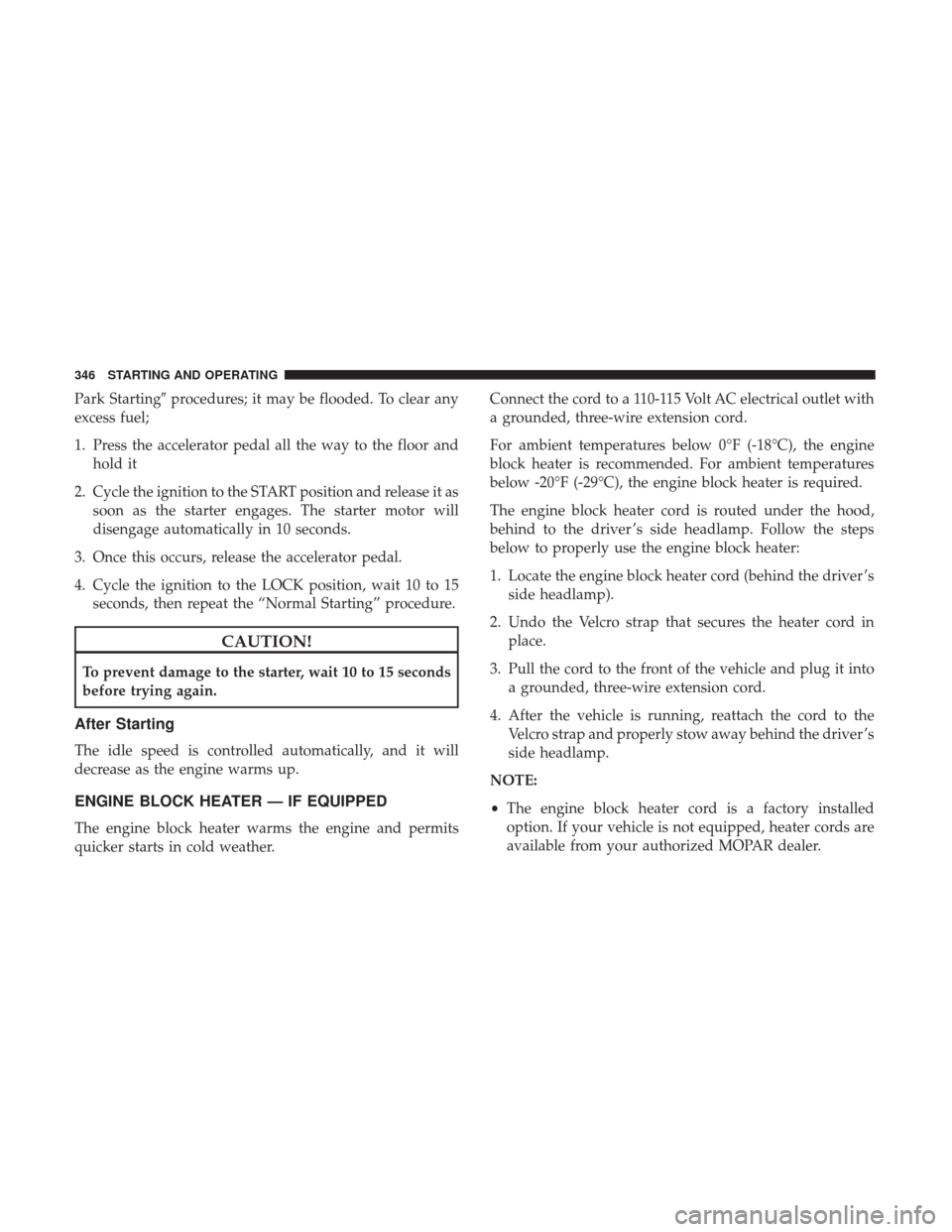

Park Startingprocedures; it may be flooded. To clear any
excess fuel;
1. Press the accelerator pedal all the way to the floor and hold it
2. Cycle the ignition to the START position and release it as soon as the starter engages. The starter motor will
disengage automatically in 10 seconds.
3. Once this occurs, release the accelerator pedal.
4. Cycle the ignition to the LOCK position, wait 10 to 15 seconds, then repeat the “Normal Starting” procedure.
CAUTION!
To prevent damage to the starter, wait 10 to 15 seconds
before trying again.
After Starting
The idle speed is controlled automatically, and it will
decrease as the engine warms up.
ENGINE BLOCK HEATER — IF EQUIPPED
The engine block heater warms the engine and permits
quicker starts in cold weather. Connect the cord to a 110-115 Volt AC electrical outlet with
a grounded, three-wire extension cord.
For ambient temperatures below 0°F (-18°C), the engine
block heater is recommended. For ambient temperatures
below -20°F (-29°C), the engine block heater is required.
The engine block heater cord is routed under the hood,
behind to the driver ’s side headlamp. Follow the steps
below to properly use the engine block heater:
1. Locate the engine block heater cord (behind the driver ’s
side headlamp).
2. Undo the Velcro strap that secures the heater cord in place.
3. Pull the cord to the front of the vehicle and plug it into a grounded, three-wire extension cord.
4. After the vehicle is running, reattach the cord to the Velcro strap and properly stow away behind the driver ’s
side headlamp.
NOTE:
• The engine block heater cord is a factory installed
option. If your vehicle is not equipped, heater cords are
available from your authorized MOPAR dealer.
346 STARTING AND OPERATING
Page 450 of 539

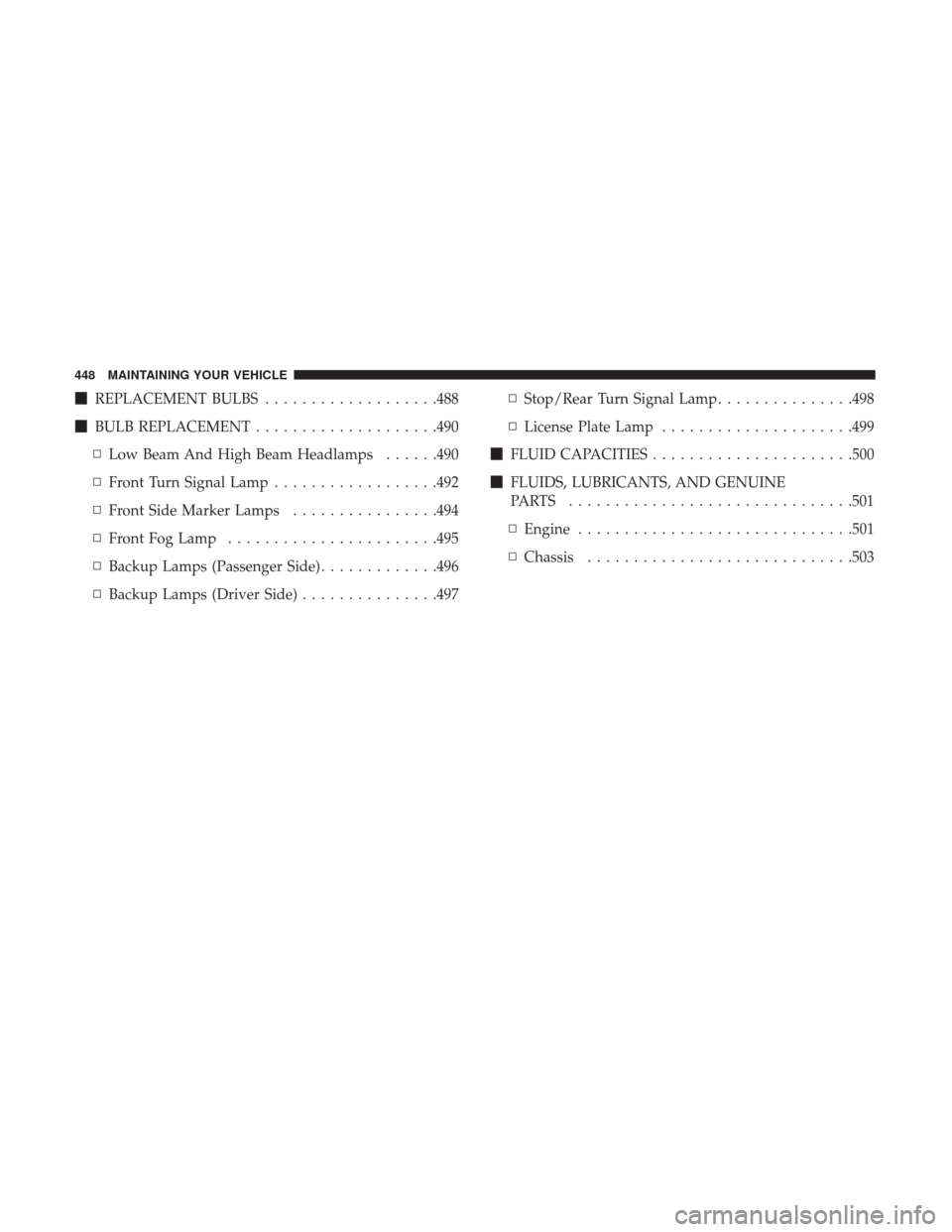

REPLACEMENT BULBS ...................488
BULB REPLACEMENT ....................490
▫ Low Beam And High Beam Headlamps ......490
▫ Front Turn Signal Lamp ..................492
▫ Front Side Marker Lamps ................494
▫ Front Fog Lamp ...................... .495
▫ Backup Lamps (Passenger Side) .............496
▫ Backup Lamps (Driver Side) ...............497 ▫
Stop/Rear Turn Signal Lamp ...............498
▫ License Plate Lamp .....................499
FLUID CAPACITIES ..................... .500
FLUIDS, LUBRICANTS, AND GENUINE
PARTS .............................. .501
▫ Engine ............................. .501
▫ Chassis ............................ .503
448 MAINTAINING YOUR VEHICLE
Page 486 of 539

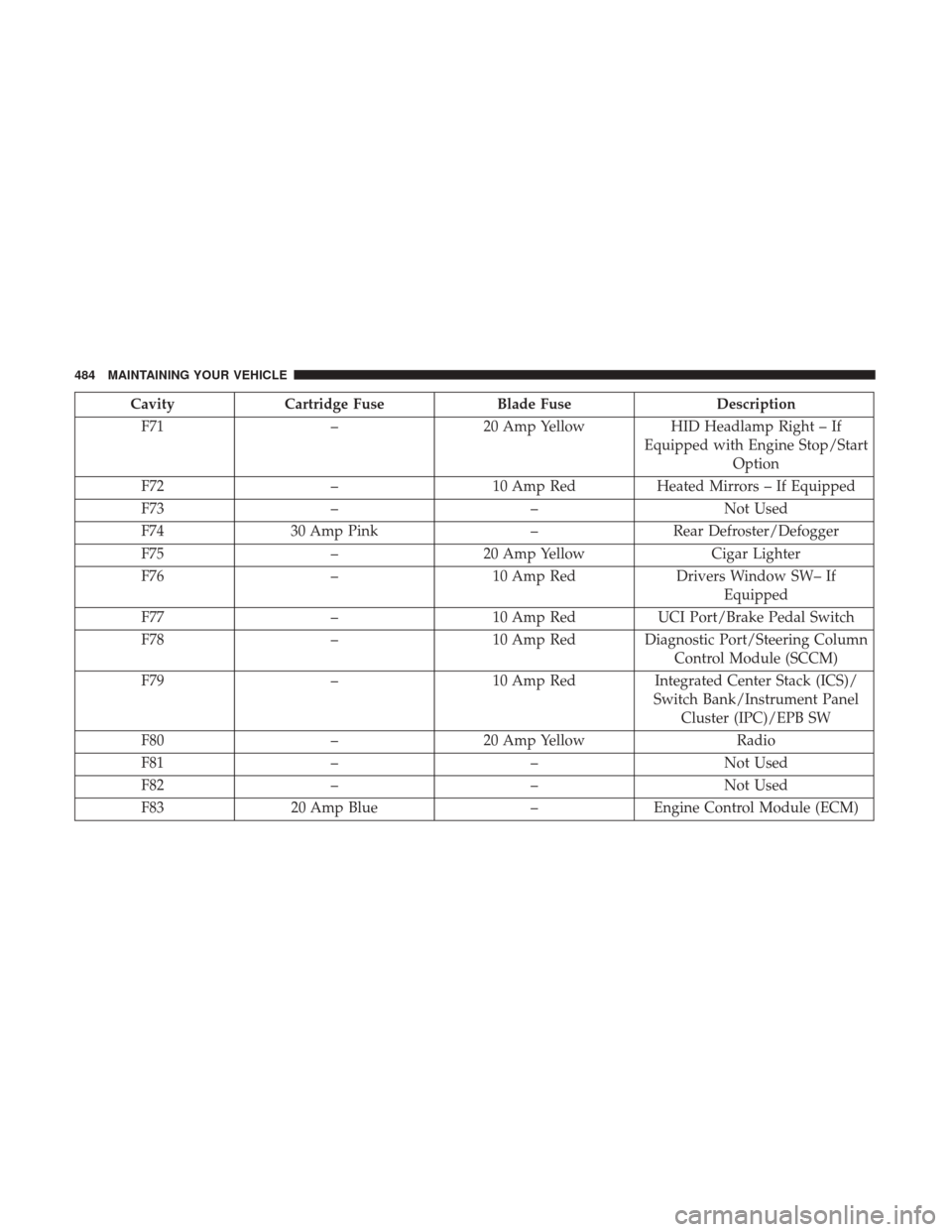

CavityCartridge Fuse Blade Fuse Description
F71 –20 Amp Yellow HID Headlamp Right – If
Equipped with Engine Stop/Start Option
F72 –10 Amp Red Heated Mirrors – If Equipped
F73 – –Not Used
F74 30 Amp Pink –Rear Defroster/Defogger
F75 –20 Amp Yellow Cigar Lighter
F76 –10 Amp Red Drivers Window SW– If
Equipped
F77 –10 Amp Red UCI Port/Brake Pedal Switch
F78 –10 Amp Red Diagnostic Port/Steering Column
Control Module (SCCM)
F79 –10 Amp Red Integrated Center Stack (ICS)/
Switch Bank/Instrument Panel Cluster (IPC)/EPB SW
F80 –20 Amp Yellow Radio
F81 – –Not Used
F82 – –Not Used
F83 20 Amp Blue –Engine Control Module (ECM)
484 MAINTAINING YOUR VEHICLE
Page 487 of 539

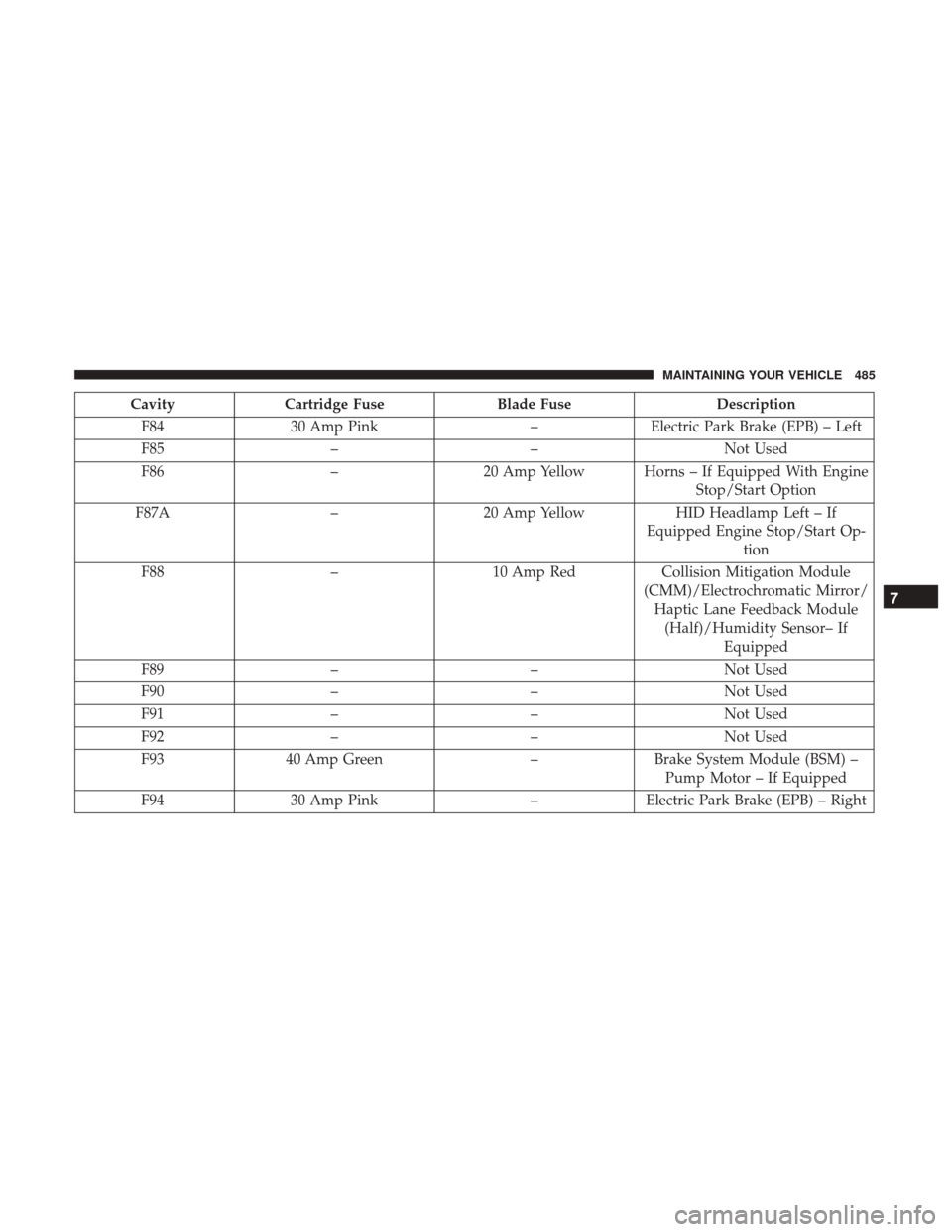

CavityCartridge Fuse Blade Fuse Description
F84 30 Amp Pink –Electric Park Brake (EPB) – Left
F85 – –Not Used
F86 –20 Amp Yellow Horns – If Equipped With Engine
Stop/Start Option
F87A –20 Amp Yellow HID Headlamp Left – If
Equipped Engine Stop/Start Op- tion
F88 –10 Amp Red Collision Mitigation Module
(CMM)/Electrochromatic Mirror/ Haptic Lane Feedback Module (Half)/Humidity Sensor– If Equipped
F89 – –Not Used
F90 – –Not Used
F91 – –Not Used
F92 – –Not Used
F93 40 Amp Green –Brake System Module (BSM) –
Pump Motor – If Equipped
F94 30 Amp Pink –Electric Park Brake (EPB) – Right
7
MAINTAINING YOUR VEHICLE 485
Page 491 of 539

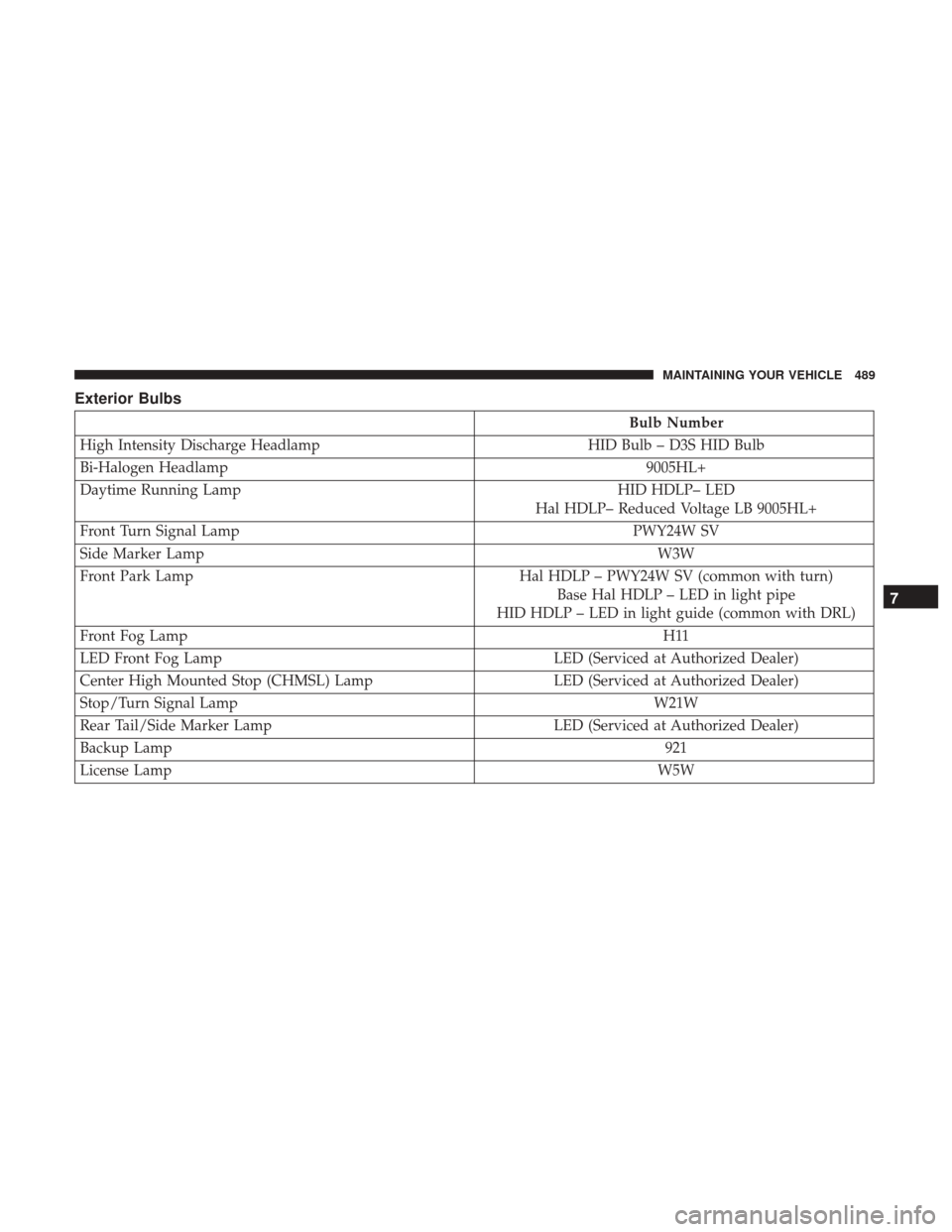

Exterior Bulbs
Bulb Number
High Intensity Discharge Headlamp HID Bulb – D3S HID Bulb
Bi-Halogen Headlamp 9005HL+
Daytime Running Lamp HID HDLP– LED
Hal HDLP– Reduced Voltage LB 9005HL+
Front Turn Signal Lamp PWY24W SV
Side Marker Lamp W3W
Front Park Lamp Hal HDLP – PWY24W SV (common with turn)
Base Hal HDLP – LED in light pipe
HID HDLP – LED in light guide (common with DRL)
Front Fog Lamp H11
LED Front Fog Lamp LED (Serviced at Authorized Dealer)
Center High Mounted Stop (CHMSL) Lamp LED (Serviced at Authorized Dealer)
Stop/Turn Signal Lamp W21W
Rear Tail/Side Marker Lamp LED (Serviced at Authorized Dealer)
Backup Lamp 921
License Lamp W5W
7
MAINTAINING YOUR VEHICLE 489
Page 492 of 539
BULB REPLACEMENT
NOTE:Lens fogging can occur under certain atmospheric
conditions. This will usually clear as atmospheric condi-
tions change to allow the condensation to change back into
a vapor. Turning the lamps on will usually accelerate the
clearing process.
Low Beam And High Beam Headlamps
Bi-Xenon High Intensity Discharge (HID)
Headlamps — If Equipped
The headlamps contain a type of high voltage discharge
light source. High voltage can remain in the circuit even
with the headlamp switch off. Because of this, you should
not attempt to service a HID headlamp light source your-
self. If an HID headlamp light source fails, take your
vehicle to an authorized dealer for service.
NOTE: On vehicles equipped with HID headlamps, when
the headlamps are turned on, there is a blue hue to the
lights. This diminishes and becomes more white after
approximately 10 seconds, as the system charges.
WARNING!
A transient high voltage occurs at the bulb sockets of
HID headlamps when the headlamp switch is turned
ON. It may cause serious electrical shock or electrocu-
tion if not serviced properly. See your authorized
dealer for service.
Bi-Halogen Headlamps
1. Remove the top pushpin on the headlamp access door in the wheel liner to access the headlamp assembly.
Access Door
490 MAINTAINING YOUR VEHICLE
Page 493 of 539
2. Reach behind the headlamp housing to access theheadlamp bulb cap.
3. Firmly grasp the headlamp bulb cap and rotate it counterclockwise to unlock it. 4. Firmly grasp the headlamp bulb socket assembly and
rotate counterclockwise to remove from the housing.
Headlamp Bulb Cap
Headlamp Bulb Socket
7
MAINTAINING YOUR VEHICLE 491
Page 494 of 539
5. Disconnect the bulb from the electrical connector andthen connect the replacement bulb.
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with any oily surface, clean the
bulb with rubbing alcohol.
6. Install the bulb and connector assembly into the head- lamp housing and rotate clockwise to lock it in place. 7. Install the headlamp bulb cap in the headlamp housing
and rotate clockwise to lock it in place.
8. Lock headlamp access door in wheel liner.
Front Turn Signal Lamp
1. Open the hood.
NOTE: Removal of the air cleaner filter housing may be
necessary prior to replacing bulbs in the lamp assembly on
the passenger side of the vehicle.
2. Remove the beauty cover, by removing all push pins and lifting beauty cover.
Headlamp Bulb
Beauty Cover
492 MAINTAINING YOUR VEHICLE
