Page 211 of 539
selector is put into REVERSE. The image will be displayed
on the touchscreen display along with a caution note to
“check entire surroundings” across the top of the screen.
After five seconds this note will disappear. The ParkView
camera is located on the rear of the vehicle above the rear
license plate.
NOTE:The ParkView Rear Back Up Camera has program-
mable modes of operation that may be selected through the
Uconnect System. Refer to “Uconnect Settings” in “Under-
standing Your Instrument Panel” for further information. When the vehicle is shifted out of REVERSE (with camera
delay turned OFF), the rear camera mode is exited and the
navigation or audio screen appears again.
When the vehicle is shifted out of REVERSE (with camera
delay turned ON), the camera image will continue to be
displayed for up to 10 seconds after shifting out of RE-
VERSE unless the vehicle speed exceeds 8 mph (13 km/h),
the vehicle is shifted into PARK or the ignition is switched
to the OFF position.
A touch screen button to disable display of the camera
image is made available when the vehicle is not in RE-
VERSE gear. Display of the camera image after shifting out
of REVERSE can be disabled via a touch screen button
personalization entry in the camera settings menu.
When enabled, active guide lines are overlaid on the image
to illustrate the width of the vehicle and its projected
backup path based on the steering wheel position.
When enabled, fixed guide lines are overlaid on the image
to illustrate the width of the vehicle.
Different colored zones indicate the distance to the rear of
the vehicle.
ParkView Camera Location
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 209

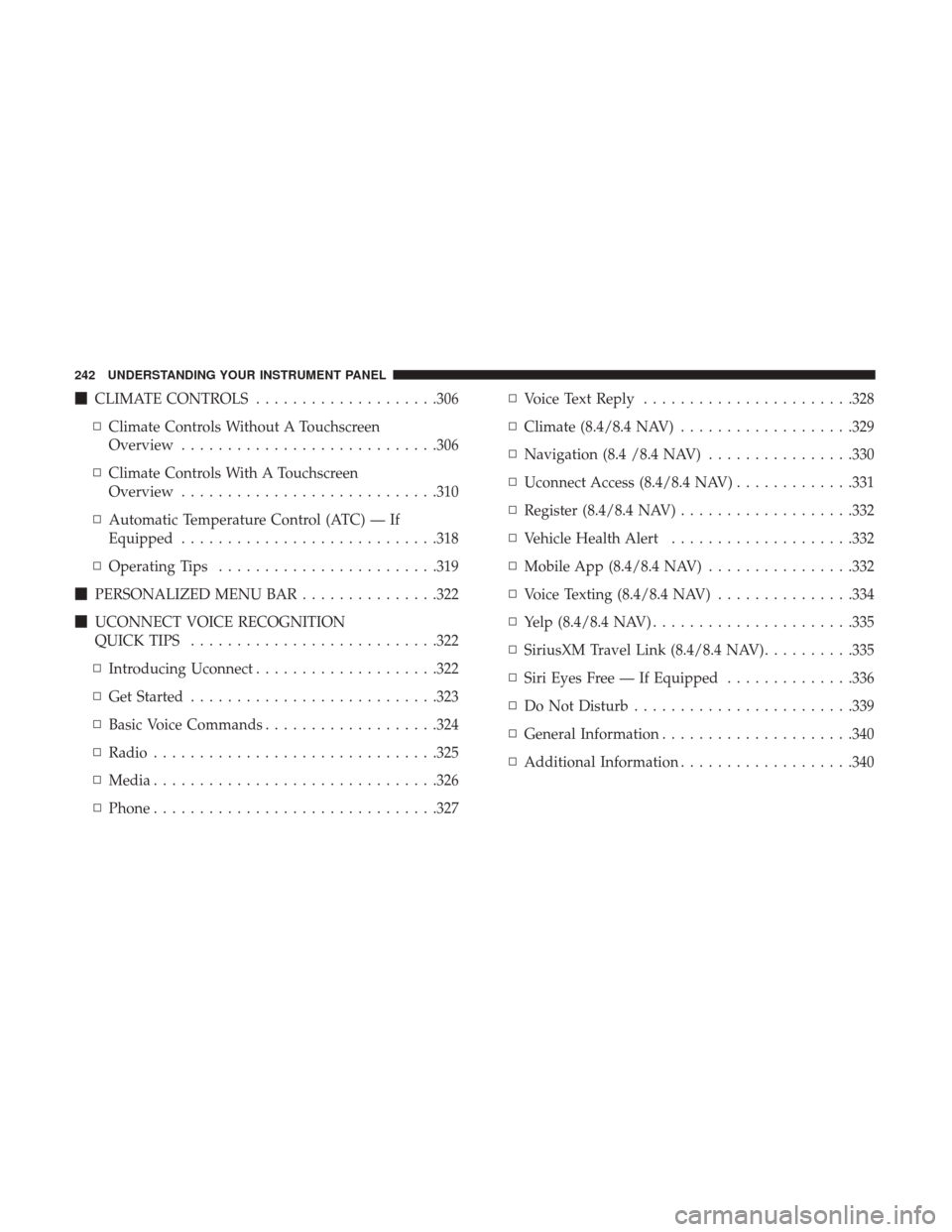

Page 244 of 539
CLIMATE CONTROLS ....................306
▫ Climate Controls Without A Touchscreen
Overview ........................... .306
▫ Climate Controls With A Touchscreen
Overview ........................... .310
▫ Automatic Temperature Control (ATC) — If
Equipped ........................... .318
▫ Operating Tips ....................... .319
PERSONALIZED MENU BAR ...............322
UCONNECT VOICE RECOGNITION
QUICK TIPS .......................... .322
▫ Introducing Uconnect ....................322
▫ Get Started .......................... .323
▫ Basic Voice Commands ...................324
▫ Radio .............................. .325
▫ Media .............................. .326
▫ Phone .............................. .327▫
Voice Text Reply ...................... .328
▫ Climate (8.4/8.4 NAV) ...................329
▫ Navigation (8.4 /8.4 NAV) ................330
▫ Uconnect Access (8.4/8.4 NAV) .............331
▫ Register (8.4/8.4 NAV) ...................332
▫ Vehicle Health Alert ....................332
▫ Mobile App (8.4/8.4 NAV) ................332
▫ Voice Texting (8.4/8.4 NAV) ...............334
▫ Yelp (8.4/8.4 NAV) ..................... .335
▫ SiriusXM Travel Link (8.4/8.4 NAV) ..........335
▫ Siri Eyes Free — If Equipped ..............336
▫ Do Not Disturb ....................... .339
▫ General
Information .....................340
▫ Additional Information ...................340
242 UNDERSTANDING YOUR INSTRUMENT PANEL
Page 289 of 539
Setting NameSelectable Options
Display Brightness With Headlights OFF +-
NOTE:
To make changes to the Display Brightness with Headlights OFF setting, the headlights must be off and the interior
dimmer switch must not be in the partyorparade positions.
Set Language
NOTE:
When the “Set Language” feature is selected, you may select one of multiple languages (English/Français/Español)
for all display nomenclature, including the trip functions and the navigation system (if equipped). Press the “Set Lan-
guage” button on the touchscreen, then press the desired language button on the touchscreen until a check-mark ap-
pears next to the language, showing that setting has been selected. Units US Metric
Touchscreen Beep
Navigation Turn-By-Turn In Cluster — If Equipped
NOTE: When the “Navigation Turn-By-Turn In Cluster” feature is selected, the turn-by-turn directions will appear in
the Instrument Cluster Display as the vehicle approaches a designated turn within a programmed route.
Voice Brief Detailed
4
UNDERSTANDING YOUR INSTRUMENT PANEL 287
Page 326 of 539
Basic Voice Commands
The basic Voice Commands below can be given at any
point while using your Uconnect system.
Push the VR button
. After the beep, say
•Cancel to stop a current voice session
• Help to hear a list of suggested Voice Commands
• Repeat to listen to the system prompts again
Notice the visual cues that inform you of your voice
recognition system’s status. Cues appear on the touch-
screen.
Uconnect Voice Command Buttons
1 — Push To Initiate Or To Answer A Phone Call, Send Or Receive
A Text
2 — For All Radios: Push To Begin Radio Or Media functions. For
8.4/8.4 NAV Only: Push To Begin Navigation, Apps And Climate
Functions.
3 — Push To End Call
Uconnect 5.0
324 UNDERSTANDING YOUR INSTRUMENT PANEL
Page 332 of 539
Navigation (8.4 /8.4 NAV)
The Uconnect navigation feature helps you save time and
become more productive when you know exactly how to
get to where you want to go. (Navigation is optional on the
Uconnect 8.4 system. See your dealer to activate navigation
at any time.)
1. To enter a destination, push the VR button
. After the
beep, say:
• For the 8.4 Uconnect System, say: “Enter state.”
• For the 8.4 NAV Uconnect System, say: “Find address
800 Chrysler Drive Auburn Hills, Michigan.”
2. Then follow the system prompts.
TIP: To start a POI search, push the VR button
. After
the beep, say: “ Find nearestcoffee shop.”
Uconnect 8.4/8.4 NAV Climate
Uconnect 8.4 NAV Navigation
330 UNDERSTANDING YOUR INSTRUMENT PANEL
Page 335 of 539
To link your internet radio accounts:
1. Download the Uconnect Access App to your mobiledevice.
2. Press the Via Mobile icon on the navigation bar at the bottom of the app. 3. Press the app you’d like to connect to your vehicle.
4. Enter your login information for the selected app and
press Link.
5. Next time you’re in your vehicle, enable Bluetooth, pair your phone and select the Via Mobile app you want to
play from the Uconnect touchscreen to stream your
personalized music.
NOTE:
• You can also complete this process on the web. Simply
visit moparownerconnect.com log in and click Set Up
Via Mobile Profile (under Quick Links).
• Once you download the app to your compatible mobile
device, you will also be able to start your vehicle and
lock/unlock its doors from virtually anywhere.
Mobile App
4
UNDERSTANDING YOUR INSTRUMENT PANEL 333
