CHRYSLER 300 2007 1.G Warranty Booklet
Manufacturer: CHRYSLER, Model Year: 2007, Model line: 300, Model: CHRYSLER 300 2007 1.GPages: 130, PDF Size: 0.91 MB
Page 41 of 130
Maintenance Service
Schedule “B”
Odometer Reading
Date
30,000 km
Retailer copy.
Remove and attach to Repair Order
26-92-06-01 3N.
Maintenance Service Schedule “B”
30,000 km
Change engine oil and engine oil filter (or every 3 months, whichever occurs first).
Inspect the air cleaner filter and replace if necessary.*
Rotate tires and check tire pressure.
INSPECT THE FOLLOWING:
Inspect the brake hoses.
Inspect the CV joints and front and rear suspension components.
Check the coolant level, hoses and clamps.
Inspect the exhaust system.
*This maintenance is recommended by the manufacturer, but not required to maintain the emissions warranty.
2007 Chrysler 300C/300

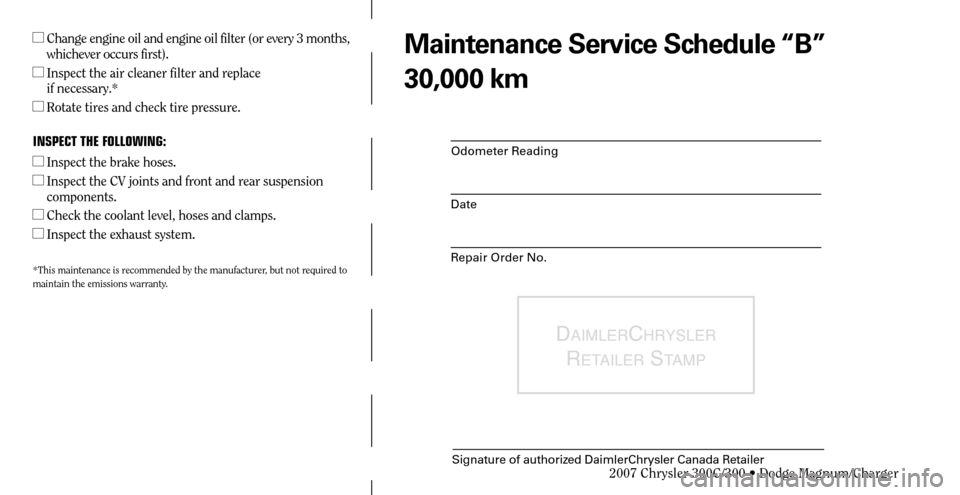

Page 42 of 130
Odometer Reading
Date
Repair Order No.
DAIMLERCHRYSLER
R
ETAILER STAMP
Signature of authorized DaimlerChrysler Canada Retailer
Change engine oil and engine oil filter (or every 3 months,
whichever occurs first).
Inspect the air cleaner filter and replace
if necessary
.*
Rotate tires and check tire pressure.
INSPECT THE FOLLOWING:
Inspect the brake hoses.
Inspect the CV joints and front and rear suspension
components.
Check the coolant level, hoses and clamps.
Inspect the exhaust system.
*This maintenance is recommended by the manufacturer, but not required to
maintain the emissions warranty.
Maintenance Service Schedule “B”
30,000 km
2007 Chrysler 300C/300

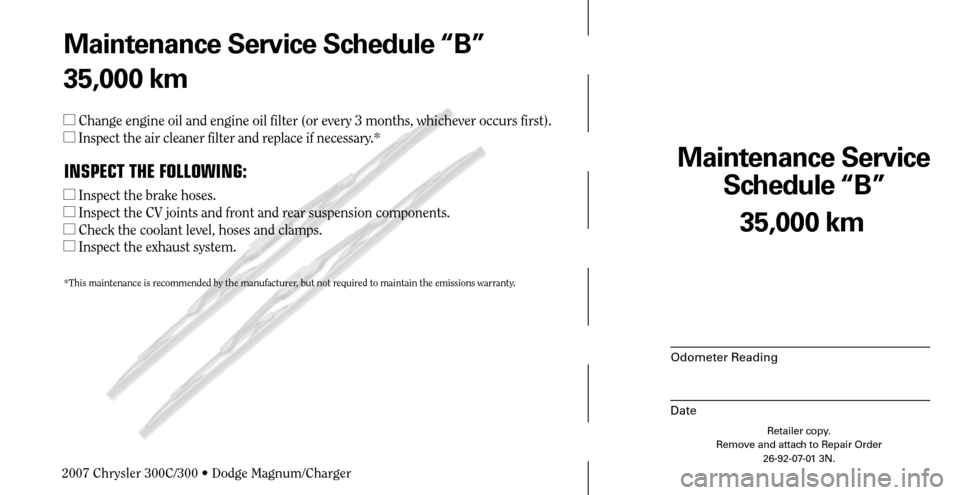

Page 43 of 130
Maintenance Service
Schedule “B”
Odometer Reading
Date
35,000 km
Retailer copy.
Remove and attach to Repair Order
26-92-07-01 3N.
Maintenance Service Schedule “B”
35,000 km
Change engine oil and engine oil filter (or every 3 months, whichever occurs first).
Inspect the air cleaner filter and replace if necessary.*
INSPECT THE FOLLOWING:
Inspect the brake hoses.
Inspect the CV joints and front and rear suspension components.
Check the coolant level, hoses and clamps.
Inspect the exhaust system.
*This maintenance is recommended by the manufacturer, but not required to maintain the emissions warranty.
2007 Chrysler 300C/300
Page 44 of 130
Odometer Reading
Date
Repair Order No.
DAIMLERCHRYSLER
R
ETAILER STAMP
Signature of authorized DaimlerChrysler Canada Retailer
Change engine oil and engine oil filter (or every 3
months, whichever occurs first).
Inspect the air cleaner filter and replace
if necessary.*
INSPECT THE FOLLOWING:
Inspect the brake hoses.
Inspect the CV joints and front and rear suspension
components.
Check the coolant level, hoses and clamps.
Inspect the exhaust system.
*This maintenance is recommended by the manufacturer, but not required to
maintain the emissions warranty.
Maintenance Service Schedule “B”
35,000 km
2007 Chrysler 300C/300

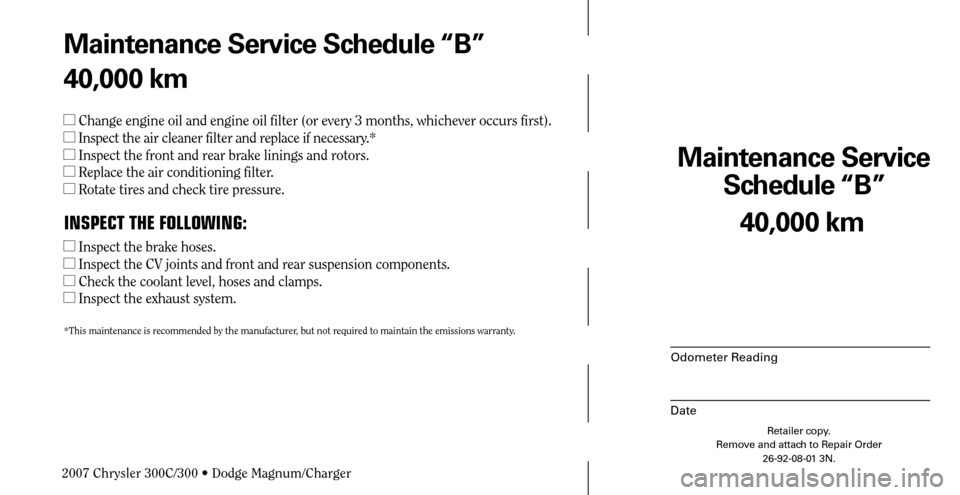

Page 45 of 130
Maintenance Service
Schedule “B”
Odometer Reading
Date
40,000 km
Retailer copy.
Remove and attach to Repair Order
26-92-08-01 3N.
Maintenance Service Schedule “B”
40,000 km
Change engine oil and engine oil filter (or every 3 months, whichever occurs first).
Inspect the air cleaner filter and replace if necessary.*
Inspect the front and rear brake linings and rotors.
Replace the air conditioning filter.
Rotate tires and check tire pressure.
INSPECT THE FOLLOWING:
Inspect the brake hoses.
Inspect the CV joints and front and rear suspension components.
Check the coolant level, hoses and clamps.
Inspect the exhaust system.
*This maintenance is recommended by the manufacturer, but not required to maintain the emissions warranty.
2007 Chrysler 300C/300

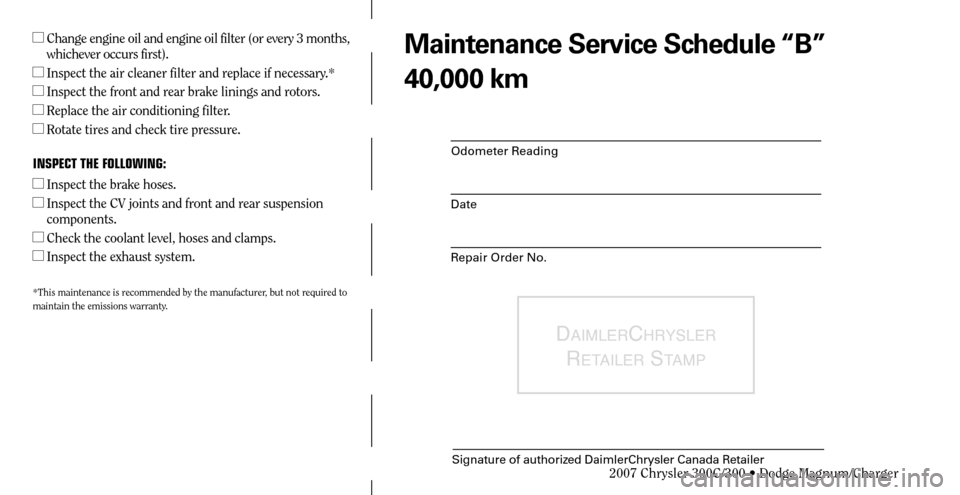

Page 46 of 130
Odometer Reading
Date
Repair Order No.
DAIMLERCHRYSLER
R
ETAILER STAMP
Signature of authorized DaimlerChrysler Canada Retailer
Change engine oil and engine oil filter (or every 3 months,
whichever occurs first).
Inspect the air cleaner filter and replace if necessary.*
Inspect the front and rear brake linings and rotors.
Replace the air conditioning filter.
Rotate tires and check tire pressure.
INSPECT THE FOLLOWING:
Inspect the brake hoses.
Inspect the CV joints and front and rear suspension
components.
Check the coolant level, hoses and clamps.
Inspect the exhaust system.
*This maintenance is recommended by the manufacturer, but not required to
maintain the emissions warranty.
Maintenance Service Schedule “B”
40,000 km
2007 Chrysler 300C/300
Page 47 of 130
Maintenance Service
Schedule “B”
Odometer Reading
Date
45,000 km
Retailer copy.
Remove and attach to Repair Order
26-92-09-01 3N.
Maintenance Service Schedule “B”
45,000 km
Change engine oil and engine oil filter (or every 3 months, whichever occurs first).
Inspect the air cleaner filter and replace if necessary.*
INSPECT THE FOLLOWING:
Inspect the brake hoses.
Inspect the CV joints and front and rear suspension components.
Check the coolant level, hoses and clamps.
Inspect the exhaust system.
*This maintenance is recommended by the manufacturer, but not required to maintain the emissions warranty.
2007 Chrysler 300C/300

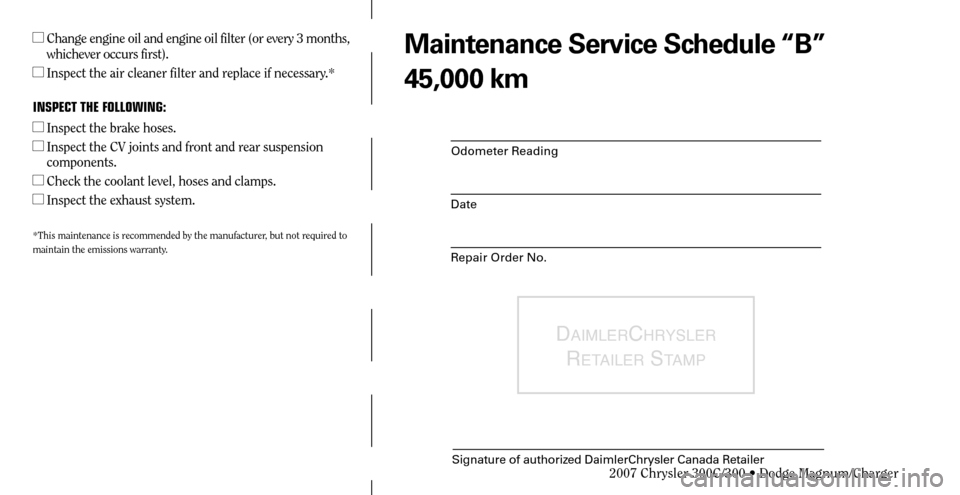

Page 48 of 130
Odometer Reading
Date
Repair Order No.
DAIMLERCHRYSLER
R
ETAILER STAMP
Signature of authorized DaimlerChrysler Canada Retailer
Change engine oil and engine oil filter (or every 3 months,
whichever occurs first).
Inspect the air cleaner filter and replace if necessary.*
INSPECT THE FOLLOWING:
Inspect the brake hoses.
Inspect the CV joints and front and rear suspension
components.
Check the coolant level, hoses and clamps.
Inspect the exhaust system.
*This maintenance is recommended by the manufacturer, but not required to
maintain the emissions warranty.
Maintenance Service Schedule “B”
45,000 km
2007 Chrysler 300C/300
Page 49 of 130
Maintenance Service
Schedule “B”
Odometer Reading
Date
50,000 km
Retailer copy.
Remove and attach to Repair Order
26-92-10-01 3N.
Maintenance Service Schedule “B”
50,000 km
Change engine oil and engine oil filter (or every 3 months, whichever occurs first).
Replace the air cleaner filter.
Replace the spark plugs (5.7L only).
Check the PCV valve and replace if necessary.*
†
Rotate tires and check tire pressure.
INSPECT THE FOLLOWING:
Inspect the brake hoses.
Inspect the CV joints and front and rear suspension components.
Check the coolant level, hoses and clamps.
Inspect the exhaust system.
* This maintenance is recommended by the manufacturer, but not required to maintain
the emissions warranty.
†This maintenance is not required if previously replaced.
2007 Chrysler 300C/300
Page 50 of 130
Odometer Reading
Date
Repair Order No.
DAIMLERCHRYSLER
R
ETAILER STAMP
Signature of authorized DaimlerChrysler Canada Retailer
Change engine oil and engine oil filter (or every 3 months,
whichever occurs first).
Replace the air cleaner filter.
Replace the spark plugs (5.7L
only).
Check the PCV valve and replace if necessary.*†
Rotate tires and check tire pressure.
INSPECT THE FOLLOWING:
Inspect the brake hoses.
Inspect the CV joints and front and rear suspension
components.
Check the coolant level, hoses and clamps.
Inspect the exhaust system.
* This maintenance is recommended by the manufacturer,
but not required to maintain the emissions warranty.
†This maintenance is not required if previously replaced.
Maintenance Service Schedule “B”
50,000 km
2007 Chrysler 300C/300
