CHRYSLER 300 C 2009 1.G Owner's Guide
Manufacturer: CHRYSLER, Model Year: 2009, Model line: 300 C, Model: CHRYSLER 300 C 2009 1.GPages: 537, PDF Size: 8.46 MB
Page 31 of 537
To Turn Off the Engine While in Remote Start
Mode
Press and release the REMOTE START button one time.
NOTE:To avoid inadvertent shut downs, the system
will disable the one time press of the REMOTE START
button for two seconds after receiving a valid Remote
Start request.
DOOR LOCKS
Manual Door Locks
To lock each door, push the door lock plunger on each
door trim panel downward. To unlock each door, pull the
door lock plunger on each door trim panel upward.
If the door lock plunger is down when you shut the door,
the door will lock. Therefore, make sure the key is not
inside the vehicle before closing the door.
Door Lock Plunger
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 29
2
Page 32 of 537

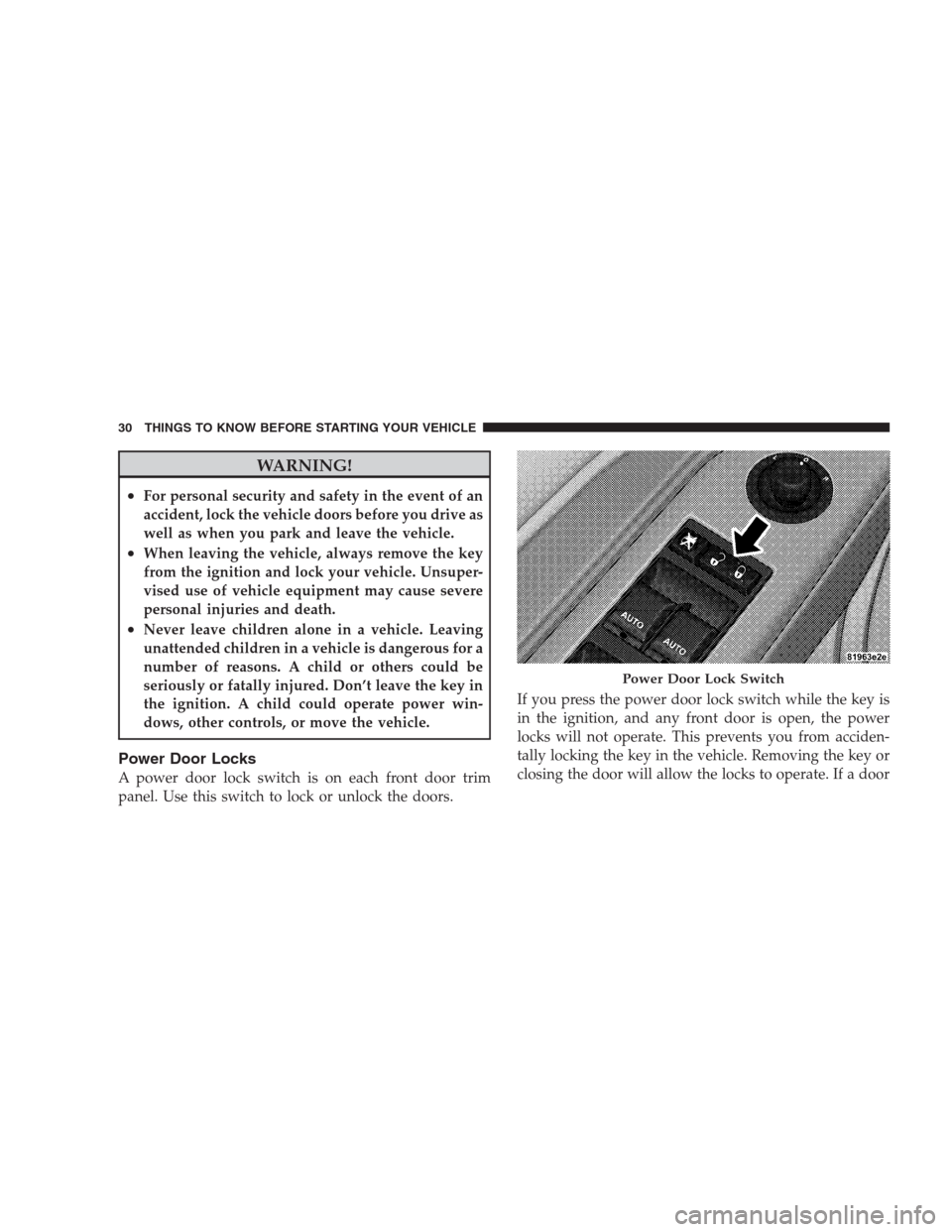

WARNING!
•For personal security and safety in the event of an
accident, lock the vehicle doors before you drive as
well as when you park and leave the vehicle.
•When leaving the vehicle, always remove the key
from the ignition and lock your vehicle. Unsuper-
vised use of vehicle equipment may cause severe
personal injuries and death.
•Never leave children alone in a vehicle. Leaving
unattended children in a vehicle is dangerous for a
number of reasons. A child or others could be
seriously or fatally injured. Don’t leave the key in
the ignition. A child could operate power win-
dows, other controls, or move the vehicle.
Power Door Locks
A power door lock switch is on each front door trim
panel. Use this switch to lock or unlock the doors.If you press the power door lock switch while the key is
in the ignition, and any front door is open, the power
locks will not operate. This prevents you from acciden-
tally locking the key in the vehicle. Removing the key or
closing the door will allow the locks to operate. If a door
Power Door Lock Switch
30 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 33 of 537
is open, the key is in the ignition, and the ignition is in the
LOCK or ACC position, a chime will sound as a reminder
to remove the key.
Automatic Door Locks
The doors will lock automatically on vehicles with power
door locks if all of the following conditions are met:
1. The Automatic Door Locks feature is enabled.
2. The transmission is in gear.
3. All doors are closed.
4. The throttle is pressed.
5. The vehicle speed is above 15 mph (24 km/h), and
6. The doors were not previously locked using the power
door lock switch or Remote Keyless Entry (RKE)
transmitter.
Automatic Door Locks Programming
The Automatic Door Locks feature can be enabled or
disabled as follows:
•For vehicles equipped with the Electronic Vehicle
Information Center (EVIC), refer to “Lock Doors Au-
tomatically at 15 mph (24 km/h)” under “Personal
Settings (Customer-Programmable Features)” under
“Electronic Vehicle Information Center (EVIC) – If
Equipped” in Section 4.
•For vehicles not equipped with the EVIC, perform the
following procedure:
1. Close all doors and place the key in the ignition
switch.
2. Cycle the ignition switch between LOCK and ON and
then back to LOCK four times ending up in the LOCK
position.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 31
2
Page 34 of 537

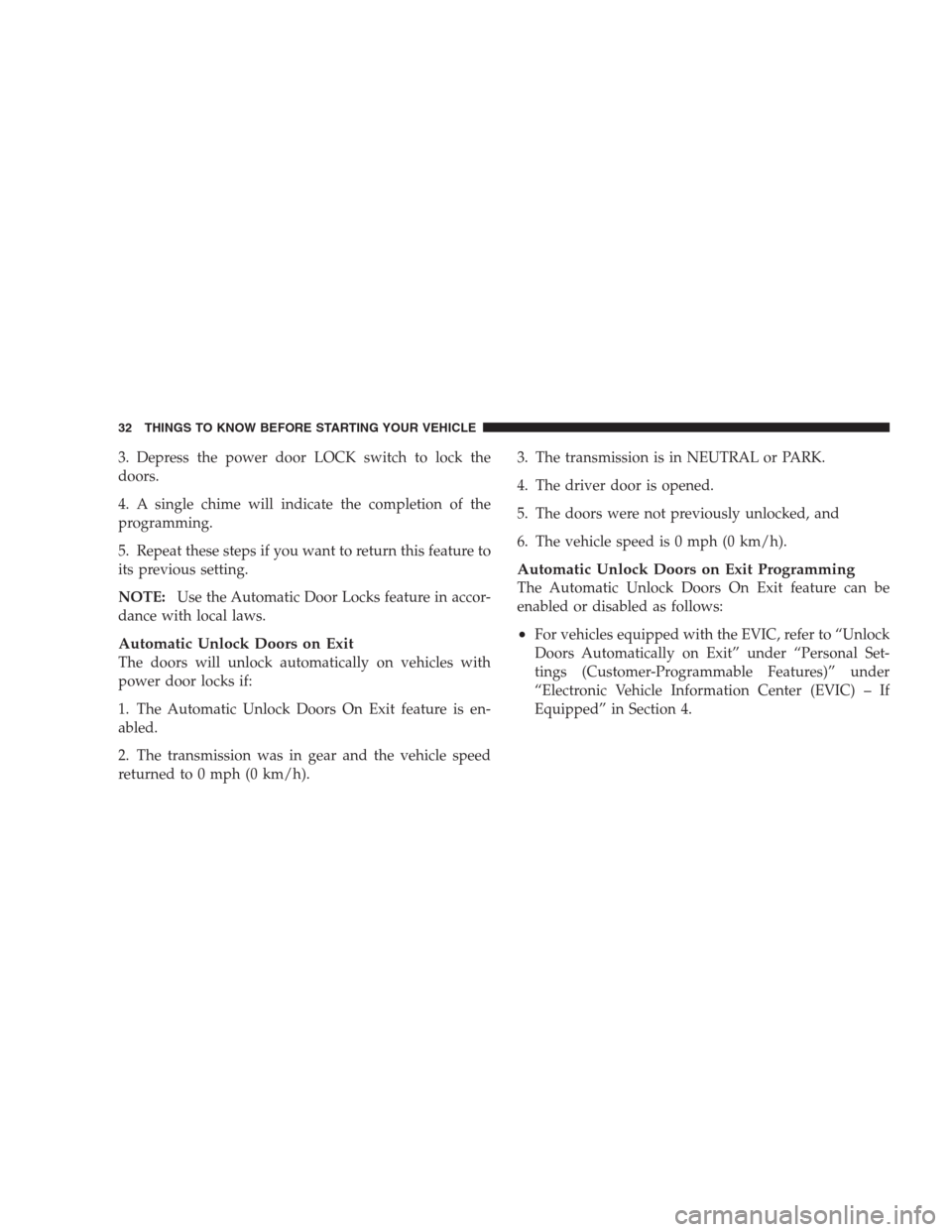

3. Depress the power door LOCK switch to lock the
doors.
4. A single chime will indicate the completion of the
programming.
5. Repeat these steps if you want to return this feature to
its previous setting.
NOTE:Use the Automatic Door Locks feature in accor-
dance with local laws.
Automatic Unlock Doors on Exit
The doors will unlock automatically on vehicles with
power door locks if:
1. The Automatic Unlock Doors On Exit feature is en-
abled.
2. The transmission was in gear and the vehicle speed
returned to 0 mph (0 km/h).3. The transmission is in NEUTRAL or PARK.
4. The driver door is opened.
5. The doors were not previously unlocked, and
6. The vehicle speed is 0 mph (0 km/h).
Automatic Unlock Doors on Exit Programming
The Automatic Unlock Doors On Exit feature can be
enabled or disabled as follows:
•For vehicles equipped with the EVIC, refer to “Unlock
Doors Automatically on Exit” under “Personal Set-
tings (Customer-Programmable Features)” under
“Electronic Vehicle Information Center (EVIC) – If
Equipped” in Section 4.
32 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 35 of 537
•For vehicles not equipped with the EVIC, perform the
following procedure:
1. Close all doors and place the key in the ignition.
2. Cycle the ignition switch between LOCK and ON and
then back to LOCK four times ending up in the LOCK
position.
3. Depress the power door UNLOCK switch to unlock
the doors.
4. A single chime will indicate the completion of the
programming.
5. Repeat these steps if you want to return this feature to
its previous setting.
NOTE:Use the Automatic Unlock Doors On Exit feature
in accordance with local laws.Passive Entry System — If Equipped
The Passive Entry system allows you to unlock the
vehicle’s door(s) without using the Remote Keyless Entry
(RKE) transmitter unlock button, or the unlock button
located on the vehicle’s interior door panel. To use this
feature you must have a valid RKE transmitter within 3 ft
(1.5 m) of the door handle you desire to use.
To Unlock the Vehicle’s Doors
To unlock the vehicle’s door(s), grasp the door handle
and the door(s) will unlock.
NOTE:
•If the vehicle has not been used for 72 hours or it has
been raining for 24 hours, you may have to pull a door
handle to reactivate this feature.
•If the vehicle’s door locks are programmed to “Unlock
Driver’s Door 1st Press”, only the driver’s door will
unlock when the driver’s door handle is grasped. If the
vehicle’s door locks are programmed to “Unlock All
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 33
2
Page 36 of 537
Doors 1st Press”, all doors will unlock if any door
handle is grasped. Refer to “Remote Key Unlock”
under “Personal Settings (Customer-Programmable
Features)” in the “Electronic Vehicle Information Cen-
ter (EVIC)” in Section 4 of this manual.
•If you accidentally lock your RKE transmitter in the
vehicle using the door panel switch, ALL doors will
unlock and the horn will chirp three times after all
doors are closed. If you do this three times, the system
will not chirp and the doors will remain locked on the
third attempt. To re-enable the system the vehicle must
be unlocked with another valid RKE transmitter.
To Enter the Trunk
Press the button on the left side of CHMSL, which is
located on the deck lid.
NOTE:If you inadvertently leave your RKE transmitter
in the trunk and try to close the deck lid, the deck lid willautomatically unlatch unless another RKE transmitter is
outside the vehicle and within 3 ft (1.5 m) of the deck lid.
To Lock the Vehicle’s Doors
The vehicle doors can be locked by using the RKE
transmitter lock button or the lock button located on the
vehicle’s interior door panel.
To Place an RKE Transmitter in the Vehicle for
Safekeeping – Vehicles Equipped with Keyless
Go only
If you want to lock an RKE transmitter in your vehicle by
using the door panel switch perform the following pro-
cedure:
1. With the desired RKE transmitter in the vehicle, press
the door lock switch located on the door panel. All doors
will lock. When all doors are closed you will hear three
chirps of the horn and the doors will unlock. This is the
34 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 37 of 537

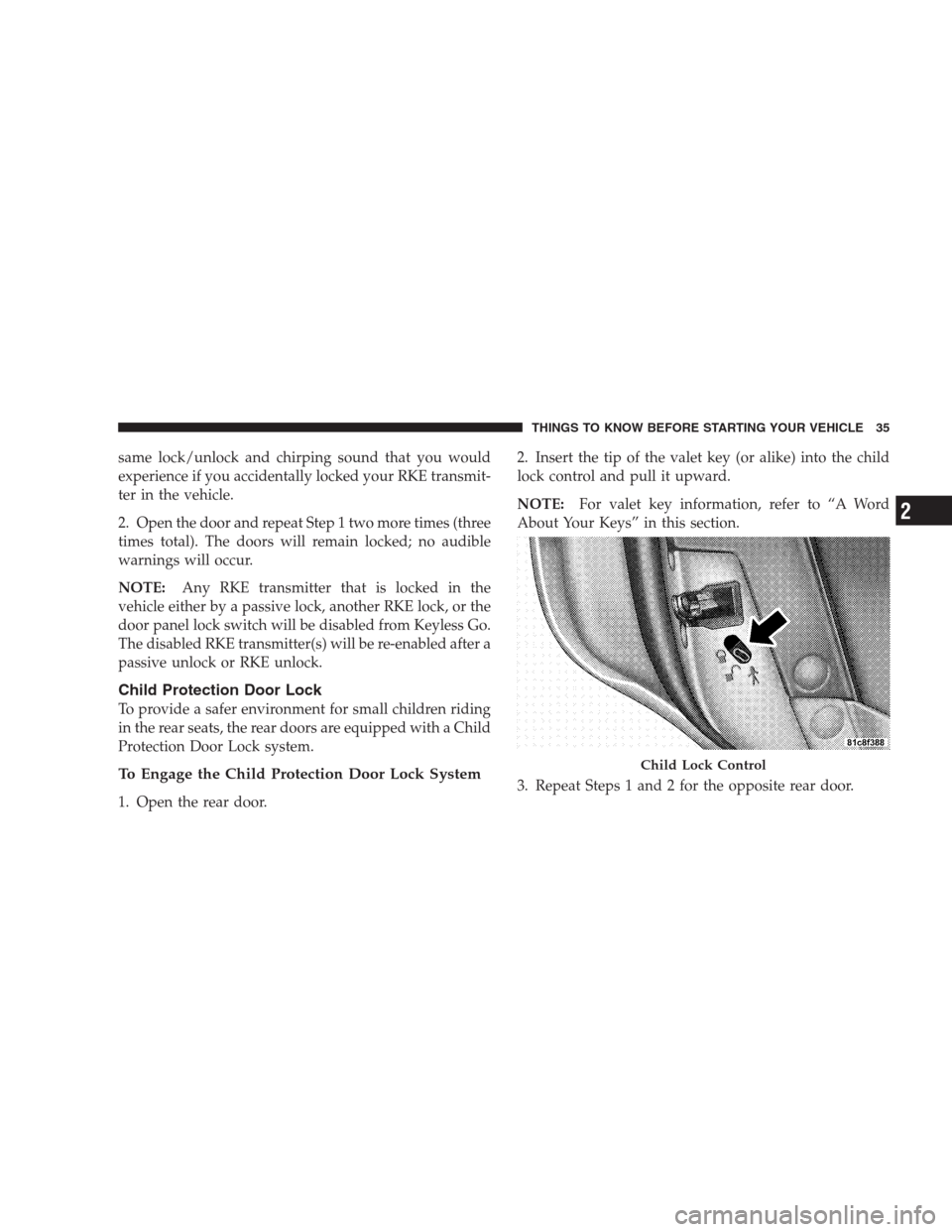

same lock/unlock and chirping sound that you would
experience if you accidentally locked your RKE transmit-
ter in the vehicle.
2. Open the door and repeat Step 1 two more times (three
times total). The doors will remain locked; no audible
warnings will occur.
NOTE:Any RKE transmitter that is locked in the
vehicle either by a passive lock, another RKE lock, or the
door panel lock switch will be disabled from Keyless Go.
The disabled RKE transmitter(s) will be re-enabled after a
passive unlock or RKE unlock.
Child Protection Door Lock
To provide a safer environment for small children riding
in the rear seats, the rear doors are equipped with a Child
Protection Door Lock system.
To Engage the Child Protection Door Lock System
1. Open the rear door.2. Insert the tip of the valet key (or alike) into the child
lock control and pull it upward.
NOTE:For valet key information, refer to “A Word
About Your Keys” in this section.
3. Repeat Steps 1 and 2 for the opposite rear door.
Child Lock Control
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 35
2
Page 38 of 537

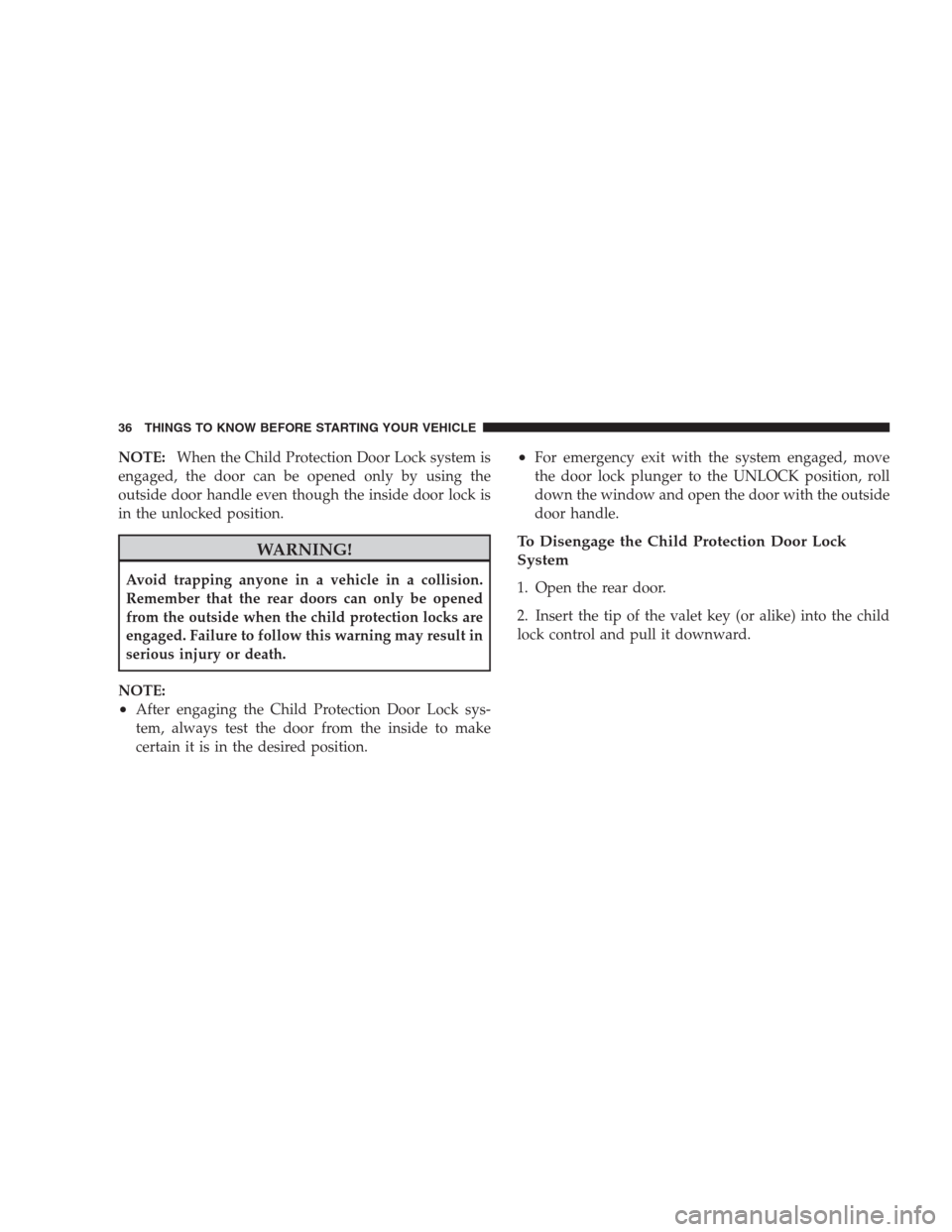

NOTE:When the Child Protection Door Lock system is
engaged, the door can be opened only by using the
outside door handle even though the inside door lock is
in the unlocked position.
WARNING!
Avoid trapping anyone in a vehicle in a collision.
Remember that the rear doors can only be opened
from the outside when the child protection locks are
engaged. Failure to follow this warning may result in
serious injury or death.
NOTE:
•After engaging the Child Protection Door Lock sys-
tem, always test the door from the inside to make
certain it is in the desired position.
•For emergency exit with the system engaged, move
the door lock plunger to the UNLOCK position, roll
down the window and open the door with the outside
door handle.
To Disengage the Child Protection Door Lock
System
1. Open the rear door.
2. Insert the tip of the valet key (or alike) into the child
lock control and pull it downward.
36 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 39 of 537

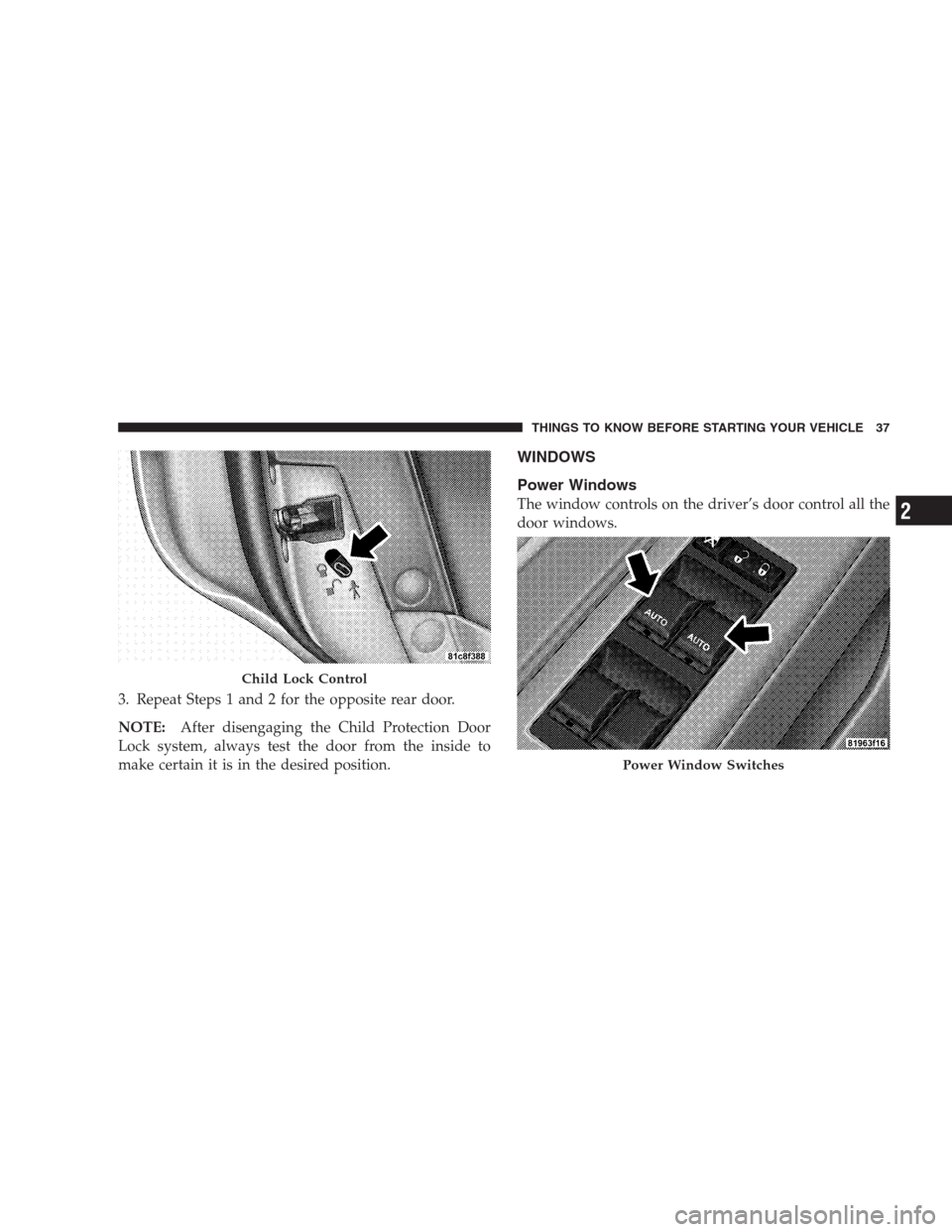

3. Repeat Steps 1 and 2 for the opposite rear door.
NOTE:After disengaging the Child Protection Door
Lock system, always test the door from the inside to
make certain it is in the desired position.
WINDOWS
Power Windows
The window controls on the driver’s door control all the
door windows.
Child Lock Control
Power Window Switches
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 37
2
Page 40 of 537
There are single window controls on each passenger door
trim panel, which operate the passenger door windows.
The window controls will operate only when the ignition
switch is in the ON or ACC position.
WARNING!
Never leave children in a vehicle with the key in the
ignition switch. Occupants, particularly unattended
children, can become entrapped by the windows
while operating the power window switches. Such
entrapment may result in serious injury or death.
AUTO-Down Feature
The driver door power window switch and some model
passenger door power window switches have an AUTO-
down feature. Press the window switch to the second
detent, release, and the window will go down automati-
cally.To open the window part way, press the window switch
to the first detent and release it when you want the
window to stop.
To stop the window from going all the way down during
the AUTO-down operation, pull up on the switch briefly.
For vehicles not equipped with the Electronic Vehicle
Information Center (EVIC), the power window switches
will remain active for 10 minutes after the ignition switch
is turned to the LOCK position. Opening either front
door will cancel this feature.
For vehicles equipped with the EVIC, the power window
switches will remain active for up to 60 minutes after the
ignition switch is turned to the LOCK position. Opening
either front door will cancel this feature. The time is
programmable. Refer to “Delay Power Off to Accessories
Until Exit,” under “Personal Settings (Customer-
Programmable Features),” under “Electronic Vehicle In-
formation Center (EVIC) – If Equipped” in Section 4.
38 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
