Page 217 of 465
System Warnings (Customer Information
Features)
Press and release the MENU button until “SYSTEM
WARNINGS” displays in the EVIC. Then, press the
SCROLL button to display anyone of the following
choices.
•Oil Temperature
Shows the actual oil temperature.
•Oil Pressure
Shows the actual oil pressure.
•Tire Pressure
Shows the actual tire pressure for each tire (EXCLUDING
THE SPARE TIRE).
Personal Settings (Customer-Programmable
Features)
Personal Settings allows the driver to set and recall
features when the transmission is in PARK. Press and release the MENU button until Personal Set-
tings displays in the EVIC.
Use the SCROLL button to display one of the following
choices:
“Language”
When in this display, you may select one of five lan-
guages for all display nomenclature, including the trip
functions and the navigation system (if equipped). Press
the FUNCTION SELECT button while in this display to
select English, Espanol, Deutsch, Italiano, or Francais.
Then, as you continue, the information will display in the
selected language.
NOTE:
The EVIC will not change the Uconnect™ lan-
guage selection. Refer to the Uconnect™ User Manual
located on the DVD for further details.
216 UNDERSTANDING YOUR INSTRUMENT PANEL

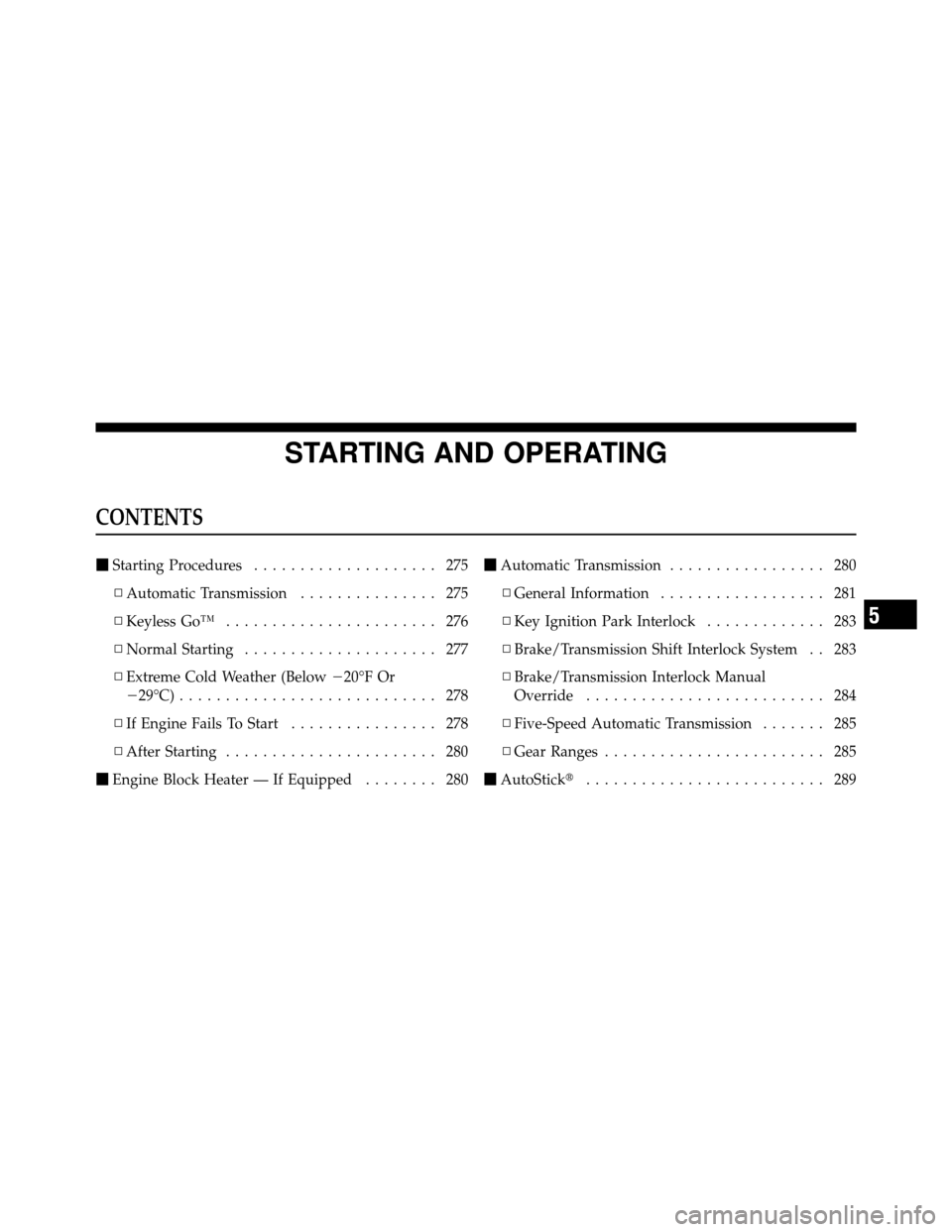

Page 272 of 465
STARTING AND OPERATING
CONTENTS
Starting Procedures .................... 275
▫ Automatic Transmission ............... 275
▫ Keyless Go™ ....................... 276
▫ Normal Starting ..................... 277
▫ Extreme Cold Weather (Below 20°F Or
29°C) ............................ 278
▫ If Engine Fails To Start ................ 278
▫ After Starting ....................... 280
Engine Block Heater — If Equipped ........ 280
Automatic Transmission ................. 280
▫ General Information .................. 281
▫ Key Ignition Park Interlock ............. 283
▫ Brake/Transmission Shift Interlock System . . 283
▫ Brake/Transmission Interlock Manual
Override .......................... 284
▫ Five-Speed Automatic Transmission ....... 285
▫ Gear Ranges ........................ 285
AutoStick .......................... 289
5

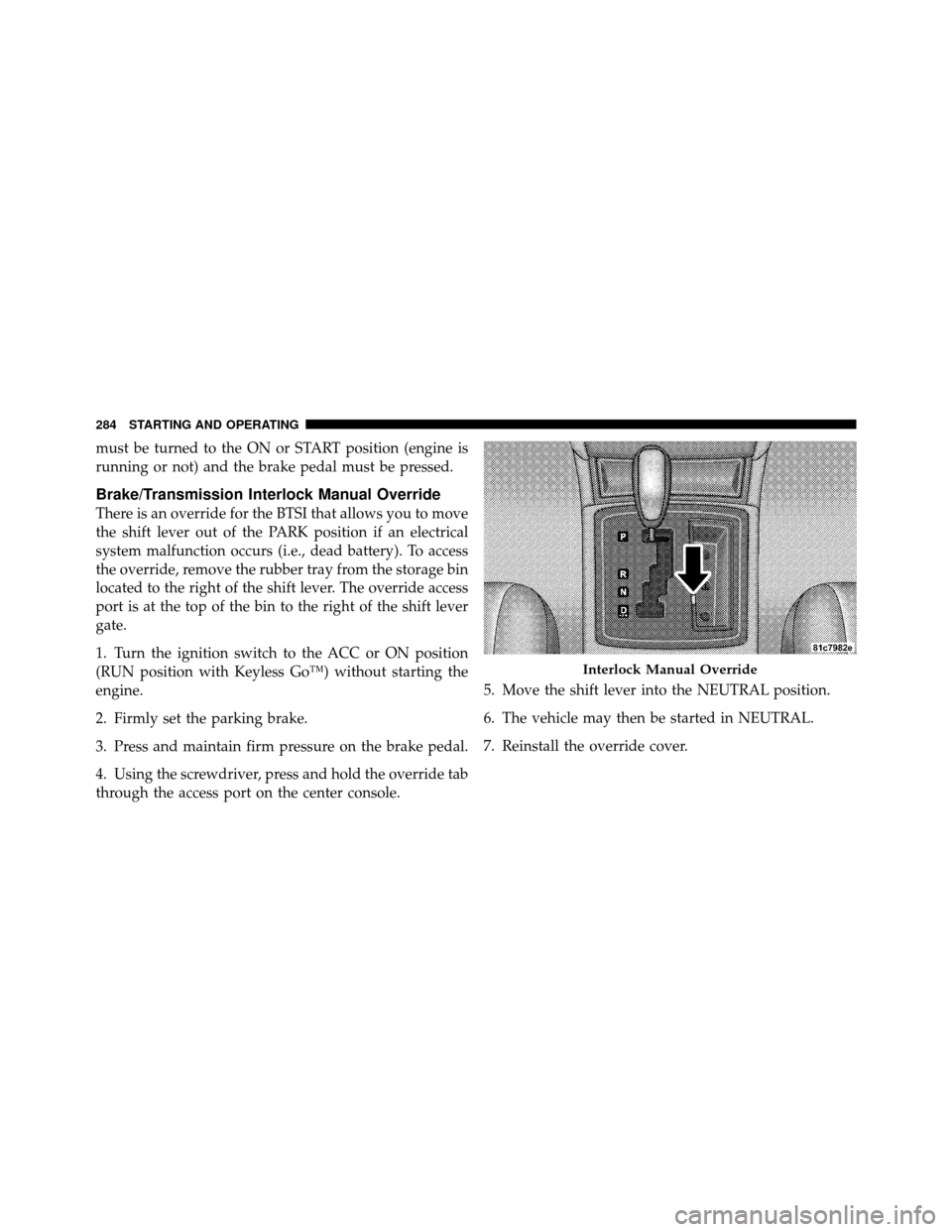

Page 285 of 465
must be turned to the ON or START position (engine is
running or not) and the brake pedal must be pressed.
Brake/Transmission Interlock Manual Override
There is an override for the BTSI that allows you to move
the shift lever out of the PARK position if an electrical
system malfunction occurs (i.e., dead battery). To access
the override, remove the rubber tray from the storage bin
located to the right of the shift lever. The override access
port is at the top of the bin to the right of the shift lever
gate.
1. Turn the ignition switch to the ACC or ON position
(RUN position with Keyless Go™) without starting the
engine.
2. Firmly set the parking brake.
3. Press and maintain firm pressure on the brake pedal.
4. Using the screwdriver, press and hold the override tab
through the access port on the center console.5. Move the shift lever into the NEUTRAL position.
6. The vehicle may then be started in NEUTRAL.
7. Reinstall the override cover.
Interlock Manual Override
284 STARTING AND OPERATING

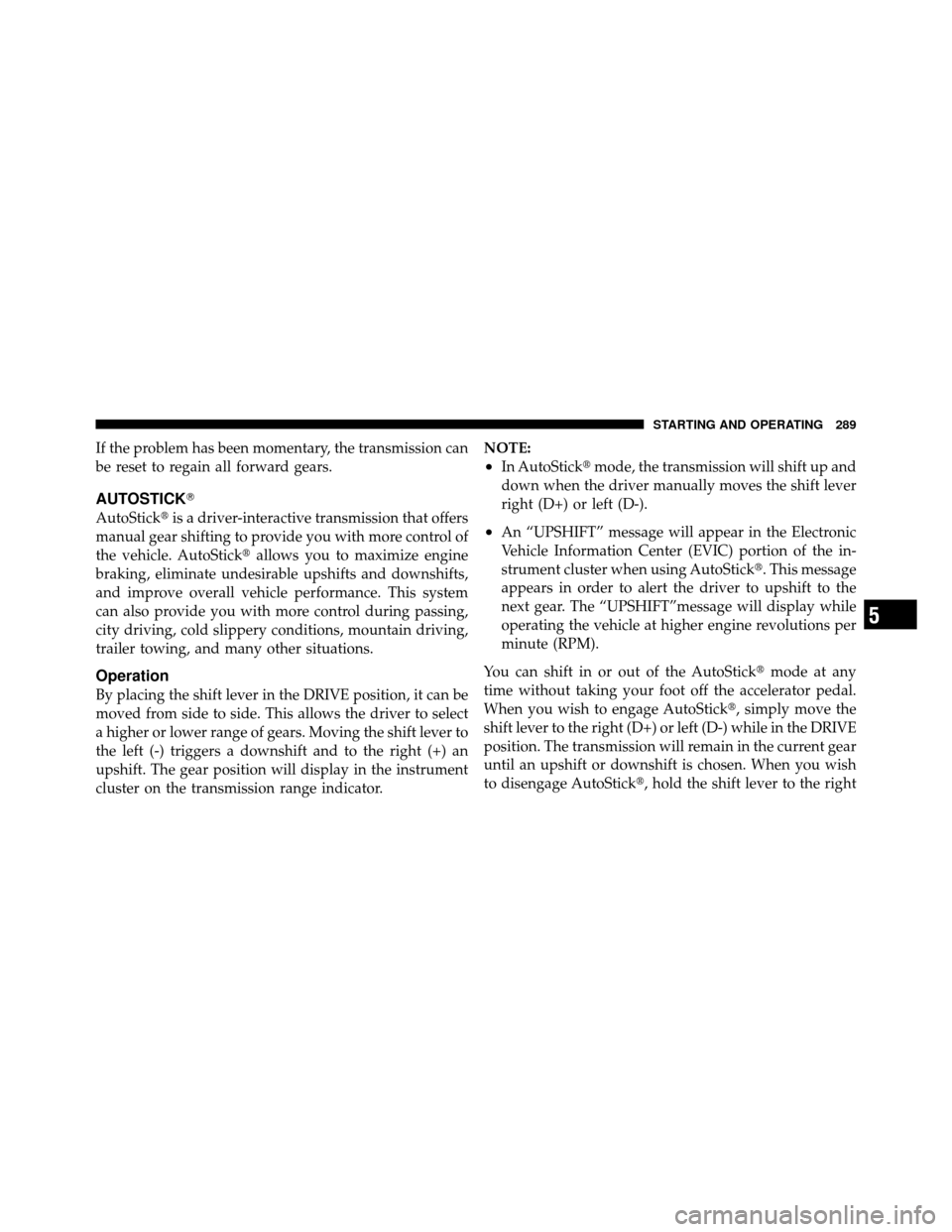

Page 290 of 465
If the problem has been momentary, the transmission can
be reset to regain all forward gears.
AUTOSTICK
AutoStickis a driver-interactive transmission that offers
manual gear shifting to provide you with more control of
the vehicle. AutoStick allows you to maximize engine
braking, eliminate undesirable upshifts and downshifts,
and improve overall vehicle performance. This system
can also provide you with more control during passing,
city driving, cold slippery conditions, mountain driving,
trailer towing, and many other situations.
Operation
By placing the shift lever in the DRIVE position, it can be
moved from side to side. This allows the driver to select
a higher or lower range of gears. Moving the shift lever to
the left (-) triggers a downshift and to the right (+) an
upshift. The gear position will display in the instrument
cluster on the transmission range indicator. NOTE:
•In AutoStick
mode, the transmission will shift up and
down when the driver manually moves the shift lever
right (D+) or left (D-).
•An “UPSHIFT” message will appear in the Electronic
Vehicle Information Center (EVIC) portion of the in-
strument cluster when using AutoStick. This message
appears in order to alert the driver to upshift to the
next gear. The “UPSHIFT”message will display while
operating the vehicle at higher engine revolutions per
minute (RPM).
You can shift in or out of the AutoStick mode at any
time without taking your foot off the accelerator pedal.
When you wish to engage AutoStick, simply move the
shift lever to the right (D+) or left (D-) while in the DRIVE
position. The transmission will remain in the current gear
until an upshift or downshift is chosen. When you wish
to disengage AutoStick, hold the shift lever to the right
5
STARTING AND OPERATING 289

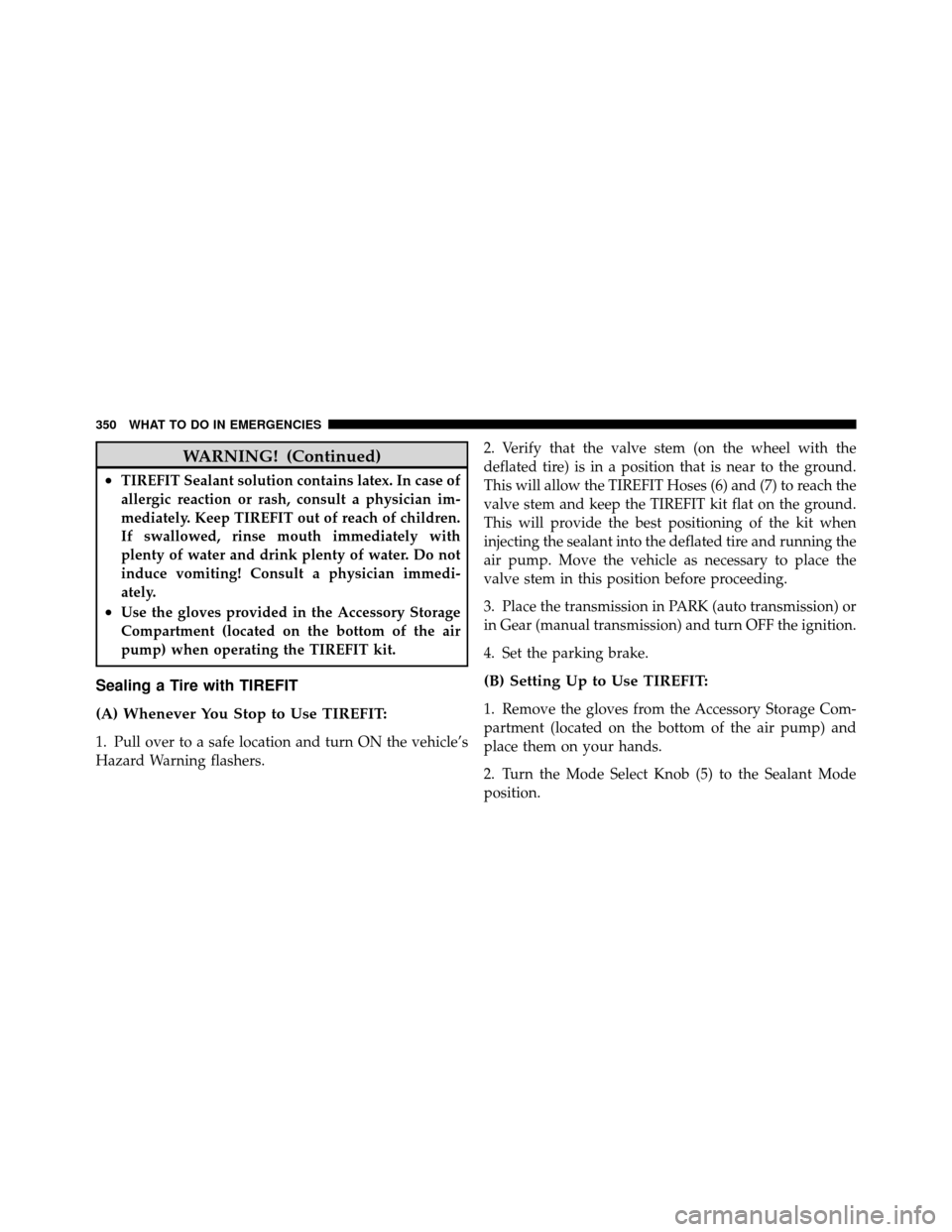

Page 351 of 465
WARNING! (Continued)
•TIREFIT Sealant solution contains latex. In case of
allergic reaction or rash, consult a physician im-
mediately. Keep TIREFIT out of reach of children.
If swallowed, rinse mouth immediately with
plenty of water and drink plenty of water. Do not
induce vomiting! Consult a physician immedi-
ately.
•Use the gloves provided in the Accessory Storage
Compartment (located on the bottom of the air
pump) when operating the TIREFIT kit.
Sealing a Tire with TIREFIT
(A) Whenever You Stop to Use TIREFIT:
1. Pull over to a safe location and turn ON the vehicle’s
Hazard Warning flashers.2. Verify that the valve stem (on the wheel with the
deflated tire) is in a position that is near to the ground.
This will allow the TIREFIT Hoses (6) and (7) to reach the
valve stem and keep the TIREFIT kit flat on the ground.
This will provide the best positioning of the kit when
injecting the sealant into the deflated tire and running the
air pump. Move the vehicle as necessary to place the
valve stem in this position before proceeding.
3. Place the transmission in PARK (auto transmission) or
in Gear (manual transmission) and turn OFF the ignition.
4. Set the parking brake.
(B) Setting Up to Use TIREFIT:
1. Remove the gloves from the Accessory Storage Com-
partment (located on the bottom of the air pump) and
place them on your hands.
2. Turn the Mode Select Knob (5) to the Sealant Mode
position.
350 WHAT TO DO IN EMERGENCIES

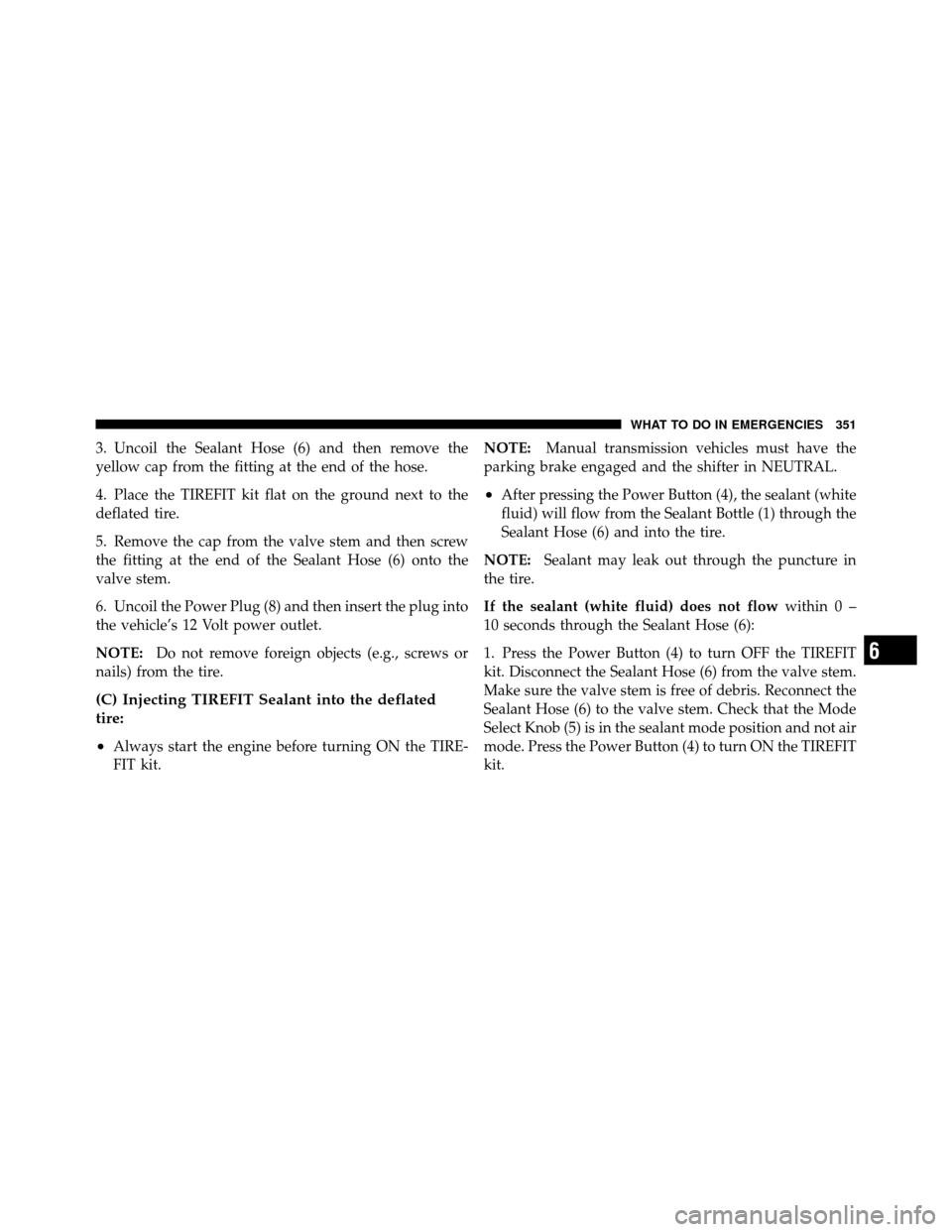

Page 352 of 465
3. Uncoil the Sealant Hose (6) and then remove the
yellow cap from the fitting at the end of the hose.
4. Place the TIREFIT kit flat on the ground next to the
deflated tire.
5. Remove the cap from the valve stem and then screw
the fitting at the end of the Sealant Hose (6) onto the
valve stem.
6. Uncoil the Power Plug (8) and then insert the plug into
the vehicle’s 12 Volt power outlet.
NOTE:Do not remove foreign objects (e.g., screws or
nails) from the tire.
(C) Injecting TIREFIT Sealant into the deflated
tire:
•
Always start the engine before turning ON the TIRE-
FIT kit. NOTE:
Manual transmission vehicles must have the
parking brake engaged and the shifter in NEUTRAL.
•After pressing the Power Button (4), the sealant (white
fluid) will flow from the Sealant Bottle (1) through the
Sealant Hose (6) and into the tire.
NOTE: Sealant may leak out through the puncture in
the tire.
If the sealant (white fluid) does not flow within 0 –
10 seconds through the Sealant Hose (6):
1. Press the Power Button (4) to turn OFF the TIREFIT
kit. Disconnect the Sealant Hose (6) from the valve stem.
Make sure the valve stem is free of debris. Reconnect the
Sealant Hose (6) to the valve stem. Check that the Mode
Select Knob (5) is in the sealant mode position and not air
mode. Press the Power Button (4) to turn ON the TIREFIT
kit.
6
WHAT TO DO IN EMERGENCIES 351

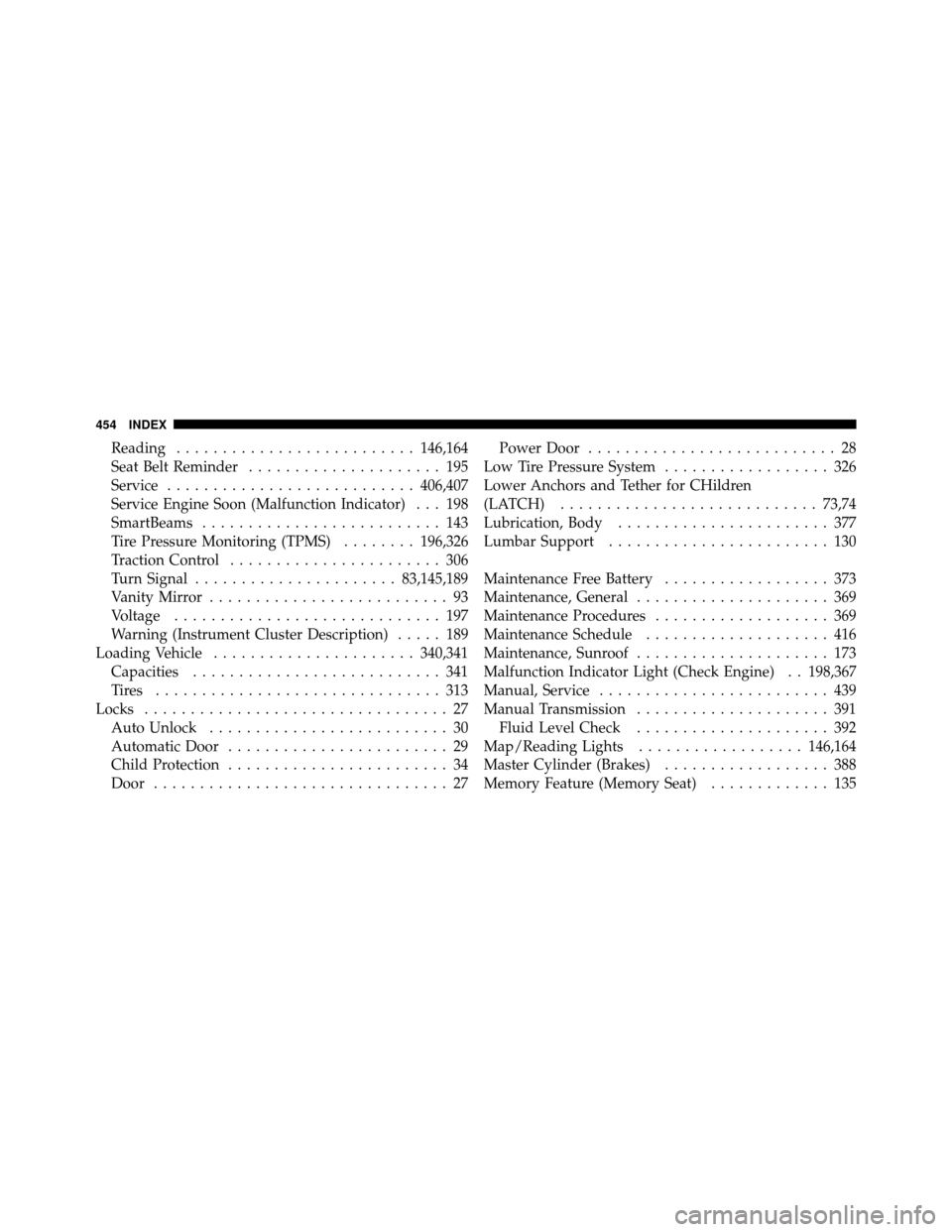

Page 455 of 465
Reading.......................... 146,164
Seat Belt Reminder ..................... 195
Service ........................... 406,407
Service Engine Soon (Malfunction Indicator) . . . 198
SmartBeams .......................... 143
Tire Pressure Monitoring (TPMS) ........196,326
Traction Control ....................... 306
Turn Signal ...................... 83,145,189
Vanity Mirror .......................... 93
Voltage ............................. 197
Warning (Instrument Cluster Description) ..... 189
Loading Vehicle ...................... 340,341
Capacities ........................... 341
Tires ............................... 313
Locks ................................. 27
Auto Unlock .......................... 30
Automatic Door ........................ 29
Child Protection ........................ 34
Door ................................ 27 Power Door
........................... 28
Low Tire Pressure System .................. 326
Lower Anchors and Tether for CHildren
(LATCH) ............................ 73,74
Lubrication, Body ....................... 377
Lumbar Support ........................ 130
Maintenance Free Battery .................. 373
Maintenance, General ..................... 369
Maintenance Procedures ................... 369
Maintenance Schedule .................... 416
Maintenance, Sunroof ..................... 173
Malfunction Indicator Light (Check Engine) . . 198,367
Manual, Service ......................... 439
Manual Transmission ..................... 391
Fluid Level Check ..................... 392
Map/Reading Lights .................. 146,164
Master Cylinder (Brakes) .................. 388
Memory Feature (Memory Seat) ............. 135
454 INDEX

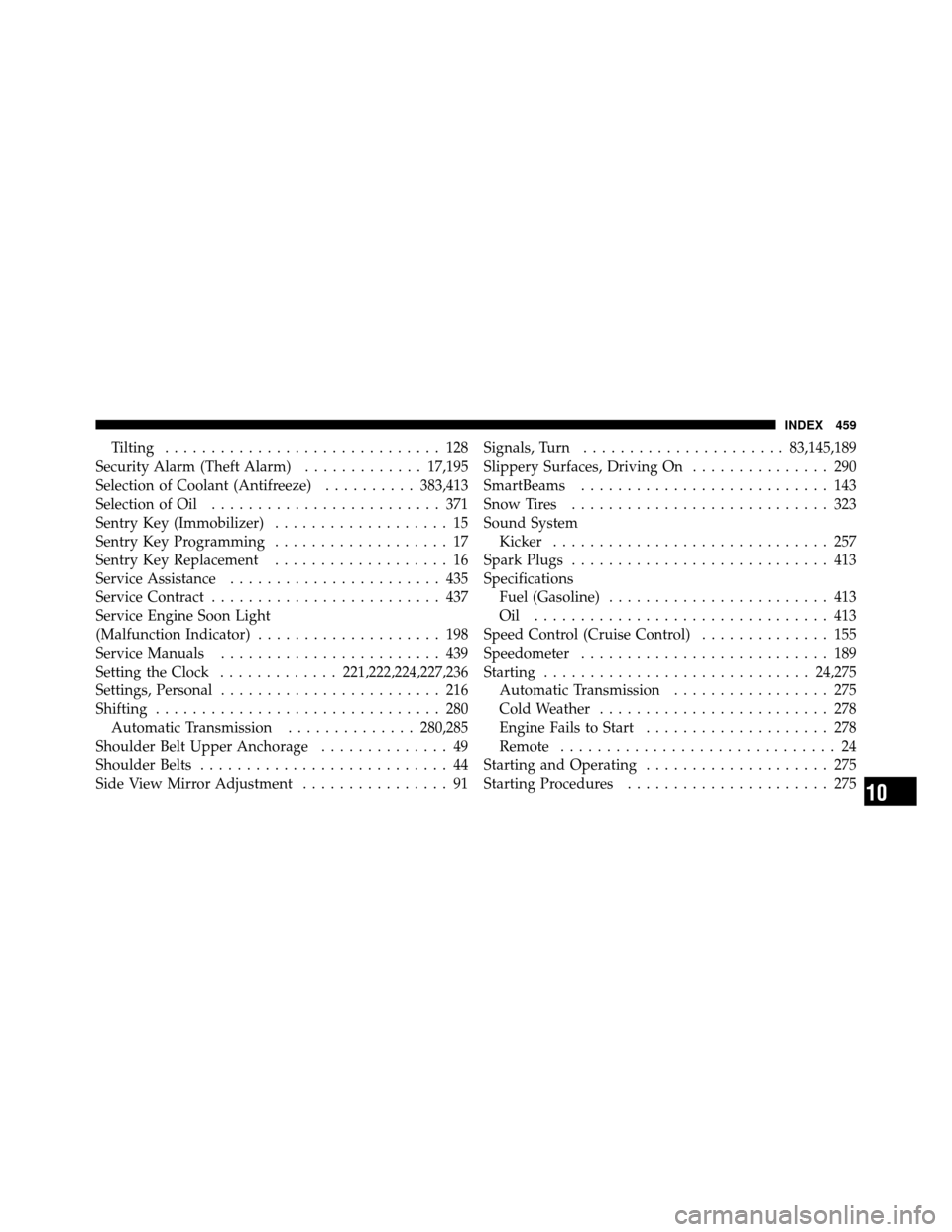

Page 460 of 465
Tilting.............................. 128
Security Alarm (Theft Alarm) .............17,195
Selection of Coolant (Antifreeze) ..........383,413
Selection of Oil ......................... 371
Sentry Key (Immobilizer) ................... 15
Sentry Key Programming ................... 17
Sentry Key Replacement ................... 16
Service Assistance ....................... 435
Service Contract ......................... 437
Service Engine Soon Light
(Malfunction Indicator) .................... 198
Service Manuals ........................ 439
Setting the Clock .............221,222,224,227,236
Settings, Personal ........................ 216
Shifting ............................... 280
Automatic Transmission ..............280,285
Shoulder Belt Upper Anchorage .............. 49
Shoulder Belts ........................... 44
Side View Mirror Adjustment ................ 91Signals, Turn
...................... 83,145,189
Slippery Surfaces, Driving On ............... 290
SmartBeams ........................... 143
Snow Tires ............................ 323
Sound System Kicker .............................. 257
Spark Plugs ............................ 413
Specifications Fuel (Gasoline) ........................ 413
Oil ................................ 413
Speed Control (Cruise Control) .............. 155
Speedometer ........................... 189
Starting ............................. 24,275
Automatic Transmission ................. 275
Cold Weather ......................... 278
Engine Fails to Start .................... 278
Remote .............................. 24
Starting and Operating .................... 275
Starting Procedures ...................... 275
10
INDEX 459
