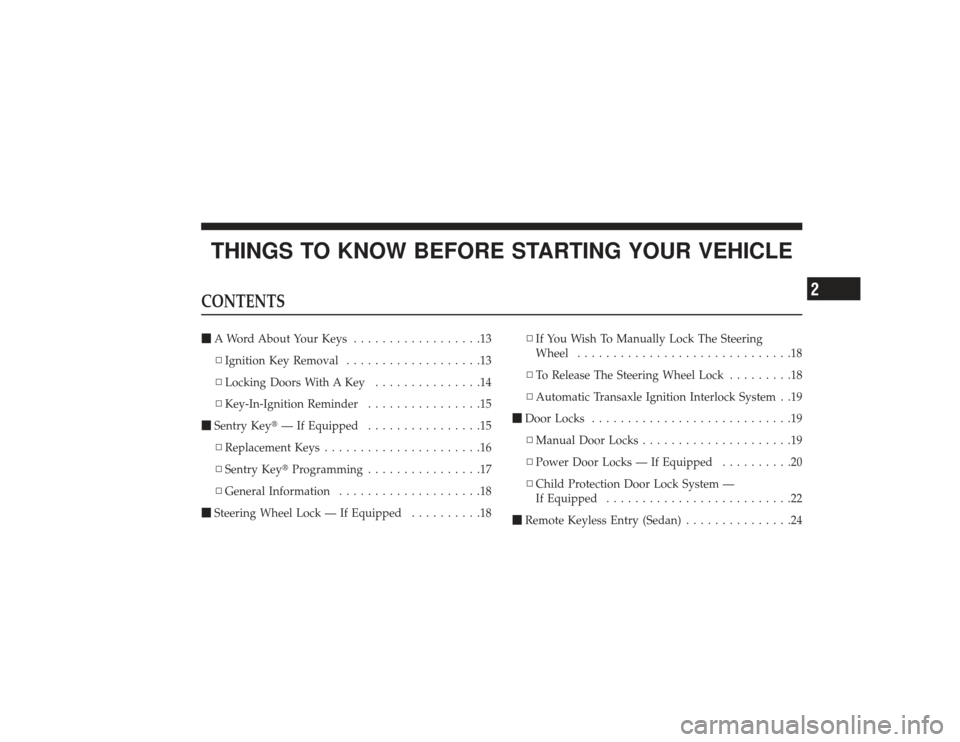

Page 11 of 491
THINGS TO KNOW BEFORE STARTING YOUR VEHICLECONTENTSA Word About Your Keys ..................13
▫ Ignition Key Removal ...................13
▫ Locking Doors With A Key ...............14
▫ Key-In-Ignition Reminder ................15
Sentry Key — If Equipped ................15
▫ Replacement Keys ......................16
▫ Sentry Key Programming ................17
▫ General Information ....................18
Steering Wheel Lock — If Equipped ..........18▫
If You Wish To Manually Lock The Steering
Wheel ..............................18
▫ To Release The Steering Wheel Lock .........18
▫ Automatic Transaxle Ignition Interlock System . .19
Door Locks ............................19
▫ Manual Door Locks .....................19
▫ Power Door Locks — If Equipped ..........20
▫ Child Protection Door Lock System —
If Equipped ..........................22
Remote Keyless Entry (Sedan) ...............24
2

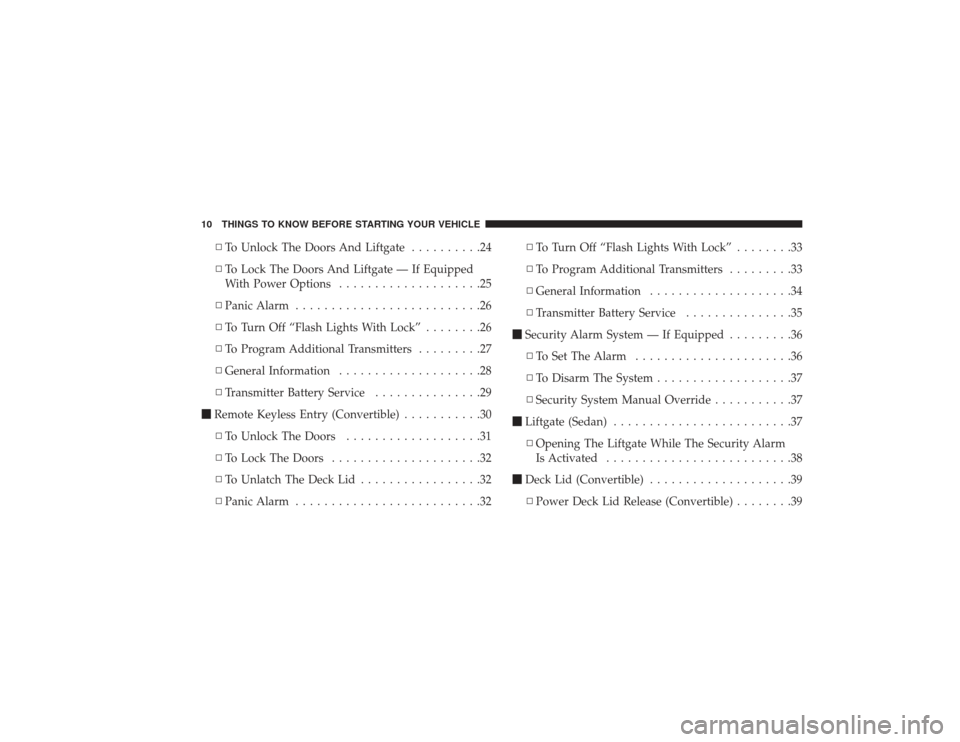

Page 12 of 491
▫To Unlock The Doors And Liftgate ..........24
▫ To Lock The Doors And Liftgate — If Equipped
With Power Options ....................25
▫ Panic Alarm ..........................26
▫ To Turn Off “Flash Lights With Lock” ........26
▫ To Program Additional Transmitters .........27
▫ General Information ....................28
▫ Transmitter Battery Service ...............29
Remote Keyless Entry (Convertible) ...........30
▫ To Unlock The Doors ...................31
▫ To Lock The Doors .....................32
▫ To Unlatch The Deck Lid .................32
▫ Panic Alarm ..........................32 ▫
To Turn Off “Flash Lights With Lock” ........33
▫ To Program Additional Transmitters .........33
▫ General Information ....................34
▫ Transmitter Battery Service ...............35
Security Alarm System — If Equipped .........36
▫ To Set The Alarm ......................36
▫ To Disarm The System ...................37
▫ Security System Manual Override ...........37
Liftgate (Sedan) .........................37
▫ Opening The Liftgate While The Security Alarm
Is Activated ..........................38
Deck Lid (Convertible) ....................39
▫ Power Deck Lid Release (Convertible) ........39
10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 17 of 491
KEY-IN-IGNITION REMINDEROpening the driver’s door when the key is in the ignition,
sounds a signal to remind you to remove the key.
NOTE:With the driver’s door open, and the key in the
ignition, both the power door locks and Remote Keyless
Entry (RKE) will not function.SENTRY KEY — IF EQUIPPEDThe Sentry Key Immobilizer System prevents unautho-
rized operation of the vehicle by disabling the engine.
The system will shut the engine off after two seconds of
running if an invalid key is used to start the vehicle. This
system utilizes ignition keys, which have an electronic
chip (transponder) embedded into them. Only keys that
have been programmed to the vehicle can be used to start
and operate the vehicle.
The Sentry Key Immobilizer System does not need to be
armed or activated. Operation of the system is automatic
regardless of whether or not the vehicle is locked or unlocked. During normal operation, the Theft Alarm/
Immobilizer Light will come on for three seconds imme-
diately after the ignition switch is turned on for a bulb
check. Afterwards, if the bulb remains on, this indicates a
problem with the electronics.
If the bulb begins to flash after the bulb check, this
indicates that an invalid key has been used to start the
vehicle. Both of these conditions will result in the engine
being shut off after two seconds of running.
Keep in mind that a key, which has not been pro-
grammed is also considered an invalid key even if it is
cut to fit the ignition lock cylinder for that vehicle.
If the Theft Alarm/Immobilizer Light comes on during
normal vehicle operation, (the vehicle has been running
for longer than 10 seconds), a fault has been detected in
the electronics and the vehicle should be serviced as soon
as possible.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15
2

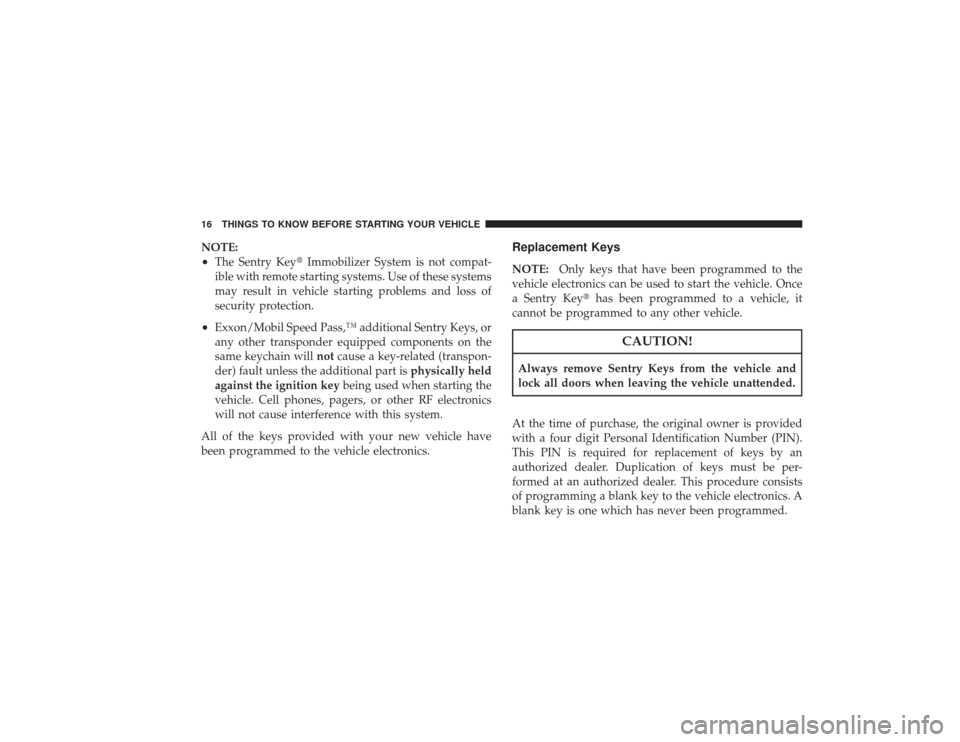

Page 18 of 491
NOTE:•
The Sentry KeyImmobilizer System is not compat-
ible with remote starting systems. Use of these systems
may result in vehicle starting problems and loss of
security protection.
•
Exxon/Mobil Speed Pass,™ additional Sentry Keys, or
any other transponder equipped components on the
same keychain will notcause a key-related (transpon-
der) fault unless the additional part is physically held
against the ignition key being used when starting the
vehicle. Cell phones, pagers, or other RF electronics
will not cause interference with this system.
All of the keys provided with your new vehicle have
been programmed to the vehicle electronics.
Replacement KeysNOTE: Only keys that have been programmed to the
vehicle electronics can be used to start the vehicle. Once
a Sentry Key has been programmed to a vehicle, it
cannot be programmed to any other vehicle.
CAUTION!
Always remove Sentry Keys from the vehicle and
lock all doors when leaving the vehicle unattended.
At the time of purchase, the original owner is provided
with a four digit Personal Identification Number (PIN).
This PIN is required for replacement of keys by an
authorized dealer. Duplication of keys must be per-
formed at an authorized dealer. This procedure consists
of programming a blank key to the vehicle electronics. A
blank key is one which has never been programmed.
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

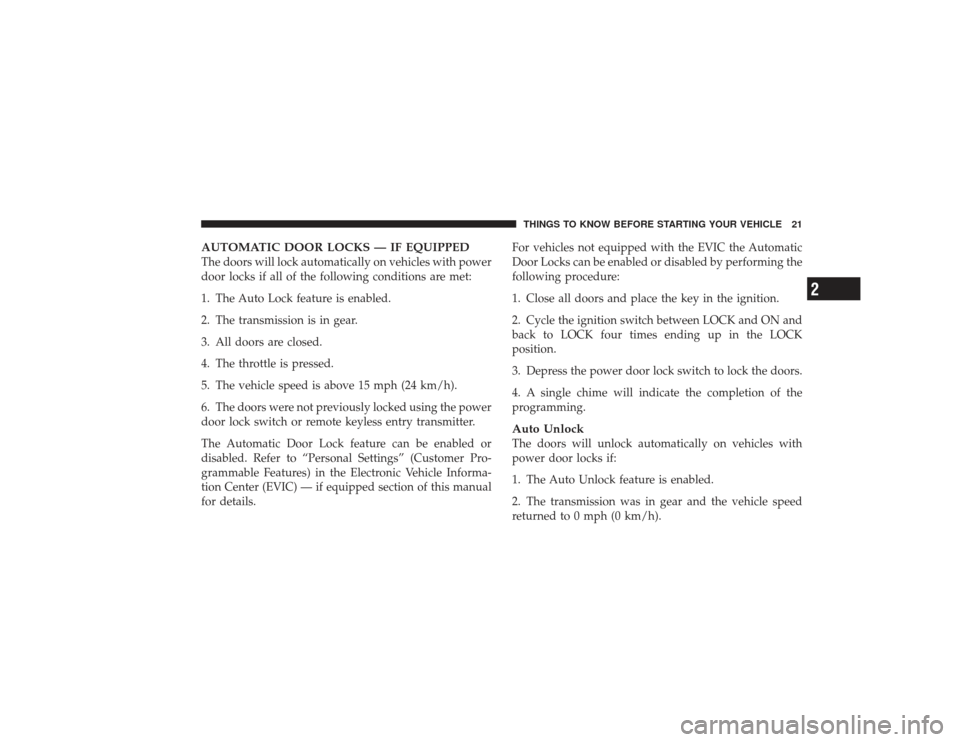

Page 23 of 491
AUTOMATIC DOOR LOCKS — IF EQUIPPEDThe doors will lock automatically on vehicles with power
door locks if all of the following conditions are met:
1. The Auto Lock feature is enabled.
2. The transmission is in gear.
3. All doors are closed.
4. The throttle is pressed.
5. The vehicle speed is above 15 mph (24 km/h).
6. The doors were not previously locked using the power
door lock switch or remote keyless entry transmitter.
The Automatic Door Lock feature can be enabled or
disabled. Refer to “Personal Settings” (Customer Pro-
grammable Features) in the Electronic Vehicle Informa-
tion Center (EVIC) — if equipped section of this manual
for details.For vehicles not equipped with the EVIC the Automatic
Door Locks can be enabled or disabled by performing the
following procedure:
1. Close all doors and place the key in the ignition.
2. Cycle the ignition switch between LOCK and ON and
back to LOCK four times ending up in the LOCK
position.
3. Depress the power door lock switch to lock the doors.
4. A single chime will indicate the completion of the
programming.
Auto UnlockThe doors will unlock automatically on vehicles with
power door locks if:
1. The Auto Unlock feature is enabled.
2. The transmission was in gear and the vehicle speed
returned to 0 mph (0 km/h).THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 21
2
Page 26 of 491
REMOTE KEYLESS ENTRY (SEDAN)This system allows you to lock or unlock the doors and
liftgate or activate the panic alarm from distances a
minimum of 66 feet (20 meters) using a hand held radio
transmitter. The transmitter need not be pointed at the
vehicle to activate the system.NOTE:
The line of transmission must not be blocked
with metal objects.
TO UNLOCK THE DOORS AND LIFTGATE:Press and release the UNLOCK button on the keyfob
once to unlock only the driver’s door or twice to unlock
all the doors and liftgate. When the UNLOCK button is
pressed, the illuminated entry will initiate, and the
parking lights will flash on twice. The time for this
feature is programmable on vehicles equipped with the
Electronic Vehicle Information Center (EVIC). Refer to
“Turn Headlamps on with Remote Key Unlock” under
“Personal Settings” in the Electronic Vehicle Information
Center (EVIC) section of this manual for details.
NOTE: The system can also be programmed to unlock
all doors on the first press of the UNLOCK button. On
electronic vehicle information center (EVIC) equipped
vehicles refer to “Remote Unlock Driver’s Door 1st”
Three Button Key
24 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

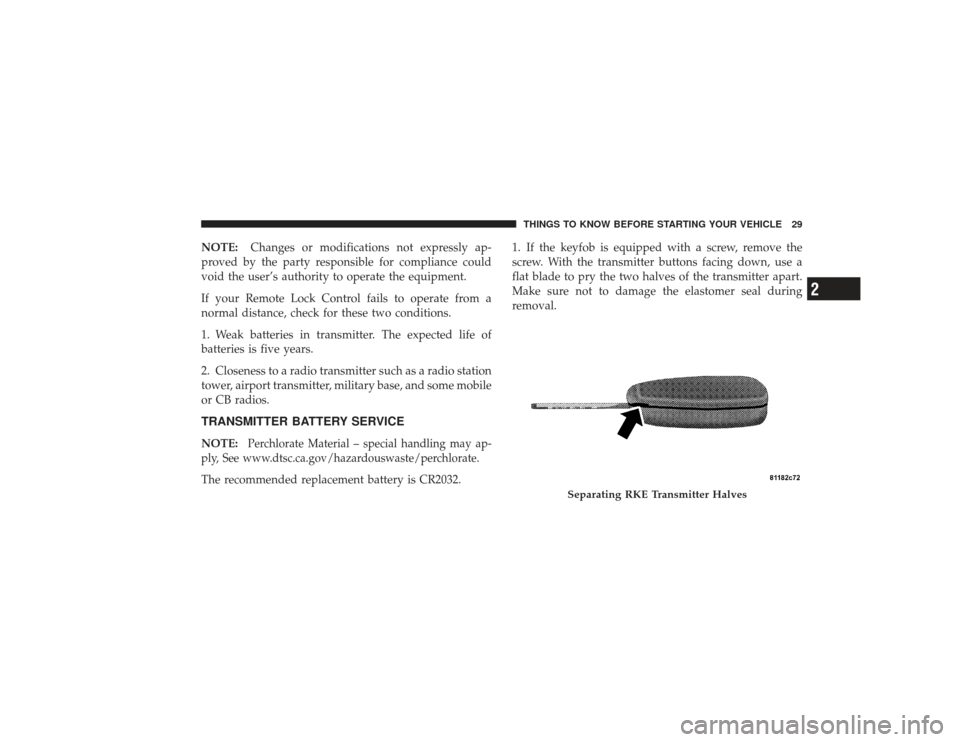

Page 31 of 491
NOTE:Changes or modifications not expressly ap-
proved by the party responsible for compliance could
void the user’s authority to operate the equipment.
If your Remote Lock Control fails to operate from a
normal distance, check for these two conditions.
1. Weak batteries in transmitter. The expected life of
batteries is five years.
2. Closeness to a radio transmitter such as a radio station
tower, airport transmitter, military base, and some mobile
or CB radios.TRANSMITTER BATTERY SERVICENOTE:
Perchlorate Material – special handling may ap-
ply, See www.dtsc.ca.gov/hazardouswaste/perchlorate.
The recommended replacement battery is CR2032. 1. If the keyfob is equipped with a screw, remove the
screw. With the transmitter buttons facing down, use a
flat blade to pry the two halves of the transmitter apart.
Make sure not to damage the elastomer seal during
removal.
Separating RKE Transmitter Halves
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 29
2

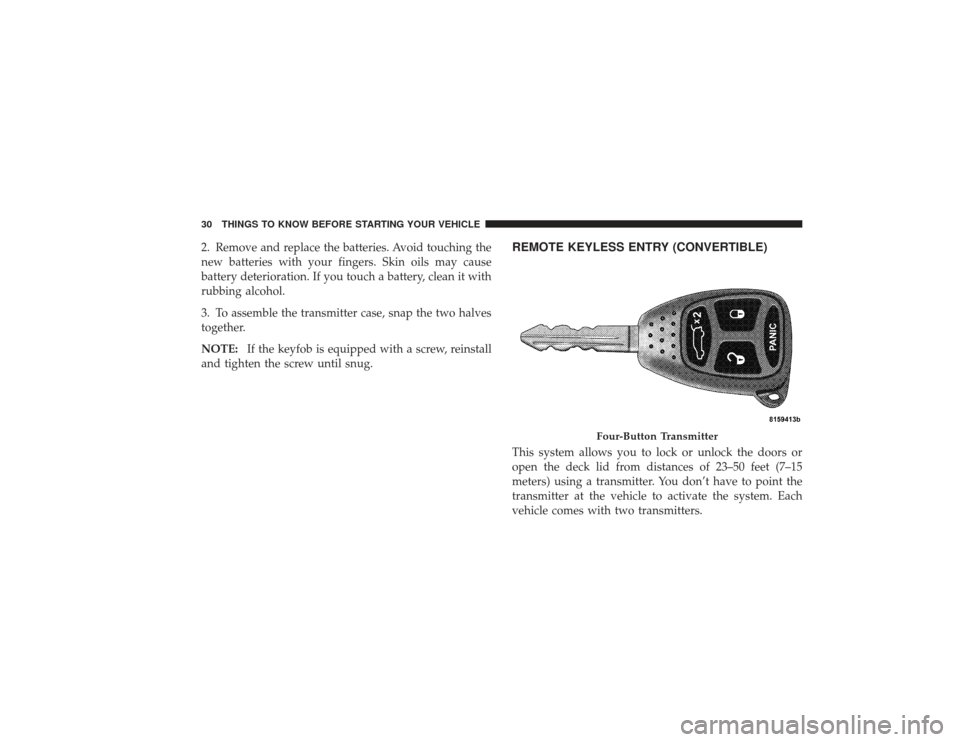

Page 32 of 491
2. Remove and replace the batteries. Avoid touching the
new batteries with your fingers. Skin oils may cause
battery deterioration. If you touch a battery, clean it with
rubbing alcohol.
3. To assemble the transmitter case, snap the two halves
together.
NOTE:If the keyfob is equipped with a screw, reinstall
and tighten the screw until snug.
REMOTE KEYLESS ENTRY (CONVERTIBLE)This system allows you to lock or unlock the doors or
open the deck lid from distances of 23–50 feet (7–15
meters) using a transmitter. You don’t have to point the
transmitter at the vehicle to activate the system. Each
vehicle comes with two transmitters.
Four-Button Transmitter
30 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 33 of 491
TO UNLOCK THE DOORS:Press and release the UNLOCK button on the keyfob
once to unlock only the driver’s door or twice to unlock
all the doors and liftgate. When the UNLOCK button is
pressed, the illuminated entry will initiate, and the
parking lights will flash on twice. The time for this
feature is programmable on vehicles equipped with the
Electronic Vehicle Information Center (EVIC). Refer to
“Turn Headlamps on with Remote Key Unlock” under
“Personal Settings” in the Electronic Vehicle Information
Center (EVIC) section of this manual for details.
NOTE:The system can also be programmed to unlock
all doors on the first press of the UNLOCK button. On
electronic vehicle information center (EVIC) equipped
vehicles refer to “Remote Unlock Driver’s Door 1st”
under “Personal Settings” in the EVIC section of this
manual. On non EVIC – equipped vehicles perform the
following steps: The system can be programmed to unlock all the doors
upon the first UNLOCK button press by using the
following procedure:
1. Press and hold the LOCK button on a programmed
keyfob.
2. Continue to hold the LOCK button at least four
seconds, but not longer than ten seconds, then press and
hold the UNLOCK button. A single chime will sound to
indicate that this feature has changed.
3. Release both buttons at the same time.
4. Test the feature while outside of the vehicle, by
pressing the LOCK/UNLOCK button on the keyfob.
NOTE:
Pressing the LOCK button on the keyfob while
you are inside the vehicle will activate the Security
Alarm. Opening a door with the Security Alarm activated
will cause the alarm to sound. Press the UNLOCK button
to deactivate the Security Alarm.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 31
2
Page 36 of 491
Up to eight transmitters can be programmed to your vehicle.
To obtain additional transmitters, contact your authorized
dealer. To program a transmitter (within 23–50 ft/7–15 m of
the vehicle), perform the following procedure:1. Gather every transmitter that is to be used with the
vehicle including any transmitters that are currently
programmed.
2.Enter Program Mode: Turn the ignition to the ON
position, and using a currently programmed transmitter;
press and hold the Unlockbutton on the transmitter.
Continue to hold the “Unlock” button, wait at least four
but no longer than 10 seconds, then press and hold the
PANIC button for at least one second. Release both
buttons simultaneously.
3. Program Each Transmitter: All transmitters to be used
with your vehicle must be programmed as follows:Press and release the LockandUnlock buttons simulta-
neously, followed by a press and release of ANY button on each transmitter to be programmed. You will hear a chime
when a transmitter has been successfully programmed.
GENERAL INFORMATIONThis transmitter complies with FCC rules part 15 and
with RSS-210 of Industry Canada. Operation is subject to
the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference that may be
received, including interference that may cause undes-
ired operation.
If your Remote Keyless Entry
fails to operate from a
normal distance, check for these two conditions:
1. Weak batteries in transmitter. The expected life of
batteries is from one to two years
2. Closeness to a radio transmitter such as a radio station
tower, airport transmitter, and some mobile or CB radios.
34 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
