CHRYSLER SEBRING 2006 2.G Warranty Booklet
Manufacturer: CHRYSLER, Model Year: 2006, Model line: SEBRING, Model: CHRYSLER SEBRING 2006 2.GPages: 130, PDF Size: 0.4 MB
Page 41 of 130
Retailer Copy
Remove and attach to Repair Order
26-92-02-01 3N.
Maintenance Service
Schedule “B”
2006 Passenger Car • Minivan • Pacifica
Odometer Reading
Date
30,000 km Maintenance Service Schedule “B”
30,000 km
Change engine oil and engine oil filter (or every 3 months).
Inspect and lubricate, as required, all steering and suspension components.
Inspect the engine air cleaner filter and replace if necessary (Sebring, Pacifica
and Minivan only).
Rotate tires and check tire pressure.
INSPECT THE FOLLOWING:
Inspect the brake linings (Pacifica and Minivan only).
Inspect the brake linings, hoses and calipers (Sebring only).
Inspect the brake hoses (PT Cruiser, Pacifica and Minivan only).
Check the brake master cylinder fluid level (Sebring only).
Check the automatic transmission fluid level.
Check the manual transaxle fluid level and fill-plug condition (if equipped)
(PT Cruiser only).
Check the coolant level, hoses and clamps.
Inspect the exhaust system.
Page 42 of 130
DAIMLERCHRYSLER
RETAILERSTA M P
Signature of authorized DaimlerChrysler Canada Retailer
2006 Passenger Car • Minivan • Pacifica
Odometer Reading
Date
Repair Order No.
Change engine oil and engine oil filter (or every 3 months).
Inspect and lubricate, as required, all steering and
suspension components.
Inspect the engine air cleaner filter and replace if
necessary (Sebring, Pacifica and Minivan only).
Rotate tires and check tire pressure.
INSPECT THE FOLLOWING:
Inspect the brake linings (Pacifica and Minivan only).
Inspect the brake linings, hoses and calipers
(Sebring only).
Inspect the brake hoses (PT Cruiser, Pacifica and
Minivan only).
Check the brake master cylinder fluid level
(Sebring only).
Check the automatic transmission fluid level.
Check the manual transaxle fluid level and fill-plug
condition (if equipped) (PT Cruiser only).
Check the coolant level, hoses and clamps.
Inspect the exhaust system.Maintenance Service Schedule “B”
30,000 km
Page 43 of 130
Retailer Copy
Remove and attach to Repair Order
26-92-02-01 3N.
Maintenance Service
Schedule “B”
2006 Passenger Car • Minivan • Pacifica
Odometer Reading
Date
35,000 km Maintenance Service Schedule “B”
35,000 km
Change engine oil and engine oil filter (or every 3 months).
Inspect and lubricate, as required, all steering and suspension components.
Inspect the engine air cleaner filter and replace if necessary (Sebring,
Pacifica and Minivan only).
Change the all-wheel-drive overrunning clutch and rear carrier fluid (Pacifica only).*
INSPECT THE FOLLOWING:
Inspect the brake linings, hoses and calipers (Sebring only).
Inspect the brake hoses (PT Cruiser, Pacifica and Minivan only).
Check the brake master cylinder fluid level (Sebring only).
Check the automatic transmission fluid level.
Check the manual transaxle fluid level and fill-plug condition (if equipped)
(PT Cruiser only).
Check the coolant level, hoses and clamps.
Inspect the exhaust system.
*The all-wheel-drive power transfer unit fluid and overrunning clutch/rear carrier fluid
must be changed at more frequent intervals than shown in schedule B if the vehicle
is used for trailer tow, taxi, police or other type of commercial service.

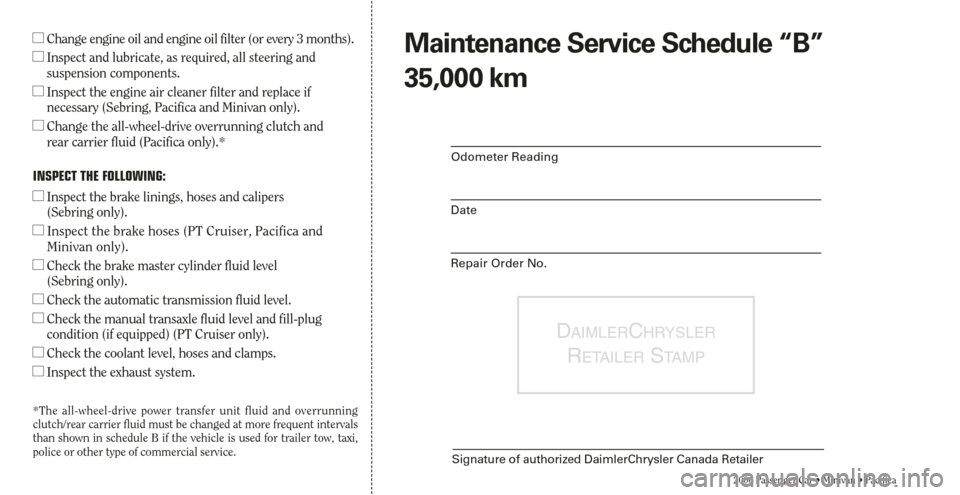

Page 44 of 130
DAIMLERCHRYSLER
RETAILERSTA M P
Signature of authorized DaimlerChrysler Canada Retailer
2006 Passenger Car • Minivan • Pacifica
Odometer Reading
Date
Repair Order No.
Change engine oil and engine oil filter (or every 3 months).
Inspect and lubricate, as required, all steering and
suspension components.
Inspect the engine air cleaner filter and replace if
necessary (Sebring, Pacifica and Minivan only).
Change the all-wheel-drive overrunning clutch and
rear carrier fluid (Pacifica only).*
INSPECT THE FOLLOWING:
Inspect the brake linings, hoses and calipers
(Sebring only).
Inspect the brake hoses (PT Cruiser, Pacifica and
Minivan only).
Check the brake master cylinder fluid level
(Sebring only).
Check the automatic transmission fluid level.
Check the manual transaxle fluid level and fill-plug
condition (if equipped) (PT Cruiser only).
Check the coolant level, hoses and clamps.
Inspect the exhaust system.
*The all-wheel-drive power transfer unit fluid and overrunning
clutch/rear carrier fluid must be changed at more frequent intervals
than shown in schedule B if the vehicle is used for trailer tow, taxi,
police or other type of commercial service.
Maintenance Service Schedule “B”
35,000 km
Page 45 of 130
Retailer Copy
Remove and attach to Repair Order
26-92-02-01 3N.
Maintenance Service
Schedule “B”
2006 Passenger Car • Minivan • Pacifica
Odometer Reading
Date
40,000 km Maintenance Service Schedule “B”
40,000 km
Change engine oil and engine oil filter (or every 3 months).
Inspect and lubricate, as required, all steering and suspension components.
Inspect the engine air cleaner filter and replace if necessary (Sebring, Pacifica
and Minivan only).
Replace the air conditioning filter (Pacifica and Minivan only).
Rotate tires and check tire pressure.
INSPECT THE FOLLOWING:
Inspect the brake linings (PT Cruiser only).
Inspect the brake linings, hoses and calipers (Sebring only).
Inspect the front and rear brakes and components (Sebring only).
Inspect the brake hoses (PT Cruiser, Pacifica and Minivan only).
Check the brake master cylinder fluid level (Sebring only).
Check the automatic transmission fluid level.
Check the manual transaxle fluid level and fill-plug condition (if equipped)
(PT Cruiser only).
Check the coolant level, hoses and clamps.
Inspect the exhaust system.
Page 46 of 130
DAIMLERCHRYSLER
RETAILERSTA M P
Signature of authorized DaimlerChrysler Canada Retailer
2006 Passenger Car • Minivan • Pacifica
Odometer Reading
Date
Repair Order No.
Change engine oil and engine oil filter (or every 3 months).
Inspect and lubricate, as required, all steering and
suspension components.
Inspect the engine air cleaner filter and replace if necessary
(Sebring, Pacifica and Minivan only).
Replace the air conditioning filter (Pacifica and Minivan
only).
Rotate tires and check tire pressure.
INSPECT THE FOLLOWING:
Inspect the brake linings (PT Cruiser only).
Inspect the brake linings, hoses and calipers
(Sebring only).
Inspect the front and rear brakes and components
(Sebring only).
Inspect the brake hoses (PT Cruiser, Pacifica and
Minivan only).
Check the brake master cylinder fluid level (Sebring only).
Check the automatic transmission fluid level.
Check the manual transaxle fluid level and fill-plug
condition (if equipped) (PT Cruiser only).
Check the coolant level, hoses and clamps.
Inspect the exhaust system.Maintenance Service Schedule “B”
40,000 km
Page 47 of 130
Retailer Copy
Remove and attach to Repair Order
26-92-02-01 3N.
Maintenance Service
Schedule “B”
2006 Passenger Car • Minivan • Pacifica
Odometer Reading
Date
45,000 km Maintenance Service Schedule “B”
45,000 km
Change engine oil and engine oil filter (or every 3 months).
Inspect and lubricate, as required, all steering and suspension components.
Inspect the engine air cleaner filter and replace if necessary (Sebring, Pacifica
and Minivan only).
INSPECT THE FOLLOWING:
Inspect the brake linings (Pacifica and Minivan only).
Inspect the brake linings, hoses and calipers (Sebring only).
Inspect the brake hoses (PT Cruiser, Pacifica and Minivan only).
Check the brake master cylinder fluid level (Sebring only).
Check the automatic transmission fluid level.
Check the manual transaxle fluid level and fill-plug condition (if equipped)
(PT Cruiser only).
Check the coolant level, hoses and clamps.
Inspect the exhaust system.

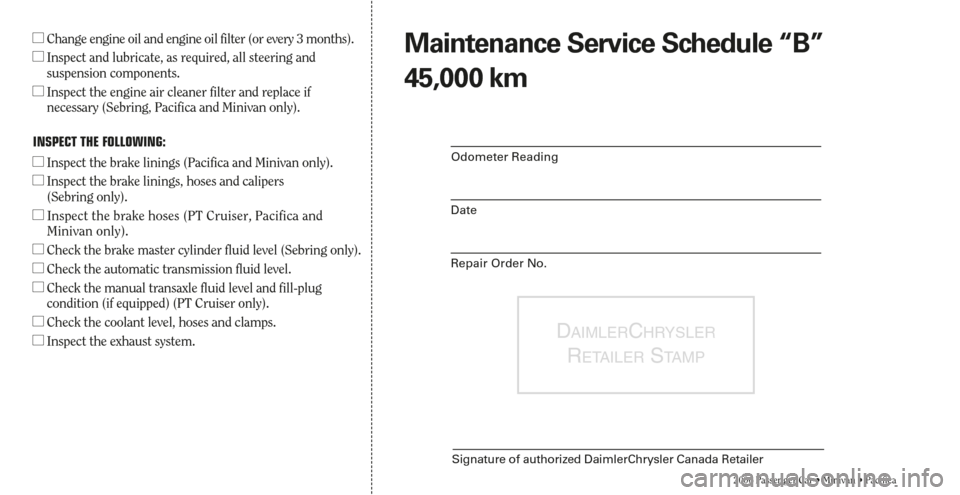

Page 48 of 130
DAIMLERCHRYSLER
RETAILERSTA M P
Signature of authorized DaimlerChrysler Canada Retailer
2006 Passenger Car • Minivan • Pacifica
Odometer Reading
Date
Repair Order No.
Change engine oil and engine oil filter (or every 3 months).
Inspect and lubricate, as required, all steering and
suspension components.
Inspect the engine air cleaner filter and replace if
necessary (Sebring, Pacifica and Minivan only).
INSPECT THE FOLLOWING:
Inspect the brake linings (Pacifica and Minivan only).
Inspect the brake linings, hoses and calipers
(Sebring only).
Inspect the brake hoses (PT Cruiser, Pacifica and
Minivan only).
Check the brake master cylinder fluid level (Sebring only).
Check the automatic transmission fluid level.
Check the manual transaxle fluid level and fill-plug
condition (if equipped) (PT Cruiser only).
Check the coolant level, hoses and clamps.
Inspect the exhaust system.Maintenance Service Schedule “B”
45,000 km
Page 49 of 130
Retailer Copy
Remove and attach to Repair Order
26-92-02-01 3N.
Maintenance Service
Schedule “B”
2006 Passenger Car • Minivan • Pacifica
Odometer Reading
Date
50,000 km Maintenance Service Schedule “B”
50,000 km
Change engine oil and engine oil filter (or every 3 months).
Inspect and lubricate, as required, all steering and suspension components.
Replace the engine air cleaner filter if required (all models).
Replace the spark plugs (PT Cruiser and Sebring 2.4L engine only).
Check and replace, if necessary, the PCV valve (not required if previously replaced).
Replace the make-up air filter (PT Cruiser only).
Adjust the generator drive belt tension. (PT Cruiser only).
Inspect and check tension for power steering belt. Adjust or replace if required
(2.4L Sebring only).
Change the all-wheel-drive power transfer unit fluid (Pacifica only).*
Rotate tires and check tire pressure.
INSPECT THE FOLLOWING:Inspect the brake linings, hoses and calipers (Sebring only).
Inspect the brake hoses (PT Cruiser, Pacifica and Minivan only).
Check the brake master cylinder fluid level (Sebring only).
Check the automatic transmission fluid level.
Check the manual transaxle fluid level and fill-plug condition (if equipped)
(PT Cruiser only).
Inspect the tie rod ends and boot seals (PT Cruiser, Pacifica and Minivan only).
Check the coolant level, hoses and clamps.
Inspect the exhaust system.
*The all-wheel-drive power transfer unit fluid and overrunning clutch/rear carrier fluid
must be changed at more frequent intervals than shown in schedule B if the vehicle
is used for trailer tow, taxi, police or other type of commercial service.

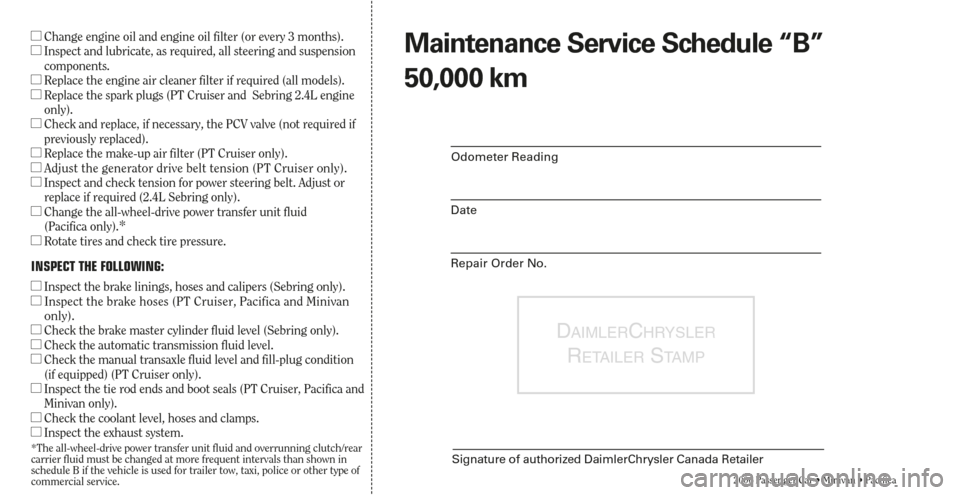

Page 50 of 130
DAIMLERCHRYSLER
RETAILERSTA M P
Signature of authorized DaimlerChrysler Canada Retailer
2006 Passenger Car • Minivan • Pacifica
Odometer Reading
Date
Repair Order No.
Change engine oil and engine oil filter (or every 3 months).
Inspect and lubricate, as required, all steering and suspension
components.
Replace the engine air cleaner filter if required (all models).
Replace the spark plugs (PT Cruiser and Sebring 2.4L engine
only).
Check and replace, if necessary, the PCV valve (not required if
previously replaced).
Replace the make-up air filter (PT Cruiser only).
Adjust the generator drive belt tension (PT Cruiser only).
Inspect and check tension for power steering belt. Adjust or
replace if required (2.4L Sebring only).
Change the all-wheel-drive power transfer unit fluid
(Pacifica only).
*Rotate tires and check tire pressure.
INSPECT THE FOLLOWING:
Inspect the brake linings, hoses and calipers (Sebring only).
Inspect the brake hoses (PT Cruiser, Pacifica and Minivan
only).
Check the brake master cylinder fluid level (Sebring only).
Check the automatic transmission fluid level.
Check the manual transaxle fluid level and fill-plug condition
(if equipped) (PT Cruiser only).
Inspect the tie rod ends and boot seals (PT Cruiser, Pacifica and
Minivan only).
Check the coolant level, hoses and clamps.
Inspect the exhaust system.
*The all-wheel-drive power transfer unit fluid and overrunning clutch/rear
carrier fluid must be changed at more frequent intervals than shown in
schedule B if the vehicle is used for trailer tow, taxi, police or other type of
commercial service.
Maintenance Service Schedule “B”
50,000 km
