CHRYSLER TOWN AND COUNTRY 2008 5.G User Guide
Manufacturer: CHRYSLER, Model Year: 2008, Model line: TOWN AND COUNTRY, Model: CHRYSLER TOWN AND COUNTRY 2008 5.GPages: 531, PDF Size: 4.51 MB
Page 11 of 531

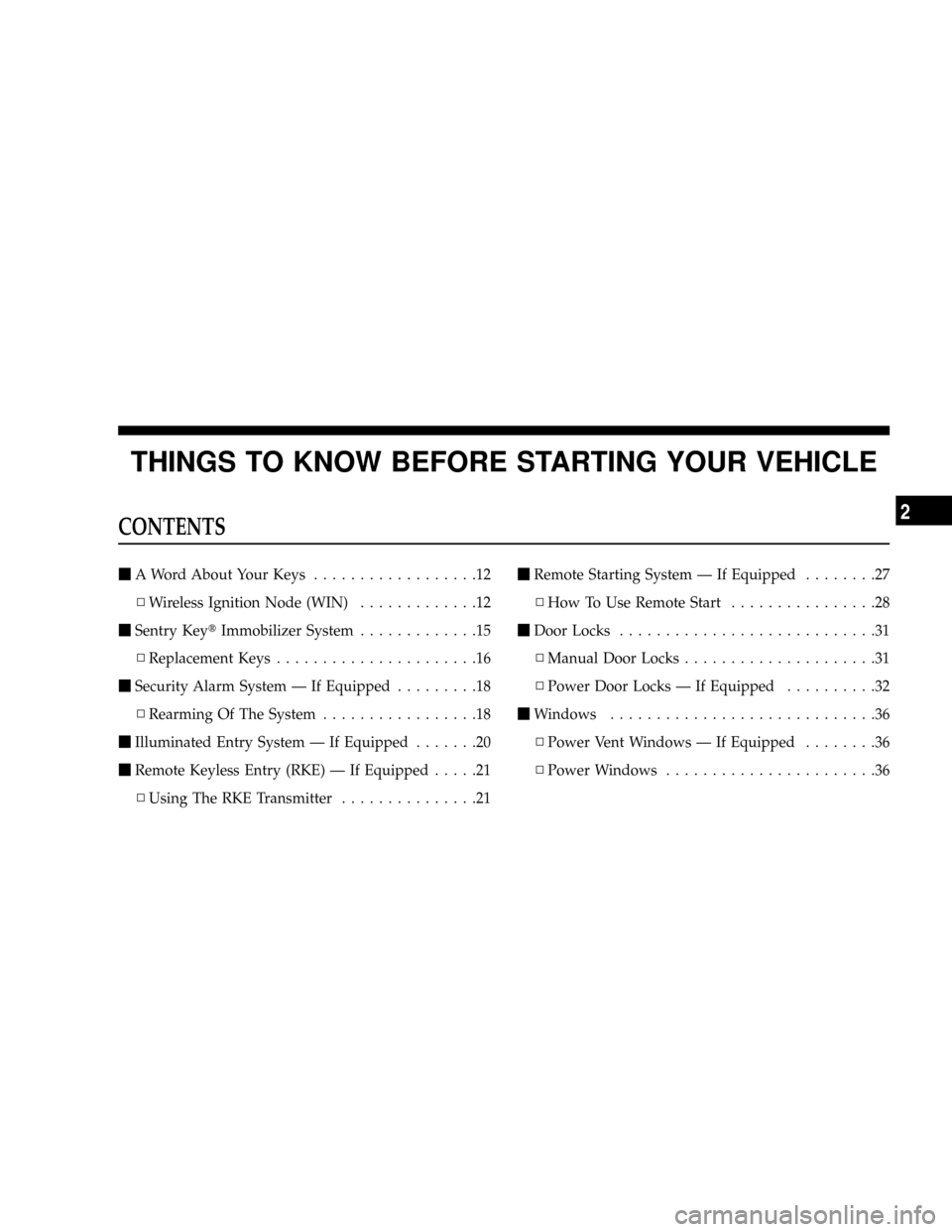

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
CONTENTS
mA Word About Your Keys..................12
NWireless Ignition Node (WIN).............12
mSentry KeytImmobilizer System.............15
NReplacement Keys......................16
mSecurity Alarm System Ð If Equipped.........18
NRearming Of The System.................18
mIlluminated Entry System Ð If Equipped.......20
mRemote Keyless Entry (RKE) Ð If Equipped.....21
NUsing The RKE Transmitter...............21mRemote Starting System Ð If Equipped........27
NHow To Use Remote Start................28
mDoor Locks............................31
NManual Door Locks.....................31
NPower Door Locks Ð If Equipped..........32
mWindows.............................36
NPower Vent Windows Ð If Equipped........36
NPower Windows.......................36
2
Page 12 of 531
mSliding Side Door........................41
NPower Sliding Side Door Ð If Equipped......41
NSliding Side Door Child Protection Lock......45
mLiftgate...............................47
NPower Liftgate Ð If Equipped.............48
mStorage Bin Safety Warning.................51
NSafety Warnings.......................51
NStorage Bin Cover Emergency Release Strap Ð
If Equipped..........................53
NReinstalling Storage Bin Cover Emergency
Release Strap.........................54
mOccupant Restraints......................55
NLap/Shoulder Belts.....................56NAutomatic Locking Retractors (ALR) Mode ±
If Equipped..........................62
NSeat Belt Pretensioners...................63
NEnhanced Seat Belt Use Reminder System
(BeltAlertt) ..........................64
NSeat Belts And Pregnant Women............65
NSeat Belt Extender......................65
NSupplemental Restraint System (SRS) - Airbag . .66
NAirbag System Components...............66
NFront Seat Airbag Features................67
NAirbag Deployment Sensors And Controls.....72
NEvent Data Recorder (EDR)...............77
NIntegrated Child Seat Ð If Equipped........80
NChild Restraints.......................80
10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

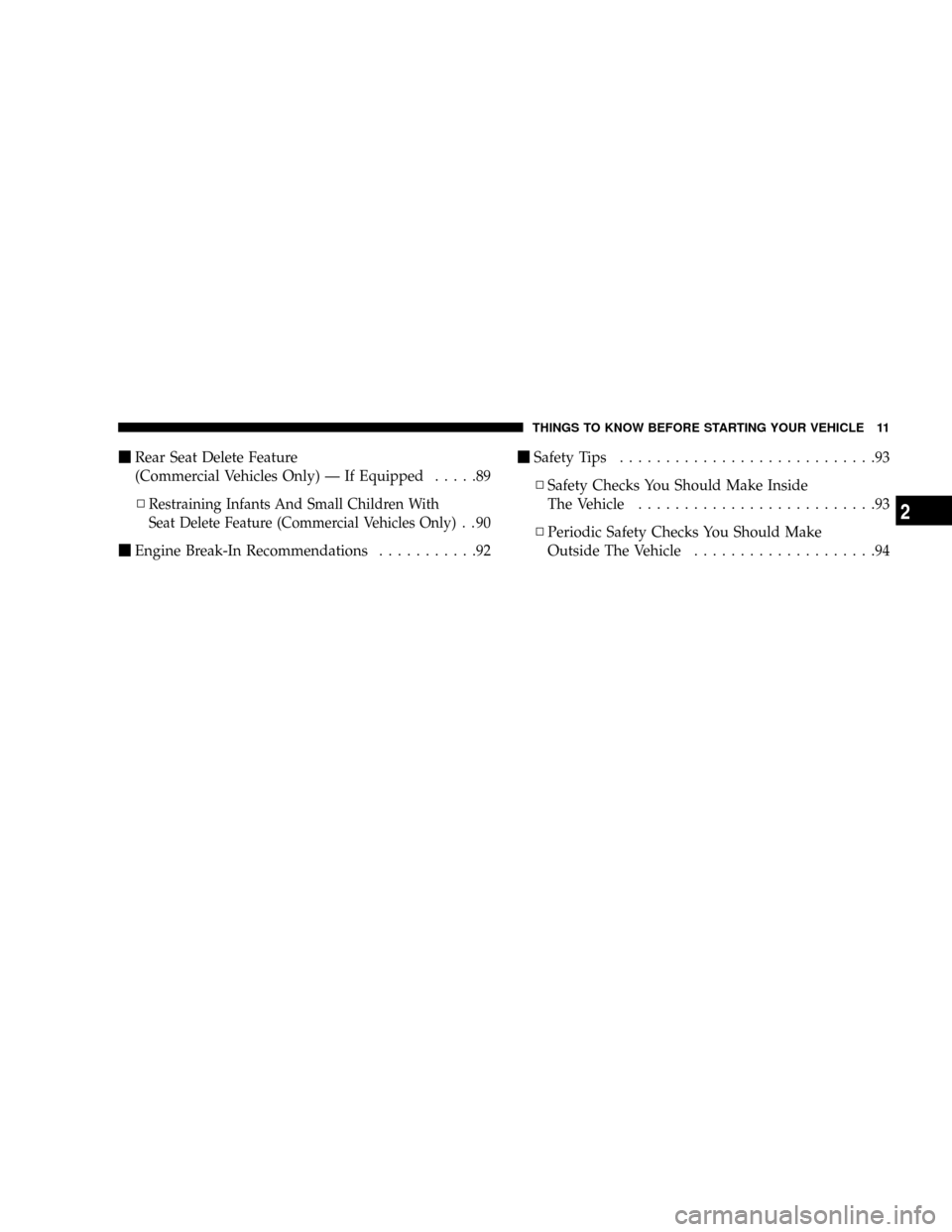

Page 13 of 531
mRear Seat Delete Feature
(Commercial Vehicles Only) Ð If Equipped.....89
N
Restraining Infants And Small Children With
Seat Delete Feature (Commercial Vehicles Only)
..90
mEngine Break-In Recommendations...........92mSafety Tips............................93
NSafety Checks You Should Make Inside
The Vehicle..........................93
NPeriodic Safety Checks You Should Make
Outside The Vehicle....................94
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 11
2
Page 14 of 531

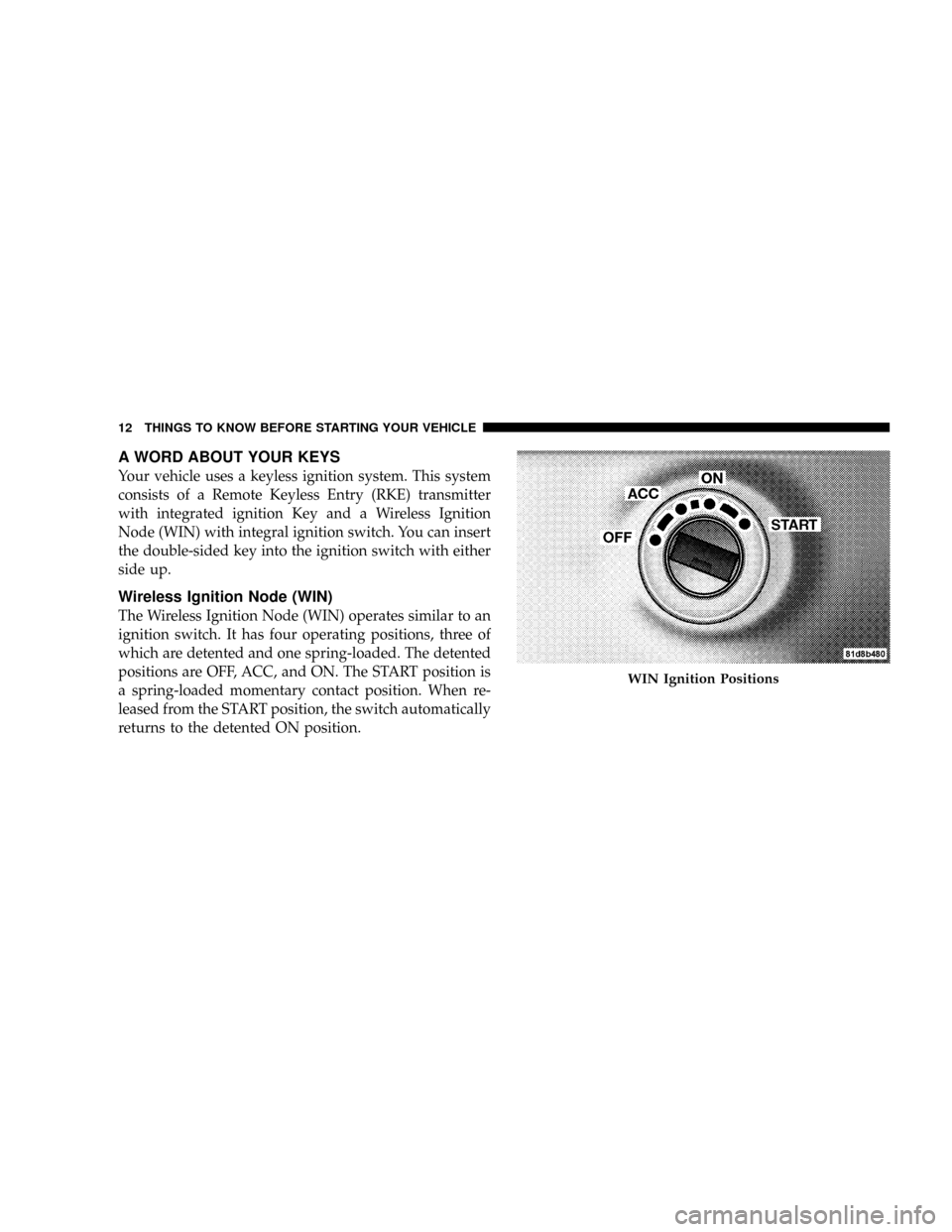

A WORD ABOUT YOUR KEYS
Your vehicle uses a keyless ignition system. This system
consists of a Remote Keyless Entry (RKE) transmitter
with integrated ignition Key and a Wireless Ignition
Node (WIN) with integral ignition switch. You can insert
the double-sided key into the ignition switch with either
side up.
Wireless Ignition Node (WIN)
The Wireless Ignition Node (WIN) operates similar to an
ignition switch. It has four operating positions, three of
which are detented and one spring-loaded. The detented
positions are OFF, ACC, and ON. The START position is
a spring-loaded momentary contact position. When re-
leased from the START position, the switch automatically
returns to the detented ON position.
WIN Ignition Positions
12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 15 of 531

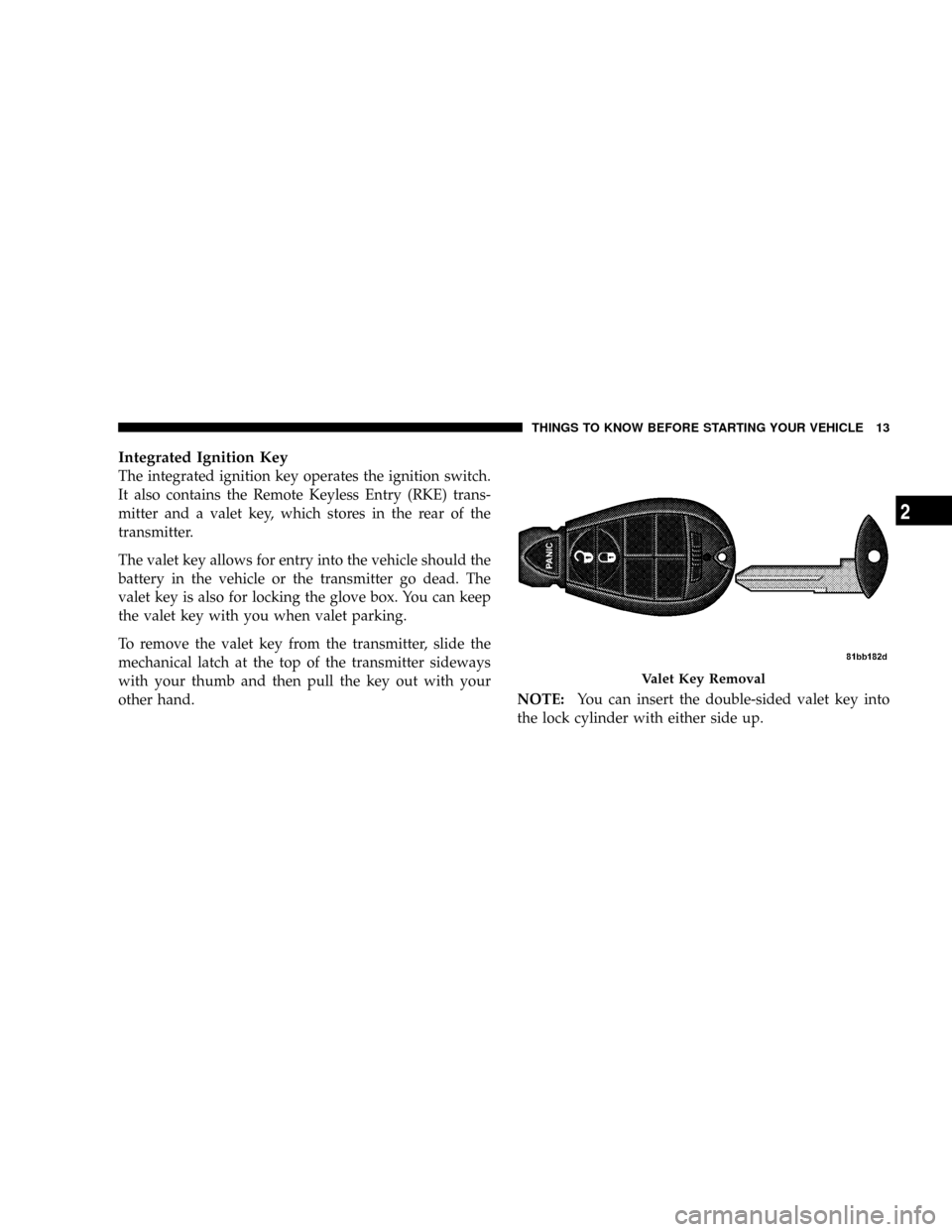

Integrated Ignition Key
The integrated ignition key operates the ignition switch.
It also contains the Remote Keyless Entry (RKE) trans-
mitter and a valet key, which stores in the rear of the
transmitter.
The valet key allows for entry into the vehicle should the
battery in the vehicle or the transmitter go dead. The
valet key is also for locking the glove box. You can keep
the valet key with you when valet parking.
To remove the valet key from the transmitter, slide the
mechanical latch at the top of the transmitter sideways
with your thumb and then pull the key out with your
other hand.NOTE:You can insert the double-sided valet key into
the lock cylinder with either side up.
Valet Key Removal
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13
2
Page 16 of 531

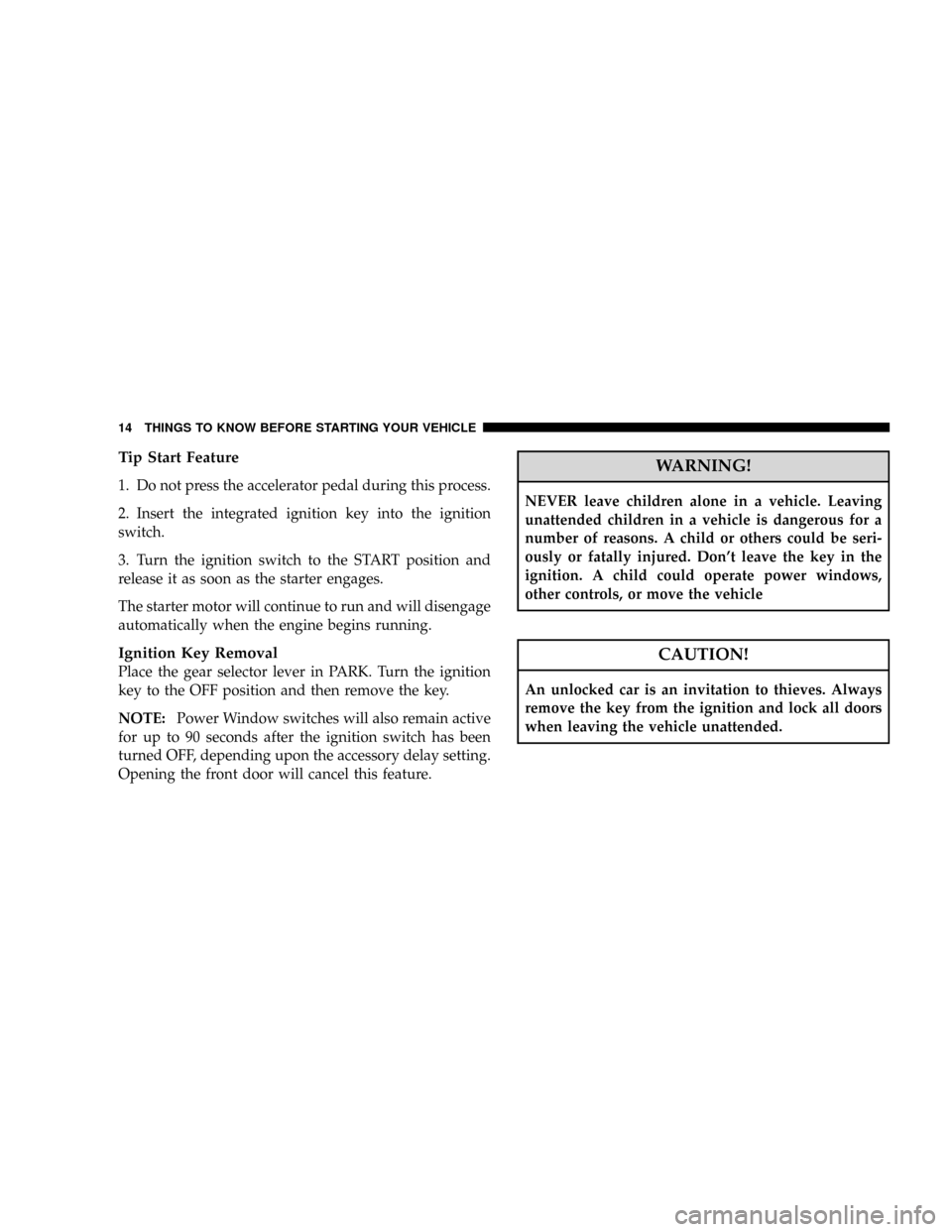

Tip Start Feature
1. Do not press the accelerator pedal during this process.
2. Insert the integrated ignition key into the ignition
switch.
3. Turn the ignition switch to the START position and
release it as soon as the starter engages.
The starter motor will continue to run and will disengage
automatically when the engine begins running.
Ignition Key Removal
Place the gear selector lever in PARK. Turn the ignition
key to the OFF position and then remove the key.
NOTE:Power Window switches will also remain active
for up to 90 seconds after the ignition switch has been
turned OFF, depending upon the accessory delay setting.
Opening the front door will cancel this feature.
WARNING!
NEVER leave children alone in a vehicle. Leaving
unattended children in a vehicle is dangerous for a
number of reasons. A child or others could be seri-
ously or fatally injured. Don't leave the key in the
ignition. A child could operate power windows,
other controls, or move the vehicle
CAUTION!
An unlocked car is an invitation to thieves. Always
remove the key from the ignition and lock all doors
when leaving the vehicle unattended.
14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 17 of 531

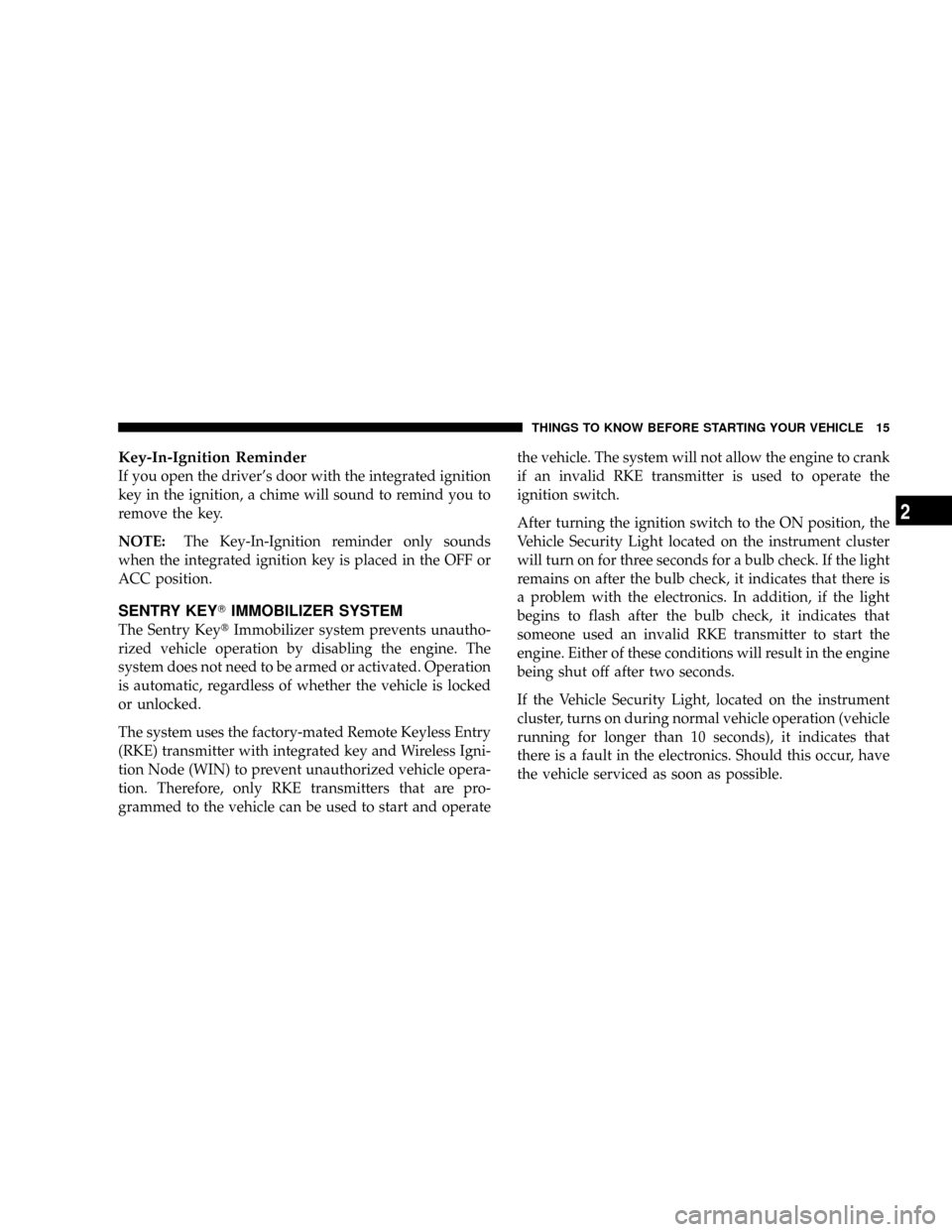

Key-In-Ignition Reminder
If you open the driver's door with the integrated ignition
key in the ignition, a chime will sound to remind you to
remove the key.
NOTE:The Key-In-Ignition reminder only sounds
when the integrated ignition key is placed in the OFF or
ACC position.
SENTRY KEYTIMMOBILIZER SYSTEM
The Sentry KeytImmobilizer system prevents unautho-
rized vehicle operation by disabling the engine. The
system does not need to be armed or activated. Operation
is automatic, regardless of whether the vehicle is locked
or unlocked.
The system uses the factory-mated Remote Keyless Entry
(RKE) transmitter with integrated key and Wireless Igni-
tion Node (WIN) to prevent unauthorized vehicle opera-
tion. Therefore, only RKE transmitters that are pro-
grammed to the vehicle can be used to start and operatethe vehicle. The system will not allow the engine to crank
if an invalid RKE transmitter is used to operate the
ignition switch.
After turning the ignition switch to the ON position, the
Vehicle Security Light located on the instrument cluster
will turn on for three seconds for a bulb check. If the light
remains on after the bulb check, it indicates that there is
a problem with the electronics. In addition, if the light
begins to flash after the bulb check, it indicates that
someone used an invalid RKE transmitter to start the
engine. Either of these conditions will result in the engine
being shut off after two seconds.
If the Vehicle Security Light, located on the instrument
cluster, turns on during normal vehicle operation (vehicle
running for longer than 10 seconds), it indicates that
there is a fault in the electronics. Should this occur, have
the vehicle serviced as soon as possible.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15
2
Page 18 of 531

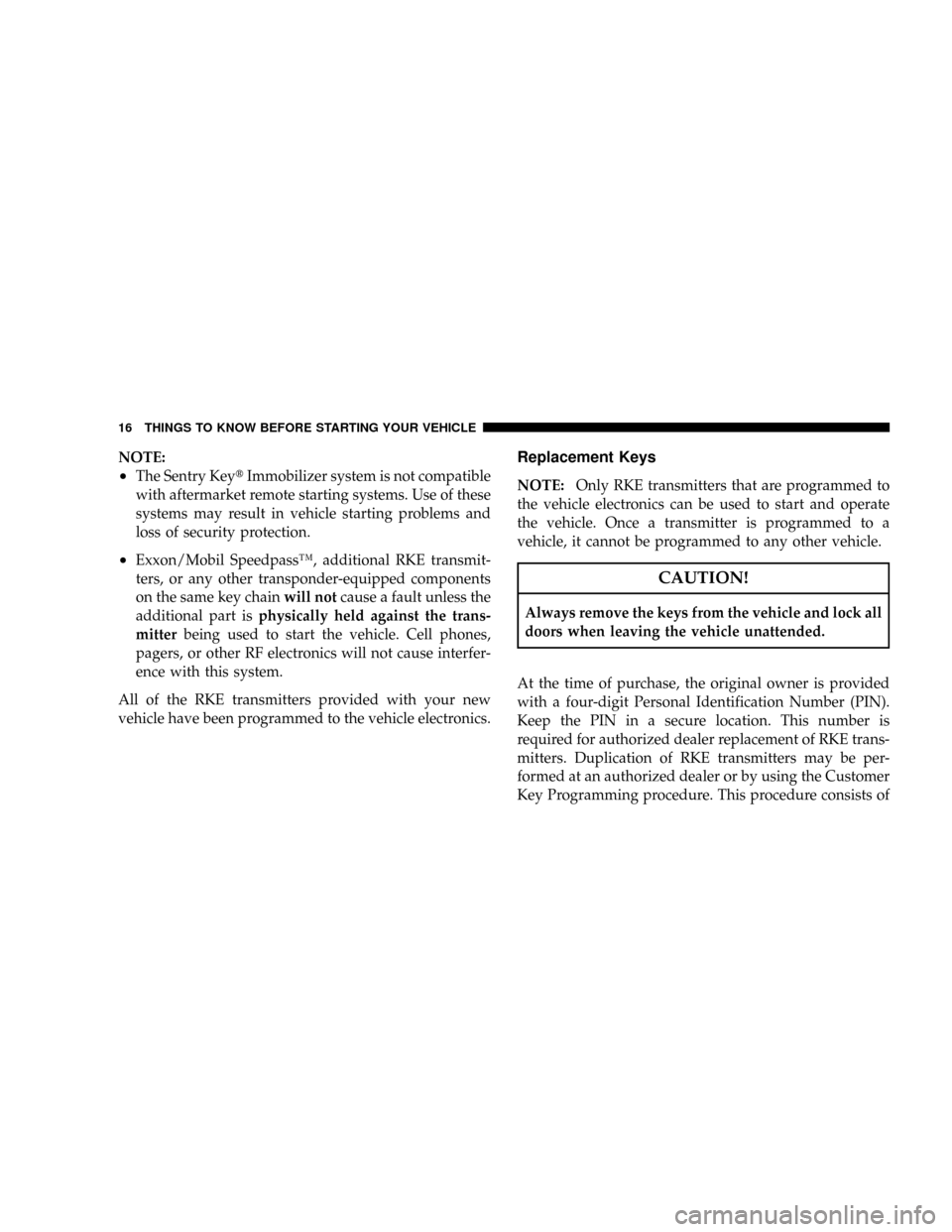

NOTE:
²The Sentry KeytImmobilizer system is not compatible
with aftermarket remote starting systems. Use of these
systems may result in vehicle starting problems and
loss of security protection.
²Exxon/Mobil SpeedpassŸ, additional RKE transmit-
ters, or any other transponder-equipped components
on the same key chainwill notcause a fault unless the
additional part isphysically held against the trans-
mitterbeing used to start the vehicle. Cell phones,
pagers, or other RF electronics will not cause interfer-
ence with this system.
All of the RKE transmitters provided with your new
vehicle have been programmed to the vehicle electronics.
Replacement Keys
NOTE:Only RKE transmitters that are programmed to
the vehicle electronics can be used to start and operate
the vehicle. Once a transmitter is programmed to a
vehicle, it cannot be programmed to any other vehicle.
CAUTION!
Always remove the keys from the vehicle and lock all
doors when leaving the vehicle unattended.
At the time of purchase, the original owner is provided
with a four-digit Personal Identification Number (PIN).
Keep the PIN in a secure location. This number is
required for authorized dealer replacement of RKE trans-
mitters. Duplication of RKE transmitters may be per-
formed at an authorized dealer or by using the Customer
Key Programming procedure. This procedure consists of
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 19 of 531

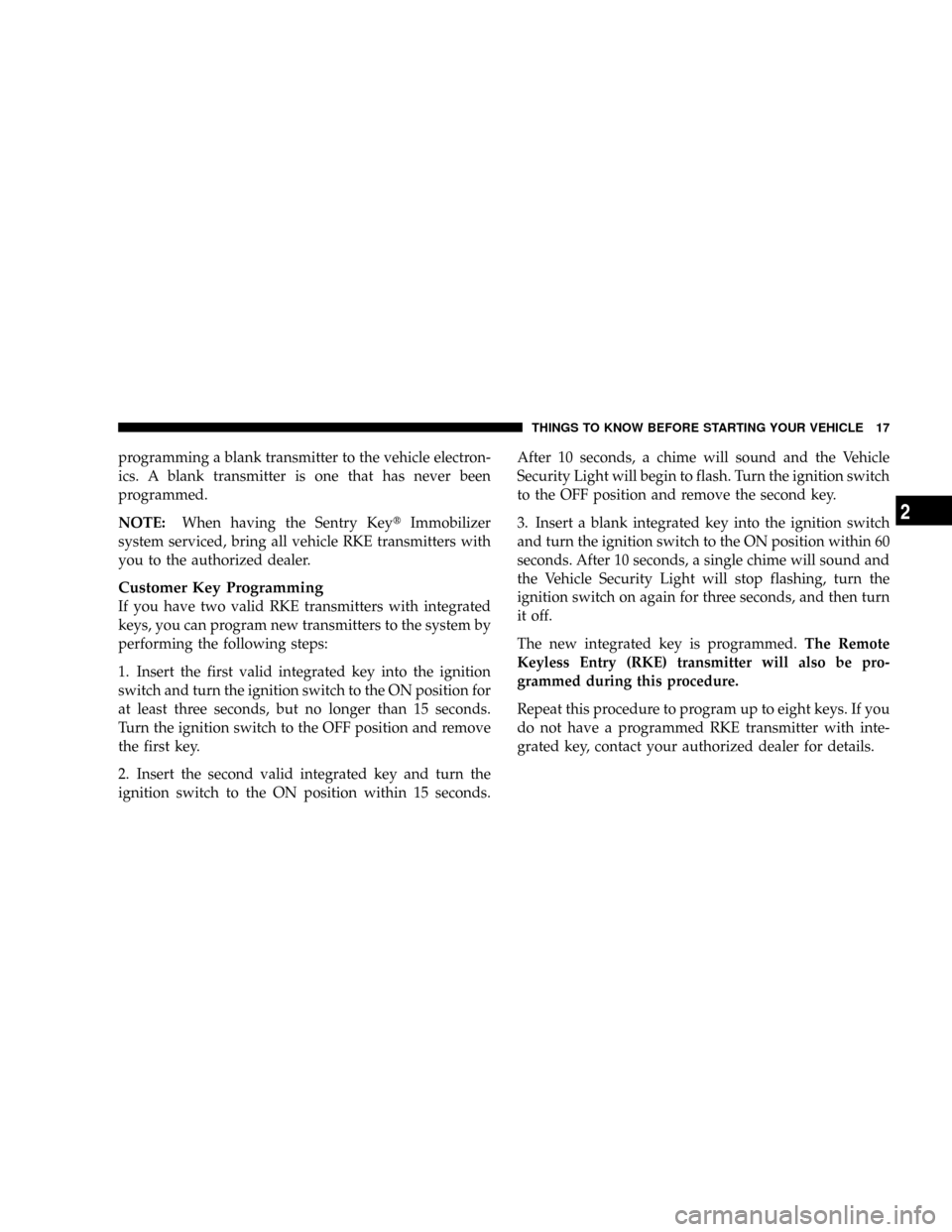

programming a blank transmitter to the vehicle electron-
ics. A blank transmitter is one that has never been
programmed.
NOTE:When having the Sentry KeytImmobilizer
system serviced, bring all vehicle RKE transmitters with
you to the authorized dealer.
Customer Key Programming
If you have two valid RKE transmitters with integrated
keys, you can program new transmitters to the system by
performing the following steps:
1. Insert the first valid integrated key into the ignition
switch and turn the ignition switch to the ON position for
at least three seconds, but no longer than 15 seconds.
Turn the ignition switch to the OFF position and remove
the first key.
2. Insert the second valid integrated key and turn the
ignition switch to the ON position within 15 seconds.After 10 seconds, a chime will sound and the Vehicle
Security Light will begin to flash. Turn the ignition switch
to the OFF position and remove the second key.
3. Insert a blank integrated key into the ignition switch
and turn the ignition switch to the ON position within 60
seconds. After 10 seconds, a single chime will sound and
the Vehicle Security Light will stop flashing, turn the
ignition switch on again for three seconds, and then turn
it off.
The new integrated key is programmed.The Remote
Keyless Entry (RKE) transmitter will also be pro-
grammed during this procedure.
Repeat this procedure to program up to eight keys. If you
do not have a programmed RKE transmitter with inte-
grated key, contact your authorized dealer for details.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17
2
Page 20 of 531

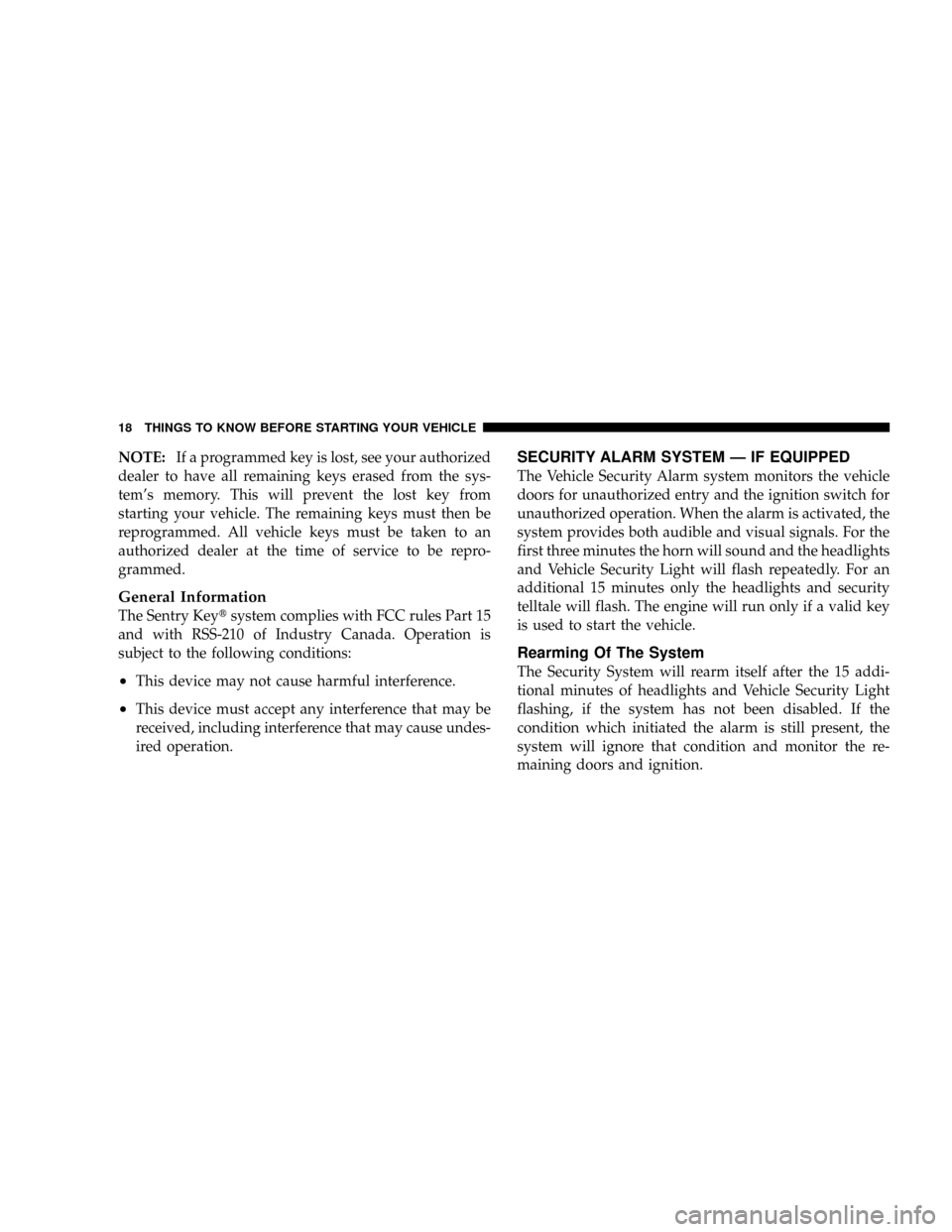

NOTE:If a programmed key is lost, see your authorized
dealer to have all remaining keys erased from the sys-
tem's memory. This will prevent the lost key from
starting your vehicle. The remaining keys must then be
reprogrammed. All vehicle keys must be taken to an
authorized dealer at the time of service to be repro-
grammed.
General Information
The Sentry Keytsystem complies with FCC rules Part 15
and with RSS-210 of Industry Canada. Operation is
subject to the following conditions:
²This device may not cause harmful interference.
²This device must accept any interference that may be
received, including interference that may cause undes-
ired operation.
SECURITY ALARM SYSTEM Ð IF EQUIPPED
The Vehicle Security Alarm system monitors the vehicle
doors for unauthorized entry and the ignition switch for
unauthorized operation. When the alarm is activated, the
system provides both audible and visual signals. For the
first three minutes the horn will sound and the headlights
and Vehicle Security Light will flash repeatedly. For an
additional 15 minutes only the headlights and security
telltale will flash. The engine will run only if a valid key
is used to start the vehicle.
Rearming Of The System
The Security System will rearm itself after the 15 addi-
tional minutes of headlights and Vehicle Security Light
flashing, if the system has not been disabled. If the
condition which initiated the alarm is still present, the
system will ignore that condition and monitor the re-
maining doors and ignition.
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
