child lock Citroen BERLINGO 2016 2.G Owner's Manual

2
Berlingo-2-VU_en_Chap00a_Sommaire_ed01-2016
key 18
Remote control 18
Alarm

20d

oors
21
Rear roof flap


25
T

ailgate 26
Central locking

27
Instrument panel


28
Date and time


29
W

arning lamps
32
Fuel gauge


40
Coolant

40
Under-inflation detection
41
Service indicator

43
Lighting dimmer


44
Steering wheel


adjustment

45
Manual gearbox


45
Gear shift


indicator
46
6-speed electronic gearbox

47
Stop & Start


49
Starting and stopping


52
Hill start assist


53
Driving recommendations


5
4Lighting
55
Wipers
58
T
rip computer
60
Cruise control


61
Speed limiter


64
Heating /

Air conditioning
manual

67 digital


69
Demisting and


defrosting

72
Front seats


74
Individual passenger


seat

75
Extenso Cab


76
Configurations


78
Front fittings


79
Courtesy lamps


81
Crew cab


82
Load space


84
Roof bars


86
Mirrors


87
Electric windows


89
READY TO GO
3.



18-54 SAFETY
5.



90-116
Exterior 5
Interior 6
left hand drive


6 right hand drive


7
Instruments and controls


8 left hand drive


8 right hand drive


10
T

echnical data - Maintenance
12
OVERVIEW
1.
4-14
Horn 90
Hazard warning lamps 90
Parking brake

90
Parking sensors


91
Reversing camera


93
Anti-lock braking


system (ABS)

94
EBA 94
ASR and DSC


95
Grip control


96
Active City Brake


98
Seat belts


102a

irbags 104
Carrying children

108d

eactivating the passenger's front
airbag
110
Recommended seats

1
13
Installation

1
14
EASE OF USE and
COMFORT
4.



55-89
ECO-DRIVING
2.



15-17
Environnement 15
Eco-driving 16
The "Visual search" (visual
index) section assists
you in finding the controls
and functions and their
associated page numbers
on the schematic outlines of
the vehicle.
Instruments and controls
left hand drive


13 right hand drive


14
Contents

20
Berlingo-2-VU_en_Chap03_Pret-a-partir_ed01-2016
Good practice
Do not make any modifications to the
electronic immobiliser system.
Operating the remote control, even
when it is in your pocket, may result in
involuntary unlocking of the doors.
The simultaneous use of other
high frequency equipment (mobile
telephones, domestic alarms…), may
interfere with the operation of the
remote control temporarily.
The remote control does not operate
while the key is in the ignition, even if
the ignition is off.
ELECTRONIC IMMOBILISER
All of the keys contain an electronic
immobiliser device.
This device locks the engine supply
system. It is activated automatically
when the key is removed from the
ignition.
a
fter the ignition is switched on, a
dialogue is established between the
key and the electronic immobiliser
system.
The metal part of the key must be
unfolded correctly for correct dialogue
to take place.
If you lose your keys
Visit a CITR
o Ë n dealer with the
vehicle's V5 registration certificate and
your identification document.
a CITR

o Ë n dealer will be able
to retrieve the key code and
the transponder code so that a
replacement key can be ordered.
Don't forget
When leaving the vehicle, check that
the lighting is off and nothing of value
is visible.
As a safety precaution (with children
on board), remove the key from the
ignition when leaving the vehicle, even
for a short time.
When purchasing a second-hand
vehicle, have the keys memorised by
a CITR
o Ë n dealer, so as to be sure
that the keys in your possession are
the only ones that can be used to start
the vehicle.
ALARM
If fitted on your vehicle, this provides
two types of protection:
-

exterior protection: it sounds if a
front/rear door or the bonnet is
opened.
-


interior protection: it sounds if
the volume inside the passenger
compartment changes (breaking of
a window or a movement inside the
vehicle).
If

your vehicle is fitted with a separation
partition, the interior protection is not
active in the load space.
Locking the vehicle with
complete alarm
Setting the alarm
- Switch of f the ignition and get out of
the vehicle.
-

Set the alarm within five minutes of
getting out of the vehicle, by locking
or deadlocking using the remote
control.

The red LED, located in the
button, flashes once per second.
access

83
Berlingo-2-VU_en_Chap04_Ergonomie_ed01-2016Berlingo-2-VU_en_Chap04_Ergonomie_ed01-2016

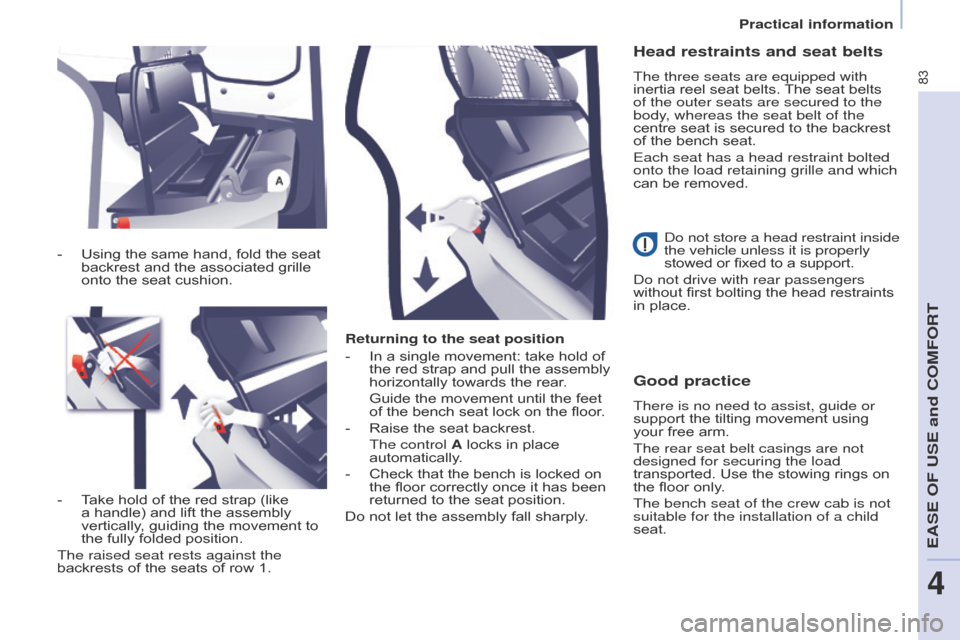

Returning to the seat position
-
In a single movement: take hold of
the red strap and pull the assembly
horizontally towards the rear

.
Guide the movement until the feet
of the bench seat lock on the floor

.
-

Raise the seat backrest.
The control

A locks in place
automatically.
-

Check that the bench is locked on
the floor correctly once it has been
returned to the seat position.
Do not let the assembly fall sharply

.
Good practice
There is no need to assist, guide or
support the tilting movement using
your free arm.
The rear seat belt casings are not
designed for securing the load
transported. Use the stowing rings on
the floor only.
The bench seat of the crew cab is not
suitable for the installation of a child
seat.
-

Using the same hand, fold the seat
backrest and the associated grille


onto the seat cushion.
-

T

ake hold of the red strap (like
a handle) and lift the assembly
vertically, guiding the movement to
the fully folded position.
The raised seat rests against the
backrests of the seats of row 1.
Head restraints and seat belts
The three seats are equipped with
inertia reel seat belts. The seat belts
of the outer seats are secured to the
body, whereas the seat belt of the
centre seat is secured to the backrest
of the bench seat.
Each seat has a head restraint bolted
onto the load retaining grille and which
can be removed.
d

o not store a head restraint inside
the vehicle unless it is properly
stowed or fixed to a support.
d

o not drive with rear passengers
without first bolting the head restraints
in place.
EASE OF USE and COMFORT
4
Practical information

103
Berlingo-2-VU_en_Chap05_Securite_ed01-2016Berlingo-2-VU_en_Chap05_Securite_ed01-2016

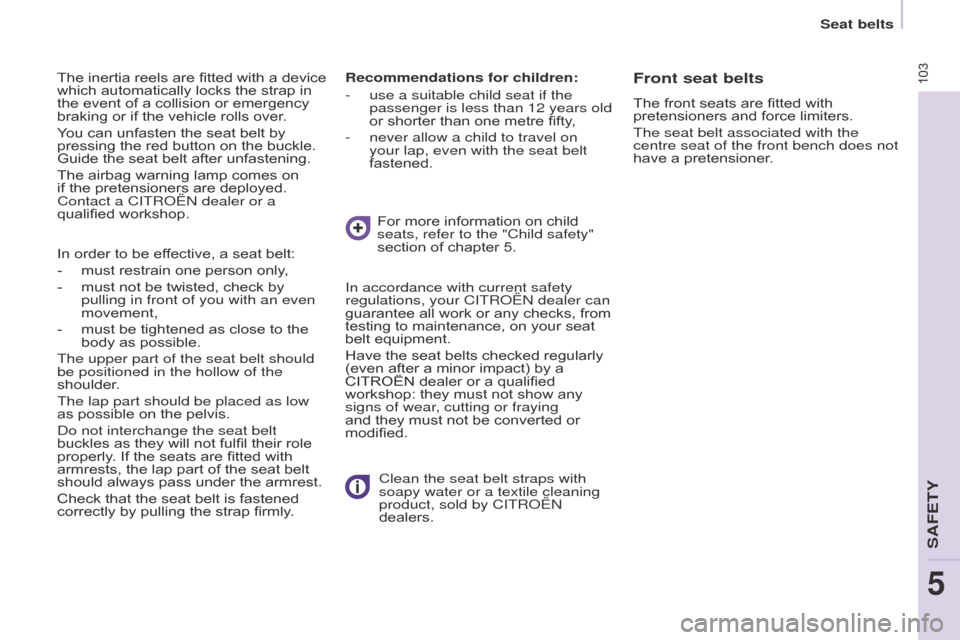

The inertia reels are fitted with a device
which automatically locks the strap in
the event of a collision or emergency
braking or if the vehicle rolls over.
You can unfasten the seat belt by
pressing the red button on the buckle.
Guide the seat belt after unfastening.
The airbag warning lamp comes on
if the pretensioners are deployed.
Contact a CITRo Ë n dealer or a
qualified workshop. Recommendations for children:
-

use a suitable child seat if the
passenger is less than 12 years old
or shorter than one metre fifty

,
-

never allow a child to travel on
your lap, even with the seat belt
fastened.For more information on child
seats, refer to the "Child safety"
section of chapter 5.
Clean the seat belt straps with
soapy water or a textile cleaning
product, sold by CITR

o Ë n
dealers.
In accordance with current safety
regulations, your CITR
o Ë n dealer can
guarantee all work or any checks, from
testing to maintenance, on your seat
belt equipment.
Have the seat belts checked regularly
(even after a minor impact) by a
CITROËN dealer or a qualified
workshop: they must not show any
signs of wear, cutting or fraying
and they must not be converted or
modified.Front seat belts
The front seats are fitted with
pretensioners and force limiters.
The seat belt associated with the
centre seat of the front bench does not
have a pretensioner.
In order to be effective, a seat belt:
-

must restrain one person only

,
-

must not be twisted, check by
pullin

g in front of you with an even
movement,
-

must be tightened as close to the
body as possible.
The upper part of the seat belt should
be positioned in the hollow of the
shoulder

.
The lap part should be placed as low
as possible on the pelvis.
d

o not interchange the seat belt
buckles as they will not fulfil their role
properly. If the seats are fitted with
armrests, the lap part of the seat belt
should always pass under the armrest.
Check that the seat belt is fastened
correctly by pulling the strap firmly.
SaFETY
5
Seat belts

11 6
Berlingo-2-VU_en_Chap05_Securite_ed01-2016Berlingo-2-VU_en_Chap05_Securite_ed01-2016

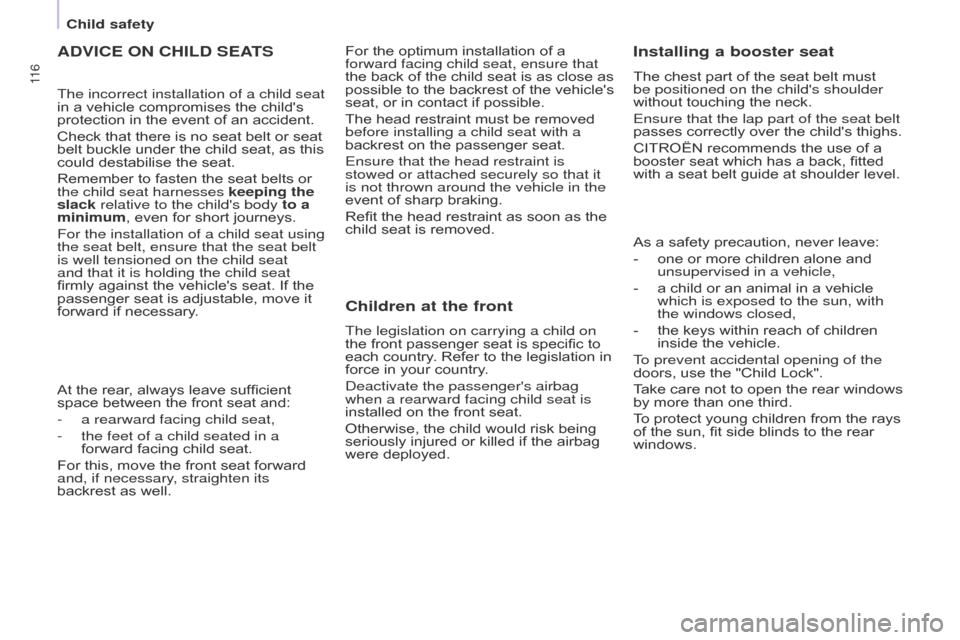

ADVICE ON CHILD SEATS
The incorrect installation of a child seat
in a vehicle compromises the child's
protection in the event of an accident.
Check that there is no seat belt or seat
belt buckle under the child seat, as this
could destabilise the seat.
Remember to fasten the seat belts or
the child seat harnesses keeping the
slack relative to the child's body to a
minimum, even for short journeys.
For the installation of a child seat using
the seat belt, ensure that the seat belt
is well tensioned on the child seat
and that it is holding the child seat
firmly against the vehicle's seat. If the
passenger seat is adjustable, move it
forward if necessary.
At the rear, always leave sufficient
space between the front seat and:
-
a rearward facing child seat,
-


the feet of a child seated in a
forward facing child seat.
For this, move the front seat forward
and, if necessary

, straighten its
backrest as well. For the optimum installation of a
forward facing child seat, ensure that
the back of the child seat is as close as
possible to the backrest of the vehicle's
seat, or in contact if possible.
The head restraint must be removed
before installing a child seat with a
backrest on the passenger seat.
Ensure that the head restraint is
stowed or attached securely so that it
is not thrown around the vehicle in the
event of sharp braking.
Refit the head restraint as soon as the
child seat is removed.
Children at the front
The legislation on carrying a child on
the front passenger seat is specific to
each country. Refer to the legislation in
force in your country.
d

eactivate the passenger's airbag
when a rearward facing child seat is
installed on the front seat.
Otherwise, the child would risk being
seriously injured or killed if the airbag
were deployed.
Installing a booster seat
The chest part of the seat belt must
be positioned on the child's shoulder
without touching the neck.
Ensure that the lap part of the seat belt
passes correctly over the child's thighs.
CITROËN recommends the use of a
booster seat which has a back, fitted
with a seat belt guide at shoulder level.
As a safety precaution, never leave:
-

one or more children alone and
unsupervised in a vehicle,
-


a child or an animal in a vehicle
which is exposed to the sun, with
the windows closed,
-


the keys within reach of children
inside the vehicle.
T

o prevent accidental opening of the
doors, use the "Child Lock".
Take care not to open the rear windows
by more than one third.
To protect young children from the rays
of the sun, fit side blinds to the rear
windows.
Child safety
