Citroen C1 2008.5 1.G Owner's Guide
Manufacturer: CITROEN, Model Year: 2008.5, Model line: C1, Model: Citroen C1 2008.5 1.GPages: 99, PDF Size: 4.14 MB
Page 31 of 99
3
31
COMFORT
VENTILATION
Recommendations for use
If the interior temperature
remains very high after
a prolonged period parked in the
s u n , fi r s t v e n t i l a t e t h e p a s s e n g e r
compartment for a few minutes.
For an even air distribution, make
sure that you do not block the outside
air inlet grille, the vents, the air
passages and the air outlets to the
footwells.
Ensure that the passenger
c o m p a r t m e n t fi l t e r , l o c a t e d b e l o w
the windscreen, in the engine
compartment, is in good condition.
H a v e t h e fi l t e r e l e m e n t s r e p l a c e d
regularly. If you drive in dusty
conditions, change them twice as
often.
Operate the air conditioning system
for 5 to 10 minutes, once or twice a
month, to keep it in perfect working
order.
In order to ensure that your air
conditioning system continues to
operate correctly, you are advised to
have it checked regularly.
The condensation created by the air
c o n d i t i o n i n g r e s u l t s i n a fl o w o f w a t e r
under the vehicle when stationary
which is perfectly normal.
If the system does not produce
cold air, do not use it and contact a
CITROËN dealer.
3. Side vents.
4. Diffusion grille.
5. Air outlets to the footwells.
1. Windscreen demisting/defrosting
vent.
2. Side window demisting/
defrosting vents.
The air conditioning system
does not contain chlorine
and does not present any
danger to the ozone layer.
Page 32 of 99
3
32
COMFORT
HEATING
1. Temperature adjustment
Turn the control from blue (cold) to
red (hot) to adjust the temperature to
suit your requirements.
2 . A i r fl o w a d j u s t m e n t
When the ignition is switched on,
t u r n t h e c o n t r o l t o o b t a i n a fl o w o f
a i r w h i c h i s s u f fi c i e n t t o e n s u r e y o u r
comfort.
To maintain a certain level of comfort
in the passenger compartment, avoid
position 0 whenever possible.
In position 0 , a s l i g h t fl o w o f a i r , d u e
to the movement of the vehicle, can
still be felt. The air distribution can be
adjusted by placing the
control in an intermediate
position.
Footwells. 4. Rear screen demisting
With the engine running,
press button 4 , the indicator
lamp comes on.
The system demists the
rear screen.
It is switched off by pressing control 4 .
Windscreen, side windows
and footwells. Footwells, diffusion grille
and side vents.
Diffusion grille and side
vents.
3. Air distribution adjustment Windscreen and side win-
dows. Switch the system off as
soon as you consider
this necessary as a lower
consumption of current
reduces fuel consumption.
Demisting and defrosting
To quickly demist or defrost the
windscreen and side windows:
- set the air distribution to "Windscreen and side windows",
- place the temperature control 1
a n d t h e a i r fl o w c o n t r o l 2 at
maximum,
- close the side vents.
Page 33 of 99
3
33
COMFORT
1. Air conditioning On/Off With the engine running,
press the button, the
indicator lamp comes on.
1. Air conditioning On/Off
2. Temperature adjustment
3. A i r fl o w a d j u s t m e n t
AIR CONDITIONING
2. Temperature adjustment
Turn the control from blue (cold) to
red (hot) to adjust the temperature to
suit your requirements.
4. Air recirculation/Air intake
5. Air distribution adjustment
6. Rear screen demisting 3 . A i r fl o w a d j u s t m e n t
When the ignition is switched on,
t u r n t h e c o n t r o l t o o b t a i n a fl o w o f
a i r w h i c h i s s u f fi c i e n t t o e n s u r e y o u r
comfort.
To maintain a certain level of comfort
in the passenger compartment, avoid
position
0 whenever possible.
In position 0 , a s l i g h t fl o w o f a i r , d u e
to the movement of the vehicle, can
still be felt.
T h e a i r c o n d i t i o n i n g w i l l n o t o p e r a t e
i f t h e a i r fl o w a d j u s t m e n t c o n t r o l 3
is in position 0.
Page 34 of 99
3
34
COMFORT Footwells.
4 . A i r r e c i r c u l a t i o n / A i r i n t a k e
The recirculation of interior air
(control 4 to the left) enables
you to isolate the passenger
compartment from exterior
odours and smoke. 5. Air distribution adjustment
Windscreen and side
windows.
The air distribution can be
adjusted by placing the
control in an intermediate
position. Windscreen, side windows
and footwells.
Footwells, diffusion grille and
side vents.
Diffusion grille and side
vents. 6. Rear screen demisting
As soon as possible, move control 4
to the right to the "Intake of exterior
air" position to avoid the risks of
deterioration of the air quality and
misting of the windscreen and side
windows. The intake of exterior air
(control
4 to the right) enables
you to prevent and eliminate
misting of the windscreen
and side windows. With the engine running,
press button
6 , the indicator
lamp comes on.
The system demists the
rear screen.
It is switched off by pressing control 6 .
In a humid climate, use of the
air recirculation may cause
misting of the windows. Switch the system off as
soon as you consider
this necessary as a lower
consumption of current
reduces fuel consumption.
Demisting and defrosting
To quickly demist or defrost the
windscreen and side windows:
- set the air distribution to "Windscreen and side windows",
- place the temperature control 2
a n d t h e a i r fl o w c o n t r o l 3 at
maximum,
- close the side vents,
- place the air intake control 4 in
the "Air intake" position,
- switch on the air conditioning by pressing button 1 .

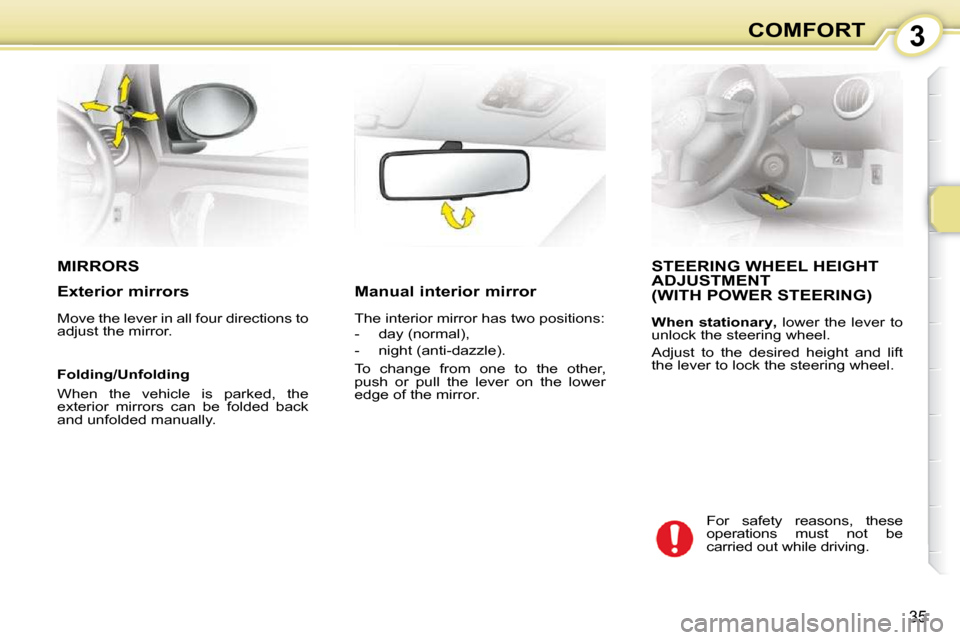

Page 35 of 99
3
35
COMFORT
MIRRORS STEERING WHEEL HEIGHT ADJUSTMENT (WITH POWER STEERING)
When stationary
, lower the lever to
unlock the steering wheel.
Adjust to the desired height and lift
the lever to lock the steering wheel.
F o l d i n g / U n f o l d i n g
When the vehicle is parked, the
exterior mirrors can be folded back
and unfolded manually. M a n u a l i n t e r i o r m i r r o r
The interior mirror has two positions:
- day (normal),
- night (anti-dazzle).
To change from one to the other,
push or pull the lever on the lower
edge of the mirror.
Exterior mirrors
Move the lever in all four directions to
adjust the mirror.
For safety reasons, these
operations must not be
carried out while driving.

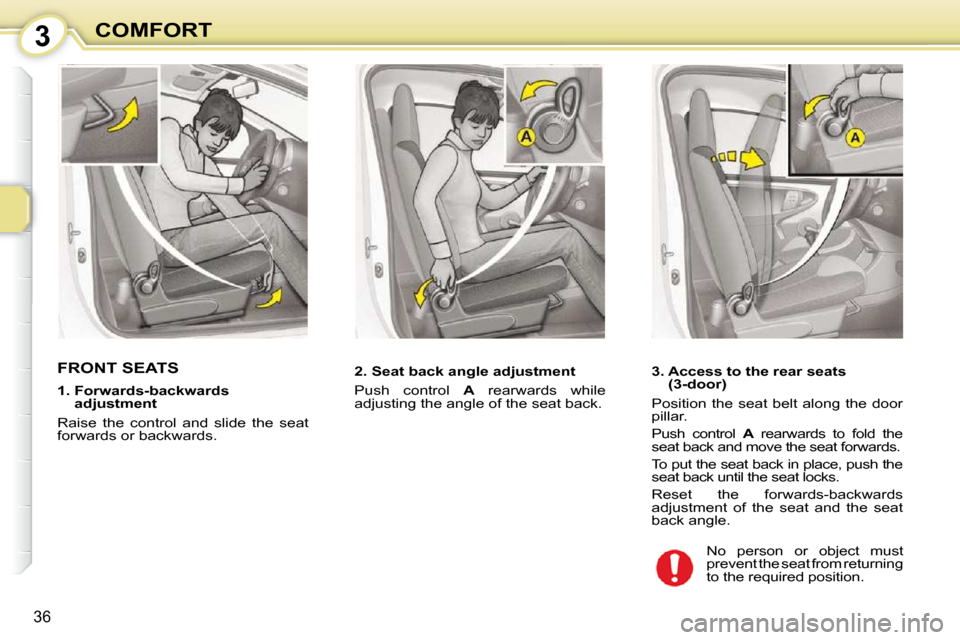

Page 36 of 99
3
36
COMFORT
FRONT SEATS 2 . S e a t b a c k a n g l e a d j u s t m e n t
Push control A rearwards while
adjusting the angle of the seat back.
3. Access to the rear seats
(3-door)
Position the seat belt along the door
pillar.
Push control A rearwards to fold the
seat back and move the seat forwards.
To put the seat back in place, push the
seat back until the seat locks.
Reset the forwards-backwards
adjustment of the seat and the seat
back angle.
1.
F o r w a r d s - b a c k w a r d s
adjustment
Raise the control and slide the seat
forwards or backwards.
No person or object must
prevent the seat from returning
to the required position.
Page 37 of 99

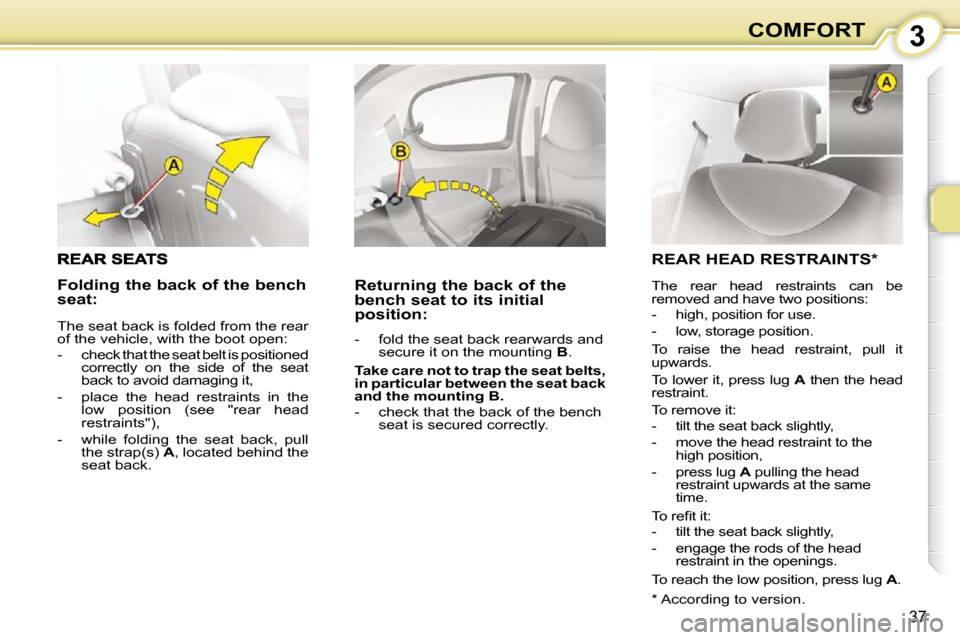

3
37
COMFORT
R e t u r n i n g t h e b a c k o f t h e
b e n c h s e a t t o i t s i n i t i a l
position:
- fold the seat back rearwards and secure it on the mounting B .
T a k e c a r e n o t t o t r a p t h e s e a t b e l t s ,
i n p a r t i c u l a r b e t w e e n t h e s e a t b a c k
and the mounting B.
- check that the back of the bench seat is secured correctly.
REAR HEAD RESTRAINTS *
The rear head restraints can be
removed and have two positions:
- high, position for use.
- low, storage position.
To raise the head restraint, pull it
upwards.
To lower it, press lug A then the head
restraint.
To remove it:
- tilt the seat back slightly,
- move the head restraint to the high position,
- press lug A pulling the head
restraint upwards at the same
time.
T o r e fi t i t :
- tilt the seat back slightly,
- engage the rods of the head restraint in the openings.
To reach the low position, press lug A .
F o l d i n g t h e b a c k o f t h e b e n c h
seat:
The seat back is folded from the rear
of the vehicle, with the boot open:
- check that the seat belt is positioned
correctly on the side of the seat
back to avoid damaging it,
- place the head restraints in the low position (see "rear head
restraints"),
- while folding the seat back, pull the strap(s) A , located behind the
seat back.
* According to version.

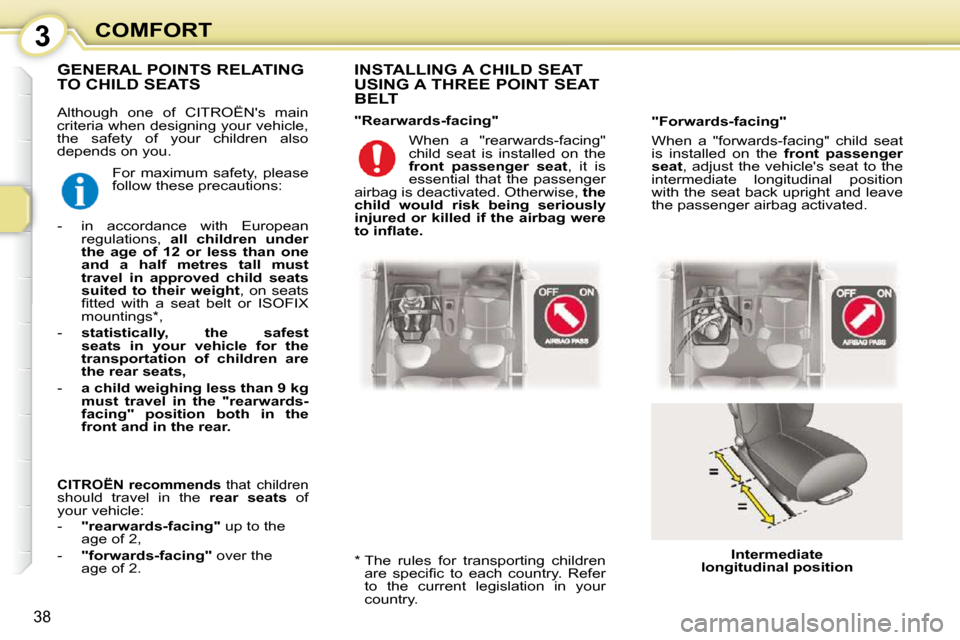

Page 38 of 99
3
38
COMFORT
Although one of CITROËN's main
criteria when designing your vehicle,
the safety of your children also
depends on you. INSTALLING A CHILD SEAT
USING A THREE POINT SEAT
BELT
Intermediate
l o n g i t u d i n a l p o s i t i o n
* The rules for transporting children
a r e s p e c i fi c t o e a c h c o u n t r y . R e f e r
to the current legislation in your
country.
GENERAL POINTS RELATING TO CHILD SEATS
" F o r w a r d s - f a c i n g "
When a "forwards-facing" child seat
is installed on the front passenger
seat , adjust the vehicle's seat to the
intermediate longitudinal position
with the seat back upright and leave
the passenger airbag activated.
" R e a r w a r d s - f a c i n g "
For maximum safety, please
follow these precautions:
- in accordance with European regulations, a l l c h i l d r e n u n d e r
t h e a g e o f 1 2 o r l e s s t h a n o n e
a n d a h a l f m e t r e s
t a l l m u s t
t r a v e l i n a p p r o v e d c h i l d s e a t s
s u i t e d t o t h e i r w e i g h t , on seats
fi t t e d w i t h a s e a t b e l t o r I S O F I X
mountings * ,
- s t a t i s t i c a l l y , t h e s a f e s t
s e a t s i n y o u r v e h i c l e f o r t h e
t r a n s p o r t a t i o n o f c h i l d r e n a r e
the rear seats,
- a c h i l d w e i g h i n g l e s s t h a n 9 k g
m u s t t r a v e l i n t h e " r e a r w a r d s -
facing" position both in the
front and in the rear. When a "rearwards-facing"
child seat is installed on the
front passenger seat , it is
essential that the passenger
airbag is deactivated. Otherwise, the
c h i l d w o u l d r i s k b e i n g s e r i o u s l y
i n j u r e d o r k i l l e d i f t h e
airbag
w e r e
t o i n fl a t e .
CITROËN recommends that children should travel in the rear seats of
your vehicle:
- " r e a r w a r d s - f a c i n g " up to the
age of 2,
- " f o r w a r d s - f a c i n g " over the
age of 2.

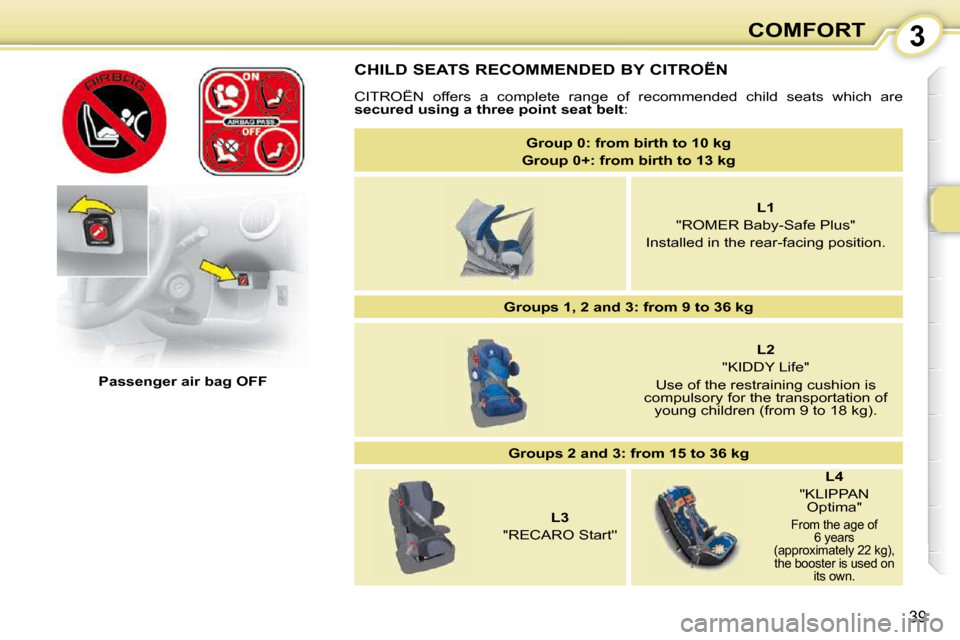

Page 39 of 99
3
39
COMFORT
CHILD SEATS RECOMMENDED BY CITROËN
CITROËN offers a complete range of recommended child seats which are
s e c u r e d u s i n g a t h r e e p o i n t s e a t b e l t :
Passenger air bag OFF
G r o u p 0 : f r o m b i r t h t o 1 0 k g
G r o u p 0 + : f r o m b i r t h t o 1 3 k g
L1
"ROMER Baby-Safe Plus"
Installed in the rear-facing position.
G r o u p s 1 , 2 a n d 3 : f r o m 9 t o 3 6 k g
L2
"KIDDY Life"
Use of the restraining cushion is
compulsory for the transportation of young children (from 9 to 18 kg).
G r o u p s 2 a n d 3 : f r o m 1 5 t o 3 6 k g
L3
"RECARO Start''
L4
"KLIPPAN Optima"
From the age of 6 years
(approximately 22 kg), the booster is used on its own.
Page 40 of 99
3
41
COMFORT
ADVICE ON CHILD SEATS
The incorrect installation of a
child seat in a vehicle compromises
the child's protection in the event of
an accident.
Remember to fasten the seat belts
or the child seat harness k e e p i n g
t h e s l a c k in relation to the child's
body to a minimum , even for short
journeys.
For optimum installation of the
"forward facing" child seat, ensure
that the back of the child seat is in
contact with the back of the vehicle's
seat and that the head restraint does
not cause any discomfort.
If the head restraint has to be
removed, ensure that it is stored or
attached securely to prevent it from
being thrown around the vehicle in
the event of sharp braking.
Children under the age of 10 must not travel in the "forward facing" position
on the front passenger seat, unless
the rear seats are already occupied
by other children, cannot be used or
are absent.
Deactivate the passenger airbag
when a "rear facing" child seat is
installed on the front seat.
Otherwise, the child would risk being
seriously injured or killed if the airbag
w e r e t o i n fl a t e . As a safety precaution, do not leave:
- one or more children alone and
unsupervised in a vehicle,
- a child or an animal in a vehicle which is exposed to the sun, with
the windows closed,
- the keys within reach of children inside the vehicle.
To protect young children from the
r a y s o f t h e s u n , fi t s i d e b l i n d s o n t h e
rear windows.
I n s t a l l i n g a b o o s t e r s e a t
The chest part of the seat belt must
be positioned on the child's shoulder
without touching the neck.
Ensure that the lap part of the seat
belt passes correctly over the child's
thighs.
CITROËN recommends the use of a
b o o s t e r s e a t w h i c h h a s a b a c k , fi t t e d
with a seat belt guide at shoulder
level.
