Page 161 of 284
159
C3_en_Chap11_Info-pratiques_ed01-2014

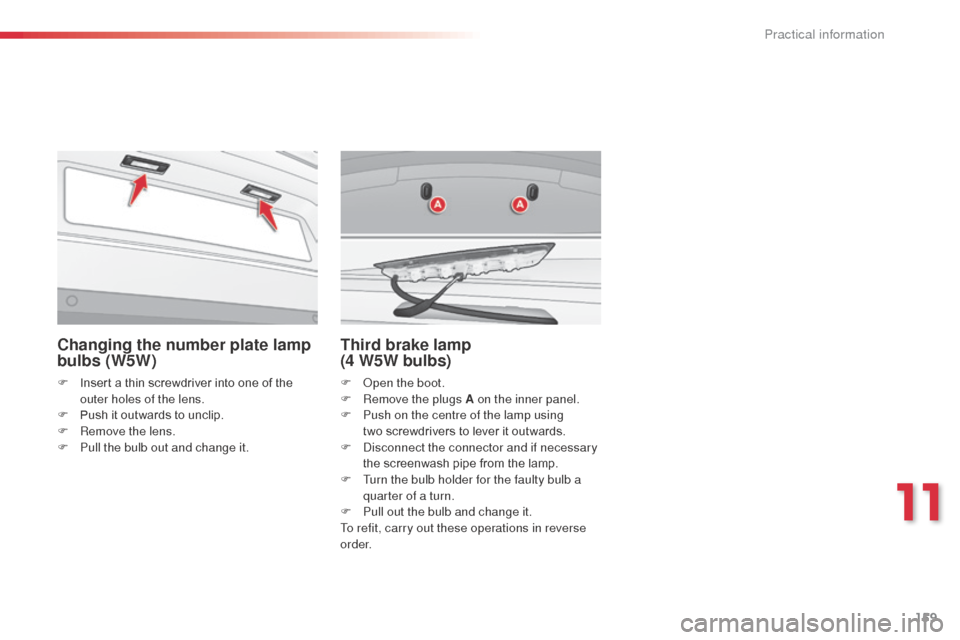

Changing the number plate lamp
bulbs (W5W)
F Insert a thin screwdriver into one of the outer holes of the lens.
F
P
ush it outwards to unclip.
F
R
emove the lens.
F
P
ull the bulb out and change it.
Third brake lamp
(4 W5W bulbs)
F open the boot.
F R emove the plugs A on the inner panel.
F
P
ush on the centre of the lamp using
two
screwdrivers to lever it outwards.
F
d
i
sconnect the connector and if necessary
the screenwash pipe from the lamp.
F
T
urn the bulb holder for the faulty bulb a
quarter of a turn.
F
P
ull out the bulb and change it.
To refit, carry out these operations in reverse
o r d e r.
11
Practical information
Page 162 of 284
160
C3_en_Chap11_Info-pratiques_ed01-2014
Interior lighting
Interior lamp (1 / W5W)
S ide reading lamps (2 / W5W) Central storage lamp (W5W)
Boot lamp (W5W)
Unclip the cover of the interior lamp 1 with a
thin screwdriver, close to the button, to access
the faulty bulb.
Unclip the cover of the reading lamp 2 with a
small screwdriver at the switch end for access
to the faulty bulb. Unclip the unit by pushing it from the rear.
Glove box lamps (W5W)
Unclip the lamp to access the bulb.Unclip the lamp to access the bulb.
Practical information
Page 163 of 284
161
C3_en_Chap11_Info-pratiques_ed01-2014
Changing a fuseProcedure for replacing a faulty fuse with a new fuse to rectify a failure of the corresponding function.
The extraction tweezer and the spare fuses are
located on the back of the dashboard fusebox
c ove r.
For access to them:
F
u
nclip the cover by pulling on the side,
F
r
emove the cover completely,
F
r
emove the pliers.
Changing a fuse
before changing a fuse, the cause of the failure
must be identified and rectified.
F
I
dentify the faulty fuse by checking the
condition of its filament.
F
U
se the special tweezer to extract the fuse
from its housing.
F
A
lways replace the faulty fuse with a fuse
of the same rating.
F
C
heck the correspondence between the
number marked on the box, the rating
marked on the fuse and the tables below. Good
FailedCITROËN will not accept responsibility
for the cost incurred in repairing your
vehicle or for rectifying malfunctions
resulting from the installation of
accessories not supplied and not
recommended by CITR
oËn
and
not installed in accordance with its
instructions, in particular when the
combined consumption of all of the
additional equipment connected
exceeds 10 milliamperes.Installing electrical
accessories
Your vehicle's electrical system is
designed to operate with standard or
optional equipment.
be
fore installing other electrical
equipment or accessories on your
vehicle, contact a CITR
oËn
dealer or a
qualified workshop.
Access to the tools
11
Practical information
Page 164 of 284
162
C3_en_Chap11_Info-pratiques_ed01-2014
Dashboard fusebox
The fusebox is located in the lower dashboard
(left-hand side).
Access to the fuses
F Refer to the paragraph "access to the
to o ls".
Fuse tables
Fuse N° Rating Functions
FH36 5 ATrailer relay unit.
FH37 -
no
t used.
FH38 20 AHi-Fi amplifier.
FH39 20 AHeated seats.
FH40 40 ATrailer relay unit.
Fuse N° Rating Functions
F1 -
no
t used.
F2 -
no
t used.
F3 5 A
ai
rbags and pretensioners control unit.
F4 10 AAir conditioning, clutch switch, electrochrome mirror, particle
filter pump (Diesel), diagnostic socket, air flow sensor (Diesel).
F5 30 AElectric windows panel, passenger's electric window control,
front electric window motor.
F6 30 ARear electric windows motors and driver's electric window motor.
F7 5 ACourtesy lamp, glove box lighting, side reading lamps.
Practical information
Page 165 of 284
163
C3_en_Chap11_Info-pratiques_ed01-2014
Fuse N°Rating Functions
F8 20 AMultifunction screen, audio system, navigation and audio
system, instrument panel with clock, alarm control unit, alarm
siren, audio system (after-market), 12 V socket, portable
navigation carrier power supply.
F9 30 AMultifunction screen, audio system, navigation and audio
system, instrument panel with clock, alarm control unit, alarm
siren, audio system (after-market), 12 V socket, portable
navigation carrier power supply, locking.
F10 15 ASteering mounted controls.
F11 15 AIgnition, diagnostic socket, automatic gearbox control unit.
F12 15 ARain
/ sunshine sensor, trailer relay unit, driving school module.
F13 5 AMain stop switch, engine relay unit, gear lever for electronic
gearbox.
F14 15 AParking sensors control unit, airbag control unit, instrument
panel, digital air conditioning, US
b
b
o
x, HiFi amplifier,
reversing camera.
F15 30 ALocking.
F16 -
no
t used.
F17 40 ARear screen and door mirrors demisting/defrosting.
SH -P
aR
C shunt.
11
Practical information
Page 166 of 284
164
C3_en_Chap11_Info-pratiques_ed01-2014
Engine compartment
fusebox
The fusebox is located in the engine
compartment near the battery (left-hand side).
Access to the fuses
F Unclip the cover.
F C hange the fuse (see corresponding
paragraph).
F
W
hen you have finished, close the cover
carefully to ensure correct sealing of the
fusebox.
All work on the fuses in the fusebox
located on the battery must be carried
out by a CITR
oËn
dealer or a qualified
workshop.
Practical information
Page 167 of 284
165
C3_en_Chap11_Info-pratiques_ed01-2014
Fuse table
Fuse N°Rating Functions
F1 20 AEngine control unit supply, cooling fan unit control relay,
multifunction engine control main relay, injection pump (
die
sel).
F2 15 AHorn.
F3 10 AFront
/ rear wash-wipe.
F4 20 A
da
ytime running lamps, LE
d d
aytime running lamps.
F5 15 A
di
esel heater (
di
esel), particle filter additive pump (
di
esel), air
flow sensor (Diesel), fuel pump (1.1i and 1.4i), blow-by heater
and electrovalves (VTi).
F6 10 AABS/ESP control unit, secondary brake lamp switch.
F7 10 AElectric power steering, automatic gearbox.
F8 25 AStarter motor control.
F9 10 ASwitching and protection unit (Diesel).
F10 30 AFuel heater (Diesel), blow-by heater (1.1i, 1.4i and Diesel),
fuel pump (VTi), injectors and ignition coils (petrol), electronic
thermostat and canister purge electrovalve (1.1i and 1.4i).
F11 40 AHeater blower.
11
Practical information
Page 168 of 284
166
C3_en_Chap11_Info-pratiques_ed01-2014
Fuse N°Rating Functions
F12 30 AWindscreen wipers slow
/ fast speed.
F13 40 A
bu
ilt-in systems inter face supply (ignition positive).
F14 30 AValvetronic supply (VTi).
F15 10 ARight-hand main beam headlamps.
F16 10 ALeft-hand main beam headlamps.
F17 15 ALeft-hand dipped beam headlamps.
F18 15 ARight-hand dipped beam headlamps.
F19 15 A
ox
ygen sensors and electrovalves (VTi), electrovalves
(
die
sel), EGR electrovalve (
die
sel).
F20 10 APumps, electronic thermostat (VTi), water in fuel sensor
(
die
sel).
F21 5 AFan assembly control supply,
ab
S
/ESP.
Practical information
Page 169 of 284
167
C3_en_Chap11_Info-pratiques_ed01-2014
Table of maxi-fuses
Fuse N°Rating Functions
MF1* 60 AFan assembly.
MF2* 30 A
a
b
S
/ ESP pump.
MF3* 30 A
a
b
S
/ ESP electrovalves.
MF4* 60 A
bu
ilt-in Systems Inter face (
bS
I) supply.
MF5* 60 A
bu
ilt-in Systems Inter face (
bS
I) supply.
MF6* -
no
t used.
MF7* 80 A
da
shboard fusebox.
MF8* -
no
t used.
*
T
he maxi-fuses provide additional protection for the electrical systems. All work on the maxi-fuses
must be carried out by a CITROËN dealer or a qualified workshop.
11
Practical information
Page 170 of 284
168
C3_en_Chap11_Info-pratiques_ed01-2014
battery
Access to the battery
The battery is located under the bonnet.
To gain access to it:
F
o
pen the bonnet using the interior release
lever, then the exterior safety catch,
F
s
ecure the bonnet stay,
F
l
ift the plastic cover on the (+) terminal.
The presence of this label, in particular
with the Stop & Start system, indicates
the use of a 12 V lead-acid battery with
special technology and specification;
the involvement of a CITR
oËn
dealer
or a qualified workshop is essential
when replacing or disconnecting the
battery.
Failure to observe this recommendation
may cause premature wear of the
battery.
af
ter refitting the battery by a CITR
oËn
dealer or a qualified workshop,
the Stop
& Start system will only
be active after a continuous period
of immobilisation of the vehicle, a
period which depends on the climatic
conditions and the state of charge of
the battery (up to about 8
hours).
Procedure for charging your battery when it is flat or for starting the engine using another battery.
