4
EXTERIOR
Parking sensors
This system measures the size of a
free parking space between two ve-
hicles or obstacles.
170
Stop & Start system
This system puts the engine temporarily
on standby during stops in the traffi c (traf-
fi c lights, traffi c jams, etc...). The engine
restarts automatically as soon as you want
to move off. The Stop & Start system al-
lows reductions of fuel consumption and
exhaust emissions, as well as noise levels
when stationary
.
158
Welcome lighting
This additional exterior and interior light-
ing, controlled remotely, makes your
approach to the vehicle easier when the
light is poor.
100, 108
Directional lighting
This lighting automatically provides
additional visibility when cornering.
101
Cornering lighting
At low speed, this lighting automati-
cally provides additional visibility
when cornering, at junctions, when
parking... making use of the corre-
sponding front foglamp.
102
Page 37 of 324
1
MONITORING
35
Service
temporarily,
accompanied by
a message. A minor malfunction has
occurred for which there is
no specifi c warning lamp. Identify the malfunction by reading the
message displayed in the screen, such
as, for example:
- the opening of the doors, boot or
bonnet,
- the engine oil level,
- the remote control battery,
- the tyre pressures,
- saturation of the particle emission fi lter on
Diesel vehicles (see "Checks - § Checks/
Particle emissions fi lter").
For any other malfunctions, contact a
CITROËN dealer or a qualifi ed workshop.
fi xed,
accompanied by
a message and
an audible signal. A major malfunction has
occurred for which there is no
specifi c warning lamp. Identify the malfunction by reading the
message displayed in the screen and
contact a CITROËN dealer or a qualifi ed
workshop.

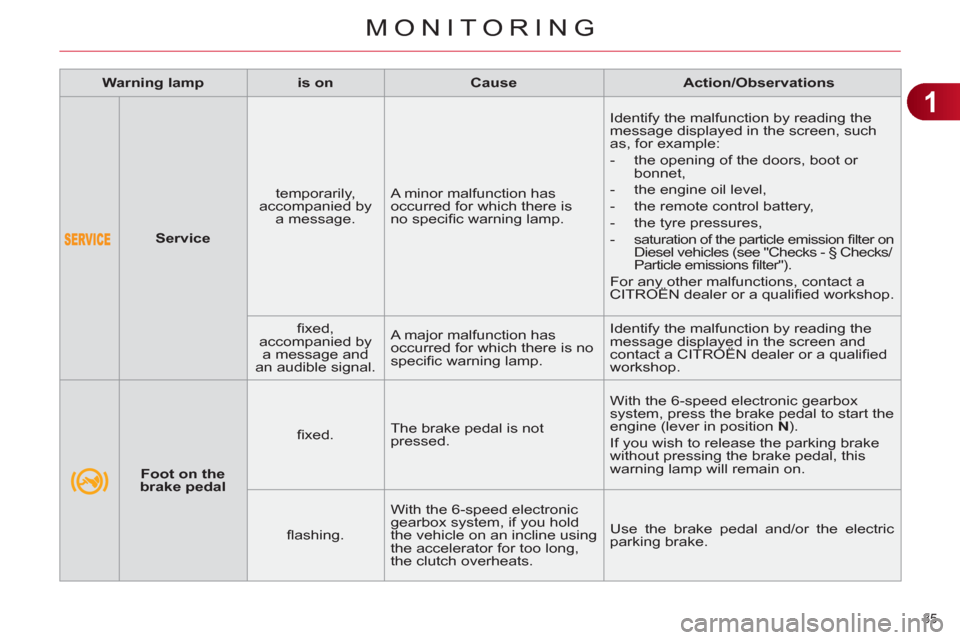

Warning lamp
is on
Cause
Action/Observations
Foot on the
brake pedal
fi xed. The brake pedal is not
pressed. With the 6-speed electronic gearbox
system, press the brake pedal to start the
engine (lever in position N
).
If you wish to release the parking brake
without pressing the brake pedal, this
warning lamp will remain on.
fl ashing. With the 6-speed electronic
gearbox system, if you hold
the vehicle on an incline using
the accelerator for too long,
the clutch overheats. Use the brake pedal and/or the electric
parking brake.
Page 81 of 324
4
79

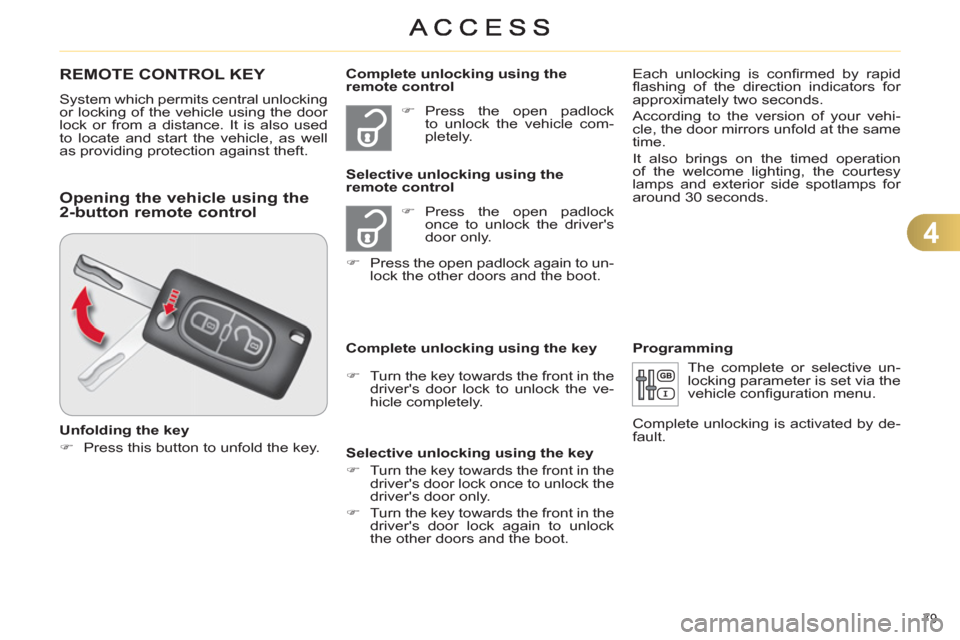

REMOTE CONTROL KEY
System which permits central unlocking
or locking of the vehicle using the door
lock or from a distance. It is also used
to locate and start the vehicle, as well
as providing protection against theft.
)
Press the open padlock
once to unlock the driver's
door only.
)
Press the open padlock again to un-
lock the other doors and the boot.
Selective unlocking using the
remote control
)
Turn the key towards the front in the
driver's door lock to unlock the ve-
hicle completely.
The complete or selective un-
locking parameter is set via the
vehicle confi guration menu.
Complete unlocking is activated by de-
fault.
Complete unlocking using the
remote control
)
Press the open padlock
to unlock the vehicle com-
pletely.
Opening the vehicle using the
2-button remote control
Unfolding the key
)
Press this button to unfold the key.
Complete unlocking using the key
Selective unlocking using the key
)
Turn the key towards the front in the
driver's door lock once to unlock the
driver's door only.
)
Turn the key towards the front in the
driver's door lock again to unlock
the other doors and the boot.
Each unlocking is confi rmed by rapid
fl ashing of the direction indicators for
approximately two seconds.
According to the version of your vehi-
cle, the door mirrors unfold at the same
time.
It also brings on the timed operation
of the welcome lighting, the courtesy
lamps and exterior side spotlamps for
around 30 seconds.
Programming
Page 83 of 324
4
81
Locking the vehicle
)
Press the closed padlock to
lock the vehicle.
Normal locking using the remote
control
Normal locking using the key
)
Turn the key towards the rear in the
driver's door lock to lock the vehicle.
Locating your vehicle
This function allows you to identify your
vehicle from a distance, particularly in
poor light. Your vehicle must be locked.
Folding the key
)
First press this button to fold the key.
)
Press the closed padlock
on the remote control.
This will switch on the courtesy lamps
and the direction indicators will fl ash for
a few seconds.
Anti-theft protection
Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code must
be recognised in order for starting to be
possible.
This electronic engine immobiliser locks
the engine management system a few
minutes after the ignition is switched off
and prevents starting of the engine by
anyone who does not have the key.
In the event of a fault, you
are informed by illumina-
tion of this warning lamp,
an audible signal and a message in the
screen.
In this case, your vehicle does not start;
contact a CITROËN dealer as soon as
possible.
Locking is confi rmed by fi xed lighting
of the direction indicators for approxi-
mately two seconds.
According to version, the door mirrors
fold at the same time.
It also brings on of the timed operation
of the exterior side spotlamps and the
guide-me-home lighting, if this is acti-
vated.
If one of the doors or the boot
is still open, the central locking
does not take place.
When the vehicle is locked, if
it is unlocked inadvertently, it
will relock automatically after
thirty seconds unless a door is
opened.
The folding and unfolding of the
door mirrors using the remote
control can be deactivated by a
CITROËN dealer.
Closing the windows using the
3-button remote control
)
Press and hold down the
closed padlock until the
level of closing is achieved.
The windows stop when
you release the button.
When closing the windows using
the remote control you must en-
sure that nothing prevents their
correct closing.
If you want to leave the windows
partly open, it is necessary to
deactivate the volumetric alarm
protection.
Page 84 of 324
4
ACCESS
82
Starting the vehicle
)
Insert the key in the ignition switch.
The system recognises the starting
code.
)
Turn the key fully towards the dash-
board to position 3 (Starting)
.
)
When the engine starts, release the
key.
A heavy object (key fob...), attached to the key and weighing down on
its shaft in the ignition switch, could
cause a malfunction.
)
Immobilise the vehicle.
)
Turn the key fully towards you to
position 1 (Stop)
.
)
Remove the key from the ignition
switch.
Key left in the "Ignition on" position
If the key has been left in the ignition
switch, the ignition will be switched off
automatically after one hour.
To switch the ignition back on, turn the
key to position 1 (Stop)
, then back to
position 2 (Ignition
on
)
.
Operating fault with the 2-button remote control
Following disconnection of the vehicle
battery, replacement of the remote con-
trol battery or in the event of malfunction
of the remote control, you can no longer
unlock, lock or locate your vehicle.
)
First of all, use the key in the lock to
unlock or lock your vehicle.
)
Then, reinitialise the remote control.
If the problem persists, contact a
CITROËN dealer as soon as possible.
Reinitialisation
)
Switch off the ignition.
)
Turn the key to position 2 (Ignition
on)
.
)
Press the closed padlock immedi-
ately for a few seconds.
)
Switch off the ignition and remove
the key from the ignition switch.
The remote control is fully operational
again. Battery ref.: CR1620/3 volts.
Changing the battery
If the battery is fl at, you are in-
formed by illumination of this
warning lamp, an audible signal
and a message in the screen.
)
Unclip the casing using a coin at the
notch.
)
Slide the fl at battery out of its loca-
tion.
)
Slide the new battery into its loca-
tion observing the original direction.
)
Clip the casing.
)
Reinitialise the remote control.
Page 86 of 324
4
ACCESS
84
Lost keys
Visit a CITROËN dealer with the vehicle's V5 registration document and
your personal identifi cation documents.
The CITROËN dealer will be able to retrieve the key code and the tran-
sponder code required to order a replacement key.
Do not throw the remote con-
trol batteries away, they contain
metals which are harmful to the
environment.
Take them to an approved col-
lection point.
Remote control
The high frequency remote control is a sensitive system; do not operate
it while it is in your pocket as there is a possibility that it may unlock the
vehicle, without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and
out of sight of your vehicle. You run the risk of stopping it from working and
the remote control would have to be reinitialised.
The remote control does not operate when the key is in the ignition, even
when the ignition is switched off, except for reinitialisation.
Locking the vehicle
Driving with the doors locked may make access to the passenger compartment
by the emergency services more diffi cult in an emergency.
As a safety precaution (with children on board), remove the key from the
ignition when you leave the vehicle, even for a short time.
Anti-theft protection
Do not make any modifi cations to the electronic engine immobiliser system;
this could cause malfunctions.
When purchasing a second-hand vehicle
Have the key codes memorised by a CITROËN dealer, to ensure that the
keys in your possession are the only ones which can start the vehicle.
Page 205 of 324
11
PRACTICAL INFORMATION
203
Charging the battery using abattery charger
)
Connect one end of the green or
black cable to the negative terminal
(-) of the slave battery B
.
)
Connect the other end of the green
or black cable to the earth point C
on the broken down vehicle.
)
Operate the starter, let the engine run.
)
Wait until the engine returns to idle
and disconnect the cables.
It is advisable to disconnect the bat-
tery if the vehicle is to be left unused
for more than one month. The batteries contain harmful
substances such as sulphuric
acid and lead. They must be
disposed of in accordance with
regulations and must not, in any
circumstances, be discarded
with household waste.
Take used remote control bat-
teries and vehicle batteries to a
special collection point.
)
Connect the red cable to the posi-
tive terminal (+) of the fl at battery A
,
then to the positive terminal (+) of
the slave battery B
.

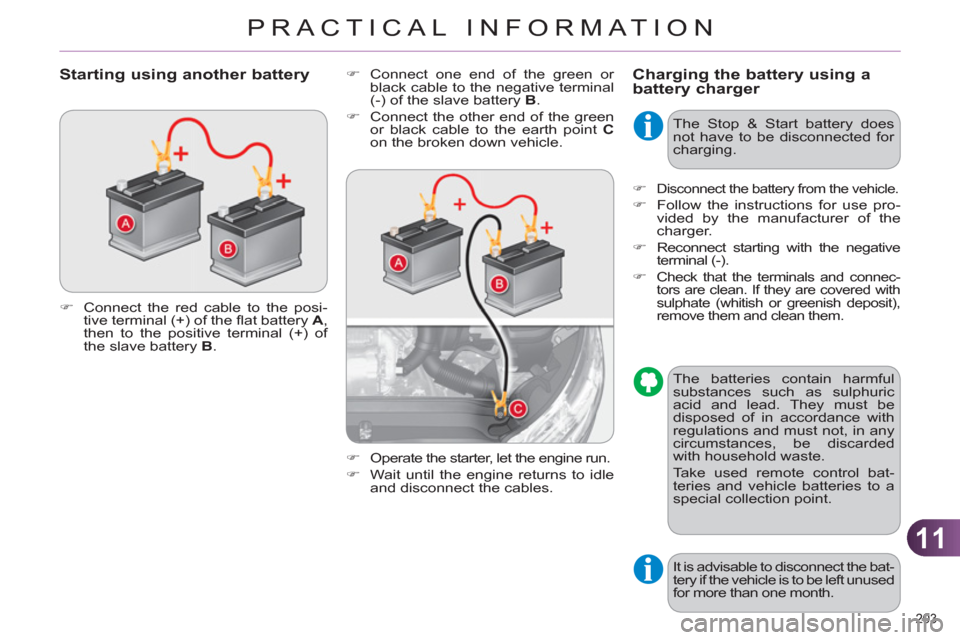

Starting using another battery
The Stop & Start battery does
not have to be disconnected for
charging.
)
Disconnect the battery from the vehicle.
)
Follow the instructions for use pro-
vided by the manufacturer of the
charger.
)
Reconnect starting with the negative
terminal (-).
)
Check that the terminals and connec-
tors are clean. If they are covered with
sulphate (whitish or greenish deposit),
remove them and clean them.
Page 206 of 324

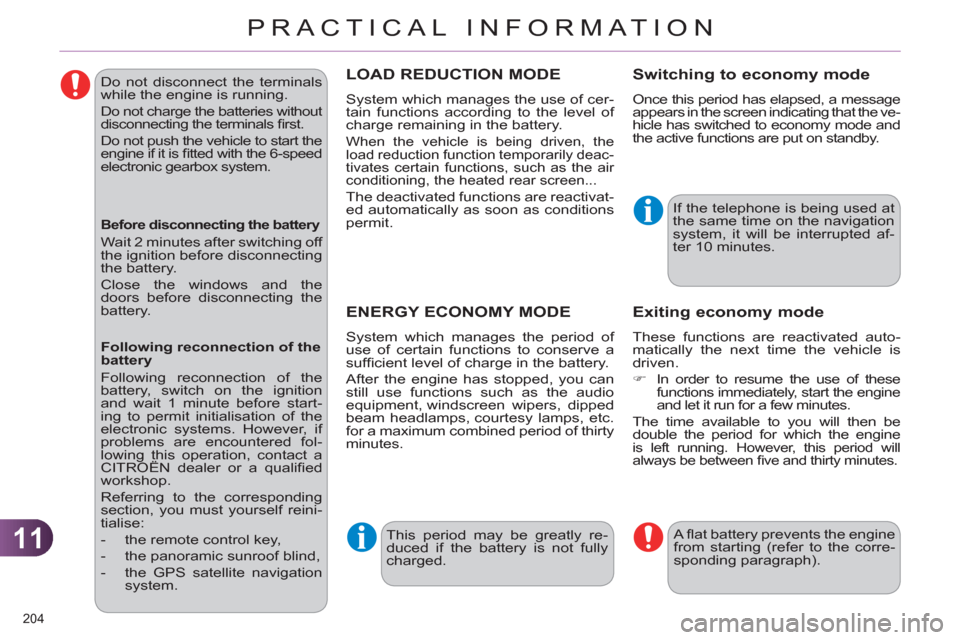

11
PRACTICAL INFORMATION
204
Do not disconnect the terminals
while the engine is running.
Do not charge the batteries without
disconnecting the terminals fi rst.
Do not push the vehicle to start the
engine if it is fi tted with the 6-speed
electronic gearbox system.
Before disconnecting the battery
Wait 2 minutes after switching off
the ignition before disconnecting
the battery.
Close the windows and the
doors before disconnecting the
battery.
Following reconnection of the
battery
Following reconnection of the
battery, switch on the ignition
and wait 1 minute before start-
ing to permit initialisation of the
electronic systems. However, if
problems are encountered fol-
lowing this operation, contact a
CITROËN dealer or a qualifi ed
workshop.
Referring to the corresponding
section, you must yourself reini-
tialise:
- the remote control key,
- the panoramic sunroof blind,
- the GPS satellite navigation
system.
LOAD REDUCTION MODE
System which manages the use of cer-
tain functions according to the level of
charge remaining in the battery.
When the vehicle is being driven, the
load reduction function temporarily deac-
tivates certain functions, such as the air
conditioning, the heated rear screen...
The deactivated functions are reactivat-
ed automatically as soon as conditions
permit.
ENERGY ECONOMY MODE
System which manages the period of
use of certain functions to conserve a
suffi cient level of charge in the battery.
After the engine has stopped, you can
still use functions such as the audio
equipment, windscreen wipers, dipped
beam headlamps, courtesy lamps, etc.
for a maximum combined period of thirty
minutes.
Switching to economy mode
Once this period has elapsed, a message
appears in the screen indicating that the ve-
hicle has switched to economy mode and
the active functions are put on standby.
If the telephone is being used at
the same time on the navigation
system, it will be interrupted af-
ter 10 minutes.
A fl at battery prevents the engine
from starting (refer to the corre-
sponding paragraph).
Exiting economy mode
These functions are reactivated auto-
matically the next time the vehicle is
driven.
)
In order to resume the use of these
functions immediately, start the engine
and let it run for a few minutes.
The time available to you will then be
double the period for which the engine
is left running. However, this period will
always be between fi ve and thirty minutes.
This period may be greatly re-
duced if the battery is not fully
charged.
Page 313 of 324
311
VISUAL SEARCH
EXTERIOR
Remote control ........................... 79-84
- opening/closing
- antitheft protection
- starting
- battery
Wiper controls......................... 103-105
Changing a wiper blade ................. 205
Door mirrors ................................ 76-77
Blind spot sensors .................. 162-164
Boot ................................................. 90
Temporary puncture repair kit ...183-187
Changing a wheel ................... 188-191
- tools
- removing/refi tting
Changing bulbs....................... 196-197
- rear lamps
- 3rd brake lamp
- number plate lamp
Parking sensors ...................... 172-173
Parking space sensors ........... 170-171
Towbar ........................................... 208
Towing .................................... 206-207
Accessories .............................210-211
Panoramic sunroof .......................... 93
Braking assistance ........................ 132
Trajectory control .................... 133-134
Tyre under-infl ation detection ........ 131
Tyre pressures ....................... 187, 222
Lighting controls ......................... 96-99
Headlamp adjustment.................... 100
Welcome lighting ................... 100, 108
Directional lighting systems .... 101-102
Changing bulbs....................... 192-195
- front lamps
- front foglamps
- side repeaters
Doors .......................................... 86-89
- opening/closing
- emergency control
Child lock ....................................... 129
Electric windows ......................... 91-92
Alarm .......................................... 87-88
Fuel tank ..................................... 94-95
Page 318 of 324
316
ALPHABETICAL INDEX
E Electric parking brake .........142-145
Electric seats ................................71
Electric window controls ...............91
Electronic brake force distribution
(EBFD) .....................................132
Electronic engine
immobiliser ...........................81, 84
Electronic
gearbox system ........151, 158, 182
Emergency boot release ..............90
Emergency braking system ........132
Emergency call ...................134, 224
Emergency warning lamps .........130
eMyWay .....................................225
Energy economy mode ..............204
Engine compartment ..........177, 178
Engine compartment fusebox ....201
Engine oil level
indicator ........................43, 46, 179
Engines ..............................212, 216
Environment .................................84
ESP/ASR ...............69, 84, 133 , 180
F Filling with fuel ........................94, 95
Fittings, boot ....................... 118, 121
Fitting speakers ..........................209
Flashing
indicators ............99, 130, 193, 195
Front airbags ......................138, 141
Front armrest ...................... 113, 114
Front foglamps .....97, 102, 192, 195
Front head restraints ....................72
Front parking sensors ................173
Front seats ..............................70-74
Front wash-wipe .........................104
Fuel ..............................................95
Fuel fi ller fl ap ..........................94, 95F Fuel gauge ...................................94
Fuel tank ................................94, 95
Fuses .........................................198
G G.P.S. ..................................231-243
Gear shift indicator .....................150
Gear lever, automatic gearbox ...154
Gear lever, electronic gearbox
system ......................................151
Gear lever, manual gearbox .......149
Glove box ................................... 110
Grab handles ..............................109
Guidance .............................231-243
H Halogen headlamps ...................192
Hands-free telephone .........248, 291
Hazard warning lamps ...............130
Headlamp adjustment ................100
Headlamps, directional .......101, 192
Headlamp wash .........................104
Heated seats ................................72
Heating ...................................64, 66
Height and reach adjustment,
steering wheel ............................78
Hill start assist ............................157
Hooks ......................................... 119
I Indicator/warning lamps ..........32-42
Indicators, direction ...130, 193 , 196
Infl ating accessories
(using the kit) ............................187
Inputs for audio system ... 111, 265, 289
Installing speakers .....................209
Instrument panel lighting ..............48
Instrument
panels ................. 27-30, 46, 49, 56I Instrument
panel screen ................. 27-30, 150
Intelligent Traction Control .........133
Interior fi ttings ..................... 109, 110
Interior mood lighting ..................107
ISOFIX child seats ..............126-128
ISOFIX mountings ......................126
J Jack ............................................188
K Keeping
children
safe .... 92, 122-129, 137, 139, 143
Key in ignition warning .................82
Key with remote control ...........79-84
L Labels, identifi cation ...................222
Lamps, warning and indicator ...32-42
Lane Departure Warning
System (LDWS) .......................161
Lateral airbags ...................140, 141
Level, brake fl uid ........................179
Level, power steering fl uid .........179
Levels and checks ...............177-182
Lighting, guide-me home ........98, 99
Lighting, interior ..................106, 107
Lighting bulbs
(replacement) ....................192-197
Lighting dimmer .................27-30, 48
Lighting stalk ..........................96, 99
Load reduction mode .................204
Load space cover .......................121
Locating your vehicle ...................81
Locking from the inside ................85
Locking the boot ...........................90
Long objects, transporting .......... 117
Luggage retaining strap ............. 118
