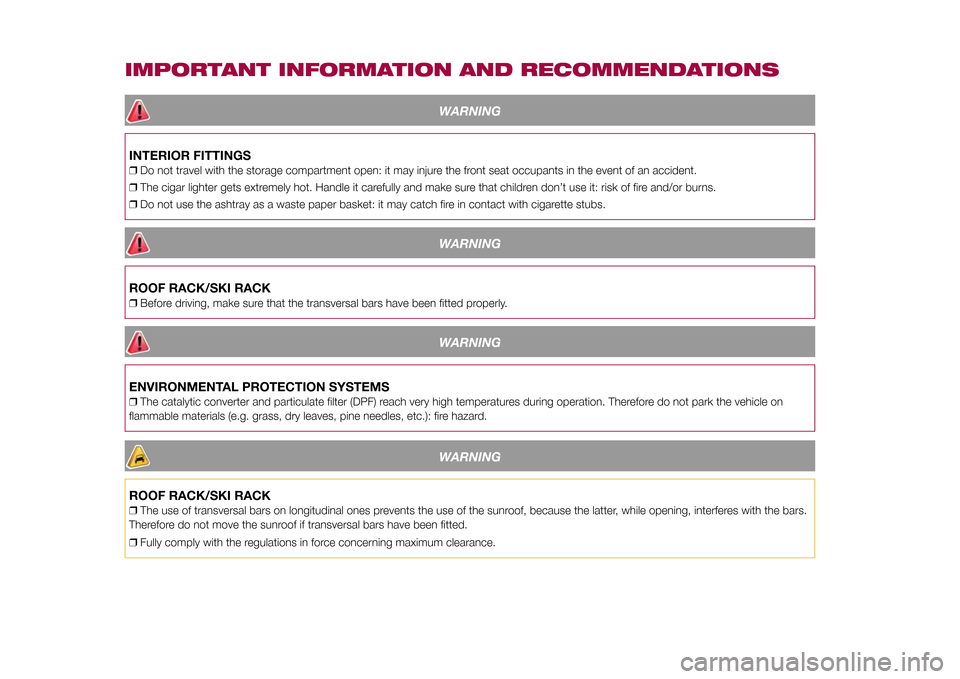

IMPORTANT INFORMATION AND RECOMMENDATIONS
WARNING
INTERIOR FITTINGS❒Do not travel with the storage compartment open: it may injure the front seat occupants in the event of an accident.
❒The cigar lighter gets extremely hot. Handle it carefully and make sure that children don’t use it: risk of fire and/or burns.
❒Do not use the ashtray as a waste paper basket: it may catch fire in contact with cigarette stubs.
WARNING
ROOF RACK/SKI RACK❒Before driving, make sure that the transversal bars have been fitted properly.
WARNING
ENVIRONMENTAL PROTECTION SYSTEMS❒The catalytic converter and particulate filter (DPF) reach very high temperatures during operation. Therefore do not park the vehicle on
flammable materials (e.g. grass, dry leaves, pine needles, etc.): fire hazard.
WARNING
ROOF RACK/SKI RACK❒The use of transversal bars on longitudinal ones prevents the use of the sunroof, because the latter, while opening, interferes with the bars.
Therefore do not move the sunroof if transversal bars have been fitted.
❒Fully comply with the regulations in force concerning maximum clearance.
Page 232 of 240
Page 233 of 240
Page 234 of 240
Page 235 of 240
Page 236 of 240

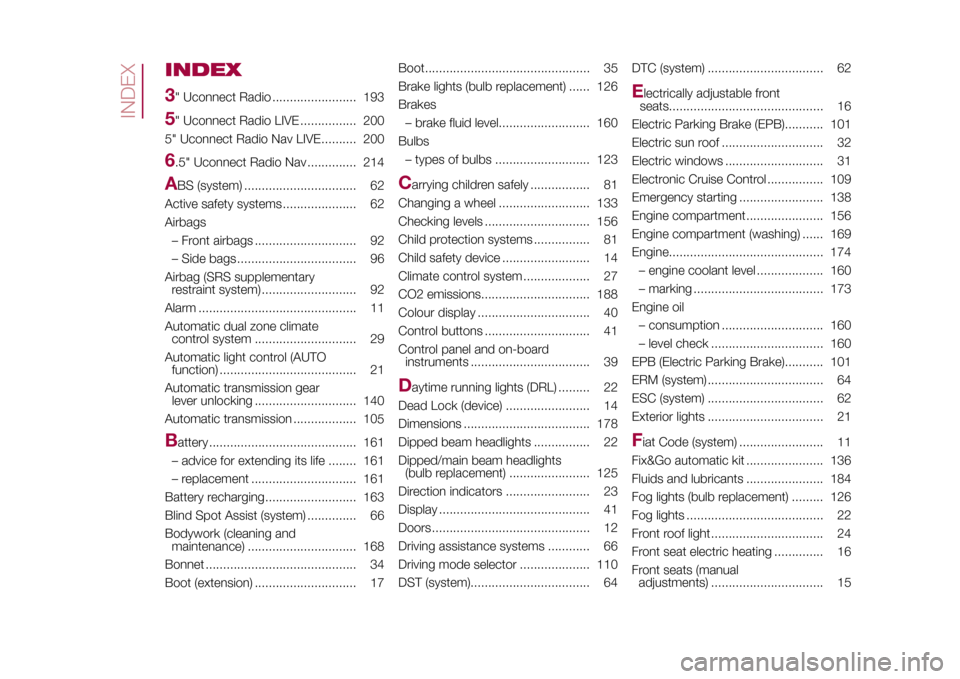

INDEX
