GETTING TO KNOW YOUR CAR
In-depth knowledge of your new vehicle
starts here.
The booklet that you are reading simply
and directly explains how it is made
and how it works.
That’s why we advise you to read it
seated comfortably on board, so that
you can see immediately what is
described here for yourself.DASHBOARD ................................. 7
THE KEYS....................................... 8
IGNITION DEVICE ........................... 9
FIAT CODE...................................... 11
ALARM ........................................... 11
DOORS ........................................... 12
SEATS ............................................ 15
HEAD RESTRAINTS ........................ 18
STEERING WHEEL ......................... 19
REAR VIEW MIRRORS .................... 20
EXTERIOR LIGHTS ......................... 21
INTERIOR LIGHTS .......................... 24
WINDSCREEN/REAR WINDOW
WIPER ............................................ 25
CLIMATE CONTROL SYSTEM ........ 27
ELECTRIC WINDOWS .................... 31
ELECTRIC SUN ROOF .................... 32
BONNET ......................................... 34
BOOT ............................................. 35
6
GETTING TO KNOW YOUR CAR
15-12-2014 8:23 Pagina 6
Page 10 of 240
THE KEYSKEY WITH REMOTE
CONTROL
1)1)
Metal insert A fig. 2 of the key operates:
❒the ignition device;
❒the driver's door lock.
Press button B to open/close the metal
insert.
1)
ELECTRONIC KEY(versions with "Keyless Go" system)
On versions equipped with "Keyless
Go" system, the vehicle features an
electronic key A fig. 3, of which two
copies are provided.
Locking door and bootBriefly press the
or "FIAT" button:
locking of doors and boot with roof light
off and single flash of direction
indicators (where provided).
Rapidly press the
button twice to
open the luggage compartment
remotely (where provided).
The direction indicators will flash twice
to indicate that the boot has been
opened.
Lights switching on (key with
remote control only)Pressing button
you can remotely
control the switching on of the side
and main beam headlights, for a
maximum of 90 seconds.Pressing the
button again the
lights switched on previously switch off
(if the parking light function was already
active it will remain so). If, when 90
seconds have passed, button
is
pressed, the main beam headlights and
the side lights will stay on for a further
30 seconds.
REQUEST FOR
ADDITIONAL KEYSShould a new key with remote control
or a new electronic key be necessary,
go to a Fiat Dealership, taking an ID
document and the vehicle ownership
documents.
WARNING
1)Press button B only with the key away
from your body, especially your eyes and
from objects which could get damaged
(e.g. your clothes). Do not leave the key
unattended, to prevent people, especially
children, from inadvertently pressing the
button.
WARNING
1)The electronic components inside the
key may be damaged if the key is
subjected to strong shocks. In order to
ensure complete efficiency of the
electronic devices inside the key, it should
never be exposed to direct sunlight.
2
F1B0007C
3
F1B0008C
8
GETTING TO KNOW YOUR CAR
15-12-2014 8:23 Pagina 8
Page 11 of 240
WARNING
1)Used batteries may be harmful to the
environment if not disposed of correctly.
They must be disposed of as specified by
law in the special containers or taken to
a Fiat Dealership, which will take care
of their disposal.

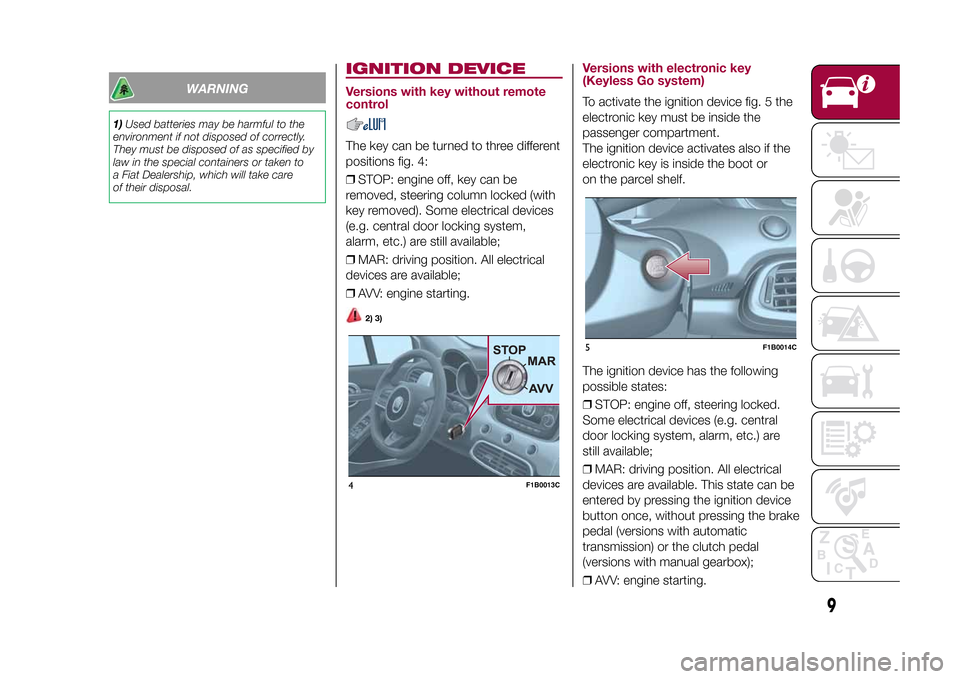

IGNITION DEVICEVersions with key without remote
controlThe key can be turned to three different
positions fig. 4:
❒STOP: engine off, key can be
removed, steering column locked (with
key removed). Some electrical devices
(e.g. central door locking system,
alarm, etc.) are still available;
❒MAR: driving position. All electrical
devices are available;
❒AVV: engine starting.
2) 3)
Versions with electronic key
(Keyless Go system)To activate the ignition device fig. 5 the
electronic key must be inside the
passenger compartment.
The ignition device activates also if the
electronic key is inside the boot or
on the parcel shelf.
The ignition device has the following
possible states:
❒STOP: engine off, steering locked.
Some electrical devices (e.g. central
door locking system, alarm, etc.) are
still available;
❒MAR: driving position. All electrical
devices are available. This state can be
entered by pressing the ignition device
button once, without pressing the brake
pedal (versions with automatic
transmission) or the clutch pedal
(versions with manual gearbox);
❒AVV: engine starting.
4
F1B0013C
5
F1B0014C
9
15-12-2014 8:23 Pagina 9
Page 12 of 240
NOTE The ignition device does NOT
activate if the electronic key is inside
the boot and this is open.
NOTE With the ignition device at MAR,
if 30 minutes pass with the vehicle
stationary (versions with manual
gearbox) or with the gear lever at P
(Park) (versions with automatic
transmission) and the engine off, the
ignition device will automatically move
to the STOP position.
NOTE With engine started, it is possible
to go away from the vehicle taking the
electronic key with you. The engine
will still be running. The vehicle will
indicate the absence of the key
on board when the door is closed.
For more information on the engine
start-up, see the description in the
"Starting the engine" paragraph, in the
"Starting and driving" chapter.
4) 5)
STEERING LOCK
ActivationVersions with key without remote
control: with the device at STOP,
remove the key and turn the steering
wheel until it locks.IMPORTANT If the ignition key has
been moved from the MAR to the
STOP position, the steering lock cannot
engage until the key is removed from
the ignition device.
Versions with electronic key: the
steering lock engages when the driver
door is opened, with the ignition device
button at STOP and speed below 3
km/h.
DeactivationVersions with key without remote
control: slightly moving the steering
wheel, turn the key to the MAR
position.
Versions with electronic key: the
steering lock disengages when the
ignition device is pressed and the
electronic key is recognised.
6) 7)
WARNING
2)If the ignition device is tampered with
(e.g.: attempted theft), have it checked
over by a Fiat Dealership as soon as
possible.
3)When getting out of the vehicle, always
take the key with you to prevent any
occupants from accidentally activating the
controls. Remember to engage the electric
parking brake. Never leave children
unattended in the vehicle.4)It is absolutely forbidden to carry out any
after-market operation involving steering
system or steering column modifications
(e.g.: installation of anti-theft device).
This could badly affect performance and
safety, invalidate the warranty and also
result in the non-compliance of the vehicle
with type-approval requirements.
5)Never remove the key without remote
control while the vehicle is moving. The
steering wheel will automatically lock as
soon as it is turned. This also applies
to cases in which the vehicle is towed.
6)Before exiting the vehicle, ALWAYS
engage the parking brake, steer the
wheels, engage the first gear if uphill and
the reverse if downhill. On versions with
automatic transmission, bring the gear
lever to P (Park) and press the ignition
device to bring it to STOP. If the vehicle is
parked on a steep slope, chock the wheels
with wedges or stones. When leaving the
vehicle, always lock all the doors by
pressing the dedicated button on the
handle (see "Keyless Entry" in the "Doors"
paragraph).
7)On versions equipped with Full Keyless
system, do not leave the electronic key
inside or near the vehicle or in a place
accessible to children. Do not leave the
vehicle with the ignition device in the MAR
position. A child could operate the electric
windows, other controls or even start
the vehicle.
10
GETTING TO KNOW YOUR CAR
15-12-2014 8:23 Pagina 10
Page 16 of 240

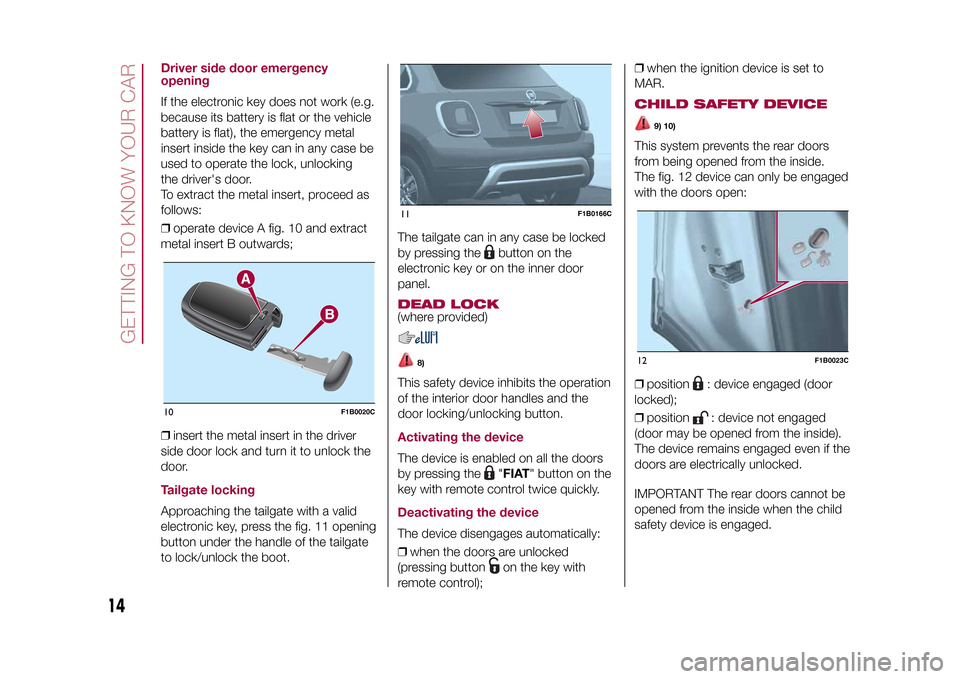

Driver side door emergency
openingIf the electronic key does not work (e.g.
because its battery is flat or the vehicle
battery is flat), the emergency metal
insert inside the key can in any case be
used to operate the lock, unlocking
the driver's door.
To extract the metal insert, proceed as
follows:
❒operate device A fig. 10 and extract
metal insert B outwards;
❒insert the metal insert in the driver
side door lock and turn it to unlock the
door.Tailgate lockingApproaching the tailgate with a valid
electronic key, press the fig. 11 opening
button under the handle of the tailgate
to lock/unlock the boot.The tailgate can in any case be locked
by pressing the
button on the
electronic key or on the inner door
panel.
DEAD LOCK(where provided)
8)
This safety device inhibits the operation
of the interior door handles and the
door locking/unlocking button.Activating the deviceThe device is enabled on all the doors
by pressing the
"FIAT" button on the
key with remote control twice quickly.
Deactivating the deviceThe device disengages automatically:
❒when the doors are unlocked
(pressing button
on the key with
remote control);❒when the ignition device is set to
MAR.
CHILD SAFETY DEVICE
9) 10)
This system prevents the rear doors
from being opened from the inside.
The fig. 12 device can only be engaged
with the doors open:
❒position
: device engaged (door
locked);
❒position: device not engaged
(door may be opened from the inside).
The device remains engaged even if the
doors are electrically unlocked.
IMPORTANT The rear doors cannot be
opened from the inside when the child
safety device is engaged.
10
F1B0020C
11
F1B0166C
12
F1B0023C
14
GETTING TO KNOW YOUR CAR
15-12-2014 8:23 Pagina 14
Page 19 of 240

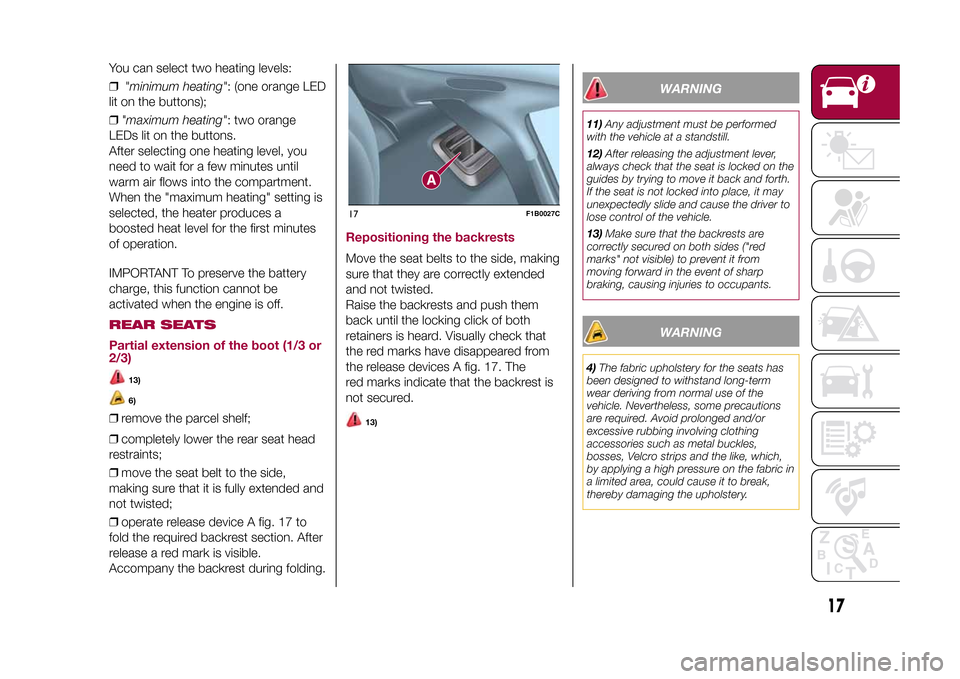

You can select two heating levels:
❒"minimum heating": (one orange LED
lit on the buttons);
❒"maximum heating": two orange
LEDs lit on the buttons.
After selecting one heating level, you
need to wait for a few minutes until
warm air flows into the compartment.
When the "maximum heating" setting is
selected, the heater produces a
boosted heat level for the first minutes
of operation.
IMPORTANT To preserve the battery
charge, this function cannot be
activated when the engine is off.REAR SEATS
Partial extension of the boot (1/3 or
2/3)
13)6)
❒remove the parcel shelf;
❒completely lower the rear seat head
restraints;
❒move the seat belt to the side,
making sure that it is fully extended and
not twisted;
❒operate release device A fig. 17 to
fold the required backrest section. After
release a red mark is visible.
Accompany the backrest during folding.
Repositioning the backrestsMove the seat belts to the side, making
sure that they are correctly extended
and not twisted.
Raise the backrests and push them
back until the locking click of both
retainers is heard. Visually check that
the red marks have disappeared from
the release devices A fig. 17. The
red marks indicate that the backrest is
not secured.
13)
WARNING
11)Any adjustment must be performed
with the vehicle at a standstill.
12)After releasing the adjustment lever,
always check that the seat is locked on the
guides by trying to move it back and forth.
If the seat is not locked into place, it may
unexpectedly slide and cause the driver to
lose control of the vehicle.
13)Make sure that the backrests are
correctly secured on both sides ("red
marks" not visible) to prevent it from
moving forward in the event of sharp
braking, causing injuries to occupants.
WARNING
4)The fabric upholstery for the seats has
been designed to withstand long-term
wear deriving from normal use of the
vehicle. Nevertheless, some precautions
are required. Avoid prolonged and/or
excessive rubbing involving clothing
accessories such as metal buckles,
bosses, Velcro strips and the like, which,
by applying a high pressure on the fabric in
a limited area, could cause it to break,
thereby damaging the upholstery.
17
F1B0027C
17
15-12-2014 8:23 Pagina 17
Page 25 of 240
Automatic main beam headlights(where provided)
In order not to disturb other road users,
the main beam headlights are
automatically deactivated when
approaching vehicles travelling in the
opposite direction or when following a
vehicle travelling in the same direction.
This function can be set through the
display menu (see the instructions
in the "Display" paragraph, "Knowing
the instrument panel" chapter); the light
switch ring nut must be turned to
AUTO to activate.
The function is activated by pushing the
stalk toward the dashboard (stable
position); the
warning light comes
on in the instrument panel. The
warning light will also come on in
the instrument panel with main beam
headlights on. If the vehicle is turned off
with the setting described previously,
the automatic main beam headlight
function will need a new resetting: bring
back the stalk in the centre position
and then press it again towards the
instrument panel.
When the speed is higher than 40 km/h
and the function is active, if the stalk
is brought again to the stable central
position the function deactivates and
the main beam headlights turn off.When the speed is lower than 15 km/h
and the function is active, the system
automatically switches the main beam
headlights off.
If the stalk is moved from the stable
central position and pushed again
towards the dashboard in the stable
position, this is interpreted as a request
for fixed main beam headlights: the
warning light comes on in the
instrument panel and the main beam
headlights turn on until vehicle speed
exceeds 40 km/h again. When this
threshold is exceeded the function
activates again automatically and the
warning light comes on again
in the instrument panel.
To deactivate this function, rotate the
light switch ring nut to the
position.
DIRECTION INDICATORSBring left stalk A fig. 28 to the (stable)
position:
upwards: activates the right direction
indicator;
downwards: activates the left direction
indicator.
The
or
warning light respectively
will flash on the instrument panel.
The direction indicators switch
off automatically when the steering
wheel is straightened or when the
daytime running lights (DRL)/parking
lights are activated.
"Lane Change" functionIf you wish to signal a lane change while
running, place the left stalk in the
unstable position for less than half a
second.
The direction indicator on the side
selected will flash five times and then
switch off automatically.HEADLIGHT ALIGNMENT
ADJUSTMENT
Headlight alignment correctorThe headlight alignment corrector
operates with ignition device at MAR
and dipped headlights on.
To adjust rotate ring nut A fig. 29.
❒Position 0: one or two people on the
front seats;
❒Position 1: 4 or 5 passengers
❒Position 2: 4 or 5 passengers + load
in the boot29
F1B0038C
23
15-12-2014 8:23 Pagina 23
Page 26 of 240
❒Position 3: driver + maximum
admissible load stowed only in the
boot.
IMPORTANT Check the headlight
alignment each time the weight of the
load transported changes.INSTRUMENT PANEL AND
CONTROL BUTTON
GRAPHICS BRIGHTNESS
ADJUSTMENTWith side lights or headlights on, turn
ring nut B fig. 29 upwards to increase
light brightness of the instrument panel
and of the control button graphics, or
turn the ring nut downwards to
decrease it.
WARNING
18)The daytime running lights are an
alternative to the dipped beam headlights
for driving in countries where it is
compulsory to have lights on during the
day; where it is not compulsory, the use of
daytime running lights is permitted.
19)Daytime running lights cannot replace
dipped beam headlights when driving at
night or through tunnels. The use of
daytime running lights is governed by the
highway code of the country in which
you are driving. Comply with legal
requirements.
INTERIOR LIGHTSFRONT ROOF LIGHTSwitch A fig. 30 is used to switch on/off
the roof light bulbs.
Switch A positions:
❒central position: lights B and E switch
on/off when the doors are opened/
closed;
❒pressed to the left (OFF): lights B and
E are always switched off;
❒pressed to the right (
): lights B
and E are always switched on.
The lights switch on/off gradually.
Switch C switches light B on/off.
Switch D switches light E on/off.
Roof light timingOn certain versions, to facilitate getting
in/out of the vehicle at night or in
poorly-lit areas, two timed modes have
been provided.
❒Timing while getting into the vehicle
❒Timing while getting out of the
vehicle.
30
F1B0041C
24
GETTING TO KNOW YOUR CAR
15-12-2014 8:23 Pagina 24
Page 37 of 240
❒lower the bonnet to approximately 40
centimetres from the engine
compartment and let it drop. Make sure
that the bonnet is completely closed
and not only fastened by the locking
device by trying to open it. If it is not
perfectly closed, do not try to press the
bonnet lid down but open it and repeat
the procedure.
IMPORTANT Always check that the
bonnet is closed correctly to prevent it
from opening while the vehicle is
travelling.
WARNING
23)Perform these operations only when
the vehicle is stationary.
24)Wrong positioning of the bonnet stay
may cause the bonnet to fall abruptly.
25)Raise the bonnet using both hands.
Before raising the bonnet make sure that
the windscreen wipers are not lifted from
the windscreen, that the vehicle is at a
standstill and that the electric parking brake
is engaged.26)For safety reasons the bonnet must
always be correctly closed while driving.
Therefore, make sure that the bonnet
is properly closed and that the lock
is engaged. If you discover that the bonnet
is not perfectly closed during travel, stop
immediately and close the bonnet in the
correct manner.
BOOTThe boot unlocking is electrically
operated and is deactivated when the
vehicle is in motion.OPENING
27)
Opening from the outsideWhen unlocked, the tailgate can be
opened from outside the vehicle using
the electric opening handle A fig. 43
located under the handle until the
unlocking click is heard or by quickly
pressing button
on the remote
control twice.
43
F1B0074C
35
15-12-2014 8:23 Pagina 35
Page 38 of 240
The direction indicators will blink twice
and the internal roof light will
simultaneously come on when the boot
is opened; the roof light will
automatically switch off when the
tailgate is closed (see also "Interior
lights").
If the tailgate is left open, the roof light
will automatically switch off to preserve
the battery charge.Emergency opening from the insideProceed as follows:
❒lower the head restraints and fold the
backrests;
❒identify and remove yellow guard A
fig. 44, which is press-fitted on the lock,
using the screwdriver provided;
❒insert the screwdriver in order to
activate tab B fig. 45, for mechanical
release of the lock.
CLOSINGGrip handle A fig. 46 and lower the
tailgate, pressing next to the lock until it
clicks.
IMPORTANT Before closing the boot
make sure that you have the keys since
the boot is automatically locked.
BOOT INITIALISATIONIMPORTANT If the battery is
disconnected or the protection fuse
blows, the boot opening/closing
mechanism must be reinitialised as
follows:
❒close all the doors and the boot;
❒press the
"FIAT" button on the
remote control;
❒press thebutton on the remote
control.
LOAD COMPARTMENT
Reconfigurable load platform
12)
The vehicle is equipped with a
reconfigurable load platform A, which
makes the boot volume modular.
The load platform can be set to 2
different positions:
❒Floor level (low)fig. 47: allows you
to exploit the entire volume of the boot.
❒Threshold level (high)fig. 48: in
conjunction with the lowering of the rear
seat and front passenger side seat
backrests, permits long objects to be
loaded. It also facilitates loading/
unloading of objects in the boot. It also
allows the space underneath (false
bottom) to be used as a further
compartment for stowing objects which
are more fragile or small.
44
F1B0075C
45
F1B0076C
46
F1B0077C
36
GETTING TO KNOW YOUR CAR
15-12-2014 8:23 Pagina 36
