THE FIAT CODE SYSTEMTo further protect your car from theft, it has been
fitted with an engine immobilising system. It is
automatically activated when the ignition key is
removed.
There is an electronic device in each key which can
identify the signal emitted, when the engine is
started, from an aerial built into the ignition switch.
The signal is the "password", different every time the
vehicle is started, through which the control unit
recognises the key and enables starting.
OPERATION
Each time the vehicle is started turning the ignition
key to MAR-ON, the Fiat CODE system control unit
sends an acknowledgement code to the engine
control unit to deactivate the immobiliser. The code
is sent only if the Fiat CODE system control unit
has acknowledged the code received from the key.
Each time the ignition key is turned to STOP, the Fiat
CODE system deactivates the functions of the
engine management control unit.
If, during starting, the code is not correctly
recognised, the
warning light (or symbol on the
display) switches on in the instrument panel.
In this case, turn the key to STOP and then to
MAR-ON; if it is still locked, try again with the other
keys that come with the vehicle. Contact a Fiat
Dealership if you still cannot start the engine.IMPORTANT Each key has its own code which must
be stored by the system’s control unit. To have
new keys stored, up to a maximum number of eight
keys, contact a Fiat Dealership and be ready to
present all the keys you have in your possession, the
CODE card, a personal identity document and the
car ownership documents. The codes for keys not
presented during the storing procedure will be
deleted to ensure that any keys that are lost or
stolen cannot be used to start the engine.
warning light (or symbol on the display)
on whilst driving
❒If the
warning light (or symbol in the display)
switches on, this means that the system is running
self-diagnosis (caused, for example, by a voltage
drop).
❒If thewarning light (or symbol in the display)
stays on, contact a Fiat dealership.
The electronic components inside the key
may be damaged if the key is subjected
to strong shocks.
7GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

THE KEYSCODE CARD
(for versions/markets, where provided)
A CODE card fig. 5 is provided together with the
vehicle keys. This should be presented to a Fiat
Dealership should you require any duplicate keys.
IMPORTANT In order to ensure complete efficiency
of the electronic devices inside the keys, they should
never be exposed to direct sunlight.
The ignition key and the CODE card must
be handed over to the new owner when
selling the car.KEY WITHOUT REMOTE CONTROL
(for versions/markets, where provided)
The key is provided with a metal insert A fig. 6,
which operates:
❒the ignition switch
❒the door lock
❒the fuel flap lock/release (on versions supplied with
a lockable plug)
❒the safe lock device (deactivation only - for
versions/markets, where provided).
To request duplicates of the key, go to a Fiat
Dealership, taking an ID document and the car
ownership documents.
fig. 5
F0Q0001
fig. 6
F0Q0034
8
GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

KEY WITH REMOTE CONTROL
The key is provided with a metal insert A fig. 7,
which operates:
❒the ignition switch
❒the door lock
❒the fuel flap lock/unlock
❒the safe lock device (deactivation only - for
versions/markets, where provided)
Pressing button B opens/closes metal insert A.
Button
remotely unlocks the doors and the
tailgate.
Buttonremotely locks the doors and the tailgate.
Buttonremotely opens the tailgate.
If the button for locking doors
from the
inside is accidentally pressed, only the
doors opened for getting out of the car
are released; the tailgate remains locked. For
system reset , press the lock/release buttons again
/
.
WARNING
Press button B fig. 7 only with the key
away from your body, specifically from
your eyes and from objects which could get
damaged (e.g. your clothes). Do not leave the
key unattended to avoid the button being
accidentally pressed while it is being handled,
e.g. by a child.
Unlocking the doors and the tailgate
Briefly press button
for unlocking the doors and
tailgate with the alarm being switched off at the
same time (for versions/markets, where provided),
timed switching-on of internal roof lights and double
flashing of direction indicators (for versions/markets,
where provided).
Pressing button
for longer than 2 seconds: window
opening.
Doors will be unlocked automatically if the fuel
inertia cut-off switch is activated.
fig. 7
F0Q0255
9GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

Locking the doors and the tailgate
Briefly press button
for locking the doors and
tailgate with the alarm being switched on at the same
time (for versions/markets, where provided), timed
switching-off of internal roof lights and single flashing
of direction indicators.
Pressing button
for longer than 2 seconds: window
closing. When the button is pressed twice quickly,
the safe lock device is activated (for versions/
markets, where provided) (see "Safe Lock Device"
paragraph hereafter).
If one or more door are open, the doors will not be
locked. This is signalled by LED A fig. 8 in the central
panel and the direction indicators flashing rapidly. If
the luggage compartment is open, the doors will,
however, be locked.Opening the tailgate by the remote control
Press button
to release (open) the tailgate
remotely even with the alarm on (for versions/
markets where provided).
The opening of the tailgate is signalled by the
direction indicators flashing twice; when it is closed
there is one flash (only with the alarm on).
If an alarm is fitted, when the tailgate is opened, the
alarm system switches off the volume sensing
protection and the perimeter sensor for the tailgate.
When the tailgate is closed again, the volume sensing
protection and perimeter sensor are restored.
LED indications on central panel
When locking the doors, LED A fig. 8 switches on
for about 3 seconds and then starts flashing
(deterrence function).
If one of the doors or the tailgate are not properly
shut when the doors are being locked, the LED
flashes quickly together with the direction indicators.
fig. 8
F0Q0742
10GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

REPLACING THE BATTERY IN THE KEY
WITH REMOTE CONTROL
To replace the battery, proceed as follows fig. 9:
❒press button A and open the metal insert B;
❒turn screw C to
using a fine bit screwdriver;
❒take out the battery case D and replace the
battery E making sure that polarities are correct;
❒refit the battery case D inside the key and lock it
turning the screw C to
.REQUEST FOR ADDITIONAL REMOTE
CONTROLS
The system can recognise up to 8 remote controls.
Should a new remote control be necessary, contact a
Fiat Dealership, taking with you the CODE card, an
ID document and the car ownership documents.
Used batteries are harmful to the
environment .You can dispose of them
either in the correct containers as
specified by law or by taking them to a Fiat
Dealership, which will deal with their disposal.
REPLACING THE REMOTE CONTROL
COVER
Proceed as shown in figure fig. 10 to replace the
remove control cover.
fig. 9
F0Q0256
11GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

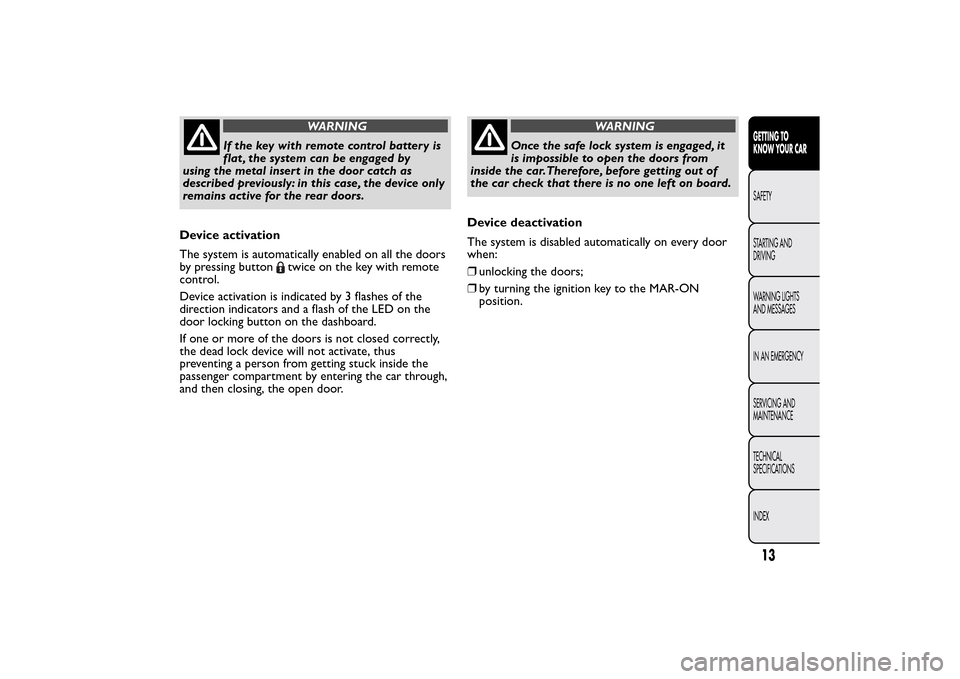

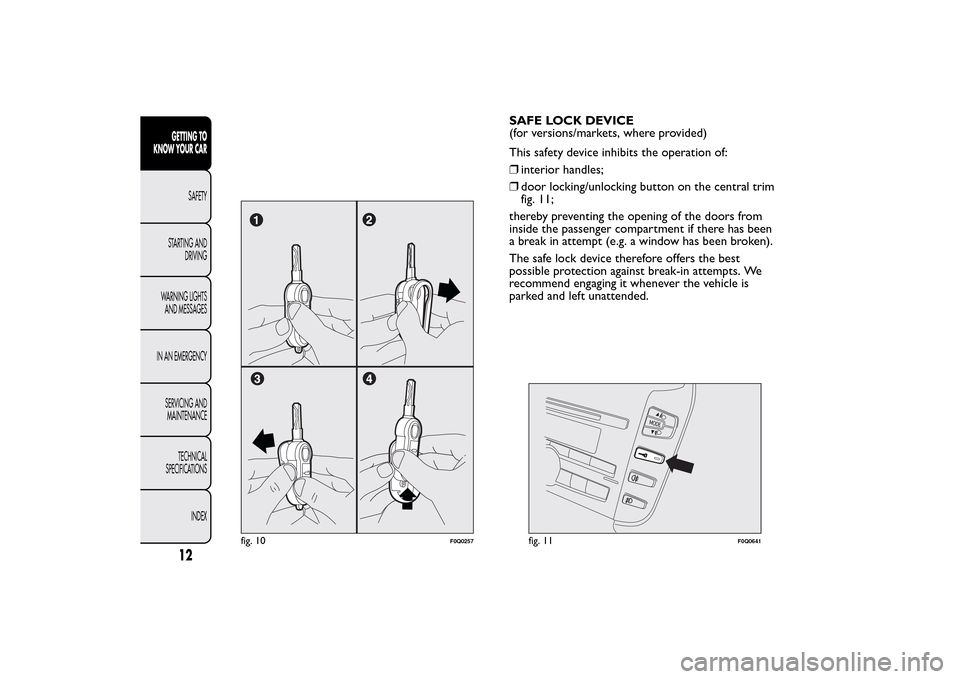

SAFE LOCK DEVICE
(for versions/markets, where provided)
This safety device inhibits the operation of:
❒interior handles;
❒door locking/unlocking button on the central trim
fig. 11;
thereby preventing the opening of the doors from
inside the passenger compartment if there has been
a break in attempt (e.g. a window has been broken).
The safe lock device therefore offers the best
possible protection against break-in attempts. We
recommend engaging it whenever the vehicle is
parked and left unattended.
fig. 10
F0Q0257
fig. 11
F0Q0641
12GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

WARNING
If the key with remote control battery is
flat , the system can be engaged by
using the metal insert in the door catch as
described previously: in this case, the device only
remains active for the rear doors.
Device activation
The system is automatically enabled on all the doors
by pressing button
twice on the key with remote
control.
Device activation is indicated by 3 flashes of the
direction indicators and a flash of the LED on the
door locking button on the dashboard.
If one or more of the doors is not closed correctly,
the dead lock device will not activate, thus
preventing a person from getting stuck inside the
passenger compartment by entering the car through,
and then closing, the open door.
WARNING
Once the safe lock system is engaged, it
is impossible to open the doors from
inside the car.Therefore, before getting out of
the car check that there is no one left on board.
Device deactivation
The system is disabled automatically on every door
when:
❒unlocking the doors;
❒by turning the ignition key to the MAR-ON
position.
13GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

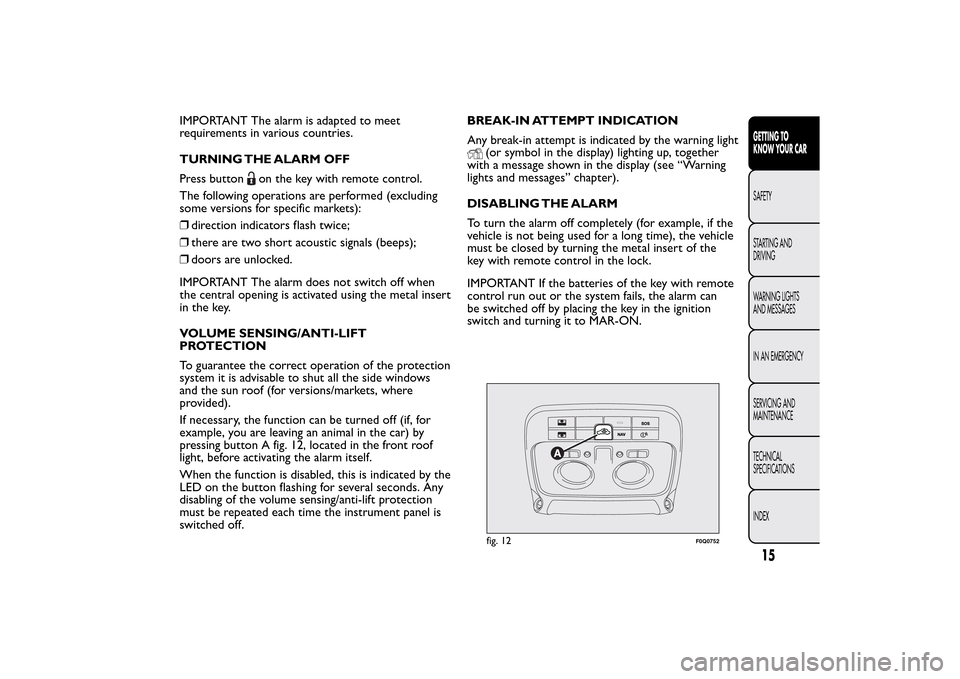

ALARM(for versions/markets, where provided)
The alarm, in addition to all the remote control
functions described previously, is controlled by the
receiver located under the dashboard near the
fuse box.
ALARM ACTIVATION
The alarm intervenes in the following instances:
❒when a door, the bonnet or the tailgate is opened
illegally (perimeter protection);
❒when the ignition system is started up (ignition key
turned to MAR-ON);
❒cutting of the battery leads;
❒movement inside the passenger compartment
(volume sensing protection);
❒anomalous lifting/tilting of the vehicle.
Depending on the market, the activation of the alarm
causes the activation of the siren and the direction
indicators (for about 26 seconds). Alarm tripping and
the number of cycles depend on the sales market.
There is a maximum number of acoustic/visual cycles.
When this is reached the system returns to normal
operation.
The volume sensing and anti-lift protection can be
excluded by adjusting the dedicated control on
the front roof light (see “Volume sensing/Anti-lift
protection”).IMPORTANT The engine stop function is guaranteed
by the Fiat CODE which is automatically activated
when the key is extracted from the ignition switch.
TURNING THE ALARM ON
With the doors, bonnet and tailgate closed and the
ignition key either turned to STOP or removed,
point the key with remote control towards the
vehicle and press and release button
.
Excluding some markets, the system produces an
acoustic signal (beep) and enables door locking.
The switching on of the alarm is preceded by a
self-diagnosis stage: if a fault is detected, the system
emits a new acoustic signal together with the display
of a message (see “Warning lights and messages”
chapter).
In this case switch off the alarm by pressing
, check
that all the doors, bonnet and tailgate are closed
correctly; then switch the alarm back on by pressing
the
button.
If a door, the bonnet and the tailgate are not
properly shut, they will be excluded from the check
by the alarm system.
If the alarm emits an acoustic signal even when the
doors, bonnet and tailgate are correctly closed, a
failure has occurred in system operation. Go to a Fiat
Dealership.
IMPORTANT The alarm does not come on when the
central locking is activated using the metal insert in
the key.
14GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

IMPORTANT The alarm is adapted to meet
requirements in various countries.
TURNING THE ALARM OFF
Press button
on the key with remote control.
The following operations are performed (excluding
some versions for specific markets):
❒direction indicators flash twice;
❒there are two short acoustic signals (beeps);
❒doors are unlocked.
IMPORTANT The alarm does not switch off when
the central opening is activated using the metal insert
in the key.
VOLUME SENSING/ANTI-LIFT
PROTECTION
To guarantee the correct operation of the protection
system it is advisable to shut all the side windows
and the sun roof (for versions/markets, where
provided).
If necessary, the function can be turned off (if, for
example, you are leaving an animal in the car) by
pressing button A fig. 12, located in the front roof
light, before activating the alarm itself.
When the function is disabled, this is indicated by the
LED on the button flashing for several seconds. Any
disabling of the volume sensing/anti-lift protection
must be repeated each time the instrument panel is
switched off.BREAK-IN ATTEMPT INDICATION
Any break-in attempt is indicated by the warning light
(or symbol in the display) lighting up, together
with a message shown in the display (see “Warning
lights and messages” chapter).
DISABLING THE ALARM
To turn the alarm off completely (for example, if the
vehicle is not being used for a long time), the vehicle
must be closed by turning the metal insert of the
key with remote control in the lock.
IMPORTANT If the batteries of the key with remote
control run out or the system fails, the alarm can
be switched off by placing the key in the ignition
switch and turning it to MAR-ON.fig. 12
F0Q0752
15GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

IGNITION SWITCHThe key can be turned to 3 different positionsfig. 13:
❒STOP: engine off, key can be removed, steering
column locked. Some electrical devices (e.g. radio,
central door locking system, electronic alarm,
etc.) are enabled.
❒MAR-ON: driving position. All electrical devices
are enabled.
❒AVV: engine start-up.
The ignition switch is fitted with a safety system that
requires the ignition key to be turned back to STOP
if the engine does not start, before the starting
operation can be repeated.
WARNING
If the ignition switch is tampered with
(e.g. attempted theft), have it checked
over by a Fiat Dealership before driving again.
WARNING
Always remove the key when you leave
your car to prevent someone from
accidentally operating the controls. Remember
to engage the handbrake. If the car is parked on
uphill slope, engage the first gear; if the car is
facing downhill, engage the reverse gear. Never
leave children unattended in the car.STEERING LOCK
Engagement
When at STOP, remove the key and turn the steering
wheel until it locks.
Disengagement
Move the steering wheel slightly as you turn the
ignition key to MAR-ON.
IMPORTANT In some parking conditions (e.g.:
wheels turned) the effort required to move the
steering wheel and disengage the steering lock may
be increased.
fig. 13
F0Q0642
16GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
