sensor FIAT BRAVO 2015 2.G Owners Manual

GETTING TO KNOW YOUR CAR
DASHBOARDThe presence and position of the controls, instruments and indicators may vary according to the different
versions.1. Diffuser for directing air to the side windows - 2. Adjustable and directable air diffuser - 3. Exterior light control lever -
4. Instrument panel - 5. Windscreen wiper/rear window wiper/trip computer control lever - 6. Adjustable and directable
air diffusers - 7. Hazard warning lights switch - 8. Passenger front airbag - 9. Glove compartment - 10. Fog lights/rear
fog lights and menu access/setting switch unit - 11. Radio controls - 12. Heating/ventilation/climate control system
controls - 13. Electric power steering and ASR system (for versions/markets, where present)/front and rear parking
sensors (for versions/markets, where present) on/off switch unit - 14. Ignition key and ignition switch - 15. Driver side
front knee bag (for versions/markets, where provided) - 16. Driver front airbag - 17. Steering wheel locking lever -
18. Fuse box access flap - 19. Bonnet release lever
fig. 1
F0Q0639
3GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

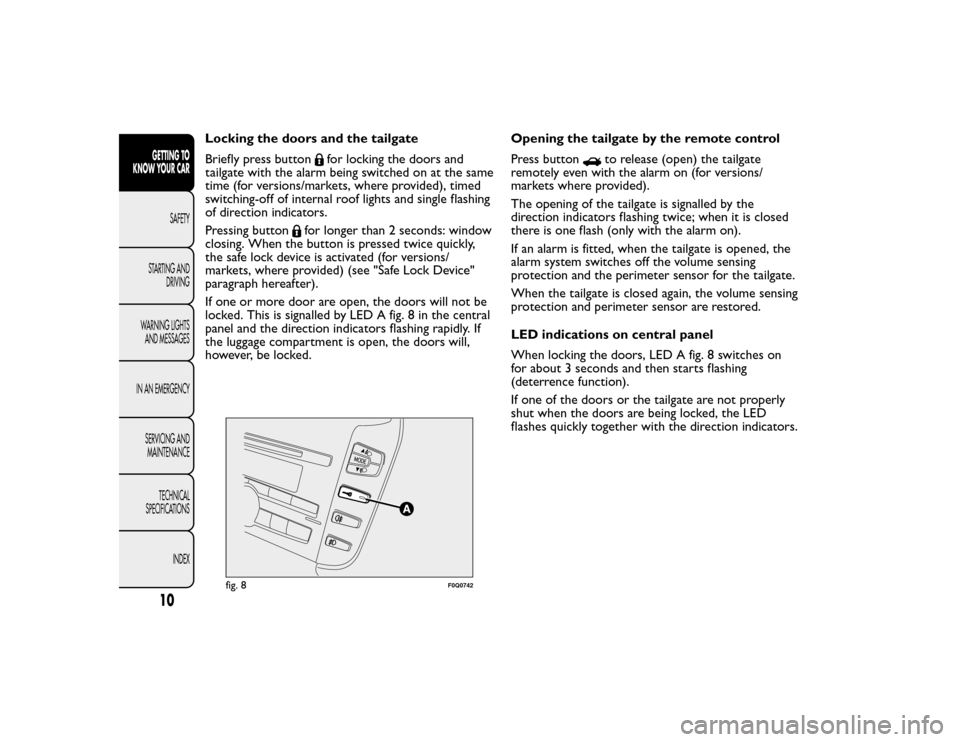

Locking the doors and the tailgate
Briefly press button
for locking the doors and
tailgate with the alarm being switched on at the same
time (for versions/markets, where provided), timed
switching-off of internal roof lights and single flashing
of direction indicators.
Pressing button
for longer than 2 seconds: window
closing. When the button is pressed twice quickly,
the safe lock device is activated (for versions/
markets, where provided) (see "Safe Lock Device"
paragraph hereafter).
If one or more door are open, the doors will not be
locked. This is signalled by LED A fig. 8 in the central
panel and the direction indicators flashing rapidly. If
the luggage compartment is open, the doors will,
however, be locked. Opening the tailgate by the remote control
Press button
to release (open) the tailgate
remotely even with the alarm on (for versions/
markets where provided).
The opening of the tailgate is signalled by the
direction indicators flashing twice; when it is closed
there is one flash (only with the alarm on).
If an alarm is fitted, when the tailgate is opened, the
alarm system switches off the volume sensing
protection and the perimeter sensor for the tailgate.
When the tailgate is closed again, the volume sensing
protection and perimeter sensor are restored.
LED indications on central panel
When locking the doors, LED A fig. 8 switches on
for about 3 seconds and then starts flashing
(deterrence function).
If one of the doors or the tailgate are not properly
shut when the doors are being locked, the LED
flashes quickly together with the direction indicators.
fig. 8
F0Q0742
10GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND DRIVING
WARNING LIGHTS AND MESSAGES
IN AN EMERGENCY SERVICING ANDMAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

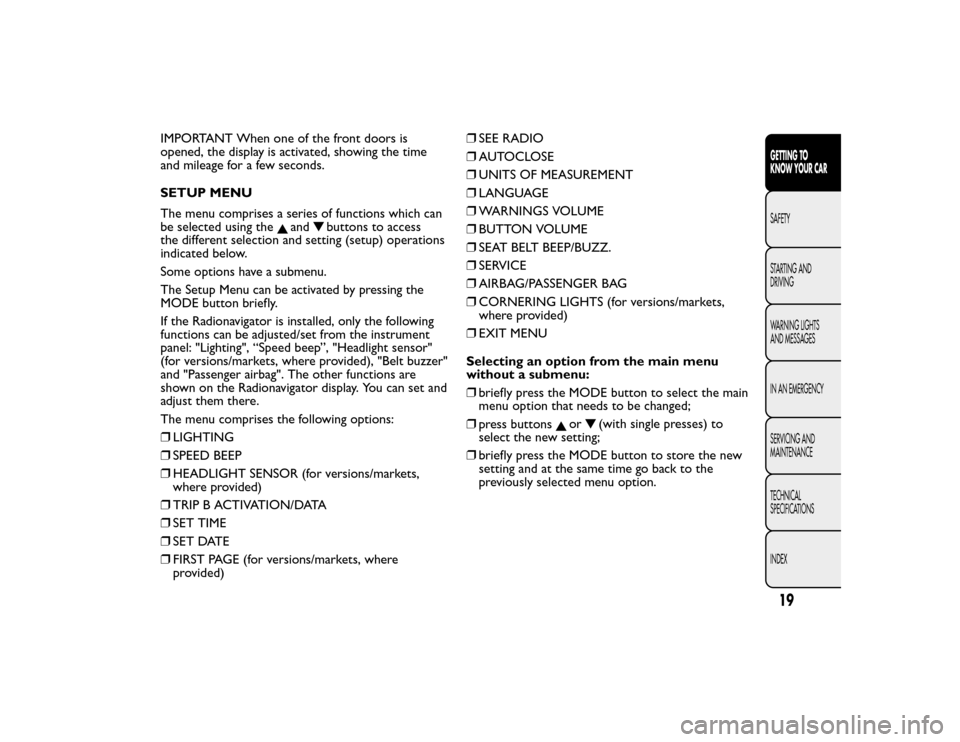

IMPORTANT When one of the front doors is
opened, the display is activated, showing the time
and mileage for a few seconds.
SETUP MENU
The menu comprises a series of functions which can
be selected using the
and
buttons to access
the different selection and setting (setup) operations
indicated below.
Some options have a submenu.
The Setup Menu can be activated by pressing the
MODE button briefly.
If the Radionavigator is installed, only the following
functions can be adjusted/set from the instrument
panel: "Lighting", “Speed beep”, "Headlight sensor"
(for versions/markets, where provided), "Belt buzzer"
and "Passenger airbag". The other functions are
shown on the Radionavigator display. You can set and
adjust them there.
The menu comprises the following options:
❒ LIGHTING
❒ SPEED BEEP
❒ HEADLIGHT SENSOR (for versions/markets,
where provided)
❒ TRIP B ACTIVATION/DATA
❒ SET TIME
❒ SET DATE
❒ FIRST PAGE (for versions/markets, where
provided) ❒
SEE RADIO
❒ AUTOCLOSE
❒ UNITS OF MEASUREMENT
❒ LANGUAGE
❒ WARNINGS VOLUME
❒ BUTTON VOLUME
❒ SEAT BELT BEEP/BUZZ.
❒ SERVICE
❒ AIRBAG/PASSENGER BAG
❒ CORNERING LIGHTS (for versions/markets,
where provided)
❒ EXIT MENU
Selecting an option from the main menu
without a submenu:
❒ briefly press the MODE button to select the main
menu option that needs to be changed;
❒ press buttons
or
(with single presses) to
select the new setting;
❒ briefly press the MODE button to store the new
setting and at the same time go back to the
previously selected menu option.
19GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

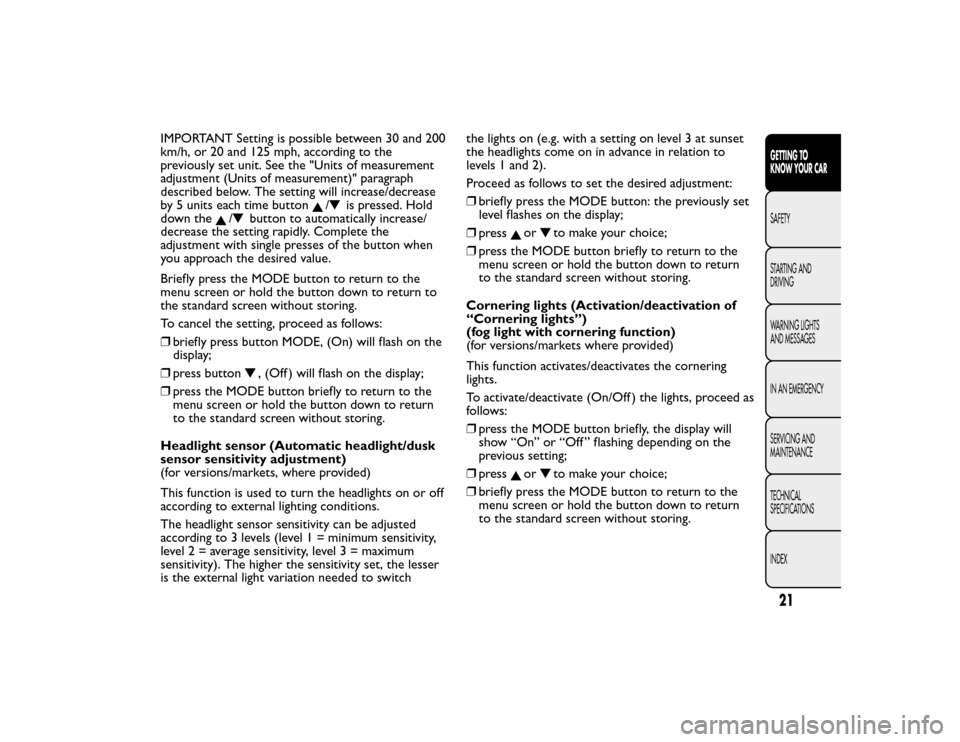

IMPORTANT Setting is possible between 30 and 200
km/h, or 20 and 125 mph, according to the
previously set unit. See the "Units of measurement
adjustment (Units of measurement)" paragraph
described below. The setting will increase/decrease
by 5 units each time button
/
is pressed. Hold
down the
/
button to automatically increase/
decrease the setting rapidly. Complete the
adjustment with single presses of the button when
you approach the desired value.
Briefly press the MODE button to return to the
menu screen or hold the button down to return to
the standard screen without storing.
To cancel the setting, proceed as follows:
❒ briefly press button MODE, (On) will flash on the
display;
❒ press button, (Off ) will flash on the display;
❒ press the MODE button briefly to return to the
menu screen or hold the button down to return
to the standard screen without storing.
Headlight sensor (Automatic headlight/dusk
sensor sensitivity adjustment)
(for versions/markets, where provided)
This function is used to turn the headlights on or off
according to external lighting conditions.
The headlight sensor sensitivity can be adjusted
according to 3 levels (level 1 = minimum sensitivity,
level2=av erage sensitivity, level 3 = maximum
sensitivity). The higher the sensitivity set, the lesser
is the external light variation needed to switch the lights on (e.g. with a setting on level 3 at sunset
the headlights come on in advance in relation to
levels 1 and 2).
Proceed as follows to set the desired adjustment:
❒
briefly press the MODE button: the previously set
level flashes on the display;
❒ press
or
to make your choice;
❒ press the MODE button briefly to return to the
menu screen or hold the button down to return
to the standard screen without storing.
Cornering lights (Activation/deactivation of
“Cornering lights”)
(fog light with cornering function)
(for versions/markets where provided)
This function activates/deactivates the cornering
lights.
To activate/deactivate (On/Off ) the lights, proceed as
follows:
❒ press the MODE button briefly, the display will
show “On” or “Off ” flashing depending on the
previous setting;
❒ press
or
to make your choice;
❒ briefly press the MODE button to return to the
menu screen or hold the button down to return
to the standard screen without storing.
21GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

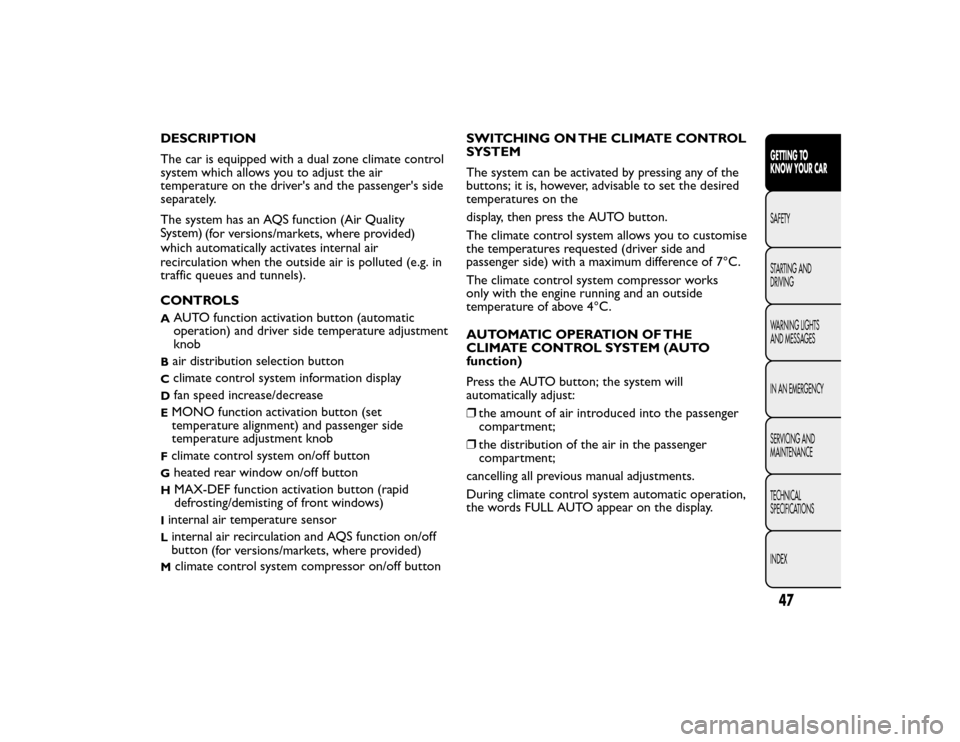

DESCRIPTION The car is equipped with a dual zone climate control system which allows you to adjust the airtemperature on the driver's and the passenger's sideseparately. The system has an AQS function (Air Quality System)
recirculation when the outside air is polluted (e.g. intraffic queues and tunnels). CONTROLSA
AUTO function activation button (automatic operation) and driver side temperature adjustmentknob
Bair distribution selection buttonC
climate control system information display
D
fan speed increase/decrease
EMONO function activation button (settemperature alignment) and passenger sidetemperature adjustment knobFclimate control system on/off buttonG
heated rear window on/off button
H
MAX-DEF function activation button (rapiddefrosting/demisting of front windows)
Iinternal air temperature sensorLinternal air recirculation and AQS function on/offbuttonM
climate control system compressor on/off button
SWITCHING ON THE CLIMATE CONTROLSYSTEM The system can be activated by pressing any of the buttons; it is, however, advisable to set the desiredtemperatures on the display, then press the AUTO button.The climate control system allows you to customise the temperatures requested (driver side andpassenger side) with a maximum difference of 7°C. The climate control system compressor works only with the engine running and an outsidetemperature of above 4°C. AUTOMATIC OPERATION OF THE CLIMATE CONTROL SYSTEM (AUTOfunction) Press the AUTO button; the system will automatically adjust: ❒
the amount of air introduced into the passenger compartment;
❒
the distribution of the air in the passengercompartment;
cancelling all previous manual adjustments. During climate control system automatic operation, the words FULL AUTO appear on the display.
47GETTING TOKNOW YOUR CAR SAFETYSTARTING AND DRIVING WARNING LIGHTS AND MESSAGES IN AN EMERGENCYSERVICING AND MAINTENANCE TECHNICAL SPECIFICATIONS INDEX
(for versions/markets, where provided)which automatically activates internal air(for versions/markets, where provided)

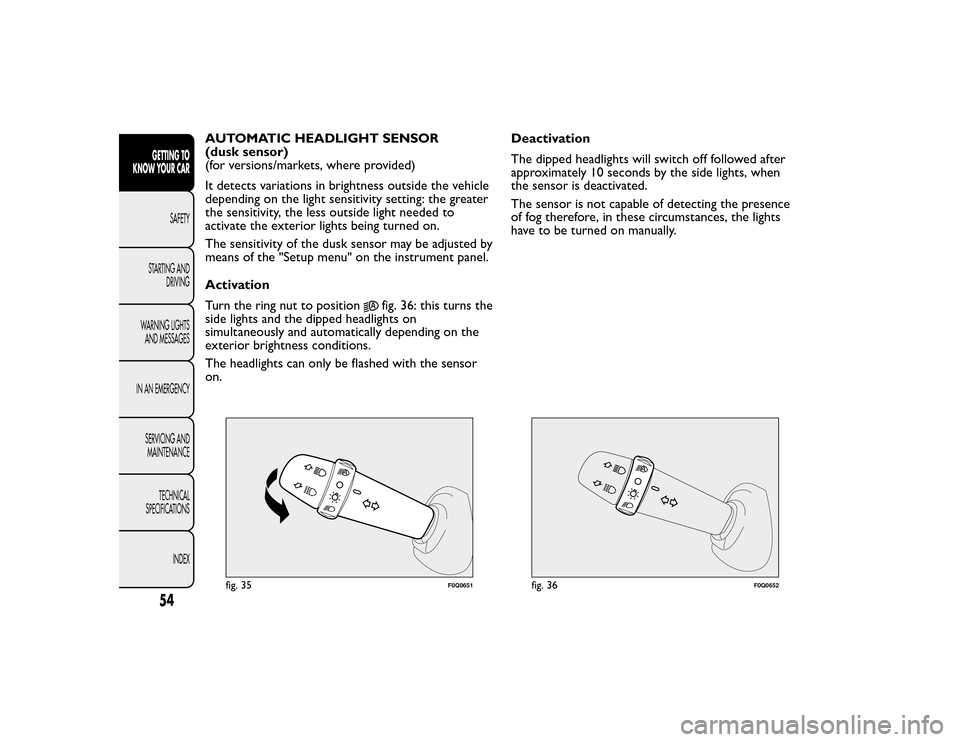

AUTOMATIC HEADLIGHT SENSOR
(dusk sensor)
(for versions/markets, where provided)
It detects variations in brightness outside the vehicle
depending on the light sensitivity setting: the greater
the sensitivity, the less outside light needed to
activate the exterior lights being turned on.
The sensitivity of the dusk sensor may be adjusted by
means of the "Setup menu" on the instrument panel.
Activation
Turn the ring nut to position
fig. 36: this turns the
side lights and the dipped headlights on
simultaneously and automatically depending on the
exterior brightness conditions.
The headlights can only be flashed with the sensor
on. Deactivation
The dipped headlights will switch off followed after
approximately 10 seconds by the side lights, when
the sensor is deactivated.
The sensor is not capable of detecting the presence
of fog therefore, in these circumstances, the lights
have to be turned on manually.
fig. 35
F0Q0651
fig. 36
F0Q0652
54GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND DRIVING
WARNING LIGHTS AND MESSAGES
IN AN EMERGENCY SERVICING ANDMAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

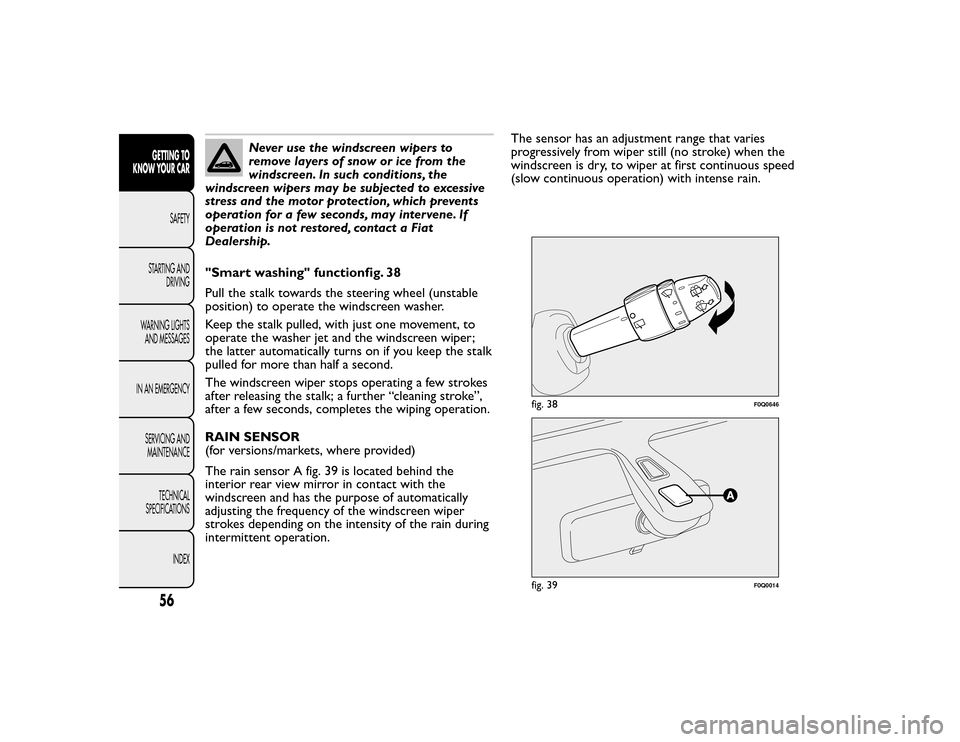

Never use the windscreen wipers to
remove layers of snow or ice from the
windscreen. In such conditions, the
windscreen wipers may be subjected to excessive
stress and the motor protection, which prevents
operation for a few seconds, may intervene. If
operation is not restored, contact a Fiat
Dealership.
"Smart washing" functionfig. 38
Pull the stalk towards the steering wheel (unstable
position) to operate the windscreen washer.
Keep the stalk pulled, with just one movement, to
operate the washer jet and the windscreen wiper;
the latter automatically turns on if you keep the stalk
pulled for more than half a second.
The windscreen wiper stops operating a few strokes
after releasing the stalk; a further “cleaning stroke”,
after a few seconds, completes the wiping operation.
RAIN SENSOR
(for versions/markets, where provided)
The rain sensor A fig. 39 is located behind the
interior rear view mirror in contact with the
windscreen and has the purpose of automatically
adjusting the frequency of the windscreen wiper
strokes depending on the intensity of the rain during
intermittent operation. The sensor has an adjustment range that varies
progressively from wiper still (no stroke) when the
windscreen is dry, to wiper at first continuous speed
(slow continuous operation) with intense rain.
fig. 38
F0Q0646
fig. 39
F0Q0014
56GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND DRIVING
WARNING LIGHTS AND MESSAGES
IN AN EMERGENCY SERVICING ANDMAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

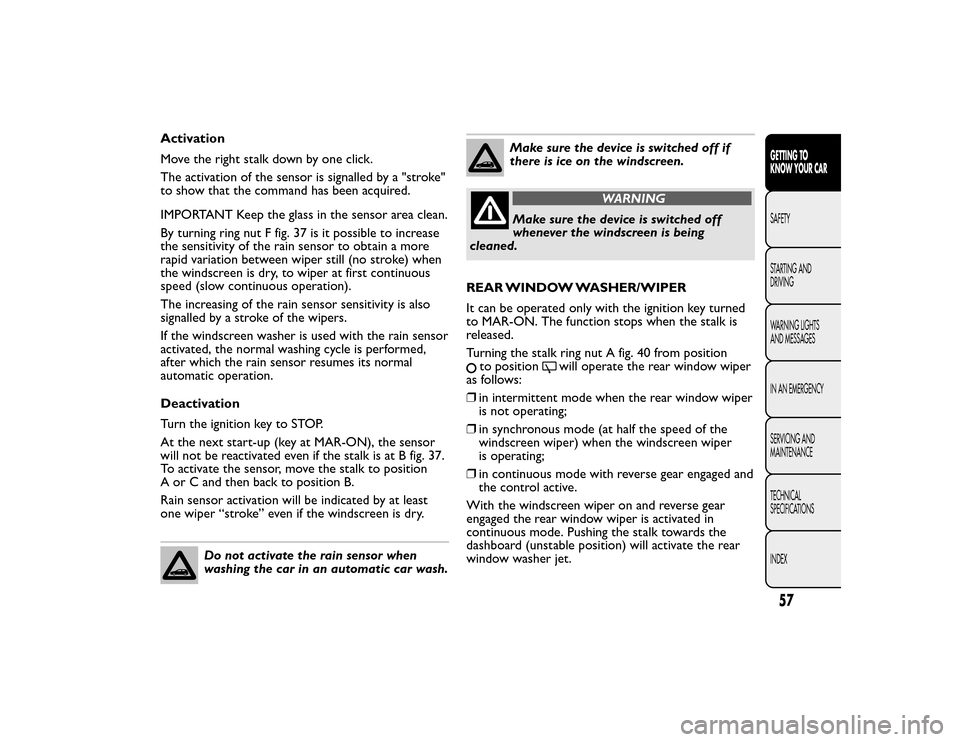

Activation
Move the right stalk down by one click.
The activation of the sensor is signalled by a "stroke"
to show that the command has been acquired.
IMPORTANT Keep the glass in the sensor area clean.
By turning ring nut F fig. 37 is it possible to increase
the sensitivity of the rain sensor to obtain a more
rapid variation between wiper still (no stroke) when
the windscreen is dry, to wiper at first continuous
speed (slow continuous operation).
The increasing of the rain sensor sensitivity is also
signalled by a stroke of the wipers.
If the windscreen washer is used with the rain sensor
activated, the normal washing cycle is performed,
after which the rain sensor resumes its normal
automatic operation.
Deactivation
Turn the ignition key to STOP.
At the next start-up (key at MAR-ON), the sensor
will not be reactivated even if the stalk is at B fig. 37.
To activate the sensor, move the stalk to position
A or C and then back to position B.
Rain sensor activation will be indicated by at least
one wiper “stroke” even if the windscreen is dry.
Do not activate the rain sensor when
washing the car in an automatic car wash.
Make sure the device is switched off if
there is ice on the windscreen.
WARNING
Make sure the device is switched off
whenever the windscreen is being
cleaned.
REAR WINDOW WASHER/WIPER
It can be operated only with the ignition key turned
to MAR-ON. The function stops when the stalk is
released.
Turning the stalk ring nut A fig. 40 from position
to position
will operate the rear window wiper
as follows:
❒ in intermittent mode when the rear window wiper
is not operating;
❒ in synchronous mode (at half the speed of the
windscreen wiper) when the windscreen wiper
is operating;
❒ in continuous mode with reverse gear engaged and
the control active.
With the windscreen wiper on and reverse gear
engaged the rear window wiper is activated in
continuous mode. Pushing the stalk towards the
dashboard (unstable position) will activate the rear
window washer jet.
57GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

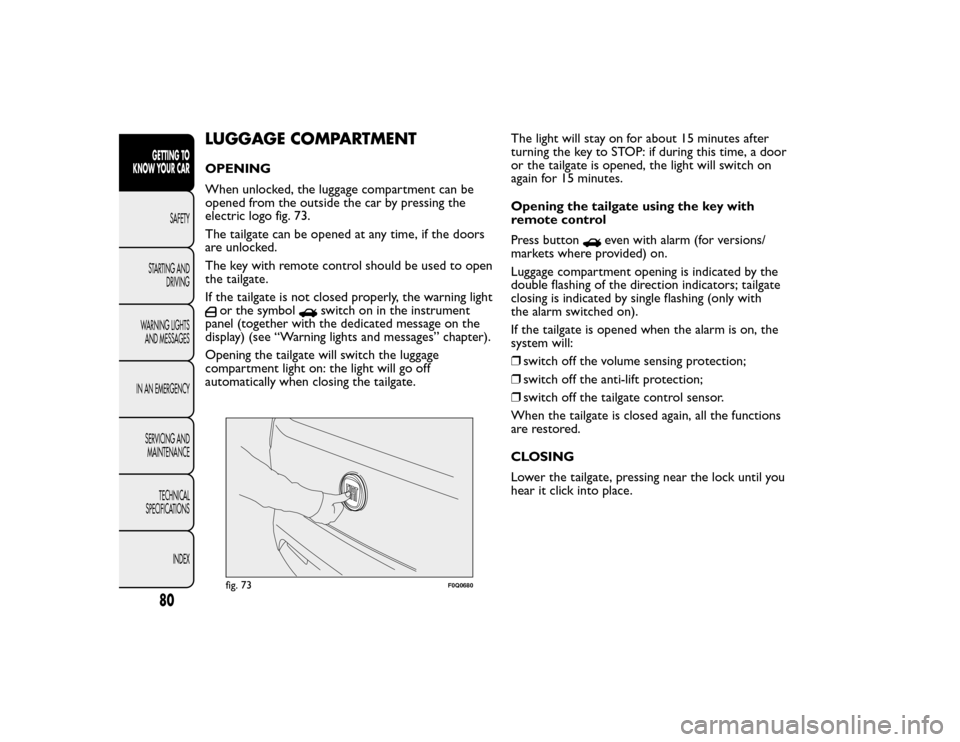

LUGGAGE COMPARTMENTOPENING
When unlocked, the luggage compartment can be
opened from the outside the car by pressing the
electric logo fig. 73.
The tailgate can be opened at any time, if the doors
are unlocked.
The key with remote control should be used to open
the tailgate.
If the tailgate is not closed properly, the warning light
or the symbol
switch on in the instrument
panel (together with the dedicated message on the
display) (see “Warning lights and messages” chapter).
Opening the tailgate will switch the luggage
compartment light on: the light will go off
automatically when closing the tailgate. The light will stay on for about 15 minutes after
turning the key to STOP: if during this time, a door
or the tailgate is opened, the light will switch on
again for 15 minutes.
Opening the tailgate using the key with
remote control
Press button
even with alarm (for versions/
markets where provided) on.
Luggage compartment opening is indicated by the
double flashing of the direction indicators; tailgate
closing is indicated by single flashing (only with
the alarm switched on).
If the tailgate is opened when the alarm is on, the
system will:
❒ switch off the volume sensing protection;
❒ switch off the anti-lift protection;
❒ switch off the tailgate control sensor.
When the tailgate is closed again, all the functions
are restored.
CLOSING
Lower the tailgate, pressing near the lock until you
hear it click into place.
fig. 73
F0Q0680
80GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND DRIVING
WARNING LIGHTS AND MESSAGES
IN AN EMERGENCY SERVICING ANDMAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

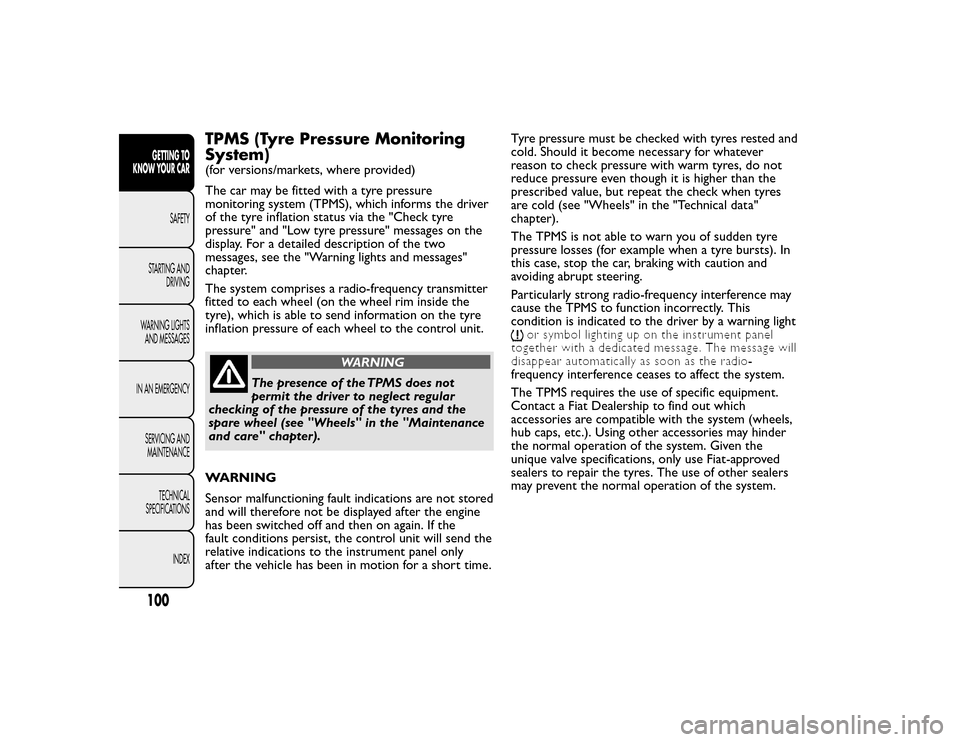

TPMS (Tyre Pressure Monitoring
System)(for versions/markets, where provided)
The car may be fitted with a tyre pressure
monitoring system (TPMS), which informs the driver
of the tyre inflation status via the "Check tyre
pressure" and "Low tyre pressure" messages on the
display. For a detailed description of the two
messages, see the "Warning lights and messages"
chapter.
The system comprises a radio-frequency transmitter
fitted to each wheel (on the wheel rim inside the
tyre), which is able to send information on the tyre
inflation pressure of each wheel to the control unit.
WARNING
The presence of the TPMS does not
permit the driver to neglect regular
checking of the pressure of the tyres and the
spare wheel (see "Wheels" in the "Maintenance
and care" chapter).
WARNING
Sensor malfunctioning fault indications are not stored
and will therefore not be displayed after the engine
has been switched off and then on again. If the
fault conditions persist, the control unit will send the
relative indications to the instrument panel only
after the vehicle has been in motion for a short time. Tyre pressure must be checked with tyres rested and
cold. Should it become necessary for whatever
reason to check pressure with warm tyres, do not
reduce pressure even though it is higher than the
prescribed value, but repeat the check when tyres
are cold (see "Wheels" in the "Technical data"
chapter).
The TPMS is not able to warn you of sudden tyre
pressure losses (for example when a tyre bursts). In
this case, stop the car, braking with caution and
avoiding abrupt steering.
Particularly strong radio-frequency interference may
cause the TPMS to function incorrectly. This
condition is indicated to the driver by a warning light
or symbol lighting up on the instrument panel
together with a dedicated message. The message will
disappear automatically as soon as the radio-
frequency interference ceases to affect the system.
The TPMS requires the use of specific equipment.
Contact a Fiat Dealership to find out which
accessories are compatible with the system (wheels,
hub caps, etc.). Using other accessories may hinder
the normal operation of the system. Given the
unique valve specifications, only use Fiat-approved
sealers to repair the tyres. The use of other sealers
may prevent the normal operation of the system.
100GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND DRIVING
WARNING LIGHTS AND MESSAGES
IN AN EMERGENCY SERVICING ANDMAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
