REAR ROOF LIGHT WITH
MOVABLE LENS
(Doblò/Doblò Combi versions)
The light comes on automatically when
a front door or sliding side door is
opened and goes out when it is closed.
Press the left-hand side of the lens A
fig. 65, as shown in the diagram, to
switch the light on/off when the doors
are closed.REAR ROOF LIGHT WITH
MOVABLE LENS
(Cargo versions without fixed window)
This is located on the rear panel of
the load compartment. The light comes
on automatically when you open the
sliding side doors (for versions/markets
where provided) and the rear swing
doors/tailgate (for versions/markets
where provided), and goes out when
you close them. Press the left or right
side of the movable lens A, as shown in
fig. 66, to switch the light on/off when
the doors are closed.REAR ROOF LIGHT WITH
MOVABLE LENS
(additional for Cargo long wheelbase
versions)
This is located on the right side of the
load compartment. The light comes on
automatically when you open the sliding
side doors and the rear wing
doors/tailgate and goes out when you
close them.
Press the left-hand side of the lens A
fig. 66, as shown in the diagram, to
switch the light on/off when the doors
are closed.
LUGGAGE
COMPARTMENT LIGHT
(Doblò/Doblò Combi version)
The light fig. 67 comes on automatically
when the swing doors or tailgate (for
versions/markets where provided)
are opened and goes out when they
are closed.
65F0V0057
66F0V0171
67F0V0172
36
KNOWING YOUR VEHICLE

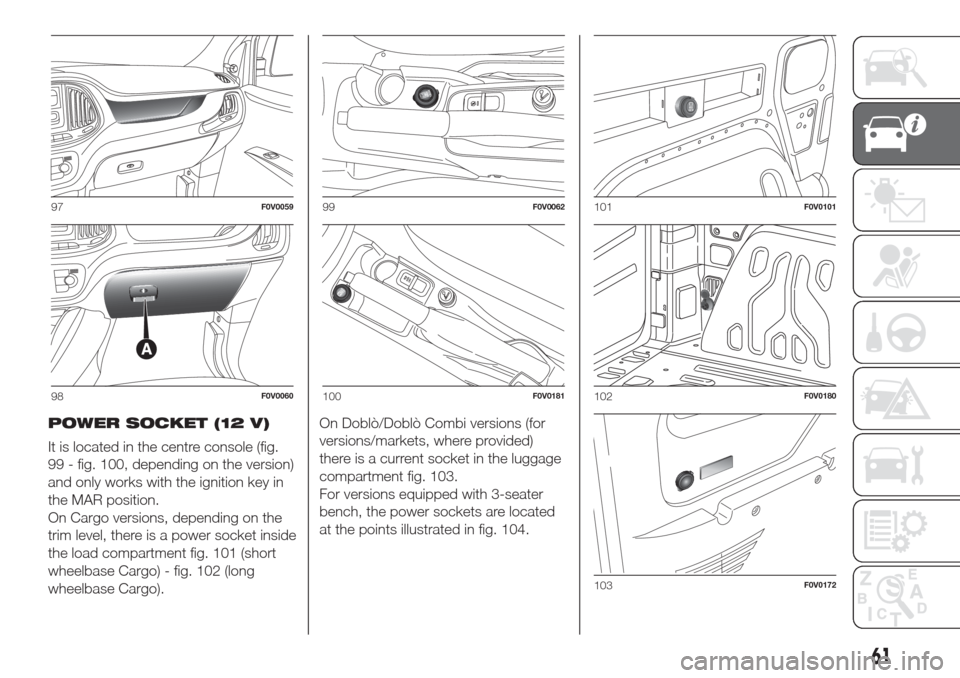

POWER SOCKET (12 V)
It is located in the centre console (fig.
99 - fig. 100, depending on the version)
and only works with the ignition key in
the MAR position.
On Cargo versions, depending on the
trim level, there is a power socket inside
the load compartment fig. 101 (short
wheelbase Cargo) - fig. 102 (long
wheelbase Cargo).On Doblò/Doblò Combi versions (for
versions/markets, where provided)
there is a current socket in the luggage
compartment fig. 103.
For versions equipped with 3-seater
bench, the power sockets are located
at the points illustrated in fig. 104.
97F0V0059
98F0V0060
99F0V0062
100F0V0181
101F0V0101
102F0V0180
103F0V0172
61

SUSPENSION
Versions Front Rear
Front
independent wheel MacPherson typeMulti-link independent, coil springs, telescopic
shock absorbers and anti-roll bar (according to
version)
Rear
STEERING
Turning circle (kerb to kerb) Type
11.2 (Short wheelbase) Rack and pinion with hydraulic power steering
12.5 (Long wheelbase)
214
TECHNICAL DATA

DIMENSIONS
Short wheelbase versions
Dimensions are expressed in mm and refer to the vehicle fitted with standard tyres.
Height is measured with vehicle unladen.
ABCDE FGH
4406 911 2755 740
1832/1905(*)1510 1832 1530
(*) With roof bars (for versions/markets, where provided)
Small variations in size are possible depending on the dimensions of the rims.
233F0V0555
220
TECHNICAL DATA

Long wheelbase versions
Dimensions are expressed in mm and refer to the vehicle fitted with standard tyres.
Height is measured with vehicle unladen.
ABCDE FGH
Long
Wheelbase
versions4756 911 3105 7401880/1927(*)1510 1832 1530
Long
Wheelbase
M1 versions4756 911 3105 7401857/1905
(*)1510 1832 1530
(*) With roof bars (for versions/markets, where provided)
Small variations in size are possible depending on the dimensions of the rims.
234F0V0556
221

Flatbed short wheelbase versions
Dimensions are expressed in mm and refer to the vehicle fitted with standard tyres.
Height is measured with vehicle unladen.
ABCDE FGH I LMNOP
4906 4227 2755 911 561 1510 1845 1530 1789 1870 2405 1045 1240 600
Small variations in size are possible depending on the dimensions of the rims.
236F0V0572
223

Flatbed long wheelbase versions
Dimensions are expressed in mm and refer to the vehicle fitted with standard tyres.
Height is measured with vehicle unladen.
ABCDE FGH I LMNOP
5416 4577 3105 911 561 1510 1845 1530 1789 1870 2405 1395 1400 600
Small variations in size are possible depending on the dimensions of the rims.
237F0V0573
224
TECHNICAL DATA

WEIGHTS
Doblò / Combi (M1) 1.4
Key
A. Unladen weight including driver (with all fluids, fuel tank 90% full and without optional equipment) - B. Maximum permitted
load - C. Payload including the driver - D. Payload excluding the driver - E. Towable loads (braked / non-braked trailer) -
F. Maximum load on roof - G. Maximum load on tow hitch (braked trailer).
Versions AB(*)C(**)D(**)E
F(***)G
Tot. Front Rear
Short wheelbase - Low roof-2front
seats-3rearseats1445 1945 1090 1140 605 530 1000/500 100 60
Short wheelbase - High roof-2front
seats-3rearseats1505 2045 1120 1450 615 540 1000/500 - 60
Short wheelbase - Low roof-2front
seats-3rearseats 2nd row-2rear
seats 3rd row1445 2145 1120 1220 775 700 1000/500 100 60
(*) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permittedloads.
(**) Values refer to minimum equipment level. If special equipment is fitted (fixed window, trailer towing device, etc.) the unladen weight will increase and
consequently the payload will decrease in relation to the maximum permitted loads.
(***) Including any installed roof carrier systems (Lineaccessori Fiat bars/box).
(M1): Passenger transport
225

Doblò / Combi (M1) 1.4 T-JET
Key
A. Unladen weight including driver (with all fluids, fuel tank 90% full and without optional equipment) - B. Maximum permitted
load - C. Payload including the driver - D. Payload excluding the driver - E. Towable loads (braked / non-braked trailer) -
F. Maximum load on roof - G. Maximum load on tow hitch (braked trailer).
Versions AB(*)C(**)D(**)E
F(***)G
Tot. Front Rear
Short wheelbase - Low roof-2front
seats-3rearseats1490 2030 1090 1140 615 540 1000/500 100 60
Short wheelbase - Low roof-2front
seats-3rearseats 2nd row-2rear
seats 3rd row1490 2190 1120 1160 775 700 1000/500 100 60
(*) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permittedloads.
(**) Values refer to minimum equipment level. If special equipment is fitted (fixed window, trailer towing device, etc.) the unladen weight will increase and
consequently the payload will decrease in relation to the maximum permitted loads.
(***) Including any installed roof carrier systems (Lineaccessori Fiat bars/box).
(M1): Passenger transport
226
TECHNICAL DATA

Doblò / Combi (M1) 1.6 Multijet
Key
A. Unladen weight including driver (with all fluids, fuel tank 90% full and without optional equipment) - B. Maximum permitted
load - C. Payload including the driver - D. Payload excluding the driver - E. Towable loads (braked / non-braked trailer) -
F. Maximum load on roof - G. Maximum load on tow hitch (braked trailer).
Versions AB(*)C(**)D(**)E
F(***)G
Tot. Front Rear
Short wheelbase - Low roof-2front
seats-3rearseats1505 2035 1090 1075 605 530 1300/500 100 60
Short wheelbase - High roof-2front
seats-3rearseats1575 2115 1120 1450 615 540 1300/500 - 60
Short wheelbase - Low roof-2front
seats-3rearseats 2nd row-2rear
seats 3rd row1505 2205 1120 1220 775 700 1300/500 100 60
Long wheelbase - Low roof-2front
seats-3rearseats1600 2105 1200 1310 580 505 1300/500 100 60
Long Wheelbase - High Roof - 2
front seats-3rearseats -
Reinforced Suspension1615 2105 1200 1310 565 490 1300/500 - 60
(*) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permittedloads.
(**) Values refer to minimum equipment level. If special equipment is fitted (fixed window, trailer towing device, etc.) the unladen weight will increase and
consequently the payload will decrease in relation to the maximum permitted loads.
(***) Including any installed roof carrier systems (Lineaccessori Fiat bars/box).
(M1): Passenger transport
