JACKING AND TIRE CHANGING
WARNING!
 Do not attempt to change a tire on the
side of the vehicle close to moving traf-
fic . Pull far enough off the road to avoid the
danger of being hit when operating the jack or
changing the wheel.
 Being under a jacked-up vehicle is dangerous.
The vehicle could slip off the jack and fall on you.
You could be crushed. Never put any part of your
body under a vehicle that is on a jack. If you need
to get under a raised vehicle, take it to a service
center where it can be raised on a lift .
 Never start or run the engine while the vehicle
is on a jack.
 The jack is designed to be used as a tool for
changing tires only.The jack should not be used to
lift the vehicle for service purposes. The vehicle
should be jacked on a firm level surface only.
Avoid ice or slippery areas.

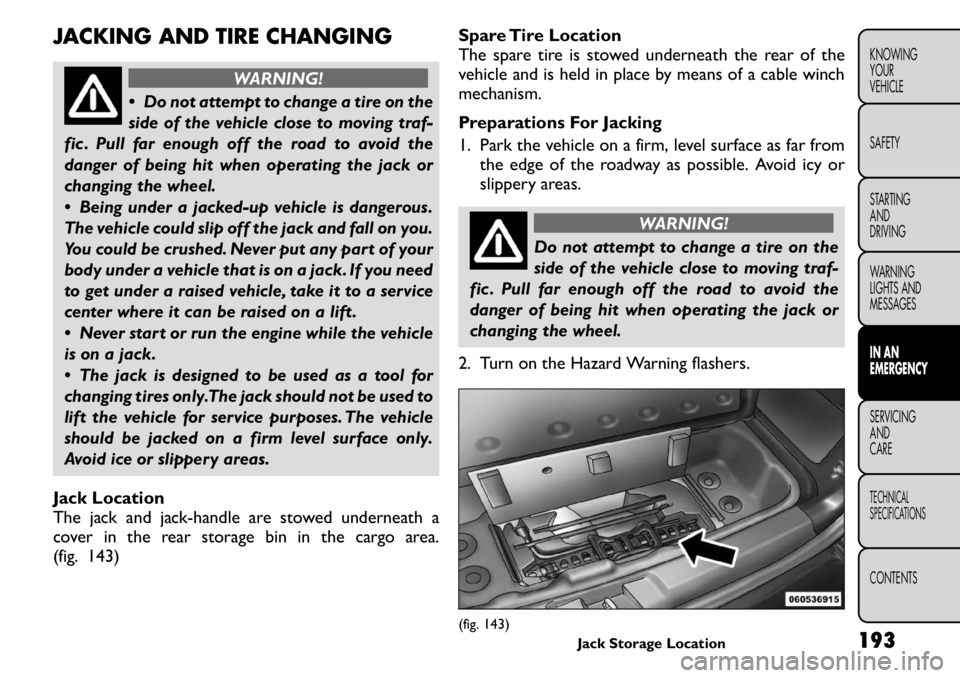

Jack Location
The jack and jack-handle are stowed underneath a
cover in the rear storage bin in the cargo area.
(fig. 143) Spare Tire Location
The spare tire is stowed underneath the rear of the
vehicle and is held in place by means of a cable winchmechanism.
Preparations For Jacking
1. Park the vehicle on a firm, level surface as far from
the edge of the roadway as possible. Avoid icy or
slippery areas.
WARNING!
Do not attempt to change a tire on the
side of the vehicle close to moving traf-
fic . Pull far enough off the road to avoid the
danger of being hit when operating the jack or
changing the wheel.
2. Turn on the Hazard Warning flashers.
(fig. 143) Jack Storage Location 193
KNOWING
YOURVEHICLE SAFETY
STARTING ANDDRIVING
WARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYSERVICING AND
CARETECHNICAL
SPECIFICATIONSCONTENTS

3. Set the parking brake.
4. Place the shift lever in PARK.
5. Turn OFF the ignition.6. Block both the front and rear ofthe wheel diagonally opposite of
the jacking position. For example,
if changing the right front tire,
block the left rear wheel.
NOTE: Passengers should not remain in the vehicle
when the vehicle is being jacked.
Spare Tire Removal
NOTE: On seven-passenger models, fold the third-
row passenger seats flat. This will provide more space
when accessing the jacking tools and when operating
the winch mechanism.
1. Remove the jack-handle components 1, 2 and 3
from storage and assemble them. (fig. 144)
NOTE: Assemble components 2 and 3 by seating the
small ball at the end of component 2 in the small hole at
the end of component 3. This will lock these compo-
nents together. Assemble components 1 and 2 so that
the wheel nut socket at the end of component 1 faces
upward when seated on component 2. This will make it
easier to rotate the assembly when operating the
winch mechanism. 2. Fit the assembled jack-handle over the winch drive
nut located in the jack storage area. Rotate the
jack-handle assembly counterclockwise until the
spare tire is on the ground with enough cable slack
to allow you to pull the spare tire out from under-
neath the vehicle.
The winch mechanism is designed for use
with the jack-handle only. Use of an air
wrench or other power tools is not rec-
ommended and it can damage the winch.
3. Pull the spare tire out from underneath the vehicle and raise it upright so the tire's tread is on the
ground.
4. Tilt the retainer at the end of the winch cable and remove it from the center of the wheel. (fig. 145)
(fig. 144) Lowering/Raising Spare Tire
194
KNOWING
YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING AND
CARETECHNICAL
SPECIFICATIONSCONTENTS

Spare Tire Stowage
NOTE:Refer to “Spare Tire Removal” for informa-
tion on assembling the winch tools.
1. Place the spare tire near to the winch cable. Hold the spare upright so that the tire's tread is on the
ground and the valve stem is at the top of the wheel
facing away from the rear of the vehicle.
2. Tilt the retainer at the end of the winch cable and drop it through the center of the wheel. Then place
the spare tire with the cable and retainer under-
neath the vehicle. 3. Fit the assembled jack-handle over the winch drive
nut. Rotate the jack-handle assembly clockwise to
raise the spare tire into the storage area. Continue
to rotate the jack-handle assembly until you hear
the winch mechanism click three times. It cannot be
over tightened. Push against the tire several times to
be sure it is held securely in place.
Jacking Instructions
WARNING!
Carefully follow these tire changing
warnings to help prevent personal injury
or damage to your vehicle:
 Always park on a firm, level surface as far from
the edge of the roadway as possible before rais-
ing the vehicle.
 Turn on the Hazard Warning flasher.
 Block the wheel diagonally opposite the wheel
to be raised.
 Set the parking brake firmly and set an auto-
matic transmission in PARK.
 Never start or run the engine with the vehicle
on a jack.
 Do not let anyone sit in the vehicle when it is on
a jack.
 Do not get under the vehicle when it is on a
jack.
(Continued)
(fig. 145)Spare Tire Retainer 195
KNOWING
YOURVEHICLE SAFETY
STARTING ANDDRIVING
WARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYSERVICING AND
CARETECHNICAL
SPECIFICATIONSCONTENTS

(Continued)
 Only use the jack in the positions indicated and
for lifting this vehicle during a tire change.
 If working on or near a roadway, be extremely
careful of motor traffic .
 To assure that spare tires, flat or inflated, are
securely stowed, spares must be stowed with the
valve stem facing the ground.
(fig. 146)
Do not attempt to raise the vehicle by
jacking on locations other than those
indicated in the Jacking Instructions for
this vehicle.
(fig. 147)
1. Remove the spare tire, jack, and jack-handle from stowage.
2. Loosen, but do not remove, the wheel nuts on the wheel with the flat tire. Turn the wheel nuts coun-
terclockwise one turn while the wheel is still on the
ground. 3. Place the jack underneath the lift area that is closest
to the flat tire. Center the jack saddle between the
drain flute formations on the sill flange. Turn the
jack screw clockwise to firmly engage the jack saddle
with the lift area of the sill flange. (fig. 148)
(fig. 149)
4. Raise the vehicle by turning the jack screw clock- wise with the jack handle. Raise the vehicle until the
tire just clears the road surface and enough clear-
ance is obtained to install the spare tire. Minimum
tire lift provides maximum stability.
WARNING!
Raising the vehicle higher than neces-
sary can make the vehicle less stable. It
could slip off the jack and hurt someone near it .
Raise the vehicle only enough to remove the tire.
(fig. 146) Jack Warning Label
(fig. 147) Jacking Locations
196
KNOWING
YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING AND
CARETECHNICAL
SPECIFICATIONSCONTENTS

5. Remove the wheel nuts. For vehicles so equipped,remove the wheel cover from the wheel by hand.
Do not pry the wheel cover off. Then pull the wheel
off the hub.
WARNING!
To avoid possible personal injury, handle
the wheel covers with care to avoid con-
tact with any sharp edges.
6. Install the spare tire.Be sure to mount the spare tire with the
valve stem facing outward. The vehicle
could be damaged if the spare tire is
mounted incorrectly.
(fig. 150)
NOTE:
• For vehicles so equipped, do not attempt to install a
center cap or wheel cover on the compact spare.
(fig. 148) Front Jacking Location(fig. 149) Rear Jacking Location
(fig. 150) Mounting Spare Tire 197
KNOWING
YOURVEHICLE SAFETY
STARTING ANDDRIVING
WARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYSERVICING AND
CARETECHNICAL
SPECIFICATIONSCONTENTS

TOW EYE
Your vehicle is equipped with a tow eye that can be
used to rescue your vehicle, should it become stranded
off road. (fig. 162)
Tow eyes are for emergency use only, to
rescue a vehicle stranded off road. Do not
use tow eyes for tow truck hookup or
highway towing. You could damage your vehicle.
Tow straps are recommended when towing the
vehicle; chains may cause vehicle damage.
WARNING!
Stand clear of vehicles when pulling with
tow eyes. Tow straps and chains may
break, causing serious injury. FRONT TOW EYE USAGE
The front tow eye receptacle is located on the lower
right side of the front fascia.
To install the tow eye, remove the rubber plug and
thread the tow eye into the receptacle.
Insert the flat end of the jack handle through the eye
and tighten, refer to “Jacking and Tire Changing” for
further information. The tow hook must be fully seated
to the attaching bracket through the lower front fascia
as shown. If the tow hook is not fully seated to the
attaching bracket, the vehicle should not be towed.
(fig. 163)
(fig. 162)
Tow Eye
(fig. 163)Front Tow Eye Installed 211
KNOWING
YOURVEHICLE SAFETY
STARTING ANDDRIVING
WARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYSERVICING AND
CARETECHNICAL
SPECIFICATIONSCONTENTS

REAR TOW EYE USAGE
The rear tow eye receptacle is located behind a door,
located on the left rear bumper fascia.
To install the tow eye, open the door using the vehicle
key or a small screwdriver, and thread the tow eye into
the receptacle.
Insert the flat end of the jack handle through the eye
and tighten, refer to “Jacking and Tire Changing” for
further information. The tow hook must be fully seated
to the attaching bracket through the lower front fascia
as shown. If the tow hook is not fully seated to the
attaching bracket, the vehicle should not be towed.
(fig. 164)IF YOUR ENGINE OVERHEATS
In any of the following situations, you can reduce the
potential for overheating by taking the appropriate
action.
• On the highways — Slow down.
• In city traffic — While stopped, put the transmission
in NEUTRAL, but do not increase engine idle speed.
Driving with a hot cooling system could
damage your vehicle. If the temperature
gauge reads “H,” safely pull over and stop
the vehicle. Idle the vehicle with the A/C turned
off until the pointer drops back into the normal
range. If the pointer remains on the “H,” and you
hear continuous chimes, turn the engine OFF im-
mediately, and call for service.
NOTE: There are steps that you can take to slow
down an impending overheat condition:
• If your air conditioner (A/C) is on, turn it off. The
A/C system adds heat to the engine cooling system and
turning the A/C off can help remove this heat.
• You can also turn the temperature control to maxi-
mum heat, the mode control to floor and the blower
control to high. This allows the heater core to act as a
supplement to the radiator and aids in removing heat
from the engine cooling system.
(fig. 164) Rear Tow Eye Installed
212
KNOWING
YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING AND
CARETECHNICAL
SPECIFICATIONSCONTENTS

Dimmer Switch, Headlight . . . . . . . . . . . . . . . . . . . 68 DipsticksOil (Engine) . . . . . . . . . . . . . . . . . . . . . . . . . . 219
Power Steering . . . . . . . . . . . . . . . . . . . . . . . . 113
Disabled Vehicle Towing . . . . . . . . . . . . . . . . . . . . 213Disposal Antifreeze (Engine Coolant) . . . . . . . . . . . . . . . 227
Engine Oil . . . . . . . . . . . . . . . . . . . . . . . . . . . 220
Door Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Door Locks, Automatic . . . . . . . . . . . . . . . . . . . . . 90
Downshifting . . . . . . . . . . . . . . . . . . . . . . . . . . . 170Driving
On Slippery Surfaces . . . . . . . . . . . . . . . . . . . . 171
Through Flowing, Rising, or Shallow Standing
Water . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
Driving to Achieve Maximum Fuel Economy . . . . . . . 22
DVD Player (Video Entertainment System™) . . . . . . 128
Electric Remote Mirrors . . . . . . . . . . . . . . . . . . . . 54
Electrical Outlet, Auxiliary (Power Outlet) . . . . . . . . 82
Electrical Power Outlets . . . . . . . . . . . . . . . . . . . . 82
Electronic Brake Control System . . . . . . . . . . . . . . 106 Anti-Lock Brake System . . . . . . . . . . . . . . . . . . 106
Brake Assist System . . . . . . . . . . . . . . . . . . . . . 108
Electronic Roll Mitigation . . . . . . . . . . . . . . . . . 108
Electronic Stability Program . . . . . . . . . . . . . . . . 109
Traction Control System . . . . . . . . . . . . . . . . . . 108
Electronic Roll Mitigation (ERM) . . . . . . . . . . . . . . 108
Electronic Speed Control (Cruise Control) . . . . . . . . 75
Electronic Stability Program (ESP) . . . . . . . . . . . . . 109
Electronic Vehicle Information Center (EVIC) . . . 18,124
Emergency, In Case of Freeing Vehicle When Stuck . . . . . . . . . . . . . . . 210
Hazard Warning Flasher . . . . . . . . . . . . . . . . . . . 78
Jacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193 Jump Starting . . . . . . . . . . . . . . . . . . . . . . . . . 190
Overheating . . . . . . . . . . . . . . . . . . . . . . . . . . 212
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213
Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166,218 Air Cleaner . . . . . . . . . . . . . . . . . . . . . . . . . . 220
Break-In Recommendations . . . . . . . . . . . . . . . . 166
Checking Oil Level . . . . . . . . . . . . . . . . . . . . . . 219
Coolant (Antifreeze) . . . . . . . . . . . . . . . . . 226,242
Cooling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 226
Exhaust Gas Caution . . . . . . . . . . . . . . . . . . 99,163
Jump Starting . . . . . . . . . . . . . . . . . . . . . . . . . 190
Oil . . . . . . . . . . . . . . . . . . . . . . . . . . 219,241,242
Oil Change Interval . . . . . . . . . . . . . . . . . . . 22,219
Oil Filler Cap . . . . . . . . . . . . . . . . . . . . . . 218,219
Oil Filter Disposal . . . . . . . . . . . . . . . . . . . . . . 220
Oil Selection . . . . . . . . . . . . . . . . . . . . . . . . . . 241
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . 166
Overheating . . . . . . . . . . . . . . . . . . . . . . . . . . 212
Starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166
Temperature Gauge . . . . . . . . . . . . . . . . . . . . . . . 7
Engine Oil Viscosity . . . . . . . . . . . . . . . . . . . . . . . 219
Enhanced Accident Response Feature . . . . . . . . . . . 159
Entry System, Illuminated . . . . . . . . . . . . . . . . . . . . 70
Event Data Recorder . . . . . . . . . . . . . . . . . . . . . . 161
Exhaust Gas Caution . . . . . . . . . . . . . . . . . 99,163,225
Exhaust System . . . . . . . . . . . . . . . . . . . . . . . 163,225
Express Down Windows . . . . . . . . . . . . . . . . . . . . 13
Exterior Folding Mirrors . . . . . . . . . . . . . . . . . . . . 55
Exterior Light Service . . . . . . . . . . . . . . . . . . . . . 201
Exterior Lighting . . . . . . . . . . . . . . . . . . . . . . . . . 66
Exterior Lights . . . . . . . . . . . . . . . . . . . . . . . 165,201
Fabric Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . 231
Filters
Air Cleaner . . . . . . . . . . . . . . . . . . . . . . . . . . 220 249
KNOWING
YOURVEHICLE SAFETY
STARTING ANDDRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING AND
CARETECHNICAL
SPECIFICATIONSCONTENTS

On With Wipers . . . . . . . . . . . . . . . . . . . . . . . 66
Passing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Time Delay . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Washers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Heated Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Heated Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
High Beam Indicator . . . . . . . . . . . . . . . . . . . . . . 186
High Beam/Low Beam Select (Dimmer) Switch . . . . . 68
Holder, Coin . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Holder, Cup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Hood Release . . . . . . . . . . . . . . . . . . . . . . . . . . . 103 Ignition Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Illuminated Entry . . . . . . . . . . . . . . . . . . . . . . . . . 70
Immobilizer (Sentry Key) . . . . . . . . . . . . . . . . . . . . 10
Infant Restraint . . . . . . . . . . . . . . . . . . . . . . . 141,143
Inflation Pressure Tires . . . . . . . . . . . . . . . . . . . . 186
Information Center, Vehicle . . . . . . . . . . . . . . . . . . 18
Inside Rearview Mirror . . . . . . . . . . . . . . . . . . . . . 53
Instrument Cluster . . . . . . . . . . . . . . . . . . . . 184,185
Instrument Panel and Controls . . . . . . . . . . . . . . . . . 6
Instrument Panel Cover . . . . . . . . . . . . . . . . . . . . 231
Instrument Panel Lens Cleaning . . . . . . . . . . . . . . . 232
Interior Appearance Care . . . . . . . . . . . . . . . . . . . 231
Interior Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . 206
Interior Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Intermittent Wipers (Delay Wipers) . . . . . . . . . . . . 70
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Jack Location . . . . . . . . . . . . . . . . . . . . . . . . . . . 193
Jack Operation . . . . . . . . . . . . . . . . . . . . . . . 193,195
Jacking Instructions . . . . . . . . . . . . . . . . . . . . . . . 195
Jump Starting . . . . . . . . . . . . . . . . . . . . . . . . . . . 190 Key-In Reminder . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Key, Programming . . . . . . . . . . . . . . . . . . . . . . . . . 11
Key, Replacement . . . . . . . . . . . . . . . . . . . . . . . . . 11
Key, Sentry (Immobilizer) . . . . . . . . . . . . . . . . . . . . 10
Keyless Enter-N-Go . . . . . . . . . . . . . . . . . . . . 93,167
Keyless Entry System . . . . . . . . . . . . . . . . . . . . . . . 12
Keyless Go . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Knee Bolster . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
Lane Change and Turn Signals . . . . . . . . . . . . . . . . . 68
Lane Change Assist . . . . . . . . . . . . . . . . . . . . . . . . 68
Lap/Shoulder Belts . . . . . . . . . . . . . . . . . . . . . . . 133
LATCH (Lower Anchors and Tether for
CHildren) . . . . . . . . . . . . . . . . . . . . . . . . . . 146,149
Latch Plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
Latches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Leaks, Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
Leveling, Headlight . . . . . . . . . . . . . . . . . . . . . . . . 69
Life of Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . 238
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Liftgate Window Wiper/Washer . . . . . . . . . . . . . . . 73
Light Bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . 165,200
Light Replacement . . . . . . . . . . . . . . . . . . . . . . . . 201
Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . 66,165,201 Airbag . . . . . . . . . . . . . . . . . . . . . 158,161,164,185
Anti-Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Anti-Lock Warning . . . . . . . . . . . . . . . . . . . . . 189
Automatic Headlights . . . . . . . . . . . . . . . . . . . . . 66
Back-Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 203
Brake Assist Warning . . . . . . . . . . . . . . . . . . . . 110
Brake Warning . . . . . . . . . . . . . . . . . . . . . . . . 188
Bulb Replacement . . . . . . . . . . . . . . . . . . . . . . 201
Courtesy/Reading . . . . . . . . . . . . . . . . . . . . . . . 69 251
KNOWING
YOURVEHICLE SAFETY
STARTING ANDDRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING AND
CARETECHNICAL
SPECIFICATIONSCONTENTS

Mini-Trip Computer . . . . . . . . . . . . . . . . . . . . . . . 23
Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53,77Automatic Dimming . . . . . . . . . . . . . . . . . . . . . 54
Electric Powered . . . . . . . . . . . . . . . . . . . . . . . . 54
Electric Remote . . . . . . . . . . . . . . . . . . . . . . . . 54
Exterior Folding . . . . . . . . . . . . . . . . . . . . . . . . 55
Heated . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Outside . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Rearview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Vanity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Mode Fuel Saver . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Modifications/Alterations, Vehicle . . . . . . . . . . . . . . . 5
Monitor, Tire Pressure System . . . . . . . . . . . . . . . . 114
Multi-Function Control Lever . . . . . . . . . . . . . . . . . 68
Navigation System (Uconnect™ gps) . . . . . . . . 124,126
New Vehicle Break-In Period . . . . . . . . . . . . . . . . . 166
Occupant Restraints . . . . . . . . . . . . . . . . 132,157,160
Occupant Restraints (Sedan) . . . . . . . . 154,155,157,159
Octane Rating, Gasoline (Fuel) . . . . . . . . . . . . . . . 242
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Oil Change Indicator . . . . . . . . . . . . . . . . . . . . 22,186
Oil Change Indicator, Reset . . . . . . . . . . . . . . . 22,186
Oil, Engine . . . . . . . . . . . . . . . . . . . . . . . . . . 219,242 Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 241
Change Interval . . . . . . . . . . . . . . . . . . . . . . 22,219
Checking . . . . . . . . . . . . . . . . . . . . . . . . . . . . 219
Dipstick . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 219
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220
Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 242
Filter Disposal . . . . . . . . . . . . . . . . . . . . . . . . . 220
Materials Added to . . . . . . . . . . . . . . . . . . . . . 219
Recommendation . . . . . . . . . . . . . . . . . . . . . . 241 Viscosity . . . . . . . . . . . . . . . . . . . . . . . . . 219,241
Onboard Diagnostic System . . . . . . . . . . . . . . . . . 111
Operating Precautions . . . . . . . . . . . . . . . . . . . . . 111
Operator Manual (Owner's Manual) . . . . . . . . . . . . . 4
Outside Rearview Mirrors . . . . . . . . . . . . . . . . . . . 54
Overhead Console . . . . . . . . . . . . . . . . . . . . . . . . 77
Overheating, Engine . . . . . . . . . . . . . . . . . . . . . . 212
Owner's Manual (Operator Manual) . . . . . . . . . . . . . 4
Paint Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230
Park Sense System, Rear . . . . . . . . . . . . . . . . . . . . 120
Parking Brake . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Passenger Seat Back Tilt (Easy Entry System) . . . . . . . 50
Passing Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Pets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
Power Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Distribution Center (Fuses) . . . . . . . . . . . . . . . . 207
Door Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Outlet (Auxiliary Electrical Outlet) . . . . . . . . . . . 82
Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Steering . . . . . . . . . . . . . . . . . . . . . . . . . . 112,113
Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Windows, Express Down . . . . . . . . . . . . . . . . . . 13
Power Steering Fluid . . . . . . . . . . . . . . . . . . . . . . 243
Power Transfer Unit . . . . . . . . . . . . . . . . . . . . . . 243
Pregnant Women and Seat Belts . . . . . . . . . . . . . . 141
Preparation for Jacking . . . . . . . . . . . . . . . . . . . . . 193
Pretensioners Seat Belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
Programming Transmitters (Remote Keyless Entry) . . 12
Radial Ply Tires . . . . . . . . . . . . . . . . . . . . . . . . . . 236 253
KNOWING
YOURVEHICLE SAFETY
STARTING ANDDRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING AND
CARETECHNICAL
SPECIFICATIONSCONTENTS
