FIAT FULLBACK 2016 1.G Service Manual
Manufacturer: FIAT, Model Year: 2016, Model line: FULLBACK, Model: FIAT FULLBACK 2016 1.GPages: 312, PDF Size: 13.67 MB
Page 41 of 312

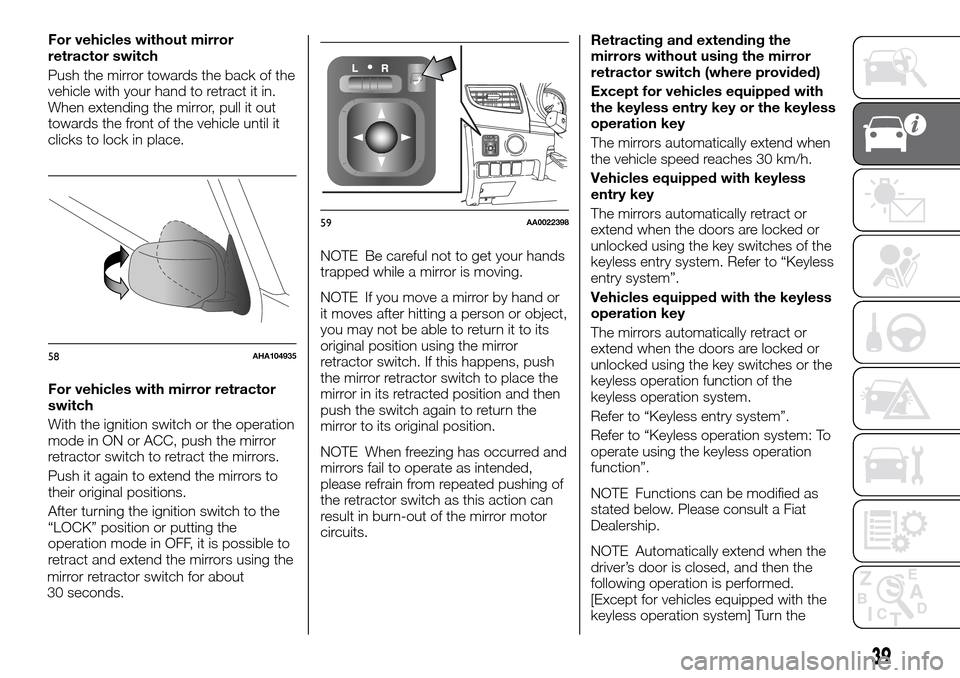

For vehicles without mirror
retractor switch
Push the mirror towards the back of the
vehicle with your hand to retract it in.
When extending the mirror, pull it out
towards the front of the vehicle until it
clicks to lock in place.
For vehicles with mirror retractor
switch
With the ignition switch or the operation
mode in ON or ACC, push the mirror
retractor switch to retract the mirrors.
Push it again to extend the mirrors to
their original positions.
After turning the ignition switch to the
“LOCK” position or putting the
operation mode in OFF, it is possible to
retract and extend the mirrors using the
mirror retractor switch for about
30 seconds.NOTE Be careful not to get your hands
trapped while a mirror is moving.
NOTE If you move a mirror by hand or
it moves after hitting a person or object,
you may not be able to return it to its
original position using the mirror
retractor switch. If this happens, push
the mirror retractor switch to place the
mirror in its retracted position and then
push the switch again to return the
mirror to its original position.
NOTE When freezing has occurred and
mirrors fail to operate as intended,
please refrain from repeated pushing of
the retractor switch as this action can
result in burn-out of the mirror motor
circuits.Retracting and extending the
mirrors without using the mirror
retractor switch (where provided)
Except for vehicles equipped with
the keyless entry key or the keyless
operation key
The mirrors automatically extend when
the vehicle speed reaches 30 km/h.
Vehicles equipped with keyless
entry key
The mirrors automatically retract or
extend when the doors are locked or
unlocked using the key switches of the
keyless entry system. Refer to “Keyless
entry system”.
Vehicles equipped with the keyless
operation key
The mirrors automatically retract or
extend when the doors are locked or
unlocked using the key switches or the
keyless operation function of the
keyless operation system.
Refer to “Keyless entry system”.
Refer to “Keyless operation system: To
operate using the keyless operation
function”.
NOTE Functions can be modified as
stated below. Please consult a Fiat
Dealership.
NOTE Automatically extend when the
driver’s door is closed, and then the
following operation is performed.
[Except for vehicles equipped with the
keyless operation system] Turn the
58AHA104935
4
5
6
7
59AA0022398
39
Page 42 of 312
ignition switch to the “ON” or “ACC”
position. [Vehicles equipped with the
keyless operation system] Put the
operation mode in ON or ACC.
NOTE Automatically retract when the
ignition switch is turned to the “LOCK”
position or the operation mode is put in
OFF, and the driver’s door is then
opened.
NOTE Automatically extend when the
vehicle speed reaches 30 km/h.
(vehicles equipped with the keyless
entry key or the keyless operation key)
NOTE Deactivate the automatic
extension function.
WARNING
51)As the driver's exterior mirror is curved,
it may slightly alter the perception of
distance of the reflected image. Further, the
reflective surface of the lower part of the
exterior mirrors is parabolic to increase the
field of view. The reflected image size is
thus reduced and gives the impression that
the reflected item is further away than it
actually is.
52)Do not attempt to adjust the rear-view
mirror while driving. This can be
dangerous. Always adjust the mirror before
driving.53)Your vehicle is equipped with convex
type mirrors. Remind that objects that you
see in the mirror will look smaller and
farther away compared to a normal flat
mirror. Do not use this mirror to estimate
distance of following vehicles when
changing lanes.
54)Do not drive the vehicle with the mirror
folded in. The lack of rearward visibility
normally provided by the mirror could lead
to an accident.
IMPORTANT
16)It is possible to retract and extend the
mirrors by hand. After retracting a mirror
using the mirror retractor switch, however,
you should extend it by using the switch
again, not by hand. If you extended the
mirror by hand after retracting it using the
switch, it would not properly lock in
position. As a result, it could move because
of the wind or vibration while you are
driving, taking away your rearward visibility.
EXTERNAL LIGHTS
COMBINATION
HEADLAMPS AND
DIPPER SWITCH
Headlamps
NOTE Do not leave the lamps on for a
long time while the engine is stationary
(not running). A run-down battery could
result.
NOTE When it rains, or when the
vehicle has been washed, the inside of
the lens sometimes becomes foggy, but
this does not indicate a functional
problem. When the lamp is switched
on, the heat will remove the fog.
However, if water gathers inside the
lamp, we recommend you to have
checked.
Type 1
Rotate the switch to turn on the lamps.
60AA0061221
40
GETTING TO KNOW YOUR VEHICLE
Page 43 of 312
OFF— all lamps off
— position, tail, licence plate and
instrument panel lamps on
— headlamps and other lamps go
on
Type 2
Rotate the switch to turn on the lamps.
OFF— all lamps off
AUTO— with the ignition switch or the
operation mode is in ON, headlamps,
position, tail, licence plate and
instrument panel lamps turn on and off
automatically in accordance with
outside light level. All lamps turn off
automatically when the ignition switch is
turned to “OFF” position or the
operation mode is put in OFF.
— position, tail, licence plate and
instrument panel lamps on
— headlamps and other lamps go
onNOTE The sensitivity of the automatic
on/off control can be adjusted. For
further information, contact a Fiat
Dealership.
NOTE If the front fog lamps (if so
equipped) turn on when they are
supposed to with the switch in the
“AUTO” position, the lamps turn off
automatically with the ignition switch or
operation mode off.
NOTE Do not cover the sensor (A) for
the automatic on/off control by affixing
a sticker or label to the windscreen.
NOTE If the lamps do not turn on or off
with the switch in the “AUTO” position,
manually operate the switch and we
recommend you to have your vehicle
checked.Lamps (headlamps, fog lamp, etc.)
auto-cutout function
If the following operation is
performed while the lamp switch is in
the
position, the lamps are
automatically turned off when the
driver’s door is opened. [Except for
vehicles equipped with the keyless
operation system] The ignition switch is
turned to the “LOCK” or “ACC”
position, or the key is removed from the
ignition switch. [For vehicles equipped
with the keyless operation system] The
operation mode is put in OFF or ACC.
If the following operation is
performed while the lamp switch is in
the
position, the lamps are
automatically turned off if the driver’s
door then remains closed for
approximately three minutes. [Except
for vehicles equipped with the keyless
operation system] The ignition switch is
turned to the “LOCK” or “ACC”
position, or the key is removed from the
ignition switch. [For vehicles equipped
with the keyless operation system] The
operation mode is put in OFF or ACC.
NOTE The lamp auto-cutout function
can also be disabled. For further
information, we recommend you to
consult a Fiat Dealership.
61AA0071497A
62AJZ101023
41
Page 44 of 312
Lamp monitor buzzer
If the following operation is performed,
a buzzer will sound to remind the driver
to turn off the lamps. [Except for
vehicles equipped with the keyless
operation system]
If the driver’s door is opened when the
key is in the “LOCK” or “ACC” position
or removed from the ignition switch
while the lamps are on. [For vehicles
equipped with the keyless operation
system] If the driver’s door is opened
when the operation mode is in ACC or
OFF while the lamps are on. In both
cases, the buzzer will automatically
stop if the auto-cutoff function is
activated, the lamp switch is turned off,
or the door is closed.
Daytime running lamp
The daytime running lamps comes on
when the engine is running and the
lamp switch is in the “OFF” or “AUTO”
position and the tail lamps are off.
55) 56)
Dipper (High/Low beam change)
When the lamp switch is in the
position, the beam changes from
high to low (or low to high) each time
the lever is pulled fully (A). While the
high beam is on, the high beam
indicator lamp in the instrument cluster
will also illuminate.Headlamp flasher
The high beams flash when the lever is
pulled slightly (B), and will go off when it
is released. When the high beam is on,
the high beam indicator lamp in the
instrument cluster will illuminate.
NOTE The high beams can also flash
when the lamp switch is OFF.
NOTE If you turn the lamps off with the
headlamps set to high beam, the
headlamps are automatically returned
to their low-beam setting when the
lamp switch is next turned to theposition.
HEADLAMP LEVELLING
SWITCH
(where provided)
57)
The angle of the headlamp beam varies
depending upon the load carried by the
vehicle. The headlamp levelling switch
can be used to adjust the headlamp
illumination distance (when the lower
beam is illuminated) so that the
headlamps’ glare does not distract the
drivers of approaching vehicles. Set the
switch (referring to the following table)
to the appropriate position according to
the number of people and the load in
the vehicle.
NOTE When adjusting the beam
position, first put the dial in the “0”
position (the highest beam position).
63AA0061218
64AHA105525
42
GETTING TO KNOW YOUR VEHICLE
Page 45 of 312
Switch
positionVehicle condition
Single Cab
Switch
position
0Driver only
Switch
position
2Driver + Full luggage loading
(Diesel-powered vehicles
4D56 without intercooler)
Switch
position
3Driver + Full luggage loading
(Diesel-powered vehicles
4D56 with intercooler)
Switch
positionVehicle condition
Double Cab
Switch
position
0Driver only
Switch
position
3Driver + Full luggage loading
4WD vehicles for South Africa
(Except for vehicles with high
intensity discharge headlamps)
(Except for vehicles for South
Africa or Gulf countries)
Diesel-powered vehicles
4N15 with high intensity
discharge headlamps and
17 inch tyre (Except for vehicles
for South Africa or Gulf
countries)
Switch
position
4Driver + Full luggage loading
2WD vehicles for South Africa
(Vehicles for Gulf countries)
Diesel-powered vehicles
4D56 with high intensity
discharge headlamps (Except
for vehicles for South Africa or
Gulf countries)
Diesel-powered vehicles
4N15 with high intensity
discharge headlamps and
16 inch tyre (Except for vehicles
for South Africa or Gulf
countries)
TURN SIGNAL LEVER
The turn-signal lamps flash when the
lever is operated (with the ignition
switch or the operation mode is in ON).
At the same time, the turn-signal
indicator flashes.
A — Turn-signals: when making a
normal turn, use position (A). The lever
will return automatically when cornering
is completed.
B — Lane change signals: when
moving the lever to (B) slightly to
change a lane, the turn-signal lamps
and indicator lamp in the instrument
cluster will only flash while the lever is
operated. Also, when you move the
lever to (B) slightly then release it, the
turn-signal lamps and indicator lamp in
the instrument cluster will flash three
times.
65AA0061205
43
Page 46 of 312
NOTE If the lamp flashes unusually
quickly, the bulb in a turn-signal lamp
may have burned out. We recommend
you to have the vehicle inspected.
It is possible to activate the following
functions:
Flashing of the turn-signal lamps
when the lever is operated with the
ignition switch or the operation mode is
in ACC
The turn-signal lamps 3-flash
function for lane changes can be
deactivated.
The time required to operate the
lever for the 3-flash function can be
adjusted.
Changing of the tone of a sounding
buzzer as the turn-signal lamps flash.
For further information, we recommend
you to consult a Fiat Dealership.
HAZARD WARNING
FLASHER SWITCH
Use the hazard warning flasher switch
when the vehicle has to be parked on
the road for any emergency. The hazard
warning flashers can always be
operated, regardless of the ignition
switch position or the operation mode.
Push the switch to turn on the hazard
warning flashers, all turn signal lamps
flash continuously. To turn them off,
push the switch again.
NOTE On vehicles equipped with the
emergency stop signal system, while
the hazard warning lamps are blinking
due to having manually pushed the
switch, the emergency stop signal
system does not operate. Refer to
“Emergency stop signal system”.
FOG LAMP SWITCH
(where provided)
Front fog lamp switch
The front fog lamps can be operated
while the headlamps or tail lamps are
on. Turn the knob in the “ON” direction
to turn on the front fog lamps. An
indicator lamp in the instrument cluster
will also come on. Turn the knob in the
“OFF” direction to turn off the front fog
lamps. The knob will automatically
return to its original position when you
release it.
NOTE The front fog lamps are
automatically turned off when the
headlamps or tail lamps are turned off.
To turn the front fog lamps on again,
turn the knob in the “ON” direction after
turning on the headlamps or tail lamps.
66AHA101383
67AG0004596
44
GETTING TO KNOW YOUR VEHICLE
Page 47 of 312
NOTE Do not use fog lamps except in
conditions of fog, otherwise excessive
lamp glare may temporarily blind
oncoming vehicle drivers.
Rear fog lamp switch
The rear fog lamp can be operated
when the headlamps or front fog lamps
(if so equipped) turn on. An indicator
lamp in the instrument cluster comes
on when the rear fog lamp is turned on.
[Vehicle without front fog lamps] Turn
the knob once in the “ON” direction to
turn on the rear fog lamp. To turn the
rear fog lamp off, turn the knob once in
the “OFF” direction. The knob will
automatically return to its original
position when you release it.
[Vehicle with front fog lamps] Turn the
knob once in the “ON” direction to turn
on the front fog lamps. Turn the knob
once more in the “ON” direction to turn
on the rear fog lamp. To turn the rear
fog lamp off, turn the knob once in the
“OFF” direction. Turn the knob once
more in the “OFF” direction to turn off
the front fog lamps. The knob will
automatically return to its original
position when you release it.NOTE The rear fog lamp is
automatically turned off when the
headlamps or front fog lamps (if so
equipped) are turned off.
NOTE To turn the rear fog lamp on
again, turn the knob once in the “ON”
direction after turning on the
headlamps. (Vehicle without front fog
lamps)
To turn the rear fog lamp on again, turn
the knob twice in the “ON” direction
after turning on the headlamps. (Vehicle
with front fog lamps)MASKING THE
HEADLAMPS
When entering a country in which
vehicles are driven on the opposite side
of the road to the country in which your
vehicles is supplied, necessary
measures have to be taken to avoid
dazzling oncoming traffic.
High intensity discharge headlamp
type
Do not need any adjustment.

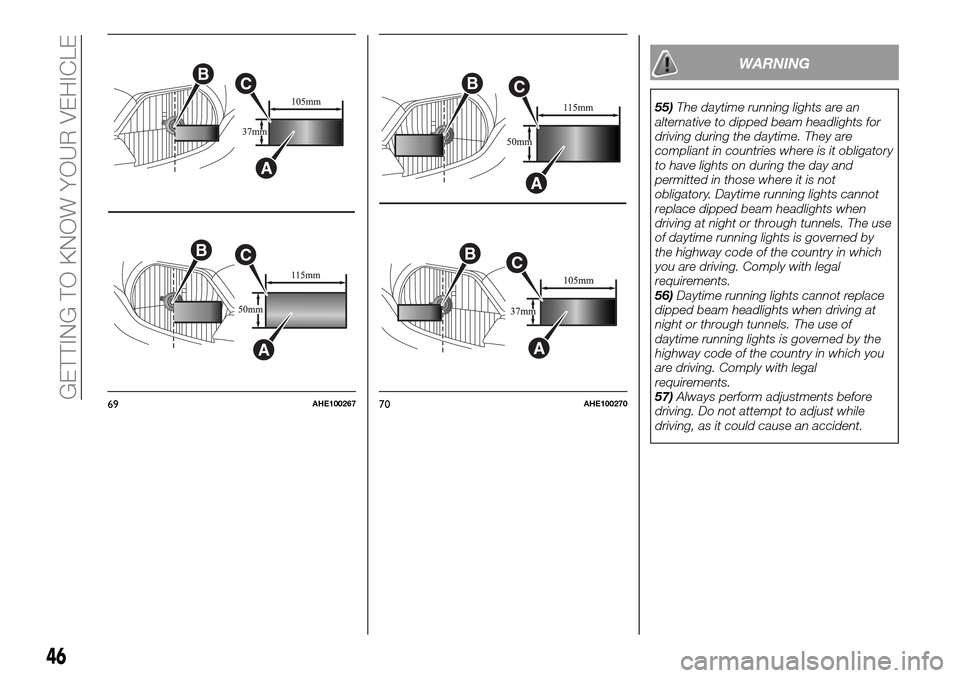

Halogen headlamp type
Mask the headlamps according to the
next procedure.
Turn the headlamp off and wait until
the headlamps got cold.According
to the illustrations, prepare the
sticker (A) to stick the headlamp
surface of right and left.Seeing from
the headlamp front, position (C) of
the sticker and the central mark (B)
of the headlamp and stick a sticker
along the vertical dotted line.
NOTE Use a sticker with a light
blocking effect enough. Using of a
sticker without a light blocking effect will
not acquire a blocking effect.
NOTE Align the vertical dotted line with
the line of the reflector in the headlamp.
68AG0004596
45
Page 48 of 312
WARNING
55)The daytime running lights are an
alternative to dipped beam headlights for
driving during the daytime. They are
compliant in countries where is it obligatory
to have lights on during the day and
permitted in those where it is not
obligatory. Daytime running lights cannot
replace dipped beam headlights when
driving at night or through tunnels. The use
of daytime running lights is governed by
the highway code of the country in which
you are driving. Comply with legal
requirements.
56)Daytime running lights cannot replace
dipped beam headlights when driving at
night or through tunnels. The use of
daytime running lights is governed by the
highway code of the country in which you
are driving. Comply with legal
requirements.
57)Always perform adjustments before
driving. Do not attempt to adjust while
driving, as it could cause an accident.
B
B
C
C
A
A
69AHE100267
B
B
C
C
A
A
70AHE100270
46
GETTING TO KNOW YOUR VEHICLE
Page 49 of 312

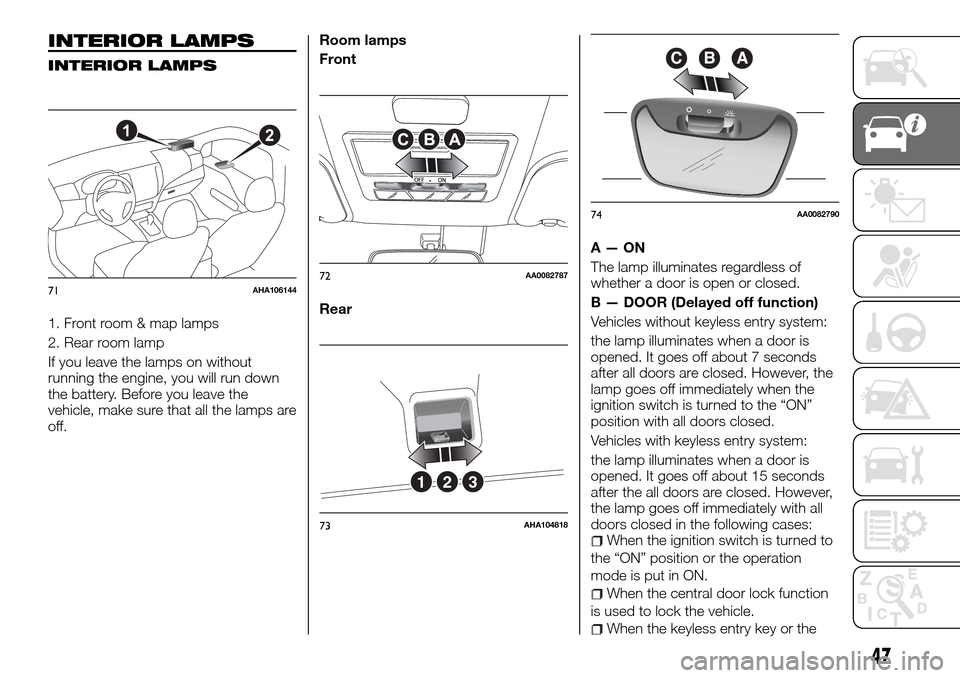

INTERIOR LAMPS
INTERIOR LAMPS
1. Front room & map lamps
2. Rear room lamp
If you leave the lamps on without
running the engine, you will run down
the battery. Before you leave the
vehicle, make sure that all the lamps are
off.Room lamps
Front
RearA—ON
The lamp illuminates regardless of
whether a door is open or closed.
B — DOOR (Delayed off function)
Vehicles without keyless entry system:
the lamp illuminates when a door is
opened. It goes off about 7 seconds
after all doors are closed. However, the
lamp goes off immediately when the
ignition switch is turned to the “ON”
position with all doors closed.
Vehicles with keyless entry system:
the lamp illuminates when a door is
opened. It goes off about 15 seconds
after the all doors are closed. However,
the lamp goes off immediately with all
doors closed in the following cases:
When the ignition switch is turned to
the “ON” position or the operation
mode is put in ON.
When the central door lock function
is used to lock the vehicle.
When the keyless entry key or the
21
71AHA10614472AA0082787
321
73AHA104818
ABC
74AA0082790
47
Page 50 of 312

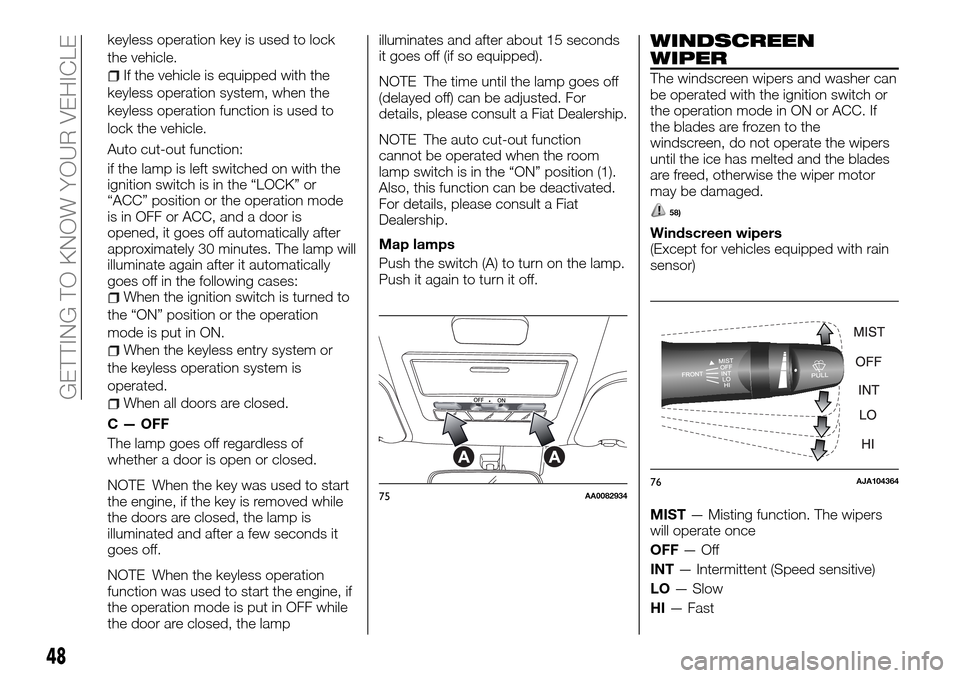

keyless operation key is used to lock
the vehicle.
If the vehicle is equipped with the
keyless operation system, when the
keyless operation function is used to
lock the vehicle.
Auto cut-out function:
if the lamp is left switched on with the
ignition switch is in the “LOCK” or
“ACC” position or the operation mode
is in OFF or ACC, and a door is
opened, it goes off automatically after
approximately 30 minutes. The lamp will
illuminate again after it automatically
goes off in the following cases:
When the ignition switch is turned to
the “ON” position or the operation
mode is put in ON.
When the keyless entry system or
the keyless operation system is
operated.
When all doors are closed.
C — OFF
The lamp goes off regardless of
whether a door is open or closed.
NOTE When the key was used to start
the engine, if the key is removed while
the doors are closed, the lamp is
illuminated and after a few seconds it
goes off.
NOTE When the keyless operation
function was used to start the engine, if
the operation mode is put in OFF while
the door are closed, the lampilluminates and after about 15 seconds
it goes off (if so equipped).
NOTE The time until the lamp goes off
(delayed off) can be adjusted. For
details, please consult a Fiat Dealership.
NOTE The auto cut-out function
cannot be operated when the room
lamp switch is in the “ON” position (1).
Also, this function can be deactivated.
For details, please consult a Fiat
Dealership.
Map lamps
Push the switch (A) to turn on the lamp.
Push it again to turn it off.
WINDSCREEN
WIPER
The windscreen wipers and washer can
be operated with the ignition switch or
the operation mode in ON or ACC. If
the blades are frozen to the
windscreen, do not operate the wipers
until the ice has melted and the blades
are freed, otherwise the wiper motor
may be damaged.
58)
Windscreen wipers
(Except for vehicles equipped with rain
sensor)
MIST— Misting function. The wipers
will operate once
OFF—Off
INT— Intermittent (Speed sensitive)
LO— Slow
HI— Fast
75AA008293476AJA104364
48
GETTING TO KNOW YOUR VEHICLE
