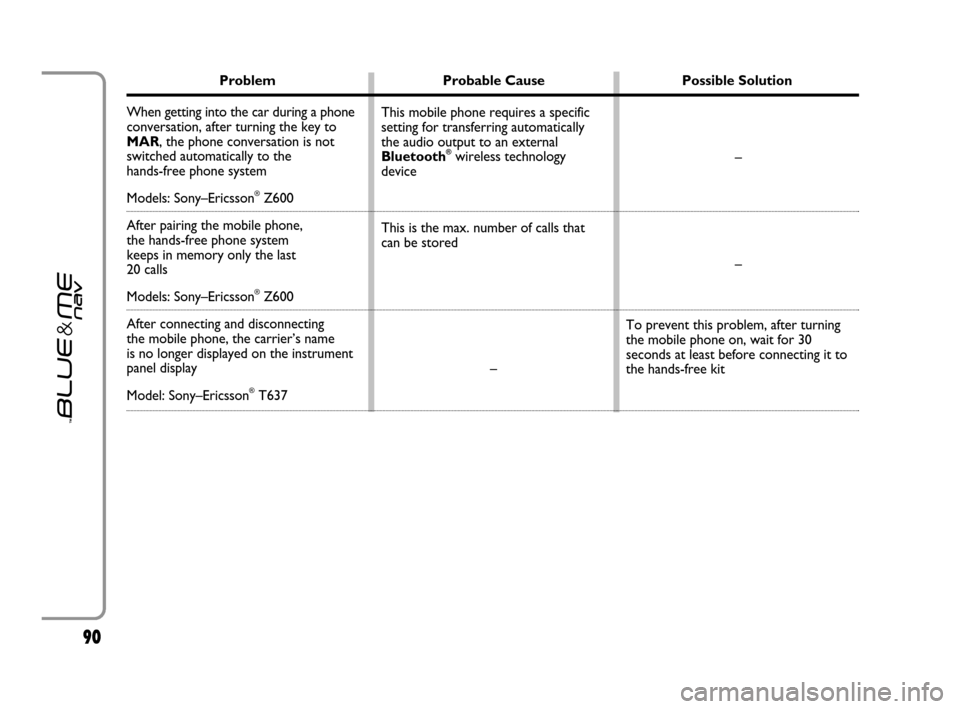

Page 91 of 106
9090
Problem Probable Cause Possible Solution
When getting into the car during a phone
conversation, after turning the key to
MAR, the phone conversation is not
switched automatically to the
hands-free phone system
Models: Sony–Ericsson®Z600
After pairing the mobile phone,
the hands-free phone system
keeps in memory only the last
20 calls
Models: Sony–Ericsson®Z600
After connecting and disconnecting
the mobile phone, the carrier’s name
is no longer displayed on the instrument
panel display
Model: Sony–Ericsson®T637–
–
To prevent this problem, after turning
the mobile phone on, wait for 30
seconds at least before connecting it to
the hands-free kit This mobile phone requires a specific
setting for transferring automatically
the audio output to an external
Bluetooth
®wireless technology
device
This is the max. number of calls that
can be stored
–
603_83_390 Punto C3 GB 19-06-2007 11:21 Pagina 90

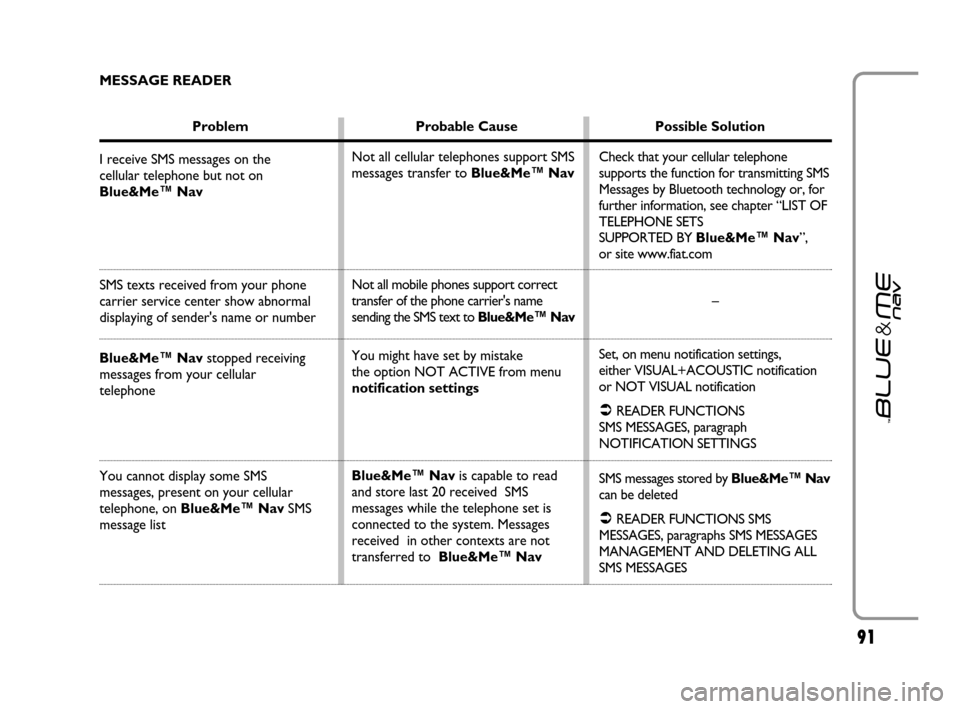

Page 92 of 106
9191
MESSAGE READER
Problem Probable Cause Possible Solution
I receive SMS messages on the
cellular telephone but not on
Blue&Me™ Nav
SMS texts received from your phone
carrier service center show abnormal
displaying of sender's name or number
Blue&Me™ Navstopped receiving
messages from your cellular
telephone
You cannot display some SMS
messages, present on your cellular
telephone, on Blue&Me™ NavSMS
message list
Not all cellular telephones support SMS
messages transfer to Blue&Me™ Nav
Not all mobile phones support correct
transfer of the phone carrier's name
sending the SMS text to Blue&Me™ Nav
You might have set by mistake
the option NOT ACTIVE from menu
notification settings
Blue&Me™ Navis capable to read
and store last 20 received SMS
messages while the telephone set is
connected to the system. Messages
received in other contexts are not
transferred to Blue&Me™ NavCheck that your cellular telephone
supports the function for transmitting SMS
Messages by Bluetooth technology or, for
further information, see chapter “LIST OF
TELEPHONE SETS
SUPPORTED BYBlue&Me™ Nav”,
or site www.fiat.com
–
Set, on menu notification settings,
either VISUAL+ACOUSTIC notification
or NOT VISUAL notification
READER FUNCTIONS
SMS MESSAGES, paragraph
NOTIFICATION SETTINGS
SMS messages stored by Blue&Me™ Nav
can be deleted
READER FUNCTIONS SMS
MESSAGES, paragraphs SMS MESSAGES
MANAGEMENT AND DELETING ALL
SMS MESSAGES
603_83_390 Punto C3 GB 19-06-2007 11:21 Pagina 91

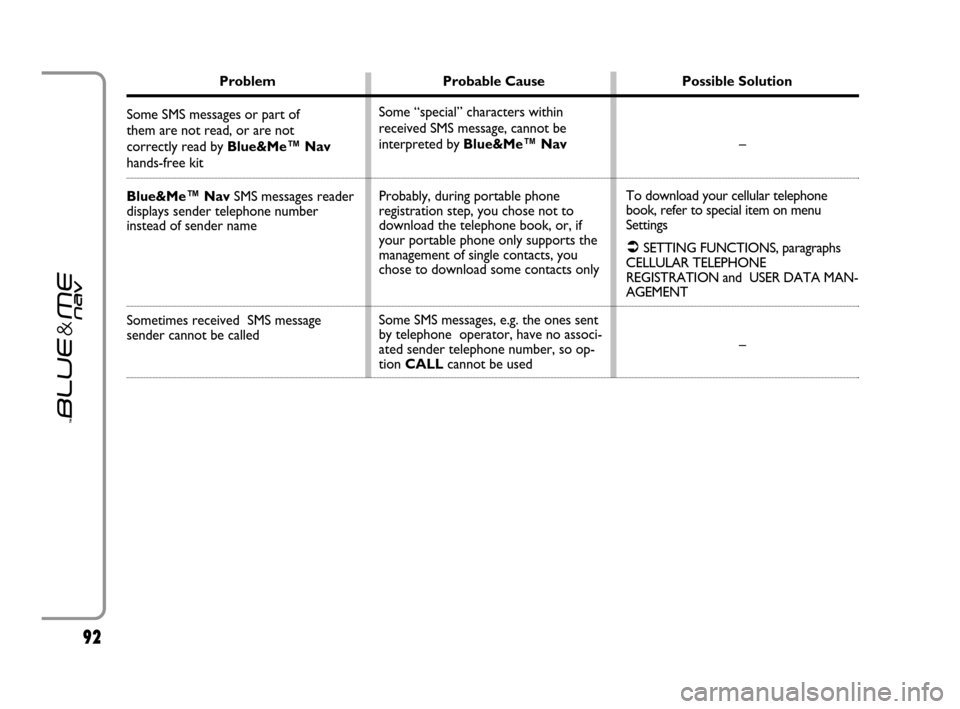

Page 93 of 106
9292
Problem Probable Cause Possible Solution
Some SMS messages or part of
them are not read, or are not
correctly read by Blue&Me™ Nav
hands-free kit
Blue&Me™ NavSMS messages reader
displays sender telephone number
instead of sender name
Sometimes received SMS message
sender cannot be called
Some “special” characters within
received SMS message, cannot be
interpreted by Blue&Me™ Nav
Probably, during portable phone
registration step, you chose not to
download the telephone book, or, if
your portable phone only supports the
management of single contacts, you
chose to download some contacts only
Some SMS messages, e.g. the ones sent
by telephone operator, have no associ-
ated sender telephone number, so op-
tion CALLcannot be used–
To download your cellular telephone
book, refer to special item on menu
Settings
SETTING FUNCTIONS, paragraphs
CELLULAR TELEPHONE
REGISTRATION and USER DATA MAN-
AGEMENT
–
603_83_390 Punto C3 GB 19-06-2007 11:21 Pagina 92

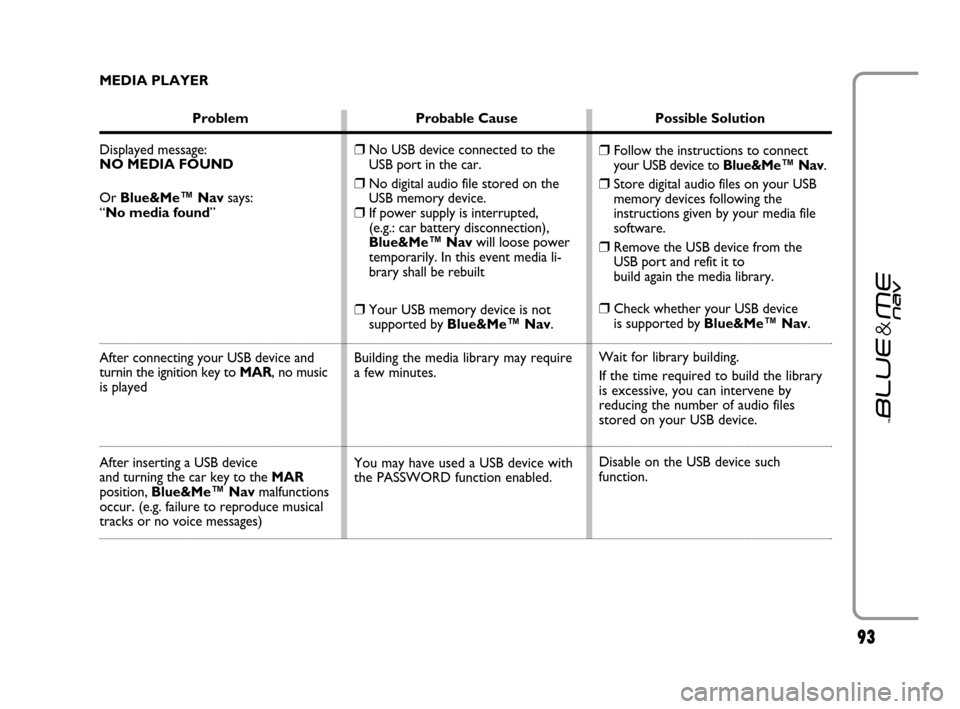

Page 94 of 106
9393
MEDIA PLAYER
Problem Probable Cause Possible Solution
Displayed message:
NO MEDIA FOUND
Or Blue&Me™ Navsays:
“No media found”
After connecting your USB device and
turnin the ignition key to MAR, no music
is played
After inserting a USB device
and turning the car key to the MAR
position, Blue&Me™ Navmalfunctions
occur. (e.g. failure to reproduce musical
tracks or no voice messages)
❒Follow the instructions to connect
your USB device to Blue&Me™ Nav.
❒Store digital audio files on your USB
memory devices following the
instructions given by your media file
software.
❒Remove the USB device from the
USB port and refit it to
build again the media library.
❒Check whether your USB device
is supported by Blue&Me™ Nav.
Wait for library building.
If the time required to build the library
is excessive, you can intervene by
reducing the number of audio files
stored on your USB device.
Disable on the USB device such
function.
❒No USB device connected to the
USB port in the car.
❒No digital audio file stored on the
USB memory device.
❒If power supply is interrupted,
(e.g.: car battery disconnection),
Blue&Me™ Navwill loose power
temporarily. In this event media li-
brary shall be rebuilt
❒Your USB memory device is not
supported by Blue&Me™ Nav.
Building the media library may require
a few minutes.
You may have used a USB device with
the PASSWORD function enabled.
603_83_390 Punto C3 GB 19-06-2007 11:21 Pagina 93

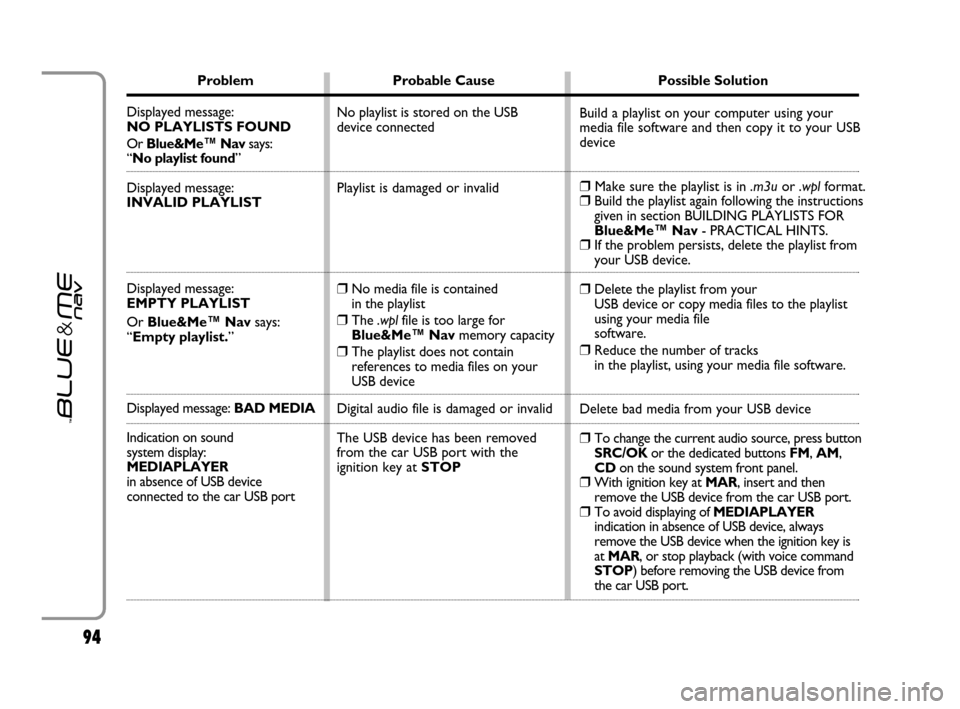

Page 95 of 106
9494
Problem Probable Cause Possible Solution
Displayed message:
NO PLAYLISTS FOUND
Or Blue&Me™ Navsays:
“No playlist found”
Displayed message:
INVALID PLAYLIST
Displayed message:
EMPTY PLAYLIST
Or Blue&Me™ Navsays:
“Empty playlist.”
Displayed message: BAD MEDIA
Indication on sound
system display:
MEDIAPLAYER
in absence of USB device
connected to the car USB port
Build a playlist on your computer using your
media file software and then copy it to your USB
device
❒Make sure the playlist is in .m3uor .wplformat.❒Build the playlist again following the instructions
given in section BUILDING PLAYLISTS FOR
Blue&Me™ Nav- PRACTICAL HINTS.
❒If the problem persists, delete the playlist from
your USB device.
❒Delete the playlist from your
USB device or copy media files to the playlist
using your media file
software.
❒Reduce the number of tracks
in the playlist, using your media file software.
Delete bad media from your USB device
❒To change the current audio source, press button
SRC/OK or the dedicated buttons FM, AM,
CDon the sound system front panel.
❒With ignition key at MAR, insert and then
remove the USB device from the car USB port.
❒To avoid displaying of MEDIAPLAYER
indication in absence of USB device, always
remove the USB device when the ignition key is
at MAR, or stop playback (with voice command
STOP) before removing the USB device from
the car USB port. No playlist is stored on the USB
device connected
Playlist is damaged or invalid
❒No media file is contained
in the playlist
❒The .wplfile is too large for
Blue&Me™ Navmemory capacity
❒The playlist does not contain
references to media files on your
USB device
Digital audio file is damaged or invalid
The USB device has been removed
from the car USB port with the
ignition key at STOP
603_83_390 Punto C3 GB 19-06-2007 11:21 Pagina 94
Page 96 of 106
9595
Problem Probable Cause Possible Solution
Displayed message:
PROTECTED CONTENT
Or Blue&Me™ Navsays:
“Protected content”.
Blue&Me™ Navdoes not play all the
digitalaudio files in the playlist
The media library does not show
all the digital audio files stored
on the USB device
After pronouncing a command,
Blue&Me™ Navsays:
“Command not available”, although
the command you prompt is a first
level voice command–
For further details see section
“SUPPORTED USB MEMORY DEVICES”
–
If the track is paused, resume
playback by pressing
&/ESC.
Then pronounce the voice command
again. The track selected is DRM-protected
and it cannot be played by
the media player
Your playlist contains DRM-protected
files that cannot be played; or it
contains references to invalid media
files
❒Your playlist contains DRM-
protected files that are ignored
during playback
❒Your playlist contains more than
20.000 tracks, that is the max.
number of files that can be copied
to the media library.
❒The playlist stored on your USB
device contains more than 20
nested folders.
Nested folders files will not be
copied to the media library.
Certain commands are not available
when the track is paused or the CD
player is playing a track
603_83_390 Punto C3 GB 19-06-2007 11:21 Pagina 95

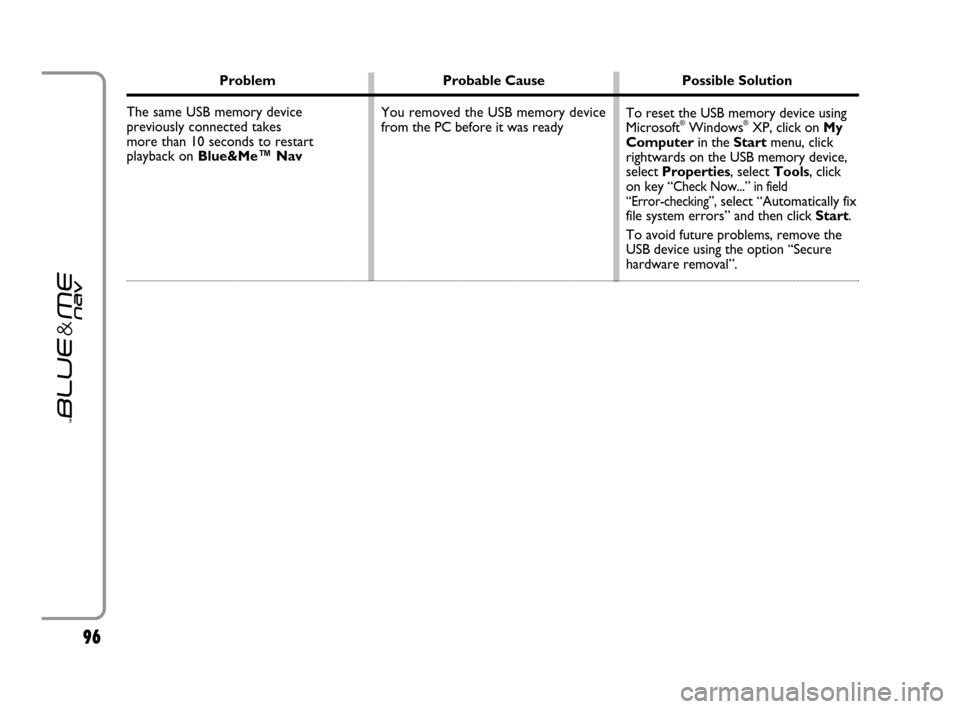

Page 97 of 106
9696
Problem Probable Cause Possible Solution
The same USB memory device
previously connected takes
more than 10 seconds to restart
playback on Blue&Me™ Nav
To reset the USB memory device using
Microsoft®Windows®XP, click on My
Computer in the Startmenu, click
rightwards on the USB memory device,
select Properties, select Tools, click
on key
“Check Now...” in field
“Error-checking”,select “Automatically fix
file system errors” and then click Start.
To avoid future problems, remove the
USB device using the option “Secure
hardware removal”. You removed the USB memory device
from the PC before it was ready
603_83_390 Punto C3 GB 19-06-2007 11:21 Pagina 96

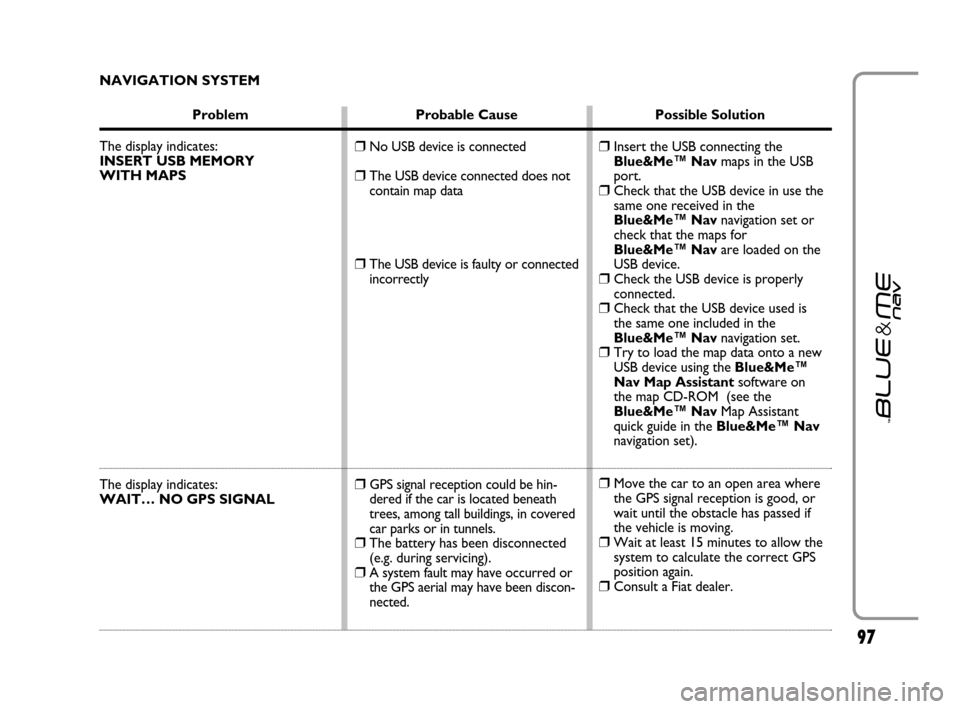

Page 98 of 106
97
❒No USB device is connected
❒The USB device connected does not
contain map data
❒The USB device is faulty or connected
incorrectly
❒GPS signal reception could be hin-
dered if the car is located beneath
trees, among tall buildings, in covered
car parks or in tunnels.
❒The battery has been disconnected
(e.g. during servicing).
❒A system fault may have occurred or
the GPS aerial may have been discon-
nected.
❒Insert the USB connecting the
Blue&Me™ Navmaps in the USB
port.
❒Check that the USB device in use the
same one received in the
Blue&Me™ Navnavigation set or
check that the maps for
Blue&Me™ Navare loaded on the
USB device.
❒Check the USB device is properly
connected.
❒Check that the USB device used is
the same one included in the
Blue&Me™ Navnavigation set.
❒Try to load the map data onto a new
USB device using the Blue&Me™
Nav Map Assistantsoftware on
the map CD-ROM (see the
Blue&Me™ NavMap Assistant
quick guide in the Blue&Me™ Nav
navigation set).
❒Move the car to an open area where
the GPS signal reception is good, or
wait until the obstacle has passed if
the vehicle is moving.
❒Wait at least 15 minutes to allow the
system to calculate the correct GPS
position again.
❒Consult a Fiat dealer. NAVIGATION SYSTEM
Problem Probable Cause Possible Solution
The display indicates:
INSERT USB MEMORY
WITH MAPS
The display indicates:
WAIT… NO GPS SIGNAL
603_83_390 Punto C3 GB 19-06-2007 11:21 Pagina 97

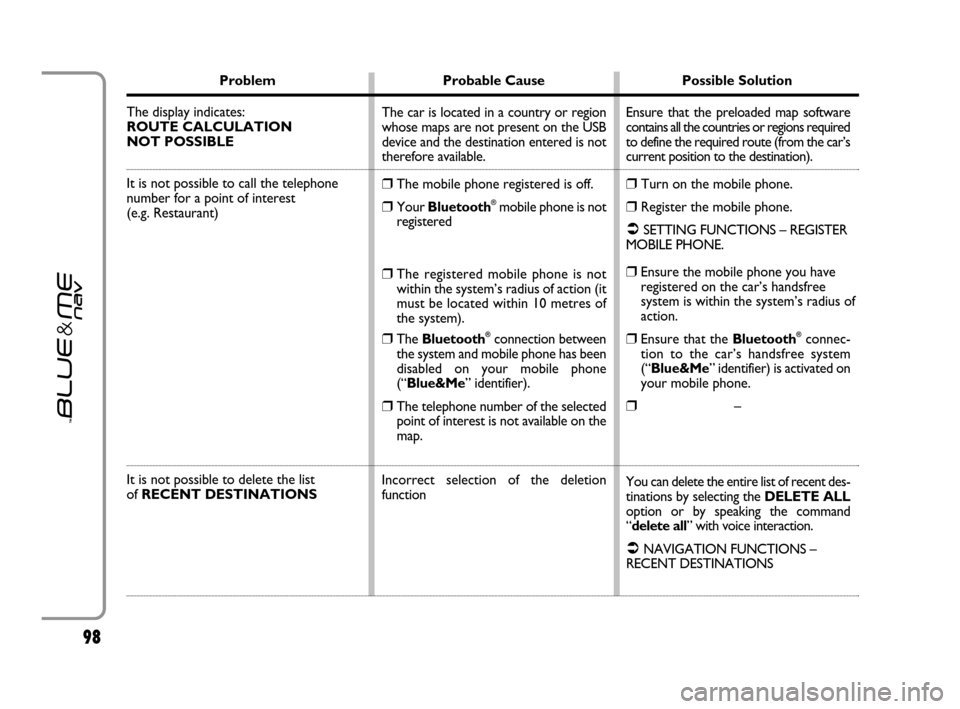

Page 99 of 106
98
The car is located in a country or region
whose maps are not present on the USB
device and the destination entered is not
therefore available.
❒The mobile phone registered is off.
❒Your Bluetooth®mobile phone is not
registered
❒The registered mobile phone is not
within the system’s radius of action (it
must be located within 10 metres of
the system).
❒The Bluetooth®connection between
the system and mobile phone has been
disabled on your mobile phone
(“Blue&Me” identifier).
❒The telephone number of the selected
point of interest is not available on the
map.
Incorrect selection of the deletion
functionEnsure that the preloaded map software
contains all the countries or regions required
to define the required route (from the car’s
current position to the destination).
❒Turn on the mobile phone.
❒Register the mobile phone.
SETTING FUNCTIONS – REGISTER
MOBILE PHONE.
❒Ensure the mobile phone you have
registered on the car’s handsfree
system is within the system’s radius of
action.
❒Ensure that the Bluetooth®connec-
tion to the car’s handsfree system
(“Blue&Me” identifier) is activated on
your mobile phone.
❒–
You can delete the entire list of recent des-
tinations by selecting the DELETE ALL
option or by speaking the command
“delete all” with voice interaction.
NAVIGATION FUNCTIONS –
RECENT DESTINATIONS
Problem Probable Cause Possible Solution
The display indicates:
ROUTE CALCULATION
NOT POSSIBLE
It is not possible to call the telephone
number for a point of interest
(e.g. Restaurant)
It is not possible to delete the list
of RECENT DESTINATIONS
603_83_390 Punto C3 GB 19-06-2007 11:21 Pagina 98
Page 100 of 106
9999
PERSONAL DATA PROTECTION
The functions offered by the Blue&Me™ Navdevice involve the processing of personal data. To protect unauthorised access to
this information, the device has been constructed to ensure that:
❒Personal data linked to the handsfree functions (phonebook, recent calls and text message inbox) are accessible only following
automatic recognition of the user’s mobile phone by means of Bluetooth®technology;
❒Personal data on the device (phonebook, recent calls, text message inbox and recent destinations) may be deleted using specific
Blue&Me™ Navfunctions.
For further information on the deletion of personal data (phonebook, recent calls and text message inbox), refer to the section
SETTING FUNCTIONS – USER DATA.
For further information on deleting recent destinations, refer to the section NAVIGATION FUNCTIONS – RECENT DESTI-
NATIONS.
IMPORTANT When leaving your car in a service centre, remember that the personal data stored on the Blue&Me™ Nav
(phonebook and recent cars, text message inbox and recent destinations), may be recorded or subject to improper use. Before
leaving your car in a service centre, you will be able to delete registered user data and phonebook data stored in the Blue&Me™
Nav.
For further information on the deletion of user data, phonebook, and text message inbox, refer to the section SETTING FUNC-
TIONS – USER DATA.
For further information on deleting recent destinations, refer to the section NAVIGATION FUNCTIONS – RECENT DESTI-
NATIONS.
603_83_390 Punto C3 GB 19-06-2007 11:21 Pagina 99
