Page 151 of 196

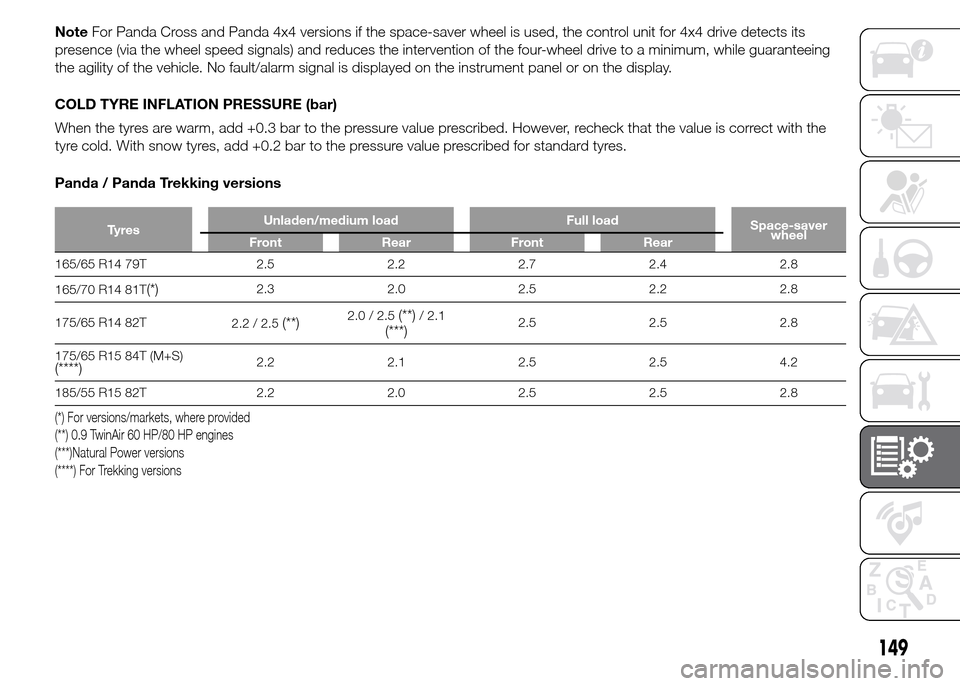

FIAT PANDA 2015 319 / 3.G Owners Manual NoteFor Panda Cross and Panda 4x4 versions if the space-saver wheel is used, the control unit for 4x4 drive detects its
presence (via the wheel speed signals) and reduces the intervention of the four-

Page 152 of 196

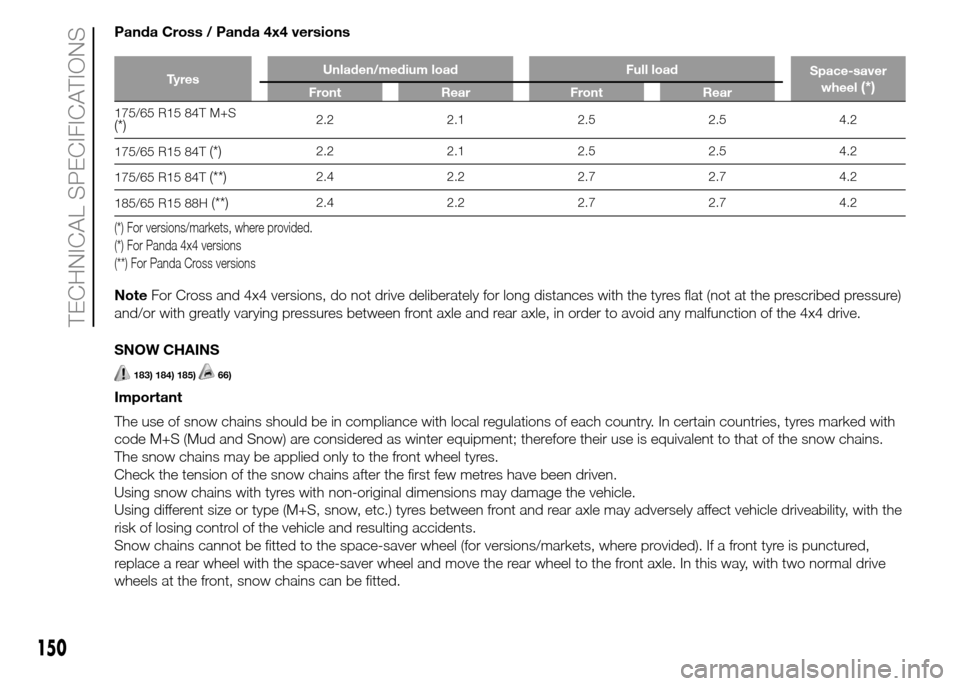

FIAT PANDA 2015 319 / 3.G Owners Manual Panda Cross / Panda 4x4 versions
Ty r e sUnladen/medium load Full load
Space-saver
wheel(*)Front Rear Front Rear
175/65 R15 84T M+S(*)2.2 2.1 2.5 2.5 4.2
175/65 R15 84T
(*)2.2 2.1 2.5 2.5 4.2
175/65 R

Page 153 of 196

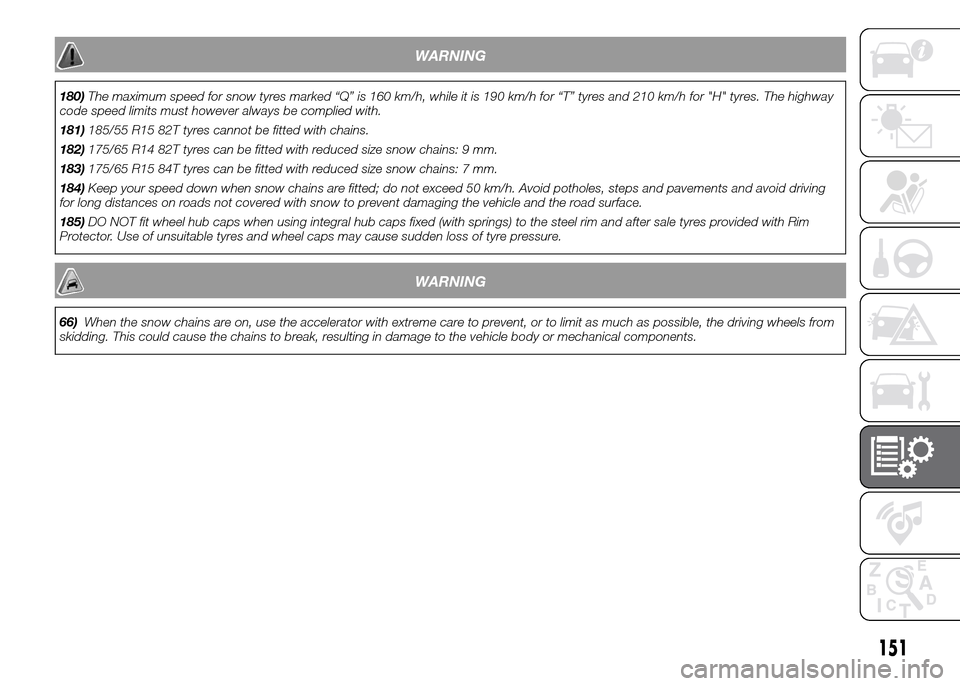

FIAT PANDA 2015 319 / 3.G Owners Manual WARNING
180)The maximum speed for snow tyres marked “Q” is 160 km/h, while it is 190 km/h for “T” tyres and 210 km/h for "H" tyres. The highway
code speed limits must however always be complie

Page 154 of 196

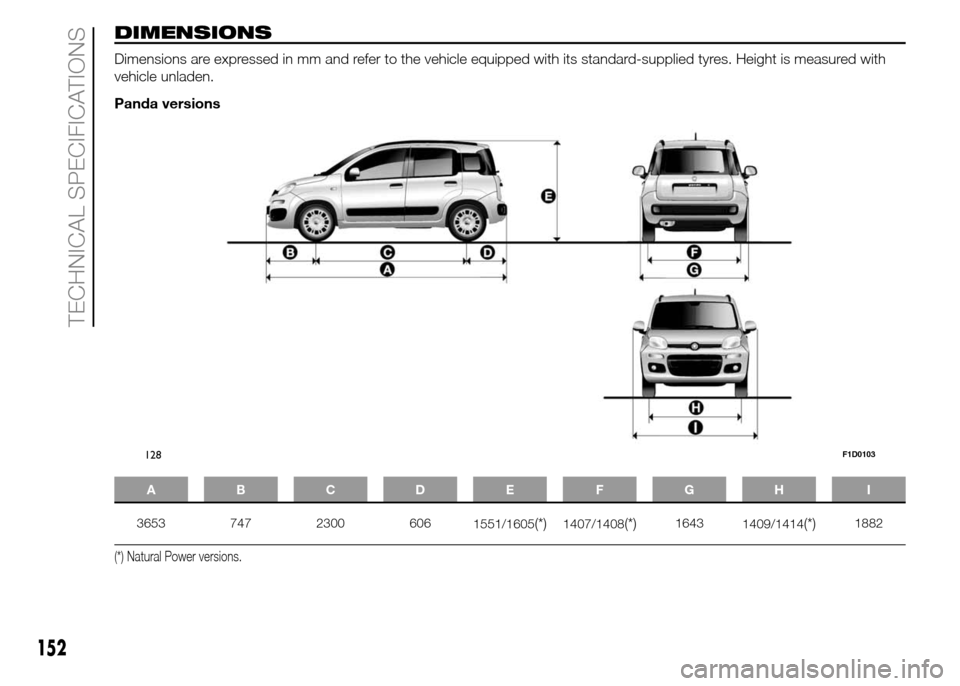

FIAT PANDA 2015 319 / 3.G Owners Manual DIMENSIONS
Dimensions are expressed in mm and refer to the vehicle equipped with its standard-supplied tyres. Height is measured with
vehicle unladen.
Panda versions
ABCDE FGH I
3653 747 2300 606
1551

Page 155 of 196

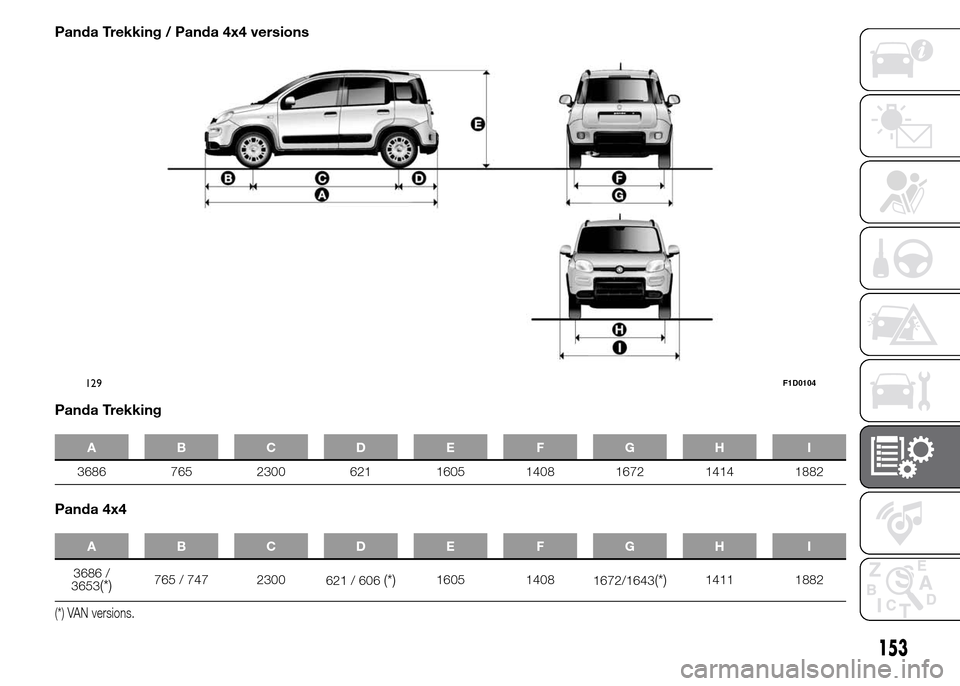

FIAT PANDA 2015 319 / 3.G Owners Manual Panda Trekking / Panda 4x4 versions
Panda Trekking
ABCDE FGH I
3686 765 2300 621 1605 1408 1672 1414 1882
Panda 4x4
ABCDE FGH I
3686 /
3653(*)765 / 747 2300
621 / 606(*)1605 1408
1672/1643(*)1411 1882

Page 156 of 196

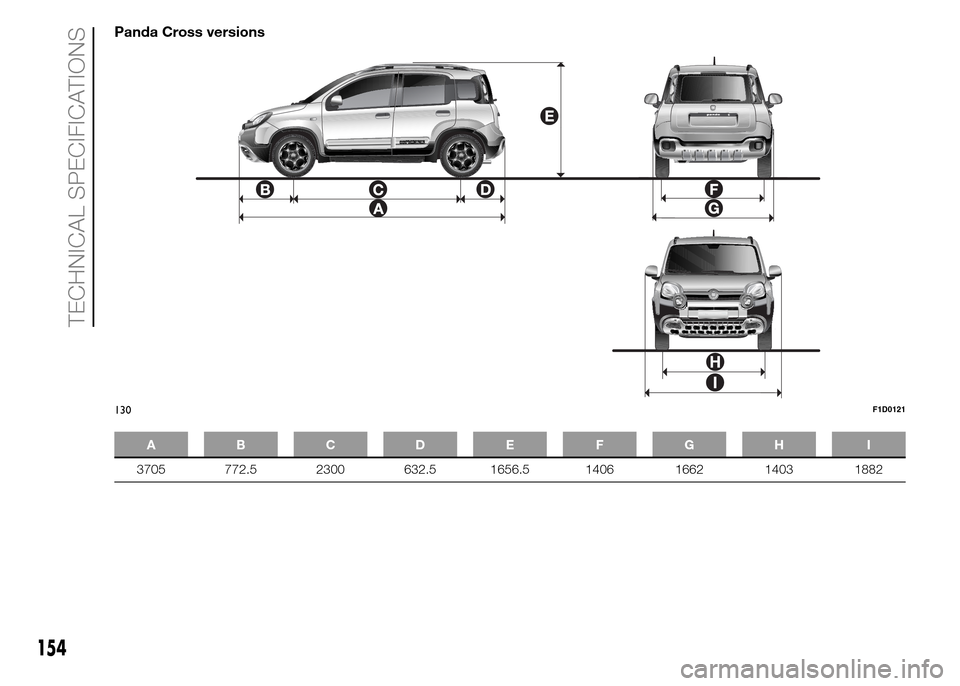

FIAT PANDA 2015 319 / 3.G Owners Manual Panda Cross versions
ABCDE FGH I
3705 772.5 2300 632.5 1656.5 1406 1662 1403 1882
130F1D0121
154
TECHNICAL SPECIFICATIONS

Page 157 of 196

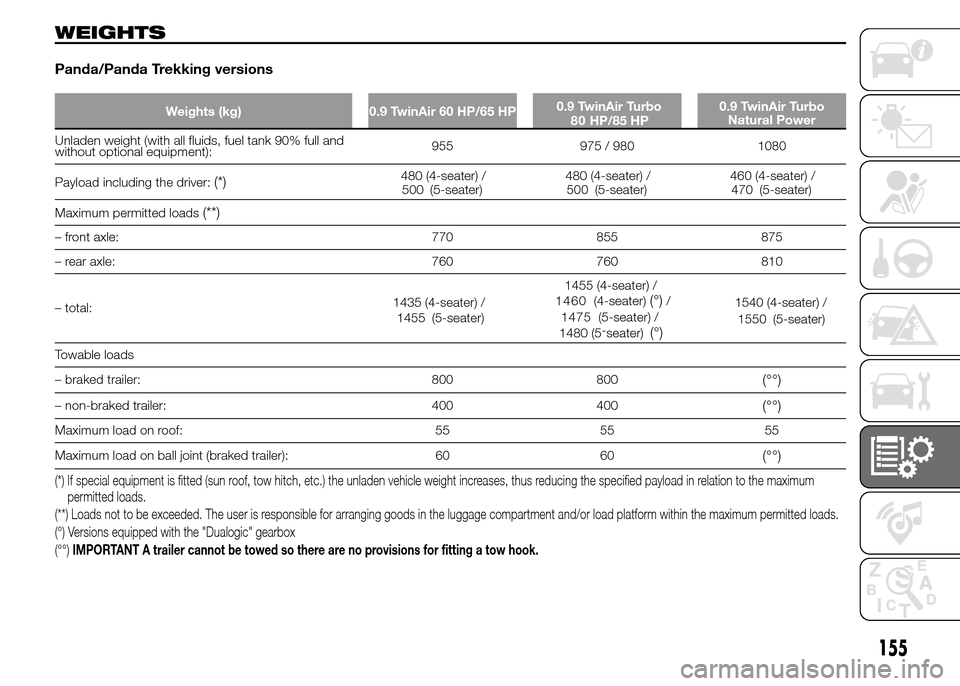

FIAT PANDA 2015 319 / 3.G Owners Manual WEIGHTS
Panda/Panda Trekking versions
Weights (kg) 0.9 TwinAir 60 HP/65 HP0.9 TwinAir Turbo 0.9 TwinAir Turbo
Natural Power
Unladen weight (with all fluids, fuel tank 90% full and
without optional equ

Page 158 of 196

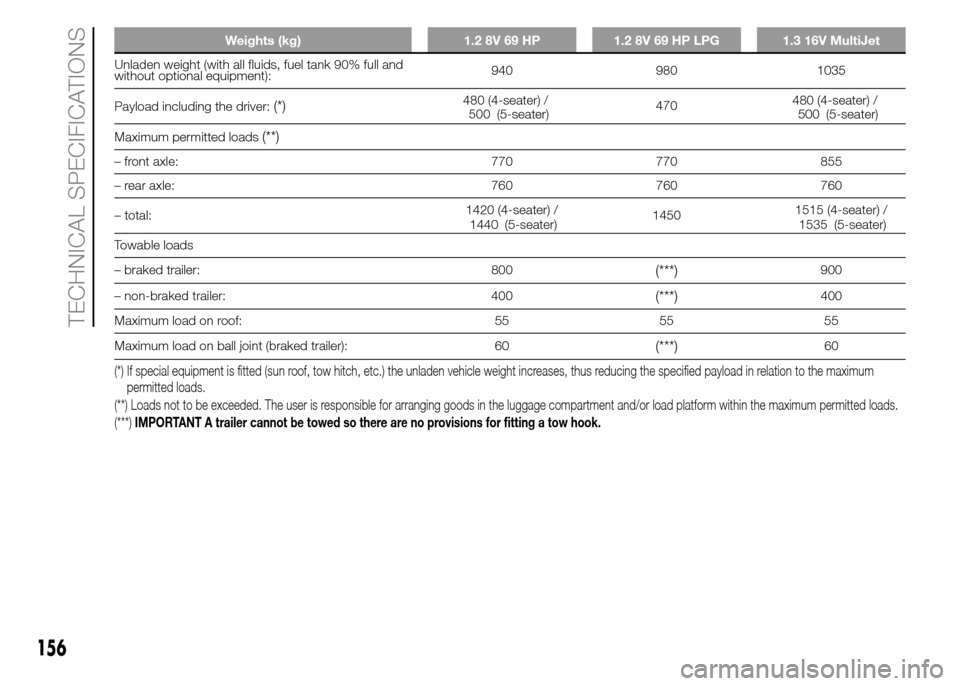

FIAT PANDA 2015 319 / 3.G Owners Manual Weights (kg) 1.2 8V 69 HP 1.2 8V 69 HP LPG 1.3 16V MultiJet
Unladen weight (with all fluids, fuel tank 90% full and
without optional equipment):940 980 1035
Payload including the driver:
(*)480 (4-sea

Page 159 of 196

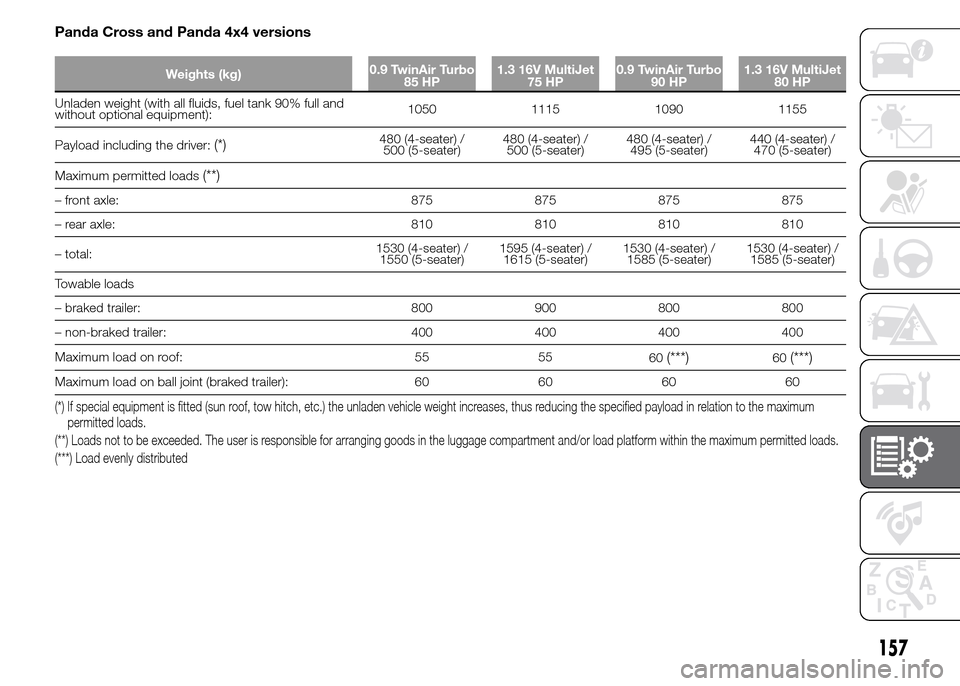

FIAT PANDA 2015 319 / 3.G Owners Manual Panda Cross and Panda 4x4 versions
Weights (kg)0.9 TwinAir Turbo
85 HP1.3 16V MultiJet
75 HP0.9 TwinAir Turbo
90 HP1.3 16V MultiJet
80 HP
Unladen weight (with all fluids, fuel tank 90% full and
withou

Page 160 of 196

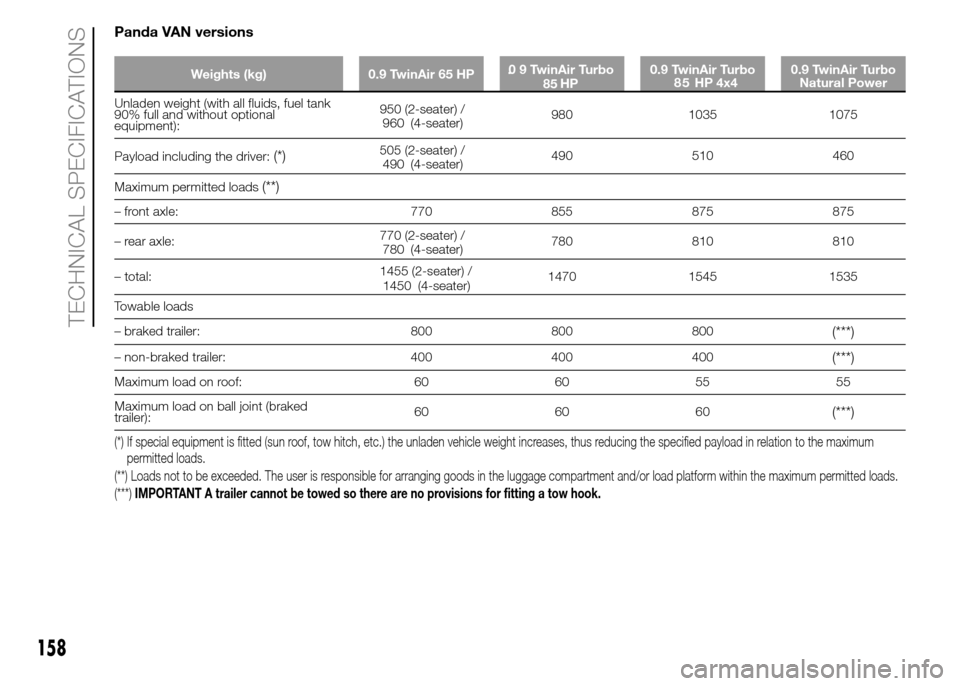

FIAT PANDA 2015 319 / 3.G Owners Manual Panda VAN versions
Weights (kg) 0.9 TwinAir 65 HP0 . 9 TwinAir Turbo
HP0.9 TwinAir Turbo 0.9 TwinAir Turbo
Natural Power
Unladen weight (with all fluids, fuel tank
90% full and without optional
equipm
