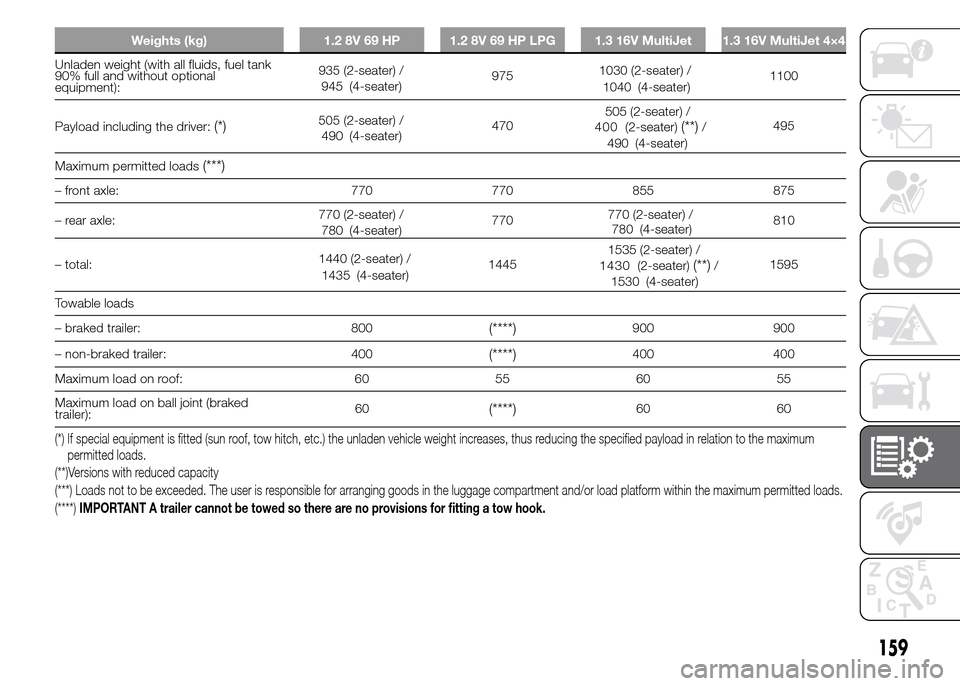

Page 161 of 196

FIAT PANDA 2015 319 / 3.G Owners Manual Weights (kg) 1.2 8V 69 HP 1.2 8V 69 HP LPG 1.3 16V MultiJet 1.3 16V MultiJet 4×4
Unladen weight (with all fluids, fuel tank
90% full and without optional
equipment):935 (2-seater) /
9751030 (2-seater

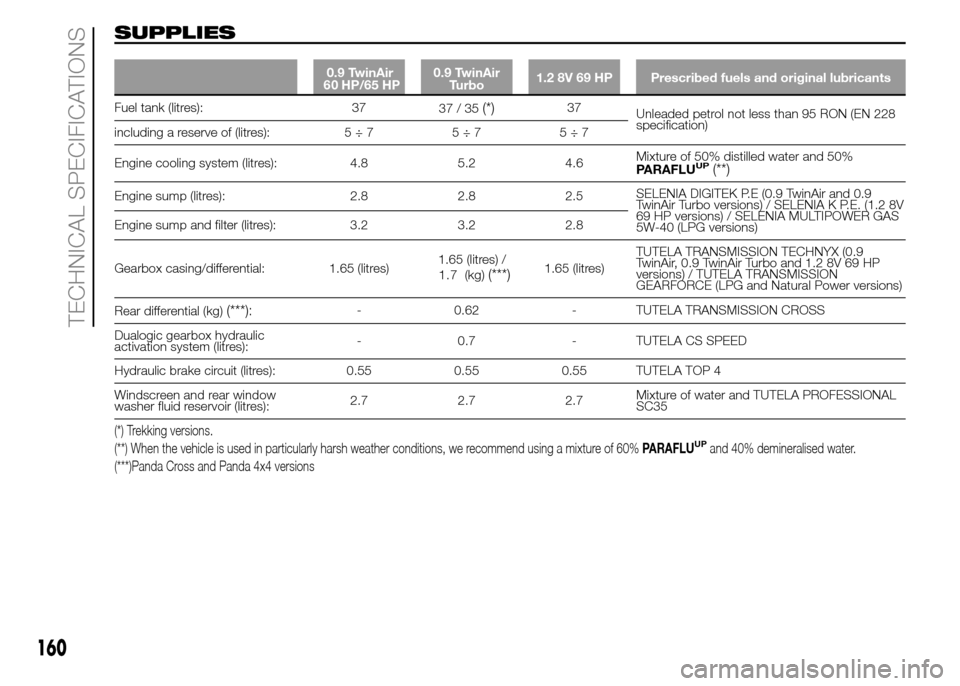

Page 162 of 196

FIAT PANDA 2015 319 / 3.G Owners Manual SUPPLIES
0.9 TwinAir 0.9 TwinAir
Turbo1.2 8V 69 HP Prescribed fuels and original lubricants
Fuel tank (litres): 37
37/35(*)37
Unleaded petrol not less than 95 RON (EN 228
specification)
including a re

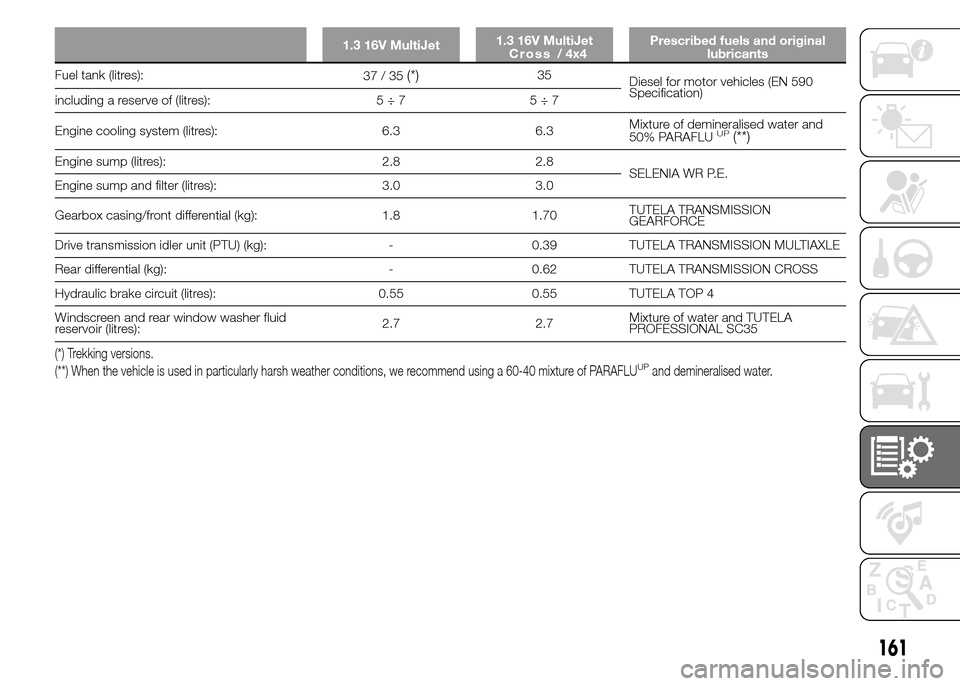

Page 163 of 196

FIAT PANDA 2015 319 / 3.G Owners Manual 1.3 16V MultiJet1.3 16V MultiJet Prescribed fuels and original
lubricants
Fuel tank (litres):
37/35(*)35
Diesel for motor vehicles (EN 590
Specification)
including a reserve of (litres): 5 ÷ 7 5 ÷ 7

Page 164 of 196

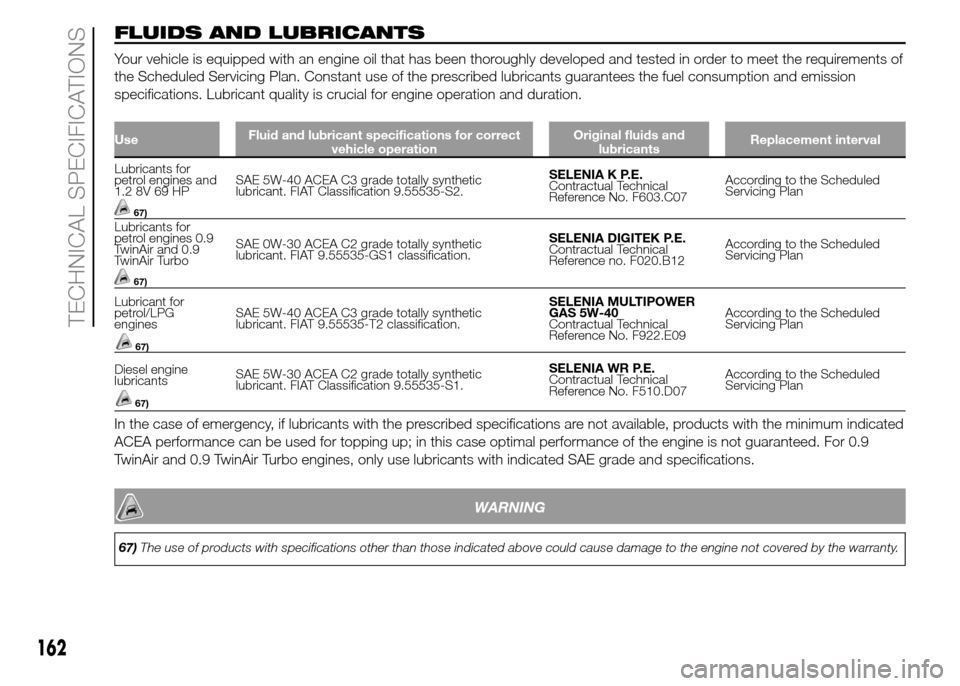

FIAT PANDA 2015 319 / 3.G Owners Manual FLUIDS AND LUBRICANTS
Your vehicle is equipped with an engine oil that has been thoroughly developed and tested in order to meet the requirements of
the Scheduled Servicing Plan. Constant use of the p

Page 165 of 196

FIAT PANDA 2015 319 / 3.G Owners Manual UseFluid and lubricant specifications for correct
vehicle operationOriginal fluids and lubricants Applications
Lubricants and
greases for drive
transmissionSAE 75W-85 grade synthetic-base lubricant. F

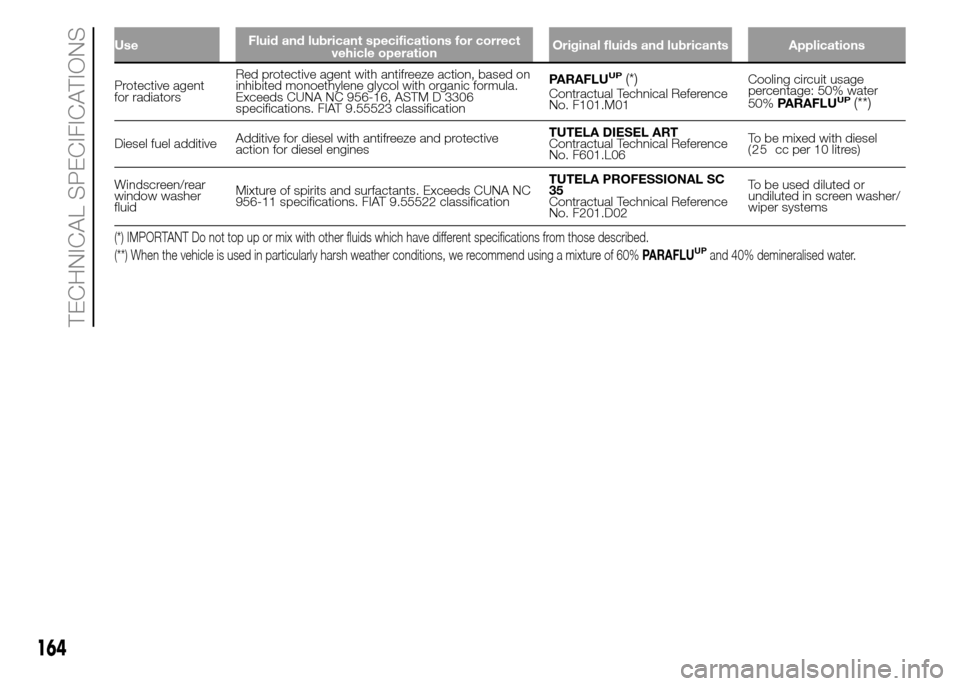

Page 166 of 196

FIAT PANDA 2015 319 / 3.G Owners Manual UseFluid and lubricant specifications for correct
vehicle operationOriginal fluids and lubricants Applications
Protective agent
for radiatorsRed protective agent with antifreeze action, based on
inhib

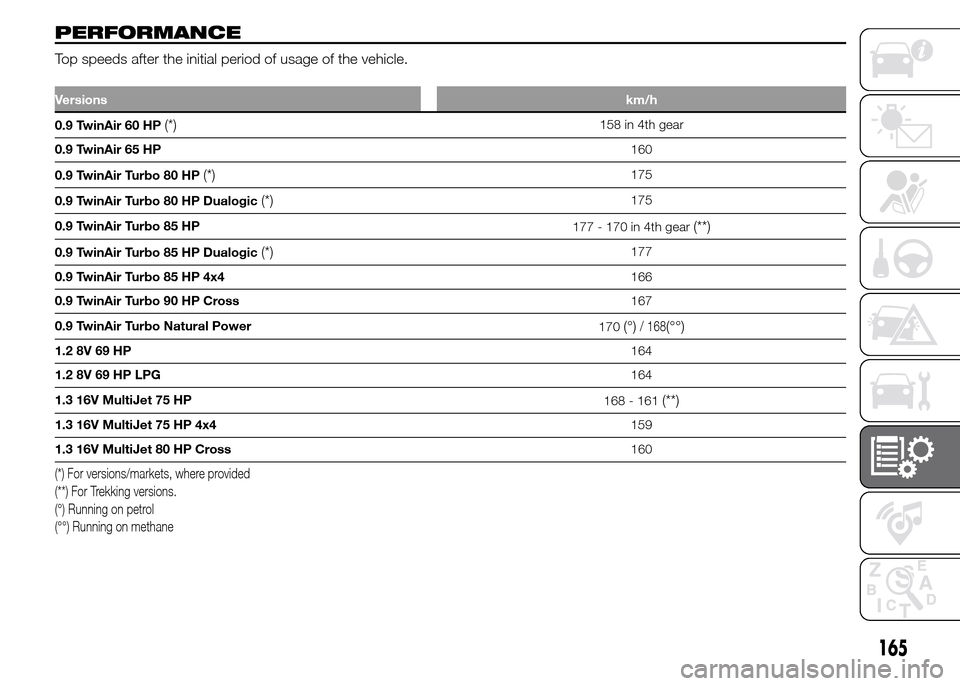

Page 167 of 196

FIAT PANDA 2015 319 / 3.G Owners Manual PERFORMANCE
Top speeds after the initial period of usage of the vehicle.
Versionskm/h
0.9 TwinAir 60 HP(*)158 in 4th gear
0.9 TwinAir 65 HP160
0.9 TwinAir Turbo 80 HP
(*)175
0.9 TwinAir Turbo 80 HP Du

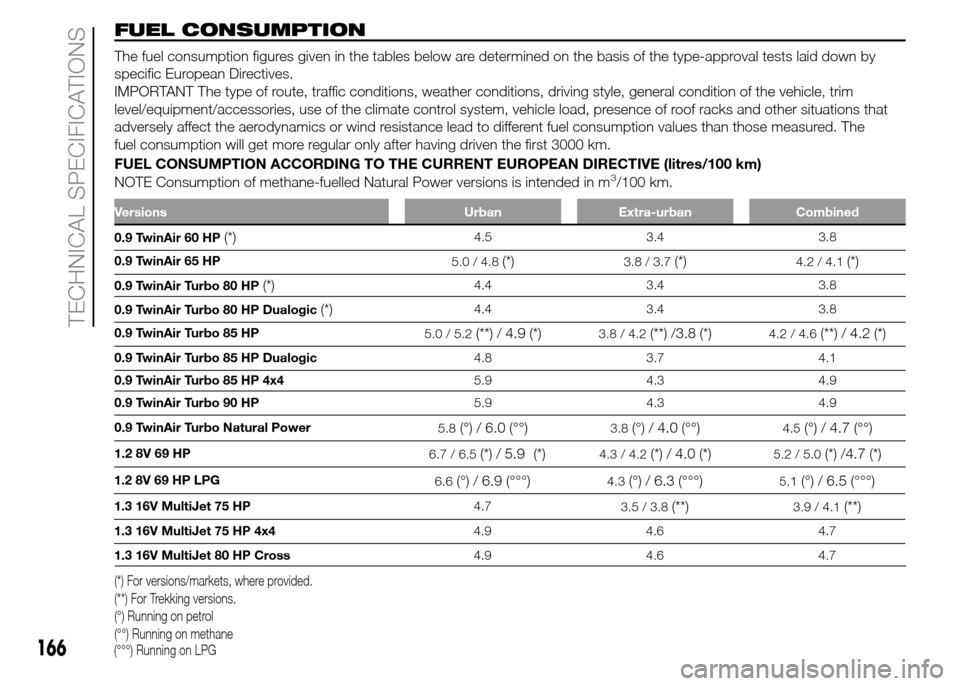

Page 168 of 196

FIAT PANDA 2015 319 / 3.G Owners Manual FUEL CONSUMPTION
The fuel consumption figures given in the tables below are determined on the basis of the type-approval tests laid down by
specific European Directives.
IMPORTANT The type of route, t

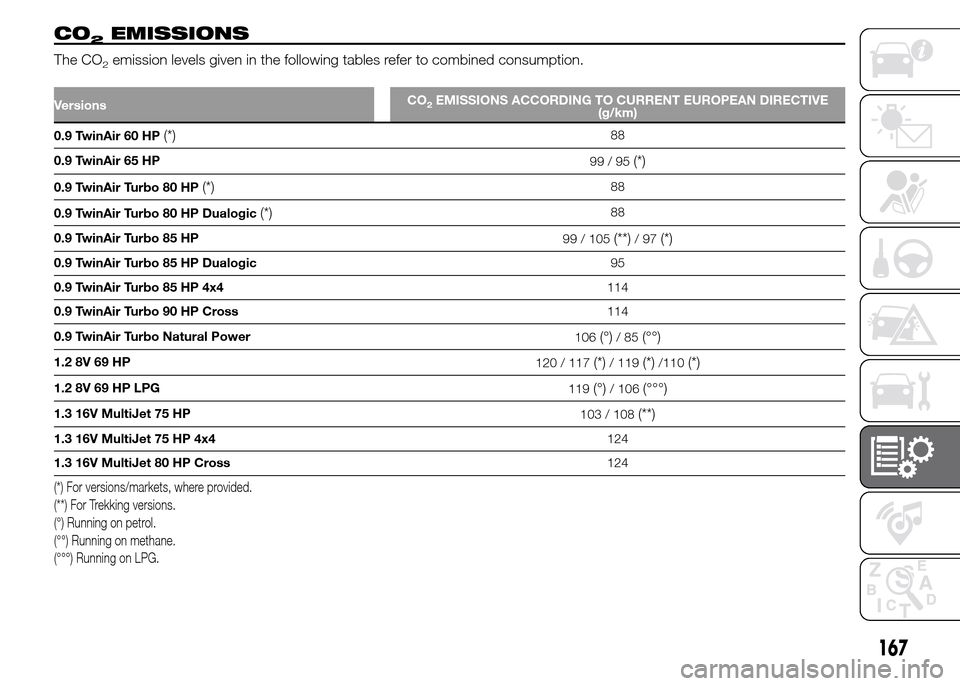

Page 169 of 196

FIAT PANDA 2015 319 / 3.G Owners Manual 167
CO2EMISSIONS
The CO2emission levels given in the following tables refer to combined consumption.
VersionsCO2EMISSIONS ACCORDING TO CURRENT EUROPEAN DIRECTIVE
(g/km)
0.9 TwinAir 60 HP(*)88
0.9 Twin

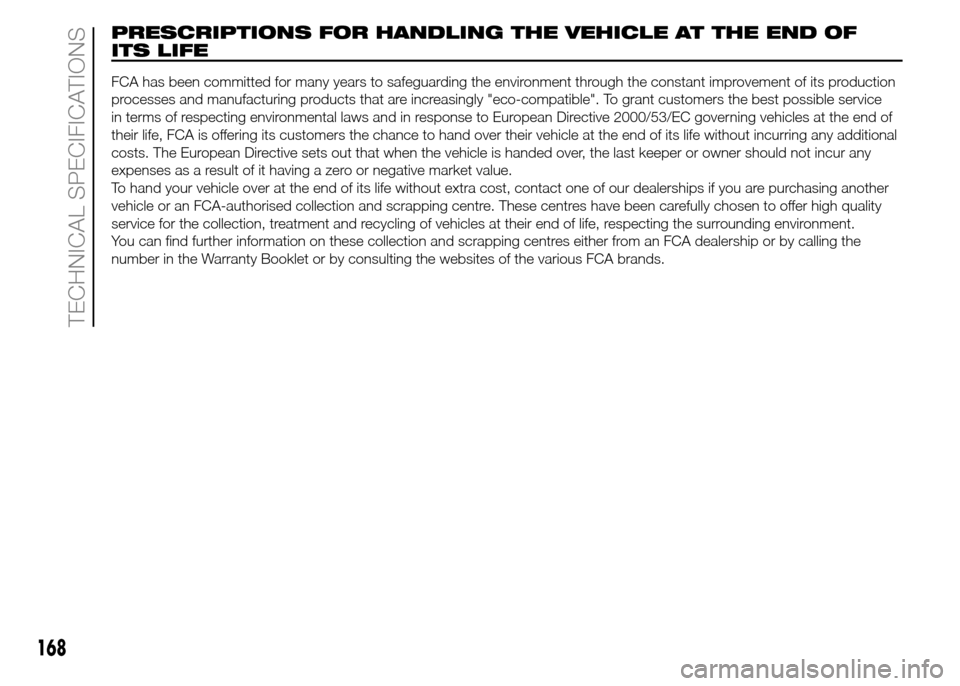

Page 170 of 196

FIAT PANDA 2015 319 / 3.G Owners Manual 168
TECHNICAL SPECIFICATIONS
PRESCRIPTIONS FOR HANDLING THE VEHICLE AT THE END OF
ITS LIFE
FCA has been committed for many years to safeguarding the environment through the constant improvement of its
