FIAT PANDA 2015 319 / 3.G Owners Manual

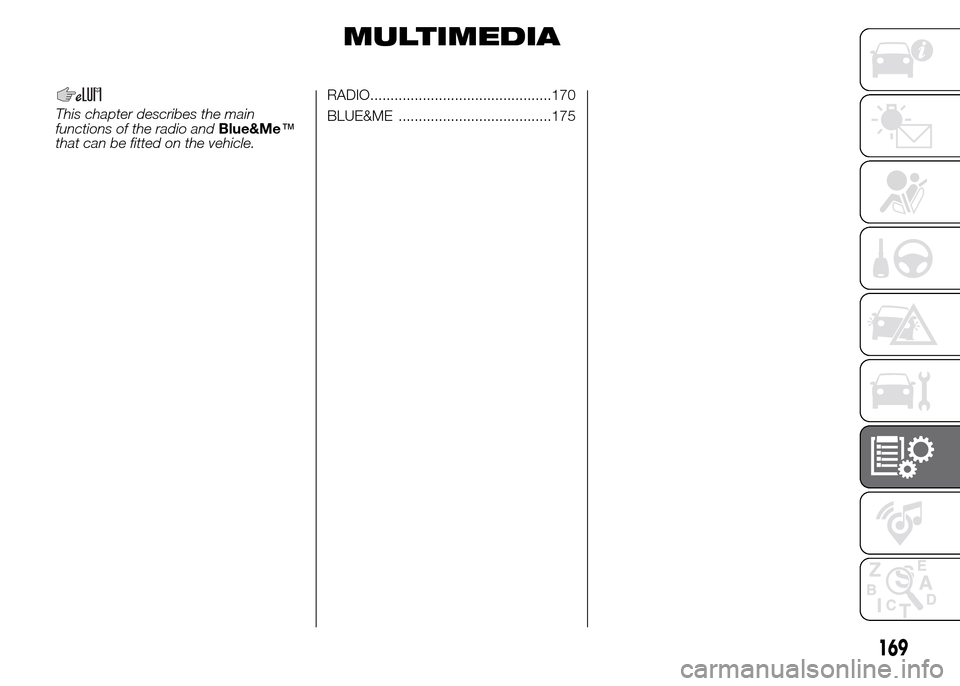

169
MULTIMEDIA
RADIO.............................................17
BLUE&ME ......................................17
This chapter describes the main
functions of the radio andBlue&Me™
that can be fitted on the vehicle.0
5

170
MULTIMEDIA

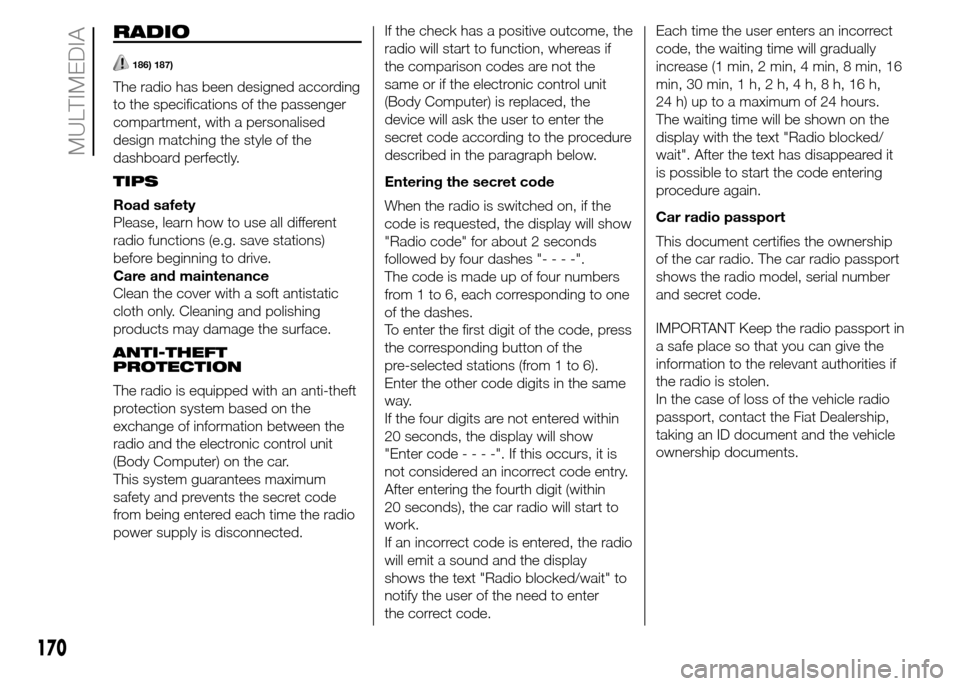

RADIO
186) 187)
The radio has been designed according
to the specifications of the passenger
compartment, with a personalised
design matching the style of the
dashboard perfectly.
TIPS
Road safety
Please, learn how to use all different
radio functions (e.g. save stations)
before beginning to drive.
Care and maintenance
Clean the cover with a soft antistatic
cloth only. Cleaning and polishing
products may damage the surface.
ANTI-THEFT
PROTECTION
The radio is equipped with an anti-theft
protection system based on the
exchange of information between the
radio and the electronic control unit
(Body Computer) on the car.
This system guarantees maximum
safety and prevents the secret code
from being entered each time the radio
power supply is disconnected.If the check has a positive outcome, the
radio will start to function, whereas if
the comparison codes are not the
same or if the electronic control unit
(Body Computer) is replaced, the
device will ask the user to enter the
secret code according to the procedure
described in the paragraph below.
Entering the secret code
When the radio is switched on, if the
code is requested, the display will show
"Radio code" for about 2 seconds
followed by four dashes "----".
The code is made up of four numbers
from 1 to 6, each corresponding to one
of the dashes.
To enter the first digit of the code, press
the corresponding button of the
pre-selected stations (from 1 to 6).
Enter the other code digits in the same
way.
If the four digits are not entered within
20 seconds, the display will show
"Enter code----".Ifthis occurs, it is
not considered an incorrect code entry.
After entering the fourth digit (within
20 seconds), the car radio will start to
work.
If an incorrect code is entered, the radio
will emit a sound and the display
shows the text "Radio blocked/wait" to
notify the user of the need to enter
the correct code.Each time the user enters an incorrect
code, the waiting time will gradually
increase (1 min, 2 min, 4 min, 8 min, 16
min, 30 min, 1 h, 2 h, 4 h, 8 h, 16 h,
24 h) up to a maximum of 24 hours.
The waiting time will be shown on the
display with the text "Radio blocked/
wait". After the text has disappeared it
is possible to start the code entering
procedure again.
Car radio passport
This document certifies the ownership
of the car radio. The car radio passport
shows the radio model, serial number
and secret code.
IMPORTANT Keep the radio passport in
a safe place so that you can give the
information to the relevant authorities if
the radio is stolen.
In the case of loss of the vehicle radio
passport, contact the Fiat Dealership,
taking an ID document and the vehicle
ownership documents.

171

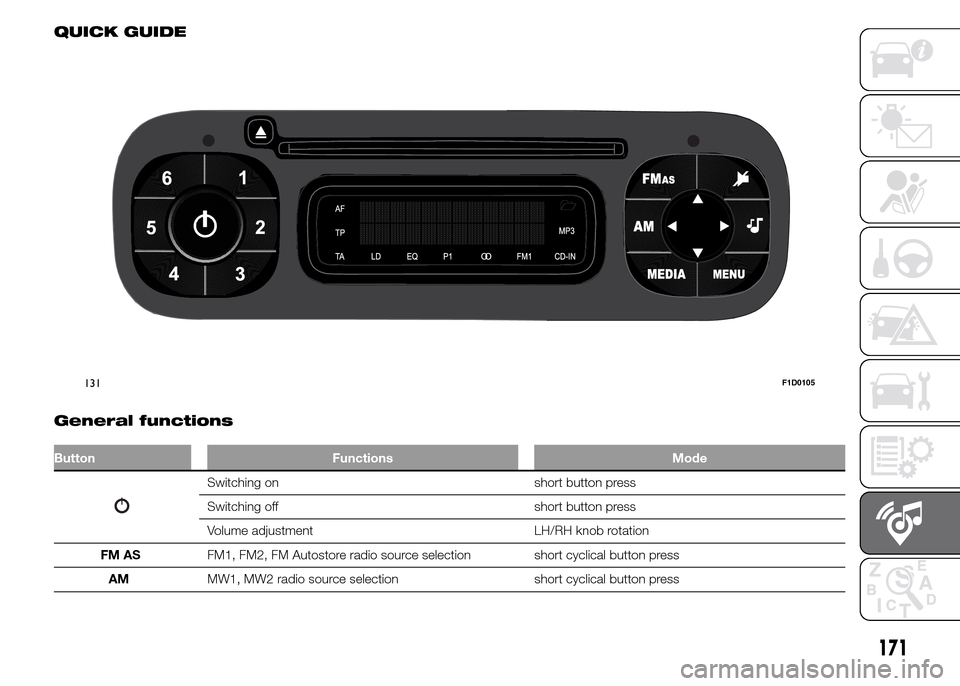

QUICK GUIDE
.
General functions
Button Functions Mode
Switching on short button press
Switching off short button press
Volume adjustment LH/RH knob rotation
FM ASFM1, FM2, FM Autostore radio source selection short cyclical button press
AMMW1, MW2 radio source selection short cyclical button press
131F1D0105

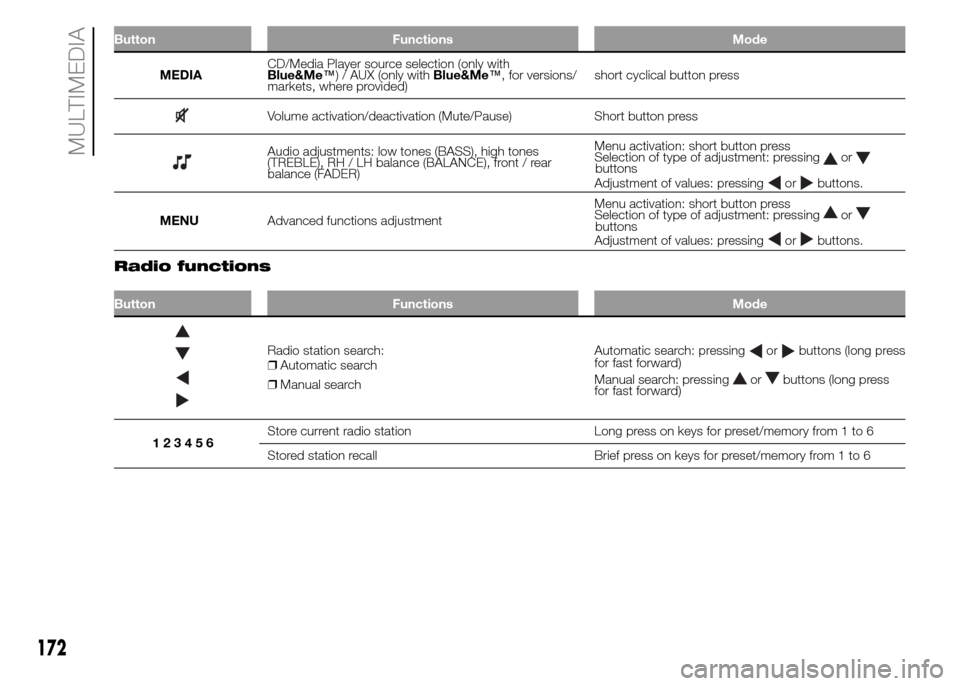

172
MULTIMEDIA
Button Functions Mode
MEDIACD/Media Player source selection (only with
Blue&Me™) / AUX (only withBlue&Me™, for versions/
markets, where provided)short cyclical button press
Volume activation/deactivation (Mute/Pause) Short button press
Audio adjustments: low tones (BASS), high tones
(TREBLE), RH / LH balance (BALANCE), front / rear
balance (FADER)Menu activation: short button press
Selection of type of adjustment: pressingorbuttons
Adjustment of values: pressingorbuttons.
MENUAdvanced functions adjustmentMenu activation: short button press
Selection of type of adjustment: pressing
orbuttons
Adjustment of values: pressingorbuttons..
Radio functions
Button Functions Mode
Radio station search:
❒Automatic search
❒Manual searchAutomatic search: pressingorbuttons (long press
for fast forward)
Manual search: pressing
orbuttons (long press
for fast forward)
123456Store current radio station Long press on keys for preset/memory from 1 to 6
Stored station recall Brief press on keys for preset/memory from 1 to 6
.

173
Play previous/next track Shortorbutton press
Fast forwarding/rewinding CD track Long
orbutton press
Playing previous/next folder (for CD-MP3) Shortorbutton press
.
Media Player functions (only with Blue&Me™)
Button Functions Mode
Select previous/next folder/artist/genre/album
depending on the active selection modeShort button press
Play previous/next track Short button press

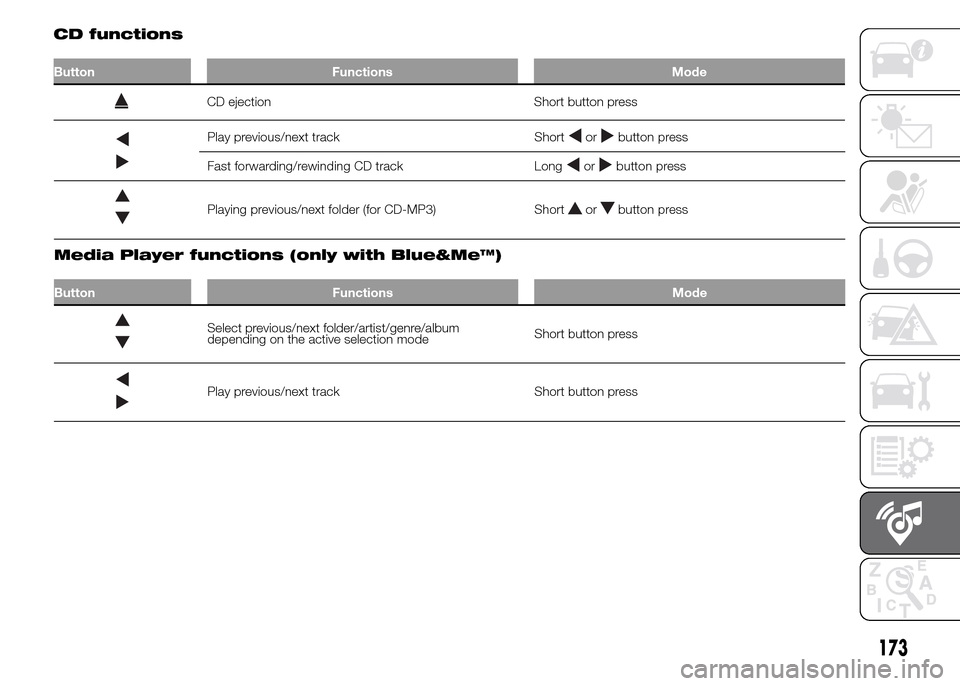

CD functions
Button Functions Mode
CD ejection Short button press

174
MULTIMEDIA

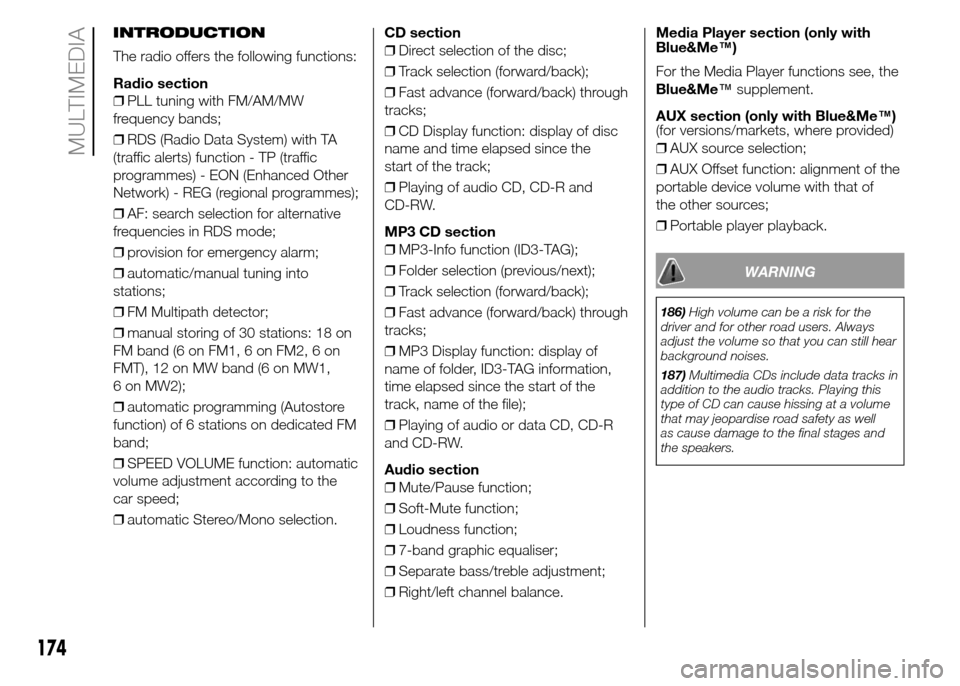

INTRODUCTION
The radio offers the following functions:
Radio section
❒PLL tuning with FM/AM/MW
frequency bands;
❒RDS (Radio Data System) with TA
(traffic alerts) function - TP (traffic
programmes) - EON (Enhanced Other
Network) - REG (regional programmes);
❒AF: search selection for alternative
frequencies in RDS mode;
❒provision for emergency alarm;
❒automatic/manual tuning into
stations;
❒FM Multipath detector;
❒manual storing of 30 stations: 18 on
FM band (6 on FM1, 6 on FM2, 6 on
FMT), 12 on MW band (6 on MW1,
6 on MW2);
❒automatic programming (Autostore
function) of 6 stations on dedicated FM
band;
❒SPEED VOLUME function: automatic
volume adjustment according to the
car speed;
❒automatic Stereo/Mono selection.CD section
❒Direct selection of the disc;
❒Track selection (forward/back);
❒Fast advance (forward/back) through
tracks;
❒CD Display function: display of disc
name and time elapsed since the
start of the track;
❒Playing of audio CD, CD-R and
CD-RW.
MP3 CD section
❒MP3-Info function (ID3-TAG);
❒Folder selection (previous/next);
❒Track selection (forward/back);
❒Fast advance (forward/back) through
tracks;
❒MP3 Display function: display of
name of folder, ID3-TAG information,
time elapsed since the start of the
track, name of the file);
❒Playing of audio or data CD, CD-R
and CD-RW.
Audio section
❒Mute/Pause function;
❒Soft-Mute function;
❒Loudness function;
❒7-band graphic equaliser;
❒Separate bass/treble adjustment;
❒Right/left channel balance.Media Player section (only with
Blue&Me™)
For the Media Player functions see, the
Blue&Me™supplement.
AUX section (only with Blue&Me™)
(for versions/markets, where provided)
❒AUX source selection;
❒AUX Offset function: alignment of the
portable device volume with that of
the other sources;
❒Portable player playback.
WARNING
186)High volume can be a risk for the
driver and for other road users. Always
adjust the volume so that you can still hear
background noises.
187)Multimedia CDs include data tracks in
addition to the audio tracks. Playing this
type of CD can cause hissing at a volume
that may jeopardise road safety as well
as cause damage to the final stages and
the speakers.

175

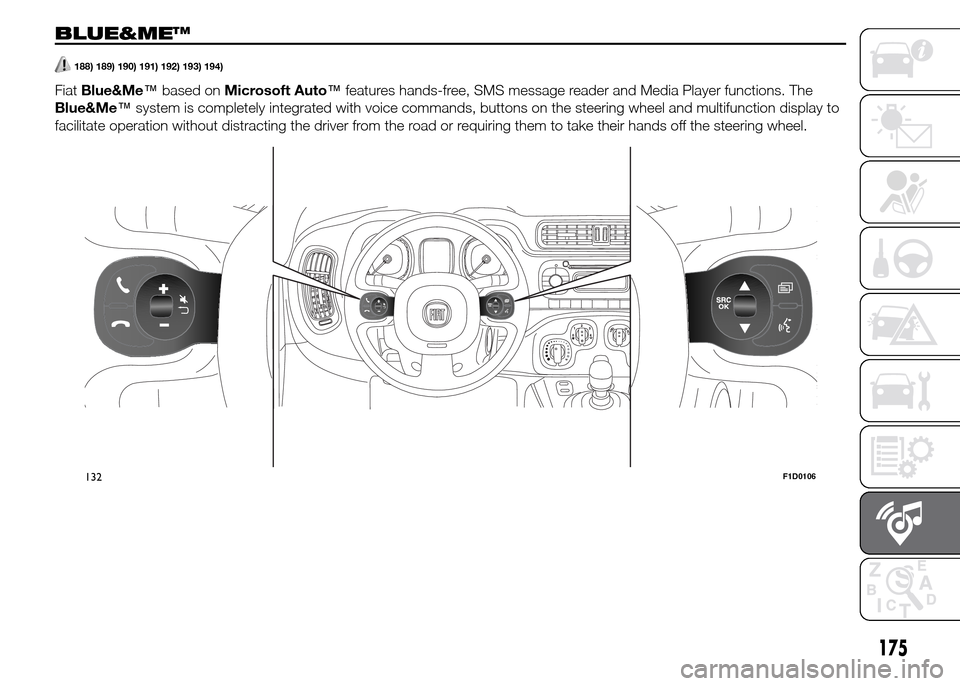

BLUE&ME™
188) 189) 190) 191) 192) 193) 194).
FiatBlue&Me™based onMicrosoft Auto™features hands-free, SMS message reader and Media Player functions. The
Blue&Me™system is completely integrated with voice commands, buttons on the steering wheel and multifunction display to
facilitate operation without distracting the driver from the road or requiring them to take their hands off the steering wheel.
.
132F1D0106

176
MULTIMEDIA

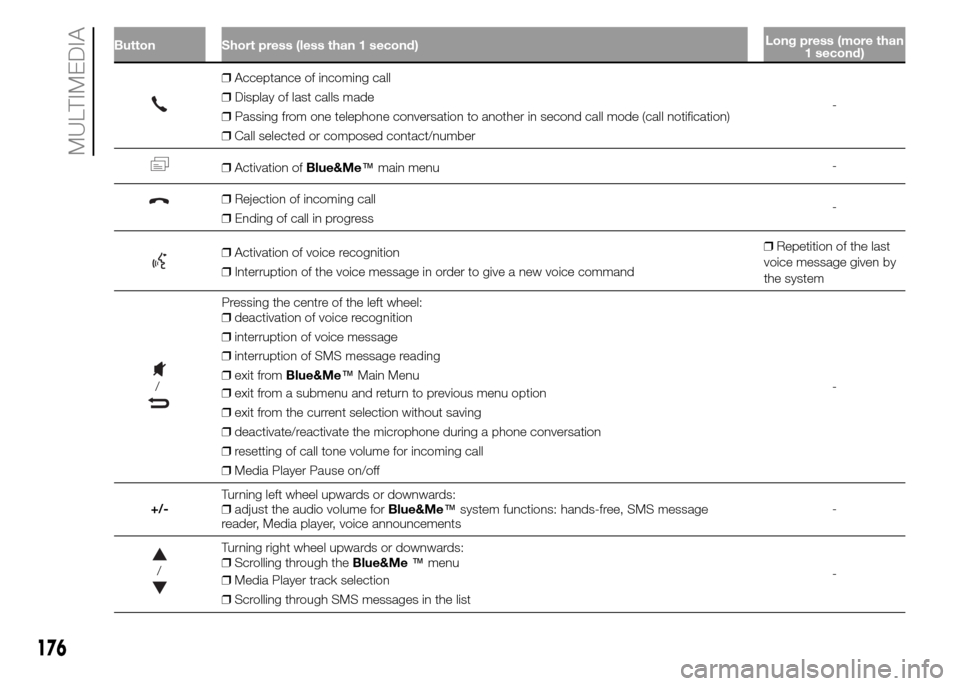

Button Short press (less than 1 second)Long press (more than
1 second)
❒Acceptance of incoming call
❒Display of last calls made
❒Passing from one telephone conversation to another in second call mode (call notification)
❒Call selected or composed contact/number-
❒Activation ofBlue&Me™main menu-
❒Rejection of incoming call
❒Ending of call in progress-
❒Activation of voice recognition
❒Interruption of the voice message in order to give a new voice command❒Repetition of the last
voice message given by
the system
/
Pressing the centre of the left wheel:
❒deactivation of voice recognition
❒interruption of voice message
❒interruption of SMS message reading
❒exit fromBlue&Me™Main Menu
❒exit from a submenu and return to previous menu option
❒exit from the current selection without saving
❒deactivate/reactivate the microphone during a phone conversation
❒resetting of call tone volume for incoming call
❒Media Player Pause on/off-
+/-Turning left wheel upwards or downwards:
❒adjust the audio volume forBlue&Me™system functions: hands-free, SMS message
reader, Media player, voice announcements-
/
Turning right wheel upwards or downwards:
❒Scrolling through theBlue&Me™menu
❒Media Player track selection
❒Scrolling through SMS messages in the list-

177

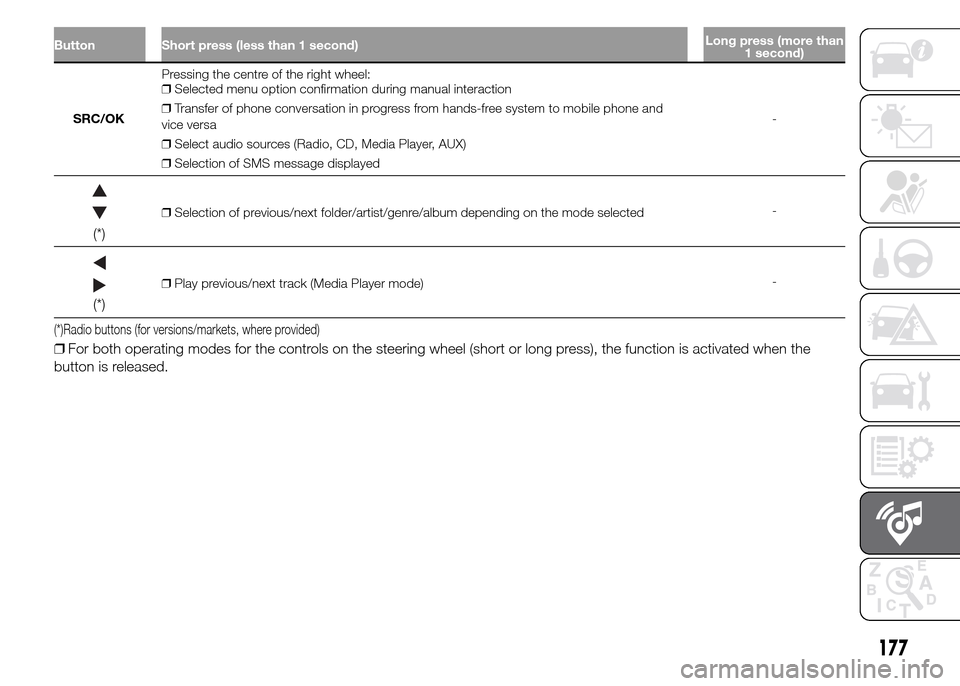

Button Short press (less than 1 second)Long press (more than
1 second)
SRC/OKPressing the centre of the right wheel:
❒Selected menu option confirmation during manual interaction
❒Transfer of phone conversation in progress from hands-free system to mobile phone and
vice versa
❒Select audio sources (Radio, CD, Media Player, AUX)
❒Selection of SMS message displayed-
(*)
❒Selection of previous/next folder/artist/genre/album depending on the mode selected-
(*)
❒Play previous/next track (Media Player mode)-
(*)Radio buttons (for versions/markets, where provided)
❒For both operating modes for the controls on the steering wheel (short or long press), the function is activated when the
button is released.

178
MULTIMEDIA

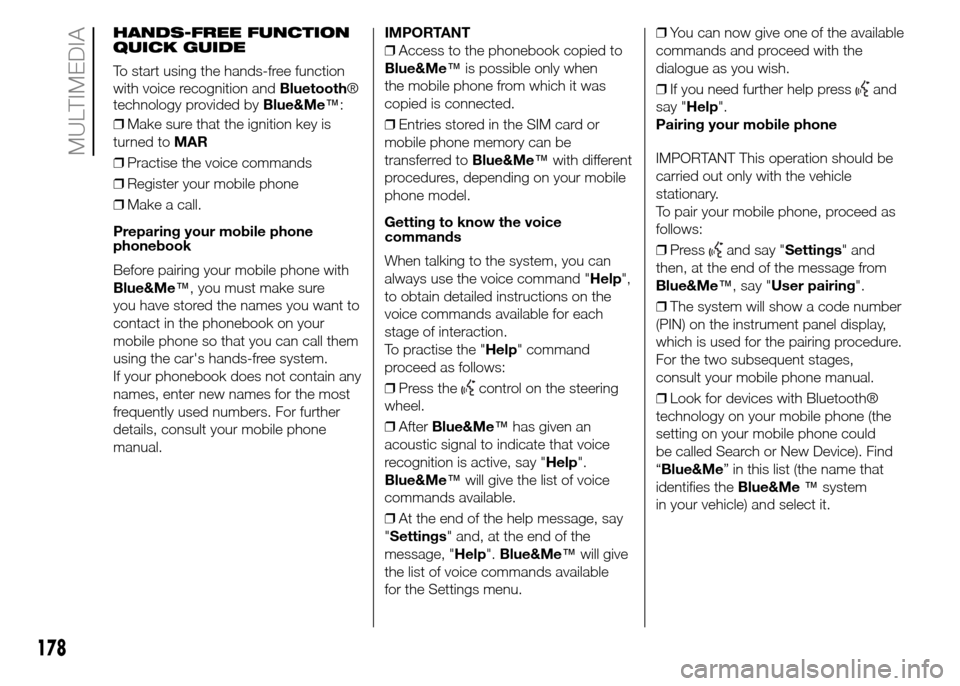

HANDS-FREE FUNCTION
QUICK GUIDE
To start using the hands-free function
with voice recognition andBluetooth®
technology provided byBlue&Me™:
❒Make sure that the ignition key is
turned toMAR
❒Practise the voice commands
❒Register your mobile phone
❒Make a call.
Preparing your mobile phone
phonebook
Before pairing your mobile phone with
Blue&Me™, you must make sure
you have stored the names you want to
contact in the phonebook on your
mobile phone so that you can call them
using the car's hands-free system.
If your phonebook does not contain any
names, enter new names for the most
frequently used numbers. For further
details, consult your mobile phone
manual.IMPORTANT
❒Access to the phonebook copied to
Blue&Me™is possible only when
the mobile phone from which it was
copied is connected.
❒Entries stored in the SIM card or
mobile phone memory can be
transferred toBlue&Me™with different
procedures, depending on your mobile
phone model.
Getting to know the voice
commands
When talking to the system, you can
always use the voice command "Help",
to obtain detailed instructions on the
voice commands available for each
stage of interaction.
To practise the "Help" command
proceed as follows:
❒Press the
control on the steering
wheel.
❒AfterBlue&Me™has given an
acoustic signal to indicate that voice
recognition is active, say "Help".
Blue&Me™will give the list of voice
commands available.
❒At the end of the help message, say
"Settings" and, at the end of the
message, "Help".Blue&Me™will give
the list of voice commands available
for the Settings menu.❒You can now give one of the available
commands and proceed with the
dialogue as you wish.
❒If you need further help press
and
say "Help".
Pairing your mobile phone
IMPORTANT This operation should be
carried out only with the vehicle
stationary.
To pair your mobile phone, proceed as
follows:
❒Press
and say "Settings" and
then, at the end of the message from
Blue&Me™, say "User pairing".
❒The system will show a code number
(PIN) on the instrument panel display,
which is used for the pairing procedure.
For the two subsequent stages,
consult your mobile phone manual.
❒Look for devices with Bluetooth®
technology on your mobile phone (the
setting on your mobile phone could
be called Search or New Device). Find
“Blue&Me” in this list (the name that
identifies theBlue&Me™system
in your vehicle) and select it.
