❒take the wrench A fig. 111 and
loosen the fixing bolts by about one
turn;
❒position the jack under the vehicle,
near the wheel to be changed;
❒operate the device A fig. 112 to
extend the jack until the top of the jack
B fig. 113 fits correctly into the side
member C (next to the mark
on the
side member);❒alert any bystander that the vehicle is
about to be raised; all persons should
be kept away from the vehicle and
nobody must touch it until it has been
lowered;
❒fit handle D fig. 112 into the housing
in device A, operate the jack and raise
the vehicle until the wheel is a few
centimetres from the ground;
❒remove the wheel cap after loosening
the 3 fixing bolts and finally loosen the
fourth bolt and extract the wheel (only
for versions with wheel caps fixed
by bolts);
❒make sure the contact surfaces
between space-saver wheel and hub
are clean so that the fastening bolts will
not come loose;
❒fit the space-saver wheel by inserting
the first bolt for two threads into the
hole closest to the valve;❒take the wrench A fig. 111 and fully
tighten the fixing bolts;
❒operate the jack handle D fig. 112 to
lower the vehicle. Then extract the jack;
❒use the wrench A fig. 111, to fully
tighten the bolts, passing alternately
from one bolt to the opposite one;
❒when replacing an alloy wheel rim it is
advisable to place it upside down,
with the aesthetic part facing upwards.
REFITTING THE
STANDARD WHEEL
51)
Following the procedure described
previously, raise the vehicle and remove
the space-saver wheel.
Versions with steel rims
Proceed as follows:
❒make sure the contact surfaces
between standard wheel and hub are
clean so that the fastening bolts will not
come loose;
❒fit the standard wheel by inserting the
first bolt by 2 threads into the hole
closest to the inflation valve;
❒fit the hub cap, aligning the crescent
hole with the bolt already fitted, then
fit the other bolts;
❒using the wrench provided, tighten
the fastening bolts;
111F1D0074
112F1D0075
113F1D0076
112
IN AN EMERGENCY
Page 115 of 196
❒lower the vehicle and remove the
jack;
❒use the wrench provided to fully
tighten the bolts, passing alternately
from one bolt to the opposite one.
Versions with alloy wheels
Proceed as follows:
❒insert the wheel on the hub and using
the wrench provided tighten the bolts;
❒lower the vehicle and remove the
jack;
❒use the wrench provided to fully
tighten the bolts, passing alternately
from one bolt to the opposite one.
❒reinsert the press-fitted hub cap,
making sure that the reference hole on
the wheel is aligned with the reference
pin on the cap.
IMPORTANT If it is not fitted properly,
the hub cap may detach itself when the
vehicle is running.
At the end of operation
❒stow the space-saver wheel in the
compartment provided in the luggage
compartment;
❒insert the jack and the other tools in
the container;
❒arrange the container and tools on
the space-saver wheel;
❒correctly reposition the boot mat.
WARNING
143)The space-saver wheel (for
versions/markets, where provided) is
specific to your vehicle, do not use it on
other models, or use the space-saver
wheel of other models on your vehicle. The
space-saver wheel must only be used in
the event of an emergency. It must only be
used for the distance necessary to reach
a service point and the vehicle speed must
not exceed 80 km/h. The space-saver
wheel has an orange label that
summarises the main cautions for use and
limitations. Never remove or cover the
label. The following information is provided
in four languages on the label: "Important!
For temporary use only! 80 km/h max!
Replace with a standard wheel as soon as
possible. Never cover this indication".
Never apply any hub cap to the
space-saver wheel.
144)Use your hazard lights, warning
triangle, etc to show that your vehicle is
stationary. Passengers should get out
of the vehicle, particularly if it is heavily
loaded, and wait for the wheel to be
changed away from the traffic. On hills or
uneven roads, use chocks or appropriate
objects to block the wheels of the vehicle.145)The vehicle's driving characteristics
will be modified with the space-saver wheel
fitted. Avoid violent acceleration and
braking, abrupt steering and fast cornering.
The overall duration of the space-saver
wheel is about 3000 km, after which the
relevant tyre must be replaced with another
one of the same type. Never install a
traditional tyre on a rim designed to be
used as a space-saver wheel. Have the
wheel repaired and refitted as soon as
possible. Using two or more space-saver
wheels at the same time is forbidden.
Do not apply grease to the bolt threads
before fitting: they could come unscrewed.
146)The jack may be used to replace
wheels only on the vehicle that it comes
with, or other vehicles of the same model.
Never use the jack for other purposes,
such as lifting other vehicle models. Never
use it for repair operations under the
vehicle. Incorrect positioning of the jack
may cause the vehicle to fall. Do not use
the jack for loads higher than those shown
on the label. Never install snow chains
on the space-saver wheel; if a front tyre
(driving wheel) is punctured and you need
to use snow chains, use a standard wheel
from the rear axle and install the
space-saver wheel on the rear axle. In this
way, with two normal front drive wheels,
it is possible to use snow chains.
147)Incorrect hub cap assembly may
cause it to come off when the vehicle is
moving. Never tamper with the inflation
valve. Never introduce tools of any kind
between rim and tyre. Check tyre and
space-saver wheel pressures regularly,
complying with the values given in the
"Technical specifications" chapter.
113
Page 116 of 196
WARNING
51)Contact a Fiat Dealership as soon as
possible to have the correct tightening
of the wheel bolts checked.
"Fix&Go Automatic"
kit
148) 149) 150) 151) 152) 153) 154) 155) 156)
52)3)
DESCRIPTION
This is located in the luggage
compartment, inside a dedicated
container. The container also includes a
screwdriver and the tow hook.

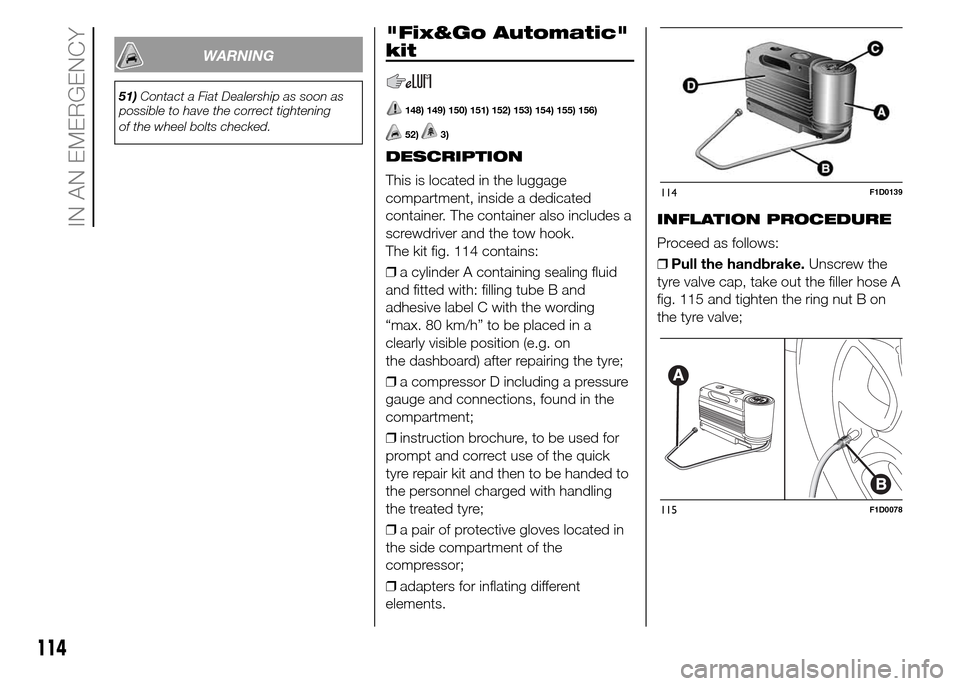

The kit fig. 114 contains:
❒a cylinder A containing sealing fluid
and fitted with: filling tube B and
adhesive label C with the wording
“max. 80 km/h” to be placed in a
clearly visible position (e.g. on
the dashboard) after repairing the tyre;
❒a compressor D including a pressure
gauge and connections, found in the
compartment;
❒instruction brochure, to be used for
prompt and correct use of the quick
tyre repair kit and then to be handed to
the personnel charged with handling
the treated tyre;
❒a pair of protective gloves located in
the side compartment of the
compressor;
❒adapters for inflating different
elements.INFLATION PROCEDURE
Proceed as follows:
❒Pull the handbrake.Unscrew the
tyre valve cap, take out the filler hose A
fig. 115 and tighten the ring nut B on
the tyre valve;
114F1D0139
115F1D0078
114
IN AN EMERGENCY
