Page 161 of 204

FIAT PANDA 2016 319 / 3.G Owners Manual 159

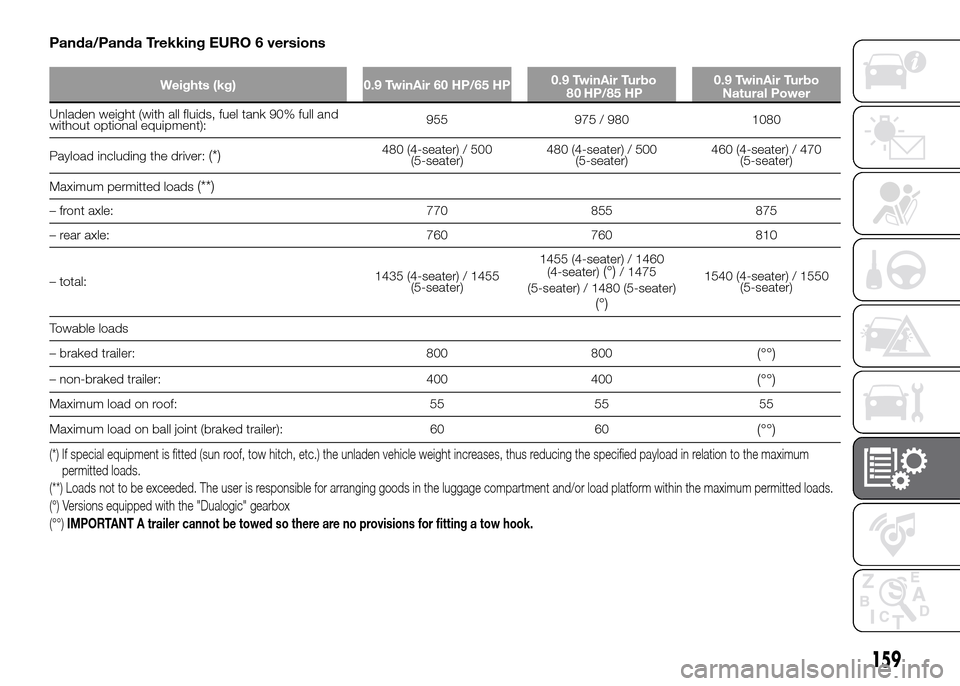

Panda/Panda Trekking EURO 6 versions
Weights (kg) 0.9 TwinAir 60 HP/65 HP0.9 TwinAir Turbo 0.9 TwinAir Turbo
Natural Power
Unladen weight (with all fluids, fuel tank 90% full and
without optional

Page 162 of 204

FIAT PANDA 2016 319 / 3.G Owners Manual 160
TECHNICAL SPECIFICATIONS
Weights (kg) 1.2 8V 69 HP 1.2 8V 69 HP LPG 1.3 16V MultiJet 80/95HP
Unladen weight (with all fluids, fuel tank 90% full and
without optional equipment):940 980 1045
Payloa

Page 163 of 204

FIAT PANDA 2016 319 / 3.G Owners Manual 161

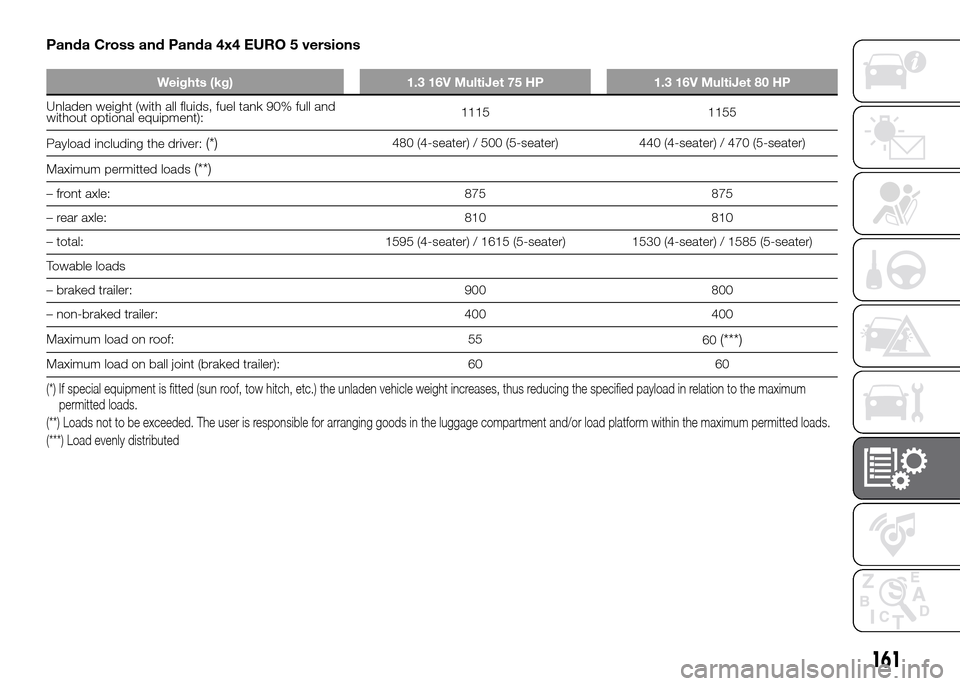

Panda Cross and Panda 4x4 EURO 5 versions
Weights (kg) 1.3 16V MultiJet 75 HP 1.3 16V MultiJet 80 HP
Unladen weight (with all fluids, fuel tank 90% full and
without optional equipment):1115 1155
P

Page 164 of 204

FIAT PANDA 2016 319 / 3.G Owners Manual 162
TECHNICAL SPECIFICATIONS
Panda Cross and Panda 4x4 EURO 6 versions
Weights (kg) 0.9 TwinAir Turbo 85 HP 0.9 TwinAir Turbo 90 HP 1.3 16V MultiJet 95 HP
Unladen weight (with all fluids, fuel tank 90

Page 165 of 204

FIAT PANDA 2016 319 / 3.G Owners Manual 163

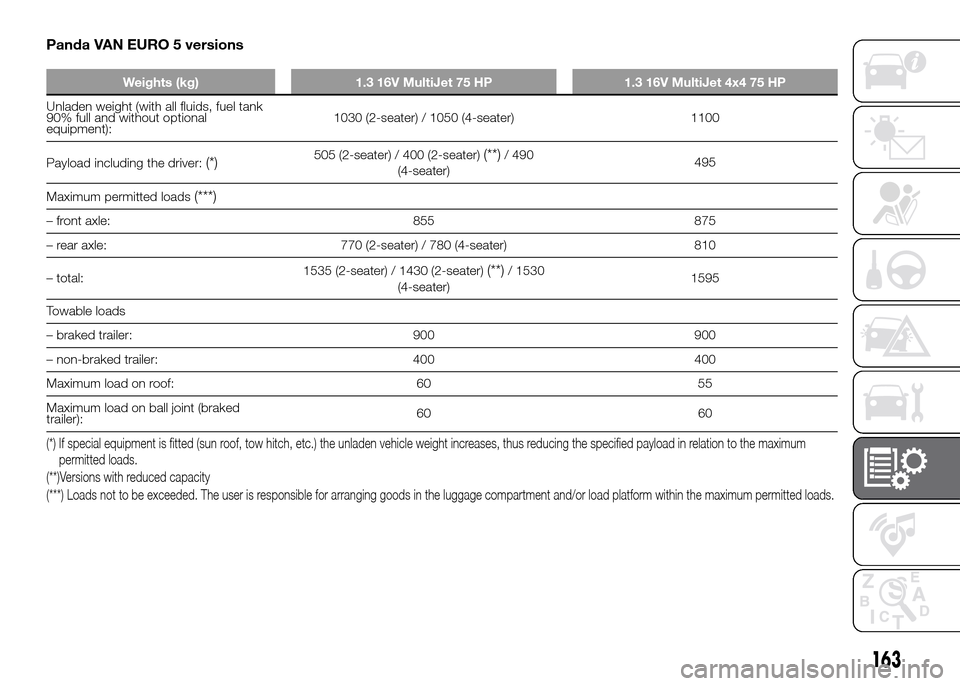

Panda VAN EURO 5 versions
Weights (kg) 1.3 16V MultiJet 75 HP 1.3 16V MultiJet 4x4 75 HP
Unladen weight (with all fluids, fuel tank
90% full and without optional
equipment):1030 (2-seater) / 1050

Page 166 of 204

FIAT PANDA 2016 319 / 3.G Owners Manual 164
TECHNICAL SPECIFICATIONS
Panda VAN EURO 6 versions
Weights (kg) 0.9 TwinAir 65 HP0.9 TwinAir Turbo 0.9 TwinAir Turbo 0.9 TwinAir Turbo
Natural Power
Unladen weight (with all fluids, fuel tank
90%

Page 167 of 204

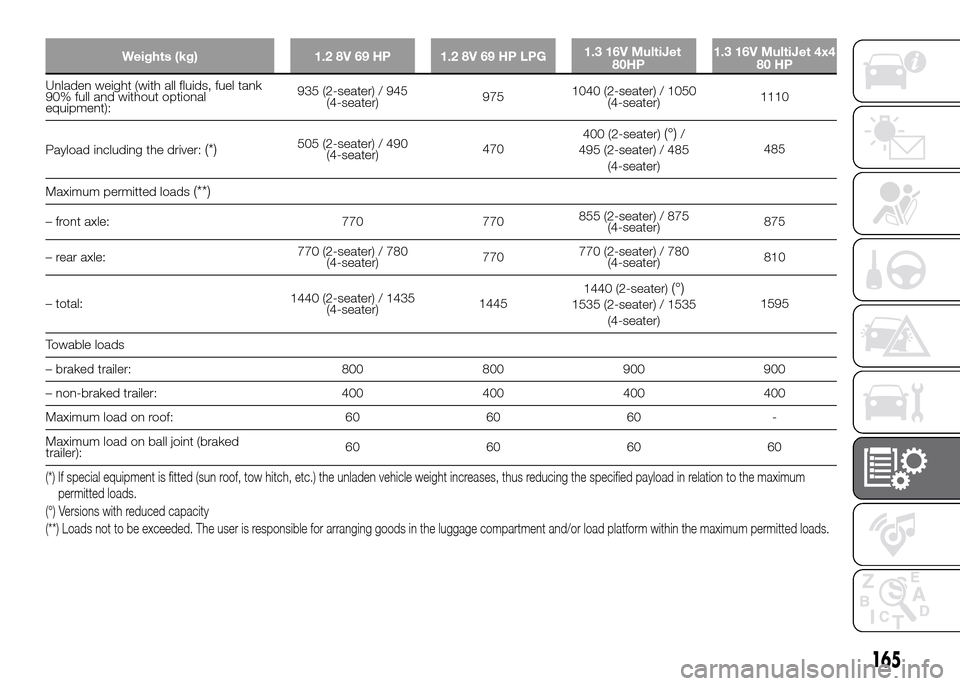

FIAT PANDA 2016 319 / 3.G Owners Manual 165
Weights (kg) 1.2 8V 69 HP 1.2 8V 69 HP LPG1.3 16V MultiJet 1.3 16V MultiJet 4x4
80 HP
Unladen weight (with all fluids, fuel tank
90% full and without optional
equipment):935 (2-seater) / 945
(4-se

Page 168 of 204

FIAT PANDA 2016 319 / 3.G Owners Manual 166
TECHNICAL SPECIFICATIONS
SUPPLIES
0.9 TwinAir 0.9 TwinAir
Turbo1.2 8V 69 HP Prescribed fuels and original lubricants
Fuel tank (litres): 37
37/35(*)37
Unleaded petrol not less than 95 RON (EN 228

Page 169 of 204

FIAT PANDA 2016 319 / 3.G Owners Manual 167

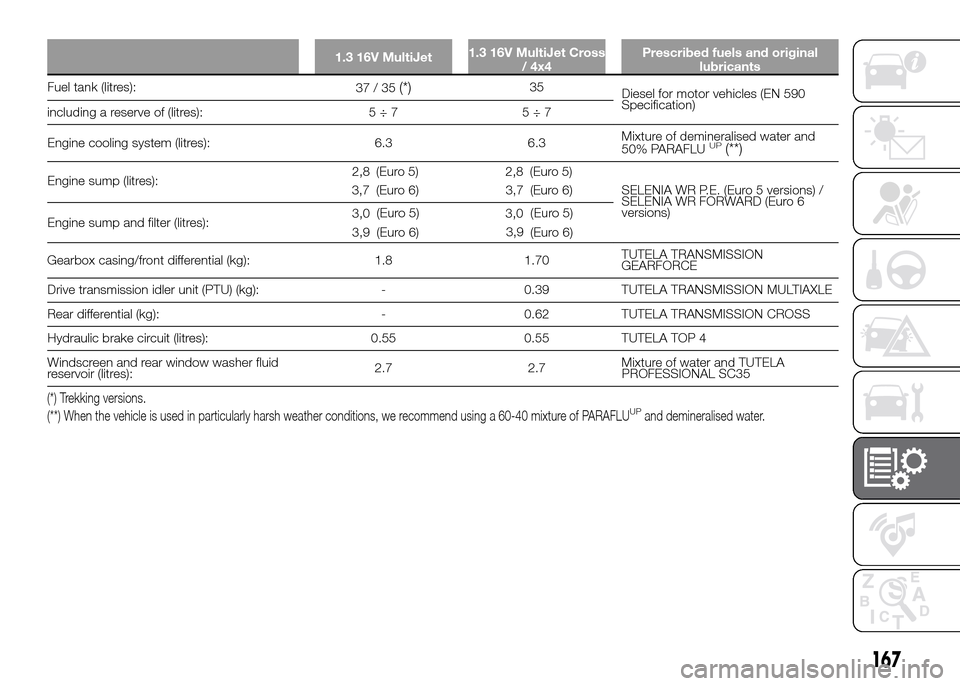

1.3 16V MultiJet1.3 16V MultiJet Cross
/ 4x4Prescribed fuels and original
lubricants
Fuel tank (litres):
37/35(*)35
Diesel for motor vehicles (EN 590
Specification)
including a reserve of (litres)

Page 170 of 204

FIAT PANDA 2016 319 / 3.G Owners Manual 168
TECHNICAL SPECIFICATIONS
FLUIDS AND LUBRICANTS
Your vehicle is equipped with an engine oil that has been thoroughly developed and tested in order to meet the requirements of
the Scheduled Servicin
