RIGHT HAND DRIVE VERSIONS

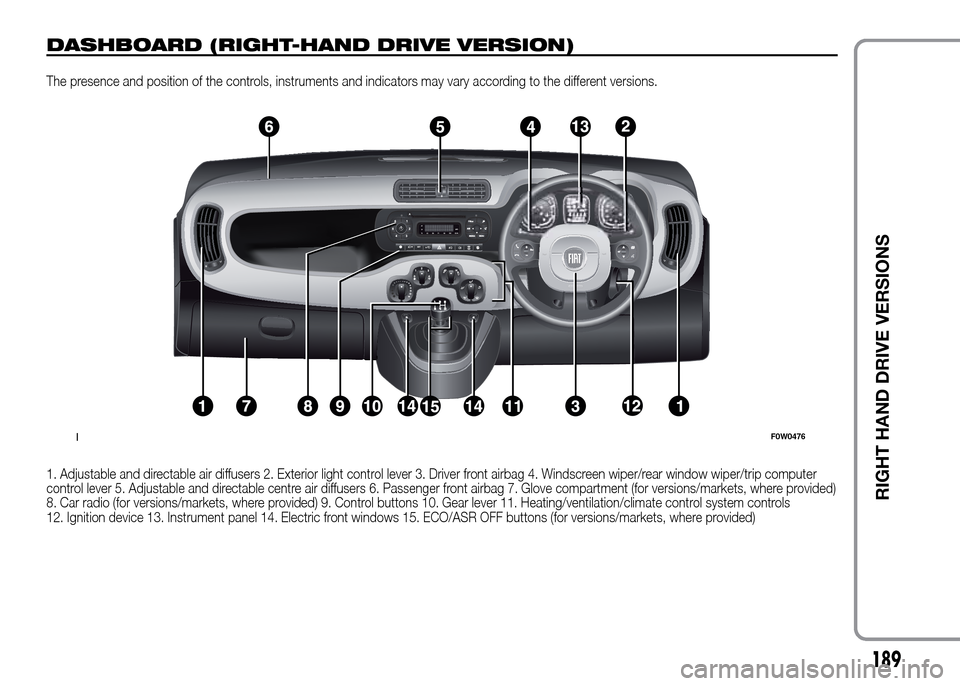

DASHBOARD (RIGHT-HAND DRIVE VERSION)
The presence and position of the controls, instruments and indicators may vary according to the different versions.
1. Adjustable and directable air diffusers 2. Exterior light control lever 3. Driver front airbag 4. Windscreen wiper/rear window wiper/trip computer
control lever 5. Adjustable and directable centre air diffusers 6. Passenger front airbag 7. Glove compartment (for versions/markets, where provided)
8. Car radio (for versions/markets, where provided) 9. Control buttons 10. Gear lever 11. Heating/ventilation/climate control system controls
12. Ignition device 13. Instrument panel 14. Electric front windows 15. ECO/ASR OFF buttons (for versions/markets, where provided)
1F0W0476
189
Page 192 of 204
190
RIGHT HAND DRIVE VERSIONS

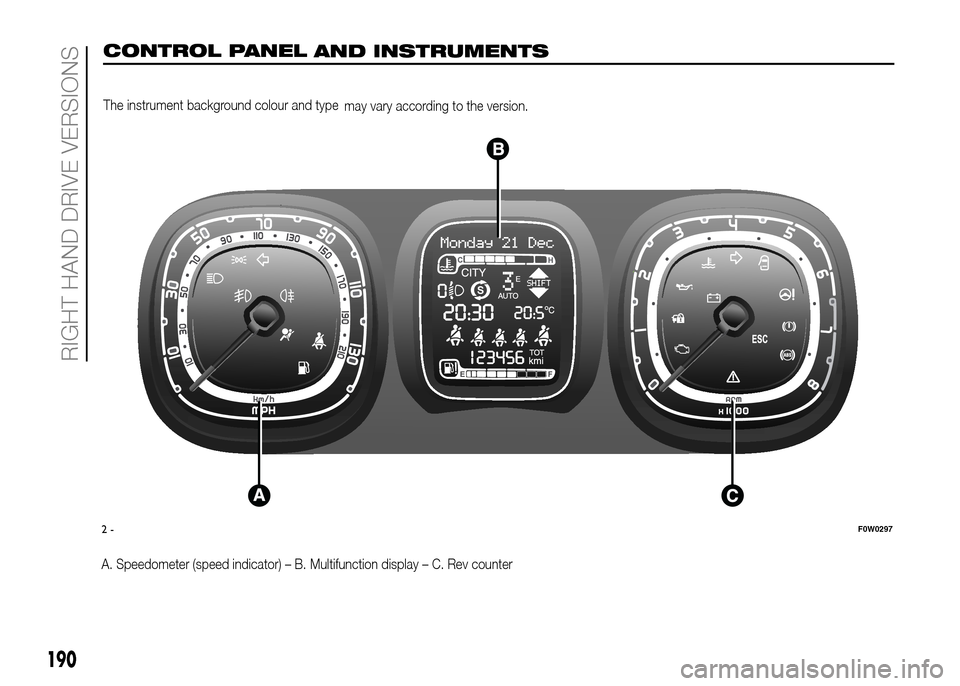

CONTROL PANEL
AND INSTRUMENTS
The instrument background colour and type
may vary according to the version.
.
A. Speedometer (speed indicator) – B. Multifunction display – C. Rev counter
2-F0W0297
TOTkmi
C
Page 193 of 204
191
RIGHT HAND DRIVE VERSIONS

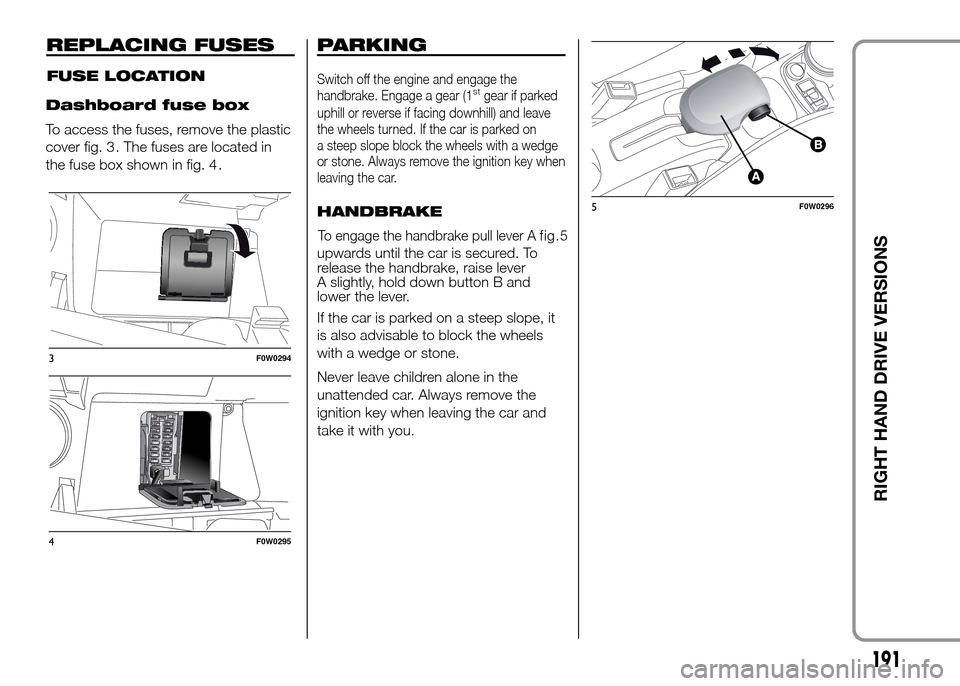

REPLACING FUSES
Dashboard fuse box
To access the fuses, remove the plastic
cover fig. 3 . The fuses are located in
the fuse box shown in fig. 4 .
F0W0294
F0W0295
FUSE LOCATION
3
4
PARKING
Switch off the engine and engage the
handbrake. Engage a gear (1stgear if parked
uphill or reverse if facing downhill) and leave
the wheels turned. If the car is parked on
a steep slope block the wheels with a wedge
or stone. Always remove the ignition key when
leaving the car.
HANDBRAKE
To engage the handbrake pull lever A f i g . 5
upwards until the car is secured. To
release the handbrake, raise lever
A slightly, hold down button B and
lower the lever.
If the car is parked on a steep slope, it
is also advisable to block the wheels
with a wedge or stone.
Never leave children alone in the
unattended car. Always remove the
ignition key when leaving the car and
take it with you.
F0W02965
Page 194 of 204
IMPORTANT INFORMATION AND RECOMMENDATIONS
WARNING
INTERIOR FITTINGS
❒Never travel with the glove compartment open: it could injure the passenger in the event of a crash.
❒The cigar lighter gets very hot. Handle it carefully and make sure that children do not touch it: risk of fire and/or burns. Always check that
the cigar lighter plug has been released.
ROOF RACK/SKI RACK
❒After travelling for a short distance, check that the fixing screws for the attachments are correctly tightened.
❒Never exceed the maximum permitted loads (see chapter "Technical specifications").
❒Evenly distribute the load and take into account, when driving, the increased responsiveness of the vehicle to side wind.
WIRING FOR RADIO SYSTEM
❒If you wish to have a sound system installed after purchasing the vehicle, first contact a Fiat Dealership whose qualified personnel will give
you advise about a sound system that does not damage the battery charge. Excessive nonrunning consumption damages the battery and
may cause your battery warranty to be terminated.
PROTECTING THE ENVIRONMENT
❒During normal service, the catalytic converter and the diesel particulate filter (DPF) reach high temperatures. Do not therefore park the
vehicle over inflammable materials (grass, dry leaves, pine needles, etc.): fire hazard.
INTERIORS
❒Never use flammable products, such as petrol ether or rectified petrol to clean the inside of the vehicle. The electrostatic charges which are
generated by rubbing during the cleaning operation may cause a fire.
❒Do not keep aerosol cans in the vehicle: they might explode. Aerosol cans must not be exposed to a temperature exceeding 50°C. When
the vehicle is exposed to sunlight, the internal temperature can greatly exceed this value.
POWER SUPPLY
❒Modifications or repairs to the supply system that are not carried out correctly or do not take the system technical specifications into
account can cause malfunctions leading to the risk of fire.
LOADING ADVICE(Panda VAN versions)
❒Abrupt braking or occasional impacts may cause sudden movements of the load with consequent situations of hazard for the driver and
passengers: before setting off, secure the load tightly using the partition and, where provided, the appropriate hooks. For securing use
cables, ropes or belts strong enough to hold the items to be secured.
192
Page 195 of 204

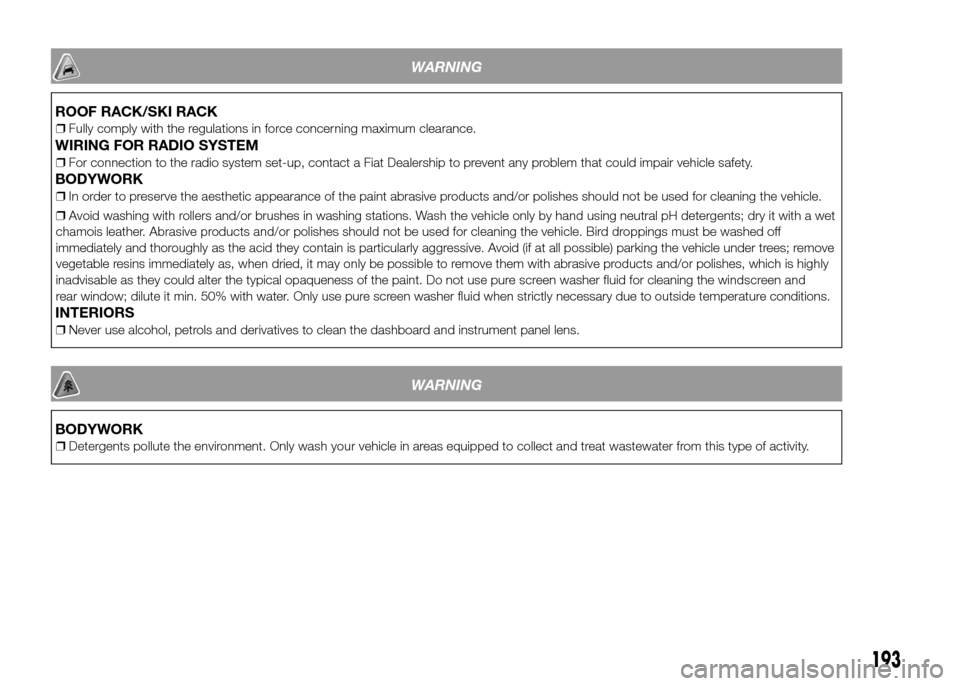

WARNING
