23)Before servicing the vehicle, switch off
the engine and remove the key from the
ignition switch to activate the steering lock.
This is especially important when the
vehicle wheels are not touching the
ground. If this is not possible (for example if
the key needs to be turned to MAR or the
engine must be running), remove the
main fuse that protects the electric power
steering.ECO FUNCTION
(for versions/markets, where provided)
To activate the function press the ECO
button fig. 29.
When the ECO function is active, the
car is set for driving characterised
by reduced fuel consumption. When
the function is active, the
corresponding LED on the button
switches on.
This function stays in the memory and,
when the vehicle is started again, the
system keeps the setting it had before
the engine was stopped. Press the
ECO button again to deactivate the
function and restore the normal driving
setting.
BONNET
OPENING
Proceed as follows:
❒pull lever A fig. 30 in the direction
indicated by the arrow;
❒move lever B fig. 31 to the left;
29F1D0140
30F1D0035
31F1D0036
29

❒lift the bonnet and, at the same time,
release the supporting rod C fig. 32
from its catch D, then insert the end of
the rod into housing E in the bonnet
(large hole) and push to safety position
(small hole).
24) 25)
CLOSING
Proceed as follows:
❒keep the bonnet raised with one
hand and remove rod C fig. 32 from
housing E with the other, inverting the
opening motion, then fit it back into
its catch D;
❒lower the bonnet to approximately 20
centimetres from the engine
compartment and let it drop. Make sure
that the bonnet is completely closed
and not only fastened by the locking
device by trying to open it. If it is not
perfectly closed, do not try to press the
bonnet lid down but open it and repeat
the procedure.
26) 27)
IMPORTANT Always check that the
bonnet is closed correctly to prevent it
from opening while the vehicle is
travelling.
The following plate fig. 33 is applied
inside the engine compartment:
WARNING
24)Incorrect positioning of the supporting
rod may cause the bonnet to drop
suddenly.
25)Use both hands to lift the bonnet.
Before lifting, check that the windscreen
wiper arms are not raised from the
windscreen, that the vehicle is stationary
and that the handbrake is engaged.
26)Perform these operations only with
vehicle stationary.
27)For safety reasons, the bonnet must
always be properly closed while driving.
Therefore, make sure that the bonnet
is properly closed and that the lock
is engaged. If you discover that the bonnet
is not perfectly closed during travel, stop
immediately and close the bonnet in the
correct manner.
32F1D0037
33F1D1000
30
GETTING TO KNOW YOUR CAR

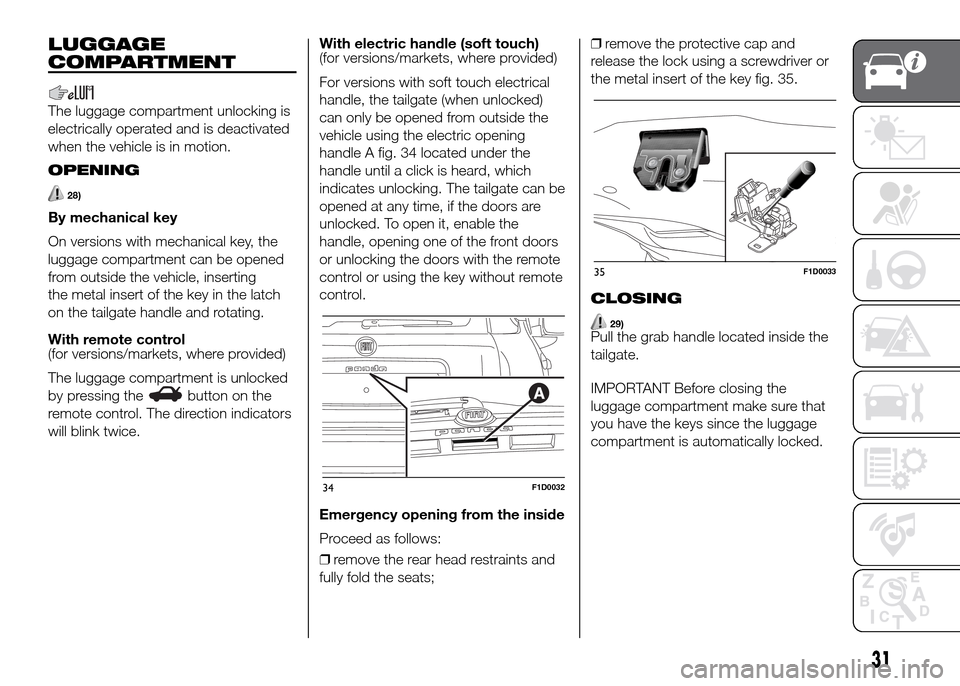

LUGGAGE
COMPARTMENT
The luggage compartment unlocking is
electrically operated and is deactivated
when the vehicle is in motion.
OPENING
28)
By mechanical key
On versions with mechanical key, the
luggage compartment can be opened
from outside the vehicle, inserting
the metal insert of the key in the latch
on the tailgate handle and rotating.
With remote control
(for versions/markets, where provided)
The luggage compartment is unlocked
by pressing the
button on the
remote control. The direction indicators
will blink twice.With electric handle (soft touch)
(for versions/markets, where provided)
For versions with soft touch electrical
handle, the tailgate (when unlocked)
can only be opened from outside the
vehicle using the electric opening
handle A fig. 34 located under the
handle until a click is heard, which
indicates unlocking. The tailgate can be
opened at any time, if the doors are
unlocked. To open it, enable the
handle, opening one of the front doors
or unlocking the doors with the remote
control or using the key without remote
control.
Emergency opening from the inside
Proceed as follows:
❒remove the rear head restraints and
fully fold the seats;❒remove the protective cap and
release the lock using a screwdriver or
the metal insert of the key fig. 35.
CLOSING
29)Pull the grab handle located inside the
tailgate.
IMPORTANT Before closing the
luggage compartment make sure that
you have the keys since the luggage
compartment is automatically locked.
34F1D0032
35F1D0033
31

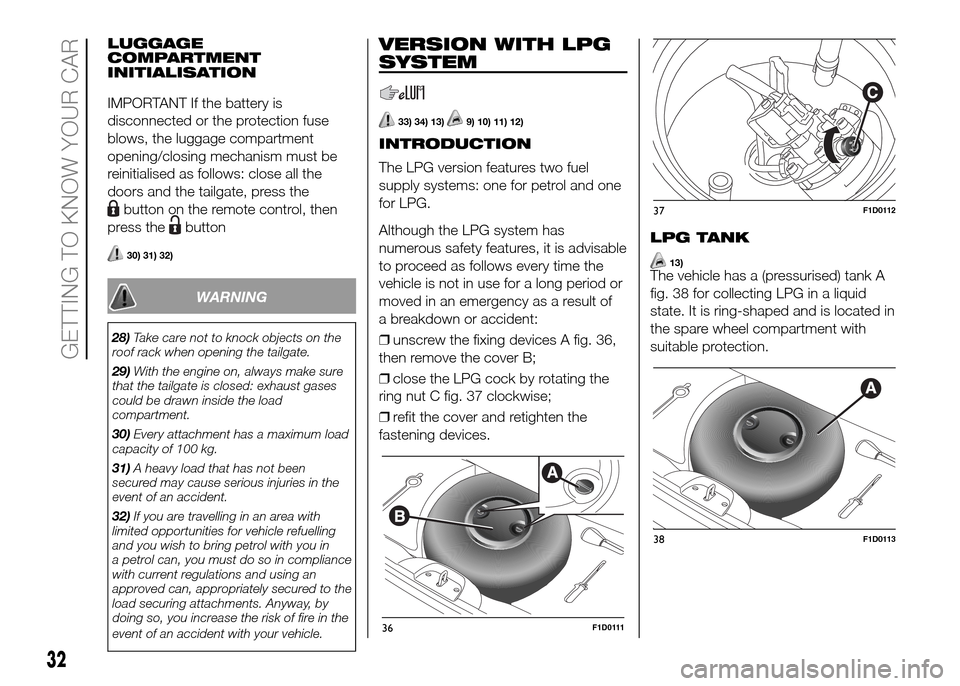

LUGGAGE
COMPARTMENT
INITIALISATION
IMPORTANT If the battery is
disconnected or the protection fuse
blows, the luggage compartment
opening/closing mechanism must be
reinitialised as follows: close all the
doors and the tailgate, press the
button on the remote control, then
press the
button
30) 31) 32)
WARNING
28)Take care not to knock objects on the
roof rack when opening the tailgate.
29)With the engine on, always make sure
that the tailgate is closed: exhaust gases
could be drawn inside the load
compartment.
30)Every attachment has a maximum load
capacity of 100 kg.
31)A heavy load that has not been
secured may cause serious injuries in the
event of an accident.
32)If you are travelling in an area with
limited opportunities for vehicle refuelling
and you wish to bring petrol with you in
a petrol can, you must do so in compliance
with current regulations and using an
approved can, appropriately secured to the
load securing attachments. Anyway, by
doing so, you increase the risk of fire in the
event of an accident with your vehicle.
VERSION WITH LPG
SYSTEM
33) 34) 13)9) 10) 11) 12)
INTRODUCTION
The LPG version features two fuel
supply systems: one for petrol and one
for LPG.
Although the LPG system has
numerous safety features, it is advisable
to proceed as follows every time the
vehicle is not in use for a long period or
moved in an emergency as a result of
a breakdown or accident:
❒unscrew the fixing devices A fig. 36,
then remove the cover B;
❒close the LPG cock by rotating the
ring nut C fig. 37 clockwise;
❒refit the cover and retighten the
fastening devices.LPG TANK
13)The vehicle has a (pressurised) tank A
fig. 38 for collecting LPG in a liquid
state. It is ring-shaped and is located in
the spare wheel compartment with
suitable protection.
36F1D0111
37F1D0112
38F1D0113
32
GETTING TO KNOW YOUR CAR

LPG tank certification
The LPG tank is certified in accordance
with the regulations in force.
In Italy, the tank has a life of 10 years
starting from the vehicle registration
date. If the vehicle has been registered
in a country other than Italy, the
duration and the testing/inspection
procedures of the LPG tank can vary
depending on the national laws of that
country. In any case, when the time limit
in the individual country has run out,
contact a Fiat Dealership to have the
tank replaced.
SELECTION OF
PETROL/LPG SUPPLY
TYPE
35)14) 15) 16)The (petrol/LPG switch) button A fig. 39
allows drivers to select petrol or LPG
operation.To guarantee switching in absolute
safety, the actual change to the chosen
fuel system takes place depending on
the car usage conditions. It may not
therefore be immediate.
Switching is confirmed by the switching
on/off of the green warning light
on
the instrument panel.
If the LPG runs out, switching to petrol
takes place automatically. In this case
the display shows the
icon just
above wording LPG and the four bars
of the digital gauge turn off.
SUPPLIES
17) 18)
LPG
Maximum refuelling capacity (reserve
included): 30.5 litres. The figure already
takes into account the 80% tank filling
limit and the residual fluid required
for correct priming and it is the
maximum permitted capacity. In
addition, after different refuelling
processes, this figure may vary due to
differences between the network pump
supply pressures, pumps having
different supply/locking features, tank
not completely run out of fuel.
WARNING
33)It should be pointed out that in some
countries (including Italy) there are legal
restrictions in force for parking/garaging
motor vehicles with gas that has a higher
density than air; LPG comes under this
category.
34)Modifications or repairs to the fuel
system that are not carried out correctly or
do not take the system technical
specifications into account can cause
malfunctions leading to a fire risk.
35)Do not switch between the two
operating modes whilst starting the engine.
WARNING
9)The system operates at temperatures
ranging between −20 °C and 100 °C.
10)If, during LPG operation, the same runs
out, the vehicle switches to petrol
automatically and all the bars of the digital
gauge on the display switch off; this
displaying remains until the following LPG
refuelling.
39F1D0109
33

11)The vehicle is equipped with a gaseous
LPG injection system designed specifically
for it: it is therefore absolutely forbidden
to alter the configuration of the system or
its components. The use of other
components or materials could cause
malfunctions and lead to a reduction in
safety; therefore, in the case of problems,
contact a Fiat Dealership. To prevent
damage to the gas system parts when
towing or raising the vehicle, follow the
instructions in the "Towing the vehicle"
paragraph of the Owner Handbook.
12)When painting in an oven, the LPG
tank must be removed from the vehicle and
later refitted by a Fiat Dealership. Although
the LPG system has numerous safety
features, it is advisable to proceed
as follows every time the vehicle is not in
use for a long period or moved in an
emergency as a result of a breakdown or
accident: unscrew the fastening devices A
fig. 36, then remove the cover B. Close
the LPG cock rotating the ring nut C fig. 38
clockwise. Refit the cover and retighten
the fastening devices.
13)Periodically (at least once every six
months), it is advisable to let the LPG in the
tank run out and, at the next refuelling,
check that it does not exceed the
maximum capacity of 30.5 litres (reserve
included) (with a tolerance of 2 litres
excess) (see instructions in the "Capacities"
paragraph of this Supplement). If the level
is above 30.5 litres (reserve included)
contact a Fiat Dealership immediately.
14)Regardless of the last fuel system
used, at the following engine starting, after
the initial petrol stage, the system will
automatically switch to LPG.15)When switching from petrol to LPG is
requested, a metal noise from the valves
which pressurise the circuit can be heard.
As a result of the switching logic described
above, the delay between the ticking of
the valve and the switching off of the green
warning light
on the instrument panel
is entirely normal.
16)In particular usage conditions, such as
starting and operation at low ambient
temperature or LPG supply with low
propane content, the system may switch
temporarily to petrol operation, without
an indication of switching on the instrument
panel. In the event of low LPG levels in
the tank or request for high performance
(e.g. overtaking, vehicle fully laden, steep
hills), the system may automatically switch
to petrol operation to guarantee the engine
power requested; the green warning light
on the instrument panel switches on
to indicate this. When the above conditions
are no longer present, the system
automatically restores LPG operation; the
green warning light
switches off. To
achieve the automatic switching described
above, make sure that there is always
enough fuel in the petrol tank.
17)Only use LPG for motor vehicles.
18)It is strictly forbidden to use any
additive in the LPG.
VERSION WITH
METHANE SYSTEM
(Natural Power)
36) 37) 38)19)
INTRODUCTION
The "Natural Power" version features
two fuel systems, one for petrol and
one for natural gas (methane).
METHANE CYLINDERS
The vehicle is equipped with two
cylinders (total capacity about 72 litres)
fig. 40 - fig. 41 located under the floor
of the vehicle and protected by two
special guards.
40F1D0137
34
GETTING TO KNOW YOUR CAR

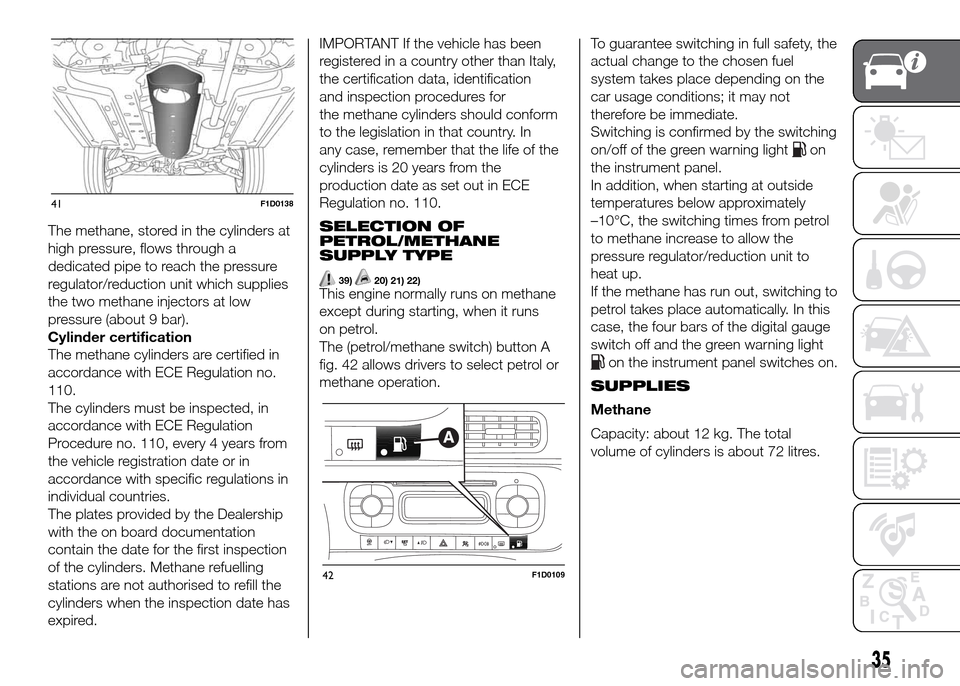

The methane, stored in the cylinders at
high pressure, flows through a
dedicated pipe to reach the pressure
regulator/reduction unit which supplies
the two methane injectors at low
pressure (about 9 bar).
Cylinder certification
The methane cylinders are certified in
accordance with ECE Regulation no.
110.
The cylinders must be inspected, in
accordance with ECE Regulation
Procedure no. 110, every 4 years from
the vehicle registration date or in
accordance with specific regulations in
individual countries.
The plates provided by the Dealership
with the on board documentation
contain the date for the first inspection
of the cylinders. Methane refuelling
stations are not authorised to refill the
cylinders when the inspection date has
expired.IMPORTANT If the vehicle has been
registered in a country other than Italy,
the certification data, identification
and inspection procedures for
the methane cylinders should conform
to the legislation in that country. In
any case, remember that the life of the
cylinders is 20 years from the
production date as set out in ECE
Regulation no. 110.
SELECTION OF
PETROL/METHANE
SUPPLY TYPE
39)20) 21) 22)This engine normally runs on methane
except during starting, when it runs
on petrol.
The (petrol/methane switch) button A
fig. 42 allows drivers to select petrol or
methane operation.To guarantee switching in full safety, the
actual change to the chosen fuel
system takes place depending on the
car usage conditions; it may not
therefore be immediate.
Switching is confirmed by the switching
on/off of the green warning light
on
the instrument panel.
In addition, when starting at outside
temperatures below approximately
–10°C, the switching times from petrol
to methane increase to allow the
pressure regulator/reduction unit to
heat up.
If the methane has run out, switching to
petrol takes place automatically. In this
case, the four bars of the digital gauge
switch off and the green warning light
on the instrument panel switches on.
SUPPLIES
Methane
Capacity: about 12 kg. The total
volume of cylinders is about 72 litres.
41F1D0138
42F1D0109
35

WARNING
36)The Fiat Panda Natural Power is
equipped with a high pressure methane
fuel supply system, designed to operate at
a rated pressure of 200 bar. It is dangerous
to stretch the system with higher
pressures. To prevent damage to the
methane system parts when towing or
raising the vehicle, follow the instructions in
the "Towing the vehicle" paragraph of the
Owner Handbook. If there is a problem
with the methane system, only contact a
Fiat Dealership. Do not alter the methane
system configuration or components; they
are designed exclusively for the Fiat Panda
Natural Power. The use of other
components or materials could cause
malfunctions and reduce safety.
37)In the case of painting in an oven, the
cylinders should be removed from the
vehicle and refitted later by a Fiat Dealer.
Although the methane system has
numerous safety features, it is advisable to
close the manual cocks for the cylinders
every time the vehicle is not in use for
a long period, transported on other
vehicles or moved in an emergency as a
result of a breakdown or accident.
38)Modifications or repairs to the fuel
system that are not carried out correctly or
do not take the system technical
specifications into account can cause
malfunctions leading to a fire risk.
39)Do not switch between the two
operating modes whilst starting the engine.
WARNING
19)If, during methane operation, the same
runs out, the vehicle switches to petrol
automatically and all the bars of the digital
gauge on the display switch off; this
displaying remains until the next methane
refuelling.
20)Regardless of the last fuel system
used, at the following engine starting, after
the initial petrol stage, the system will
automatically switch to methane.
21)When switching from petrol to methane
is requested, a metal noise from the valves
which pressurise the circuit can be heard,
as it happens while starting the vehicle.
As a result of the switching logic described
above, the delay between the ticking of
the valve and the switching off of the green
warning light
on the instrument panel
is entirely normal.22)In particular usage conditions, such as
starting and operation at low ambient
temperature, the system may switch
temporarily to petrol operation, without
indicating the performed switching. In the
event of low methane levels in the tank
or request for high performance (e.g.
overtaking, vehicle fully laden, steep hills),
the system may automatically switch to
petrol operation to guarantee the engine
power requested; the green warning light
on the instrument panel switches on
to indicate this. When the above conditions
are no longer present, the system
automatically restores methane operation;
the green warning light
switches off.
To achieve the automatic switching
described above, make sure that there is
always enough fuel in the petrol tank.
36
GETTING TO KNOW YOUR CAR

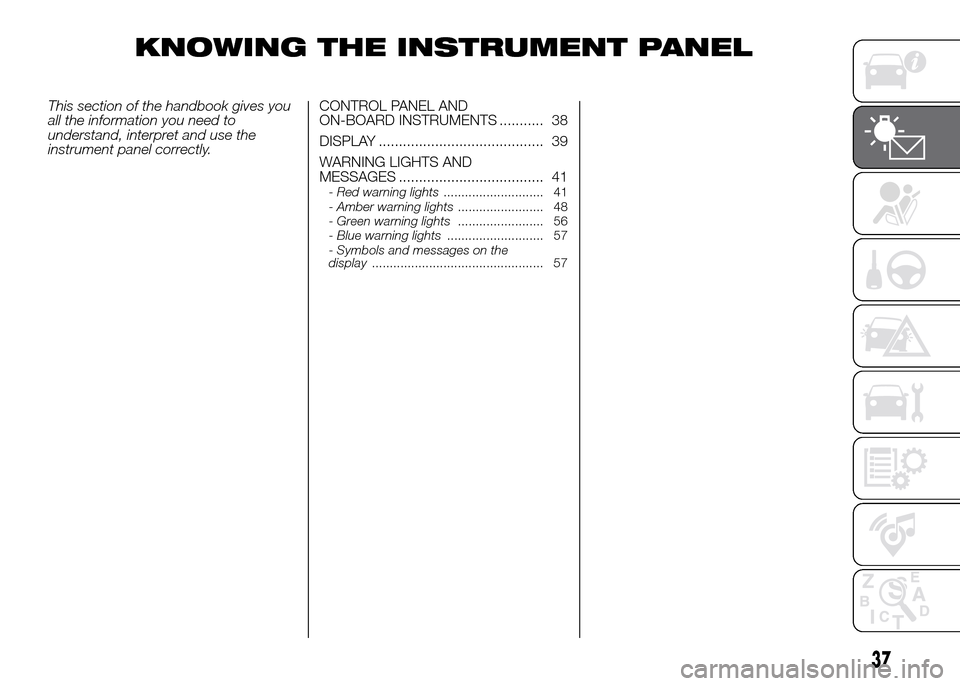

KNOWING THE INSTRUMENT PANEL
This section of the handbook gives you
all the information you need to
understand, interpret and use the
instrument panel correctly.CONTROL PANEL AND
ON-BOARD INSTRUMENTS ........... 38
DISPLAY ......................................... 39
WARNING LIGHTS AND
MESSAGES .................................... 41
-Red warning lights............................ 41
-Amber warning lights........................ 48
-Green warning lights........................ 56
-Blue warning lights........................... 57
-Symbols and messages on the
display................................................ 57
37

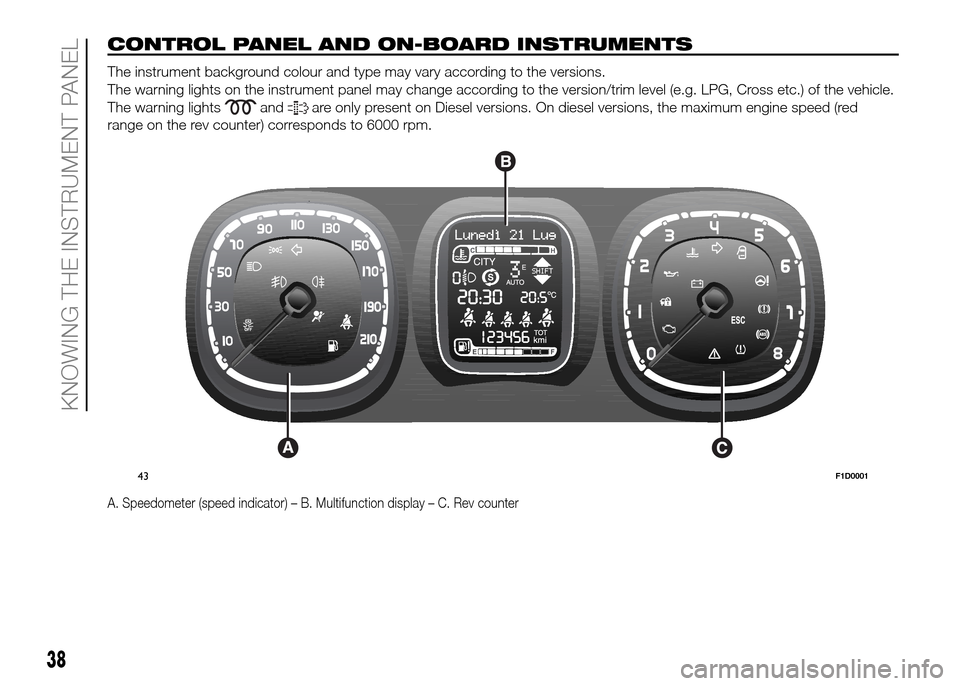

CONTROL PANEL AND ON-BOARD INSTRUMENTS.
The instrument background colour and type may vary according to the versions.
The warning lights on the instrument panel may change according to the version/trim level (e.g. LPG, Cross etc.) of the vehicle.
The warning lights
andare only present on Diesel versions. On diesel versions, the maximum engine speed (red
range on the rev counter) corresponds to 6000 rpm.
A. Speedometer (speed indicator) – B. Multifunction display – C. Rev counter
43F1D0001
38
KNOWING THE INSTRUMENT PANEL
