technical specifications FIAT SCUDO 2012 Owner handbook (in English)

4
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLSDASHBOARD ...................................................................... 5
SYMBOLS ............................................................................... 6
THE FIAT CODE SYSTEM ................................................. 6
THE KEYS .............................................................................. 7

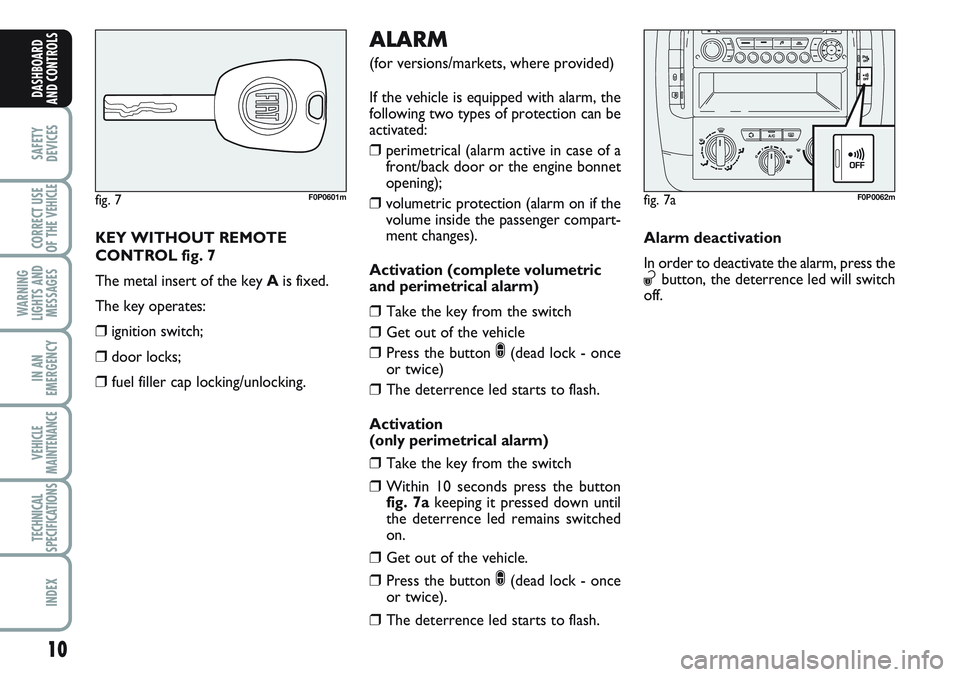

ALARM ................................................................................... 10

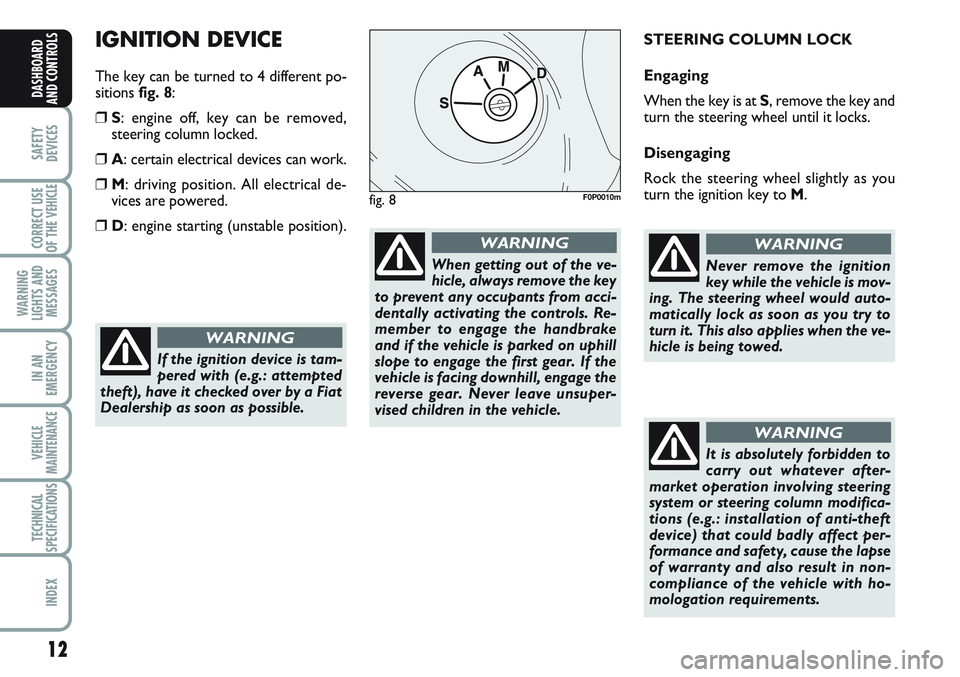

IGNITION DEVICE ............................................................. 12

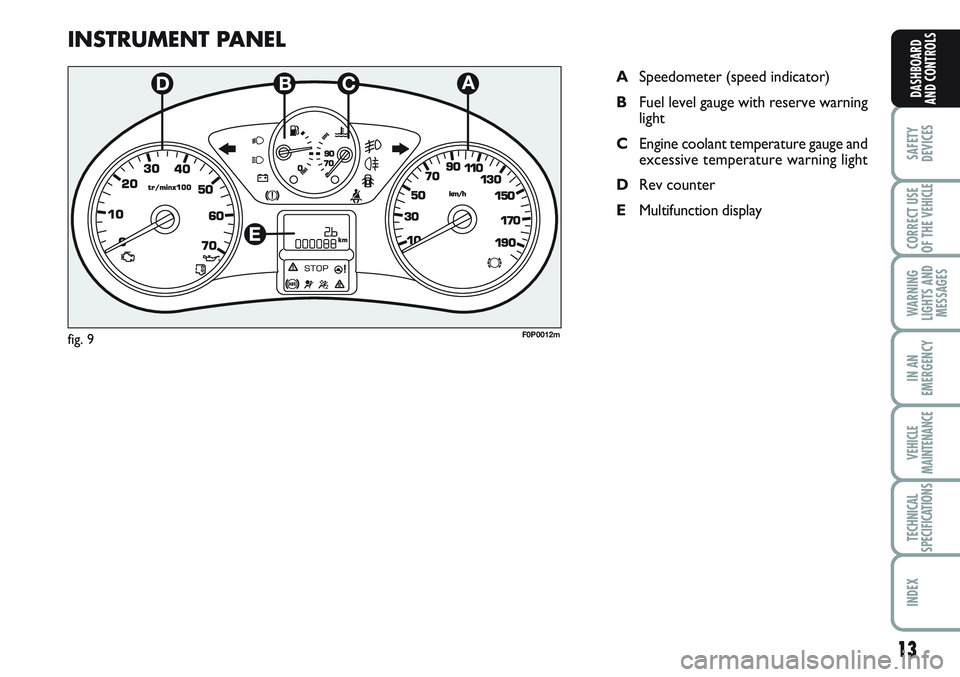

INSTRUMENT PANEL ........................................................ 13
INSTRUMENTS .................................................................... 14
DISPLAY.................................................................................. 15
MAINTENANCE INDICATOR ........................................ 16
TRIP COMPUTER................................................................. 17
FRONT SEATS ..................................................................... 17
REAR SEATS .......................................................................... 20
SEAT ARRANGEMENTS .................................................... 22
HEAD RESTRAINTS ........................................................... 23
STEERING WHEEL .............................................................. 24
REARVIEW MIRRORS ........................................................ 25
HEATING AND VENTILATION ..................................... 27
MANUAL CLIMATE CONTROL SYSTEM .................... 31
AUTOMATIC TWO-ZONE CLIMATE
CONTROL SYSTEM ........................................................... 37
AUTOMATIC THREE-ZONE CLIMATE
CONTROL SYSTEM ........................................................... 45
EXTERNAL LIGHTS ............................................................ 47WINDOW WASHING ...................................................... 50
CRUISE CONTROL SPEED REGULATOR.................... 54
“LIMIT” SPEED RESTRICTOR .......................................... 57
CEILING LIGHTS ................................................................. 60
CONTROLS .......................................................................... 61
FUEL CUT-OFF SWITCH .................................................. 64
INTERIOR EQUIPMENT..................................................... 65
DOORS .................................................................................. 69
SLIDING LUGGAGE COVER............................................ 73
POWER WINDOWS/WINDOW WINDERS .............. 74
BONNET ............................................................................... 76
ROOF RACK/SKI RACK .................................................... 77
PNEUMATIC SUSPENSIONS............................................. 78
LOAD RECOMMENDATIONS......................................... 79
HEADLIGHTS ....................................................................... 81
ABS SYSTEM ......................................................................... 82
ESP SYSTEM .......................................................................... 84
EOBD SYSTEM ..................................................................... 87
PARKING SENSORS ........................................................... 88
SOUND SYSTEM ................................................................. 89
ACCESSORIES PURCHASED BY THE OWNER ......... 90
AT THE FILLING STATION ............................................. 91
PROTECTING THE ENVIRONMENT ........................... 92
D D
A A
S S
H H
B B
O O
A A
R R
D D
A A
N N
D D
C C
O O
N N
T T
R R
O O
L L
S S

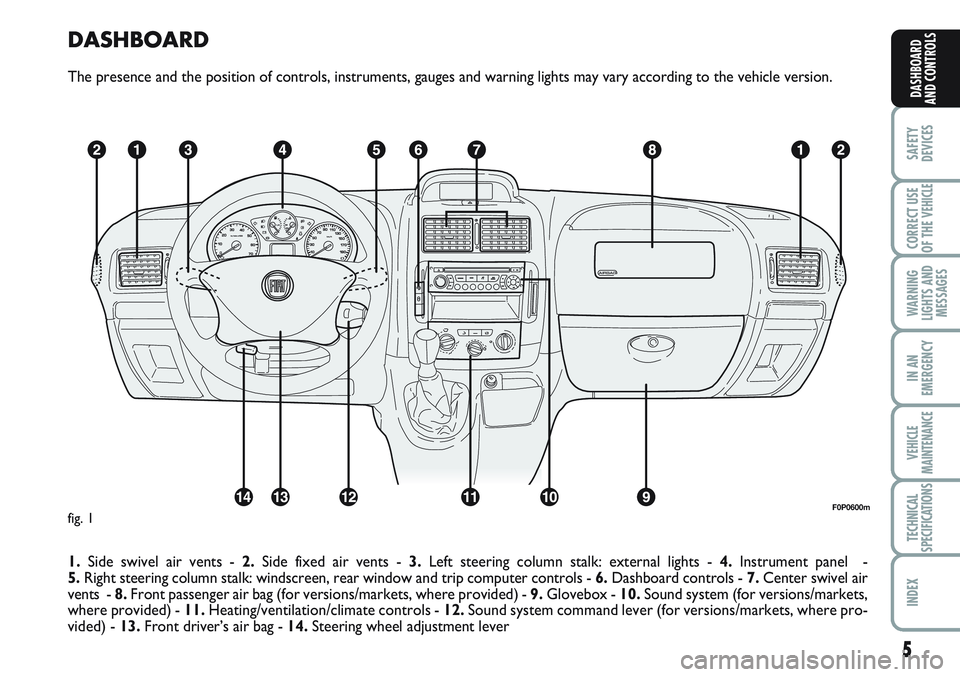

DASHBOARD
The presence and the position of controls, instruments, gauges and warning lights may vary according to the vehicle version.
1.Side swivel air vents - 2.Side fixed air vents - 3.Left steering column stalk: external lights - 4.Instrument panel -
5.Right steering column stalk: windscreen, rear window and trip computer controls - 6.Dashboard controls - 7.Center swivel air
vents - 8.Front passenger air bag (for versions/markets, where provided) - 9.Glovebox - 10.Sound system (for versions/markets,
where provided) - 11.Heating/ventilation/climate controls - 12.Sound system command lever (for versions/markets, where pro-
vided) - 13.Front driver’s air bag - 14. Steering wheel adjustment lever
5
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
F0P0600mfig. 1

6
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

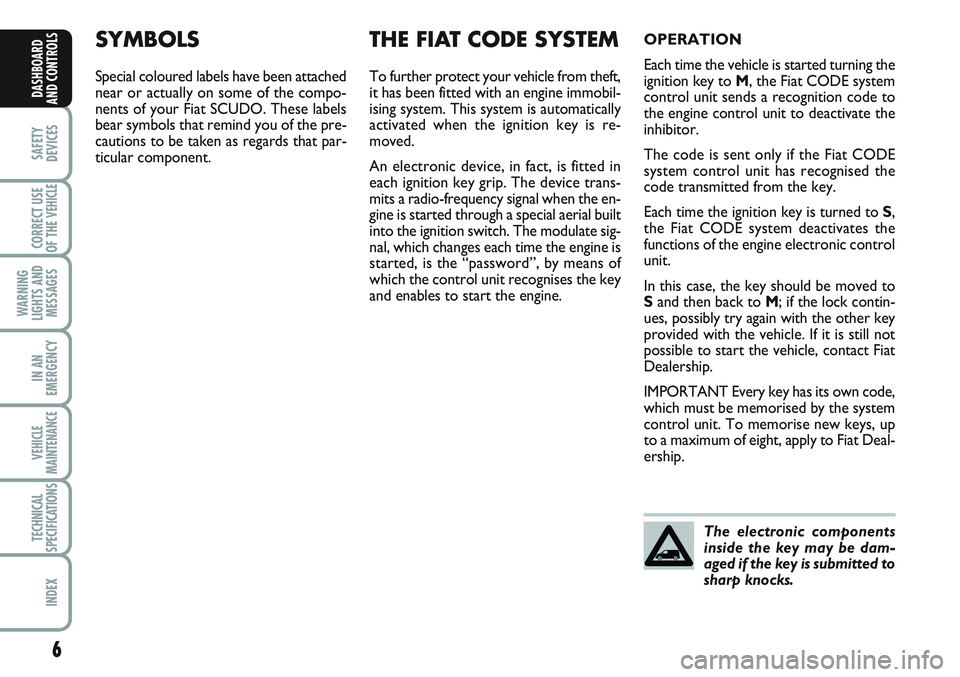

SYMBOLS
Special coloured labels have been attached
near or actually on some of the compo-
nents of your Fiat SCUDO. These labels
bear symbols that remind you of the pre-
cautions to be taken as regards that par-
ticular component.
THE FIAT CODE SYSTEM
To further protect your vehicle from theft,
it has been fitted with an engine immobil-
ising system. This system is automatically
activated when the ignition key is re-
moved.
An electronic device, in fact, is fitted in
each ignition key grip. The device trans-
mits a radio-frequency signal when the en-
gine is started through a special aerial built
into the ignition switch. The modulate sig-
nal, which changes each time the engine is
started, is the “password”, by means of
which the control unit recognises the key
and enables to start the engine.
The electronic components
inside the key may be dam-
aged if the key is submitted to
sharp knocks.
OPERATION
Each time the vehicle is started turning the
ignition key to M, the Fiat CODE system
control unit sends a recognition code to
the engine control unit to deactivate the
inhibitor.
The code is sent only if the Fiat CODE
system control unit has recognised the
code transmitted from the key.
Each time the ignition key is turned to S,
the Fiat CODE system deactivates the
functions of the engine electronic control
unit.
In this case, the key should be moved to
Sand then back to M; if the lock contin-
ues, possibly try again with the other key
provided with the vehicle. If it is still not
possible to start the vehicle, contact Fiat
Dealership.
IMPORTANT Every key has its own code,
which must be memorised by the system
control unit. To memorise new keys, up
to a maximum of eight, apply to Fiat Deal-
ership.

7
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
To refit it proceed as follows:
❒keep button Bpressed and move the
metal insert A;
❒release button Band turn the metal in-
sert A until hearing the proper lock-
ing click.

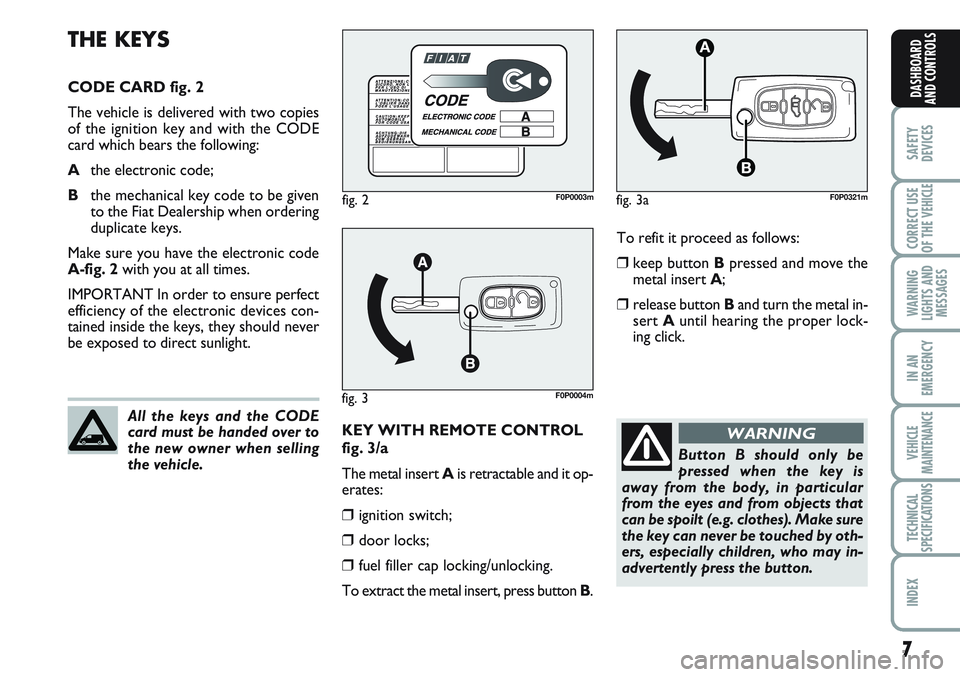

THE KEYS
CODE CARD fig. 2
The vehicle is delivered with two copies
of the ignition key and with the CODE
card which bears the following:
Athe electronic code;
Bthe mechanical key code to be given
to the Fiat Dealership when ordering
duplicate keys.
Make sure you have the electronic code
A-fig. 2with you at all times.
IMPORTANT In order to ensure perfect
efficiency of the electronic devices con-
tained inside the keys, they should never
be exposed to direct sunlight.
All the keys and the CODE
card must be handed over to
the new owner when selling
the vehicle.
fig. 2F0P0003m
fig. 3F0P0004m
fig. 3aF0P0321m
KEY WITH REMOTE CONTROL
fig. 3/a
The metal insert Ais retractable and it op-
erates:
❒ignition switch;
❒door locks;
❒fuel filler cap locking/unlocking.
To extract the metal insert, press button B.
Button B should only be
pressed when the key is
away from the body, in particular
from the eyes and from objects that
can be spoilt (e.g. clothes). Make sure
the key can never be touched by oth-
ers, especially children, who may in-
advertently press the button.
WARNING

8
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

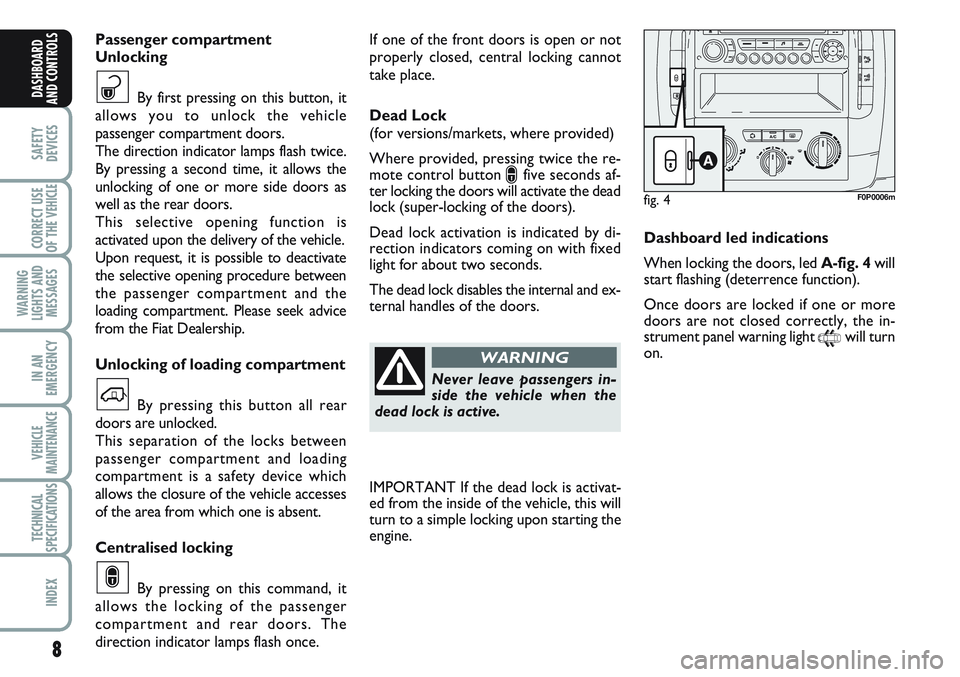

If one of the front doors is open or not
properly closed, central locking cannot
take place.
Dead Lock
(for versions/markets, where provided)
Where provided, pressing twice the re-
mote control button
∫five seconds af-
ter locking the doors will activate the dead
lock (super-locking of the doors).
Dead lock activation is indicated by di-
rection indicators coming on with fixed
light for about two seconds.
The dead lock disables the internal and ex-
ternal handles of the doors.
Dashboard led indications
When locking the doors, led A-fig. 4will
start flashing (deterrence function).
Once doors are locked if one or more
doors are not closed correctly, the in-
strument panel warning light
9will turn
on.
fig. 4F0P0006m
Passenger compartment
Unlocking
By first pressing on this button, it
allows you to unlock the vehicle
passenger compartment doors.
The direction indicator lamps flash twice.
By pressing a second time, it allows the
unlocking of one or more side doors as
well as the rear doors.
This selective opening function is
activated upon the delivery of the vehicle.
Upon request, it is possible to deactivate
the selective opening procedure between
the passenger compartment and the
loading compartment. Please seek advice
from the Fiat Dealership.
Unlocking of loading compartment
By pressing this button all rear
doors are unlocked.
This separation of the locks between
passenger compartment and loading
compartment is a safety device which
allows the closure of the vehicle accesses
of the area from which one is absent.
Centralised locking
By pressing on this command, it
allows the locking of the passenger
compartment and rear doors. The
direction indicator lamps flash once.
∫
`
ª
Never leave passengers in-
side the vehicle when the
dead lock is active.
WARNING
IMPORTANT If the dead lock is activat-
ed from the inside of the vehicle, this will
turn to a simple locking upon starting the
engine.

9
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
Used batteries are harmful to
the environment. They should
be disposed of as specified by
law in the special containers
provided, or take them to a Fiat Deal-
ership, which will deal with their dis-
posal.
fig. 5F0P0007mfig. 6F0P0008m

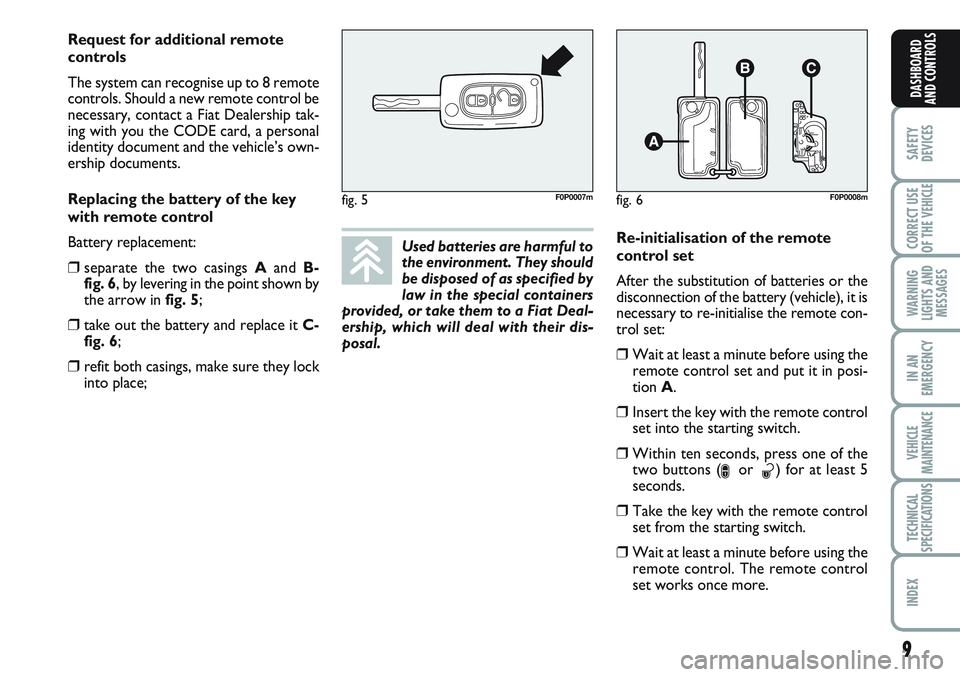

Request for additional remote
controls
The system can recognise up to 8 remote
controls. Should a new remote control be
necessary, contact a Fiat Dealership tak-
ing with you the CODE card, a personal
identity document and the vehicle’s own-
ership documents.
Replacing the battery of the key
with remote control
Battery replacement:
❒separate the two casings A andB-
fig. 6, by levering in the point shown by
the arrow in fig. 5;
❒take out the battery and replace it C-
fig. 6;
❒refit both casings, make sure they lock
into place;Re-initialisation of the remote
control set
After the substitution of batteries or the
disconnection of the battery (vehicle), it is
necessary to re-initialise the remote con-
trol set:❒Wait at least a minute before using the
remote control set and put it in posi-
tion A.
❒Insert the key with the remote control
set into the starting switch.
❒Within ten seconds, press one of the
two buttons (
∫orª) for at least 5
seconds.
❒Take the key with the remote control
set from the starting switch.
❒Wait at least a minute before using the
remote control. The remote control
set works once more.

10
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
KEY WITHOUT REMOTE
CONTROL fig. 7
The metal insert of the key Ais fixed.
The key operates:
❒ignition switch;
❒door locks;
❒fuel filler cap locking/unlocking.
fig. 7F0P0601m
ALARM
(for versions/markets, where provided)
If the vehicle is equipped with alarm, the
following two types of protection can be
activated:
❒perimetrical (alarm active in case of a
front/back door or the engine bonnet
opening);
❒volumetric protection (alarm on if the
volume inside the passenger compart-
ment changes).
Activation (complete volumetric
and perimetrical alarm)
❒Take the key from the switch
❒Get out of the vehicle
❒Press the button ∫(dead lock - once
or twice)
❒The deterrence led starts to flash.
Activation
(only perimetrical alarm)
❒Take the key from the switch
❒Within 10 seconds press the button
fig. 7akeeping it pressed down until
the deterrence led remains switched
on.
❒Get out of the vehicle.
❒Press the button ∫(dead lock - once
or twice).
❒The deterrence led starts to flash.
fig. 7aF0P0062m
Alarm deactivation
In order to deactivate the alarm, press the
ªbutton, the deterrence led will switch
off.

11
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

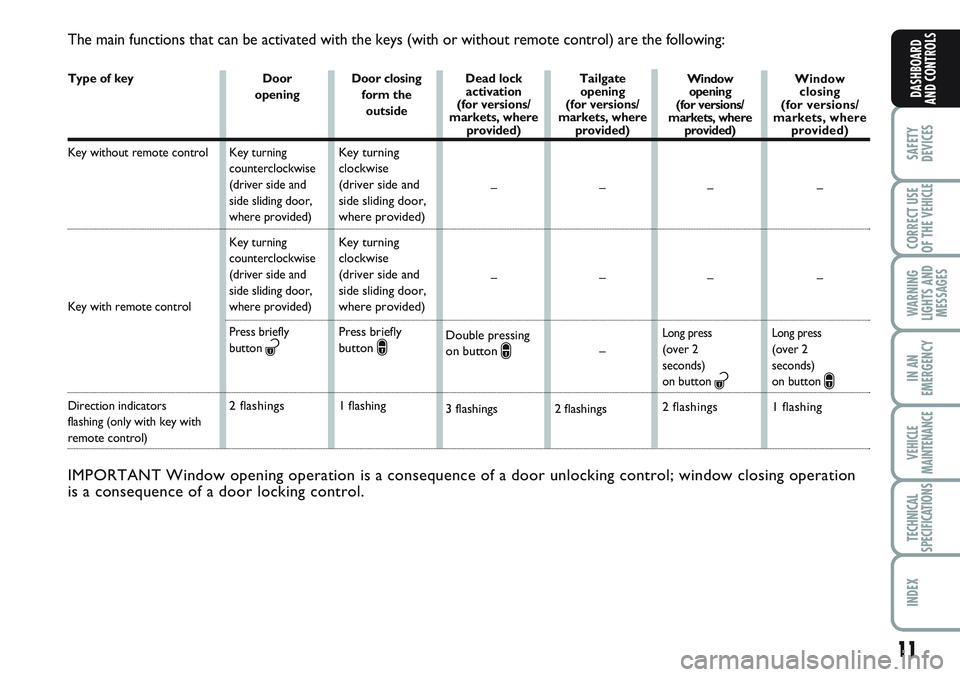

The main functions that can be activated with the keys (with or without remote control) are the following:
IMPORTANT Window opening operation is a consequence of a door unlocking control; window closing operation
is a consequence of a door locking control.
Type of key
Key without remote control
Key with remote control
Direction indicators
flashing (only with key with
remote control)Window
closing
(for versions/
markets, where
provided)
–
–
Long press(over 2
seconds)
on button
∫
1 flashing
Door
opening
Key turning
counterclockwise
(driver side and
side sliding door,
where provided)
Key turning
counterclockwise
(driver side and
side sliding door,
where provided)
Press briefly
button
ª
2 flashings
Door closing
form the
outside
Key turning
clockwise
(driver side and
side sliding door,
where provided)
Key turning
clockwise
(driver side and
side sliding door,
where provided)
Press briefly
button
∫
1 flashing
Dead lock
activation
(for versions/
markets, where
provided)
–
–
Double pressing
on button
∫
3 flashings
Tailgate
opening
(for versions/
markets, where
provided)
–
–
–
2 flashings
Window
opening
(for versions/
markets, where
provided)
–
–
Long press(over 2
seconds)
on button
ª
2 flashings

12
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
IGNITION DEVICE
The key can be turned to 4 different po-
sitions fig. 8:
❒S: engine off, key can be removed,
steering column locked.
❒A: certain electrical devices can work.
❒M: driving position. All electrical de-
vices are powered.
❒D: engine starting (unstable position).STEERING COLUMN LOCK
Engaging
When the key is at S, remove the key and
turn the steering wheel until it locks.
Disengaging
Rock the steering wheel slightly as you
turn the ignition key to M.
If the ignition device is tam-
pered with (e.g.: attempted
theft), have it checked over by a Fiat
Dealership as soon as possible.
WARNING
When getting out of the ve-
hicle, always remove the key
to prevent any occupants from acci-
dentally activating the controls. Re-
member to engage the handbrake
and if the vehicle is parked on uphill
slope to engage the first gear. If the
vehicle is facing downhill, engage the
reverse gear. Never leave unsuper-
vised children in the vehicle.
WARNING
fig. 8F0P0010m
Never remove the ignition
key while the vehicle is mov-
ing. The steering wheel would auto-
matically lock as soon as you try to
turn it. This also applies when the ve-
hicle is being towed.
WARNING
It is absolutely forbidden to
carry out whatever after-
market operation involving steering
system or steering column modifica-
tions (e.g.: installation of anti-theft
device) that could badly affect per-
formance and safety, cause the lapse
of warranty and also result in non-
compliance of the vehicle with ho-
mologation requirements.
WARNING

13
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
INSTRUMENT PANEL
ASpeedometer (speed indicator)
BFuel level gauge with reserve warning
light
CEngine coolant temperature gauge and
excessive temperature warning light
DRev counter
EMultifunction display
F0P0012mfig. 9
