FIAT STILO 2005 1.G Radio Manual

10 Nero Testo 603.46.306 Radio Stilo gb
RADIO WITH CASSETTE PLAYER
10

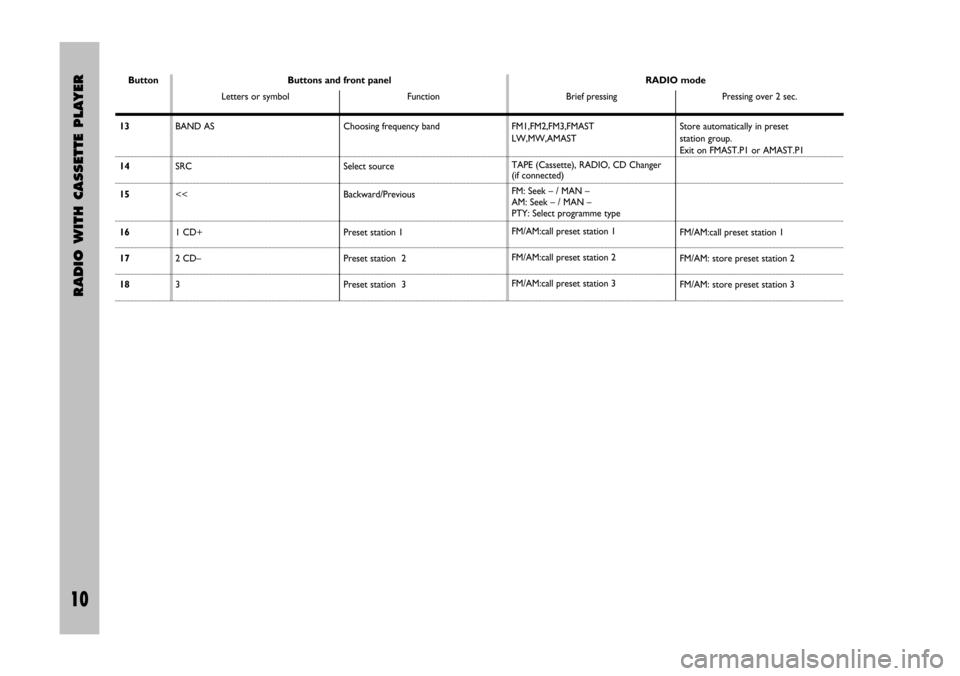

ButtonRADIO mode
Brief pressing Pressing over 2 sec. Buttons and front panel
Letters or symbol Function
BAND AS
SRC
<<
1 CD+
2 CD–
313
14
15
16
17
18Choosing frequency band
Select source
Backward/Previous
Preset station 1
Preset station 2
Preset station 3FM1,FM2,FM3,FMAST
LW,MW,AMAST
TAPE (Cassette), RADIO, CD Changer
(if connected)
FM: Seek – / MAN –
AM: Seek – / MAN –
PTY: Select programme type
FM/AM:call preset station 1
FM/AM:call preset station 2
FM/AM:call preset station 3Store automatically in preset
station group.
Exit on FMAST.P1 or AMAST.P1
FM/AM:call preset station 1
FM/AM: store preset station 2
FM/AM: store preset station 3
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 10

RADIO WITH CASSETTE PLAYER
11 Nero- Testo 603.46.306 Radio Stilo gb
11

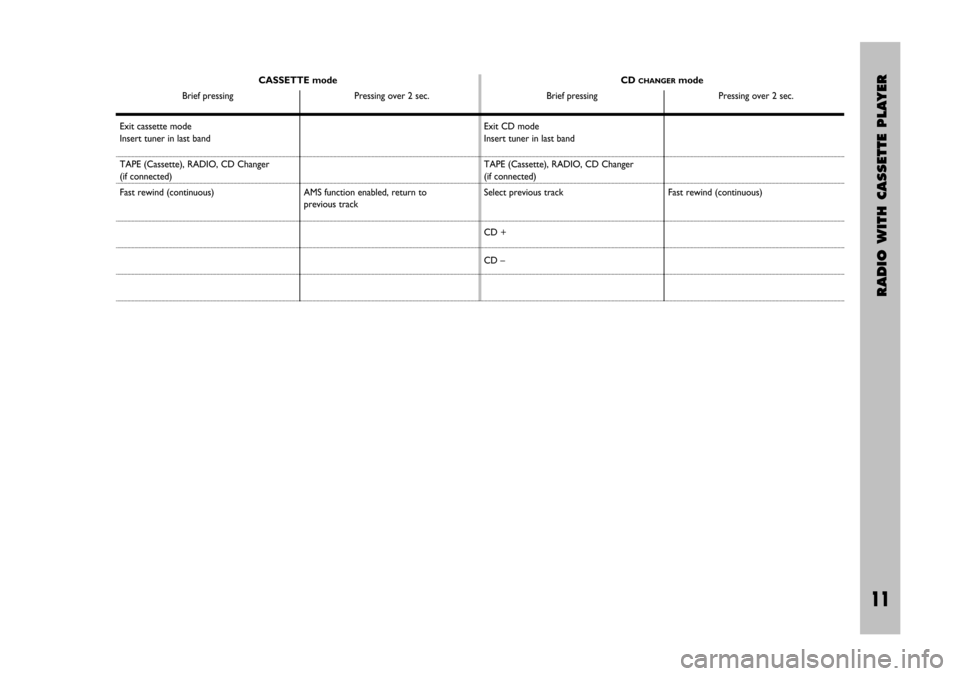

CASSETTE mode
Brief pressing Pressing over 2 sec.CD CHANGERmode
Brief pressing Pressing over 2 sec.
Exit cassette mode
Insert tuner in last band
TAPE (Cassette), RADIO, CD Changer
(if connected)
Fast rewind (continuous)Exit CD mode
Insert tuner in last band
TAPE (Cassette), RADIO, CD Changer
(if connected)
Select previous track
CD +
CD – AMS function enabled, return to
previous trackFast rewind (continuous)
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 11

12 Nero Testo 603.46.306 Radio Stilo gb
RADIO WITH CASSETTE PLAYER
12
– DOLBY B (noise reduction cir-
cuit) (*)
– Powered cassette loading and
eject.
(*) The DOLBY reduction circuit is made
under the licence of Dolby Laboratories
Licensing Corporation. DOLBY and the
(M) symbol with double D are patented
brands of Dolby Laboratories Licensing
Corporation.
COMPACT DISC SECTION
(when the CD-Changer is fit-
ted)
– Disc select (disc no.)
– Track select (forward/backward)
– Fast forward/backward
– Track Repeat function (repetition
of last track)
– Track Scan function (scanning the
tracks on the Compact Disc, lasting
approx. 10 sec. for each track).
GENERAL– Automatic storage (AutoSTore
function) of 6 stations in FM band
and 6 stations in the AM band
– SENS DX/LO function (sensitivity
adjusting in searching radio stations)
– Scan function (scanning stored
stations or scanning on frequency
band in use), lasting approx. 10 sec.
for each station.
– Automatic Stereo/Mono switch-
ing.
CASSETTE SECTION
– Autoreverse
– Tape fast forward/rewind
– CrO
2tape equalizing
– AMS function (Automatic Music
Search)
– Scan function (scan tape tracks),
lasting approx. 10 sec. for each track. The set possesses the following
functions:
RADIO SECTION
– PLL tuning with FM/FMAST/AM/
AMAST/MW/LW frequency bands
– RDS (Radio Data System) with
TA (traffic information) - PTY
(Program Type) - EON (Enhanced
Other Network) - REG (Regional
programmes) functions
– Alternative frequency search
selection in RDS mode (AF function)
– Automatic/manual station tuning
– Manual storage of 42 stations: 24
in the FM band (6 in FM1, 6 in FM2,
6 in FMT and 6 in FMAST), 6 in the
MW band, 6 in the LW band and 6 in
the AM (MW+LW) band, with auto-
matic storage (AutoSTore function)
in the AMAST band
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 12

RADIO WITH CASSETTE PLAYER
13 Nero- Testo 603.46.306 Radio Stilo gb
13
ANTITHEFT PROTECTION
The radio is fitted with an antitheft
protection system based on a four-
digit secret code that makes the
radio unusable.
CODE Card
This the document that certifies
possession of the radio. The Code
Card contains the radio model, seri-
al number and secret code.
Keep the Code Card in a safe place,
not in the car.
Secret coding
When the secret coding is activat-
ed and radio is removed from the
car battery (or 30 positive terminal),
the radio is protected electronically.
The radio can only be switched on
entering your personal secret code. For installation and
connection of the CD-
Changer apply only to
Fiat Dealership.– RaNDom function (random play-
ing of tracks).
– Powered CD loading and eject.SOUND SECTION
– Mute/Pause function
– Loudness function
– 5-band graphic equalizer
– Separate bass/treble adjustment
– Right/left and front/rear channel
balancing.
– Audio Clip Detect function
– Soft Mute function
On multimedia CDs in ad-
dition to sound tracks also
data tracks are recorded. Playing
one of these CDs may cause
rustling and such a volume as to
compromise road safety, as well as
causing damage to the final stages
and speakers.
WARNING
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 13

14 Nero Testo 603.46.306 Radio Stilo gb
RADIO WITH CASSETTE PLAYER
14
Dolby B
Tape noise limiting device produced
under licence of “Dolby Laboratories
Licensing Corporation”.
EON (Enhanced Other
Network)
Function that allows the radio to
tune automatically on a different sta-
tion that the one being listened to
which broadcasts traffic information.
Fader
Function with which it is possible to
suitably adjust the sound from the
front or rear speakers.
Loudness
Function that emphasises the bass
and treble tones when listening at
low level. It is cut off when the vol-
ume is set to maximum (level 34). Autostore
Function with which it is possible to
store automatically radio stations.
Balance (Channel balancing)
Function with which it is possible to
suitably adjust the sound from the
right or left speakers.
Bass (Bass tones)
This function adjusts the bass
tones.
CD-Changer
Multiple Compact Disc player.
Distant/Local (Sens Dx/Loc)
These are two levels of reception
sensitivity.
1) Distant(maximum sensitivity),
which makes it possible to tune all
the stations that can be received.
2) Local(minimum sensitivity),
which makes it possible to tune only
those stations with sufficiently strong
signals, such as for example local sta-

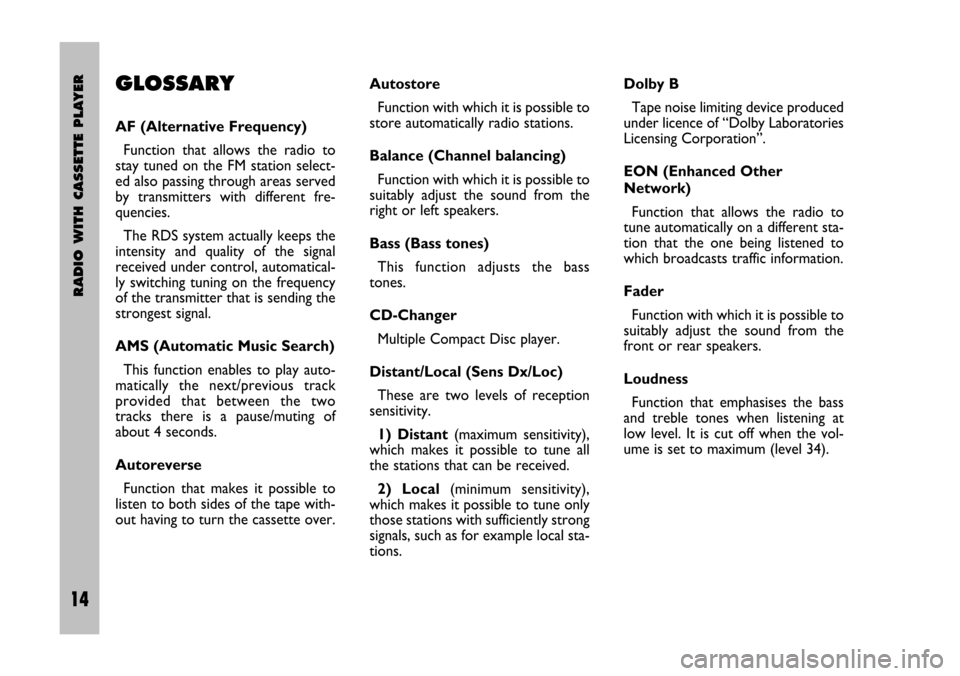

tions.GLOSSARY
AF (Alternative Frequency)
Function that allows the radio to
stay tuned on the FM station select-
ed also passing through areas served
by transmitters with different fre-
quencies.
The RDS system actually keeps the
intensity and quality of the signal
received under control, automatical-
ly switching tuning on the frequency
of the transmitter that is sending the
strongest signal.
AMS (Automatic Music Search)
This function enables to play auto-
matically the next/previous track
provided that between the two
tracks there is a pause/muting of
about 4 seconds.
Autoreverse
Function that makes it possible to
listen to both sides of the tape with-
out having to turn the cassette over.
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 14

RADIO WITH CASSETTE PLAYER
15 Nero- Testo 603.46.306 Radio Stilo gb
15
Mute
This function enables to mute the
active source. This function is acti-
vated automatically, if a cell phone is
connected to the radio, when a
phone call is being received.
Presettings
Number of radio stations that can
be stored manually or automatically.
PTY (Program Type)
This function allows the presetting
of a category of programmes such as
for instance, news bulletins, music,
sport, etc. Scan
Function with which it is possible to
listen, for approx. 10 seconds, to all
the radio stations stored, or the
beginning of all the tracks contained
on a cassette or Compact Disc.
Soft Mute
Function that gradually highers and
lowers the volume when Mute is
turned on or off.
SVC
Function that automatically adjusts
the level of the volume to the speed
of the car to maintain the radio with
the noise level in the passenger com-
partment.
TA (Traffic information)
Function with which it is possible to
receive the traffic information
broadcast by the stations enabled,
also when tuned to another station
or listening to a cassette/CD.
Treble (Treble tones)
This adjusts the treble tones. RDS (Radio Data System)
This is an additional radio informa-
tion system which uses the 57 kHz
subcarrier of normal FM broadcasts.
With this function it is possible to
receive different types of informa-
tion such as station names, alterna-
tive frequencies, automatic tuning to
traffic bulletins or special pro-
grammes selected through the PTY
function.
REG (Regional transmission
reception function)
Function with which it is possible to
tune only to local (regional) stations.
Repeat (Repetition of the
track)
Function with which it is possible to
listen continuously to the last track
played on the Compact Disc.
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 15

16 Nero Testo 603.46.306 Radio Stilo gb
RADIO WITH CASSETTE PLAYER
16
CONTROLS ON STEERING
WHEEL (where provided) fig. 2
The main radio function controls
are repeated on the steering wheel,
to allow easier control.
Volume adjustment
(“+” and “–”) Mute function
(“Mute”)
Press button B(“+”) to increase
volume and (“–”) to decrease vol-
ume as specified in paragraph
VOLUME
ADJUSTMENT
. Function identical to
that of the button/knob 10(VOL
PUSH ON/OFF) set on the radio.Press button C(MUTE) to turn
on/off this function that brings the
volume to zero. When this function
is on the display shows “MUTE”
preceded by the current source (e.g.
“TUNER MUTE” when in radio
mode). If in CDC mode (CD
Changer), the display shows: “CD
PAUSE”.
Select Radio,
Cassette,
CD Changer
(“SRC”)
(SRC= Source = source)
Press repeatedly button A(SRC)
to cyclically select Radio, Cassette,
CD Changer (if the Compact Disc
player is fitted). This button function
is identical to that of the button 14
(SRC) set on the radio.Setting Radio, Cassette,
CD Changer (“+” and “–”)
Button D(<>) implements
three different functions according to
the selected operating mode (Radio,
cassette or CD Changer).
Button functions are identical to
the functions of buttons 6(>>) and
15(<<) set on the radio, as con-
cerns the following functions.
1) Radio function: adjust tuning
Press button D(<>) to select
stations in the required band.
2) Cassette function
Press button D(<>) to for-
ward/rewind the tape.
3) CD Changer function
select CD Changer next/
previous track
Press button D(<>) to play
next/previous track on the Compact
Disc you are listening to according
to modes
SELECT OR REPEAT A TRACK.
fig. 2
F0C0096m
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 16

RADIO WITH CASSETTE PLAYER
17 Nero- Testo 603.46.306 Radio Stilo gb
17
FUNCTIONS AND
ADJUSTMENTS
Switching on
The set is switched on pressing the
button/knob 10(VOL PUSH ON/
OFF). Switching on may be connect-
ed to engine starting: turning the igni-
tion key to MAR, the radio turns on;
turning the ignition key to STOPthe
radio turns off. If the radio was on
before the engine was turned off, it
will turn on again automatically the
next time the engine is started.
If the radio is turned on with the
ignition key at STOP, it will turn off
automatically after about 20 minutes.
Turning the radio off
To turn the radio off press button/
knob 10(VOL PUSH ON/ OFF).
Selecting Radio/Cassette/
CD Changer
Pressing briefly and repeatedly the
14(SRC) button it is possible to
select the following functions in
sequence:
– TUNER (Radio)
– TAPE (Cassette) (only if the cas-
sette is inserted)
– CDC (CD Changer) (only if the
CD Changer is connected).
After each change of the listening
source, the display shows the func-
tion selected: TUNER(Radio),
TAPE(Cassette), CDC(CD
Changer).
The functions that cannot be
selected (e.g. “TAPE” when the cas-
sette is not inserted) are automati-
cally disabled.Pause function
If while listening to a cassette or
Compact Disc another function is
selected (e.g. the radio), playing is
stopped and when the cassette or
Compact Disc mode is resumed, it
starts again from the point in which
it was stopped.
If while listening to the radio anoth-
er function is selected, when the
Radio mode is resumed, it is tuned
to the last station selected.
Volume adjustment
Adjust volume through button/knob
10(VOL PUSH ON/OFF).
Turn the knob rightwards to
increase volume and leftwards to
decrease it.
The display shows “VOLUME 00”
… “VOLUME 12”
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 17

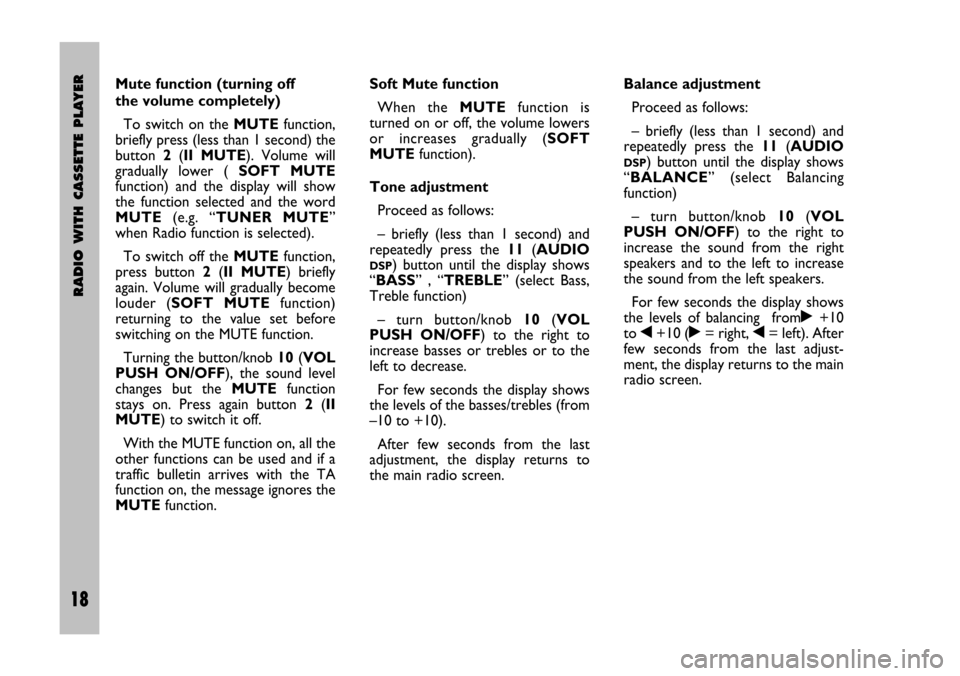

18 Nero Testo 603.46.306 Radio Stilo gb
RADIO WITH CASSETTE PLAYER
18
Soft Mute function
When the MUTEfunction is
turned on or off, the volume lowers
or increases gradually (SOFT
MUTEfunction).
Tone adjustment
Proceed as follows:
– briefly (less than 1 second) and
repeatedly press the 11(AUDIO
DSP) button until the display shows
“BASS” , “TREBLE” (select Bass,
Treble function)
– turn button/knob 10(VOL
PUSH ON/OFF) to the right to
increase basses or trebles or to the
left to decrease.
For few seconds the display shows
the levels of the basses/trebles (from
–10 to +10).
After few seconds from the last
adjustment, the display returns to
the main radio screen. Balance adjustment
Proceed as follows:
– briefly (less than 1 second) and
repeatedly press the 11(AUDIO
DSP) button until the display shows
“BALANCE” (select Balancing
function)
– turn button/knob 10(VOL
PUSH ON/OFF) to the right to
increase the sound from the right
speakers and to the left to increase
the sound from the left speakers.
For few seconds the display shows
the levels of balancing from˙+10
to ¯+10 (˙= right, ¯= left). After
few seconds from the last adjust-
ment, the display returns to the main
radio screen. Mute function (turning off
the volume completely)
To switch on the MUTEfunction,
briefly press (less than 1 second) the
button 2(II MUTE). Volume will
gradually lower ( SOFT MUTE
function) and the display will show
the function selected and the word
MUTE(e.g. “TUNER MUTE”
when Radio function is selected).
To switch off the MUTEfunction,
press button 2(II MUTE) briefly
again. Volume will gradually become
louder (SOFT MUTEfunction)
returning to the value set before
switching on the MUTE function.
Turning the button/knob 10(VOL
PUSH ON/OFF), the sound level
changes but the MUTEfunction
stays on. Press again button 2(II
MUTE) to switch it off.
With the MUTE function on, all the
other functions can be used and if a
traffic bulletin arrives with the TA
function on, the message ignores the
MUTEfunction.
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 18

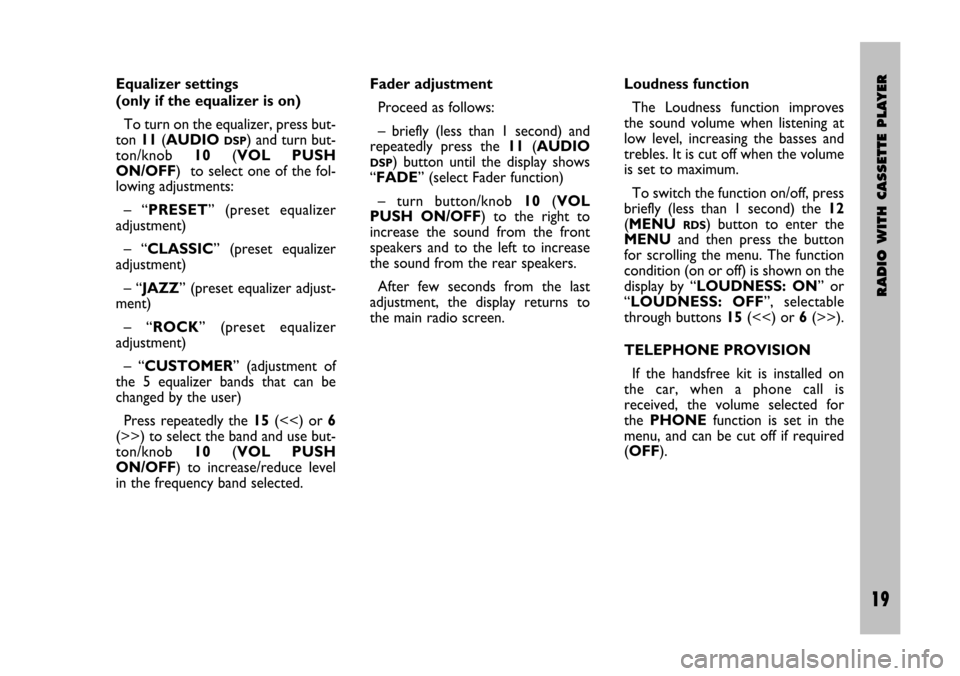

RADIO WITH CASSETTE PLAYER
19 Nero- Testo 603.46.306 Radio Stilo gb
19
Equalizer settings
(only if the equalizer is on)
To turn on the equalizer, press but-
ton 11(AUDIO
DSP) and turn but-
ton/knob10(VOL PUSH
ON/OFF) to select one of the fol-
lowing adjustments:
– “PRESET” (preset equalizer
adjustment)
– “CLASSIC” (preset equalizer
adjustment)
– “JAZZ” (preset equalizer adjust-
ment)
– “ROCK” (preset equalizer
adjustment)
– “CUSTOMER” (adjustment of
the 5 equalizer bands that can be
changed by the user)
Press repeatedly the 15 (<<) or 6
(>>) to select the band and use but-
ton/knob10(VOL PUSH
ON/OFF) to increase/reduce level
in the frequency band selected.Fader adjustment
Proceed as follows:
– briefly (less than 1 second) and
repeatedly press the 11(AUDIO
DSP) button until the display shows
“FADE” (select Fader function)
– turn button/knob 10(VOL
PUSH ON/OFF) to the right to
increase the sound from the front
speakers and to the left to increase
the sound from the rear speakers.
After few seconds from the last
adjustment, the display returns to
the main radio screen.Loudness function
The Loudness function improves
the sound volume when listening at
low level, increasing the basses and
trebles. It is cut off when the volume
is set to maximum.
To switch the function on/off, press
briefly (less than 1 second) the 12
(MENU
RDS) button to enter the
MENUand then press the button
for scrolling the menu. The function
condition (on or off) is shown on the
display by “LOUDNESS: ON” or
“LOUDNESS: OFF”, selectable
through buttons 15(<<) or 6(>>).
TELEPHONE PROVISION
If the handsfree kit is installed on
the car, when a phone call is
received, the volume selected for
the PHONEfunction is set in the
menu, and can be cut off if required
(OFF).
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 19
