FIAT ULYSSE 2008 2.G Owners Manual

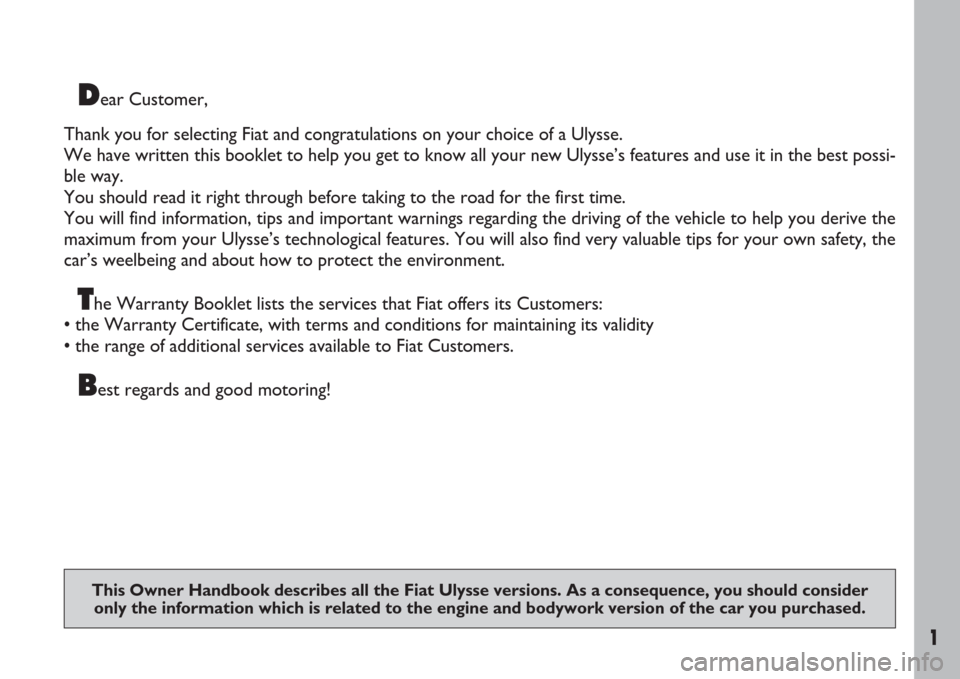

Dear Customer,
Thank you for selecting Fiat and congratulations on your choice of a Ulysse.
We have written this booklet to help you get to know all your new Ulysse’s features and use it in the best possi-
ble way.
You should read it right through before taking to the road for the first time.
You will find information, tips and important warnings regarding the driving of the vehicle to help you derive the
maximum from your Ulysse’s technological features. You will also find very valuable tips for your own safety, the
car’s weelbeing and about how to protect the environment.
The Warranty Booklet lists the services that Fiat offers its Customers:
• the Warranty Certificate, with terms and conditions for maintaining its validity
• the range of additional services available to Fiat Customers.
Best regards and good motoring!
1
This Owner Handbook describes all the Fiat Ulysse versions. As a consequence, you should consider
only the information which is related to the engine and bodywork version of the car you purchased.

2

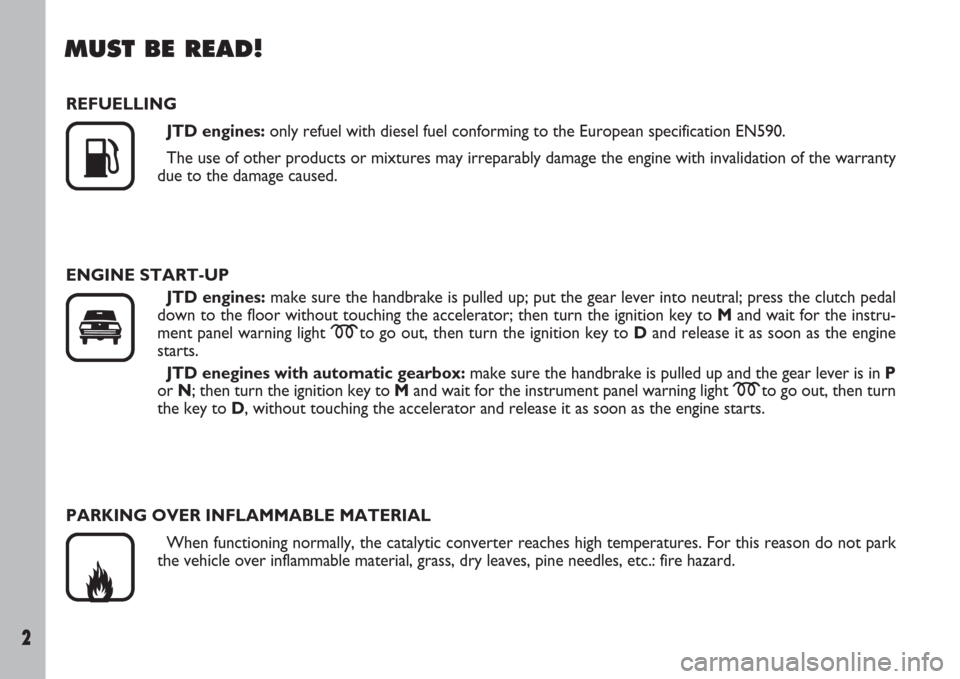

MUST BE READ!
REFUELLING
JTD engines:only refuel with diesel fuel conforming to the European specification EN590.
The use of other products or mixtures may irreparably damage the engine with invalidation of the warranty
due to the damage caused.
ENGINE START-UP
JTD engines:make sure the handbrake is pulled up; put the gear lever into neutral; press the clutch pedal
down to the floor without touching the accelerator; then turn the ignition key to Mand wait for the instru-
ment panel warning light mto go out, then turn the ignition key to Dand release it as soon as the engine
starts.
JTD enegines with automatic gearbox:make sure the handbrake is pulled up and the gear lever is in P
or N; then turn the ignition key to Mand wait for the instrument panel warning light mto go out, then turn
the key to D, without touching the accelerator and release it as soon as the engine starts.
PARKING OVER INFLAMMABLE MATERIAL
When functioning normally, the catalytic converter reaches high temperatures. For this reason do not park
the vehicle over inflammable material, grass, dry leaves, pine needles, etc.: fire hazard.
K


3

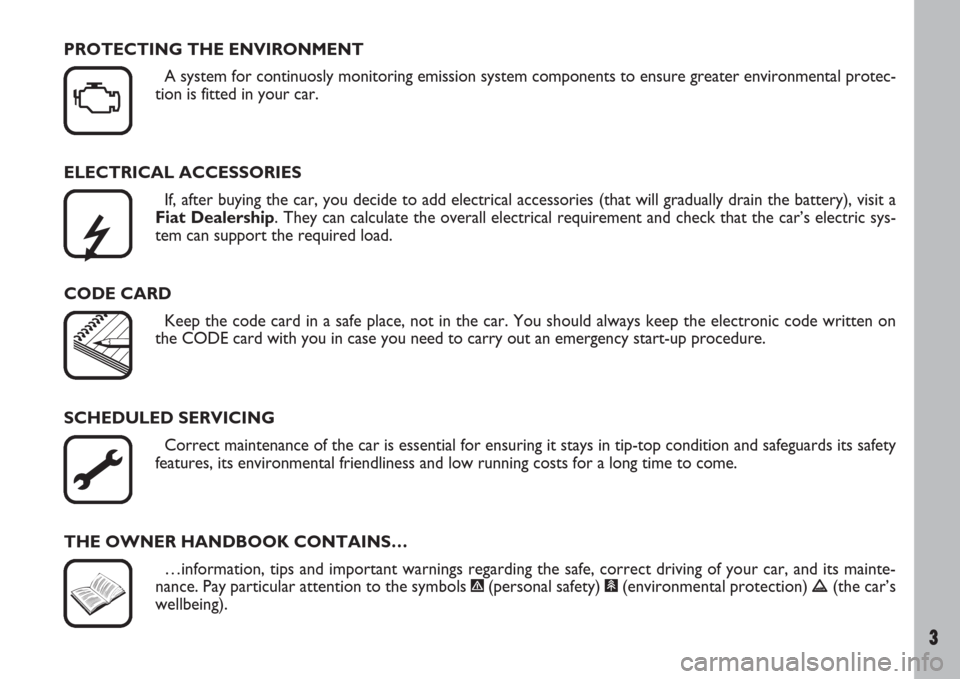

ELECTRICAL ACCESSORIES
If, after buying the car, you decide to add electrical accessories (that will gradually drain the battery), visit a
Fiat Dealership. They can calculate the overall electrical requirement and check that the car’s electric sys-
tem can support the required load.

CODE CARD
Keep the code card in a safe place, not in the car. You should always keep the electronic code written on
the CODE card with you in case you need to carry out an emergency start-up procedure.
SCHEDULED SERVICING
Correct maintenance of the car is essential for ensuring it stays in tip-top condition and safeguards its safety
features, its environmental friendliness and low running costs for a long time to come.
THE OWNER HANDBOOK CONTAINS…
…information, tips and important warnings regarding the safe, correct driving of your car, and its mainte-
nance. Pay particular attention to the symbols
"(personal safety) #(environmental protection) â(the car’s
wellbeing).
PROTECTING THE ENVIRONMENT
A system for continuosly monitoring emission system components to ensure greater environmental protec-
tion is fitted in your car.
U

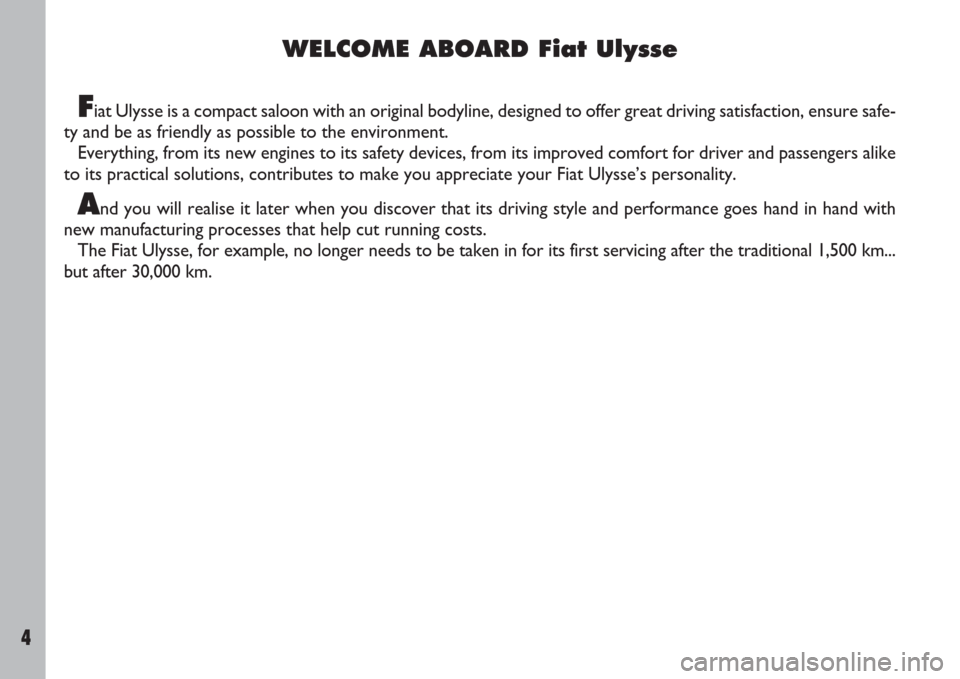

WELCOME ABOARD Fiat Ulysse
4
Fiat Ulysse is a compact saloon with an original bodyline, designed to offer great driving satisfaction, ensure safe-
ty and be as friendly as possible to the environment.
Everything, from its new engines to its safety devices, from its improved comfort for driver and passengers alike
to its practical solutions, contributes to make you appreciate your Fiat Ulysse’s personality.
And you will realise it later when you discover that its driving style and performance goes hand in hand with
new manufacturing processes that help cut running costs.
The Fiat Ulysse, for example, no longer needs to be taken in for its first servicing after the traditional 1,500 km...
but after 30,000 km.

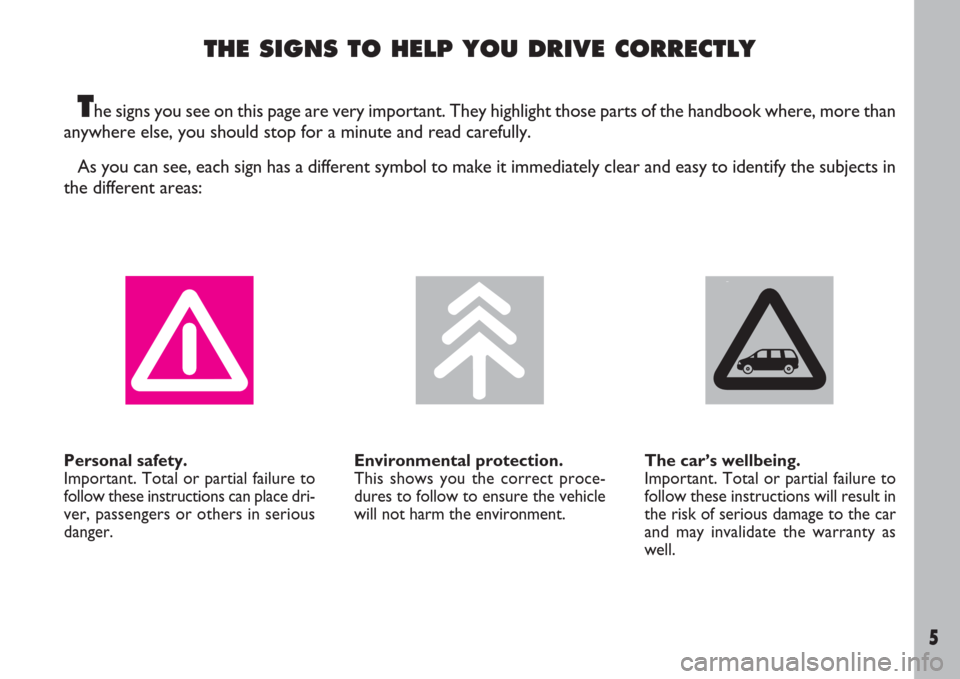

THE SIGNS TO HELP YOU DRIVE CORRECTLY
The signs you see on this page are very important. They highlight those parts of the handbook where, more than
anywhere else, you should stop for a minute and read carefully.
As you can see, each sign has a different symbol to make it immediately clear and easy to identify the subjects in
the different areas:
5
Personal safety.
Important. Total or partial failure to
follow these instructions can place dri-
ver, passengers or others in serious
danger.Environmental protection.
This shows you the correct proce-
dures to follow to ensure the vehicle
will not harm the environment.The car’s wellbeing.
Important. Total or partial failure to
follow these instructions will result in
the risk of serious damage to the car
and may invalidate the warranty as
well.

6

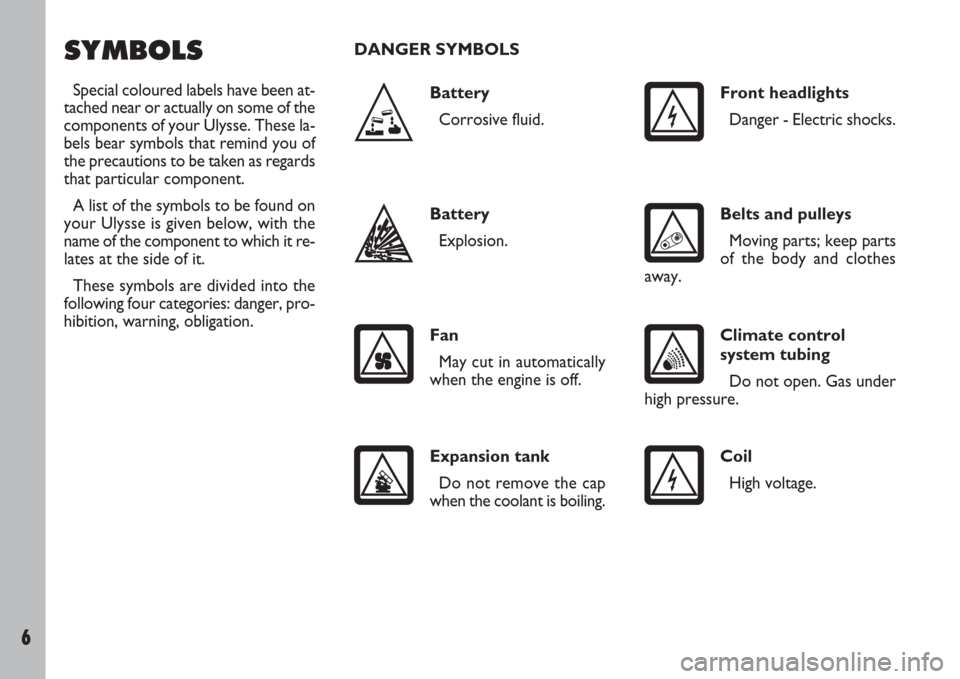

SYMBOLS
Special coloured labels have been at-
tached near or actually on some of the
components of your Ulysse. These la-
bels bear symbols that remind you of
the precautions to be taken as regards
that particular component.
A list of the symbols to be found on
your Ulysse is given below, with the
name of the component to which it re-
lates at the side of it.
These symbols are divided into the
following four categories: danger, pro-
hibition, warning, obligation.DANGER SYMBOLS
Front headlights
Danger - Electric shocks.
Belts and pulleys
Moving parts; keep parts
of the body and clothes
away.
Climate control
system tubing
Do not open. Gas under
high pressure. Battery
Corrosive fluid.
Battery
Explosion.
Fan
May cut in automatically
when the engine is off.
Expansion tank
Do not remove the cap
when the coolant is boiling.
Coil
High voltage.

7

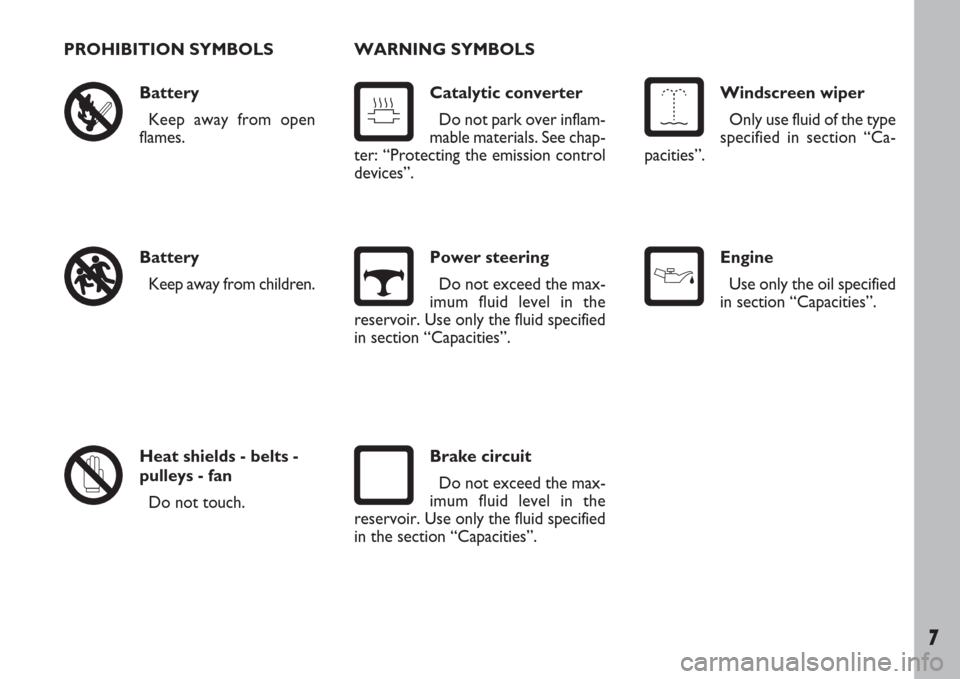

PROHIBITION SYMBOLS
Battery
Keep away from open
flames.
Battery
Keep away from children.
Heat shields - belts -
pulleys - fan
Do not touch.WARNING SYMBOLS
Catalytic converter
Do not park over inflam-
mable materials. See chap-
ter: “Protecting the emission control
devices”.
Power steering
Do not exceed the max-
imum fluid level in the
reservoir. Use only the fluid specified
in section “Capacities”.
Brake circuit
Do not exceed the max-
imum fluid level in the
reservoir. Use only the fluid specified
in the section “Capacities”.
Windscreen wiper
Only use fluid of the type
specified in section “Ca-
pacities”.
Engine
Use only the oil specified
in section “Capacities”.

8

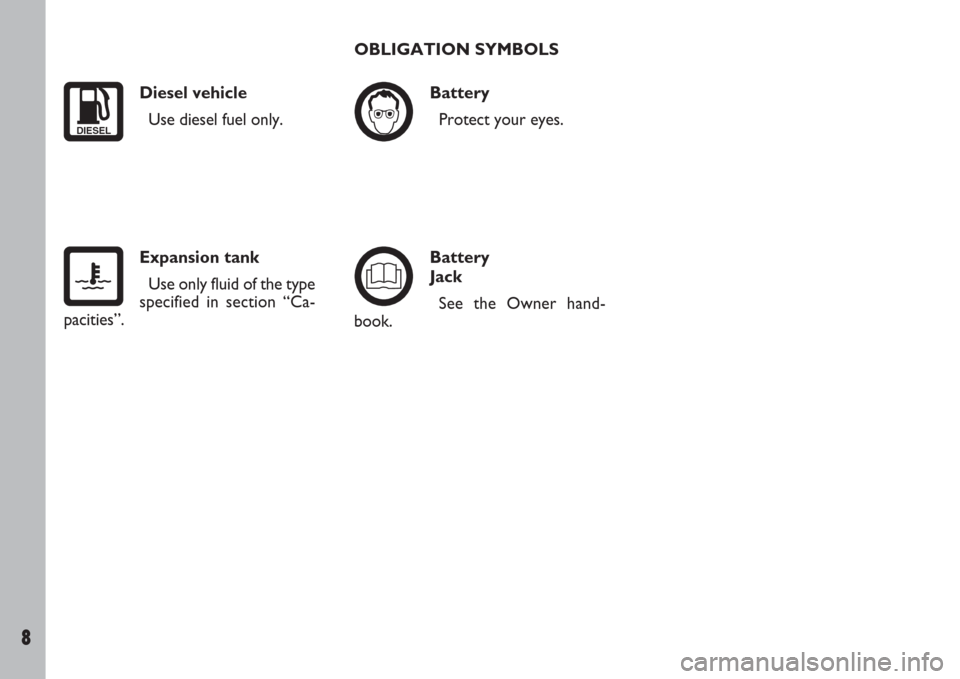

Diesel vehicle
Use diesel fuel only.
Expansion tank
Use only fluid of the type
specified in section “Ca-
pacities”.
DIESEL
OBLIGATION SYMBOLS
Battery
Protect your eyes.
Battery
Jack
See the Owner hand-
book.

GETTING TO KNOW YOUR CAR
9
G G
E E
T T
T T
I I
N N
G G
T T
O O
K K
N N
O O
W W
Y Y
O O
U U
R R
C C
A A
R R

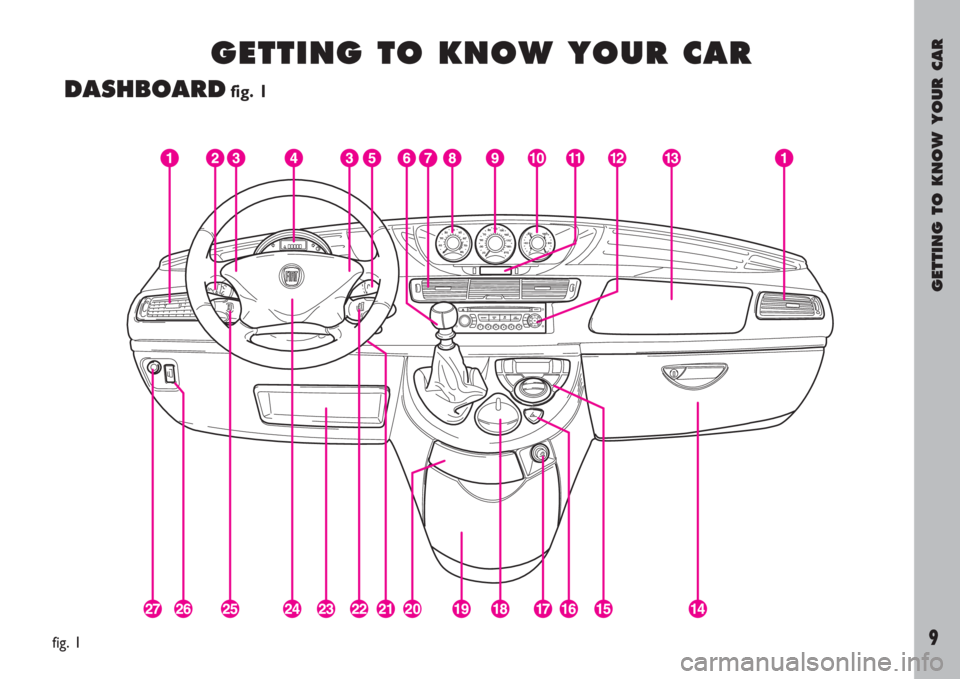

DASHBOARDfig. 1
fig. 1
