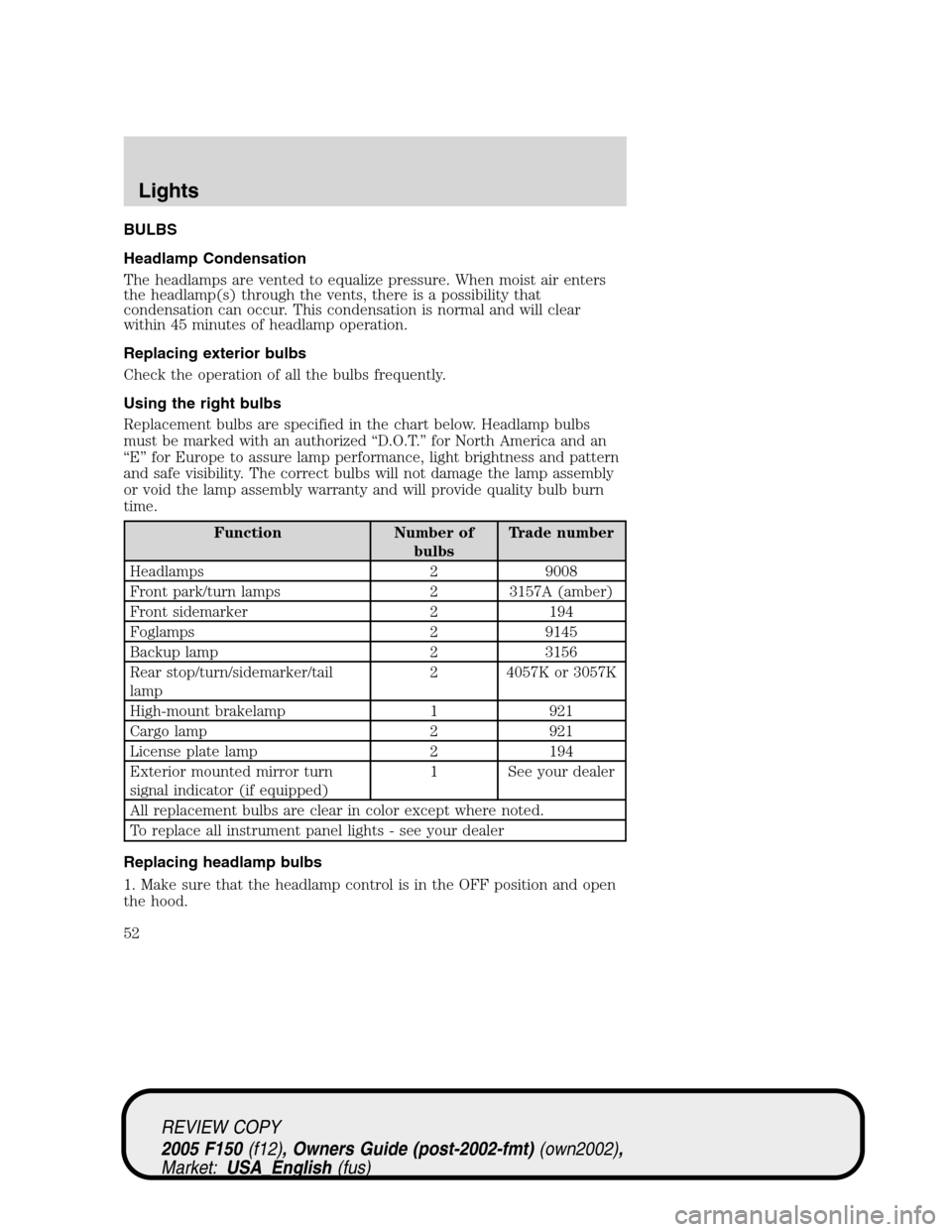

Page 52 of 312
BULBS
Headlamp Condensation
The headlamps are vented to equalize pressure. When moist air enters
the headlamp(s) through the vents, there is a possibility that
condensation can occur. This condensation is normal and will clear
within 45 minutes of headlamp operation.
Replacing exterior bulbs
Check the operation of all the bulbs frequently.
Using the right bulbs
Replacement bulbs are specified in the chart below. Headlamp bulbs
must be marked with an authorized“D.O.T.”for North America and an
“E”for Europe to assure lamp performance, light brightness and pattern
and safe visibility. The correct bulbs will not damage the lamp assembly
or void the lamp assembly warranty and will provide quality bulb burn
time.
Function Number of
bulbsTrade number
Headlamps 2 9008
Front park/turn lamps 2 3157A (amber)
Front sidemarker 2 194
Foglamps 2 9145
Backup lamp 2 3156
Rear stop/turn/sidemarker/tail
lamp2 4057K or 3057K
High-mount brakelamp 1 921
Cargo lamp 2 921
License plate lamp 2 194
Exterior mounted mirror turn
signal indicator (if equipped)1 See your dealer
All replacement bulbs are clear in color except where noted.
To replace all instrument panel lights - see your dealer
Replacing headlamp bulbs
1. Make sure that the headlamp control is in the OFF position and open
the hood.
REVIEW COPY
2005 F150(f12), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Lights
52

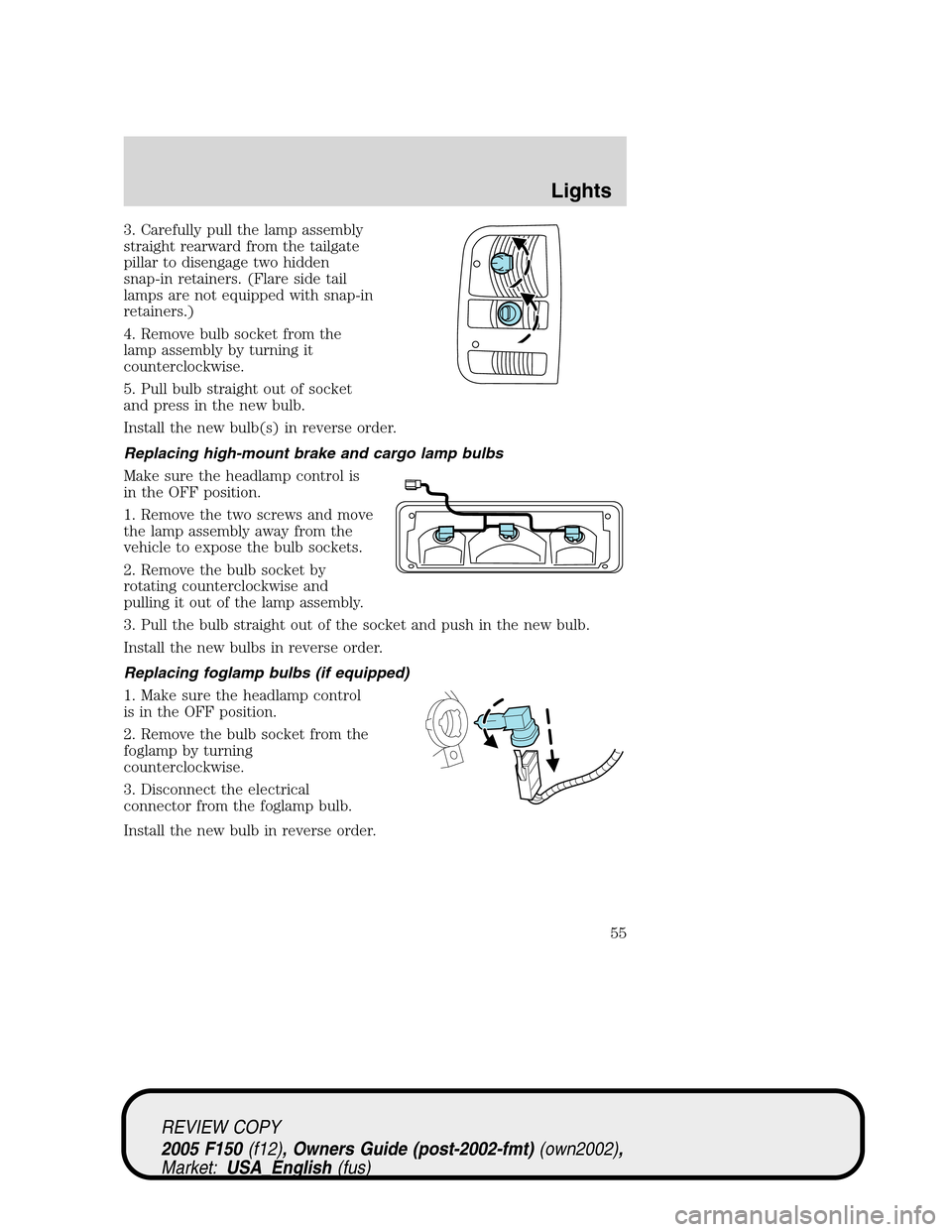

Page 55 of 312
3. Carefully pull the lamp assembly
straight rearward from the tailgate
pillar to disengage two hidden
snap-in retainers. (Flare side tail
lamps are not equipped with snap-in
retainers.)
4. Remove bulb socket from the
lamp assembly by turning it
counterclockwise.
5. Pull bulb straight out of socket
and press in the new bulb.
Install the new bulb(s) in reverse order.
Replacing high-mount brake and cargo lamp bulbs
Make sure the headlamp control is
in the OFF position.
1. Remove the two screws and move
the lamp assembly away from the
vehicle to expose the bulb sockets.
2. Remove the bulb socket by
rotating counterclockwise and
pulling it out of the lamp assembly.
3. Pull the bulb straight out of the socket and push in the new bulb.
Install the new bulbs in reverse order.
Replacing foglamp bulbs (if equipped)
1. Make sure the headlamp control
is in the OFF position.
2. Remove the bulb socket from the
foglamp by turning
counterclockwise.
3. Disconnect the electrical
connector from the foglamp bulb.
Install the new bulb in reverse order.
REVIEW COPY
2005 F150(f12), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Lights
55

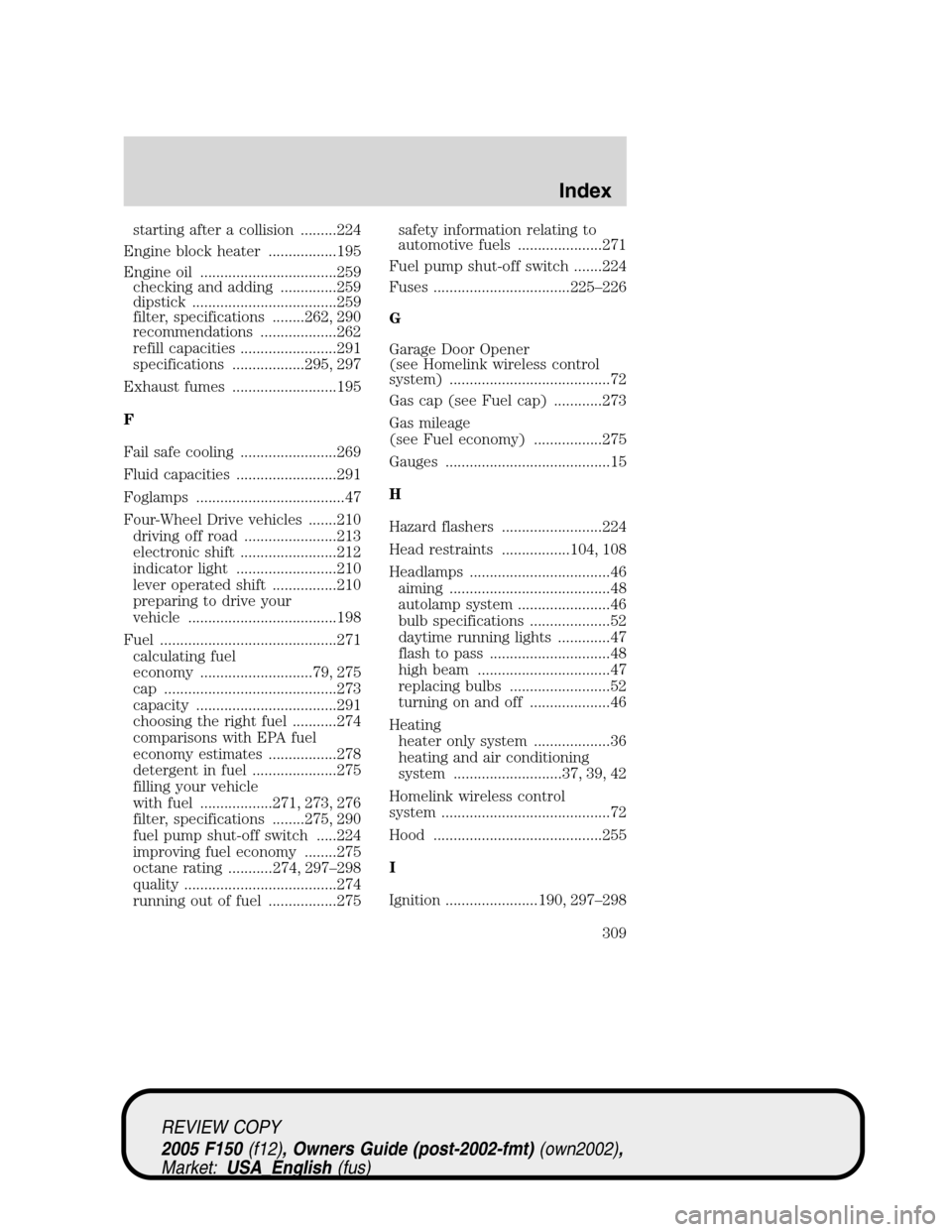

Page 309 of 312
starting after a collision .........224
Engine block heater .................195
Engine oil ..................................259
checking and adding ..............259
dipstick ....................................259
filter, specifications ........262, 290
recommendations ...................262
refill capacities ........................291
specifications ..................295, 297
Exhaust fumes ..........................195
F
Fail safe cooling ........................269
Fluid capacities .........................291
Foglamps .....................................47
Four-Wheel Drive vehicles .......210
driving off road .......................213
electronic shift ........................212
indicator light .........................210
lever operated shift ................210
preparing to drive your
vehicle .....................................198
Fuel ............................................271
calculating fuel
economy ............................79, 275
cap ...........................................273
capacity ...................................291
choosing the right fuel ...........274
comparisons with EPA fuel
economy estimates .................278
detergent in fuel .....................275
filling your vehicle
with fuel ..................271, 273, 276
filter, specifications ........275, 290
fuel pump shut-off switch .....224
improving fuel economy ........275
octane rating ...........274, 297–298
quality ......................................274
running out of fuel .................275safety information relating to
automotive fuels .....................271
Fuel pump shut-off switch .......224
Fuses ..................................225–226
G
Garage Door Opener
(see Homelink wireless control
system) ........................................72
Gas cap (see Fuel cap) ............273
Gas mileage
(see Fuel economy) .................275
Gauges .........................................15
H
Hazard flashers .........................224
Head restraints .................104, 108
Headlamps ...................................46
aiming ........................................48
autolamp system .......................46
bulb specifications ....................52
daytime running lights .............47
flash to pass ..............................48
high beam .................................47
replacing bulbs .........................52
turning on and off ....................46
Heating
heater only system ...................36
heating and air conditioning
system ...........................37, 39, 42
Homelink wireless control
system ..........................................72
Hood ..........................................255
I
Ignition .......................190, 297–298
REVIEW COPY
2005 F150(f12), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Index
309

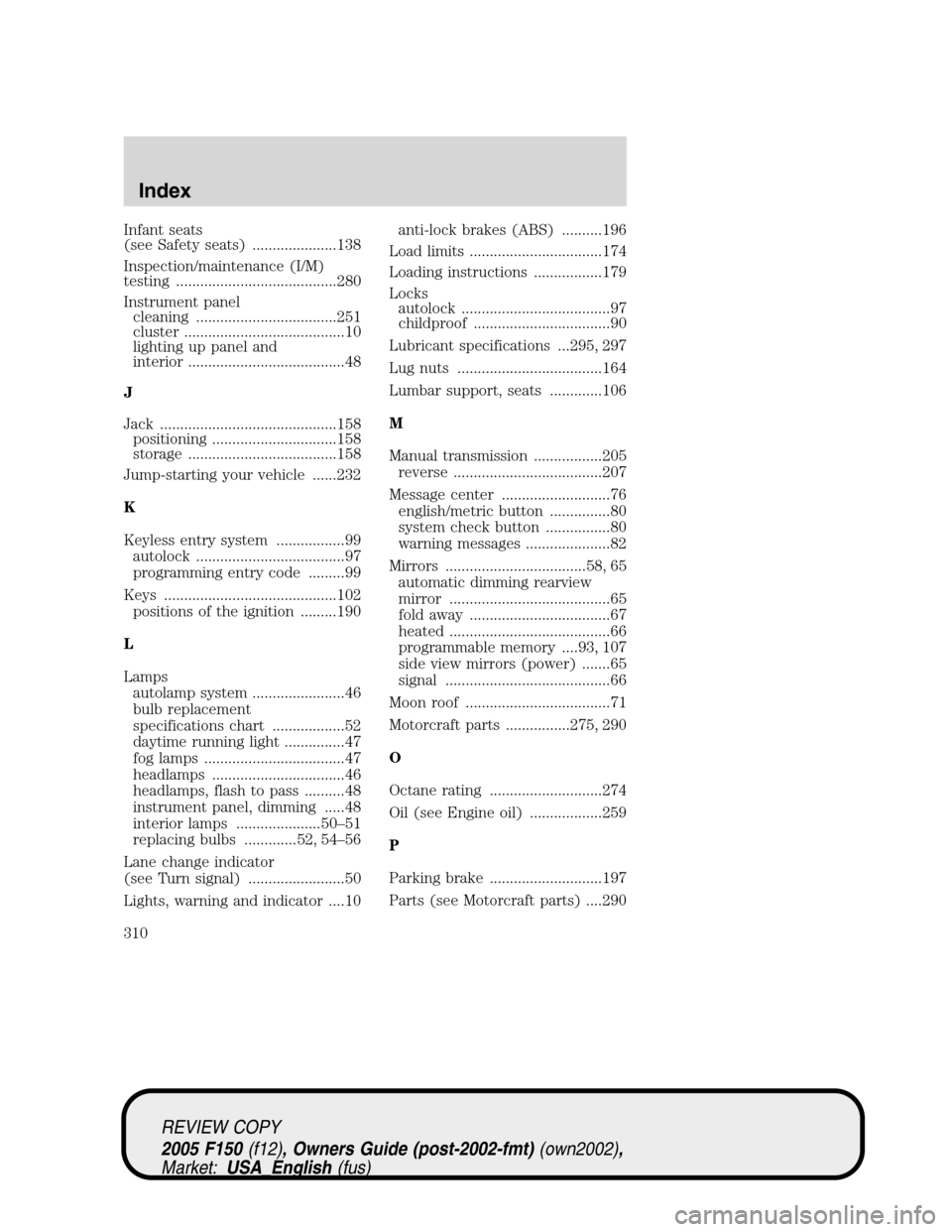

Page 310 of 312
Infant seats
(see Safety seats) .....................138
Inspection/maintenance (I/M)
testing ........................................280
Instrument panel
cleaning ...................................251
cluster ........................................10
lighting up panel and
interior .......................................48
J
Jack ............................................158
positioning ...............................158
storage .....................................158
Jump-starting your vehicle ......232
K
Keyless entry system .................99
autolock .....................................97
programming entry code .........99
Keys ...........................................102
positions of the ignition .........190
L
Lamps
autolamp system .......................46
bulb replacement
specifications chart ..................52
daytime running light ...............47
fog lamps ...................................47
headlamps .................................46
headlamps, flash to pass ..........48
instrument panel, dimming .....48
interior lamps .....................50–51
replacing bulbs .............52, 54–56
Lane change indicator
(see Turn signal) ........................50
Lights, warning and indicator ....10anti-lock brakes (ABS) ..........196
Load limits .................................174
Loading instructions .................179
Locks
autolock .....................................97
childproof ..................................90
Lubricant specifications ...295, 297
Lug nuts ....................................164
Lumbar support, seats .............106
M
Manual transmission .................205
reverse .....................................207
Message center ...........................76
english/metric button ...............80
system check button ................80
warning messages .....................82
Mirrors ...................................58, 65
automatic dimming rearview
mirror ........................................65
fold away ...................................67
heated ........................................66
programmable memory ....93, 107
side view mirrors (power) .......65
signal .........................................66
Moon roof ....................................71
Motorcraft parts ................275, 290
O
Octane rating ............................274
Oil (see Engine oil) ..................259
P
Parking brake ............................197
Parts (see Motorcraft parts) ....290
REVIEW COPY
2005 F150(f12), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Index
310
