HEATER ONLY SYSTEM
1.Fan speed adjustment:Controls
the volume of air circulated in the
vehicle.
2.Temperature selection:
Controls the temperature of the
airflow in the vehicle.
3.Air flow selections:Controls the direction of the airflow in the
vehicle. See the following for a brief description on each control.
:Distributes outside air through the instrument panel vents.
O (OFF):Outside air is shut out and the fan will not operate.
:Distributes outside air through the instrument panel vents and the
floor vents.
:Distributes outside air through the floor vents.
:Distributes outside air through the windshield defroster vents and
floor vents.
:Distributes outside air through the windshield defroster vents.
Operating tips
•To reduce fog build up on the windshield during humid weather, place
the air flow selector in the
position.
•To reduce humidity build up inside the vehicle during cold or warm
weather, do not drive with the air flow selector in the OFF position.
•Under normal weather conditions, do not leave the air flow selector in
OFF when the vehicle is parked. This allows the vehicle to“breathe”
using the outside air inlet vents.
•Do not put objects under the front seats that will interfere with the air
flow to the back seats.
•Remove any snow, ice or leaves from the air intake area at the base of
the windshield.
To aid in side window defogging/demisting in cold weather:
1. Select
2. Set the temperature control to full heat
3. Set the fan speed to HI
4. Direct the outer instrument panel vents towards the side windows
Climate controls
Climate controls
44
Page 56 of 272
Window lock (if equipped)
The window lock feature allows only
the driver to operate the power
windows.
To lock out all the window controls
except for the driver’s press the left
side of the control. Press the right side to restore the window controls.
MIRRORS
With the doors closed and the seat
adjusted for proper comfort, move
the mirrors to maximize rear
viewing area by adjusting the
western mirrors left or right as
required.
Adjust the auxiliary convex mirrors.
Convex mirrors are a ball-stud
design for precise adjustment to
maximize viewing area.
Driver controls
56

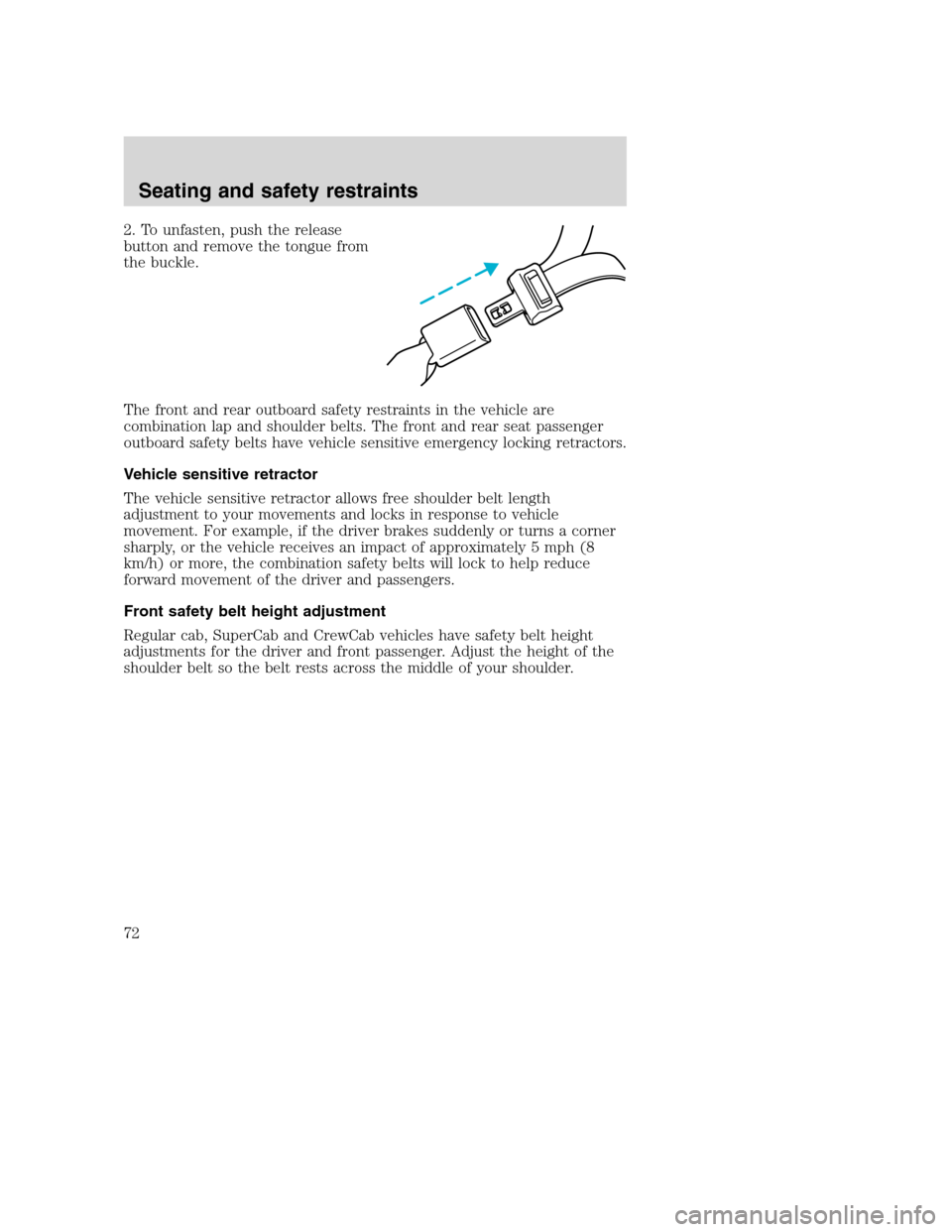

Page 72 of 272
2. To unfasten, push the release
button and remove the tongue from
the buckle.
The front and rear outboard safety restraints in the vehicle are
combination lap and shoulder belts. The front and rear seat passenger
outboard safety belts have vehicle sensitive emergency locking retractors.
Vehicle sensitive retractor
The vehicle sensitive retractor allows free shoulder belt length
adjustment to your movements and locks in response to vehicle
movement. For example, if the driver brakes suddenly or turns a corner
sharply, or the vehicle receives an impact of approximately 5 mph (8
km/h) or more, the combination safety belts will lock to help reduce
forward movement of the driver and passengers.
Front safety belt height adjustment
Regular cab, SuperCab and CrewCab vehicles have safety belt height
adjustments for the driver and front passenger. Adjust the height of the
shoulder belt so the belt rests across the middle of your shoulder.
Seating and safety restraints
72
Page 263 of 272
A
Air conditioning ..........................45
manual heating and air
conditioning system .................45
Air suspension ...........................115
Anti-lock brake system
(see Brakes) ..............................113
Audio system
(see Radio) ................30, 32, 35, 39
Automatic transmission ............118
fluid, adding ............................185
fluid, checking ........................185
fluid, refill capacities ..............223
fluid, specification ..................213
Auxiliary power point .................54
Axle ............................130, 164, 204
lubricant specifications ..........213
refill capacities ........................222
B
Battery .......................................180
charging system warning
light ............................................21
jumping a disabled battery ....147
voltage gauge ............................26
BeltMinder ...................................75
Brakes ............................93, 99, 164
adjustment ..............................167
anti-lock ...........................113–114
anti-lock brake system
(ABS) warning light .........21, 114
brake warning light ..................21
fluid, checking and adding ...167,
179
fluid, specifications .................213
parking ......................95, 102, 168
Bulbs ............................................49C
Cassette tape player ...................39
Catalytic converter
(see Emission control) .............188
CD-single premium .........30, 32, 35
Cell phone use ............................54
Child safety restraints ................80
child safety belts ......................80
Child safety seats ........................83
attaching with tether straps ....86
in front seat ..............................84
in rear seat ................................84
tether anchorage hardware .....86
Child safety seats - booster
seats .............................................80
Cleaning your vehicle
chrome and aluminum
parts .........................................159
engine compartment ..............159
exterior ....................................161
instrument panel ....................160
interior .....................................160
interior trim ............................160
plastic parts ............................160
washing ....................................158
waxing .....................................158
wheels ......................................159
Climate control (see Air
conditioning or Heating) ......44–45
Clutch ................................122, 184
adjusting ..................................184
fluid ..........................................184
operation while driving ..........122
specifications ..........................213
Controls
power seat .................................68
2005 F650/750(f67)
Supplement
USA English(fus)
Index
263
